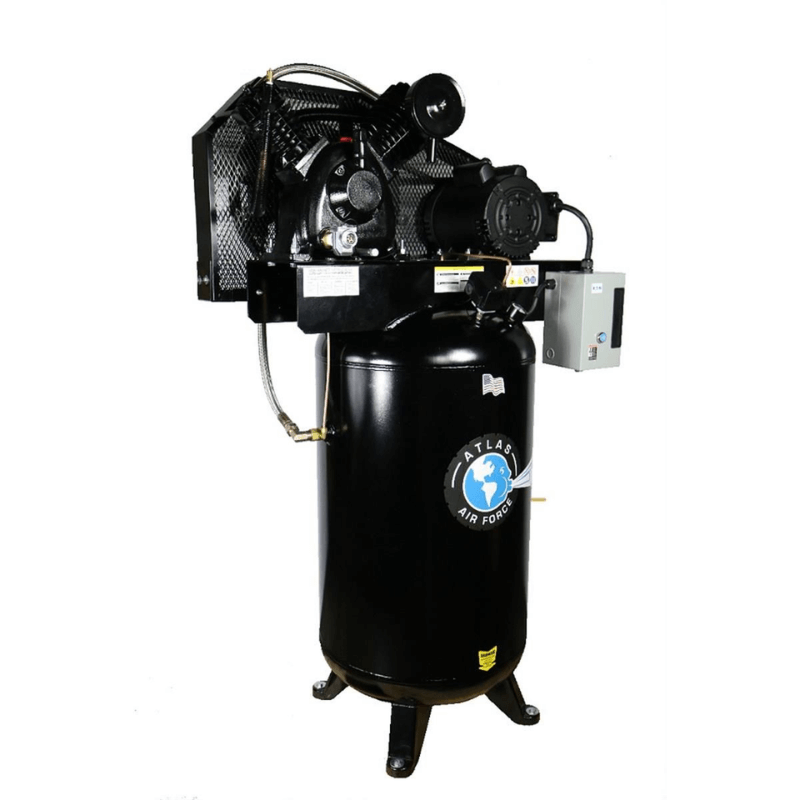

AF8P 5HP 80 Gallon Air Compressor with Plus Package by Atlas

The Atlas Air Force AF8P is a top-tier, commercial-grade air compressor designed for demanding daily use in professional auto shops, fabrication facilities, and industrial environments. With a low-RPM 5HP motor and a powerful 2-cylinder, 2-stage pump, the AF8P delivers consistent performance with minimal noise. Operating between 145–175 PSI, it provides up to 20 CFM at 145 PSI—ideal for powering multiple pneumatic tools simultaneously. Built around a durable, USA-made 80-gallon vertical tank, this compressor is engineered for long-term productivity and reliability.

What sets the AF8P apart is the integrated Plus Package, which includes high-end upgrades for superior functionality and lifespan. These enhancements include an automatic low oil monitor, automatic tank drain, and an air-cooled aftercooler, all working together to reduce maintenance and ensure cleaner, drier air output. Also included are a magnetic starter, compressor oil drain extension, finned tank inlet tube, and heavy-duty metal belt guard. Whether you're running a busy 3–4 person shop or planning for future growth, the AF8P offers exceptional value, performance, and peace of mind.

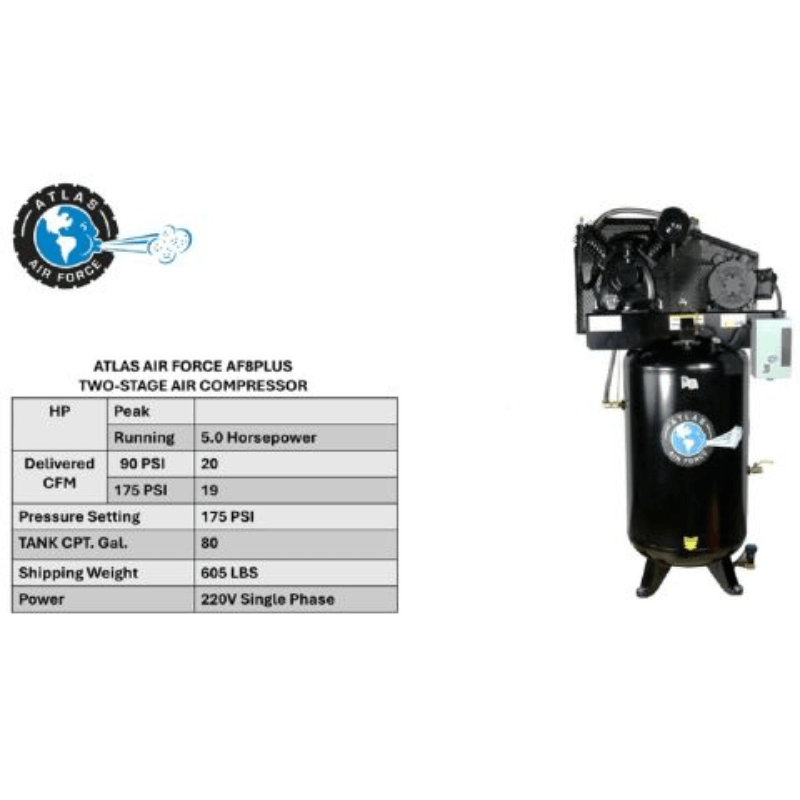

Air Compressor AF8P Specifications:

  • Pump Type: 2 Cylinder, 2-Stage Cast Iron

  • Motor Power: 5 Horsepower (Heavy Duty, Low RPM)

  • Tank Capacity: 80 Gallons (Vertical, Made in the USA)

  • Air Output:

    • 145 PSI: 20 CFM

    • 175 PSI: 19 CFM

  • Pressure Range: 145–175 PSI

  • Air Outlet Size: 3/4" NPT

  • Electrical Requirements: 220V, 1 Phase, 30 Amp Breaker, #10 Wire

  • Motor Voltage: 220V, 1PH

  • Overall Dimensions: 40" L x 24" W x 71" H

  • Shipping Weight: Approx. 485 lbs.

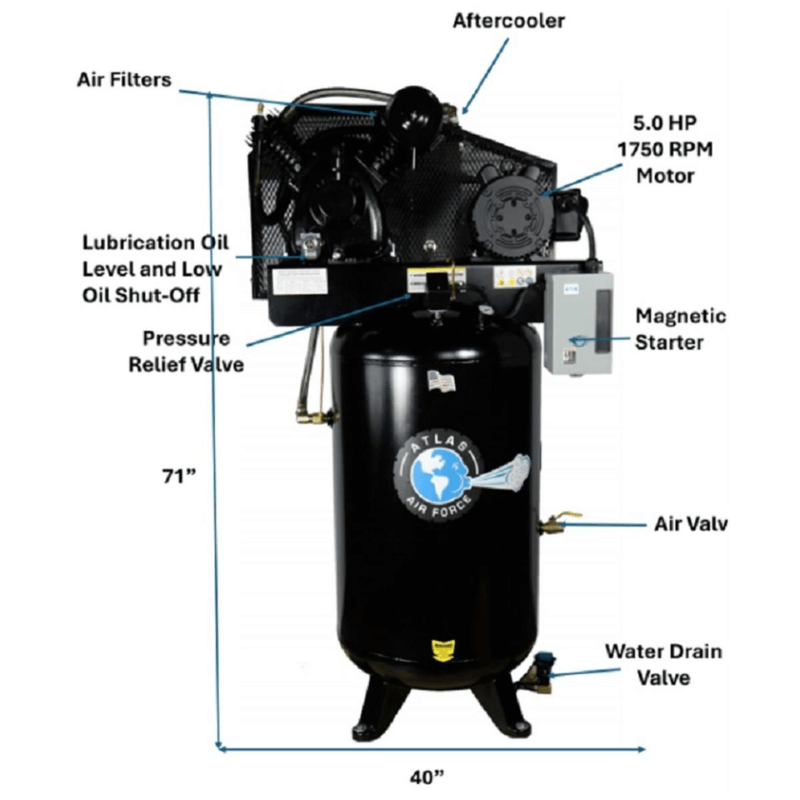

AF8P Air Compressor Features:

  • Magnetic starter included for controlled electric input and improved longevity

  • Industrial-grade Hubbell pressure switch and EATON starter for reliability

  • Compressor oil drain extension tube for easy maintenance

  • Hands-free tank drain extension for added convenience

  • Finned tank inlet tube reduces internal moisture buildup

  • Heavy-duty metal belt guard for safety and durability

  • Vibro-isolation pads reduce vibration and noise

  • Extremely quiet operation suitable for indoor shop use

  • Designed for daily commercial use in busy or growing shops

  • Includes the Plus Package with:

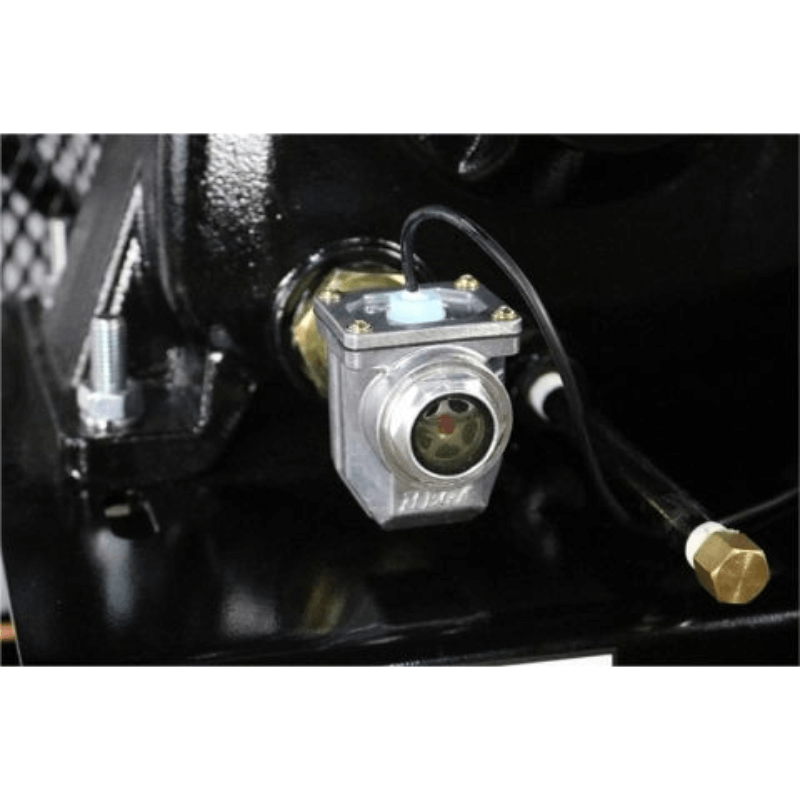

    • Automatic low oil monitor

    • Automatic tank drain

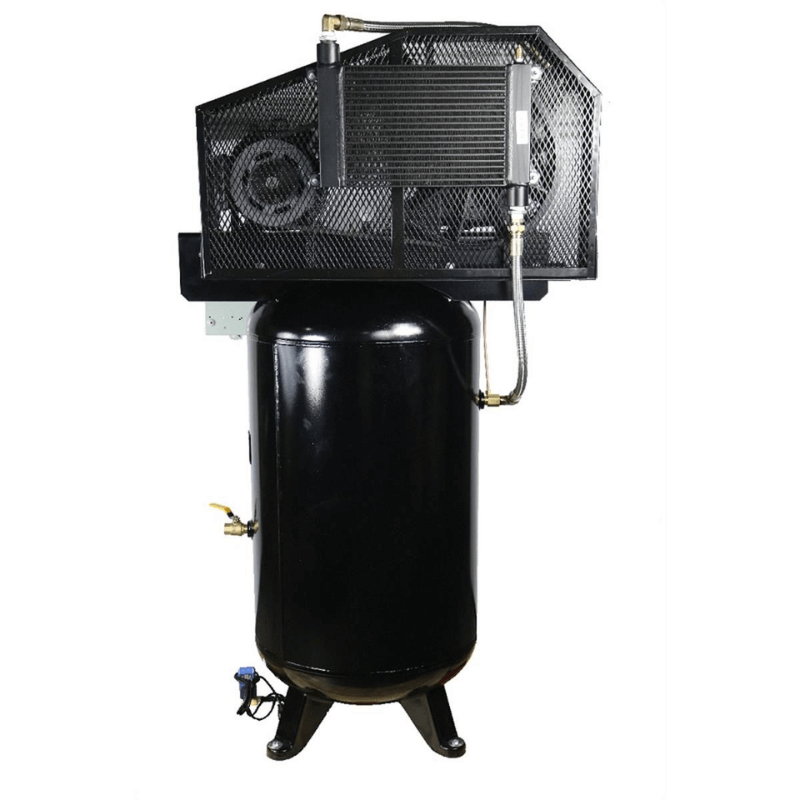

    • Air-cooled aftercooler

  • Backed by a 1-year parts-only warranty
