Atlas AF9 7.5HP 120 Gallon Air Compressor

SKU ATEMPAF9-120H
$4,649.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Typically Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

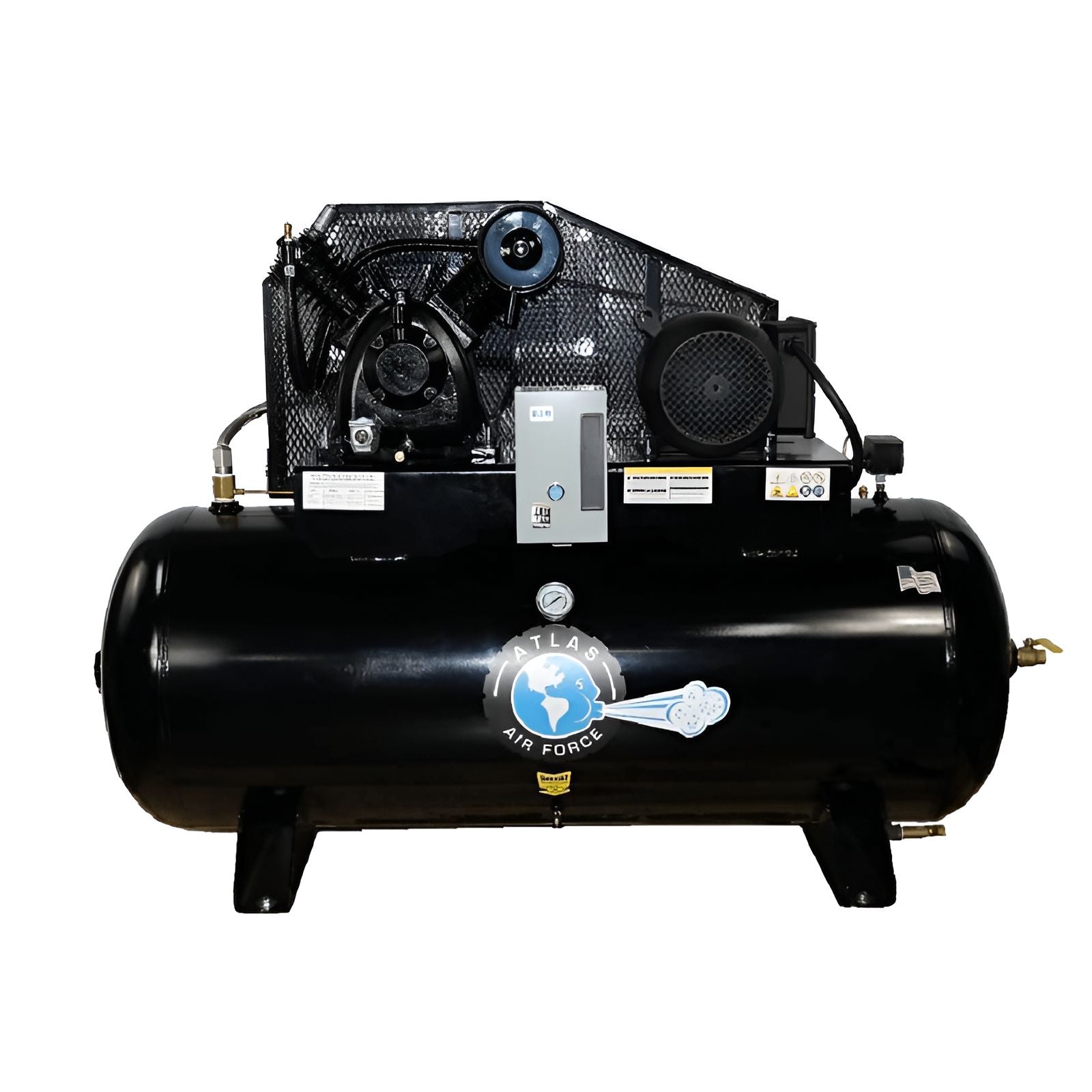

AF9 7.5HP 120 Gallon Air Compressor by Atlas

The Atlas Air Force AF9 with a 120-gallon tank is a powerful, commercial-grade air compressor designed to support the needs of large-scale auto shops and industrial environments. Featuring a 7.5 horsepower motor operating at a low 1750 RPM, this compressor provides superior airflow while maintaining quiet operation. Its USA-made 120-gallon vertical tank allows for longer run times between cycles, increasing efficiency in high-demand applications. With a working pressure range of 145–175 PSI and delivered CFM of 23 at 90 PSI and 22 at 175 PSI, the AF9 is engineered to keep your operations running smoothly and reliably.

Built for maximum durability and ease of use, the Atlas AF9 includes a 2-cylinder, 2-stage pump, magnetic starter, and industrial-grade Hubbell pressure switch paired with an Eaton starter for premium control and protection. Maintenance is made simple with thoughtful design features like a hands-free tank drain extension, oil drain tube, and finned tank inlet tube to reduce moisture. The heavy-duty metal belt guard and included vibro-isolation pads add safety and stability. Whether you're running pneumatic tools all day or preparing your facility for future expansion, the Atlas AF9 is built to deliver lasting performance day in and day out.

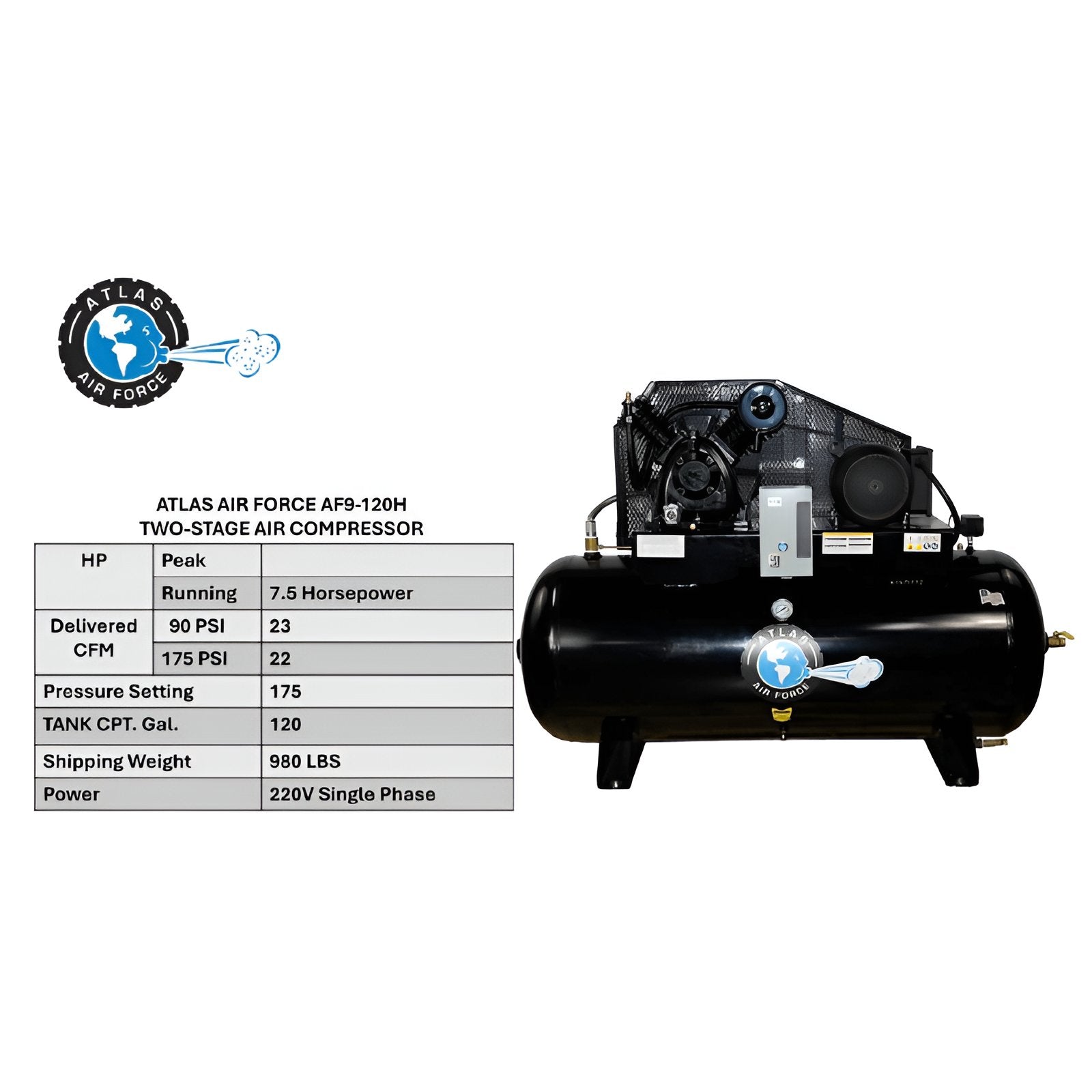

Air Compressor AF9 7.5HP 120 Specifications:

  • Motor Running Power: 7.5 Horsepower

  • Motor Speed: 1750 RPM

  • Voltage: 220V, 1 Phase

  • Breaker Requirement: 40 Amp

  • Wiring: #8 wire required

  • Air Output Pressure: 145 – 175 PSI

  • Delivered CFM at 90 PSI: 23

  • Delivered CFM at 175 PSI: 22

  • Tank Capacity: 120 Gallons (Vertical, Made in the USA)

  • Air Outlet Size: 3/4" NPT

  • Compressor Pump: 2-Cylinder, 2-Stage

  • Overall Dimensions: L 72" x W 32" x H 52"

AF9 7.5HP 120 Air Compressor Features:

  • Built for commercial and industrial-grade use

  • Quiet operation with low-RPM motor

  • 2-cylinder, 2-stage pump for optimal performance

  • Magnetic starter included for enhanced unit longevity

  • Durable 120-gallon USA-made steel tank

  • Industrial Hubbell pressure switch and Eaton starter

  • Finned tank inlet tube reduces moisture build-up

  • Hands-free tank drain extension for easier maintenance

  • Compressor oil drain extension tube for convenient oil changes

  • Heavy-duty metal belt guard for added protection

  • Set of vibro-isolation pads included to reduce vibration

  • Belt-driven design ensures reliable, long-term use

  • Backed by a 1-year parts-only warranty

AF9 7.5HP 120 Manual

Not Available

Warehouse Pickup locations:

  • Atlanta, GA
  • Dallas, TX
  • Indianapolis, IN
  • Phoenix, AZ
  • Somerset, NJ
  • Fresno, CA

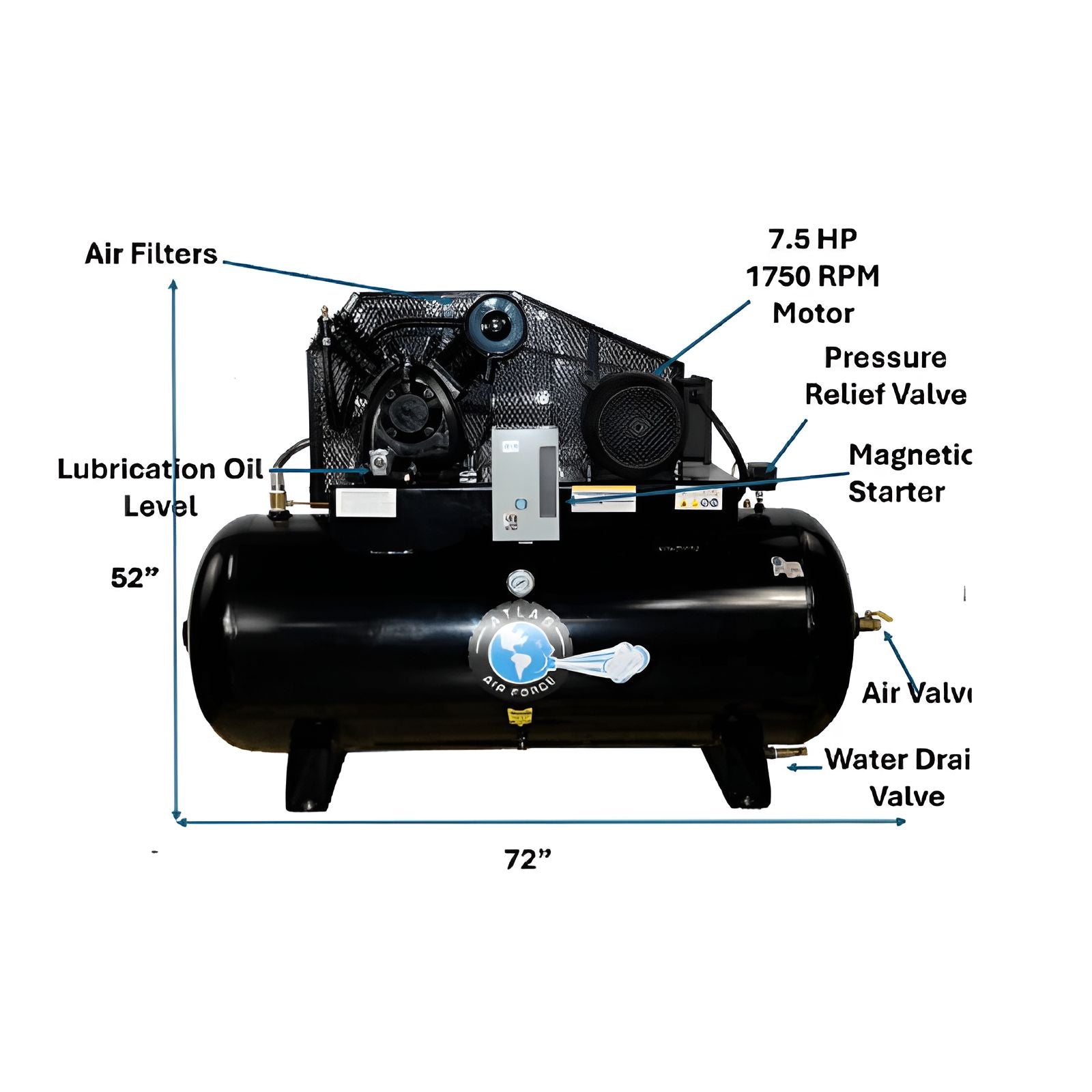

AF9 7.5HP 120 Gallon Air Compressor Diagram
