Atlas AF9 7.5HP 80 Gallon Air Compressor

SKU ATEMPAF9
$3,349.00
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

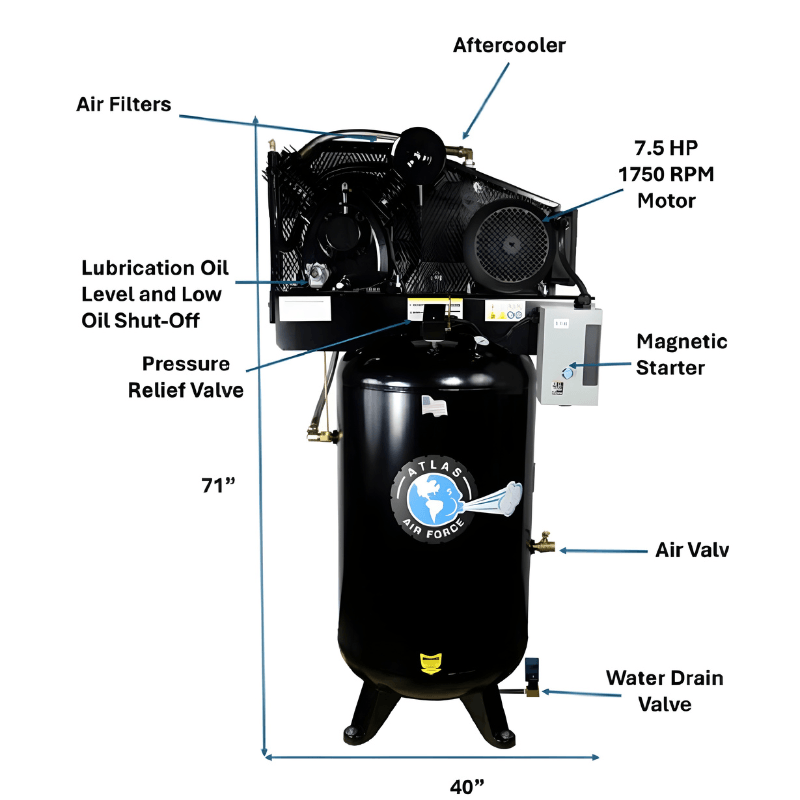

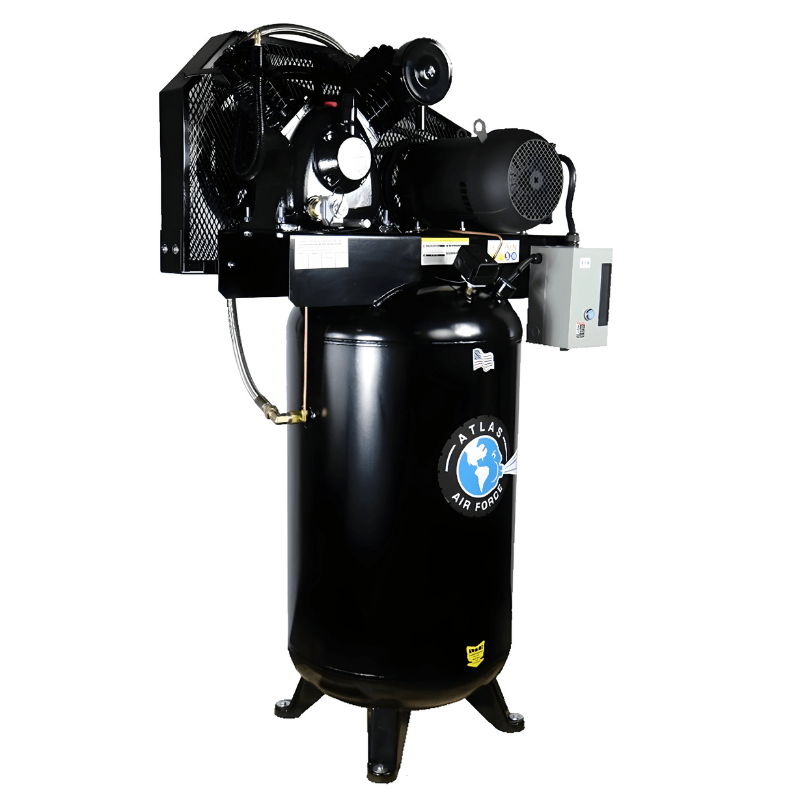

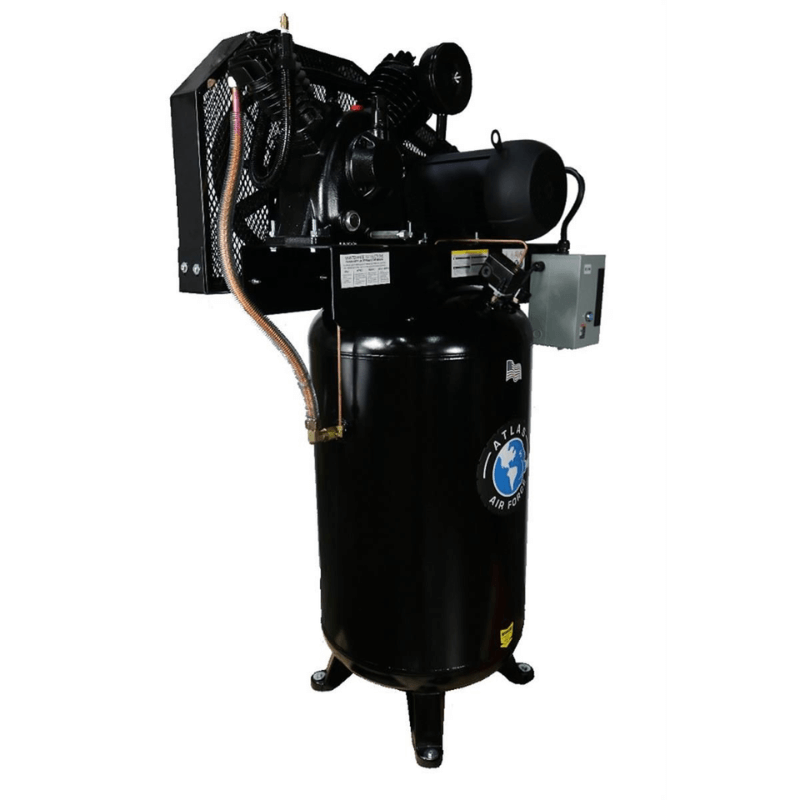

AF9 7.5HP 80 Gallon Air Compressor by Atlas

The Atlas Air Force AF9 is a top-tier, commercial-grade air compressor engineered to meet the rigorous demands of professional automotive and industrial applications. With its powerful 7.5 HP motor running at a low 1740 RPM, this unit offers high-performance air delivery with minimal noise, making it ideal for both large multi-bay auto shops and smaller facilities planning for future expansion. Built with a USA-made 80-gallon vertical tank, this compressor delivers a reliable 145-175 PSI pressure range, ensuring consistent performance across a variety of high-demand pneumatic tools. Whether you're sanding, spraying, or powering heavy-duty equipment, the AF9 is designed for long-lasting, trouble-free operation.

Every detail of the Atlas AF9 demonstrates its dedication to quality, durability, and ease of use. The 3-cylinder, 2-stage pump maximizes efficiency and longevity, while the included magnetic starter enhances motor protection and reliability. Additional user-friendly features such as a hands-free tank drain, compressor oil drain extension, and finned tank inlet tube reduce maintenance time and water accumulation. With industrial-grade components like a Hubbell pressure switch, Eaton magnetic starter, and heavy-duty belt guard, this unit is engineered to outperform and outlast in any professional setting.

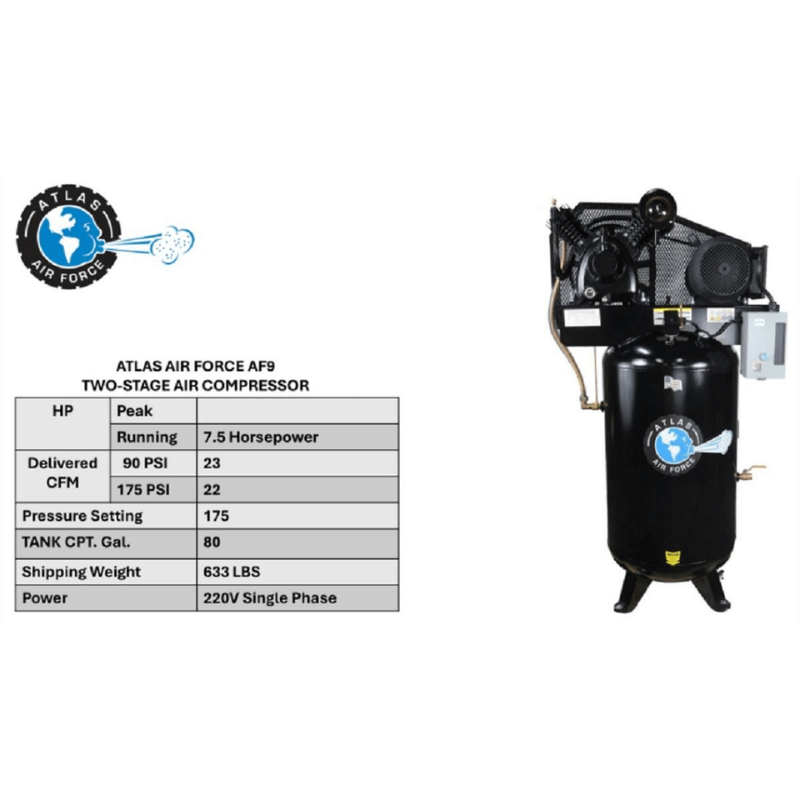

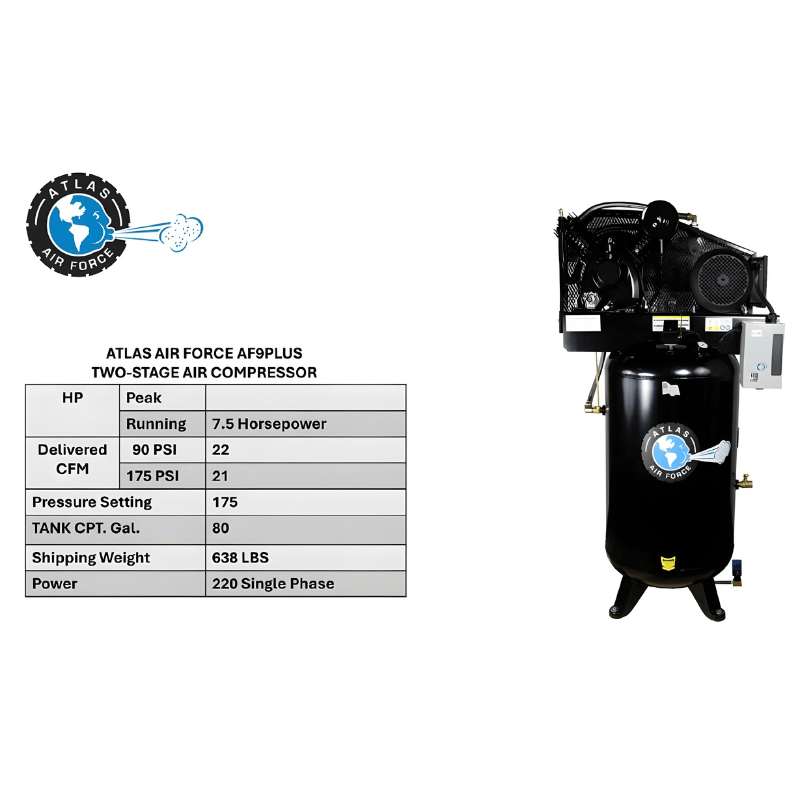

Air Compressor AF9 Specifications:

  • Motor Running Power: 7.5 Horsepower

  • Motor Speed: 1740 RPM

  • Voltage: 220V, 1 Phase

  • Breaker Requirement: 40 Amp

  • Wiring: #8 wire required

  • Air Output Pressure: 145 – 175 PSI

  • Delivered CFM at 90 PSI: 23

  • Delivered CFM at 175 PSI: 20

  • Tank Capacity: 80 Gallons (Vertical, Made in the USA)

  • Air Outlet Size: 3/4" NPT

  • Compressor Pump: 3-Cylinder, 2-Stage

  • Overall Dimensions: L 40" x W 24" x H 71"

AF9 Air Compressor Features:

  • Commercial-grade performance for demanding shop environments

  • Extremely quiet operation at low RPM

  • Magnetic starter included for improved motor longevity

  • Heavy-duty metal belt guard for added protection

  • Finned tank inlet tube to reduce internal moisture buildup

  • Hands-free tank drain extension for simplified maintenance

  • Compressor oil drain extension tube for easy access

  • Vibro-isolation pads included to reduce vibration and noise

  • Industrial-grade Hubbell pressure switch and Eaton starter

  • Belt-driven, reciprocating compressor design for long-term reliability

  • Ideal for both high-capacity operations and future-ready small shops

  • Backed by a 1-year parts-only warranty

AF9 Manual

Not Available

Warehouse Pickup locations:

  • Atlanta, GA
  • Dallas, TX
  • Indianapolis, IN
  • Phoenix, AZ
  • Somerset, NJ
  • Fresno, CA



AF9 7.5HP 80 Gallon Air Compressor Diagram
