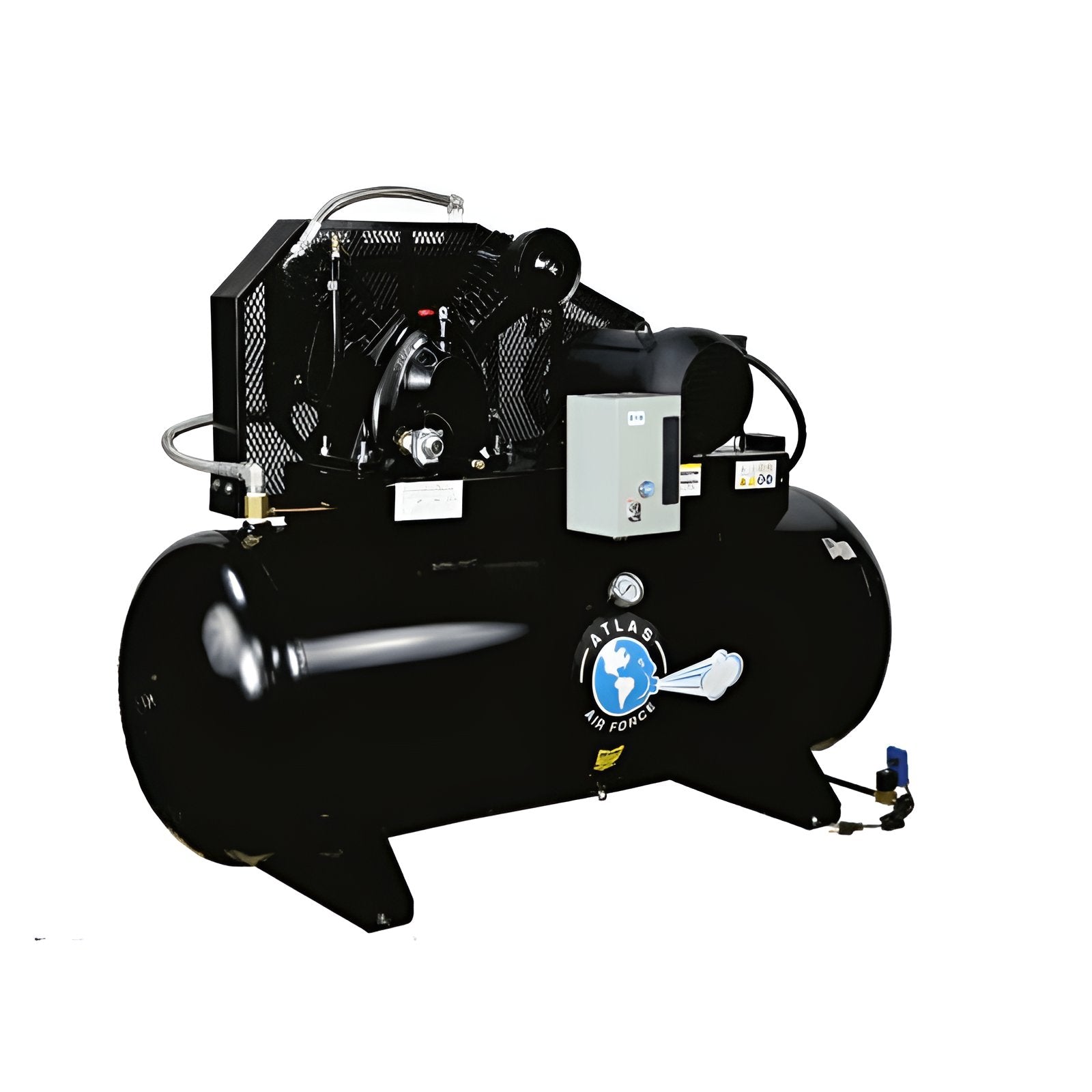

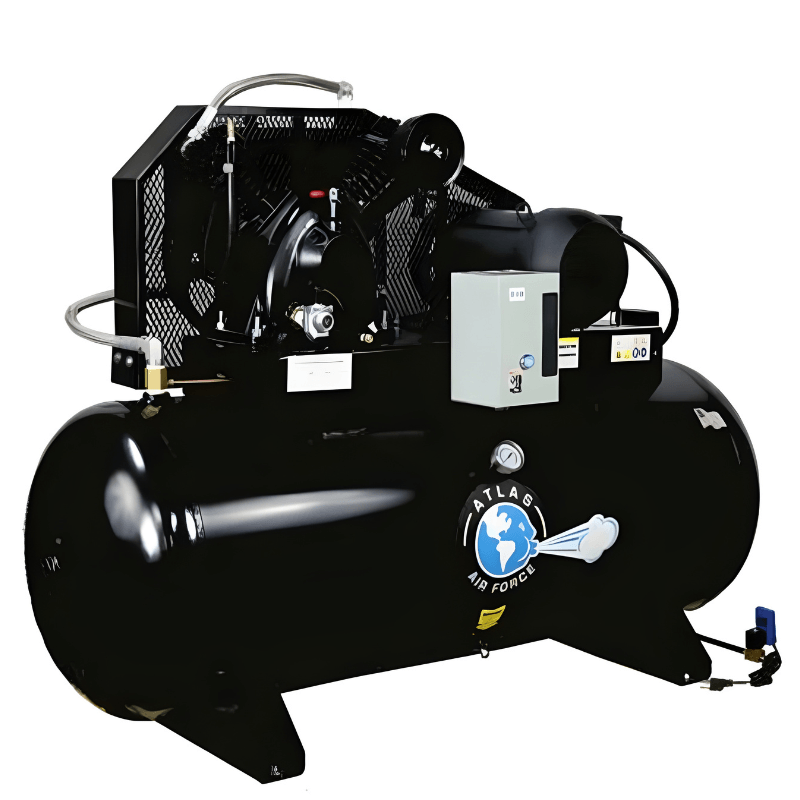

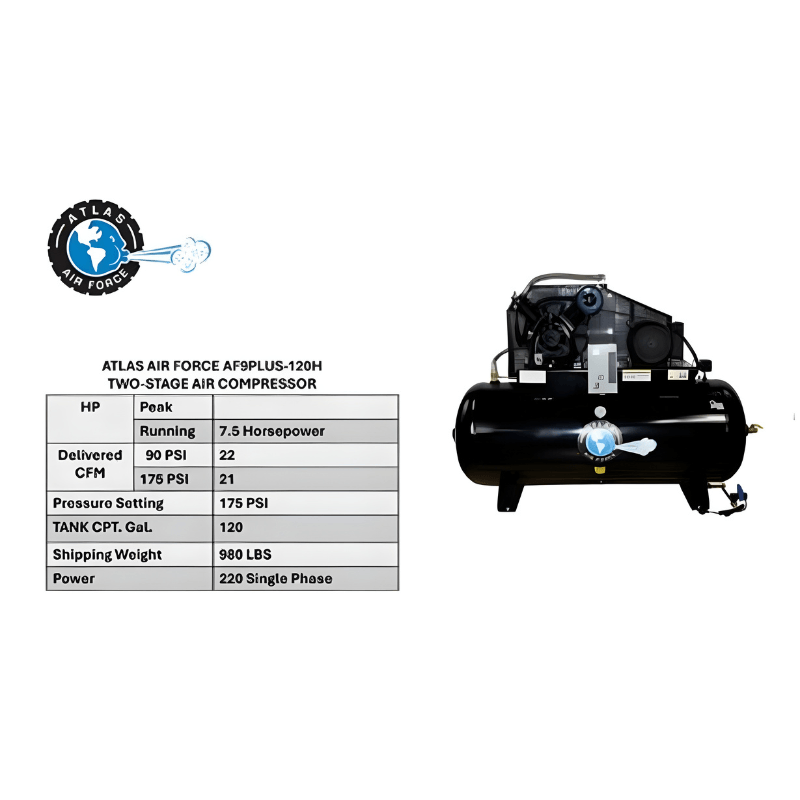

The Atlas AF9P Air Compressor with Plus Package is a heavy-duty, commercial-grade solution designed for multi-bay auto shops and businesses that rely on consistent, high-performance air delivery. With a robust 7.5HP motor running at 1750 RPM, a USA-made 120-gallon vertical tank, and an operating pressure range of 145-175 PSI, this compressor provides the power and reliability needed to meet demanding industrial requirements. The unit delivers an impressive 23 CFM at 90 PSI and 22 CFM at 175 PSI, ensuring optimal performance for high-air-demand applications.
This model comes equipped with the “Plus Package,” which enhances efficiency and longevity through an automatic low oil monitor, automatic tank drain, and air-cooled aftercooler. It also includes industrial-grade Hubbell pressure switch and EATON magnetic starter for superior electrical control. The AF9P’s quiet operation, vibro-isolation pads, and hands-free maintenance extensions make it a practical and user-friendly addition to any commercial setting.

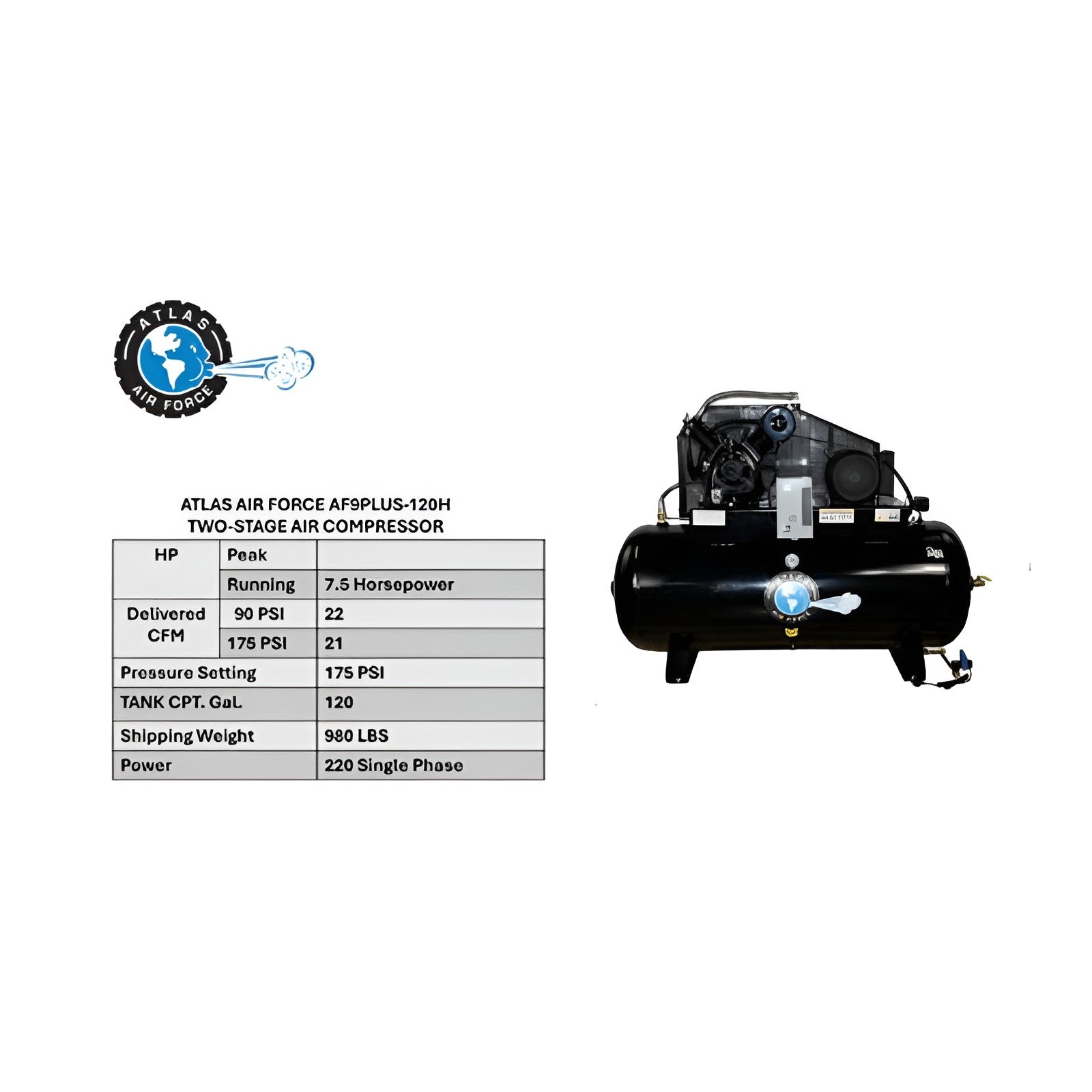

Motor Running Power: 7.5 Horsepower
Motor Speed: 1750 RPM
Voltage: 220V, 1 Phase, 40 Amp Breaker, No. 8 Wire Required
Pump Type: 2-Cylinder, 2-Stage
Tank Capacity: 120 Gallons (Vertical, USA-made)
Air Output Pressure: 145–175 PSI
Delivered CFM @ 90 PSI: 23
Delivered CFM @ 175 PSI: 22
Air Outlet Size: 3/4" NPT

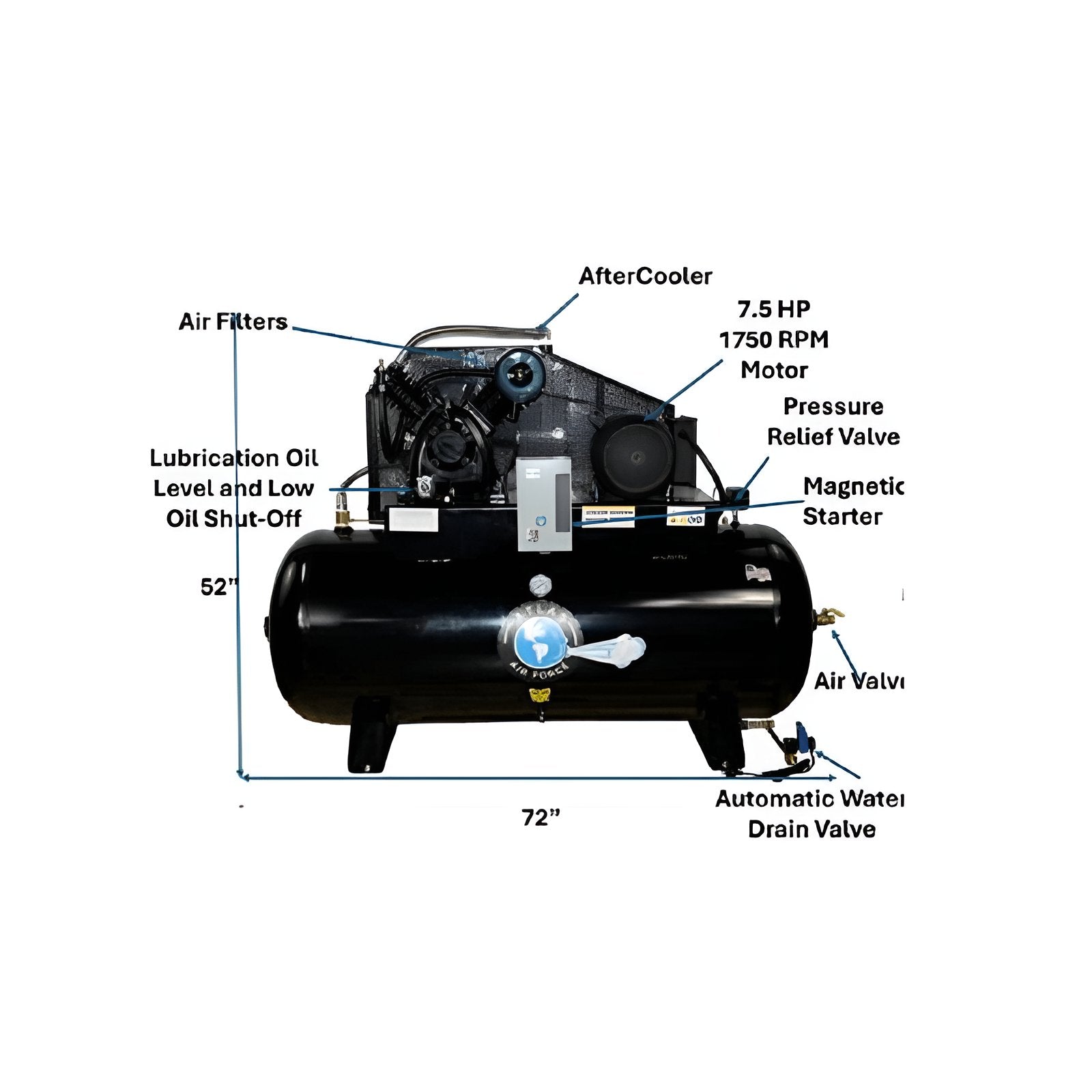

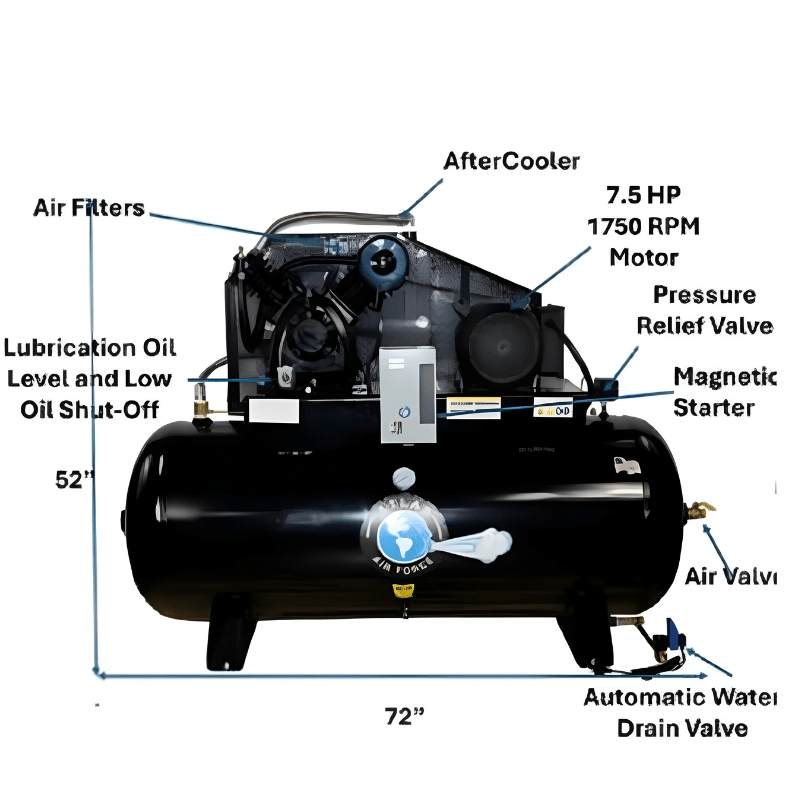

Overall Dimensions: 72" (L) x 32" (W) x 52" (H)
Commercial-grade, belt-driven design for long-term reliability
Magnetic starter included for increased motor lifespan
Extremely quiet operation for a more comfortable work environment
Hands-free tank drain and oil drain extensions for easy maintenance
Finned tank inlet tube helps reduce tank water accumulation
Heavy-duty metal belt guard ensures added safety and durability

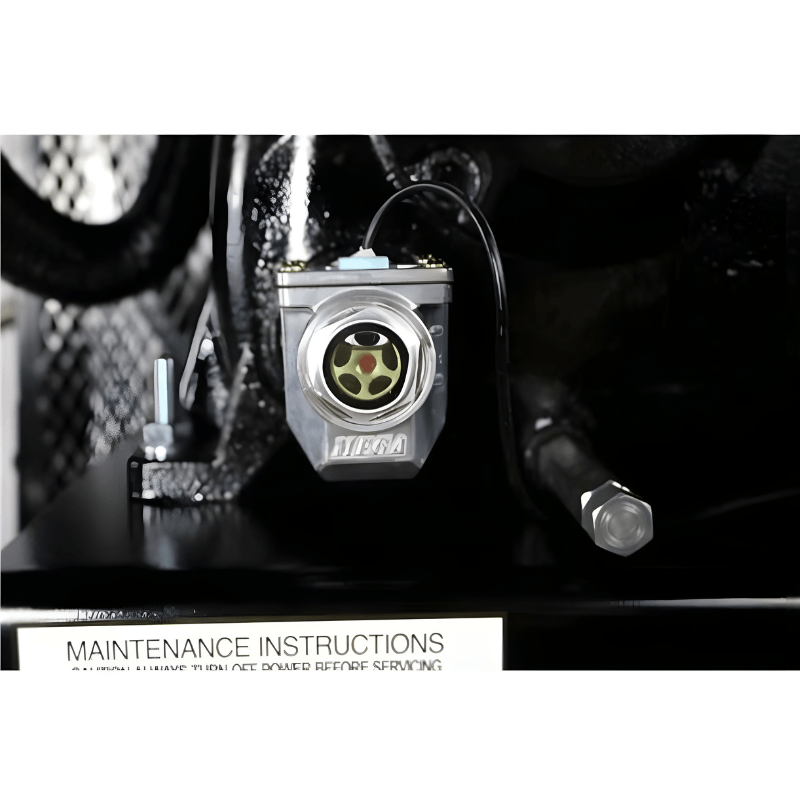

Automatic low oil monitor for proactive maintenance alerts

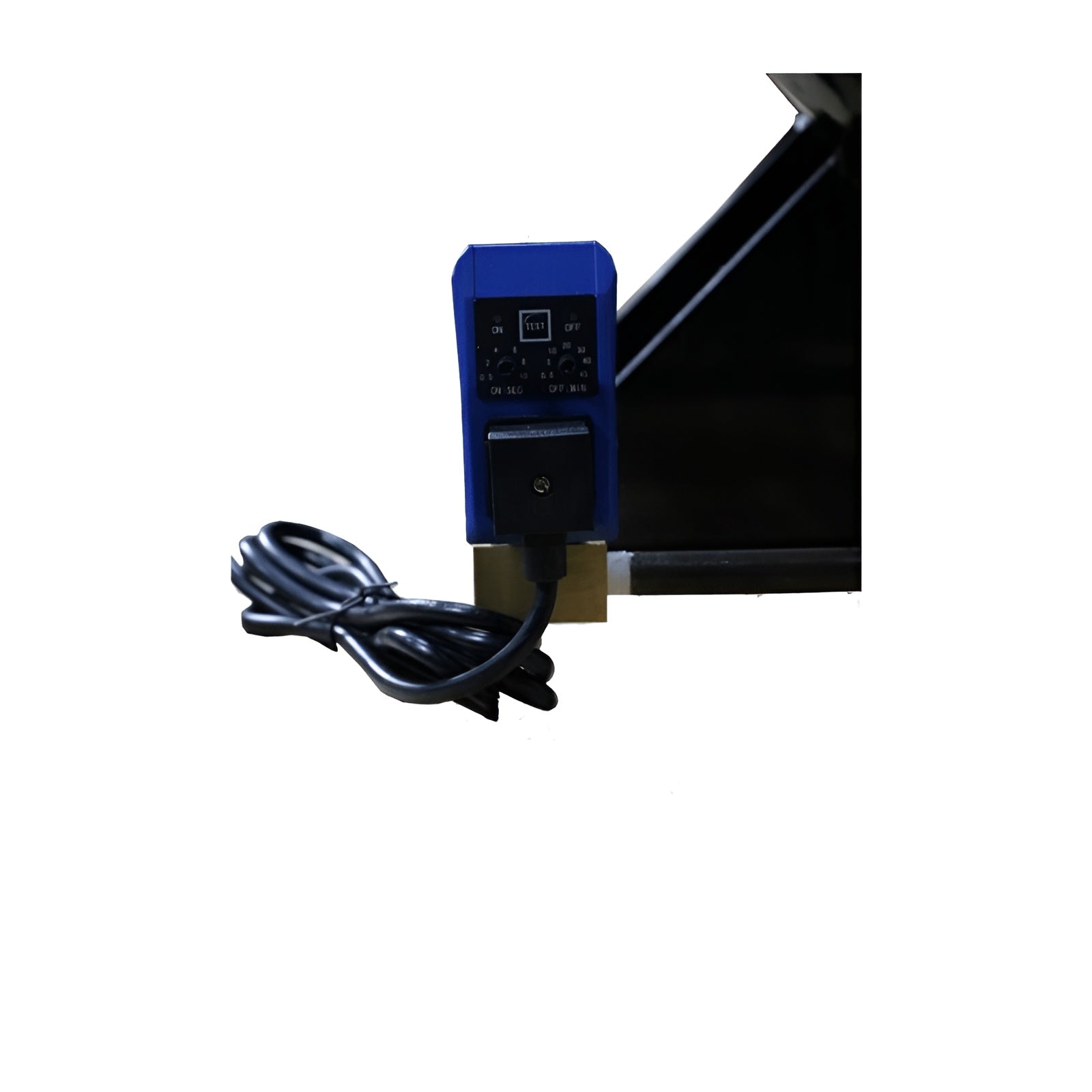

Automatic tank drain for reduced manual upkeep

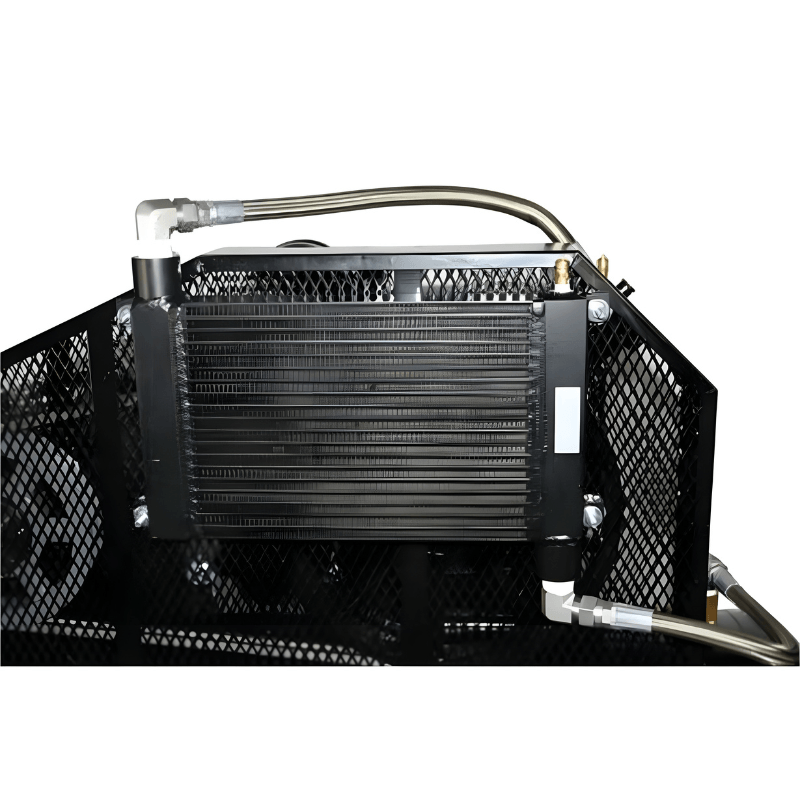

Air-cooled aftercooler delivers cleaner, drier air
Vibro-isolation pads minimize noise and vibration
Industrial-grade Hubbell pressure switch and EATON starter included
Ideal for multi-bay shops and businesses with high air demands
Backed by a 1-year parts-only warranty
