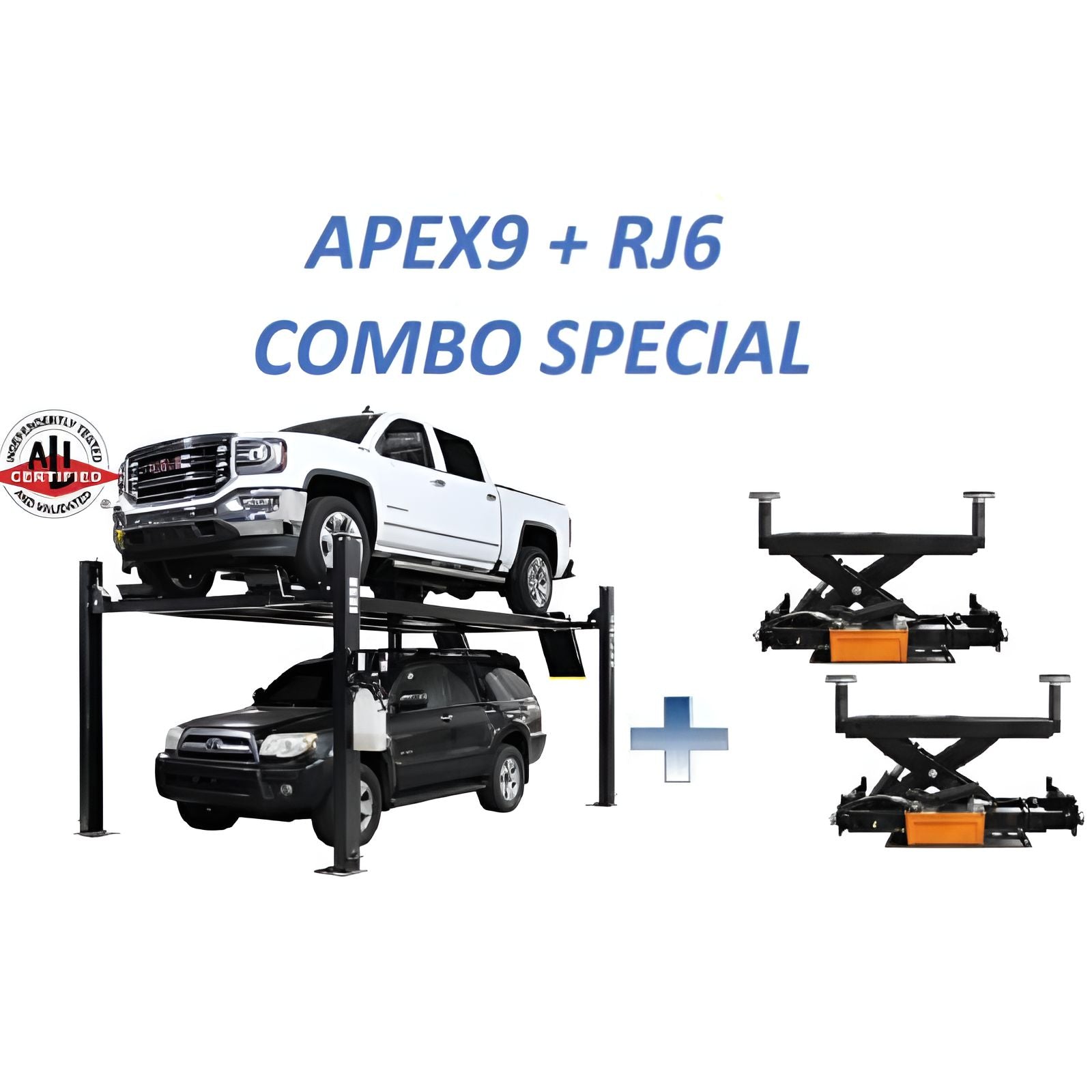

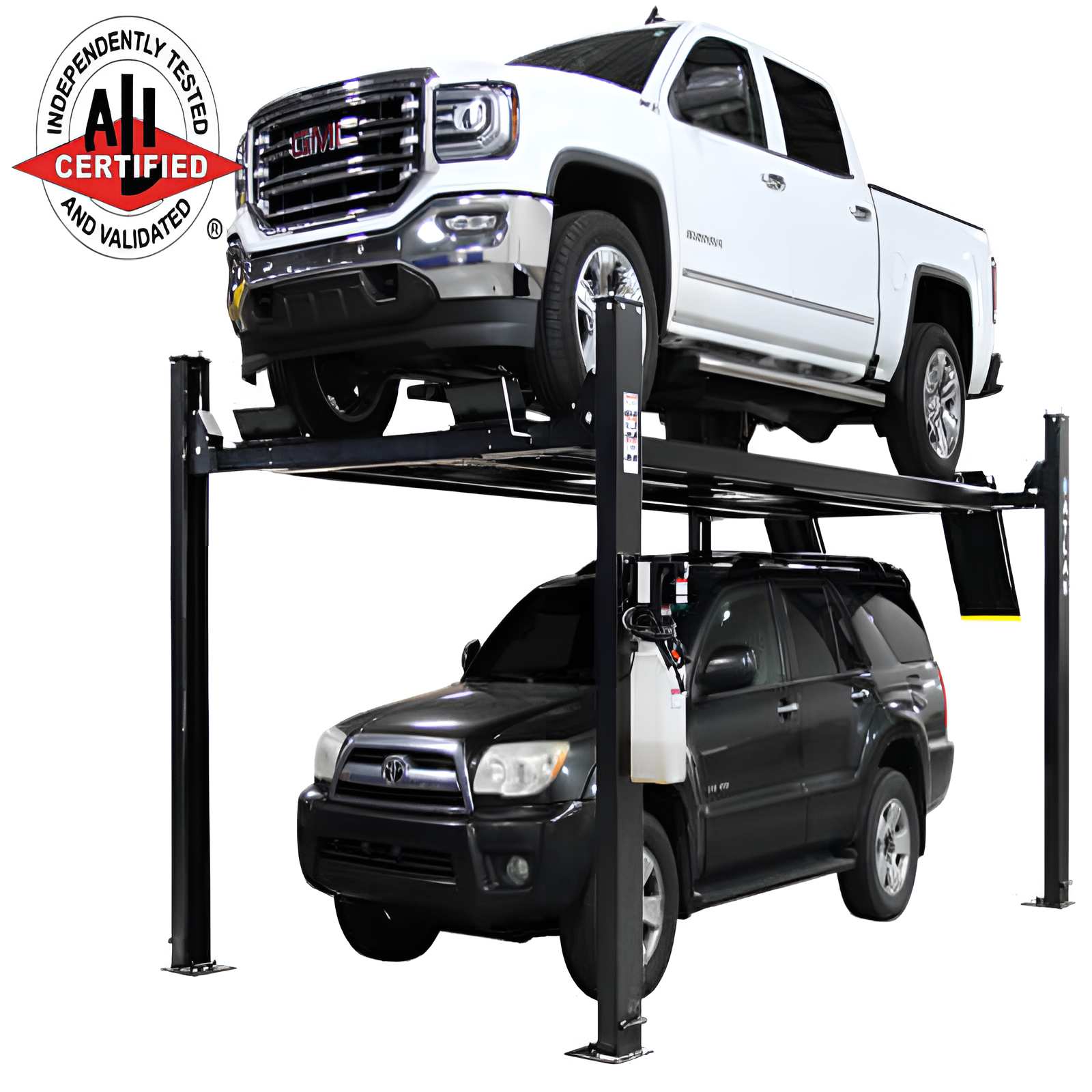

ALI Certified APEX 9 + RJ6 Rolling Bridge Jacks Combo by Atlas
Get ready to change the way you do car repairs and maintenance with the Atlas APEX9 ALI-certified 4-post lift and RJ6 combo! The brawny APEX9 beast can lift a staggering 9,000 lbs to a towering 86 inches, giving you enough space underneath to host a yoga class. With runways stretching 196.5 inches long and 20.125 inches wide, it's ready to cradle everything from zippy Smart Cars to beefy Diesel Duallys. It's so versatile, you might be tempted to park your living room furniture on it!
This lift comes with more extras than a loaded baked potato with all the stuffing you can think of. Free plastic drip trays? Check. Free steel jack tray? You bet. A caster kit with polyurethane wheels for impromptu lift relocations? Absolutely! And let's not forget its sidekick, the Atlas RJ6 rolling bridge jacks, each capable of lifting 6,000 lbs up to 21 inches high. The Atlas APEX9 and RJ6 combo - because cars deserve the utmost care!

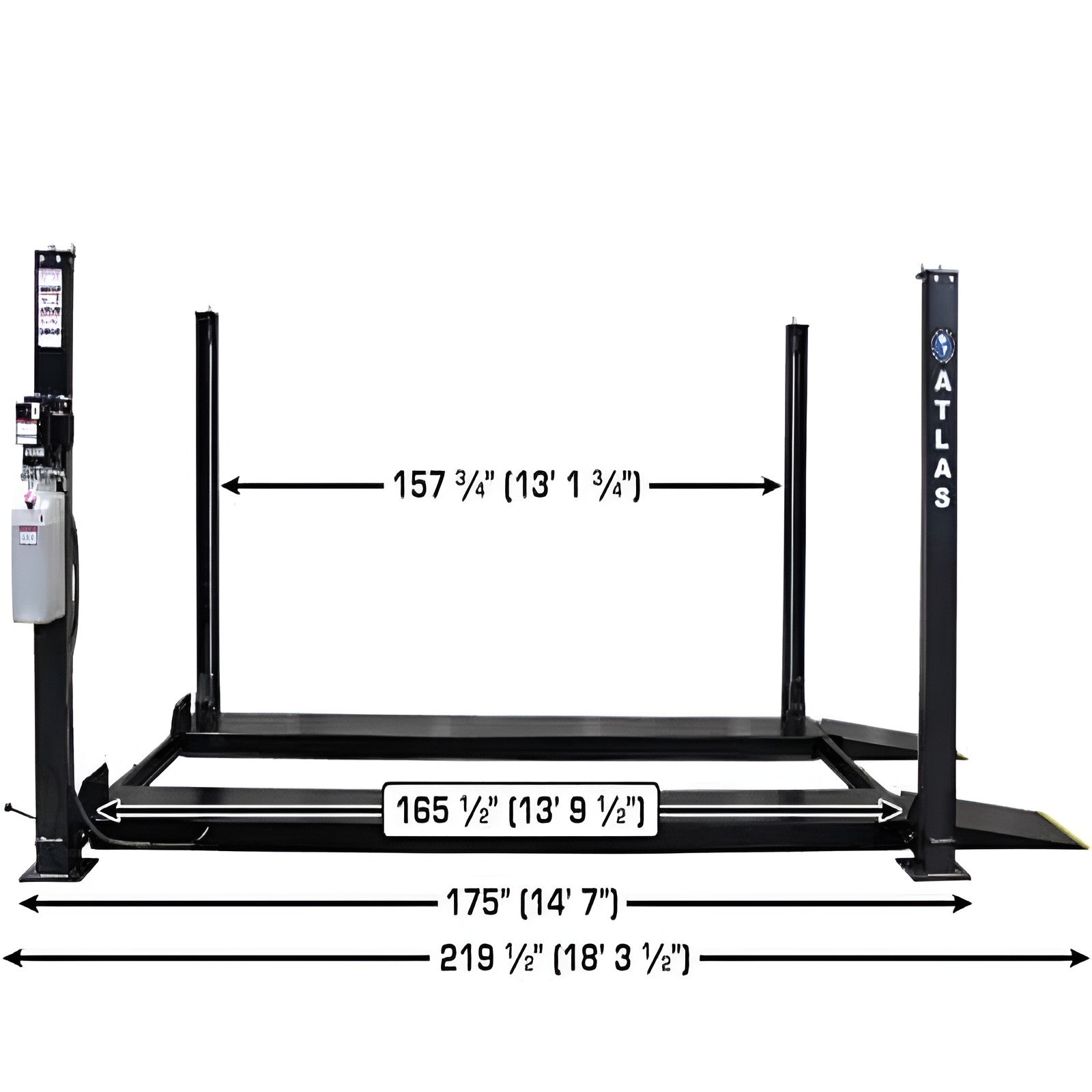

4 Post Parking Lift Apex 9 Specifications:
- Capacity: 9,000 lb.
- Lifting Height to Top of Runway: 86" (7' 2")

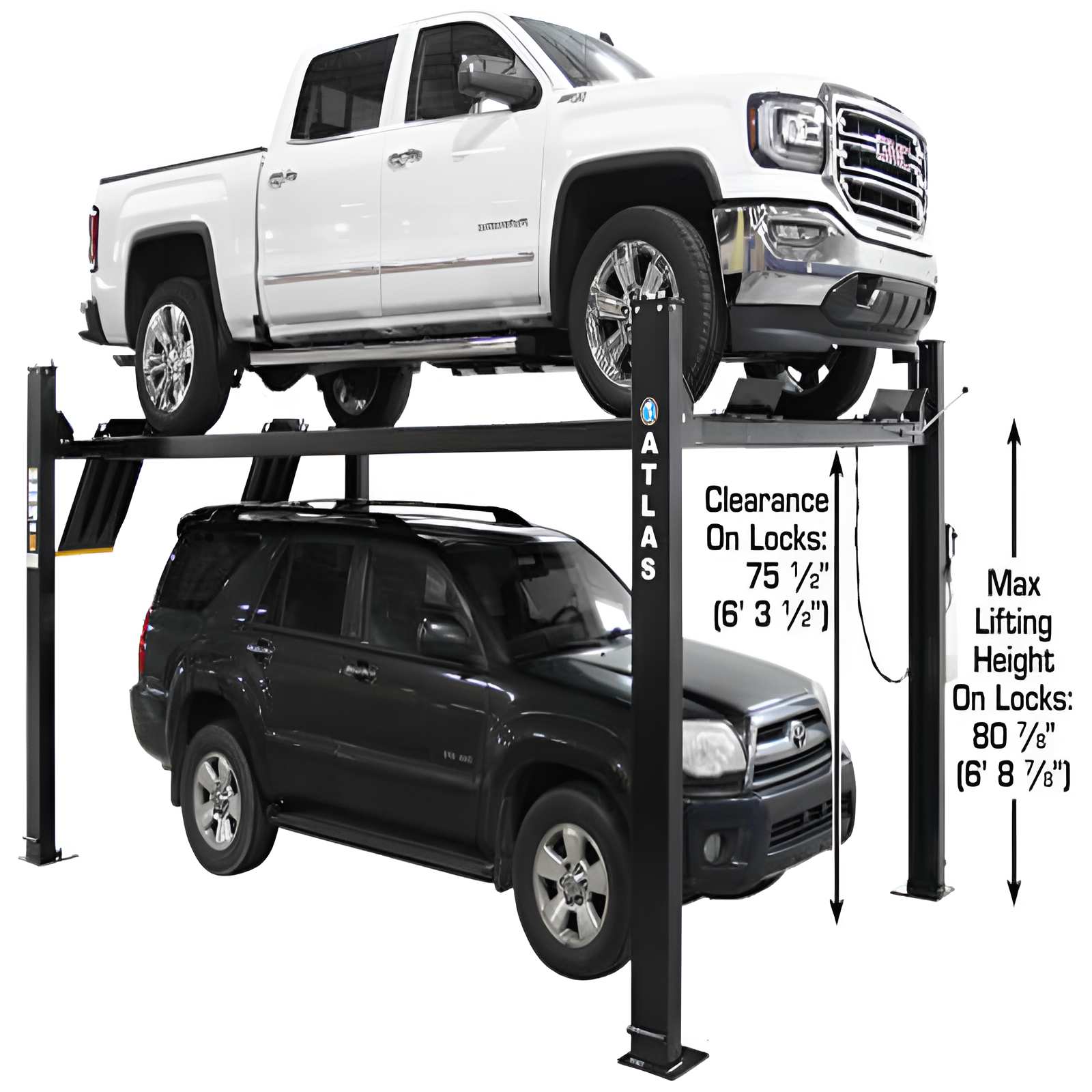

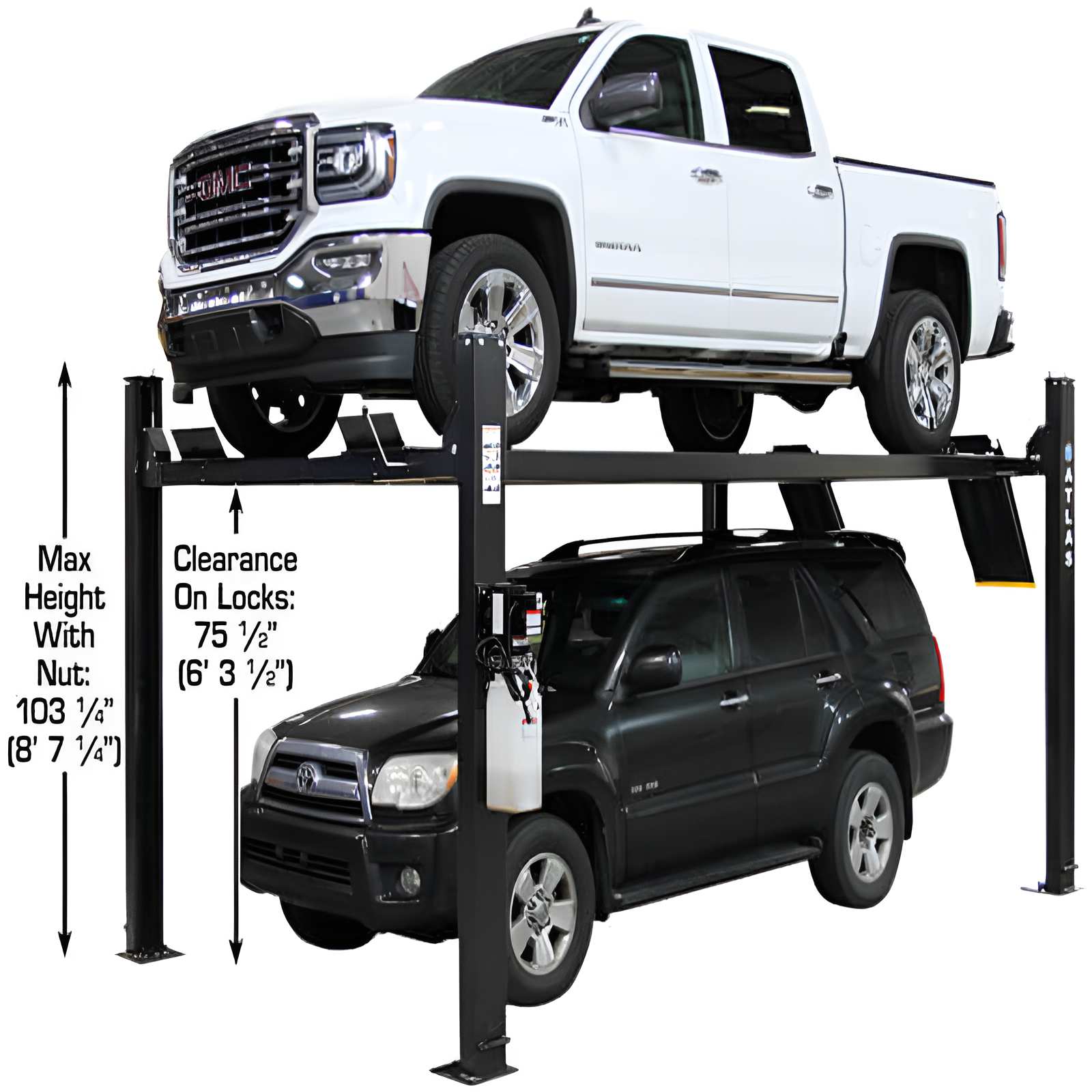

- Clearance Under Runways: 81 1/4" (6' 9 1/4")
- Height of Columns: 99" (8' 3")
- Overall Width (Without Motor or Casters): 121 7/8" (10' 1 7/8")

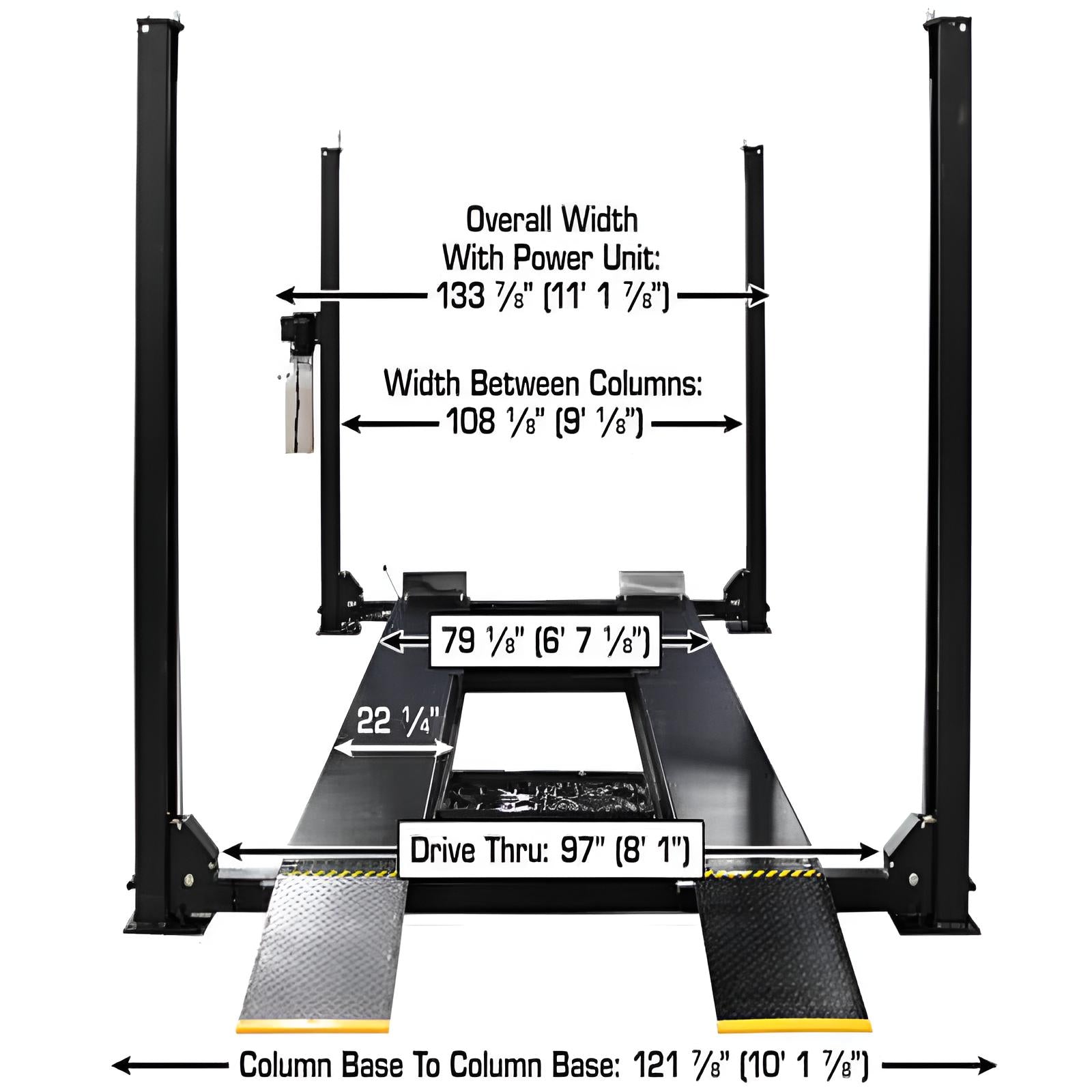

- Overall Width (With Motor): 133 7/8" (11' 1 7/8")

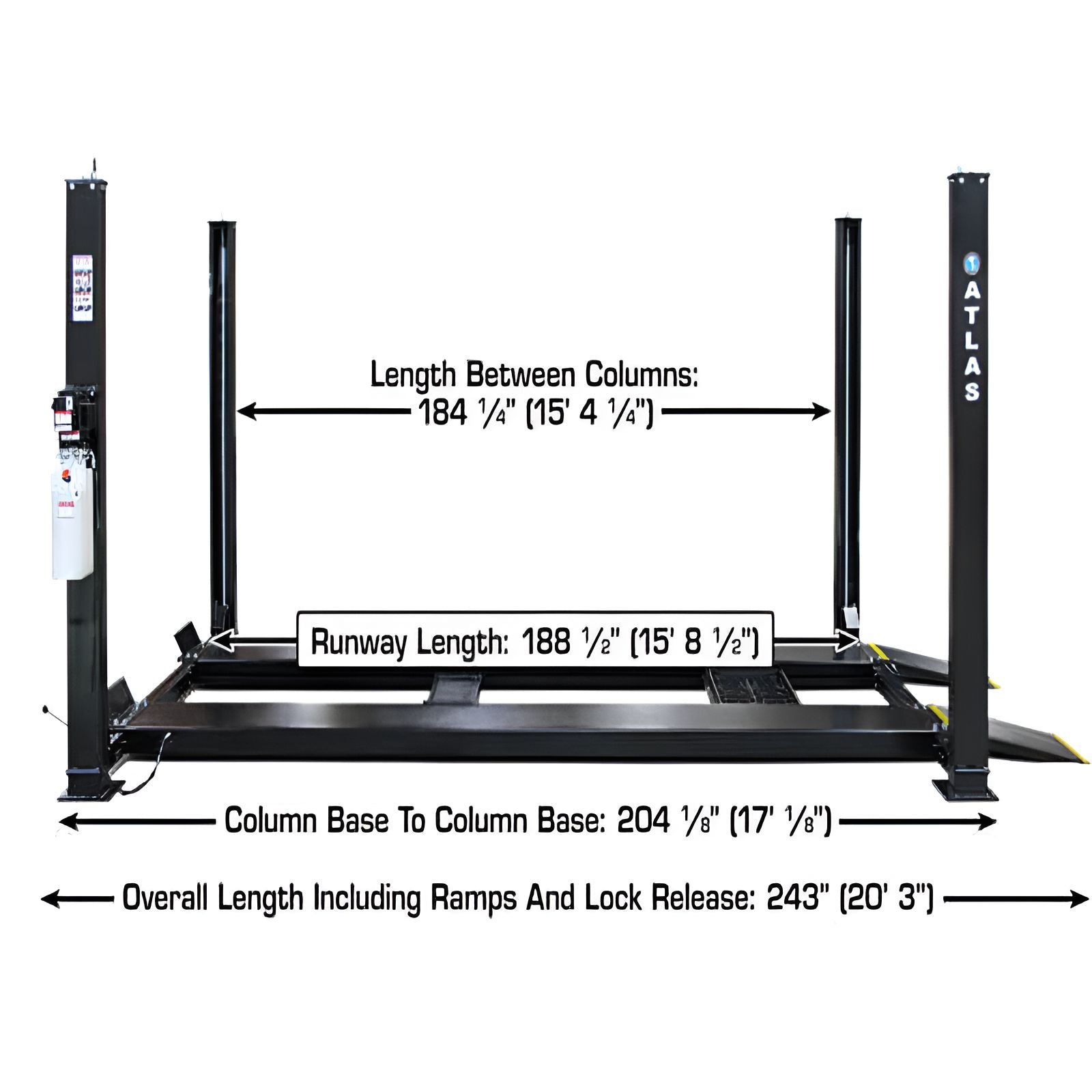

- Overall Length without Approach Ramps (Including Lock Release Bar): 204" (17')
- Overall Length with Approach Ramps: 227 1/2" (18' 11 1/2")

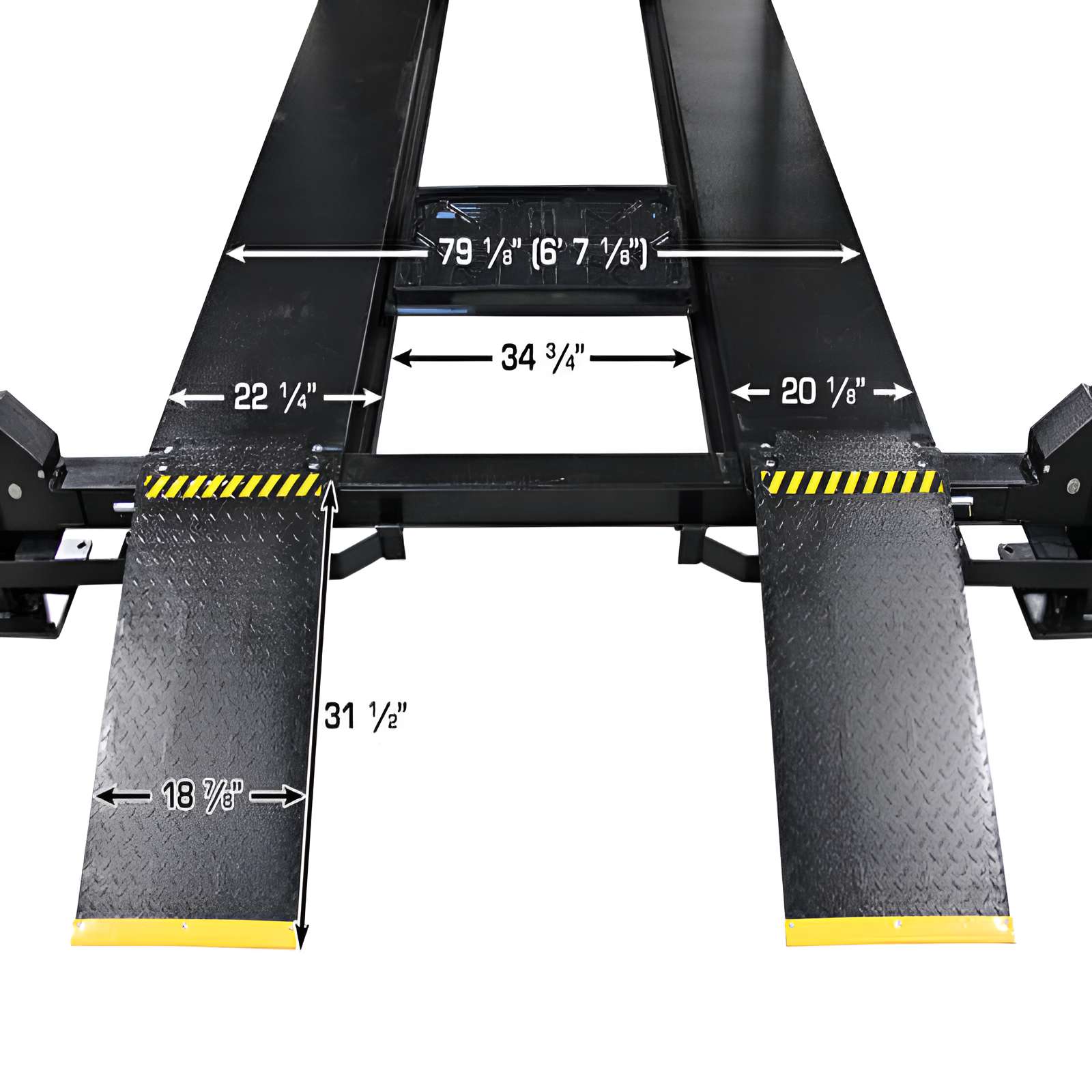

- Approach Ramps: 31 1/2"
- Runway Width: 20 1/8"
- Runway Rail Width: 2"
- Runway Length: 196 1/2" (16' 4 1/2")
- Runway Thickness: 4 3/4"
- Width Between Runways: 38 7/8" (3' 2 7/8")
- Width Between Runway Rails: 34 3/4" (2' 10 3/4")
- Outside Runway to Outside Runway: 79" (6' 7")

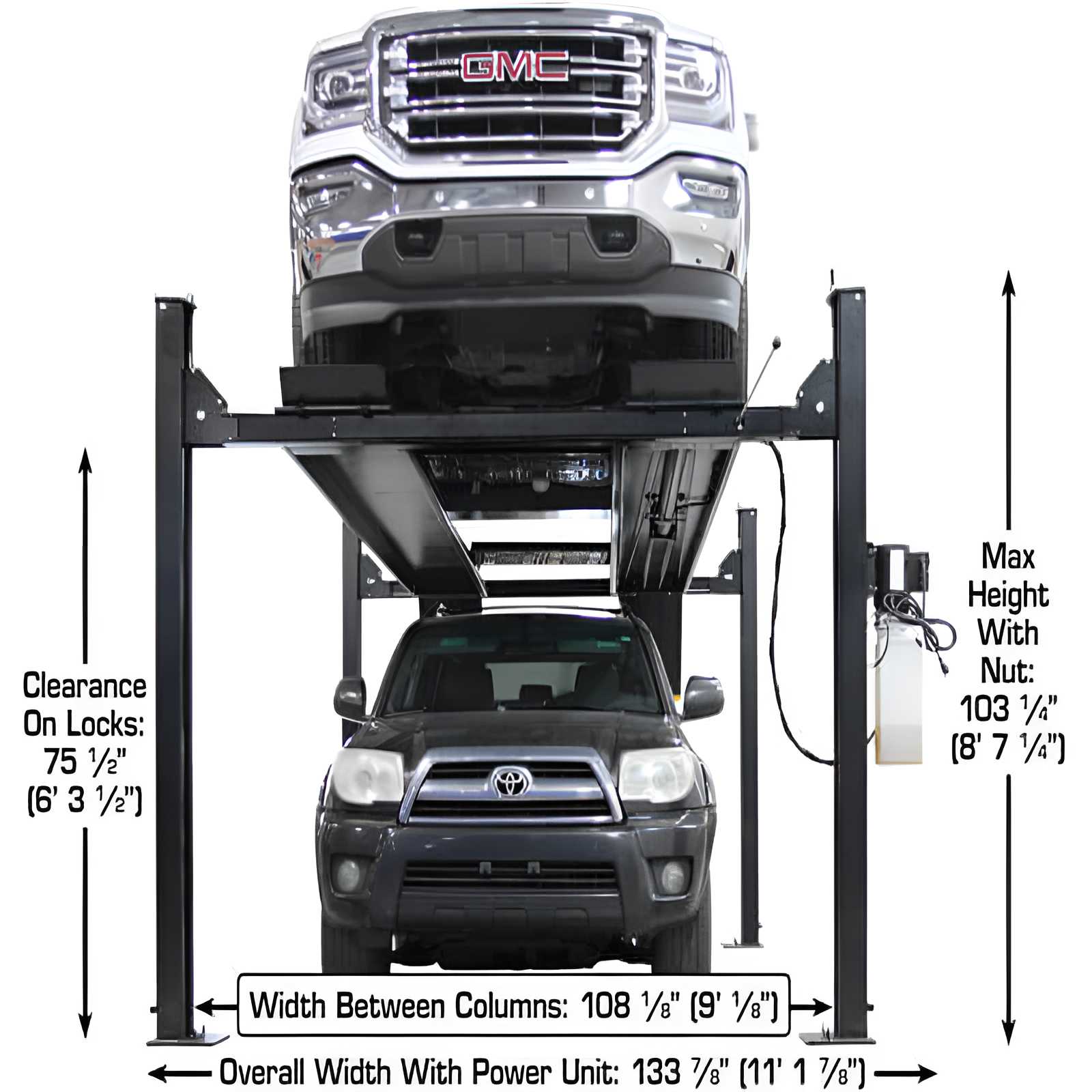

- Clearance Between Columns: 108 1/8" (9' 1/8")

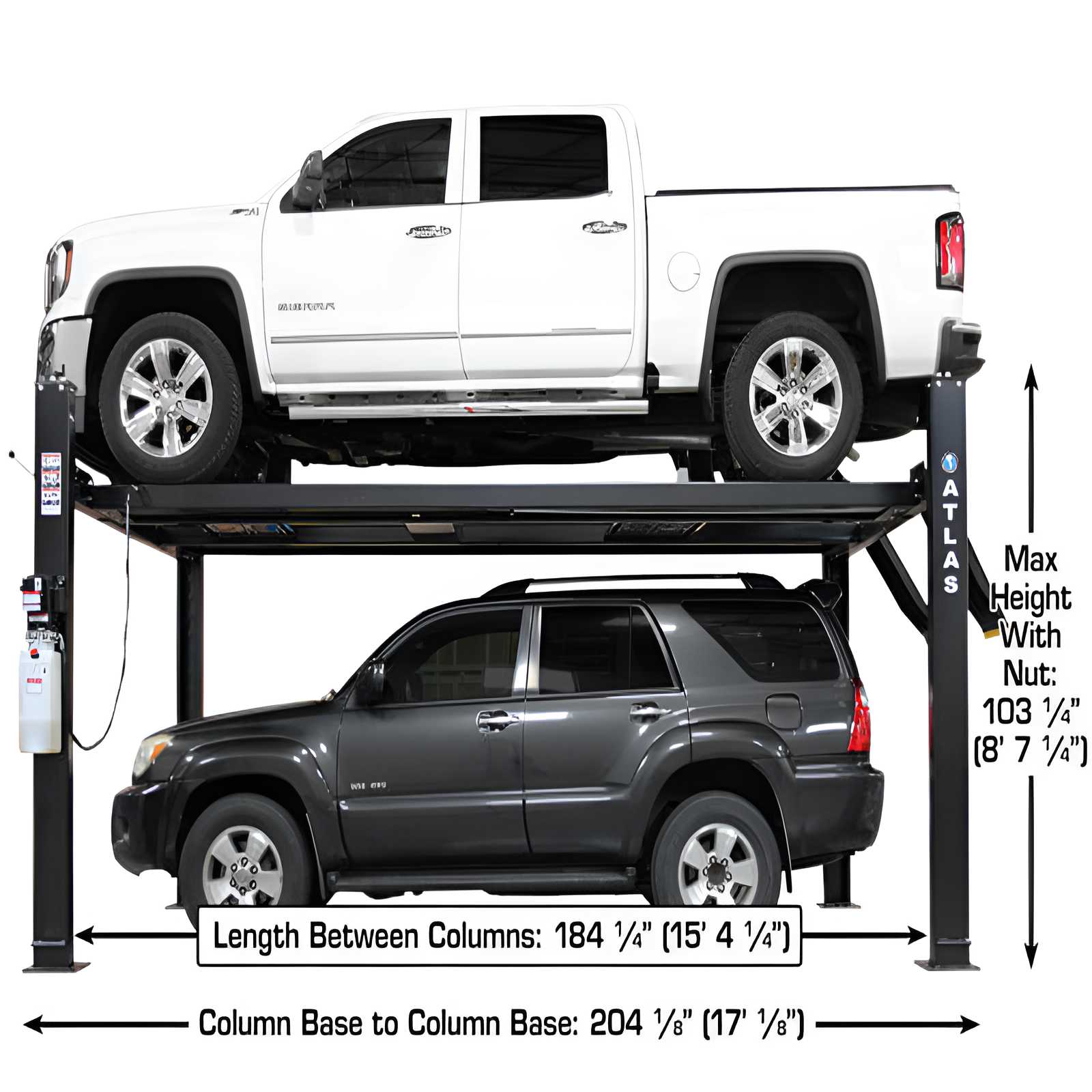

- Length Between Columns: 184 1/4" (15' 4 1/4")
- Maximum Wheel Base: 184" (15' 4")
- Drive Thru (Outside of Tire to Outside of Tire): 98 5/8" (8' 2 5/8")
- Motor/Electrical Requirement: 110 Volt, 30 AMP Breaker Required
- Shipping Weight: 2,975 lb.
Apex 9 9,000 lb 4 Post Parking Lift Special Features:
- ALI Certified Lift
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall, Extra Wide & Extra Long
- Powder Coat Finish
- Diamond Plated Runways

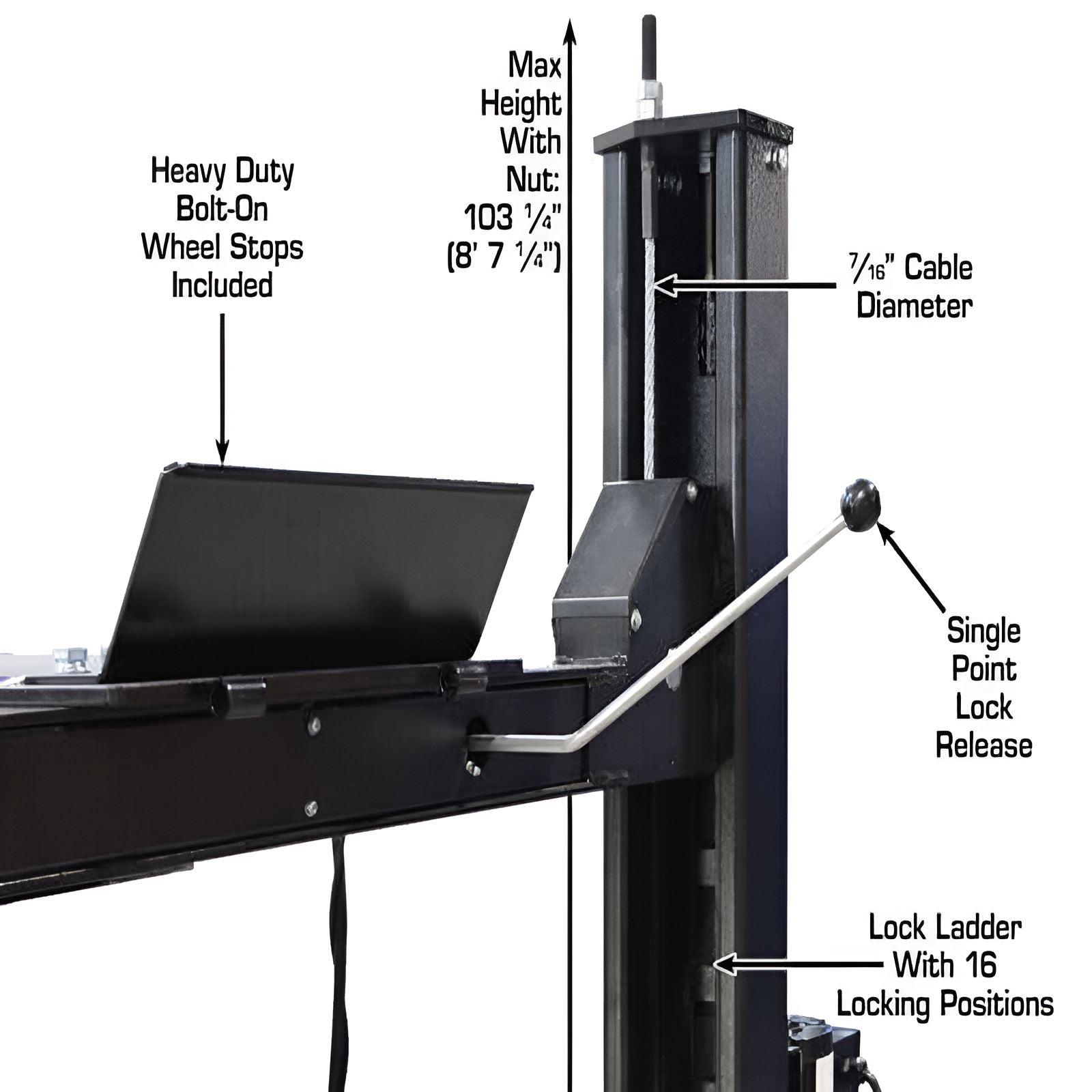

- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Two Wheel Chocks Included

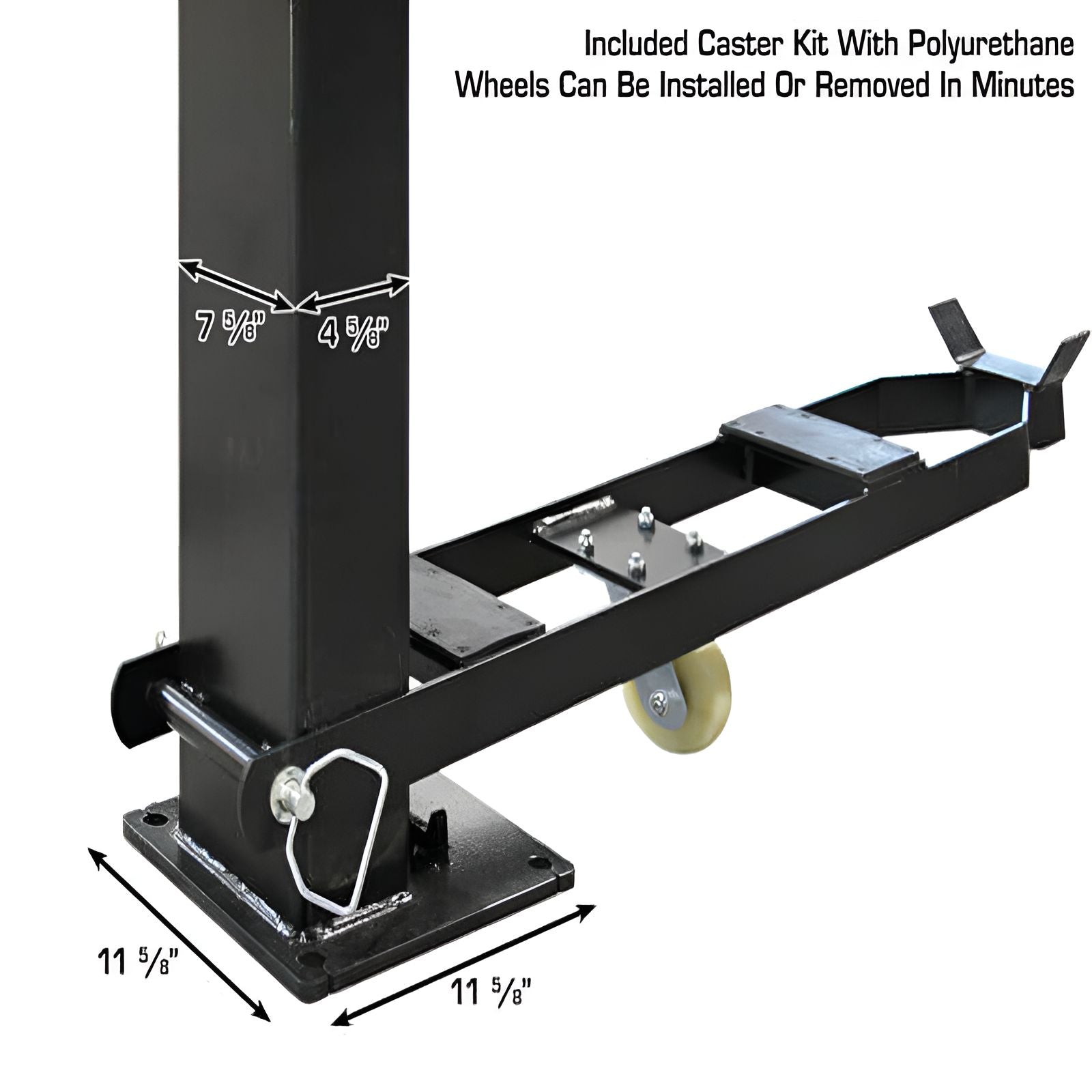

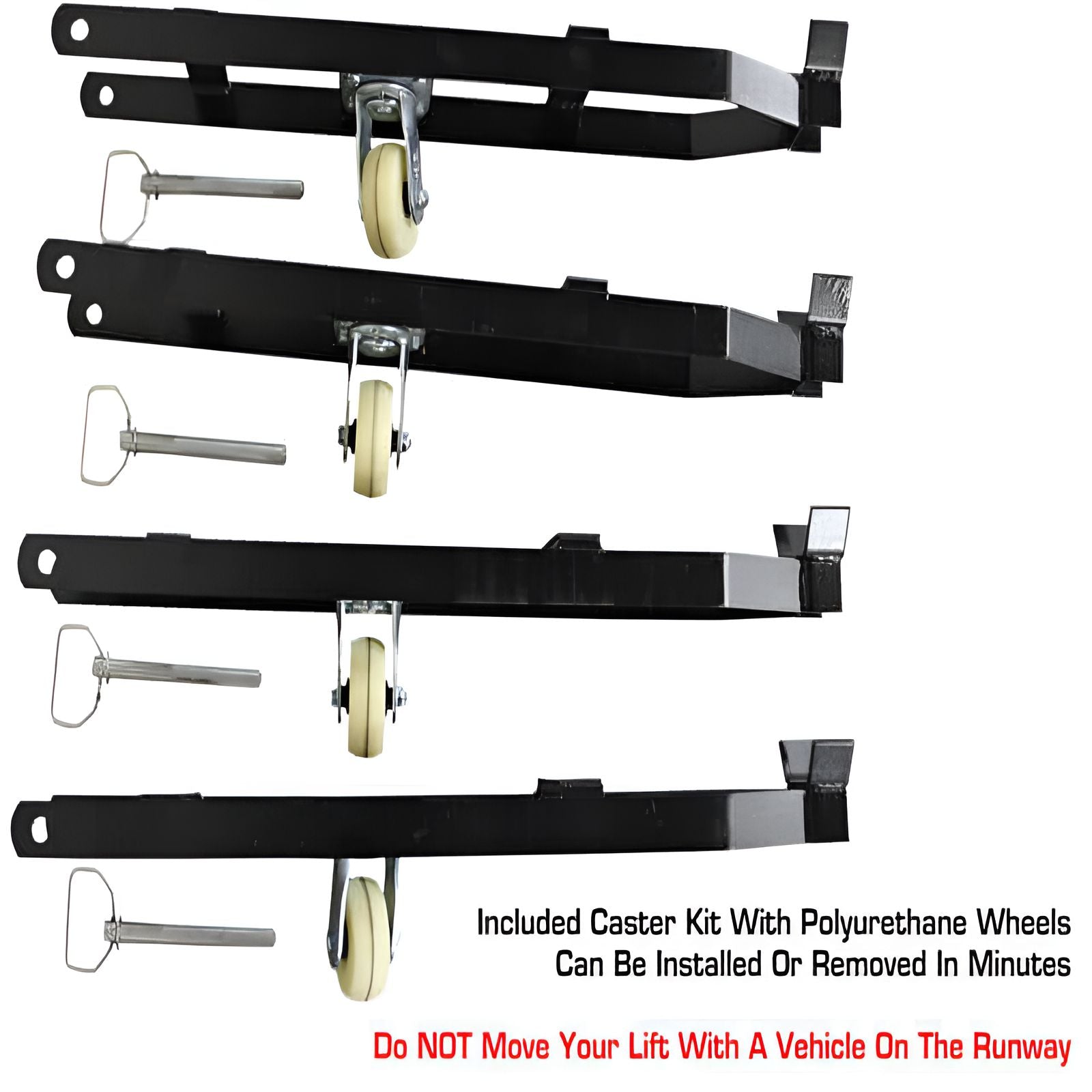

- Caster Kit with Polyurethane wheels Available
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles
- 110volt Electric Operation (Requires 30amp Breaker)
- Shipping Weight: 2,975 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

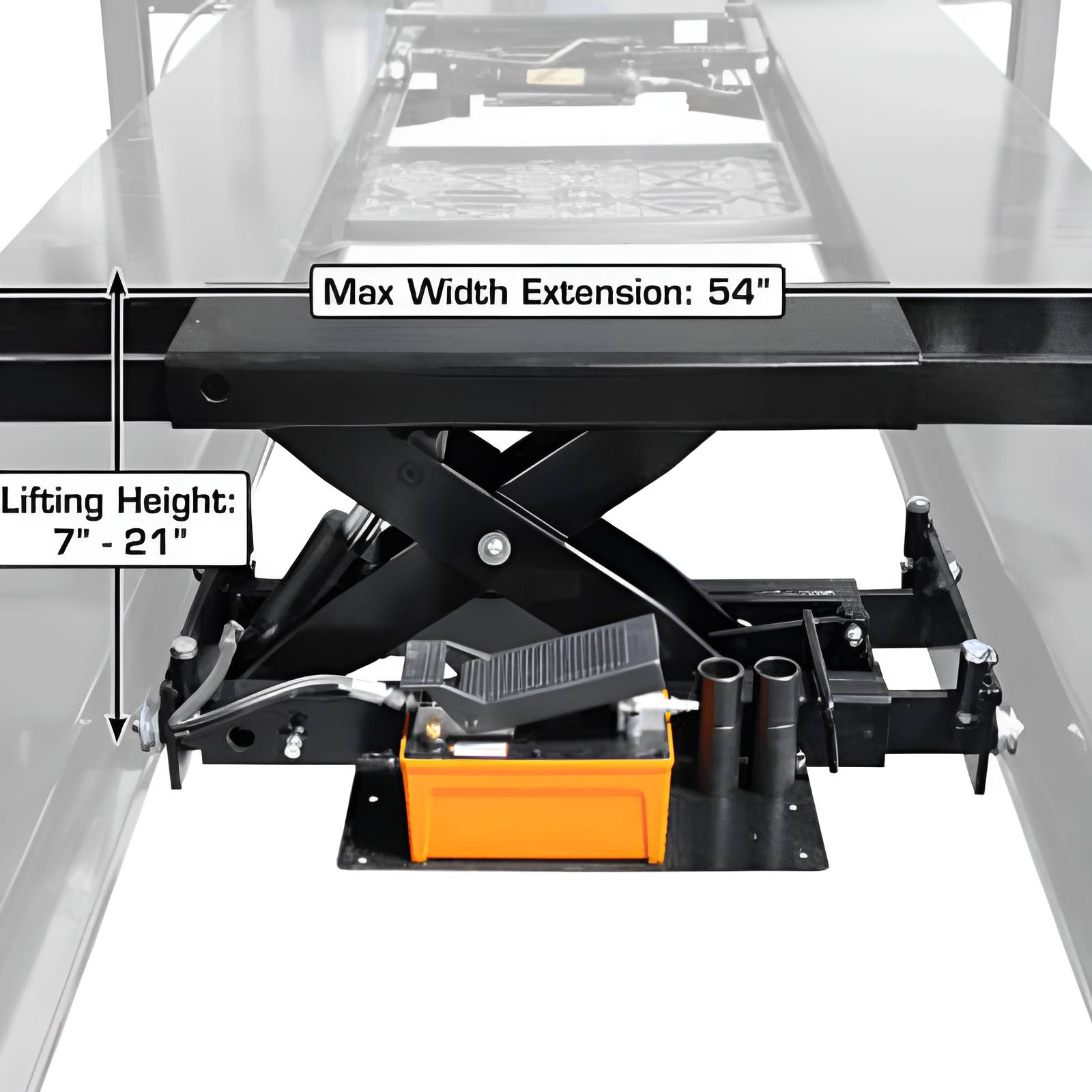

Atlas RJ6 Specifications
- Quantity: 2
- Maximum Capacity: 6,000 lb.
- Maximum Width: 55" (4' 7")

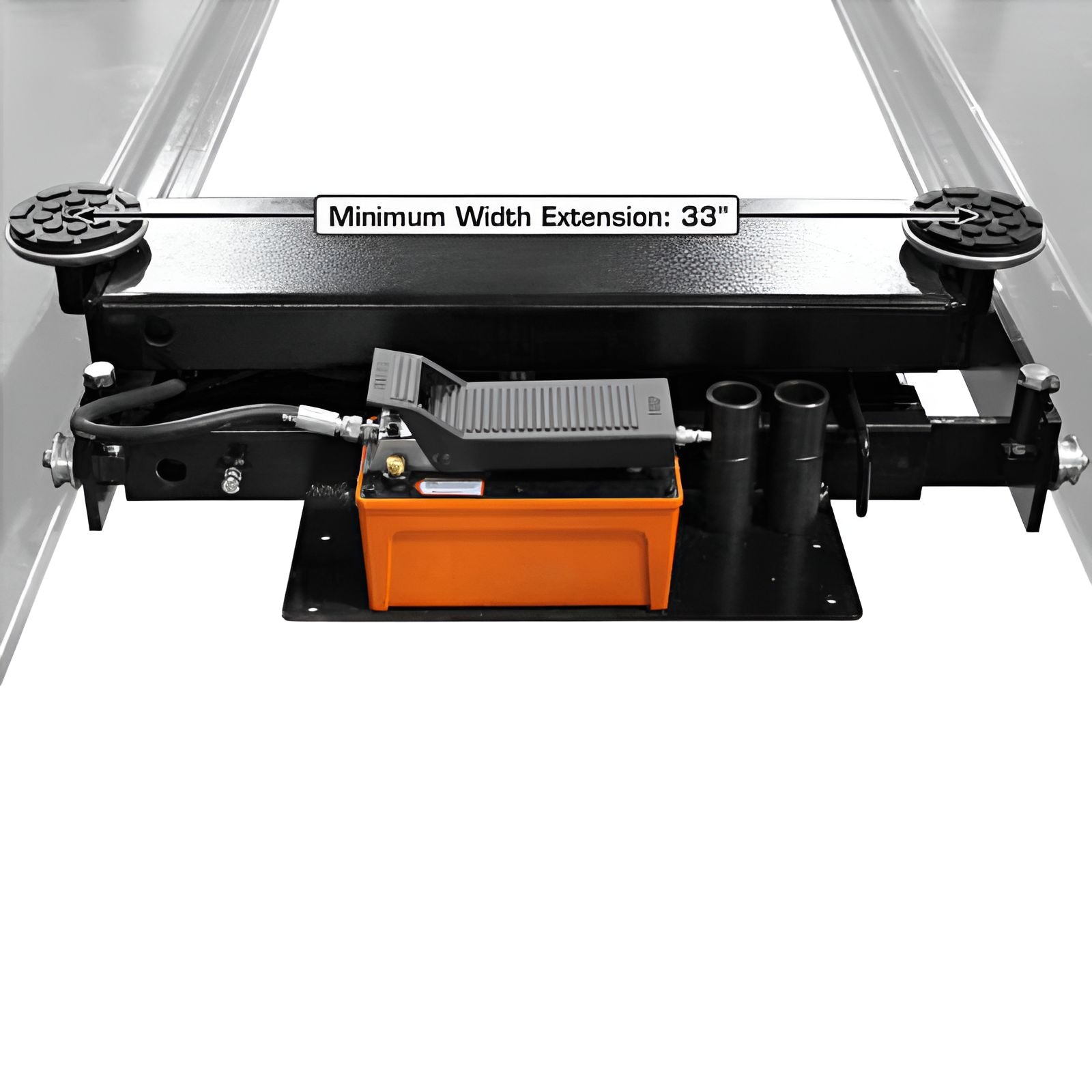

- Minimum Width: 35" (2' 11")
- Distance Between Runway Capability: 32"-52"

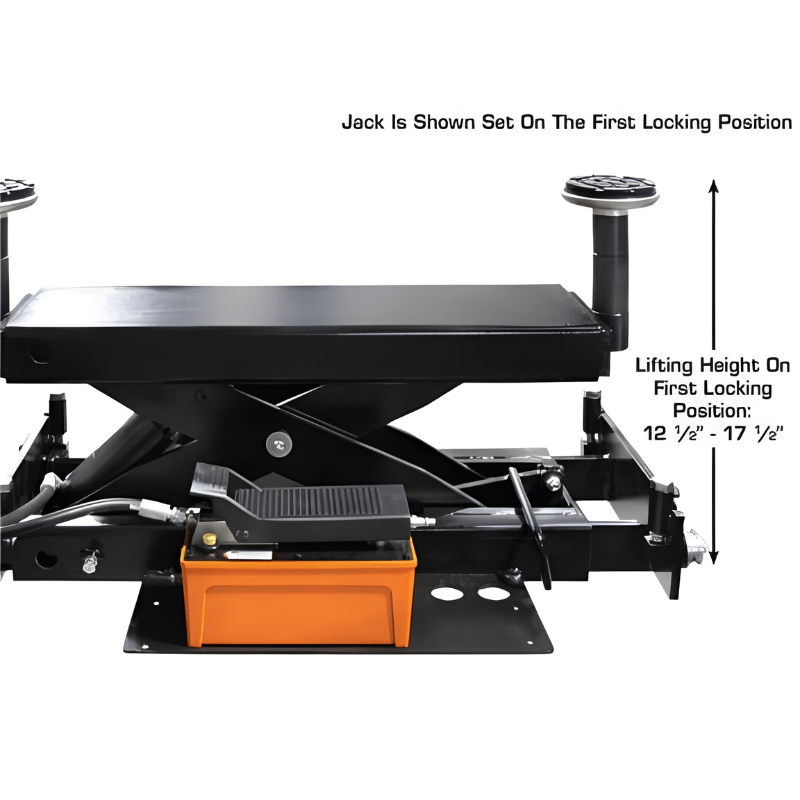

- Maximum Lifting Height (With Adapters): 21" (1' 9")
- Air Requirement: 70-115 PSI

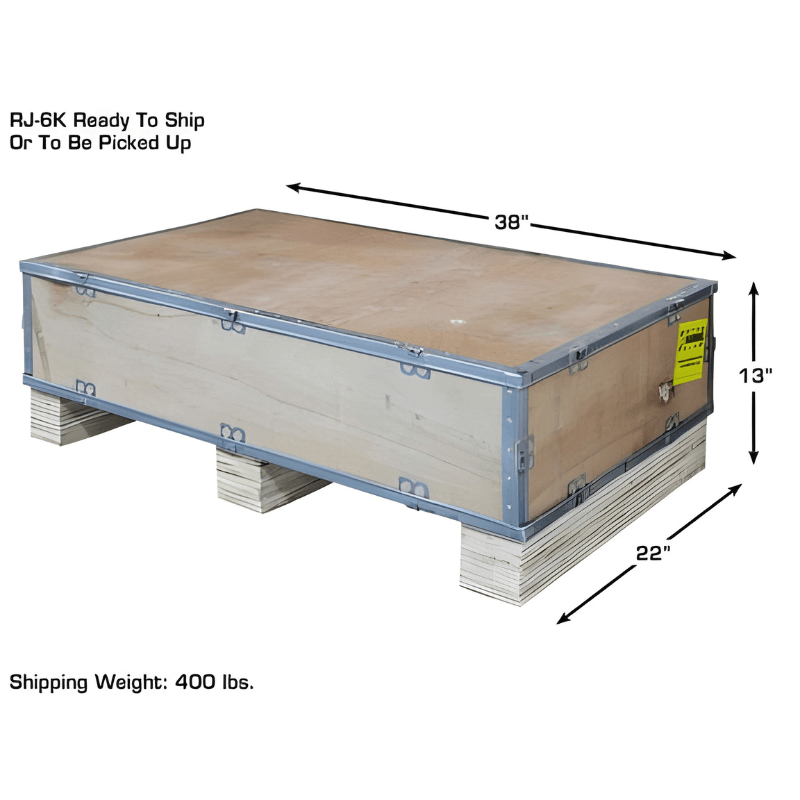

- Shipping Weight: 350 lbs.

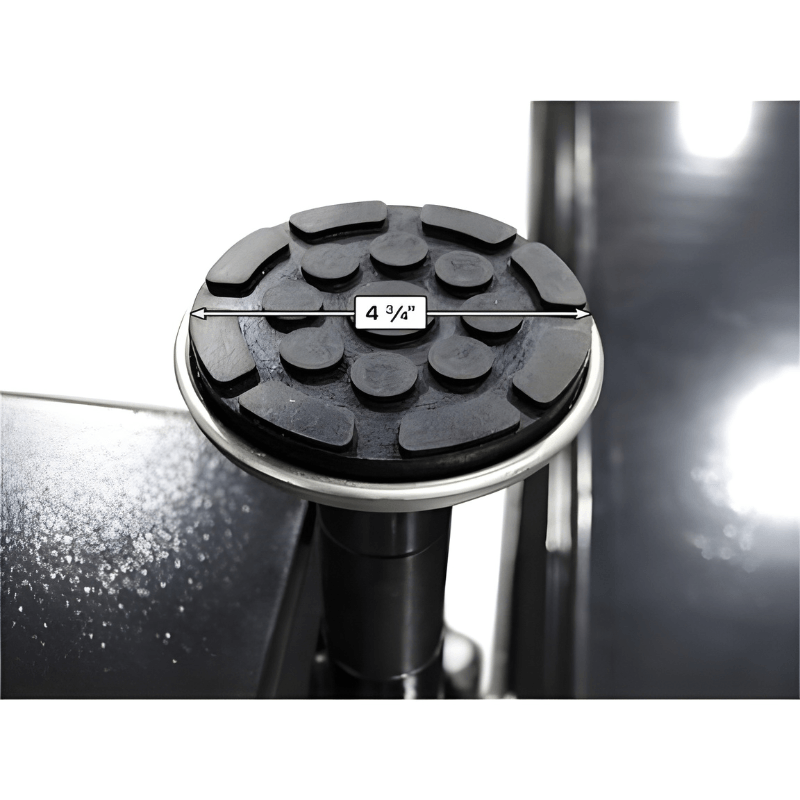

- Adapter Heights: 2 Each 2", 3"
- Arm Hole/Adapter Peg Size: 1.5"
RJ6 Rolling Jack Special Features
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile

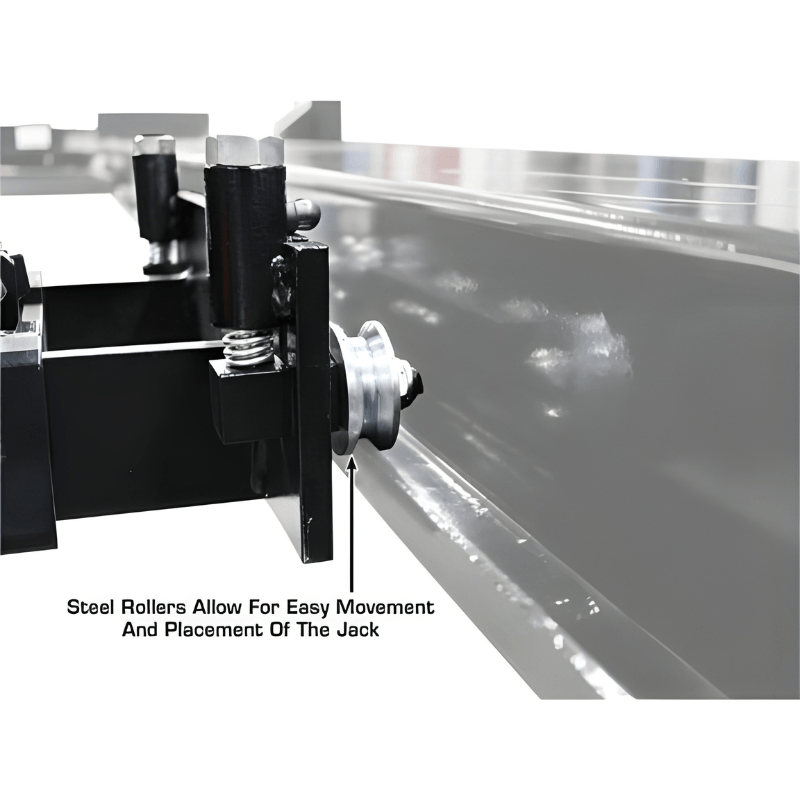

- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas Apex 9 Documentation:
Atlas Apex 9 4 Post Parking Lift Product Manual
APEX 9 + RJ6 Rolling Bridge Jacks Optional Item Sold Separately
This Item has a FLAT RATE SHIPPING FEE: $699
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
