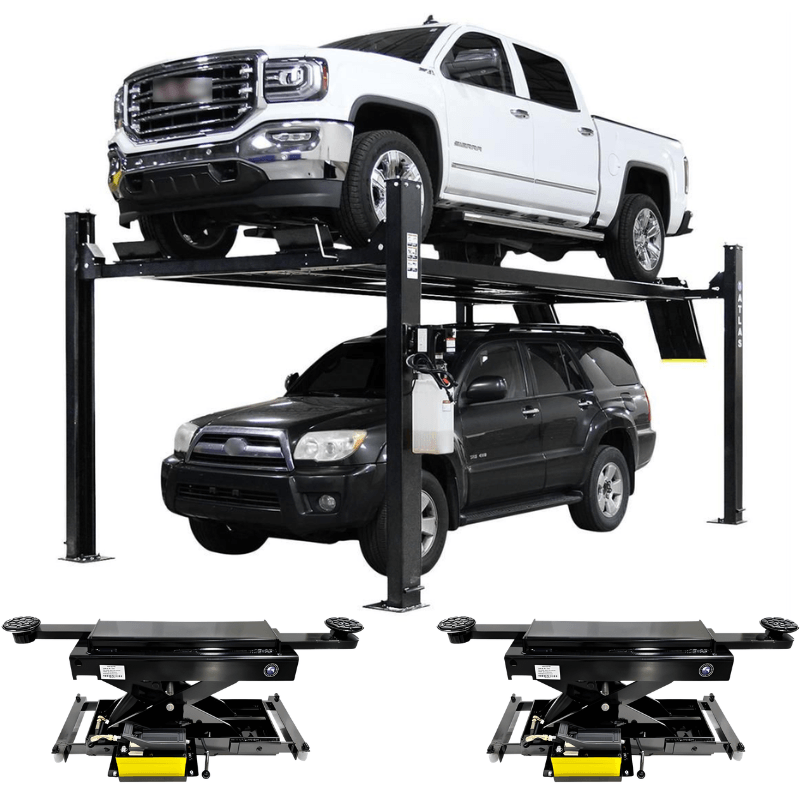

Atlas Apex 9, 9,000 lb 4 Post Lift with (2) RJ45A Rolling Jack Combo

Atlas Apex 9 9,000 lb 4-Post Lift is the ultimate solution for vehicle storage and repair. Designed for heavy-duty work, this lift offers an impressive 9,000 lb capacity, with features that elevate your service game to new heights. It’s wide enough for trucks and SUVs, with a lifting height of 86" (7' 2") and a clearance of 81 1/4" (6' 9 1/4") under the runways. Featuring diamond-plated runways, a single-point lock release, and a ladder lock safety system, the Apex 9 ensures stability and safety while you work.

The RJ45A 4,500 lb Capacity Air/Hydraulic Rolling Bridge Jack complements the Apex 9 with smooth air/hydraulic operation, making it the perfect accessory for lifting vehicles off the runways for servicing tires, brakes, and more. It’s designed to fit 9,000 lb lifts, offering effortless lifting with a scissor mechanism for level lifting.

Together, the Apex 9 4-Post Lift and RJ45A Rolling Bridge Jack create the ideal setup for professional automotive shops and home garages that demand precision and durability.

Atlas 9000 lb Lift Specifications:

• Capacity: 9000 lbs
• Lifting Height, Top of Runway: 86" (7' 2")
• Clearance Under Runways: 81 1/4" (6' 9 1/4")
• Height of Columns: 99" (8' 3")
• Overall Width: 121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8")
• Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
• Runway Length: 196 1/2" (16' 4 1/2")
• Runway Width: 20 1/8"
• Runway Thickness: 4 3/4"
• Width Between Runways: 38 7/8" w/ Rail 34 3/4"
• Outside Runway to Outside Runway: 79" (6' 7")
• Clearance Between Columns: 108 1/8" (9' 1/8")
• Length Between Columns: 184 1/4" (15' 4 1/4")
• Drive Thru: 98 5/8" (8' 2 5/8")
• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2975 lbs
• Pallet Size:  204" Long x 30-1/2" Tall x 25" Wide

Rolling Jack RJ45A Specification:

• Capacity: 4,500 lbs

• Minimum Width (Roller Arms): 36"

• Maximum Width (Roller Arms): 54"

• Lift Arm Width (Center of Pad): 30" - 60 1/2"

• Air Requirement: 70-115 PSI

• Shipping Weight: 380 lbs

• Arm Hole/Adapter Peg Size: 1 1/2"

• Adapter Heights: 2 Each 1 1/4", 5"

Apex9 9,000 lb 4 Post Vehicle Storage Lift Special Features:

• ALI Certified Unit
• Heavy Duty
• Extra Tall, Extra Wide and Extra Long
• Design Free Standing & Portable
• Diamond Plated Runways
• Powder Coat Unit
• Lock Release: Single-Point
• Lock Design Lock Ladder w/ Double Lock Safety System
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• 110volt Electric Operation (Requires 30amp Breaker)
• Unit Includes:
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • 4 Plastic Drip Trays
  • 2 Rubber Wheel Chocks

RJ45A 4500 lb. Rolling Jack Special Features:

• 4,500 lb Capacity for lifting heavy vehicles

• Air/Hydraulic Operation (External air supply not included)

• Multiple Safety Lock Positions for secure lifting

• Compact Size with Low Profile for better space management

• Smooth Rolling Action for easy positioning on the lift

• Scissor Mechanism allows for level lifting

• 4-Piece Truck Adapter Set Included for lifting larger vehicles

• 1 Year Parts Only Warranty for peace of mind

• Efficient Lifting for tire, brake, and component servicing

Apex 9 and RJ45A Manual

   Atlas Apex 9 4 Post Vehicle Storage Lifts Product Manual

Atlas Apex 9, 4 Post Lift with Two RJ45A Rolling Jack Combo Optional Item Sold Separately
