Atlas Apex 8, 8,000 lb 4 Post Parking Lift - ALI Certified

SKU ATEATTD-APEX8
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$4,699.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

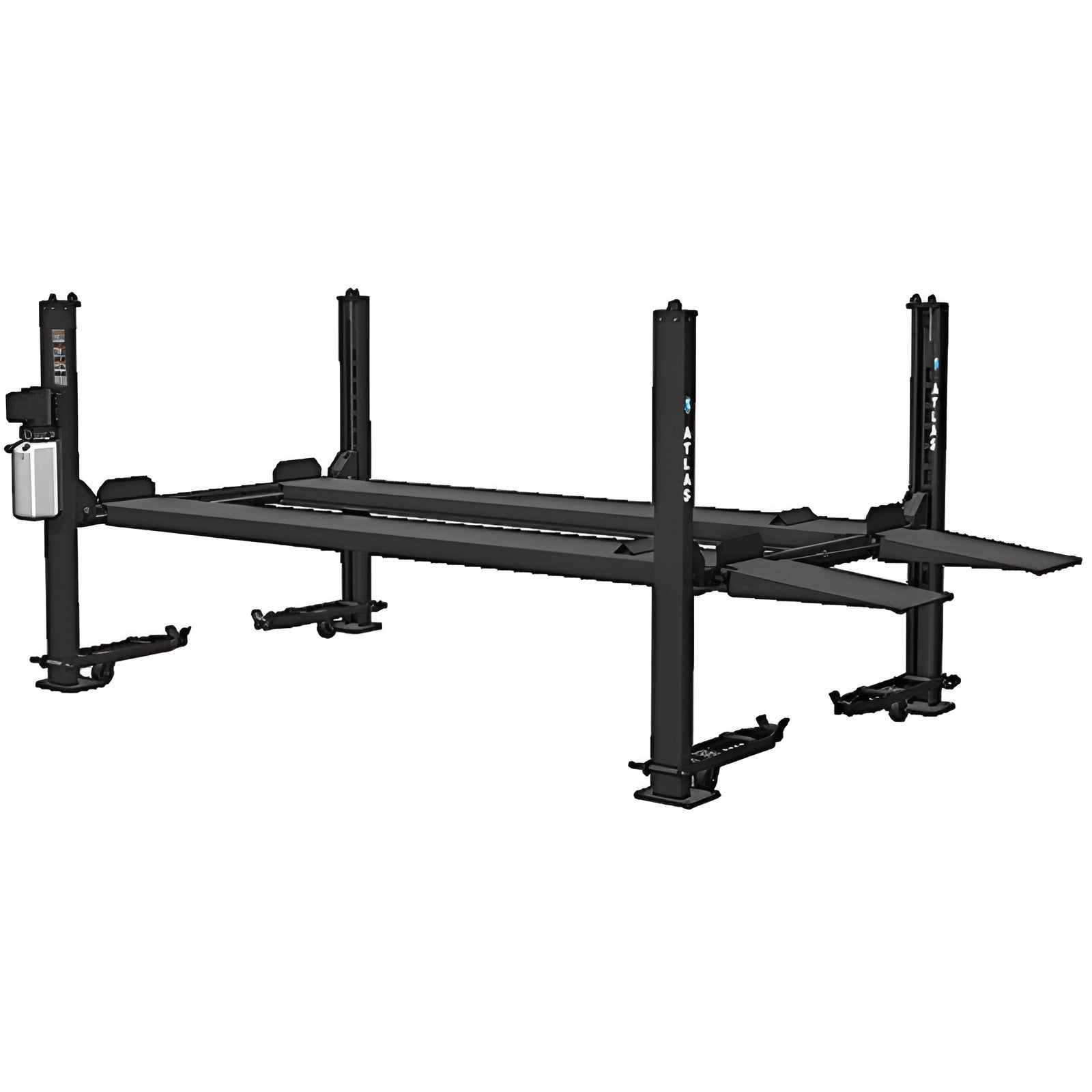

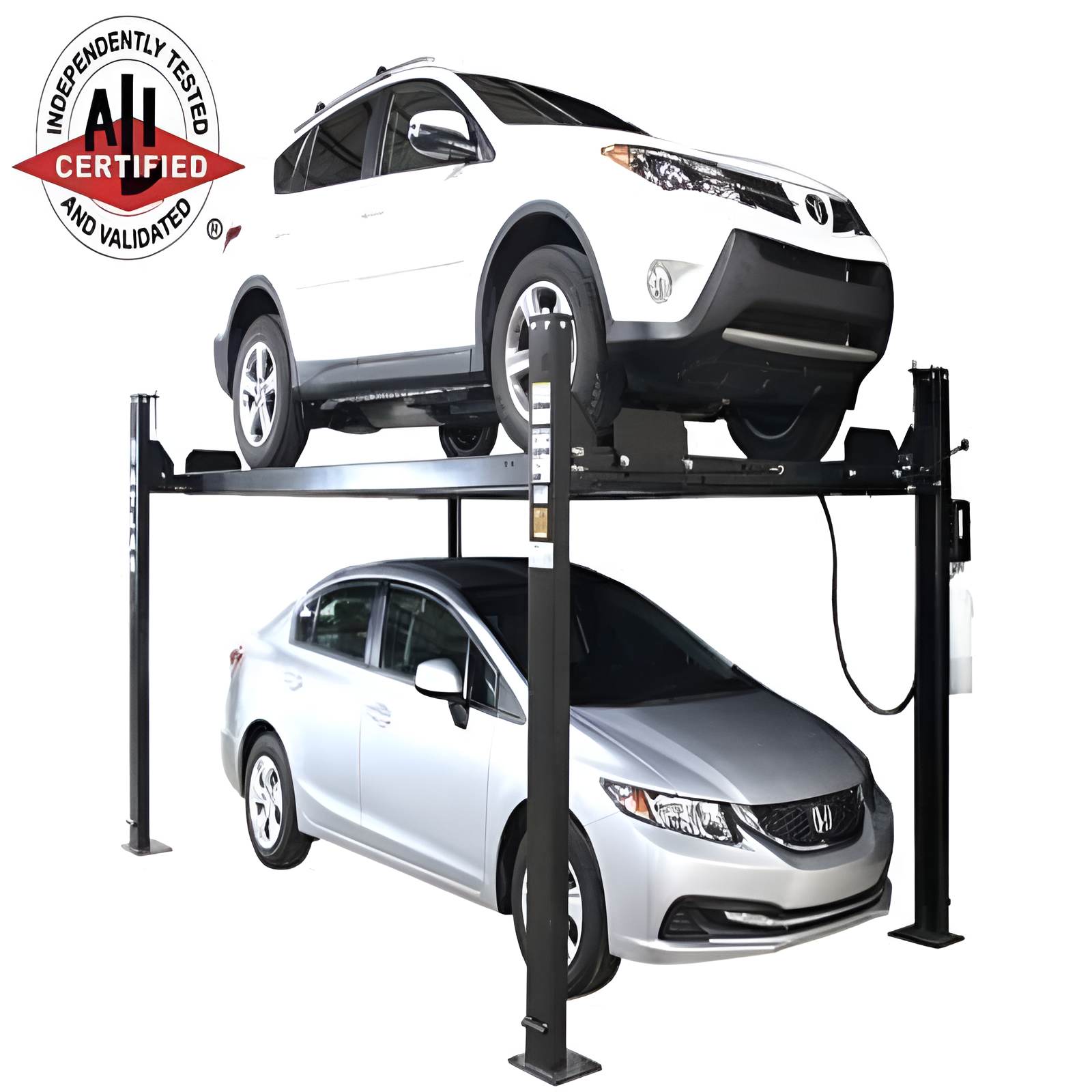

Apex 8 4 Post Parking Lift by Atlas

Running out of garage space? Meet the Atlas® APEX8 - the ultimate car storage solution. Double your parking capacity without sacrificing convenience. Craving more space for your cars? The APEX8 is a heavy-duty, ALI-certified lift that can safely stack most passenger vehicles with a whopping 8,000-lb capacity and a 72" max lift height. This portable design, complete with a caster kit, lets you easily move it around your garage or even outside. Plus, it comes with free plastic drip trays and a steel jack tray to save you money upfront.

Experience the freedom of a clutter-free garage. The APEX8 is more than just a car lift; it's a lifestyle upgrade. Enjoy easy access to your vehicles and create a more organized living space. And the 5-year structural warranty will have you sleeping like a baby. Free up some wanted space with the Atlas® APEX8.

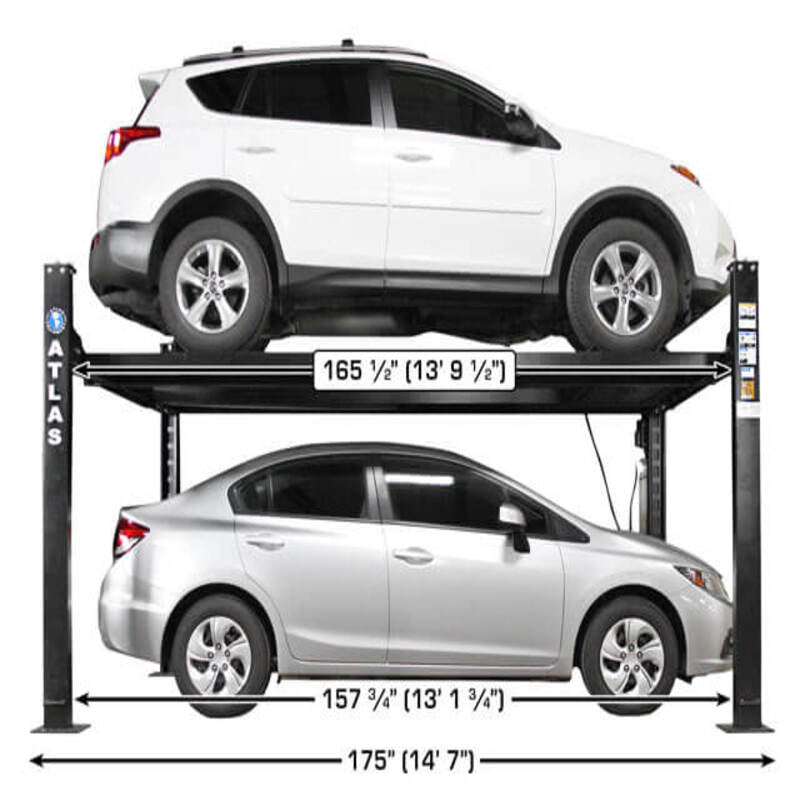

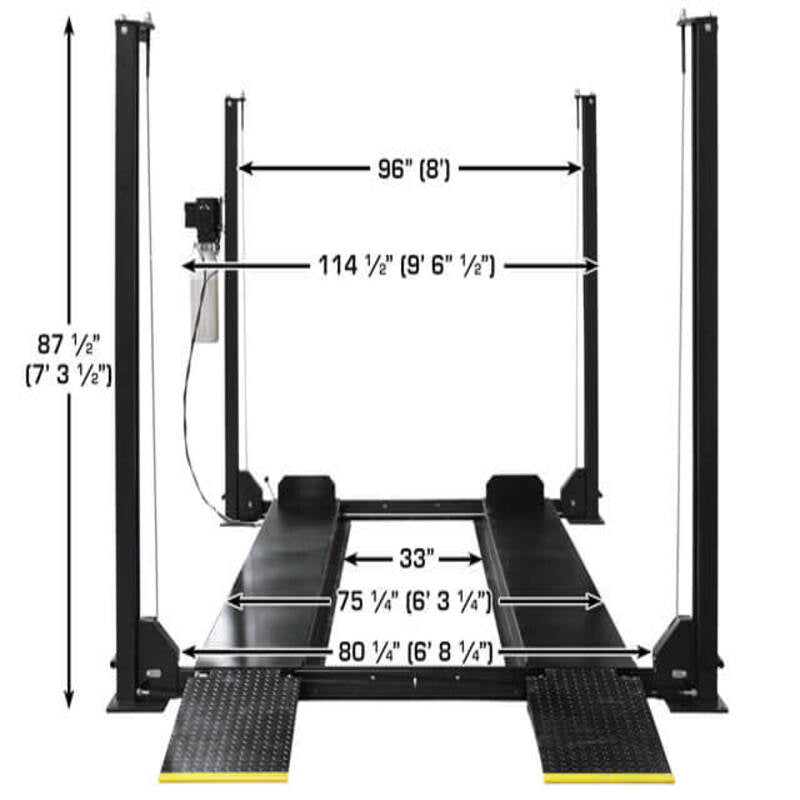

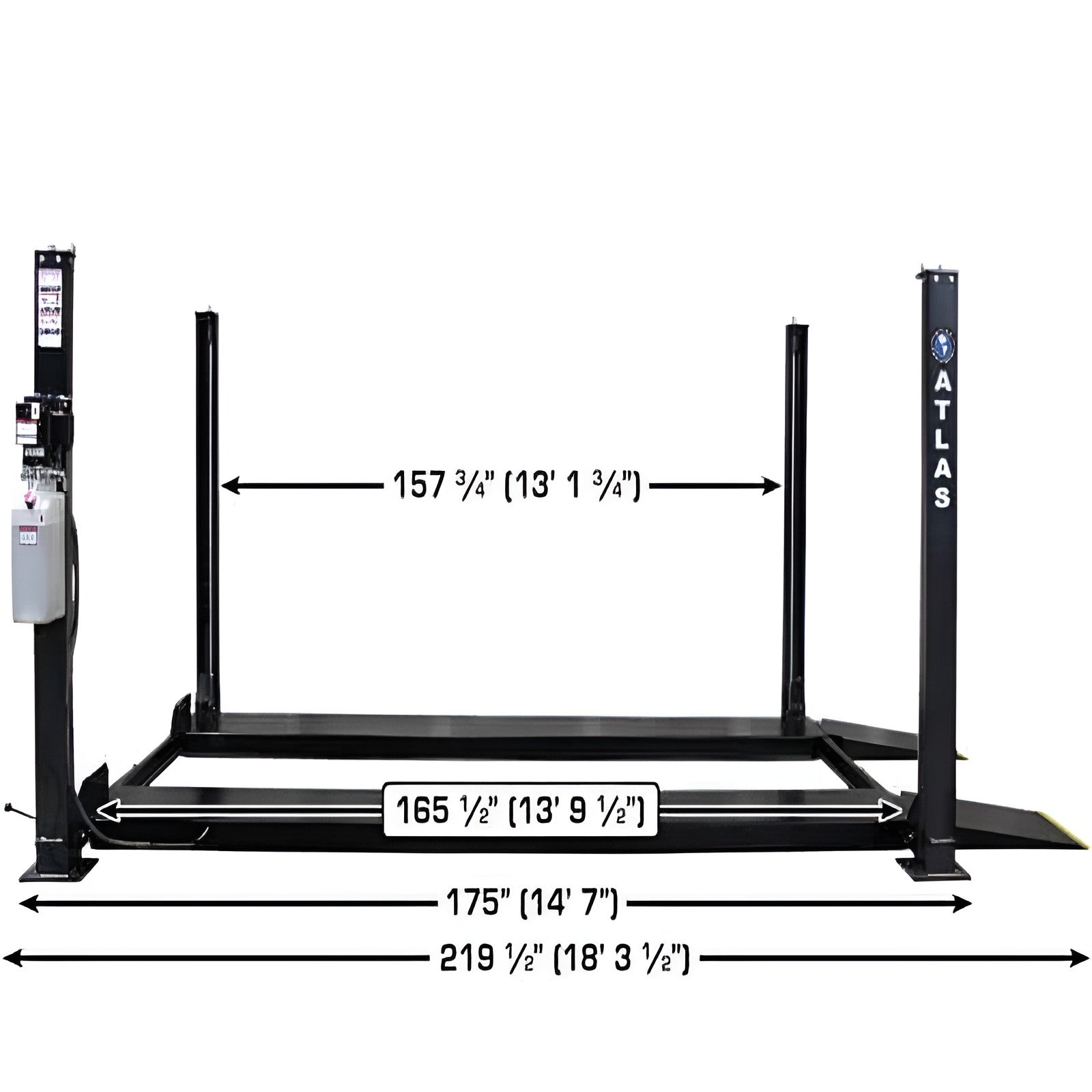

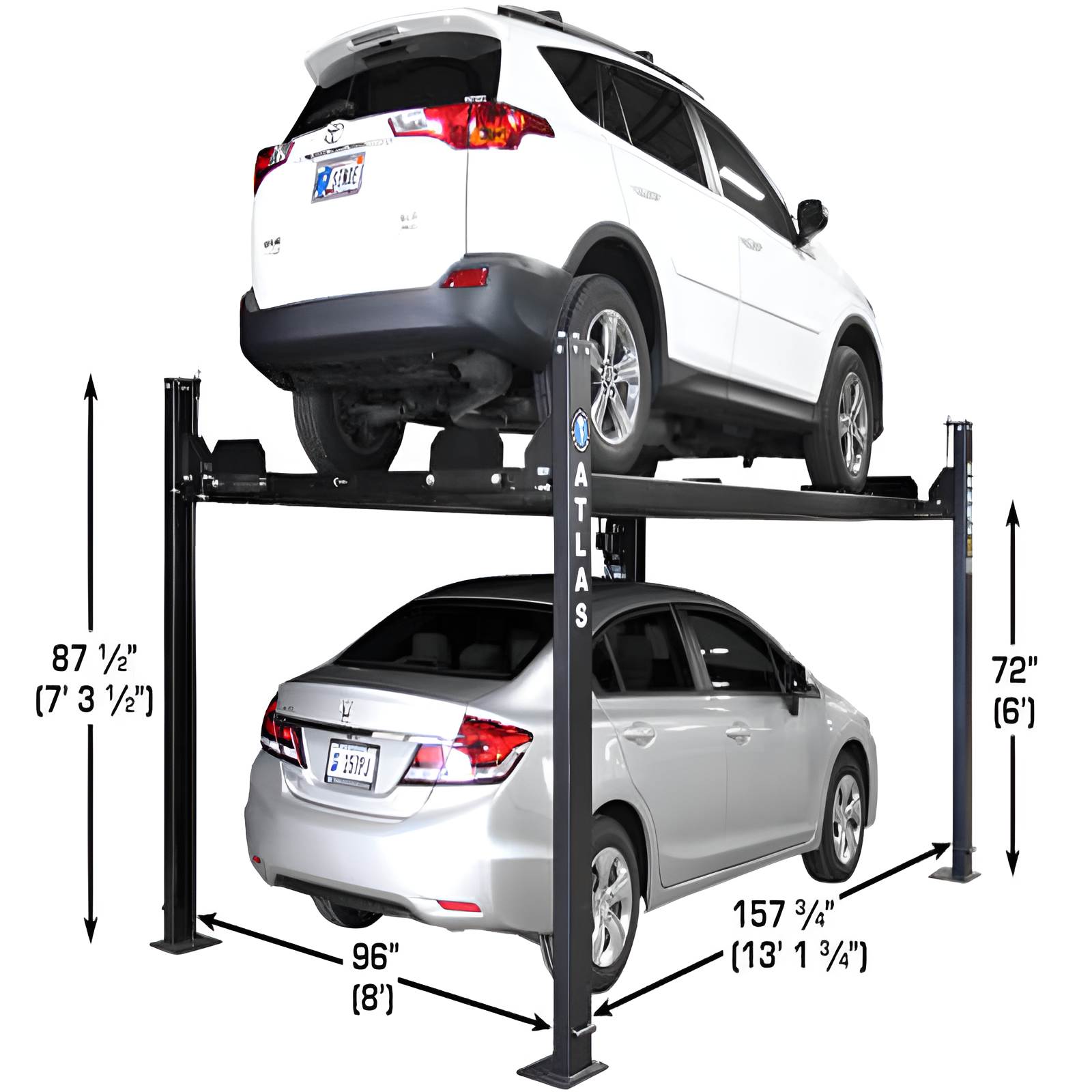

4 Post Parking Lift Apex 8 Specifications:

  • Capacity: 8000 lbs
  • Lifting Height, Top of Runway: 72" (6')

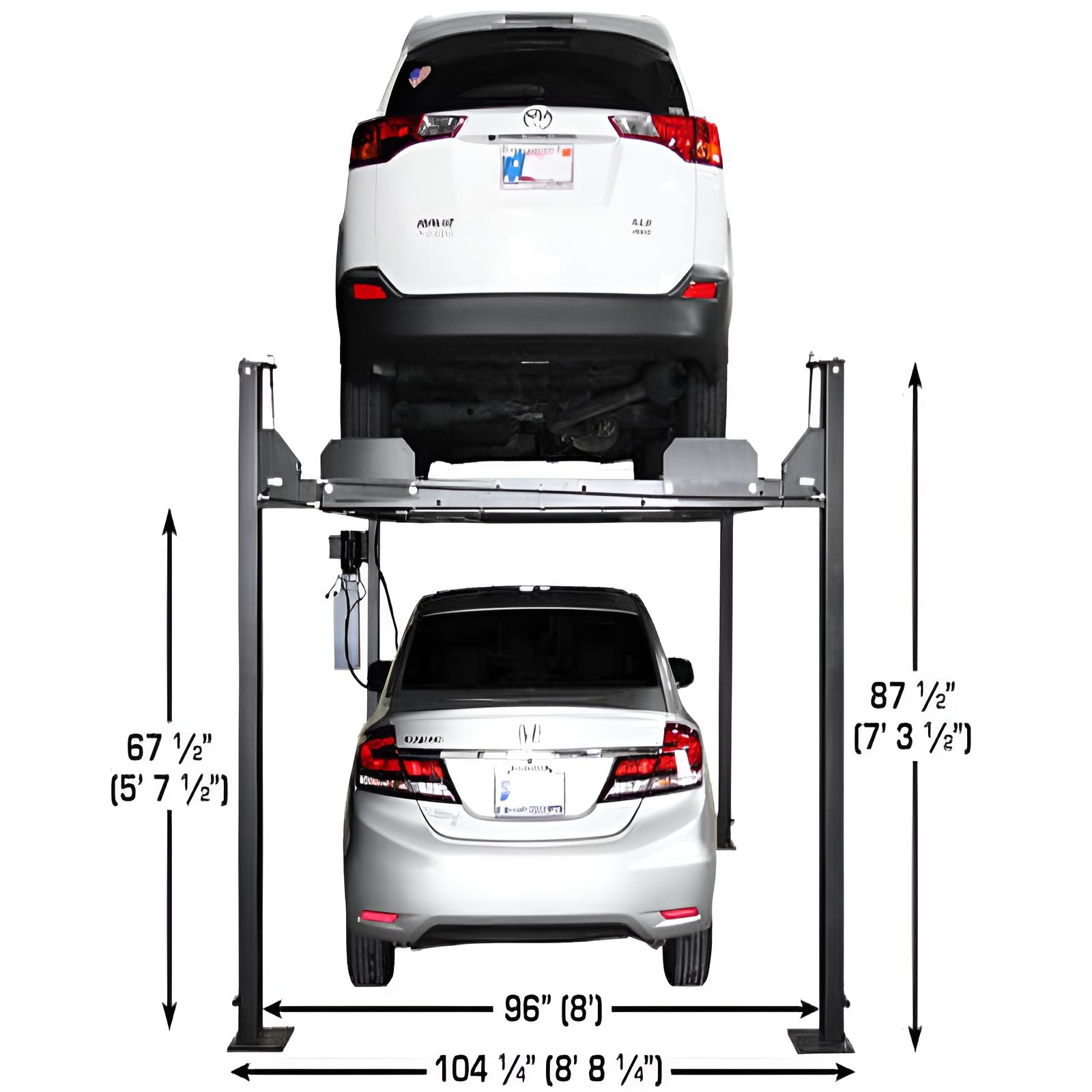

  • Clearance Under Runways: 67" (5' 7")
  • Height of Columns: 85" (7' 1")
  • Overall Width: 104" (8' 8") w/ motor 114" (9' 6")

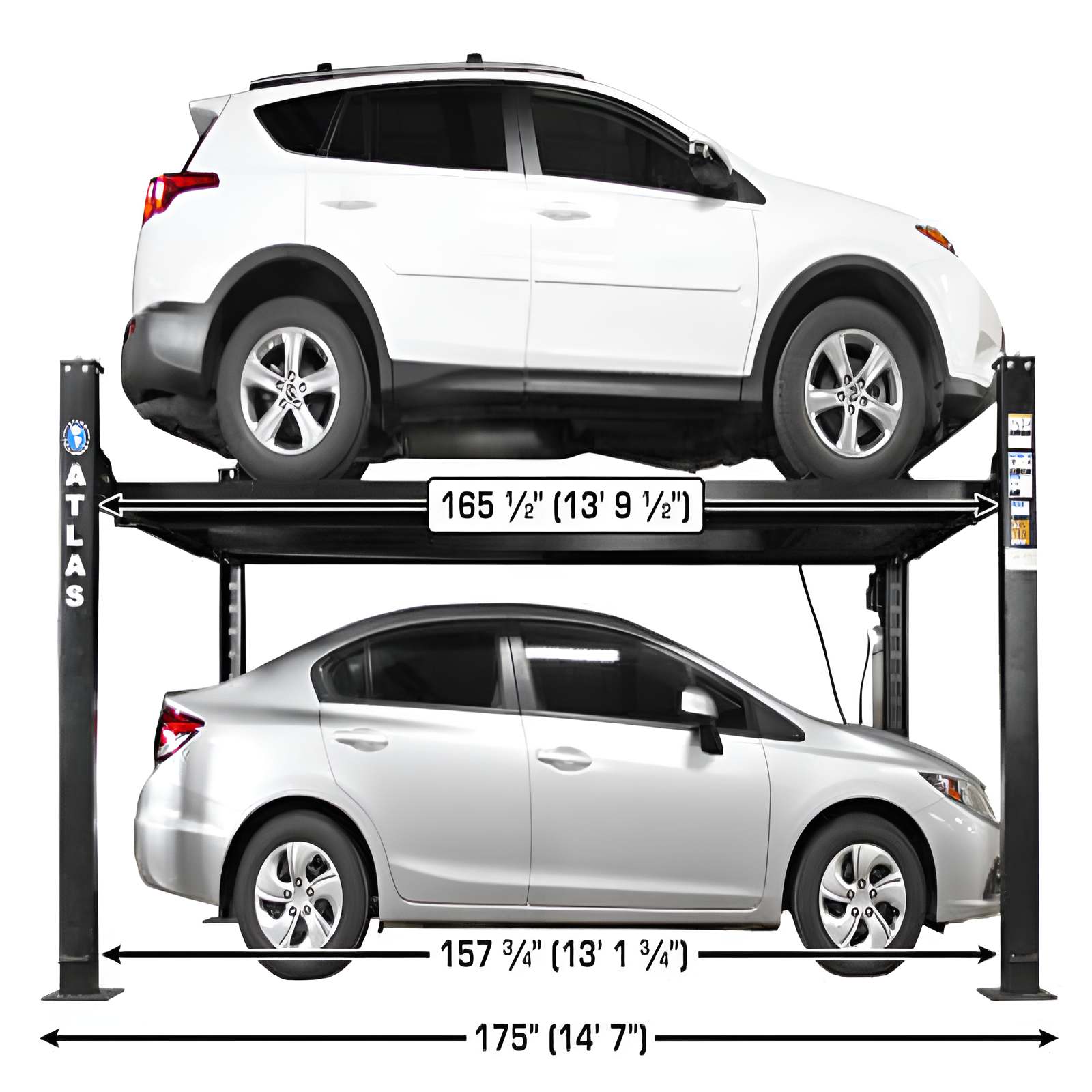

  • Overall Length w/ Ramps: 207 5/8" (17' 3 5/8")
  • Runway Length: 169 1/2" (14' 1 1/2")

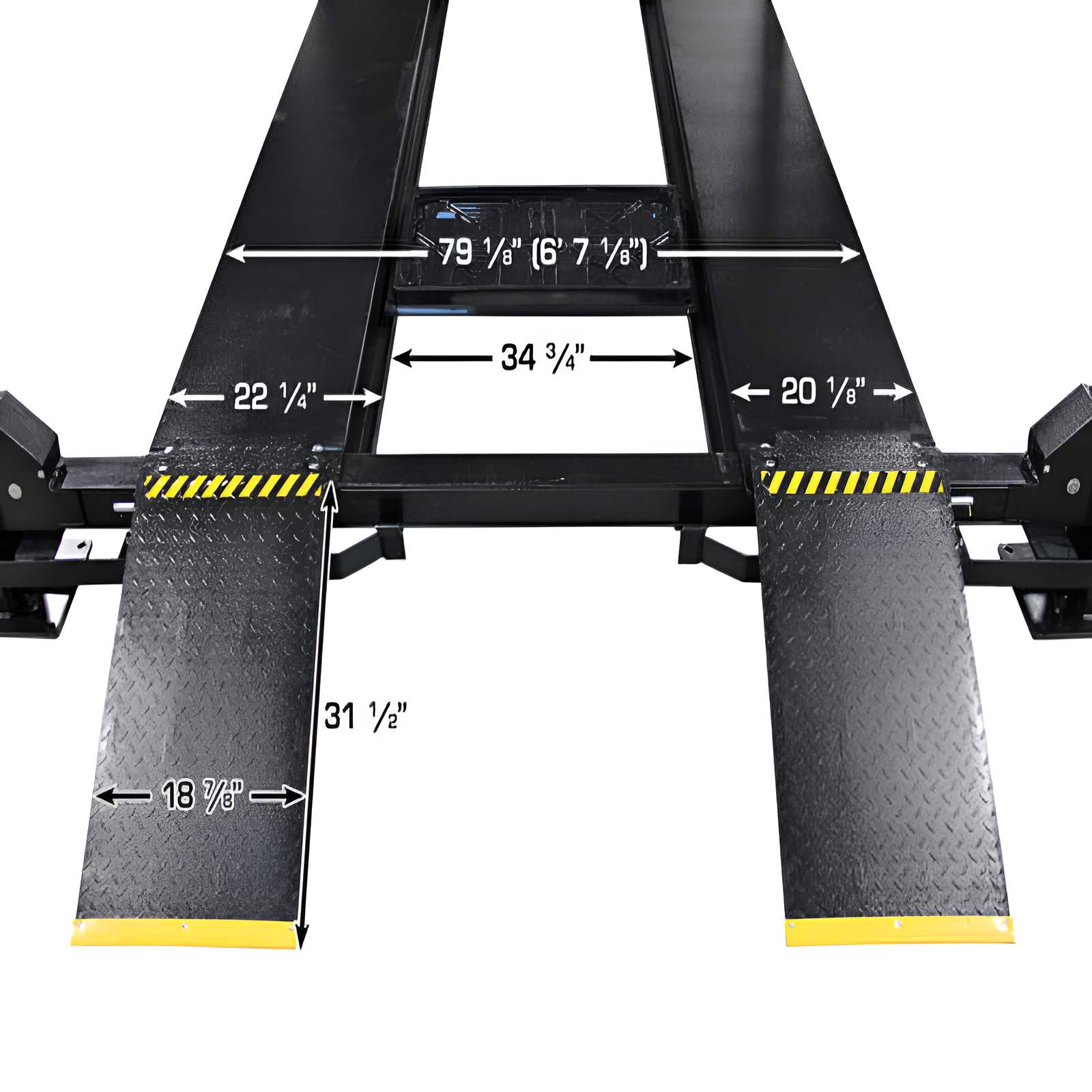

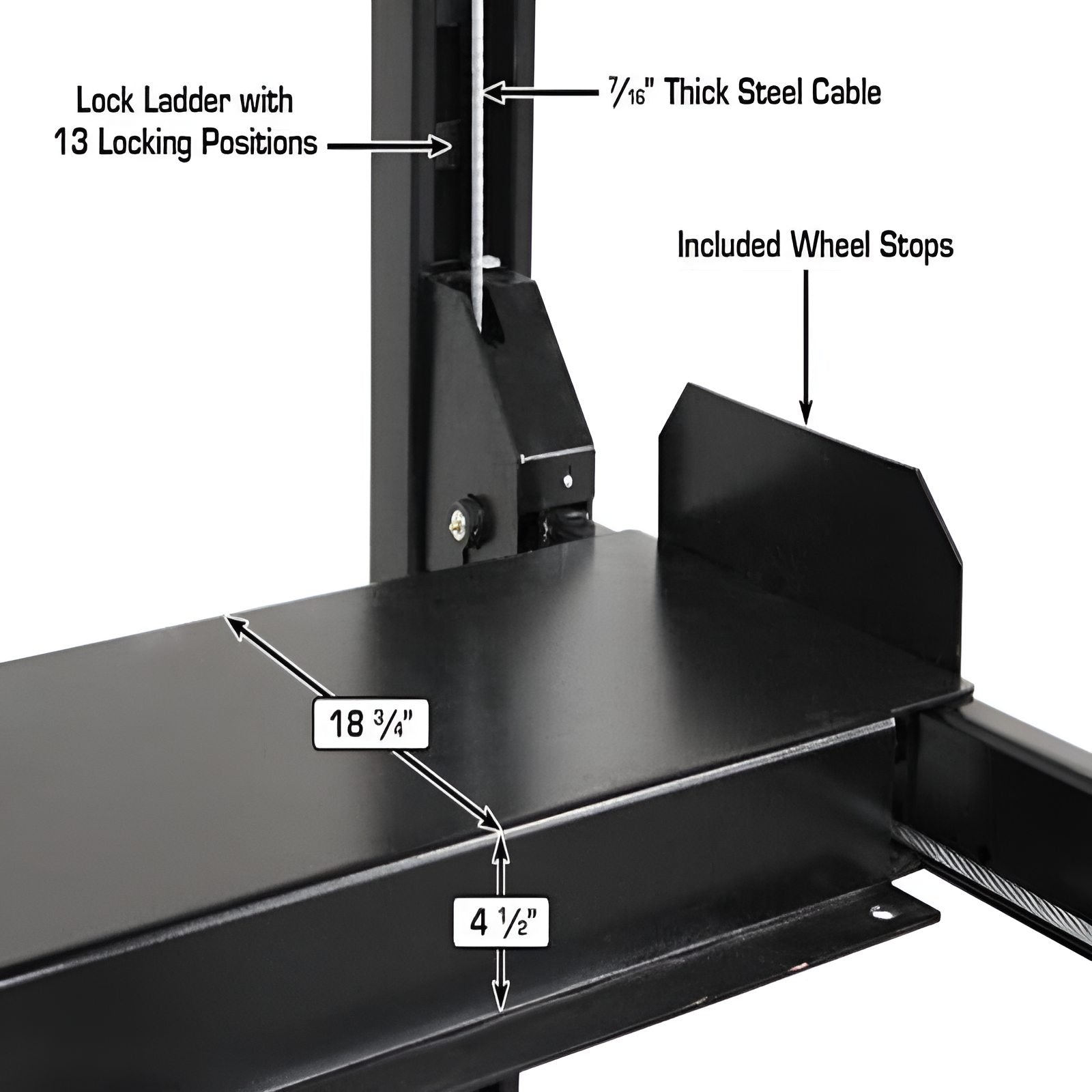

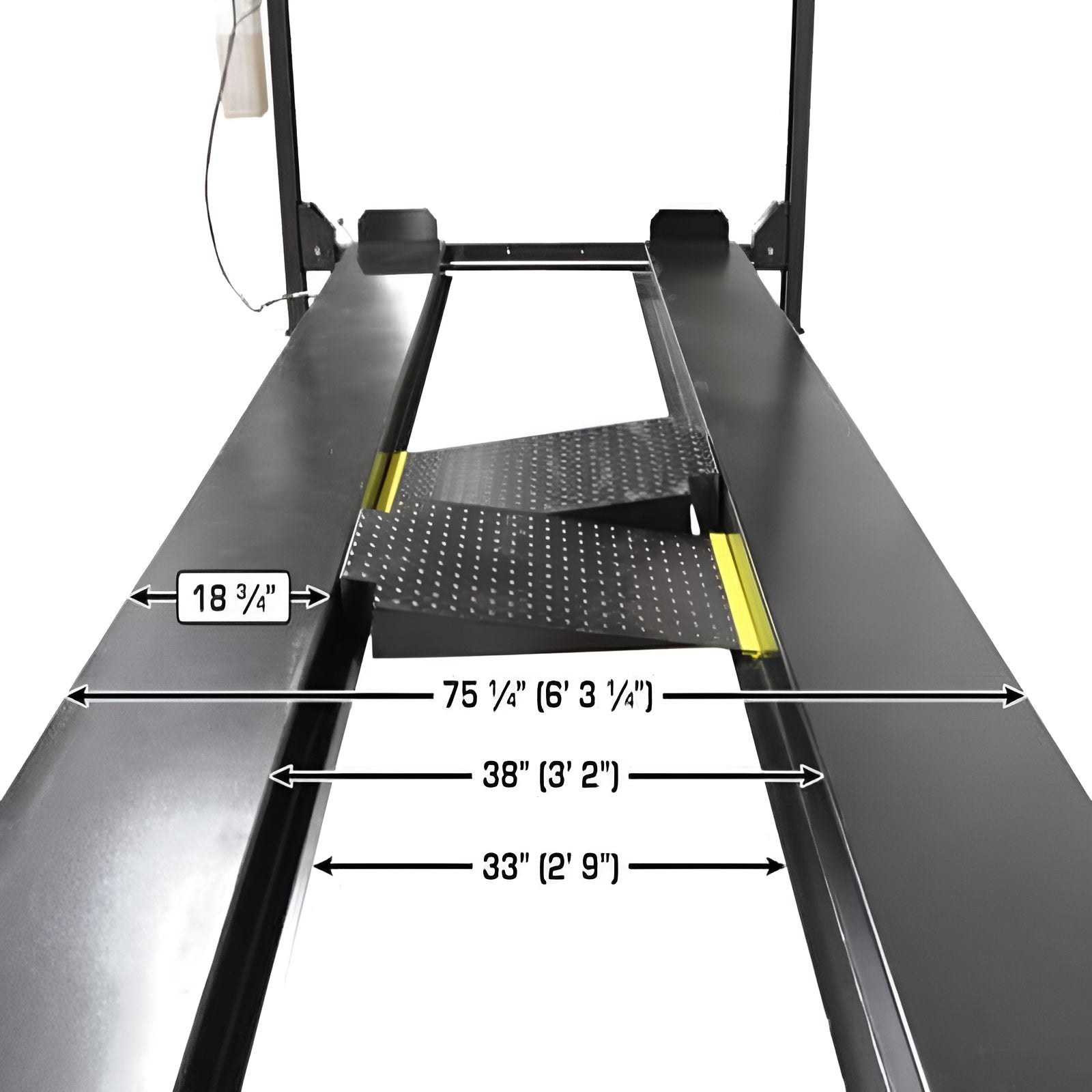

  • Runway Width: 18 2/4"
  • Runway Thickness: 4 1/3"

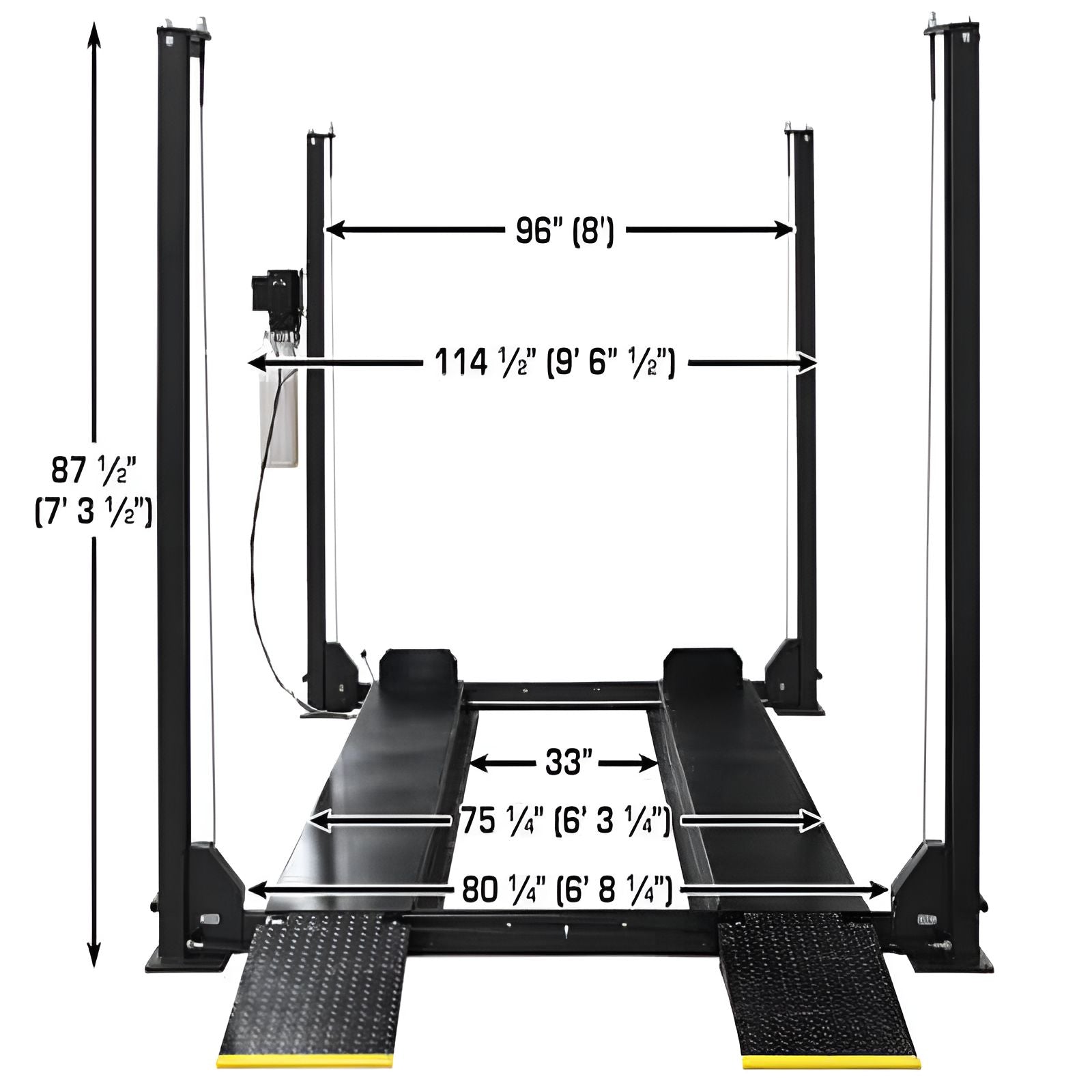

  • Width Between Runways: 38" w/ Rail 33"
  • Outside Runway to Outside Runway: 75 1/4" (6' 3 1/4")
  • Clearance Between Columns: 94" (7' 10")
  • Length Between Columns: 157 1/3" (13' 1 1/3")
  • Drive Thru: 80 1/4" (6' 8 1/4")

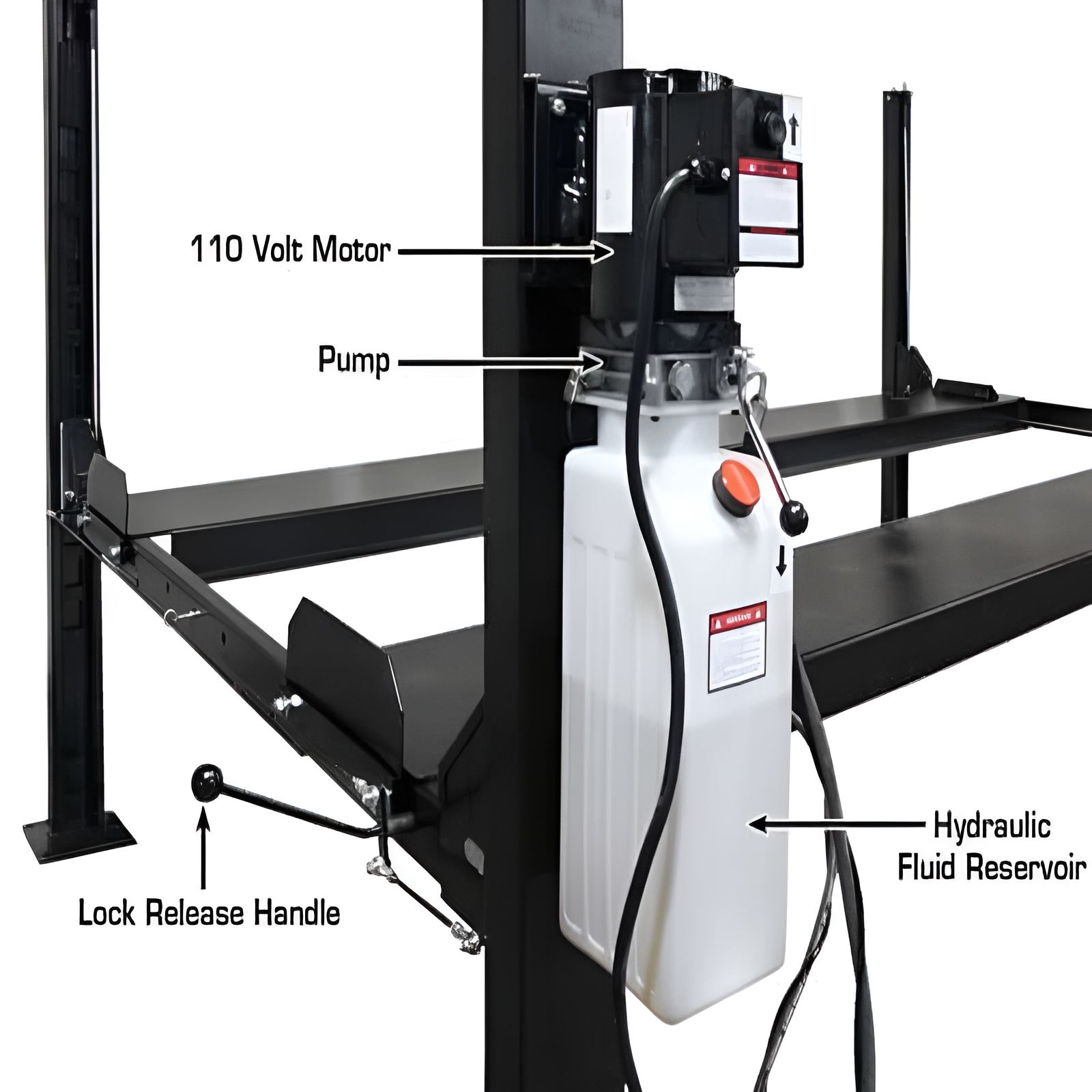

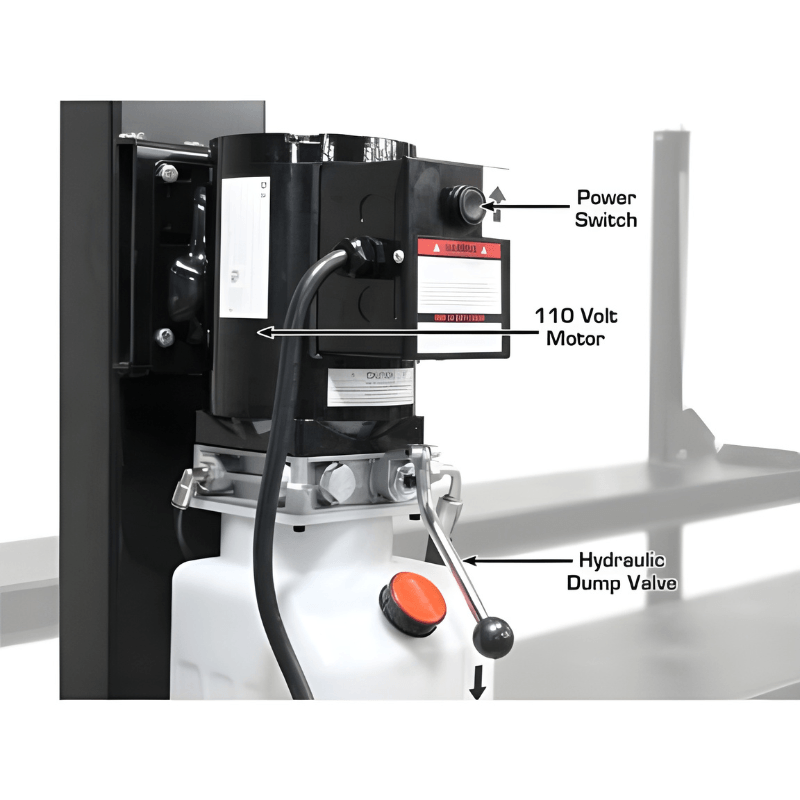

  • Motor/Electrical Requirement: 110volt, 30 amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 2000 lbs

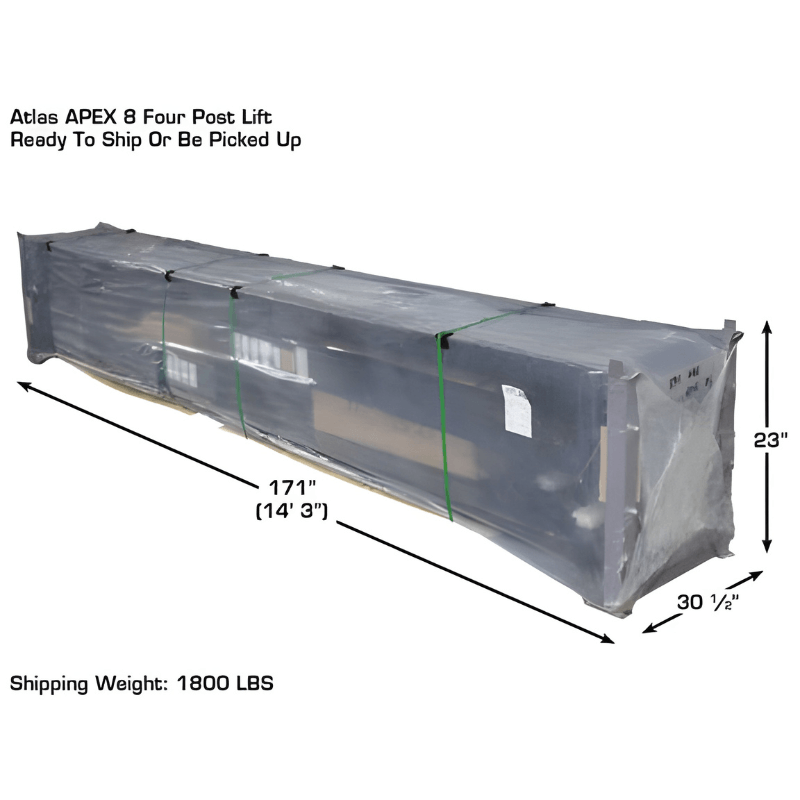

  • Pallet Size:  171" Long x 23" Tall x 30-1/2" Wide

Apex 8 8,000 lb 4 Post Parking Lift Special Features:

  • ALI Certified
  • Design: Free Standing & Portable
  • Powder Coat Finish
  • Lock Release: Single-Point
  • Lock Design: Double Lock Safety System
  • Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
  • Unit Includes:

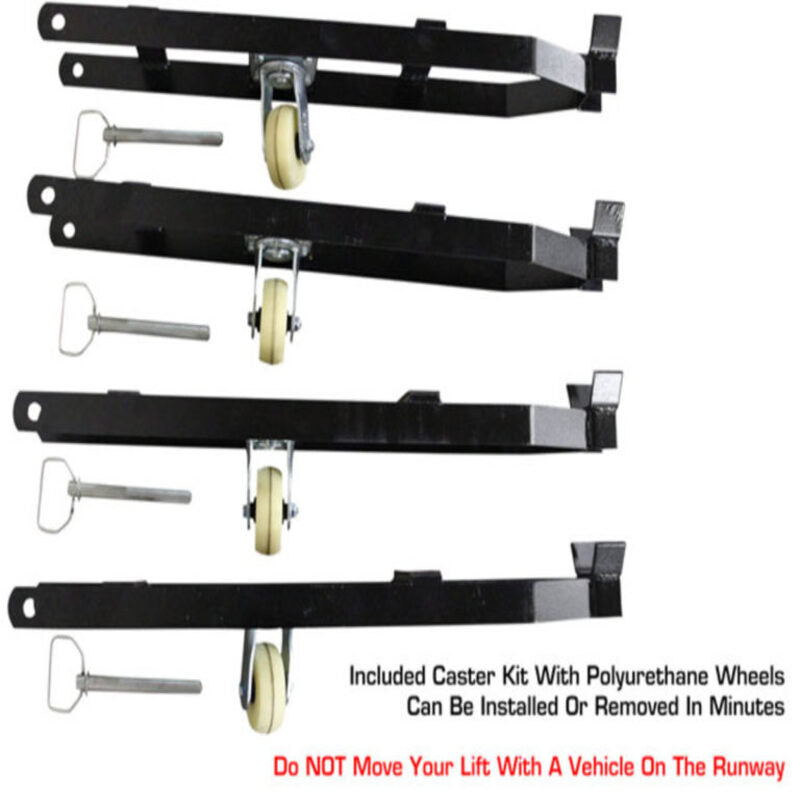

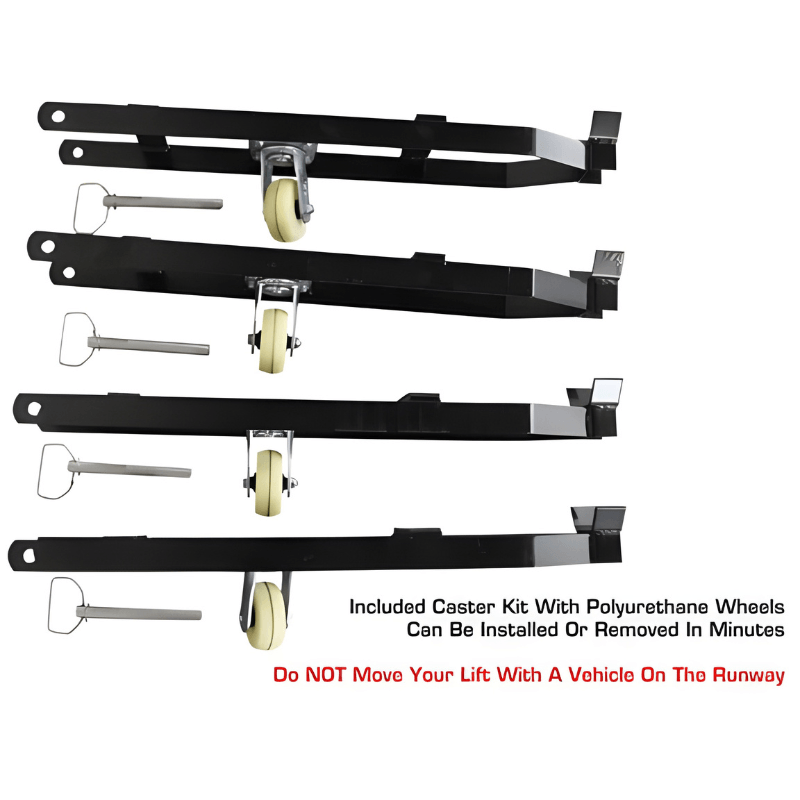

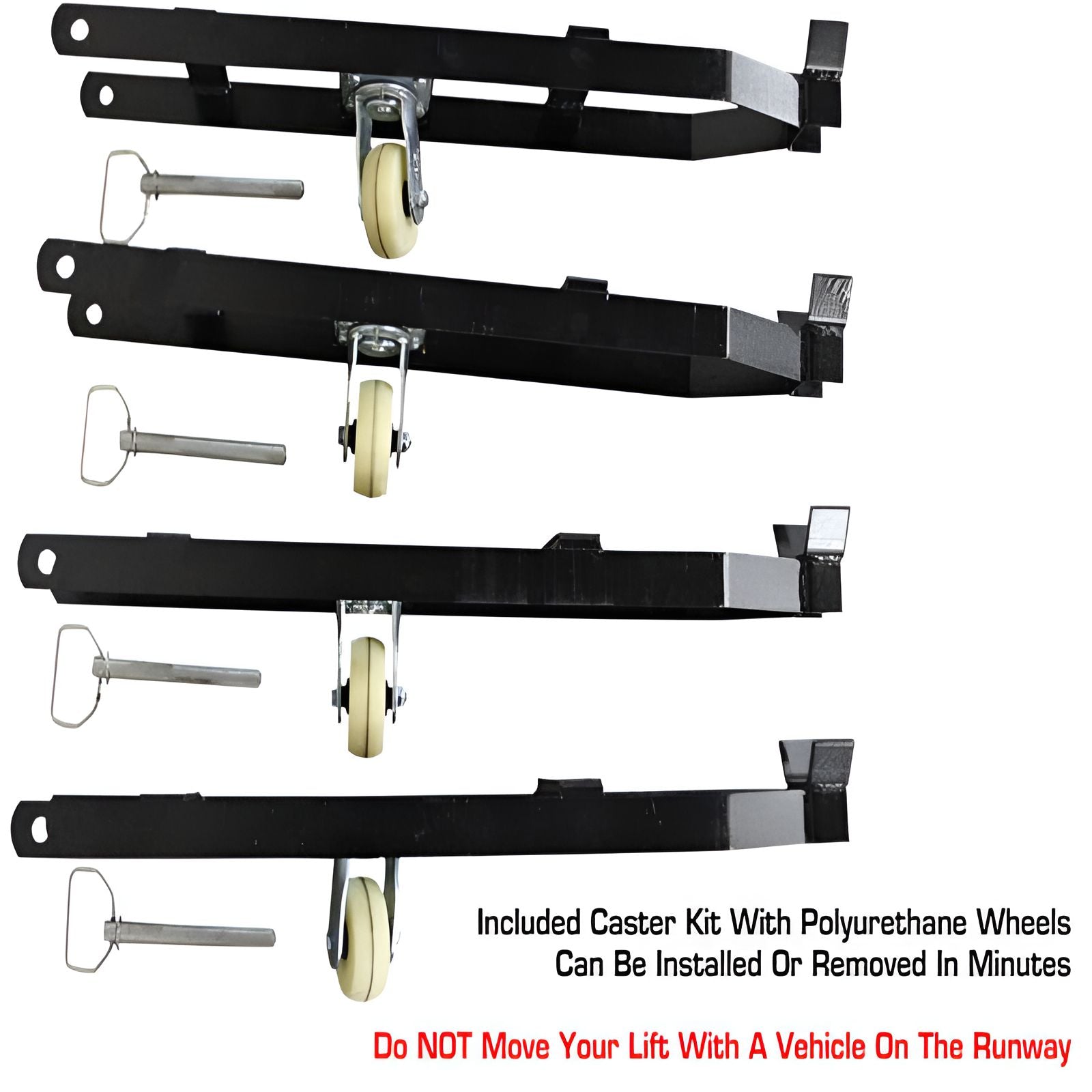

  •     Caster Kit with Polyurethane Wheels Included

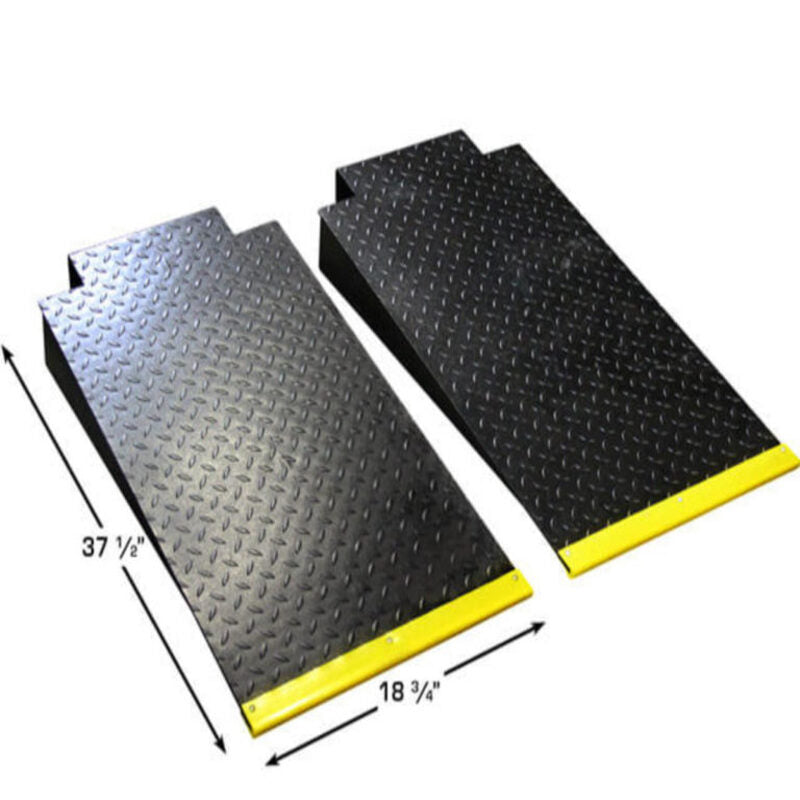

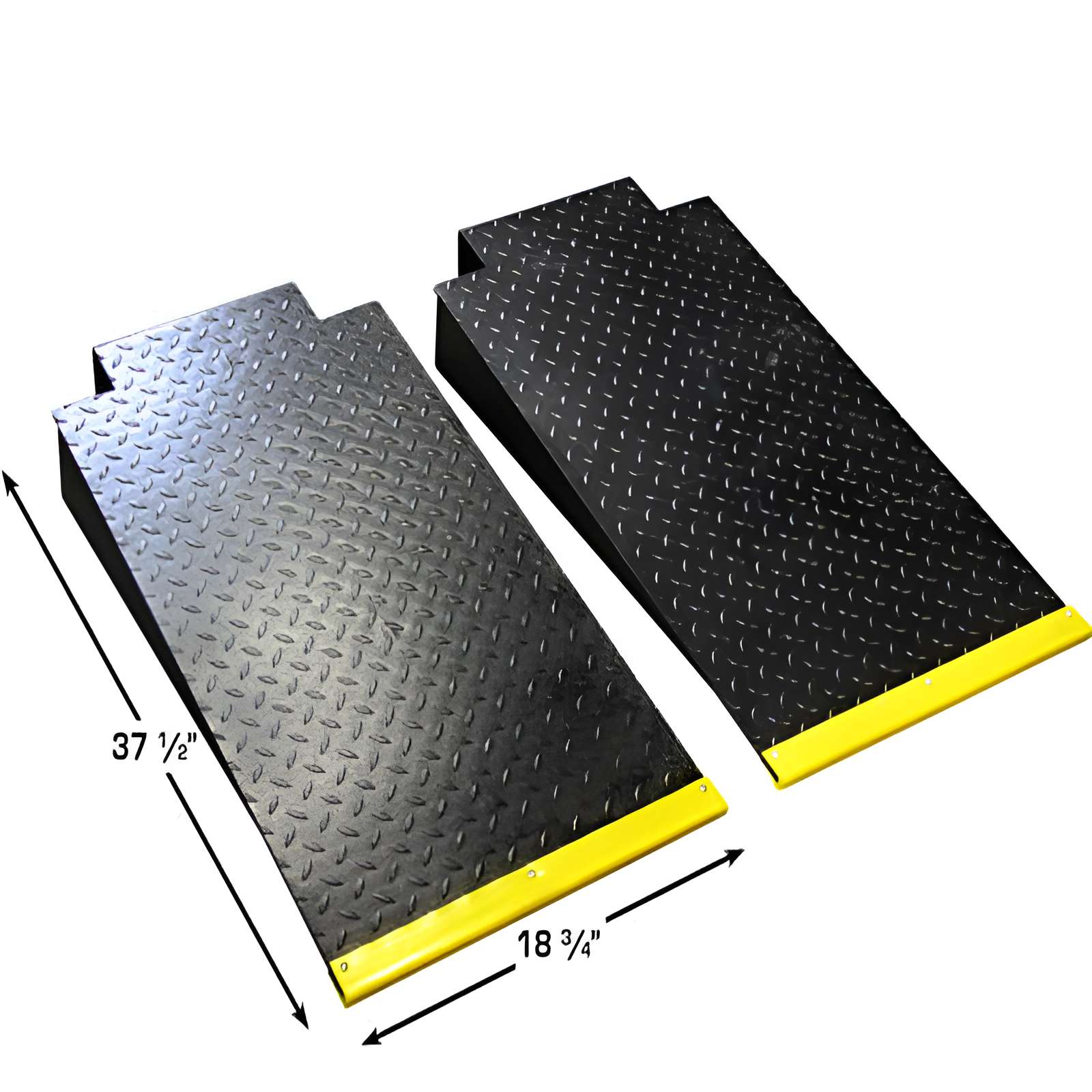

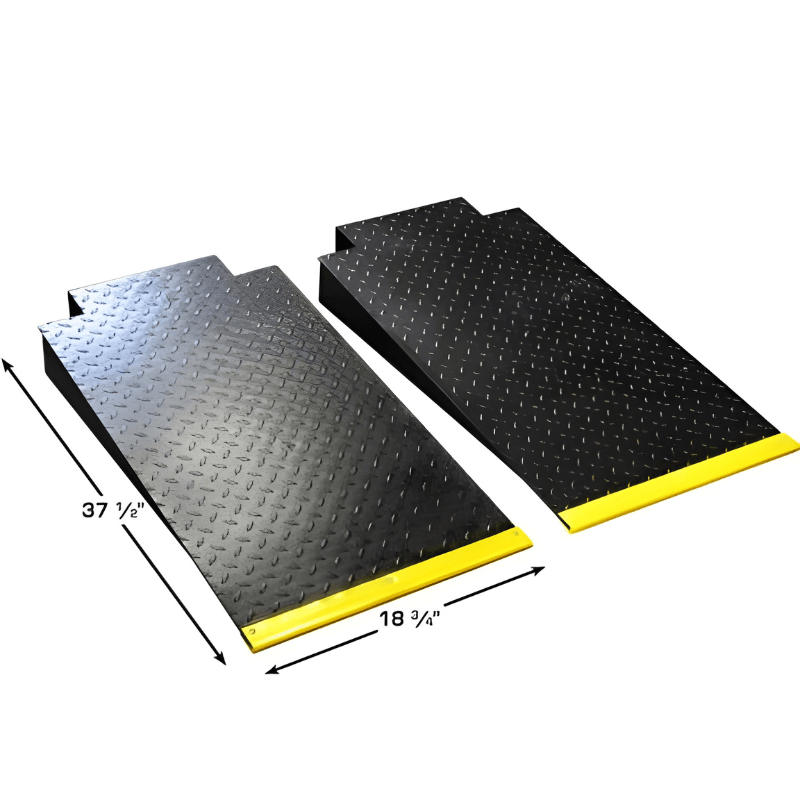

  •     Steel Approach Ramps Included
  •     Steel Jack Tray Included
  •     4 Plastic Drip Trays

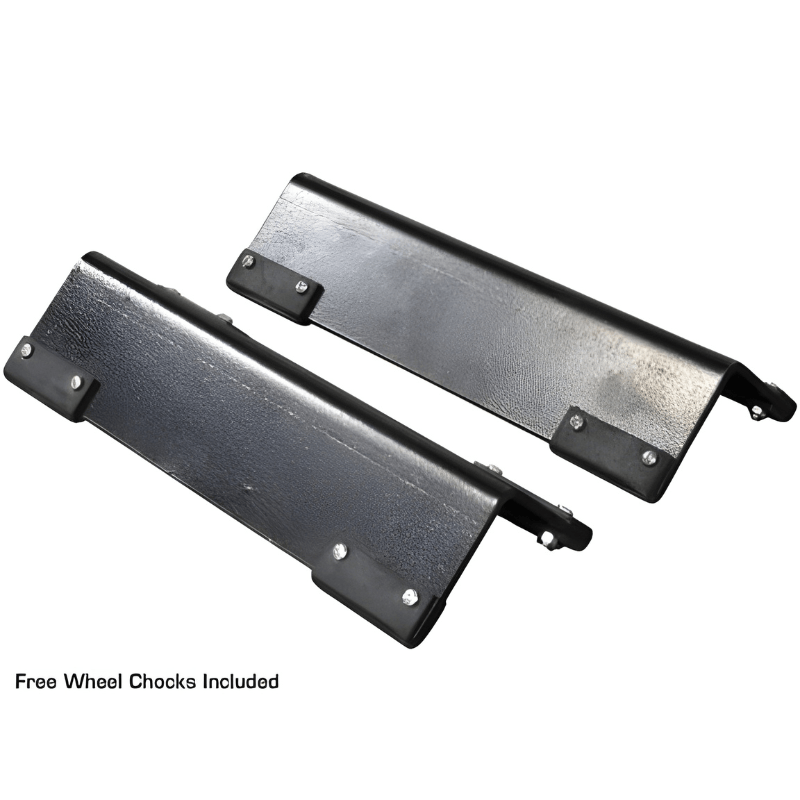

  •     2 Wheel Chocks
  • Buy as a Combo Atlas APEX 8 + PROJack35

Apex 8 Four Post Parking Lift Optional Items (sold separately):

Atlas Apex 8 Documentation:

Parking Lift Apex 8 Lift Product Manual   Atlas Apex 8 4 Post Parking Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $499

Warehouse Pickup locations (No shipping charge):

  • Atlanta, GA
  • Dallas, TX
  • Indianapolis, IN
  • Phoenix, AZ
  • Somerset, NJ

Atlas Apex 8 Video
