Atlas PRO12K 12,000lbs Commercial 4-Post Lift

PRO12K 12,000lbs Commercial 4-Post Lift

Heavy-duty vehicle service requires a 4-post lift with enough capacity, runway length, and working clearance for larger vehicles. Standard lifts may not provide the size or commercial-grade construction needed for demanding shop applications.

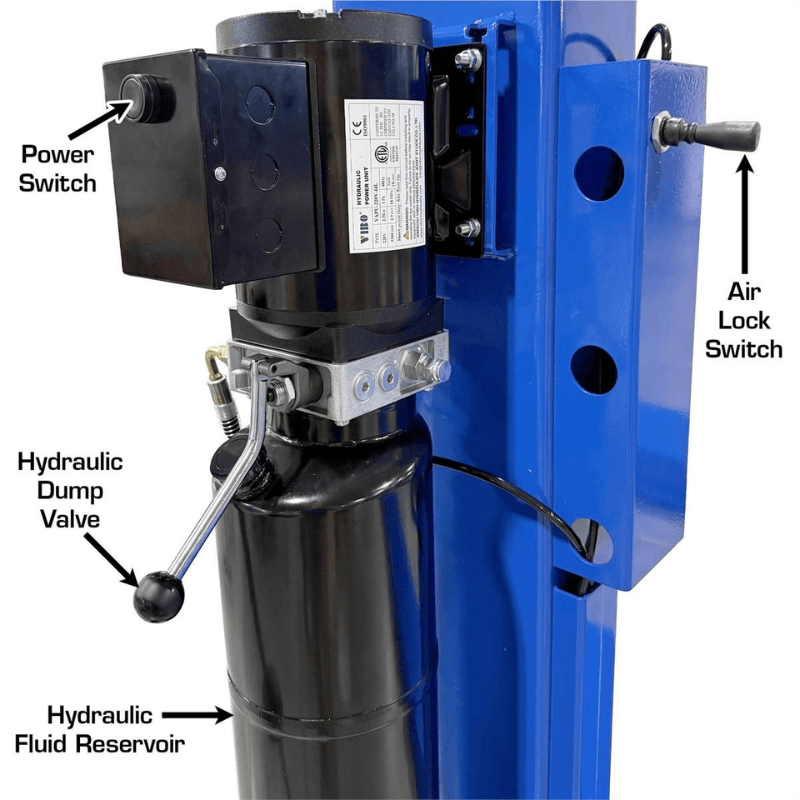

The Atlas ATEXH-PRO12K provides a 12,000 lb lifting capacity with extra-long, extra-wide, and extra-tall dimensions. Its heavy-duty cable lifting system and under-runway hydraulic cylinder provide the lifting structure needed for commercial applications.

An air-operated single-point lock release, double safety lock system, and lock ladder design provide controlled lift operation. The Pro12K is also pre-drilled for an optional alignment kit and includes tracks for compatible rolling bridge jacks.

 ATEXH-PRO12K Specifications:

• Model: ATEXH-PRO12K
• Lift Capacity: 12,000 lbs
• Lifting Height, Top Lock: 68 1/2"

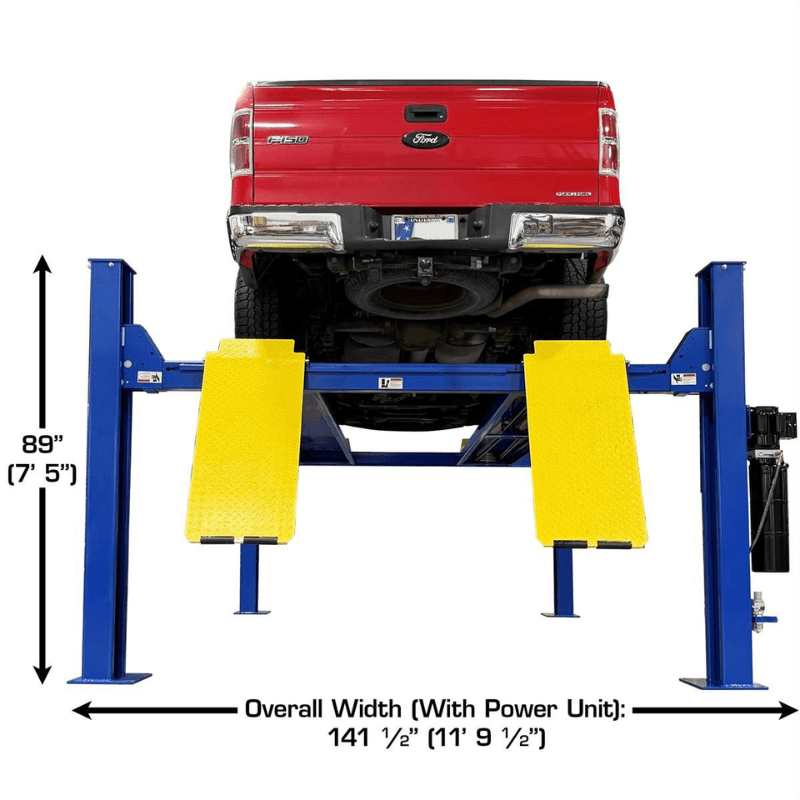

• Overall Width with Motor: 141 1/2"
• Overall Length with Approach Ramps: 253"
• Runway Length: 205"
• Length Between Columns: 189 3/4"

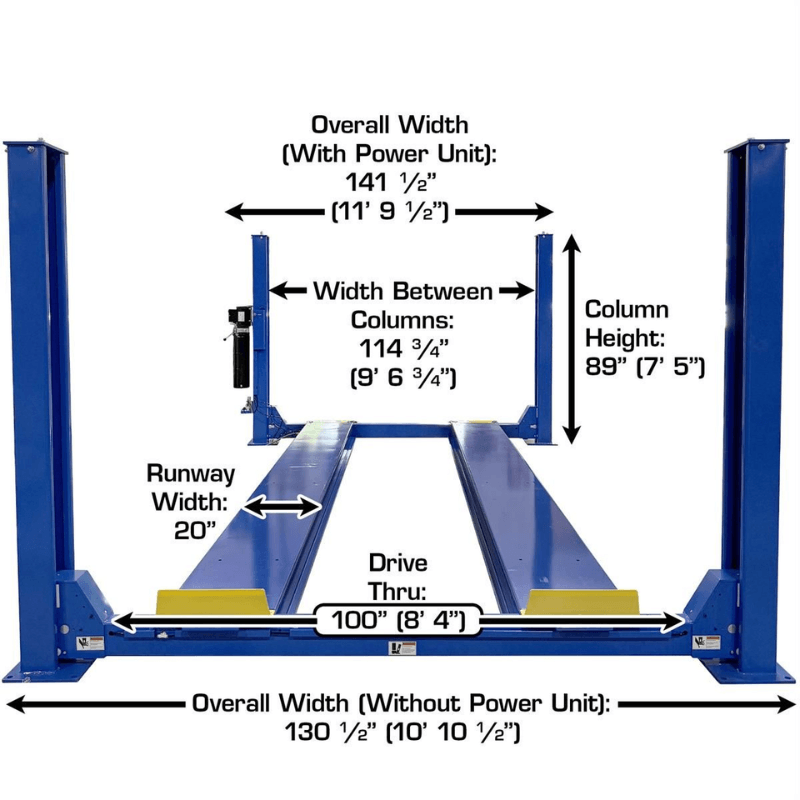

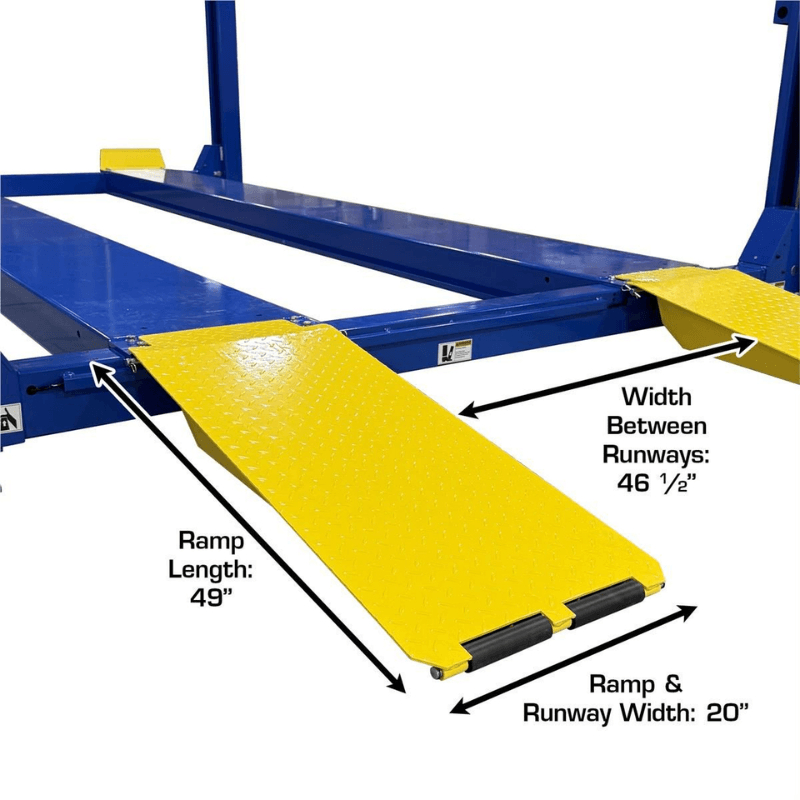

• Runway Width: 20"
• Width Between Runways: 42 1/2"–46 1/2"
• Outside Runway to Outside Runway: 62 1/2"–66 1/2"
• Width Between Columns: 114 3/4"
• Drive-Through Width: 100"
• Column Height: 89"
• Clearance Under Runways, Top Lock: 61 1/2"

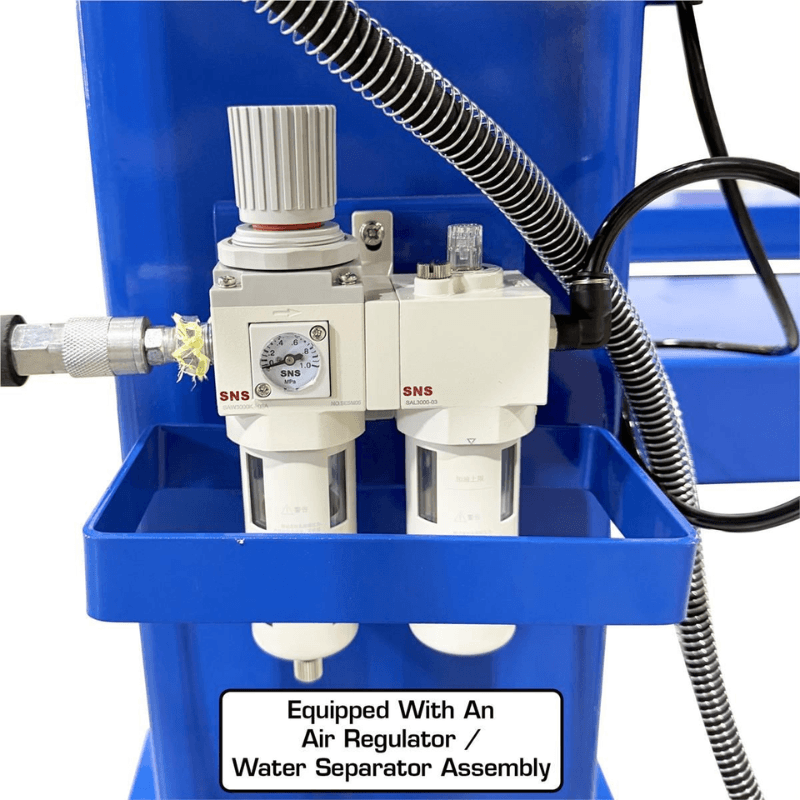

• Air Requirement: 85–115 PSI
• Electrical Requirement: 220V, Single Phase
• Recommended Breaker: 30A
• Oil Requirement: 3–5 gallons AW32/AW46, not included

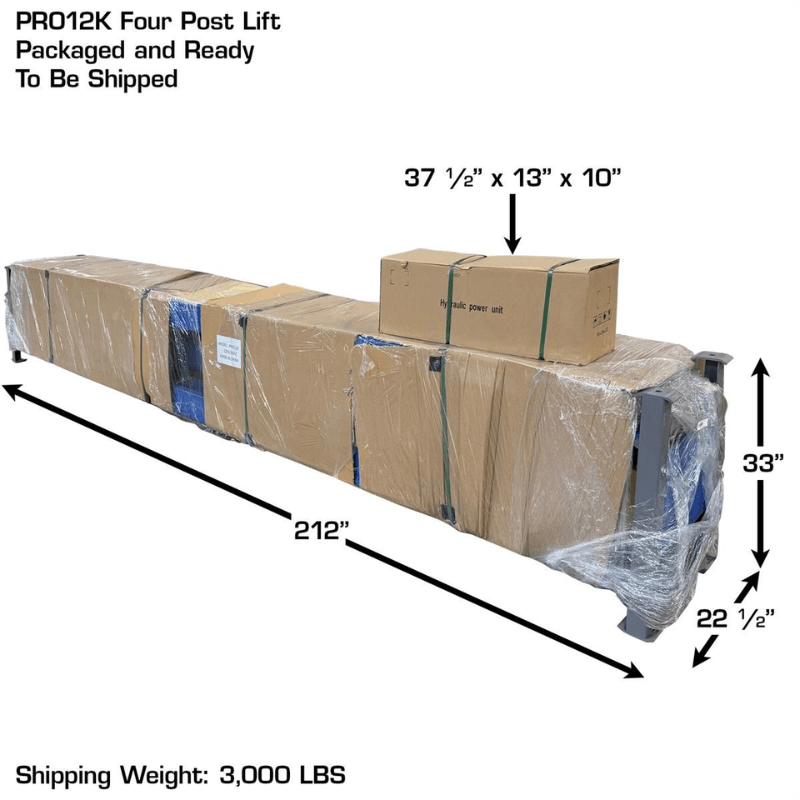

• Shipping Weight: 3,000 lbs
• Minimum Concrete: 6" at 3,000 PSI

ATEXH-PRO12K 12,000lbs Commercial 4-Post Lift Special Features:

• 12,000 lb Capacity – Handles heavy vehicles and equipment.
• Commercial Grade – Built for demanding shop applications.
• Extra-Long Design – Provides a 205" runway.
• Extra-Wide Design – Provides a 20" runway width.
• Extra-Tall Design – Provides up to 68 1/2" lifting height.
• Air Lock Release – Provides single-point lock release.
• Double Safety System – Provides added lifting security.

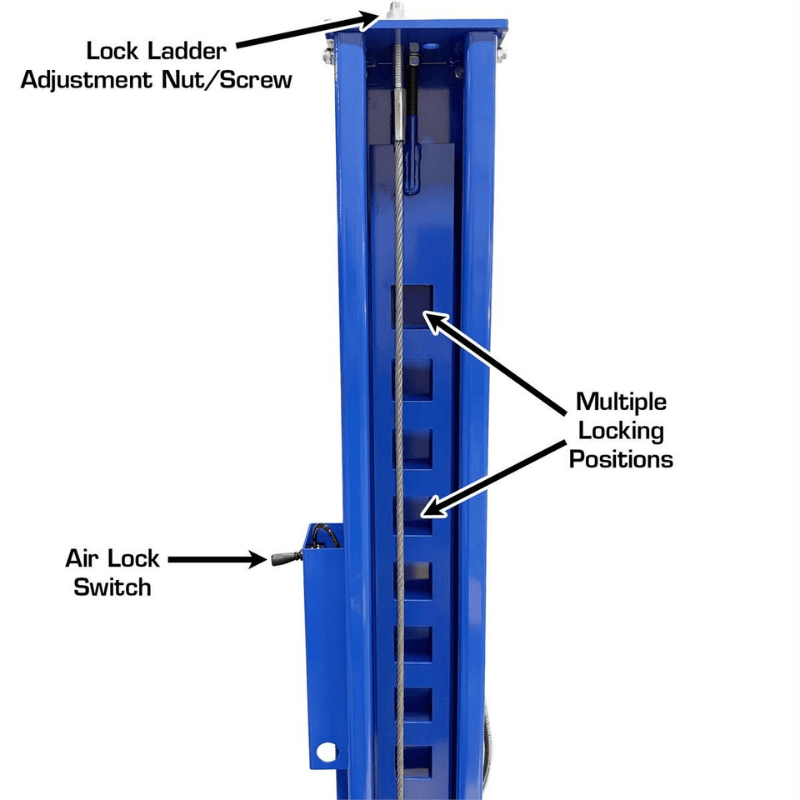

• Lock Ladder Design – Supports secure lift positioning.
• Steel Approach Ramps – Included for vehicle access.

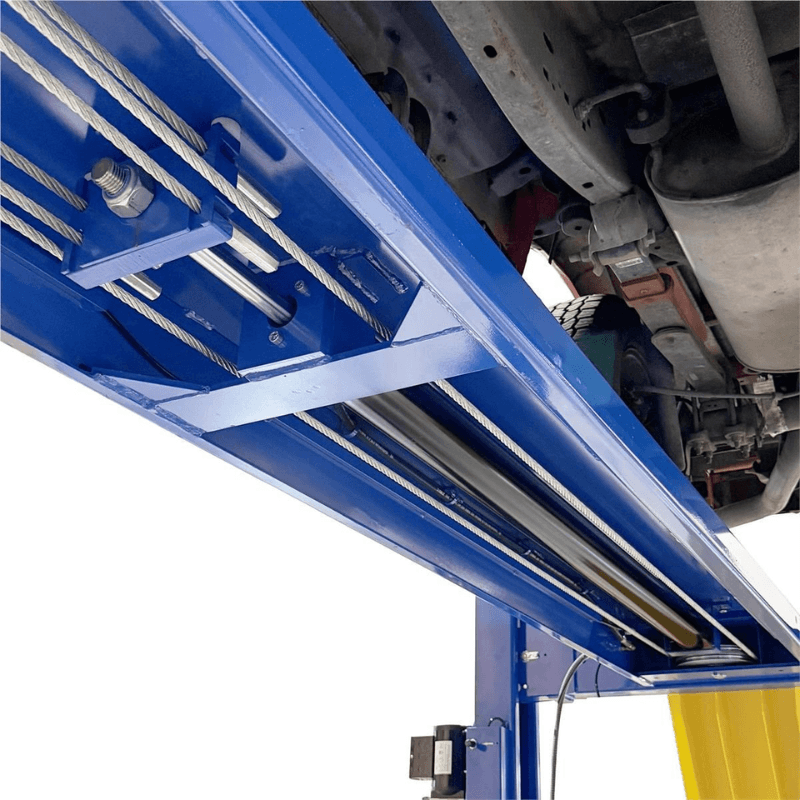

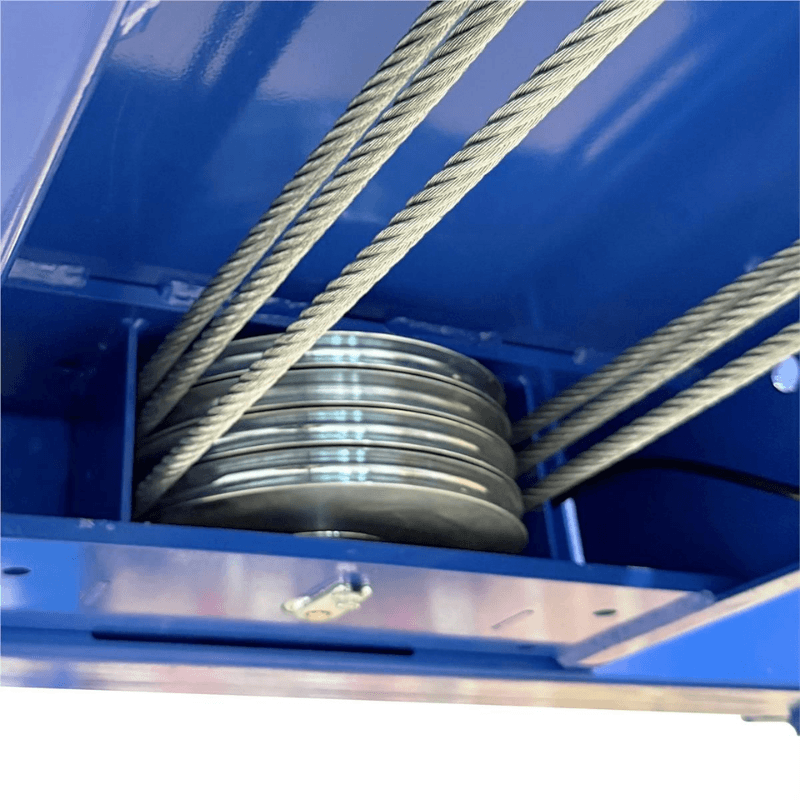

• Cable Lifting System – Uses high-strength lifting cables.
• Rolling Jack Tracks – Accepts compatible rolling bridge jacks.
• Alignment Ready – Pre-drilled for optional alignment equipment.
• Mounting Hardware – Included with the lift.

• Warranty

  • 5-Year Structural Warranty
  • 2-Year Hydraulic Parts-Only Warranty

Atlas ATEXH-PRO12K Manual:

Coming Soon

 Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Indianapolis, IN

**Due to Extra Large Size, product cannot be delivered to a freight terminal.
