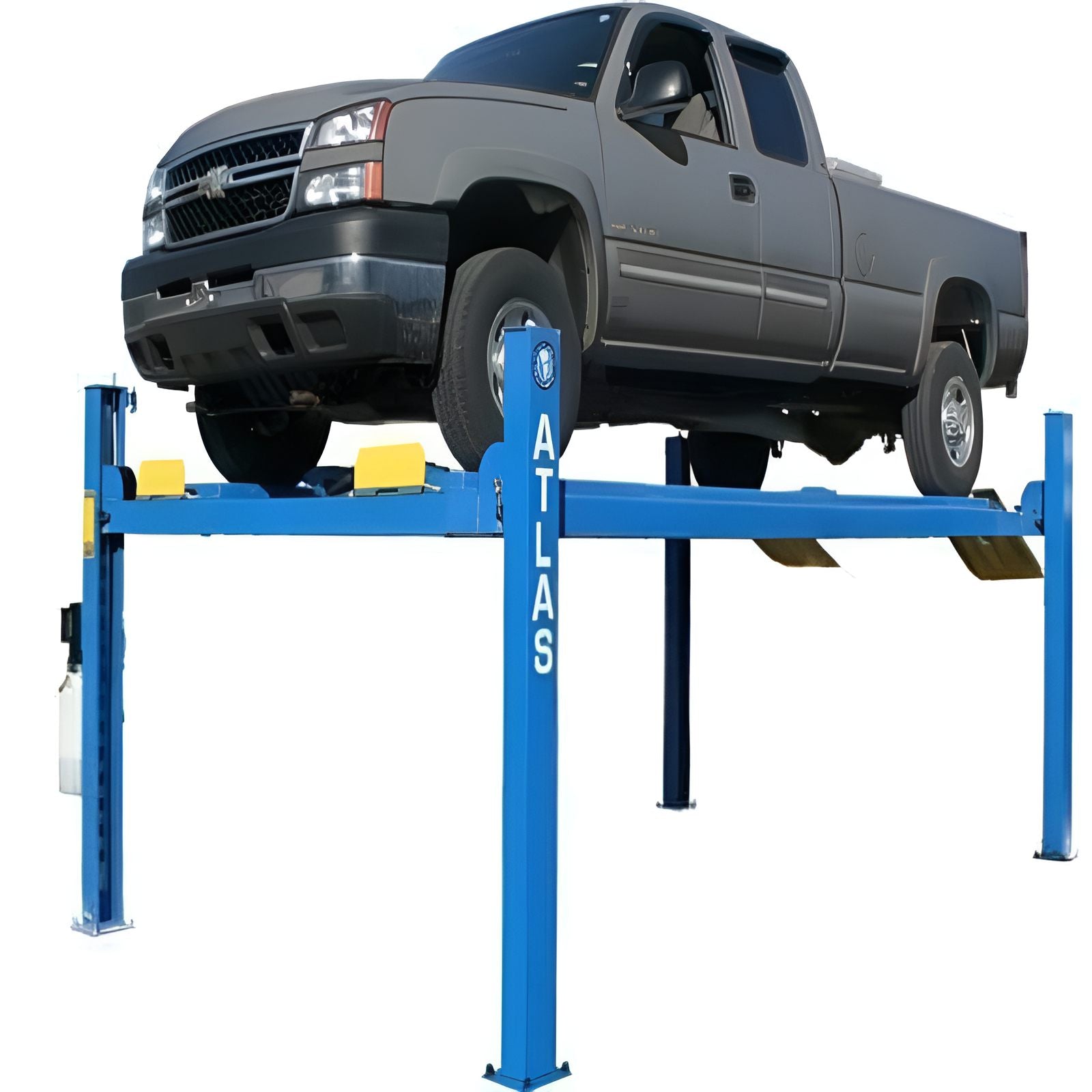

Atlas 412, 12,000 lb Commercial 4 Post Lift

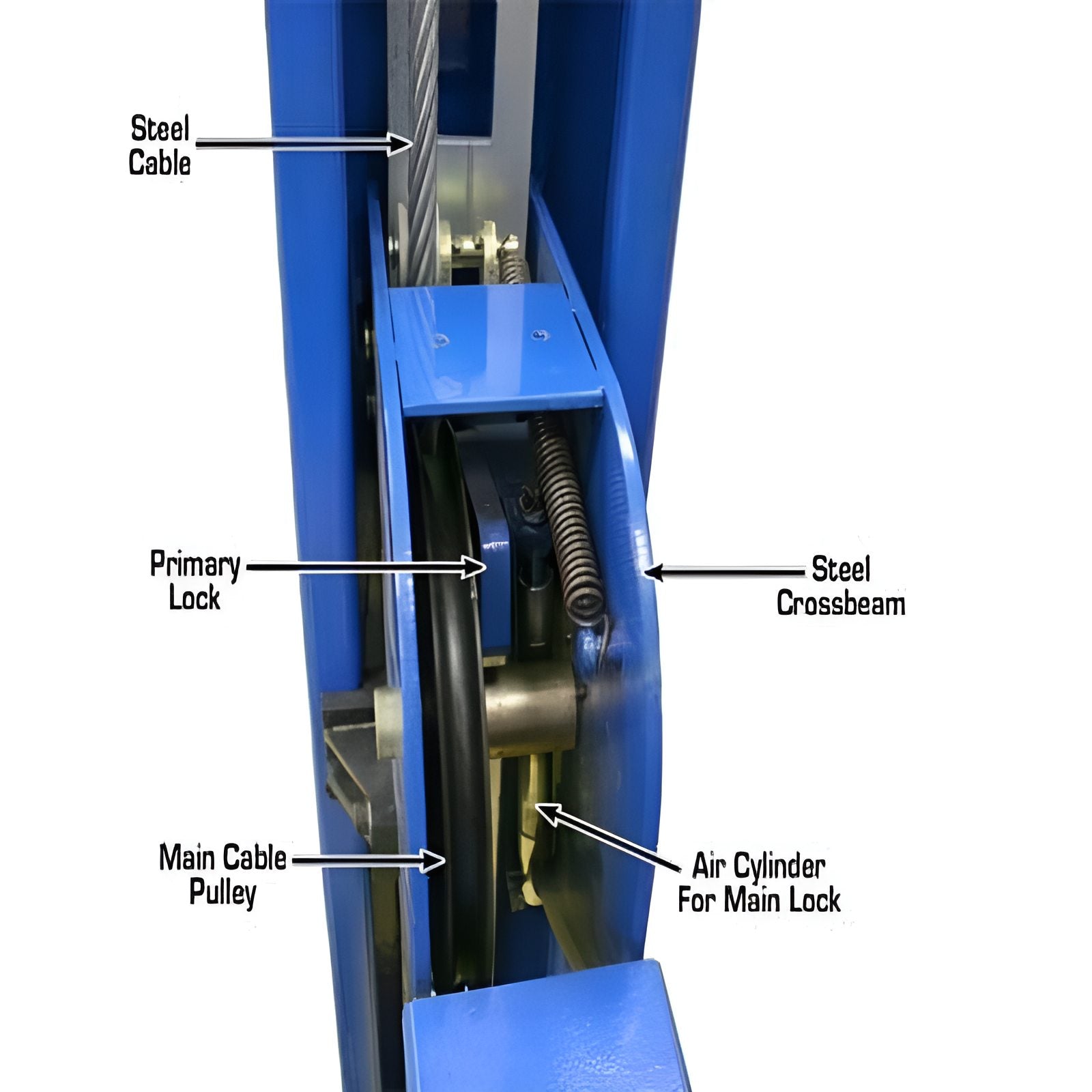

 The Atlas® 412 boasts a range of structural and aesthetic characteristics similar to those of lifts that cost significantly more. Rest assured, the Atlas® 412 lift has undergone rigorous testing to guarantee flawless performance at its maximum weight capacity. This reliable lift has upheld the same stringent standards for years. Powered by a robust cable system (with an oversized hydraulic cylinder beneath the runway), the Atlas® 412 can easily be raised and lowered using a 220 volt (single phase) power unit. Unlike many competitors who use outdated chain lift systems with exposed hydraulic cylinders, this lift ensures proper leveling and prevents unwanted "door dings". Additionally, the Atlas® 412 boasts tracks between the runways that allow for the use of a rolling bridge jack (such as the Atlas® RJ6BK), which can be purchased separately.

 Post Lift 412 Specifications:

• Capacity 12,000 lb.
• Lifting Height 77 3/4" (6' 5 3/4")

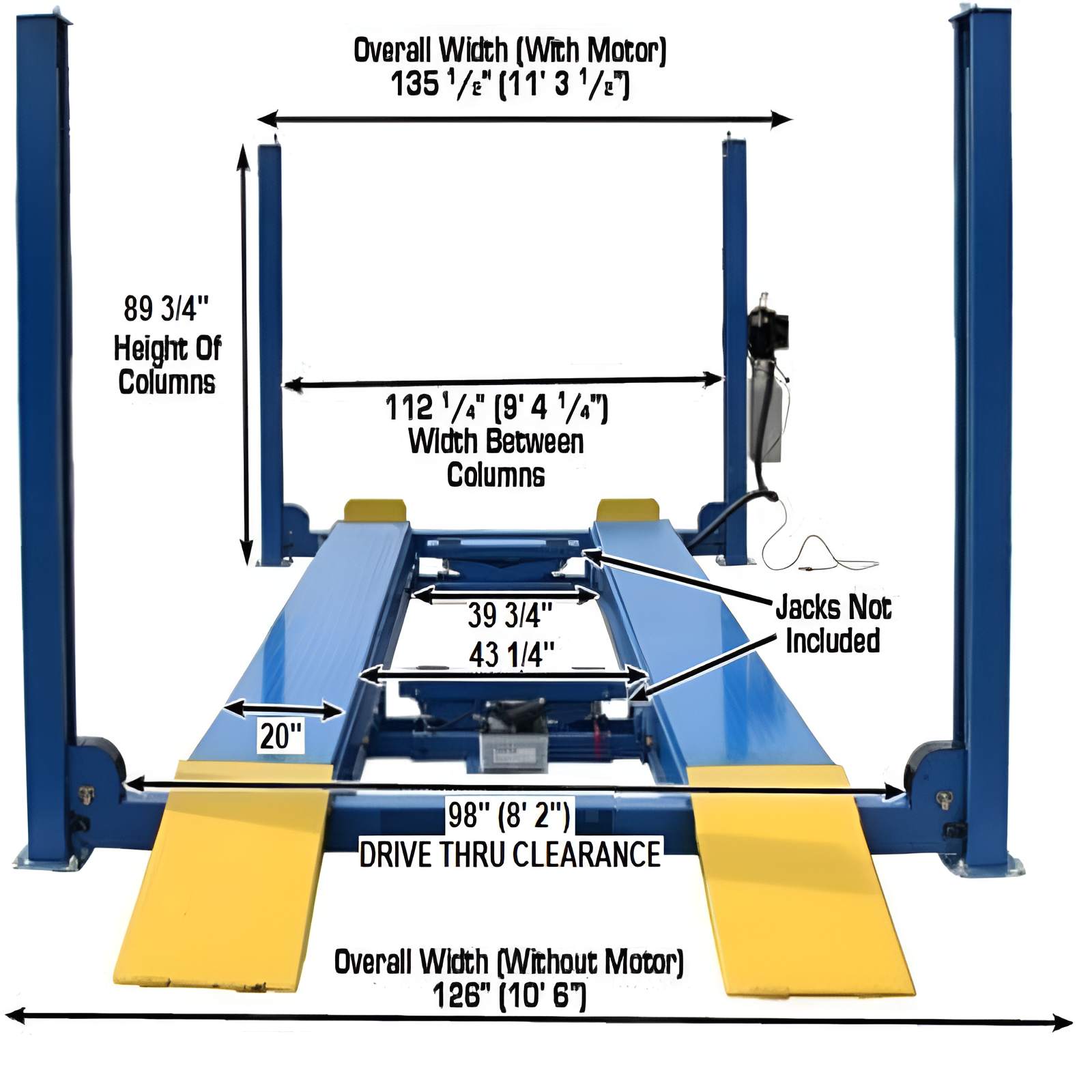

• Overall Width Of Columns (Without Motor) 126 1/4" (10' 6 1/4")
• Overall Width Of Columns (With Motor) 135 1/4" (11' 3 1/4")

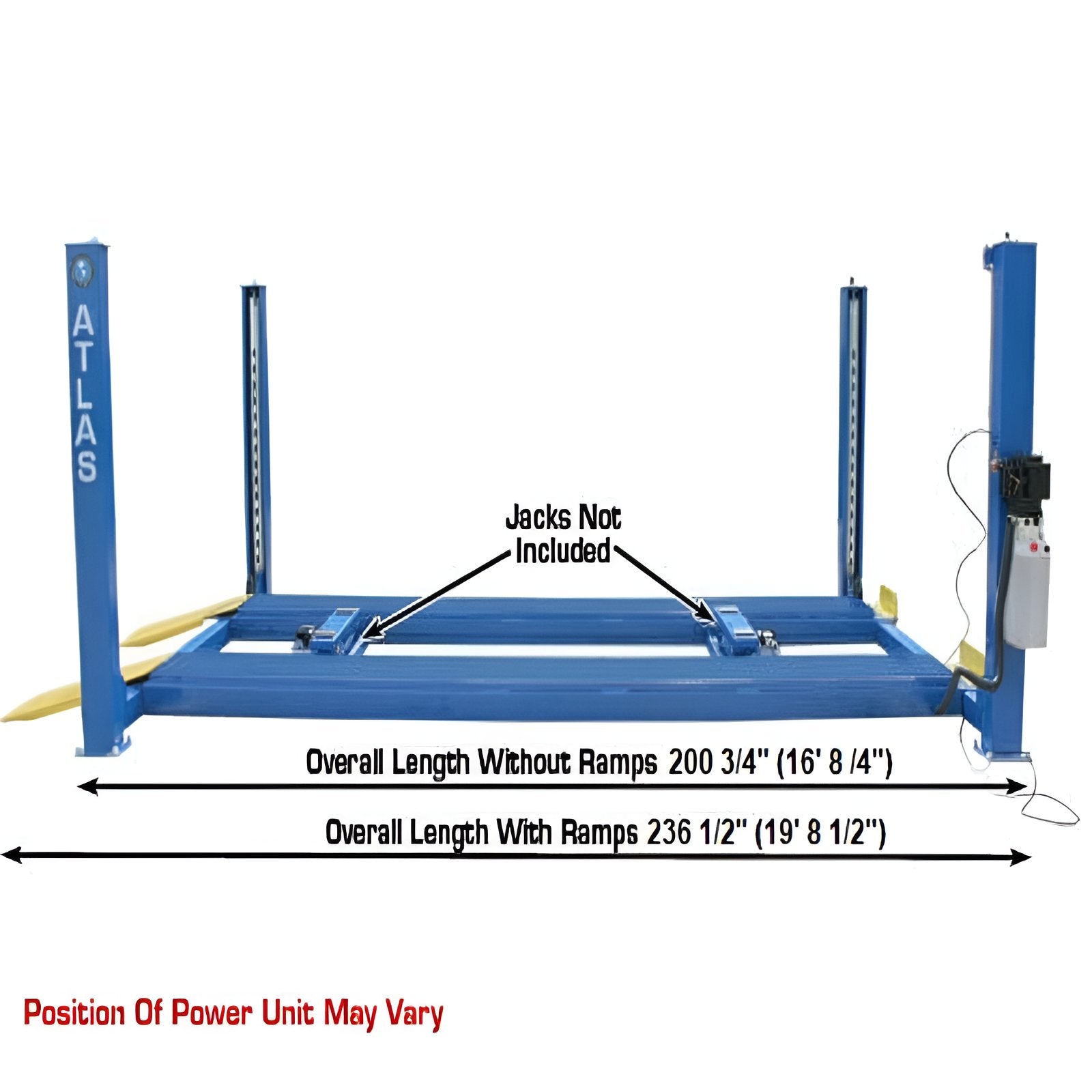

• Overall Length With Approach Ramp 236 1/2" (19' 8 1/2")
• Length Between Columns 183 1/4" (15' 3 1/4")
• Runway Length 194 1/2" (16' 2 1/2")
• Runway Width 20"
• Thickness Of Runway 7 1/2"
• Width Between Runways 43 1/4" (w/ Rail 39 3/4")
• Outside Runway To Outside Runway 83 1/4" (6' 11 1/4")

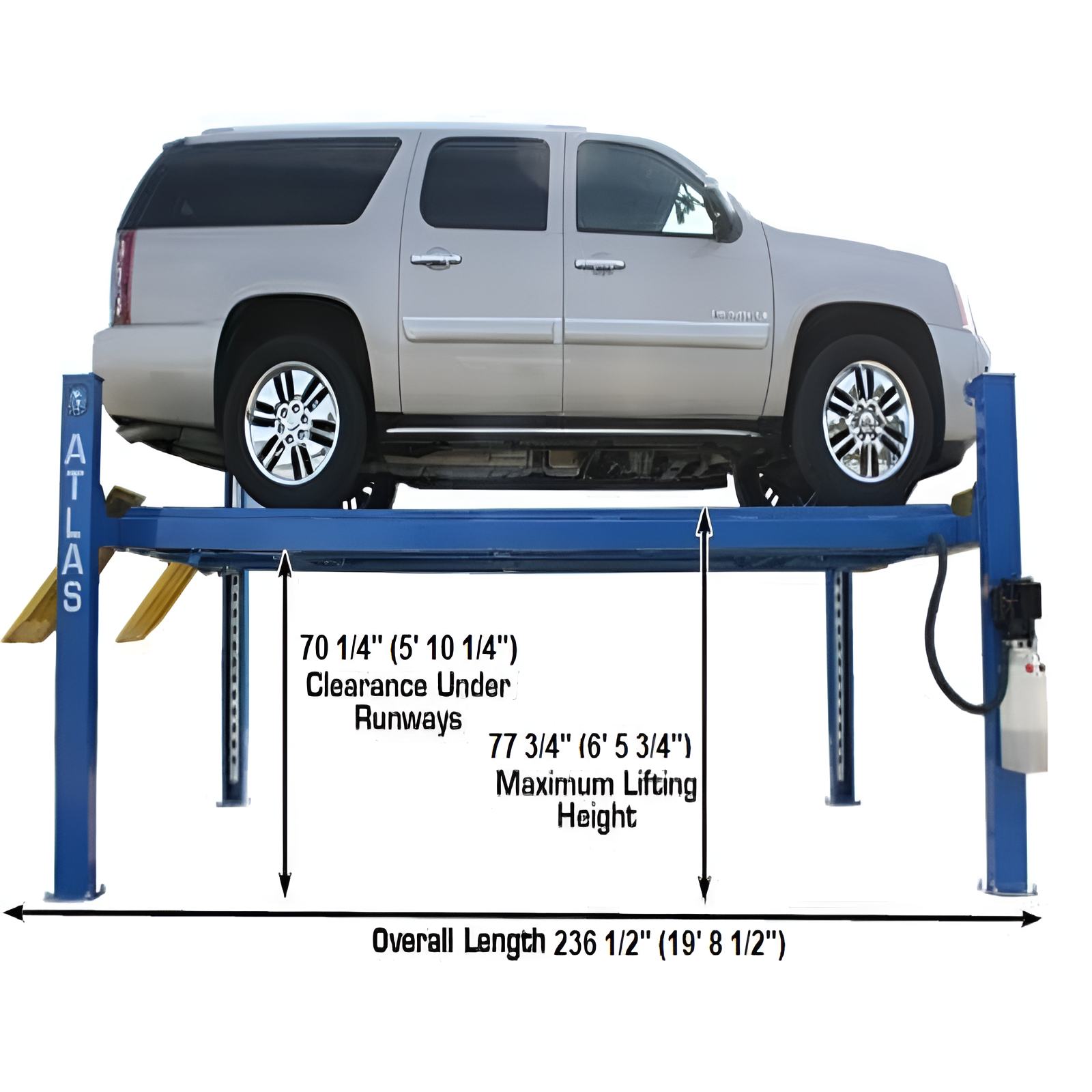

• Clearance Under Runways 70 1/4" (5' 10 1/4")

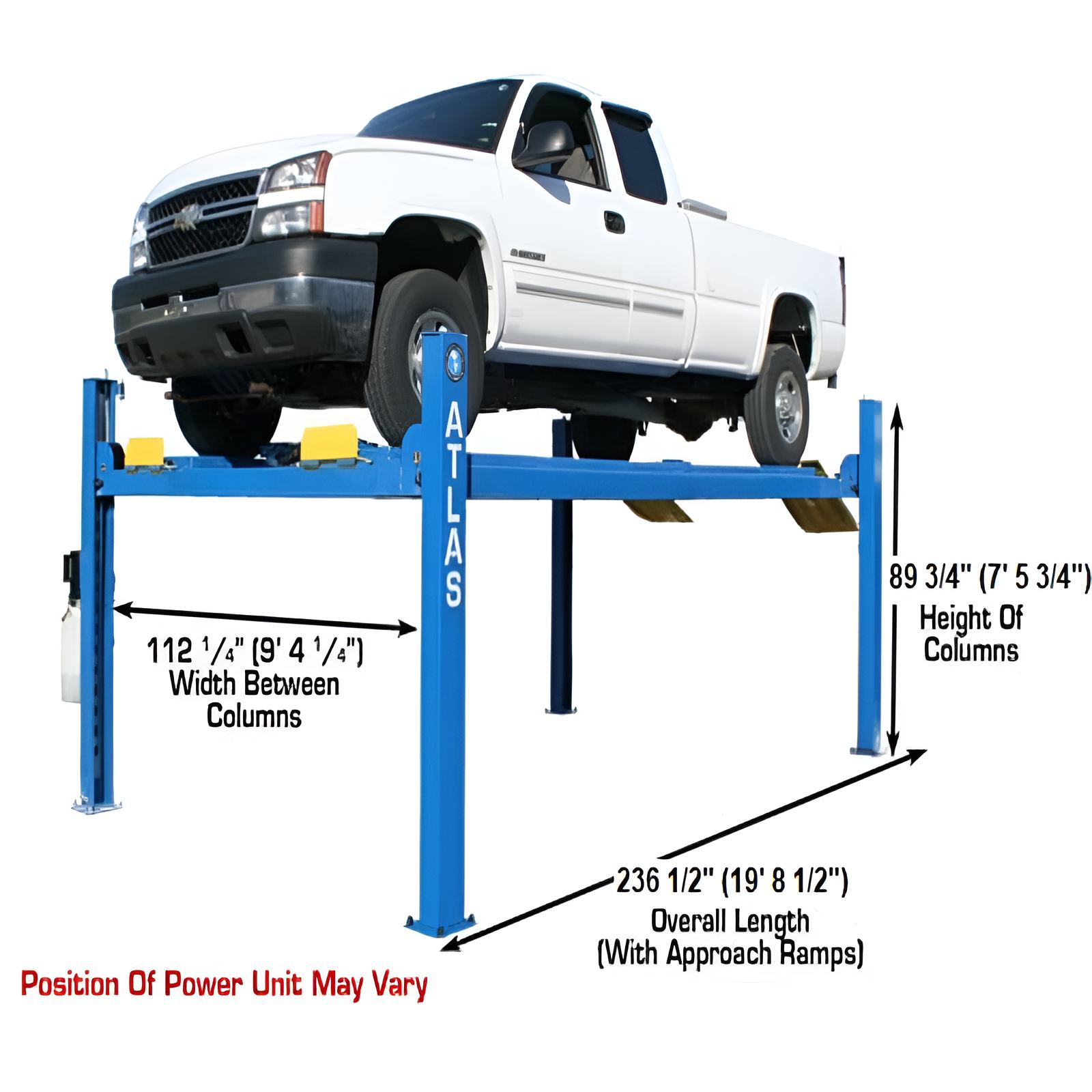

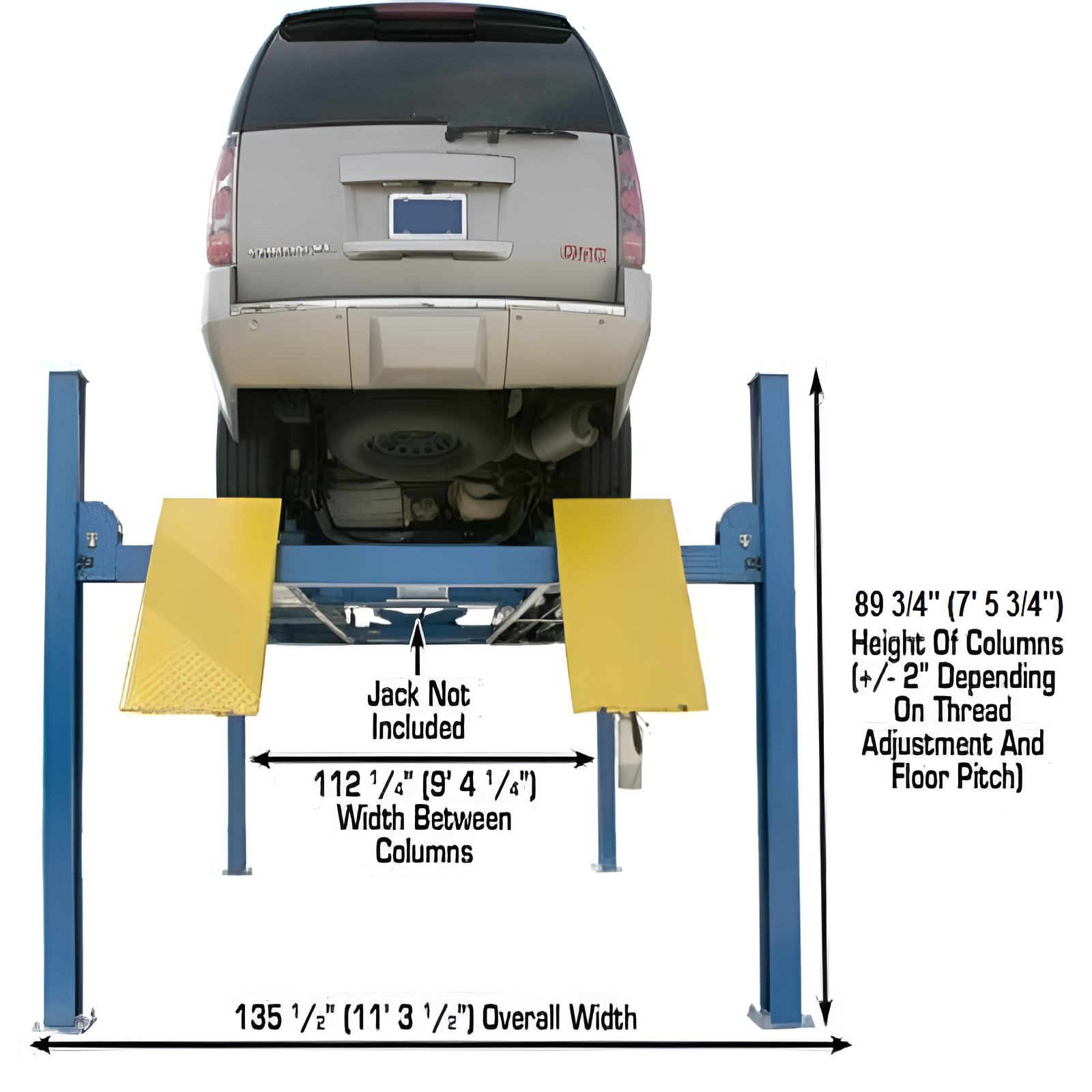

• Clearance Between Columns 112 5/8" (9' 4 5/8")

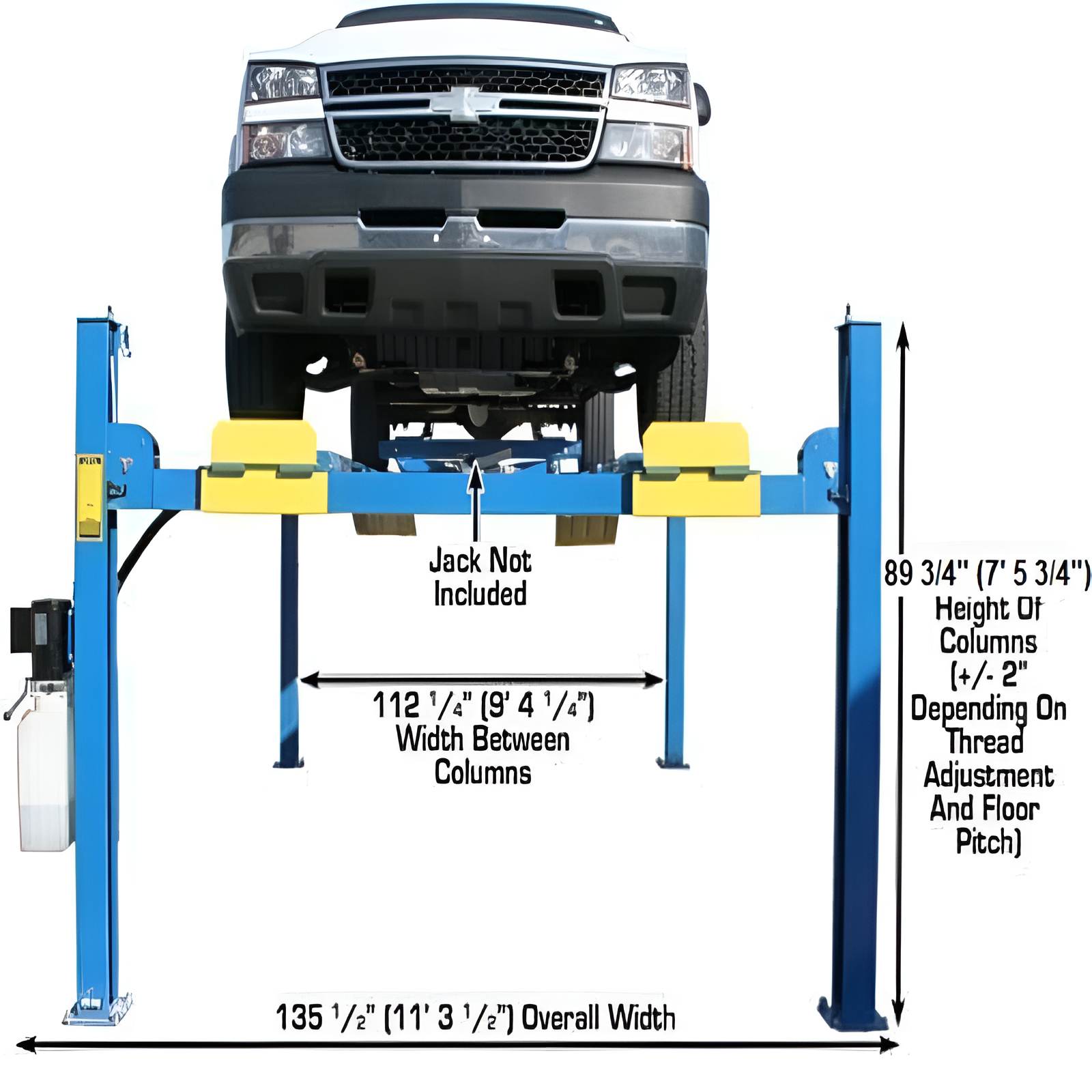

• Height Of Columns 89 3/4" (7' 5 3/4")
• Maximum Wheel Base 185" (15' 5")
• Drive Thru 98" (8' 2")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

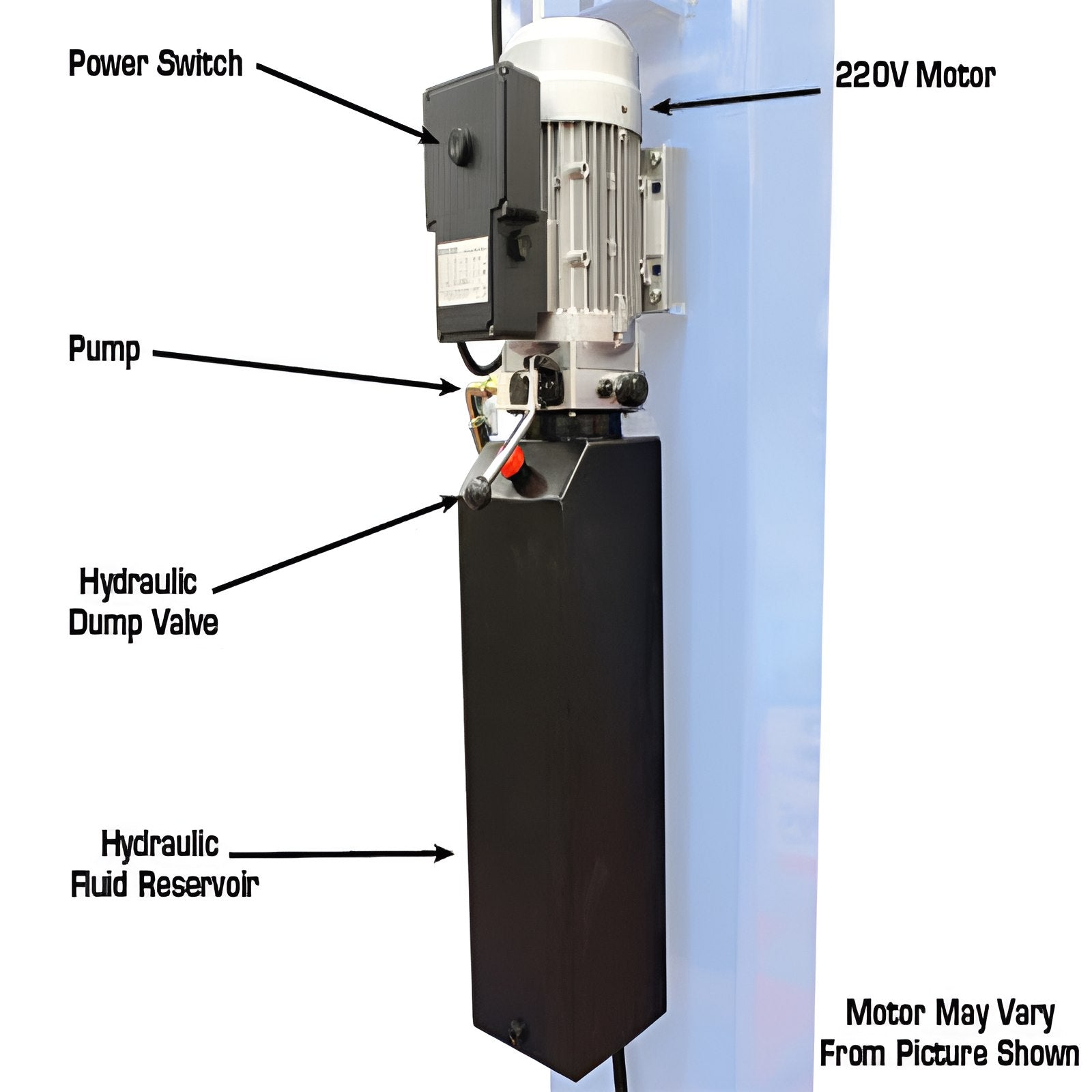

• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

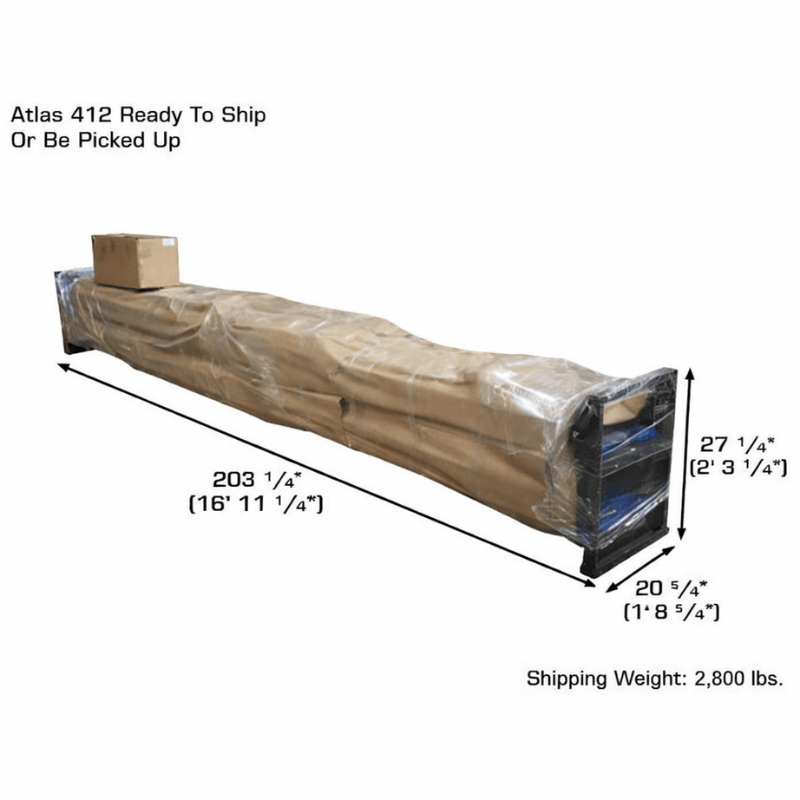

• Shipping Weight 2,800 LBS.
• Pallet Size:  203-1/2" Long x 27-1/8" Tall x 21" Wide
• Requires a minimum of 6" of concrete with a 3000 psi. rating

412 12,000 lb Post Lift Special Features:

• Capacity: 12,000 lb
• Heavy Duty, Commercial Grade
• Diamond Plated Runways
• Lock Release: Air Operated Single-Point (Requires Air Supply - NOT included)
• Lock Design Lock Ladder w/ Double Lock Safety System
• Finish: Powder Coat
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:

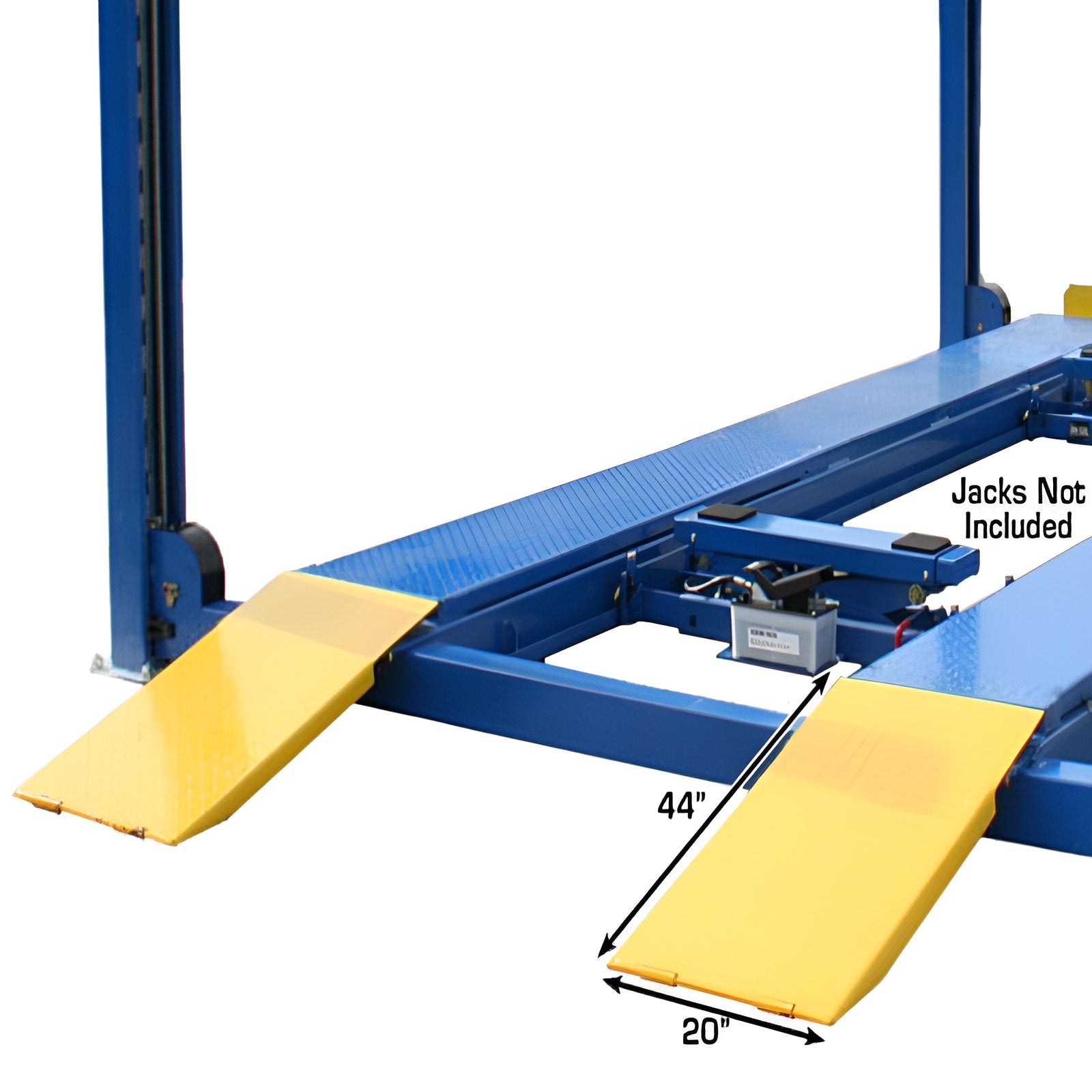

•      Steel Approach Ramps Included
•      Mounting Hardware

412 Four Post Lift Optional Items (sold separately):

• RJ6BK Rolling Jack
• Additional Drive Off Ramps
• Runway Extension Kits

Atlas 412 Documentation:

   Atlas 412 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $799

*Due to Extra Large Size, product cannot be delivered to a freight terminal.

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
