Atlas BP10000X, 10,000 lb 2 Post Lift - Low Ceiling

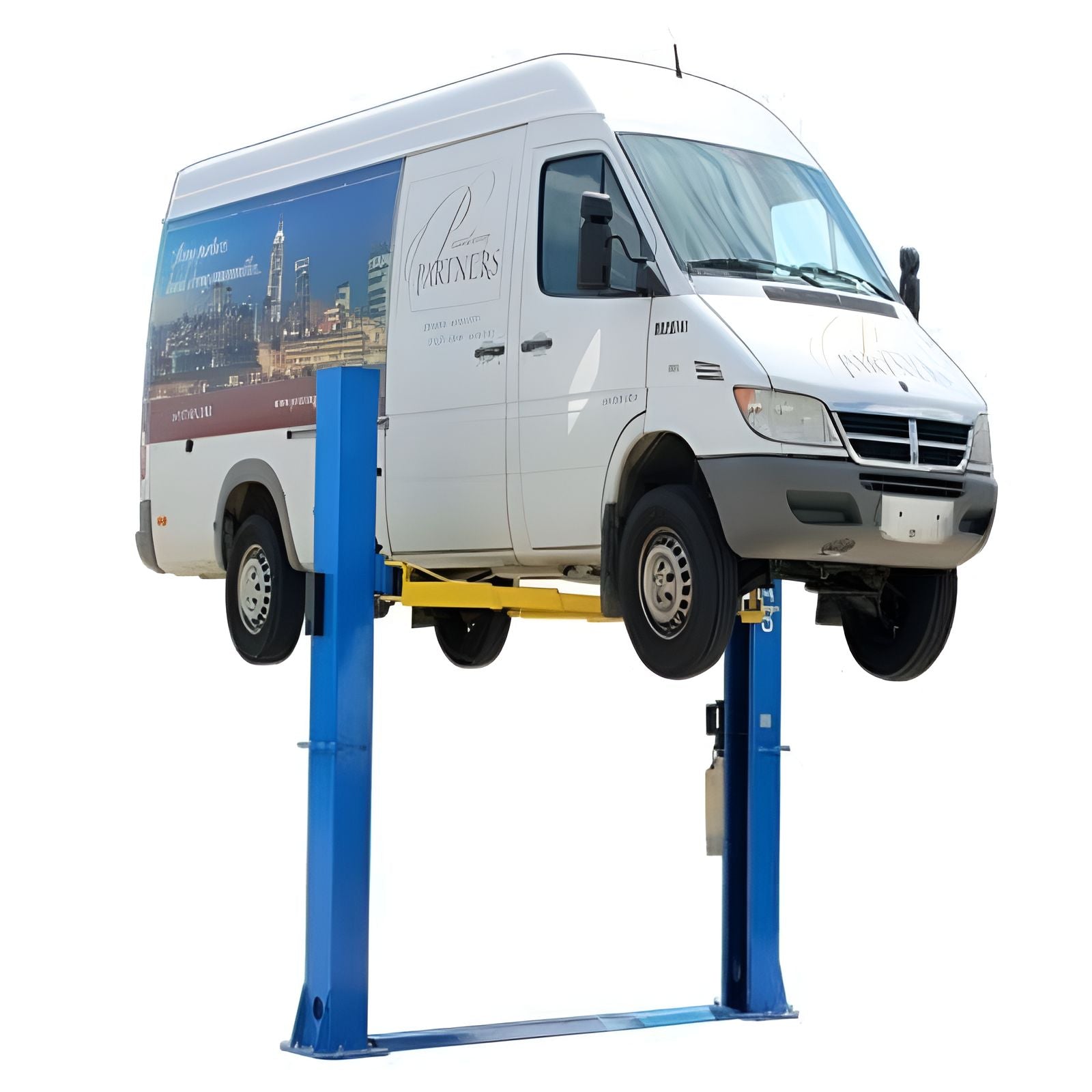

The Atlas® BP10000X is a 10,000 lb 2 post lift designed for lifting heavy vehicles in low ceiling garages. Its single point lock release columns are reinforced with a welded support gusset for added strength. Whether you need to lift a one ton dually or a Smart Car, this lift is the perfect solution for your shop with an 11 foot ceiling.

 Post Lift BP10000X Specifications:

• Capacity 10,000 LB.

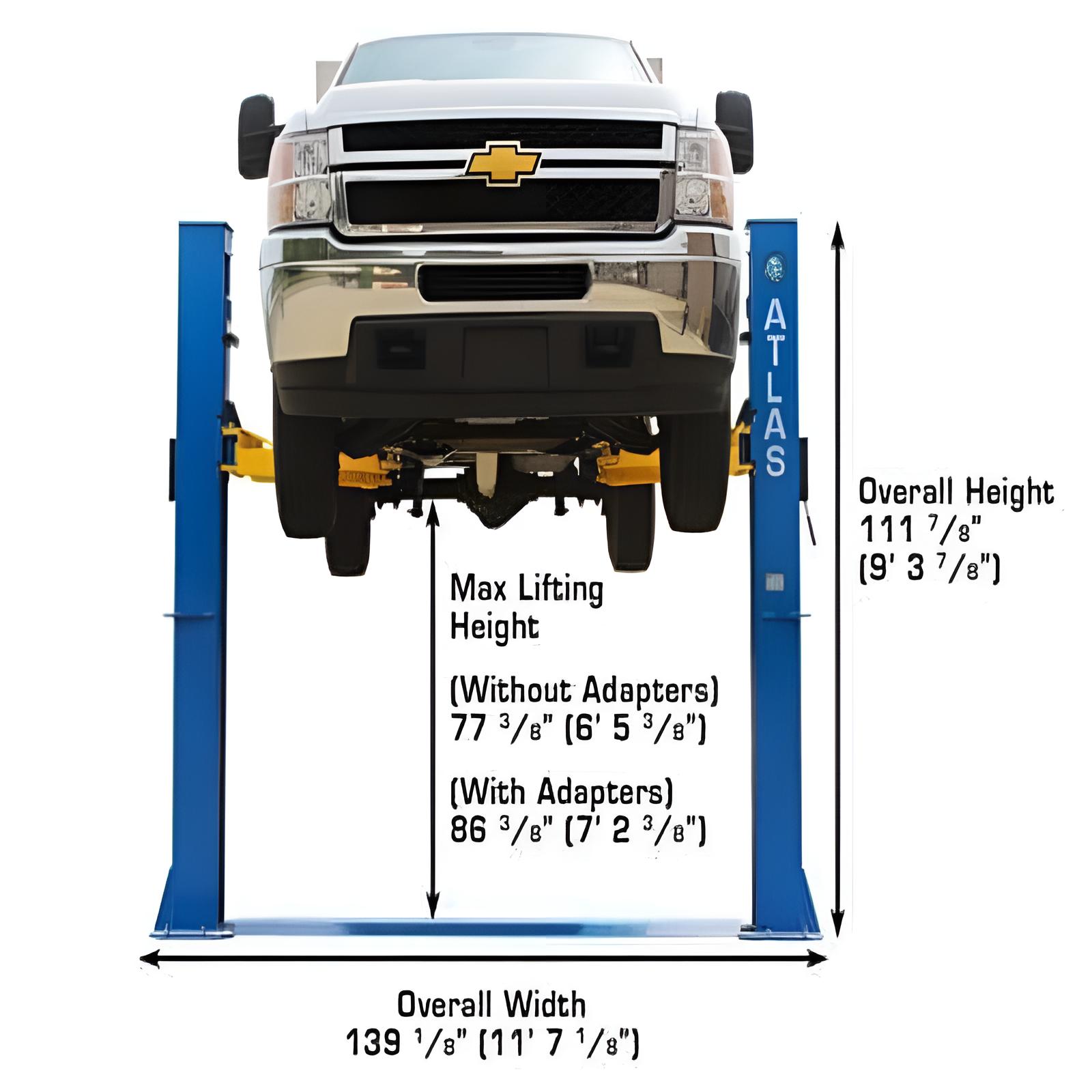

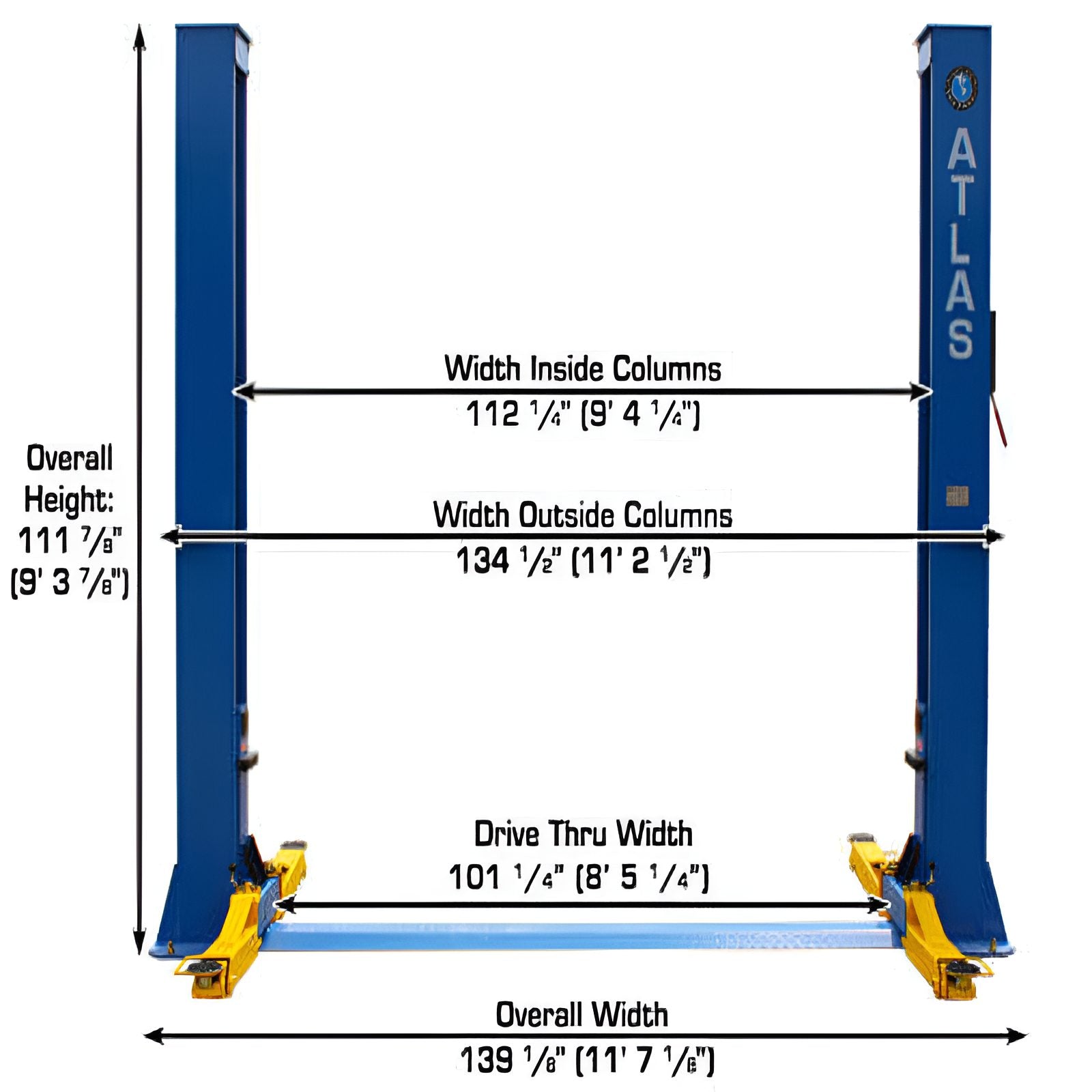

• Overall Height 111 7/8" (9' 3 7/8")

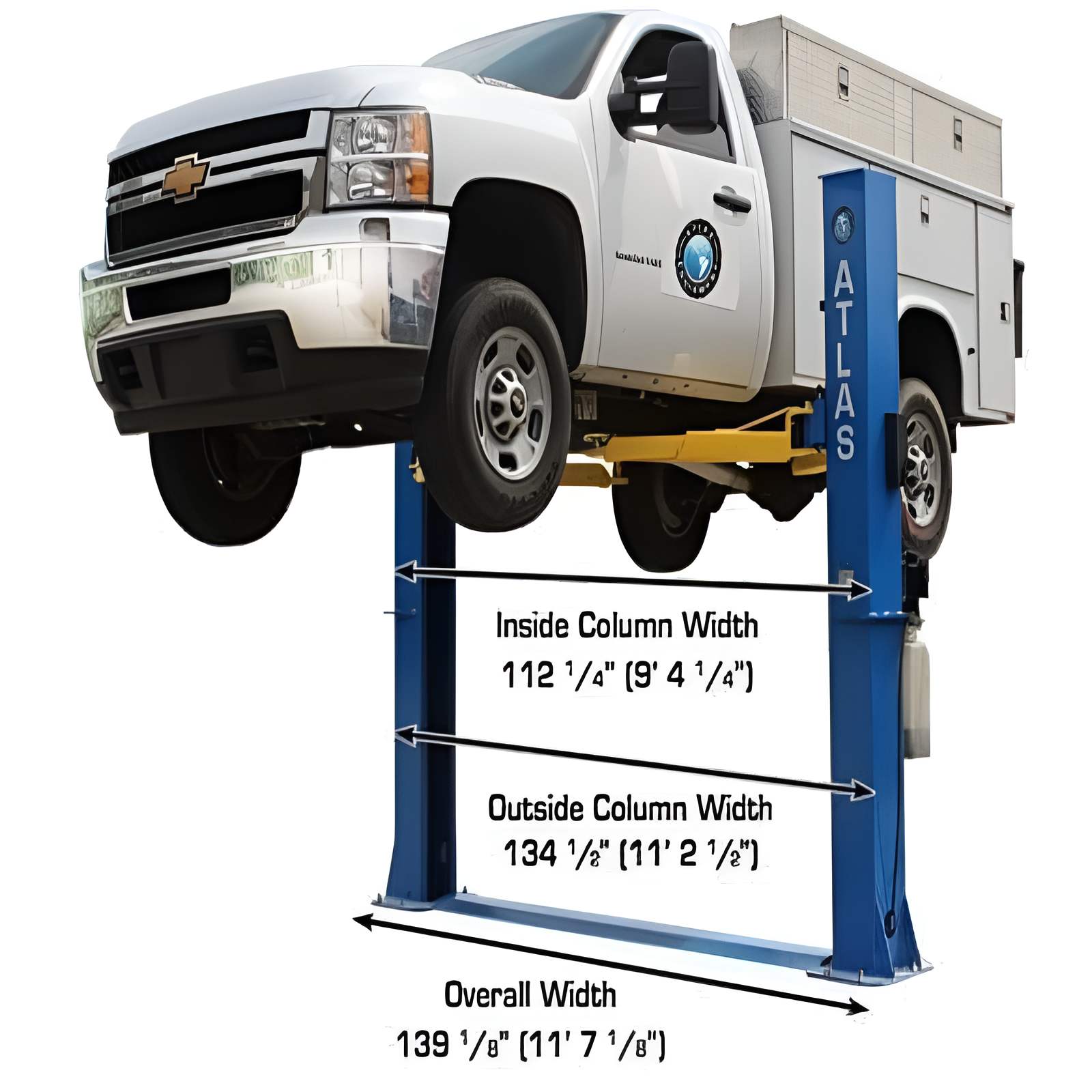

• Overall Floor Width 139 1/8" (11' 7 1/8")
• Outside Column to Outside Column 134 1/2" (11' 2 1/2")

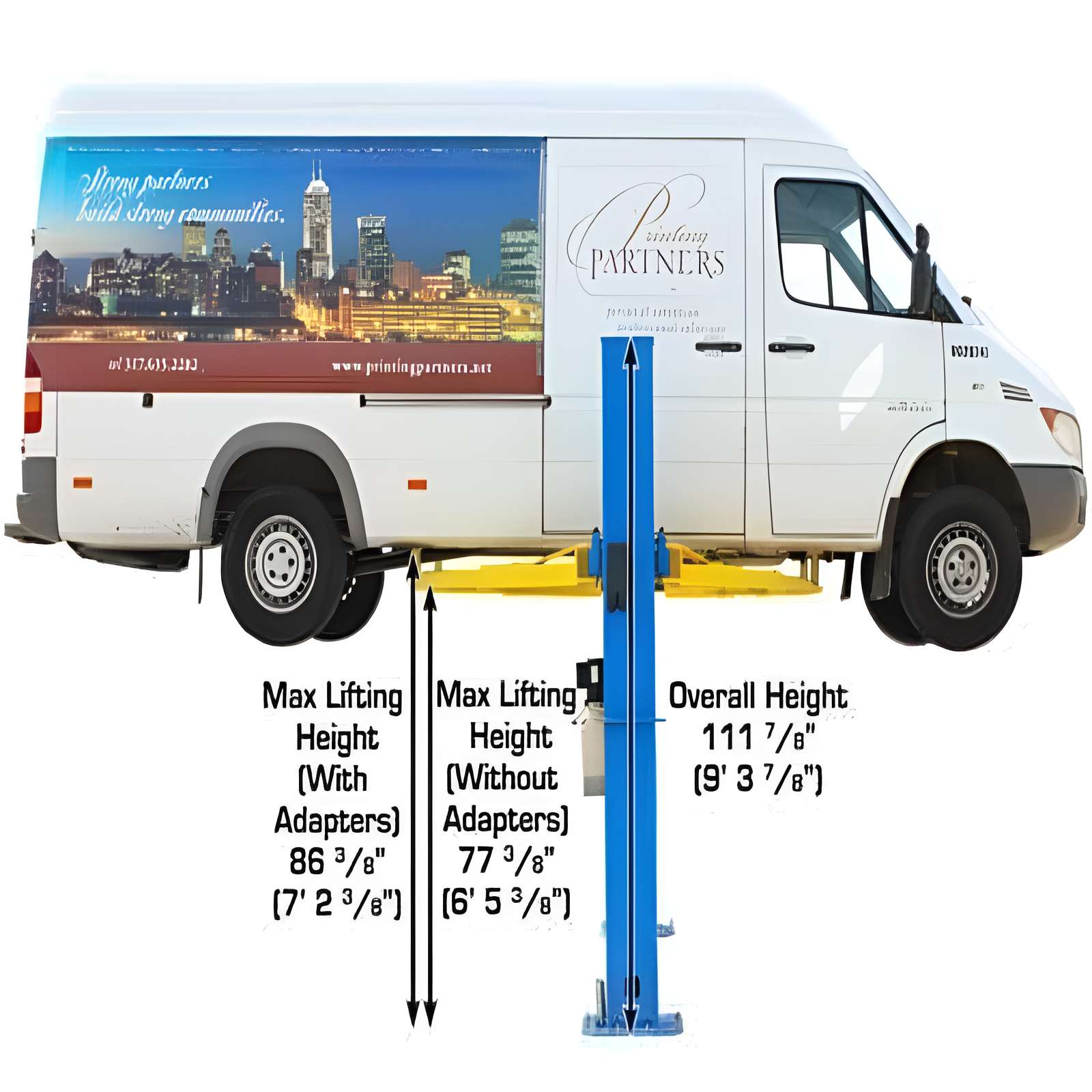

• Maximum Lift Height (Without Adapters) 77 3/8"

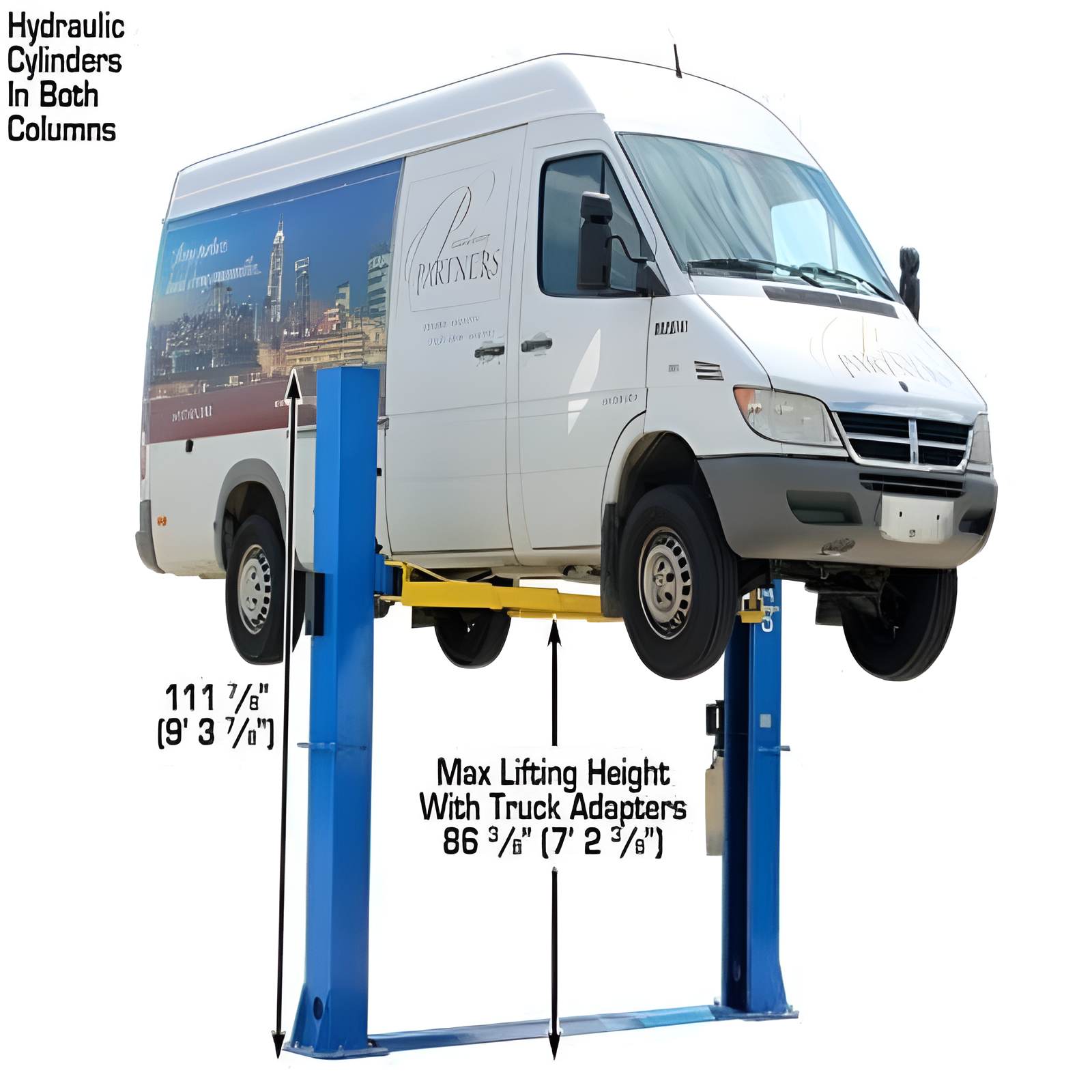

• Maximum Lift Height (With Adapters) 86 3/8"
• Minimum Arm Height 4"

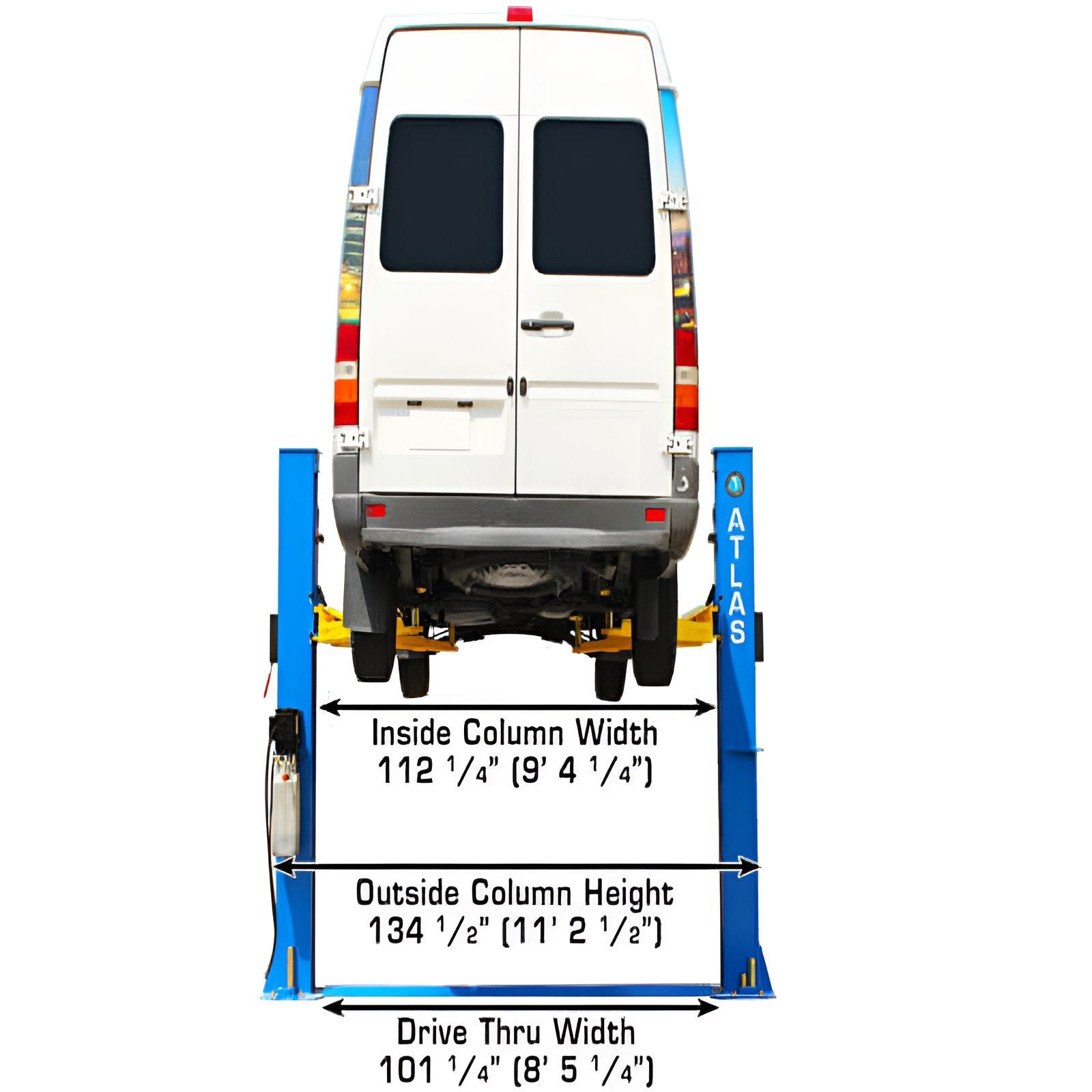

• Inside Column 112 1/4” (9' 4 1/4”)

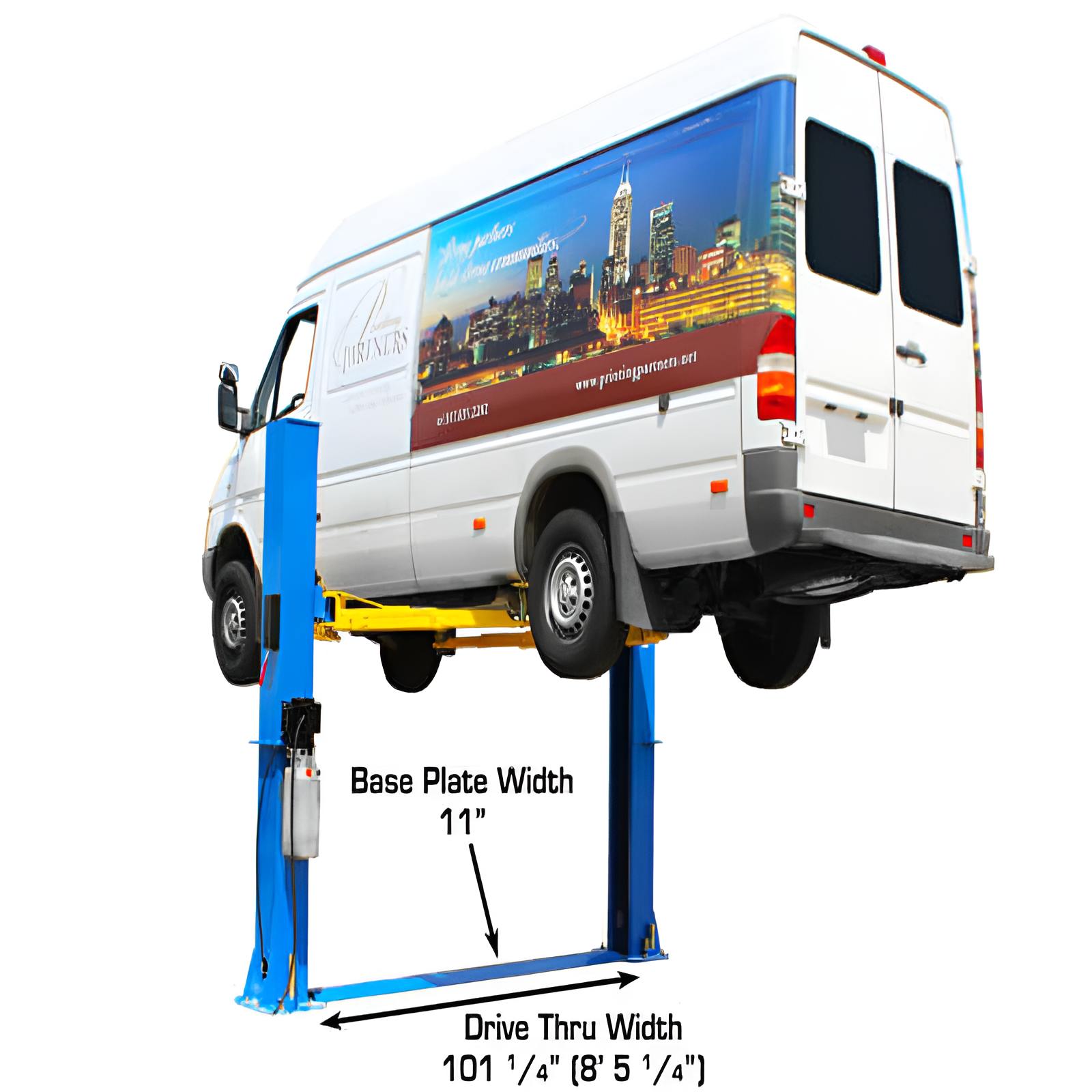

• Drive Thru 101 1/4” (8' 5 1/4”)

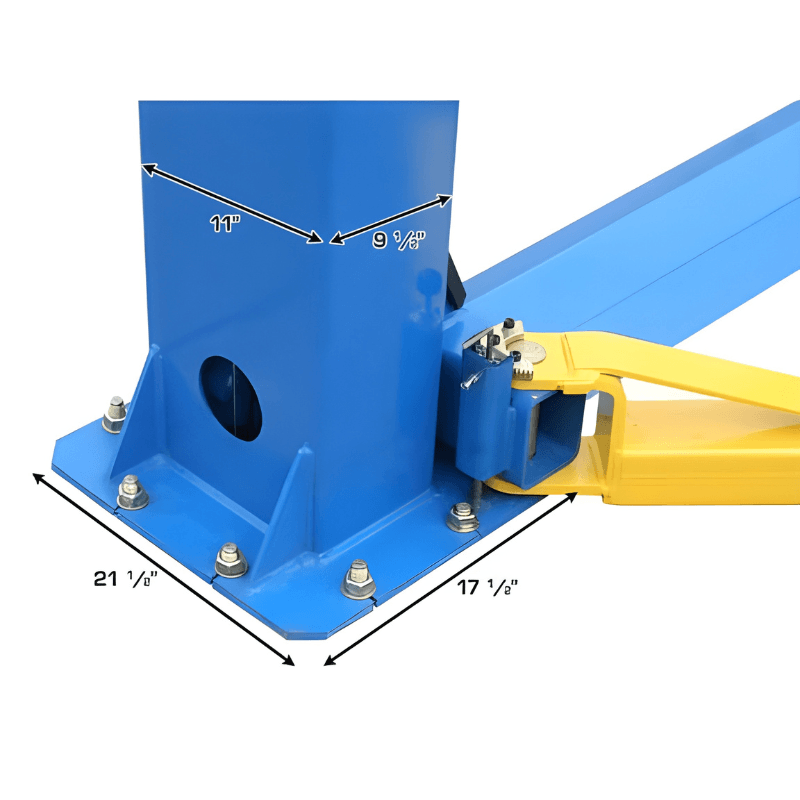

• Column Size 9 1/2" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 21 1/2"
• Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,640 LBS.

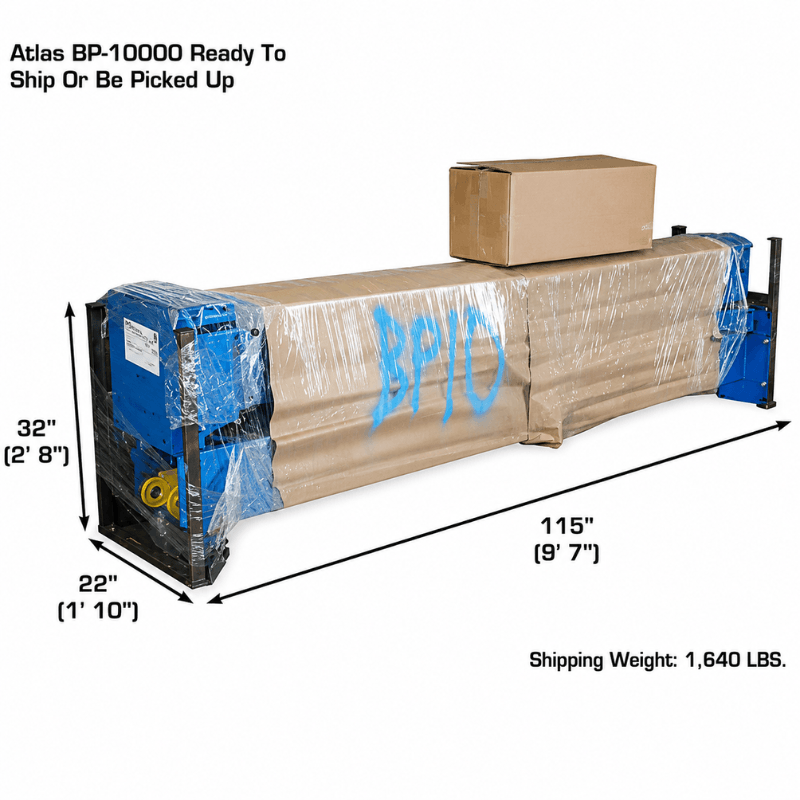

• Pallet Size:  115" Long x 32" Tall x 22" Wide + 1 small pallet

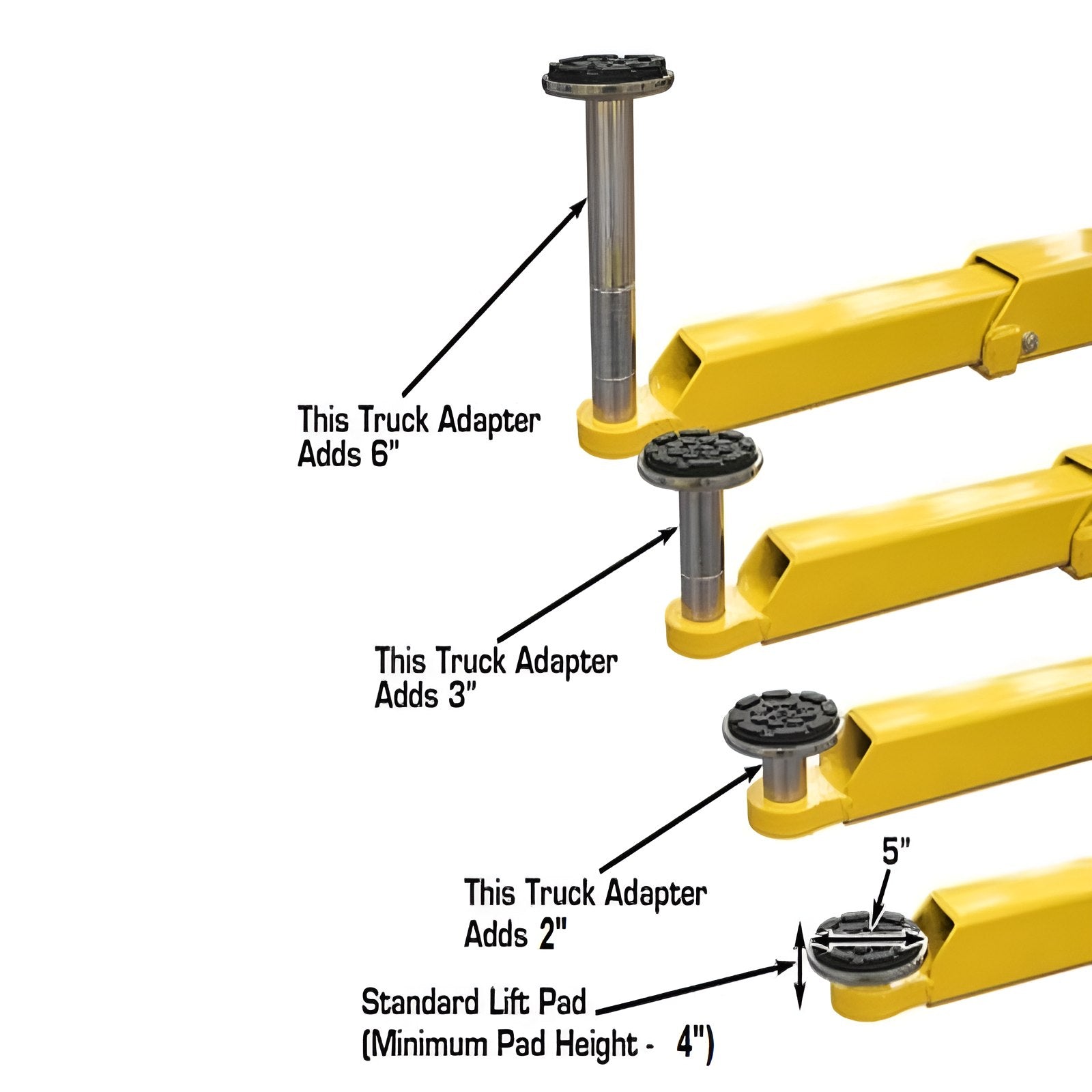

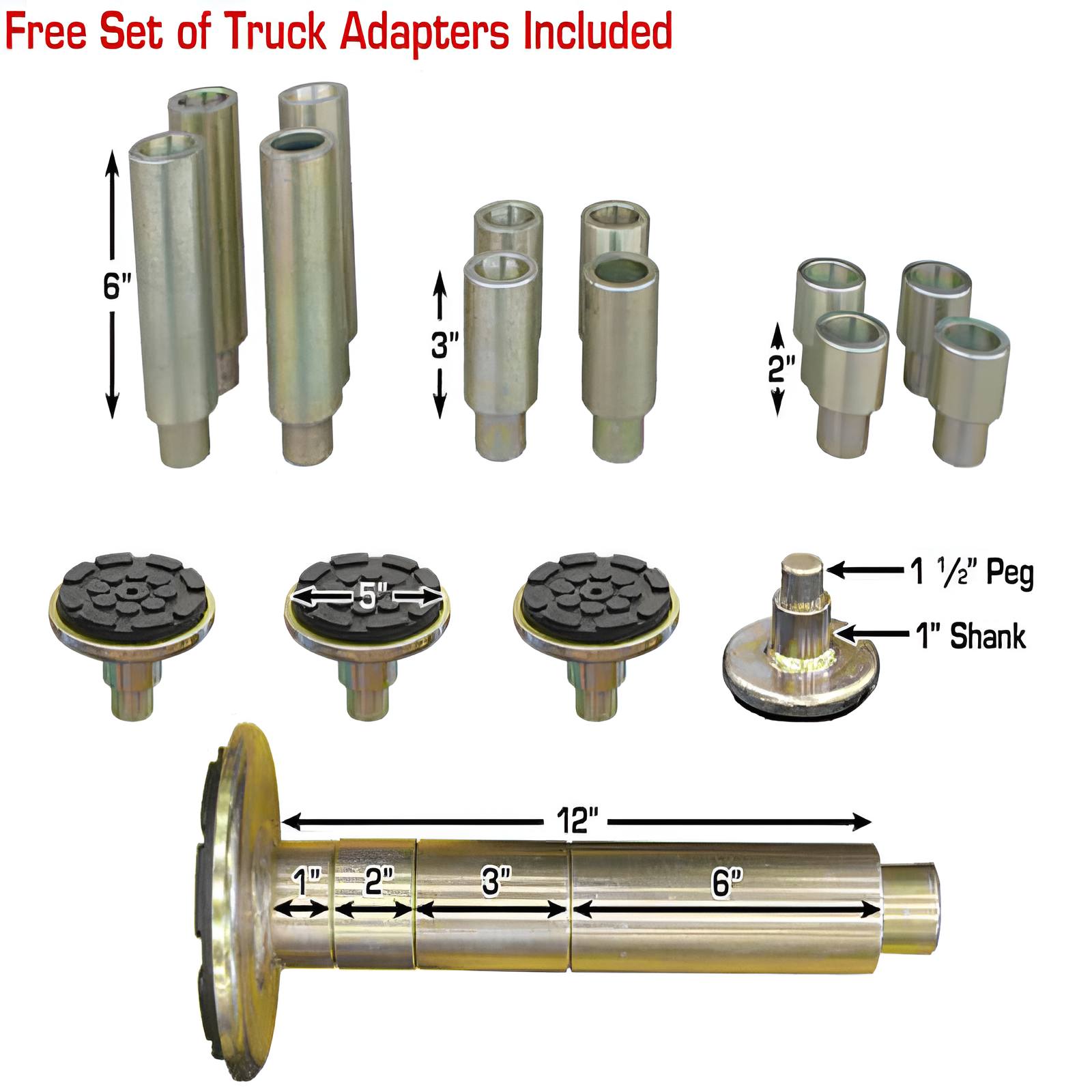

• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

BP10000X 10,000 lb Post Lift Special Features:

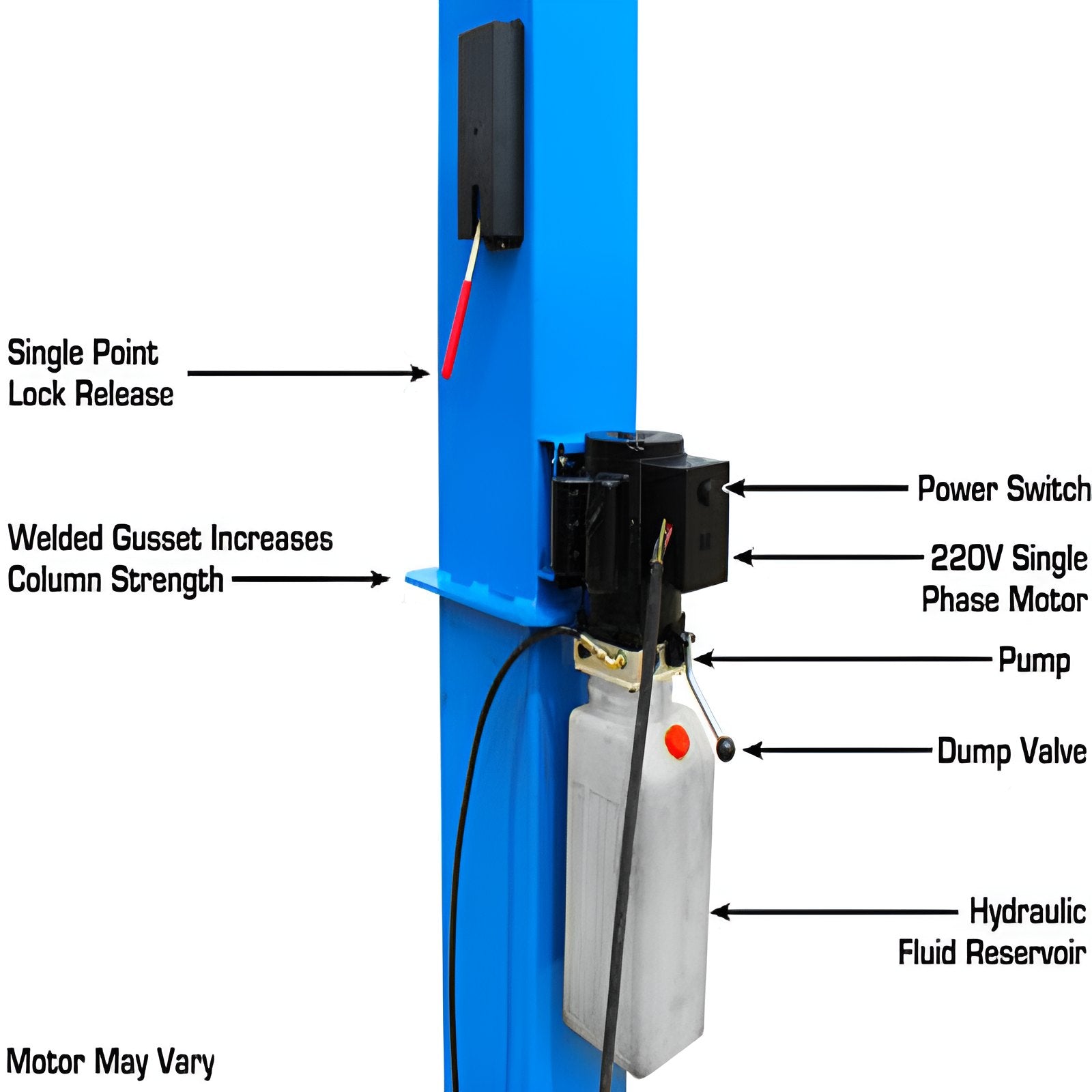

• Commercial Grade - Welded Support Gussets Increase Column Strength
• Baseplate, Open-Top Design

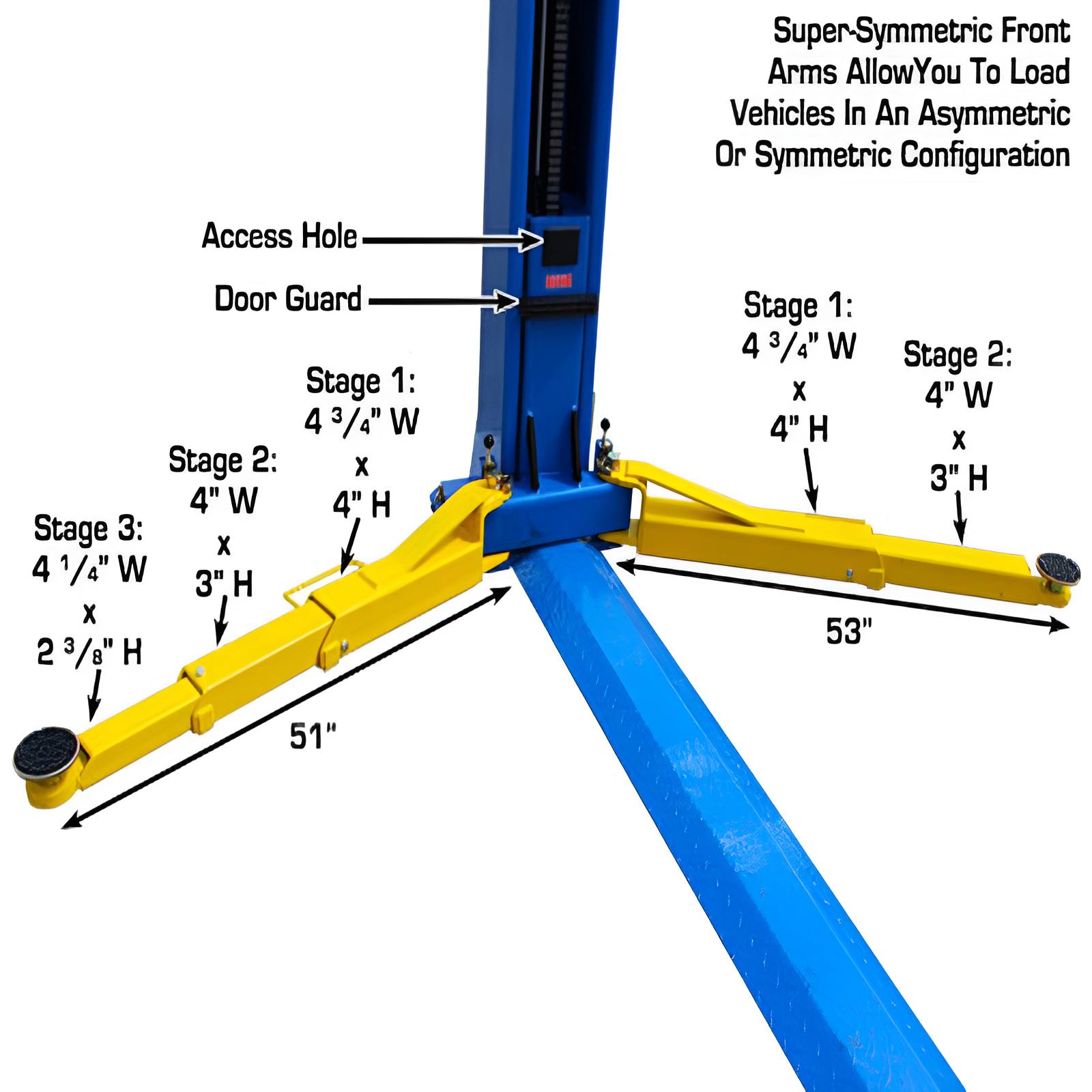

• Super Symmetric
• Lock Release: Single Point

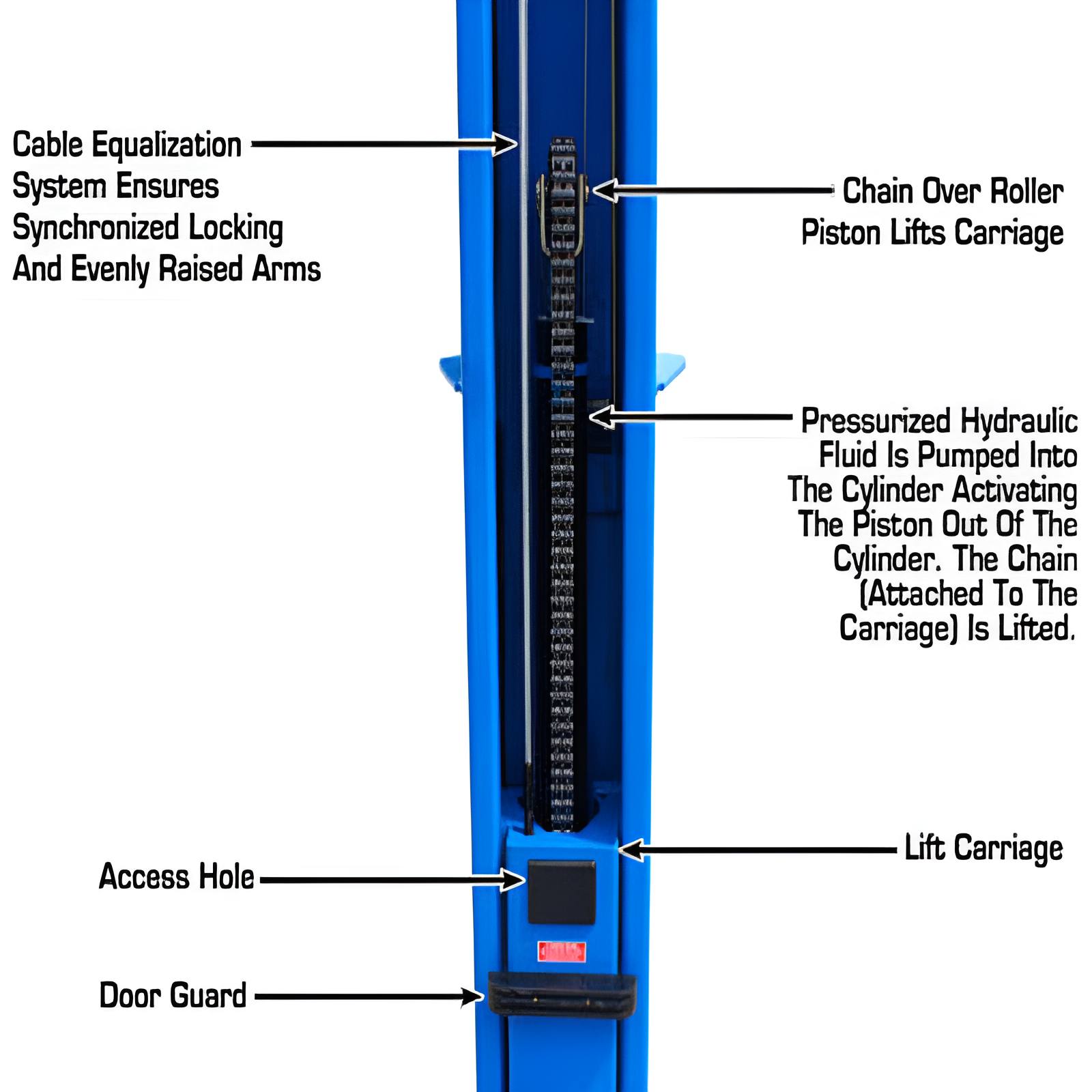

• Dual Hydraulic Chain Drive Cylinders (ASNI Standard)
• Powder Coat Finish
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only

• Unit Includes:

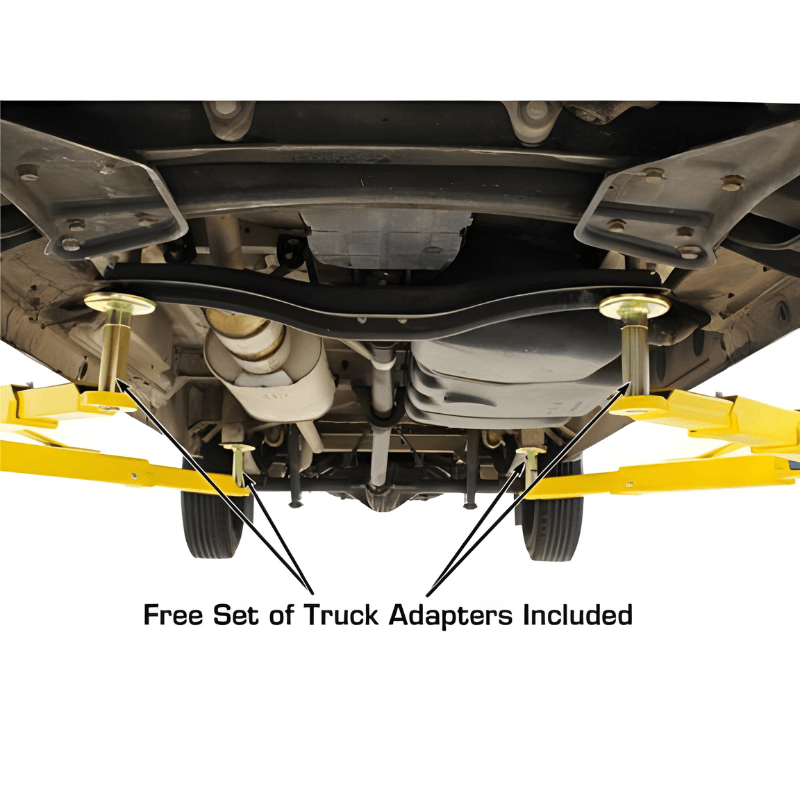

•     12-piece Truck Adapter Set

Atlas BP10000X Documentation:

   Atlas BP10000X Post Lift Product Manual
