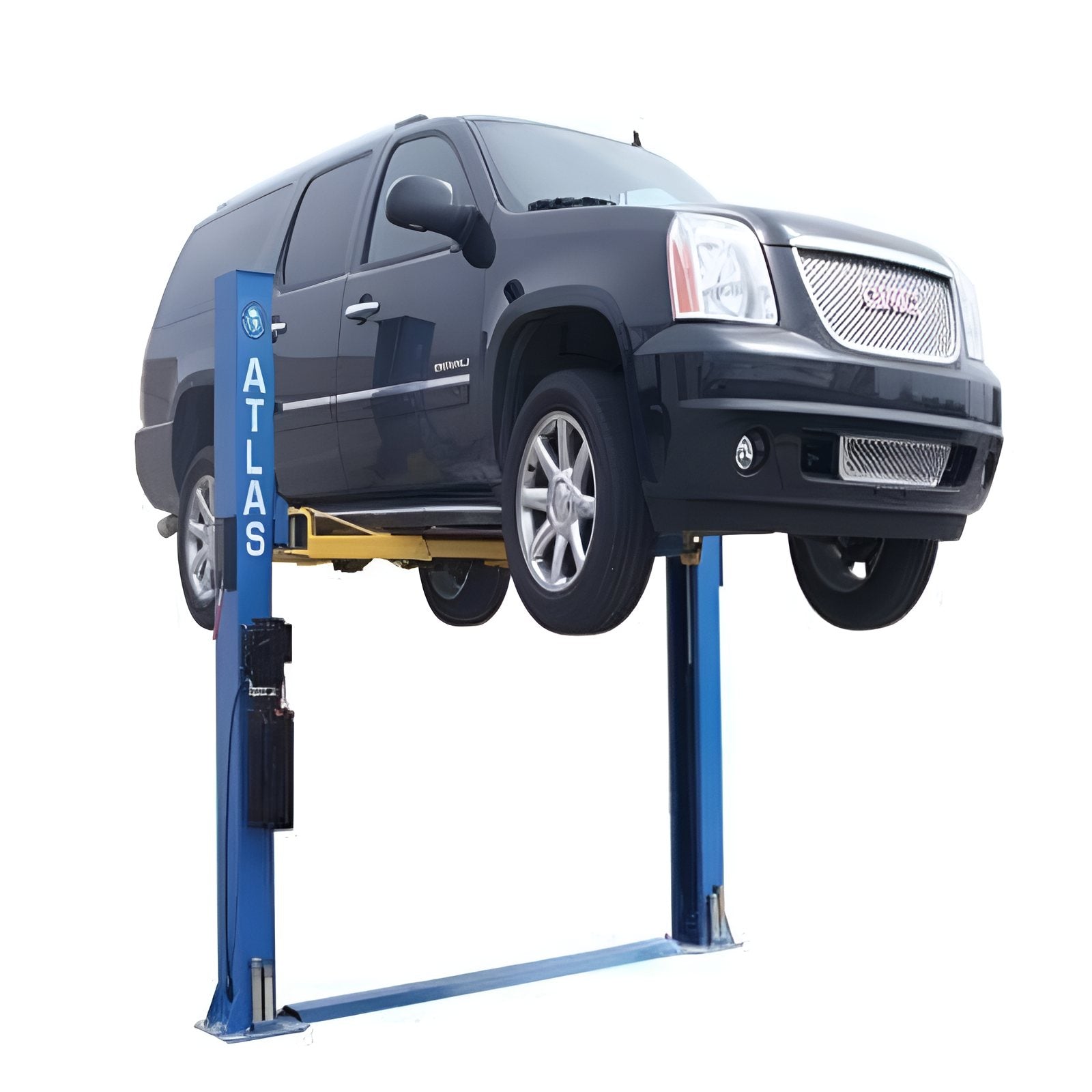

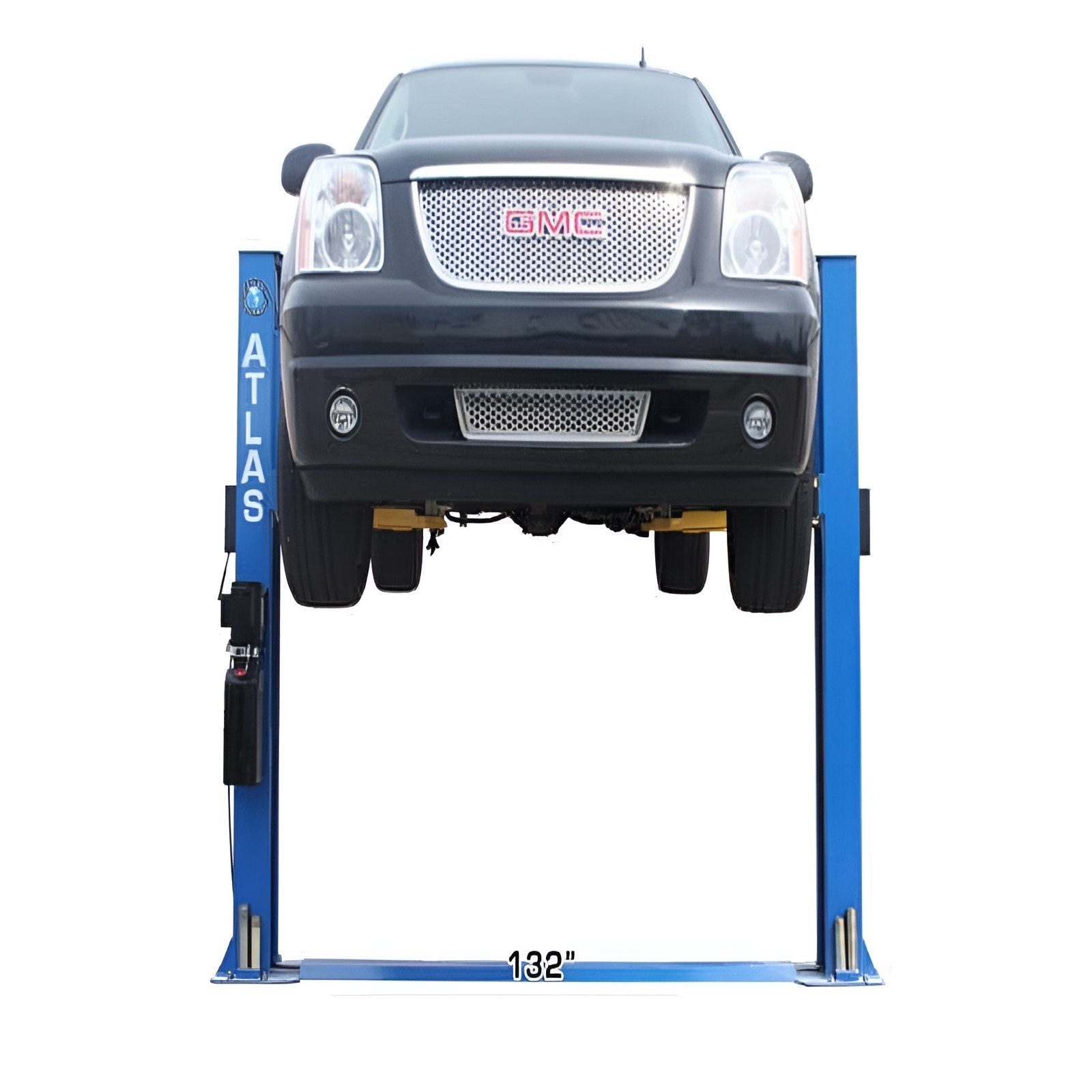

Atlas BP8000, 8,000 lb 2 Post Lift

The Atlas® BP8000 is a two-post baseplate lift perfect for garages with low ceilings. With a total height of 108 inches or 9 feet, it can be easily installed in both professional and home garages with a minimum ceiling height of 9 foot 3 inches. This lift also includes several desirable features commonly found on pricier lifts, such as a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.

 Post Lift BP8000 Specifications:

• Capacity 8,000 LB.
• Overall Height 108" (9')

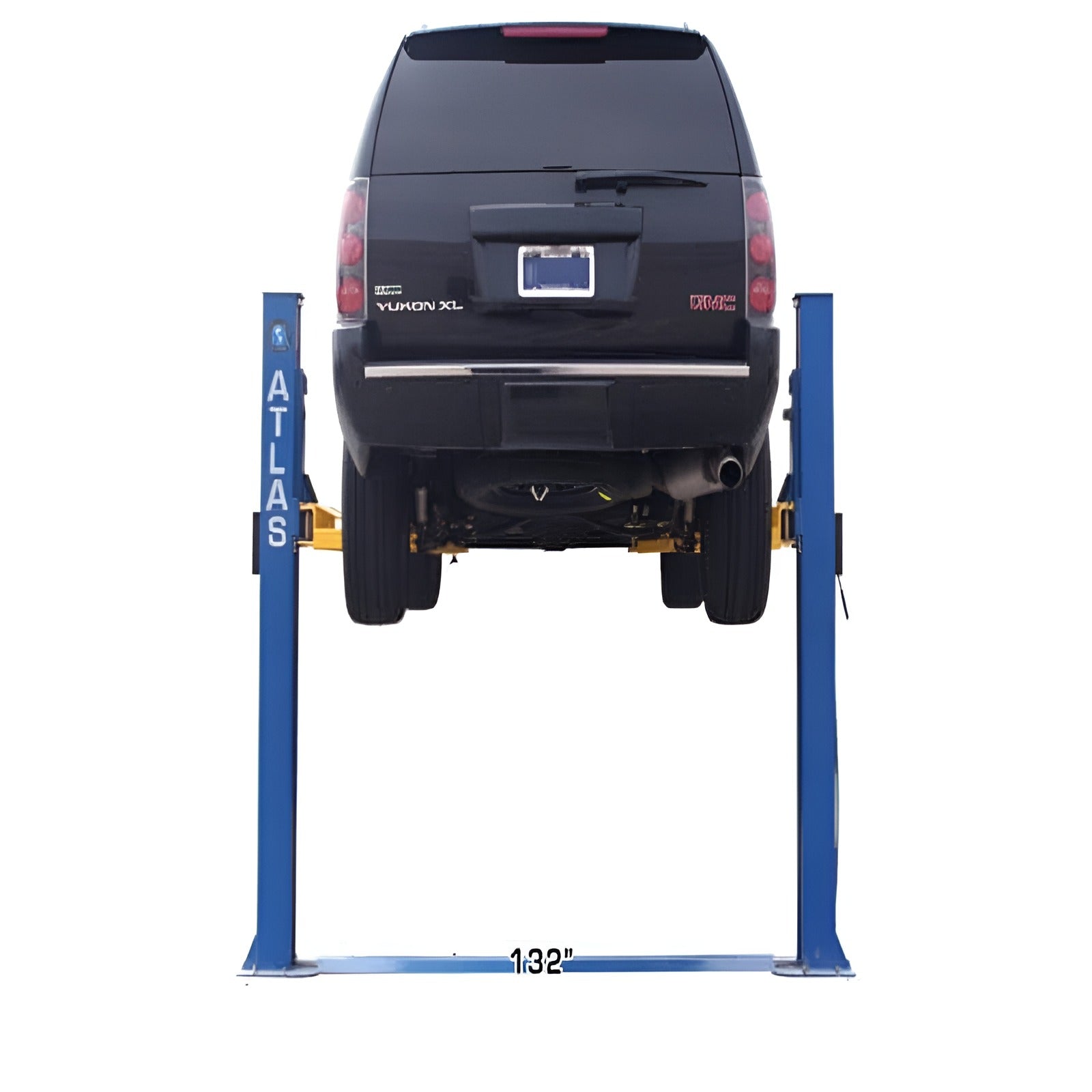

• Overall Floor Width 132" (11')
• Outside Column to Outside Column 124" (10' 4")
• Maximum Lift Height (Without Adapters) 75 1/2"
• Maximum Lift Height (With Adapters) 86 1/2"
• Minimum Arm Height 4"
• Inside Column 109 1/8” (9' 1 1/8”)

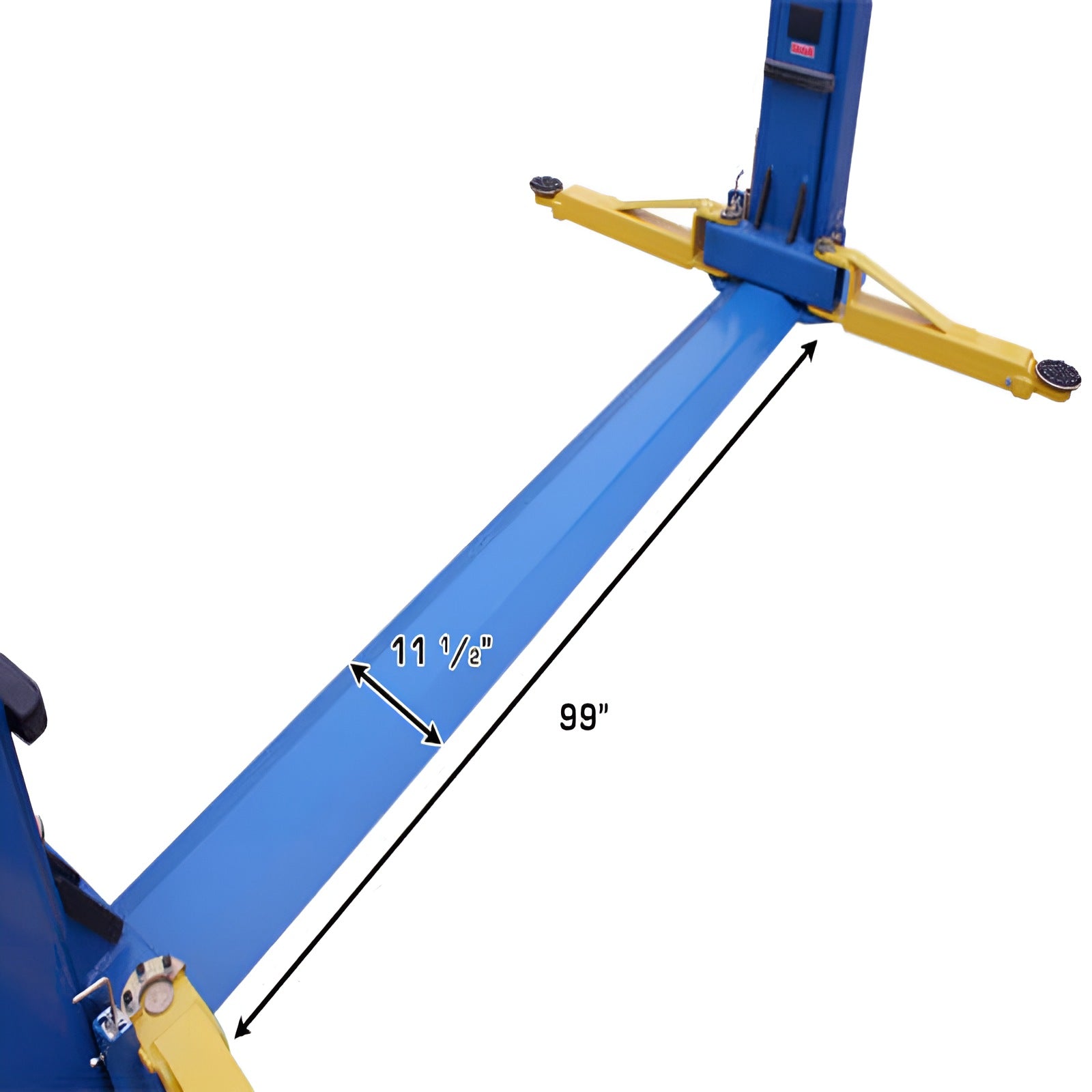

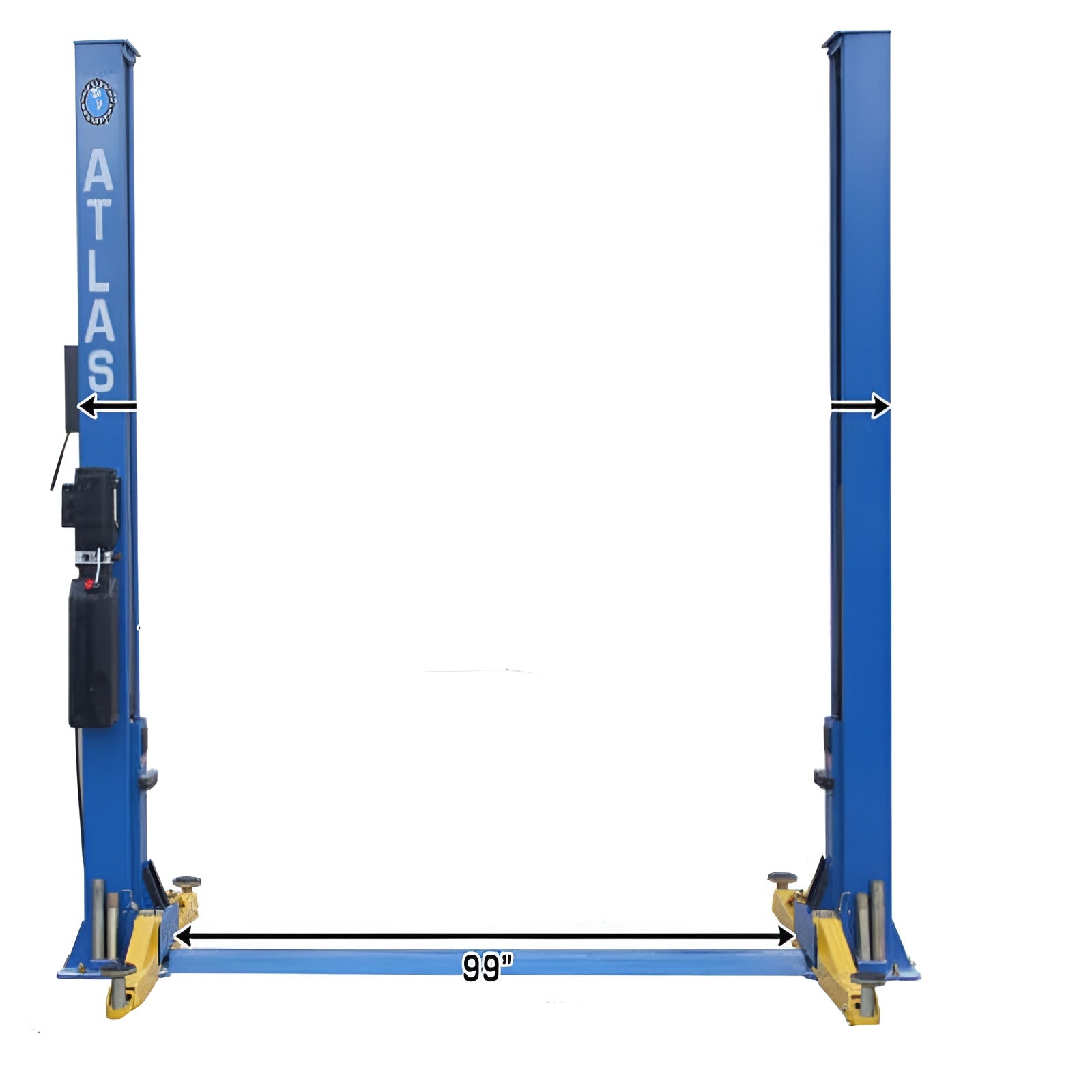

• Drive Thru 99” (8' 3”)

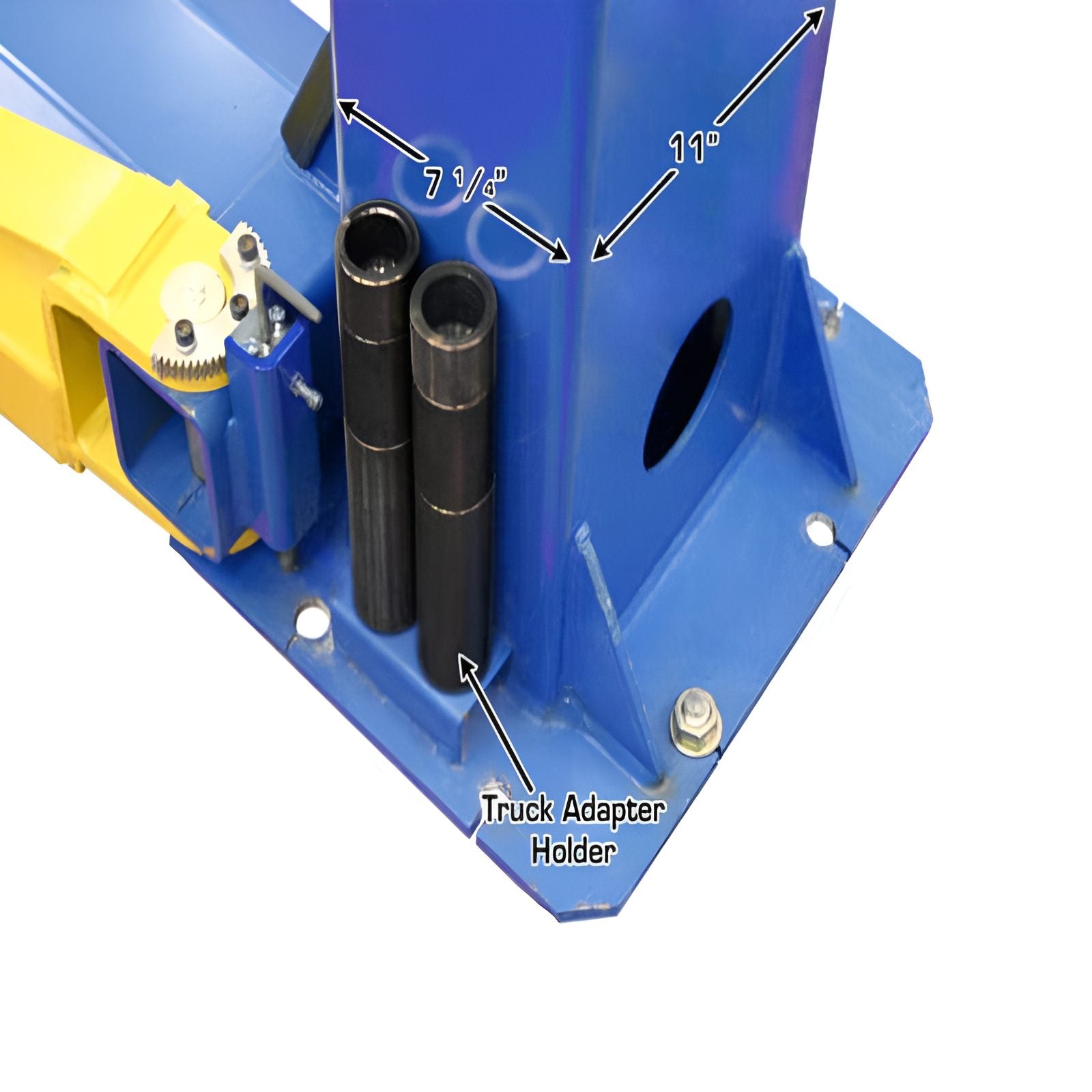

• Column Size 7 1/4" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,300 LBS.
• Pallet Size:  111" Long x 45" Tall x 19" Wide
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

BP8000 8,000 lb Post Lift Special Features:

• Hobbyist Grade Lift - Not Intended for Commercial Use
• Baseplate, Open-Top Style Lift

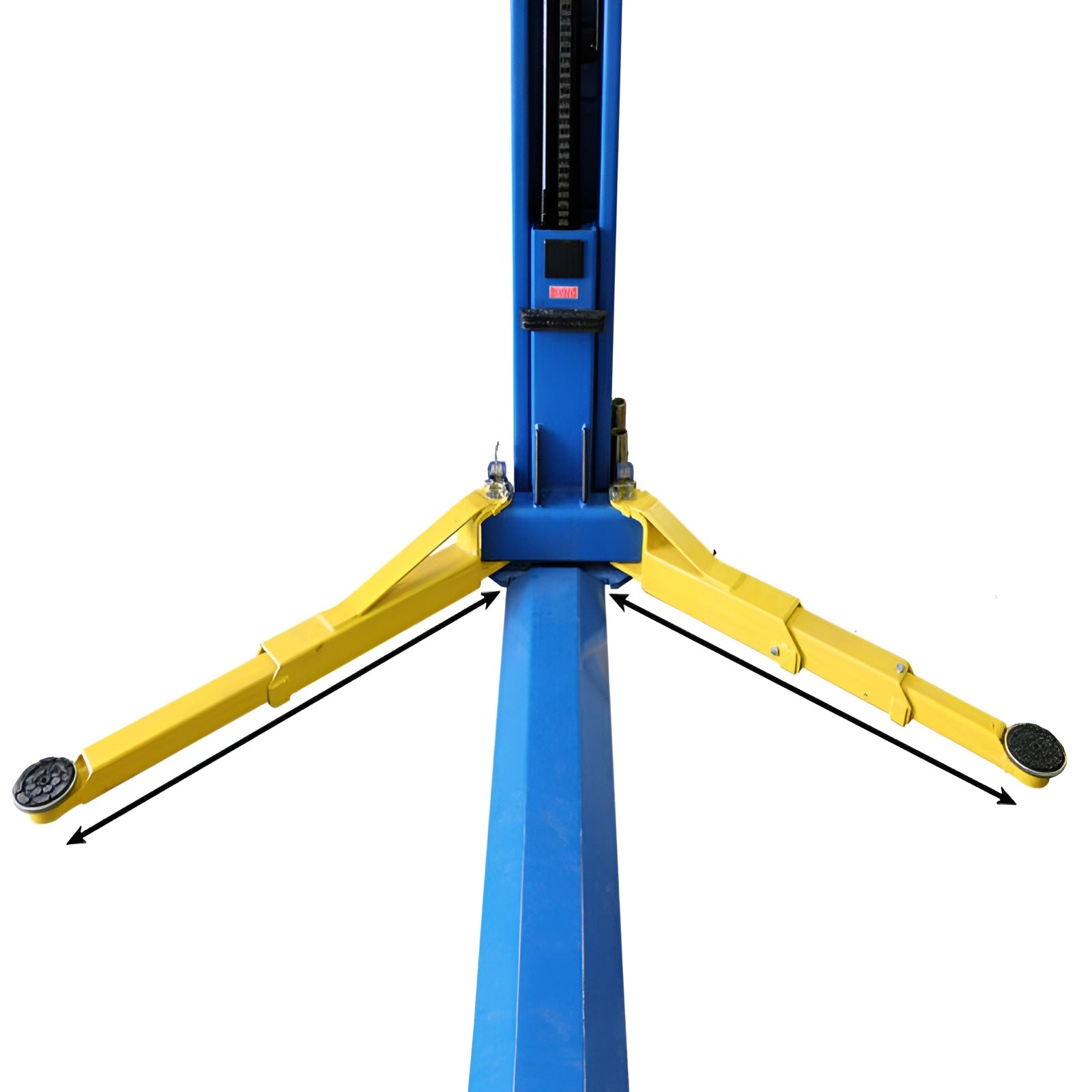

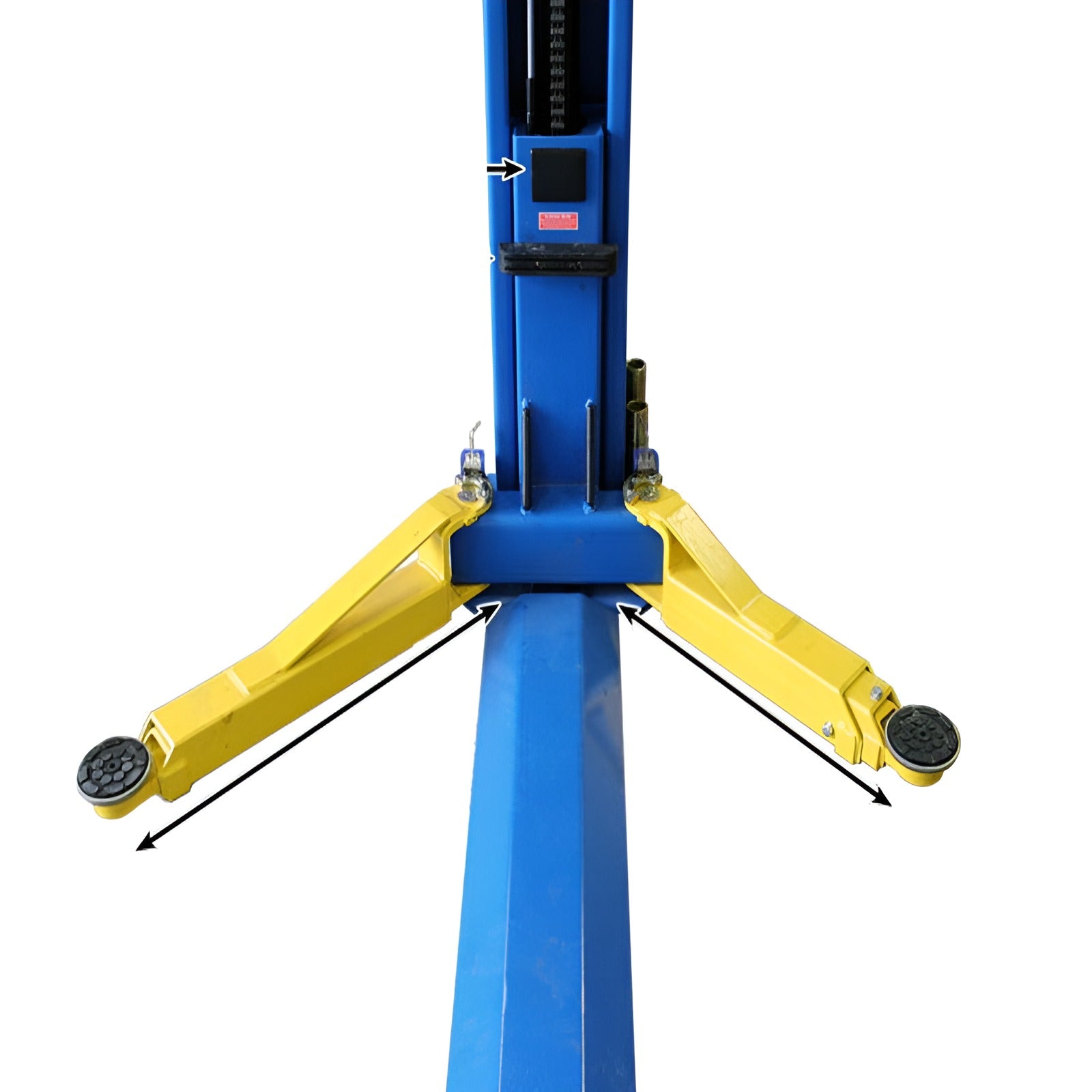

• 3-stage Front Arms, 2-Stage Rear Arms

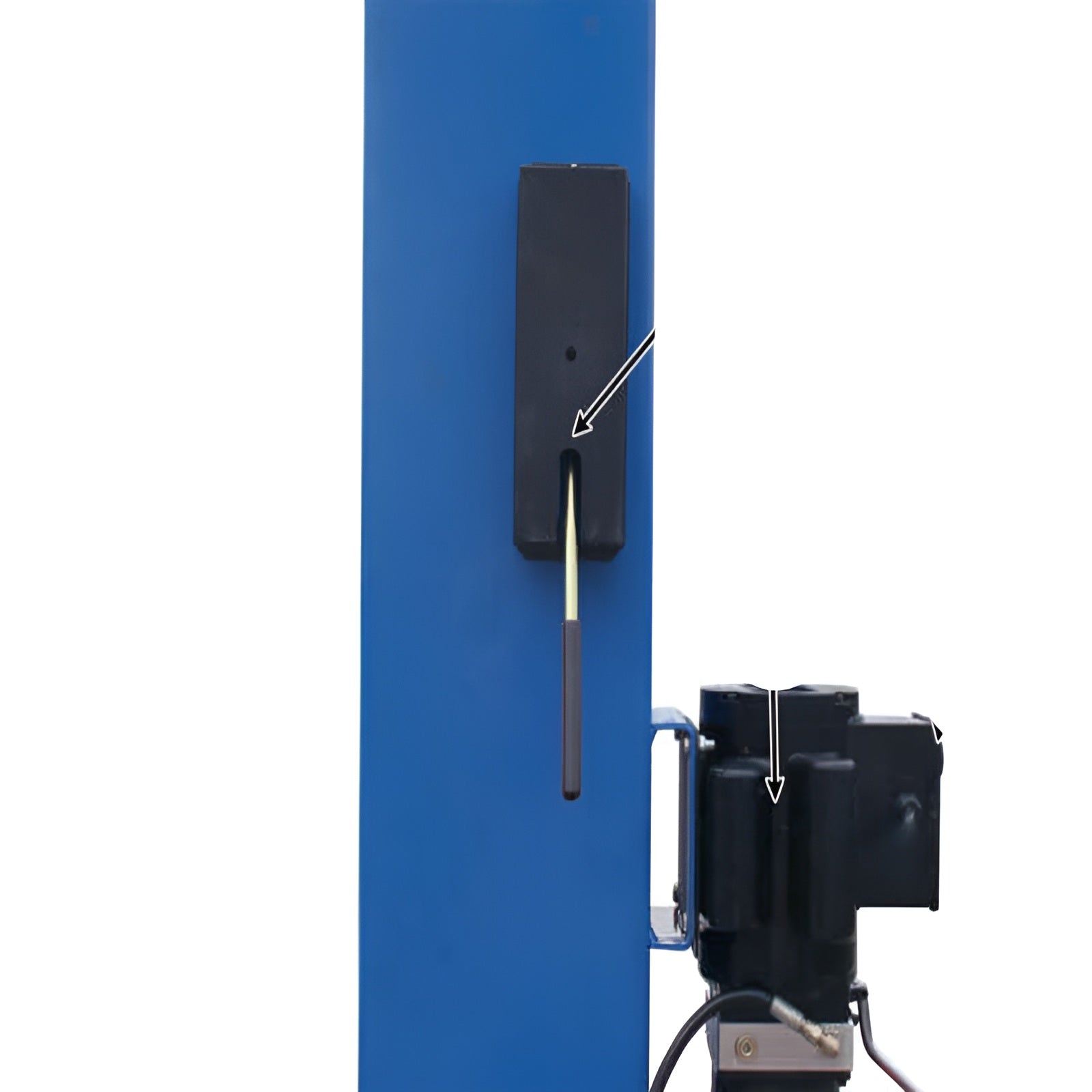

• Lock Release: Single Point
• Double Safety Lock System

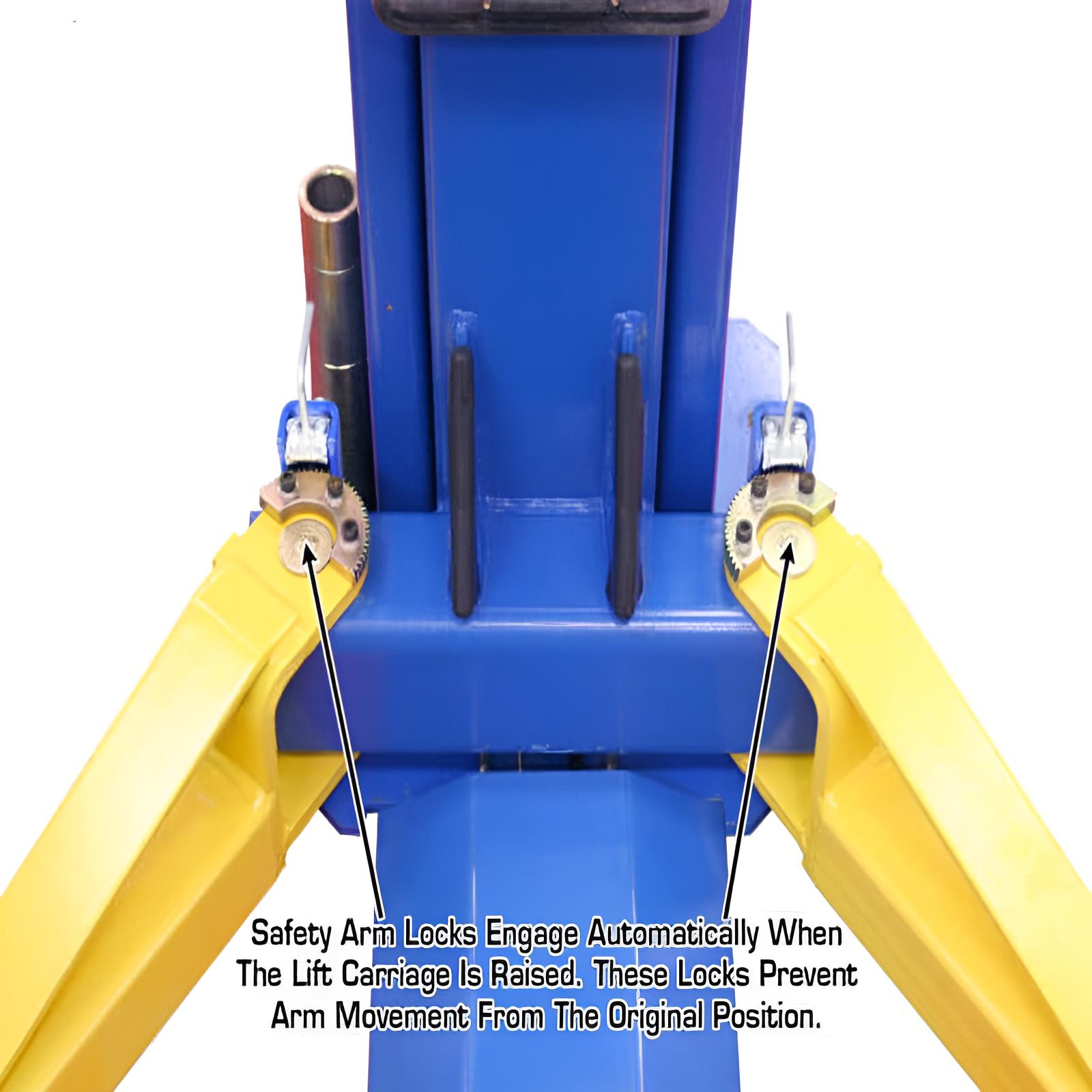

• Automatic Arm Restraints

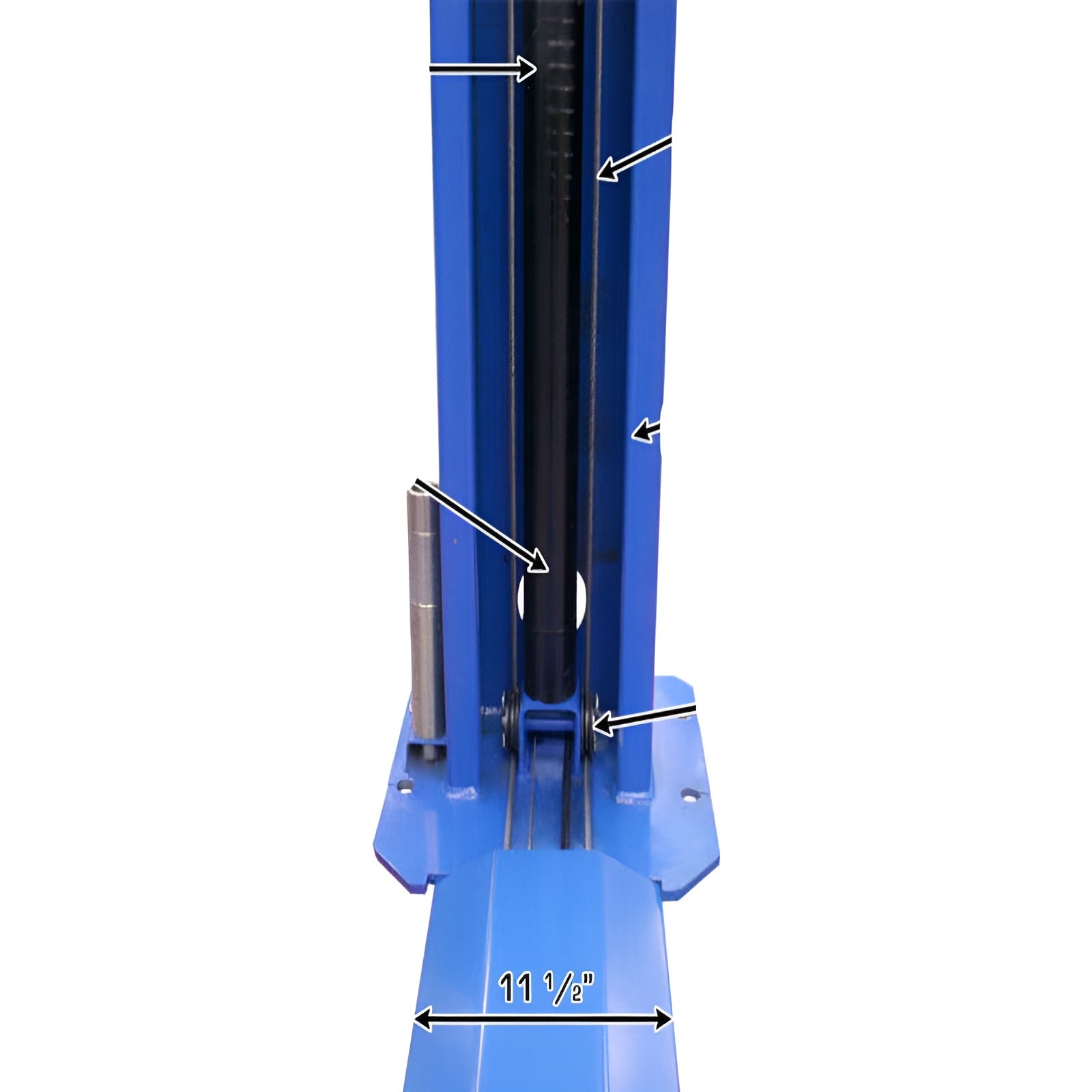

• Dual Hydraulic Chain-Drive Cylinders
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only

• Unit Includes:
•     Mounting Hardware

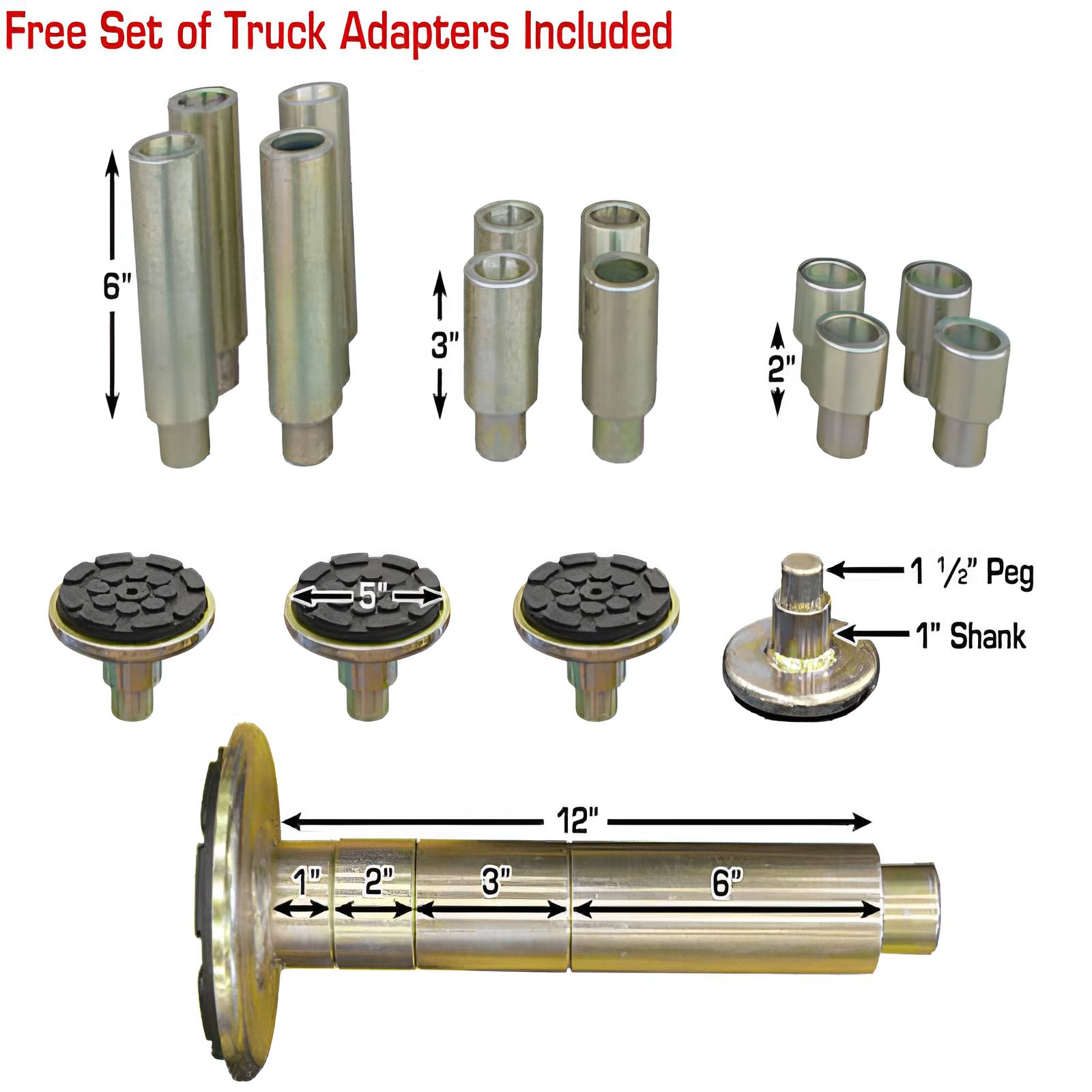

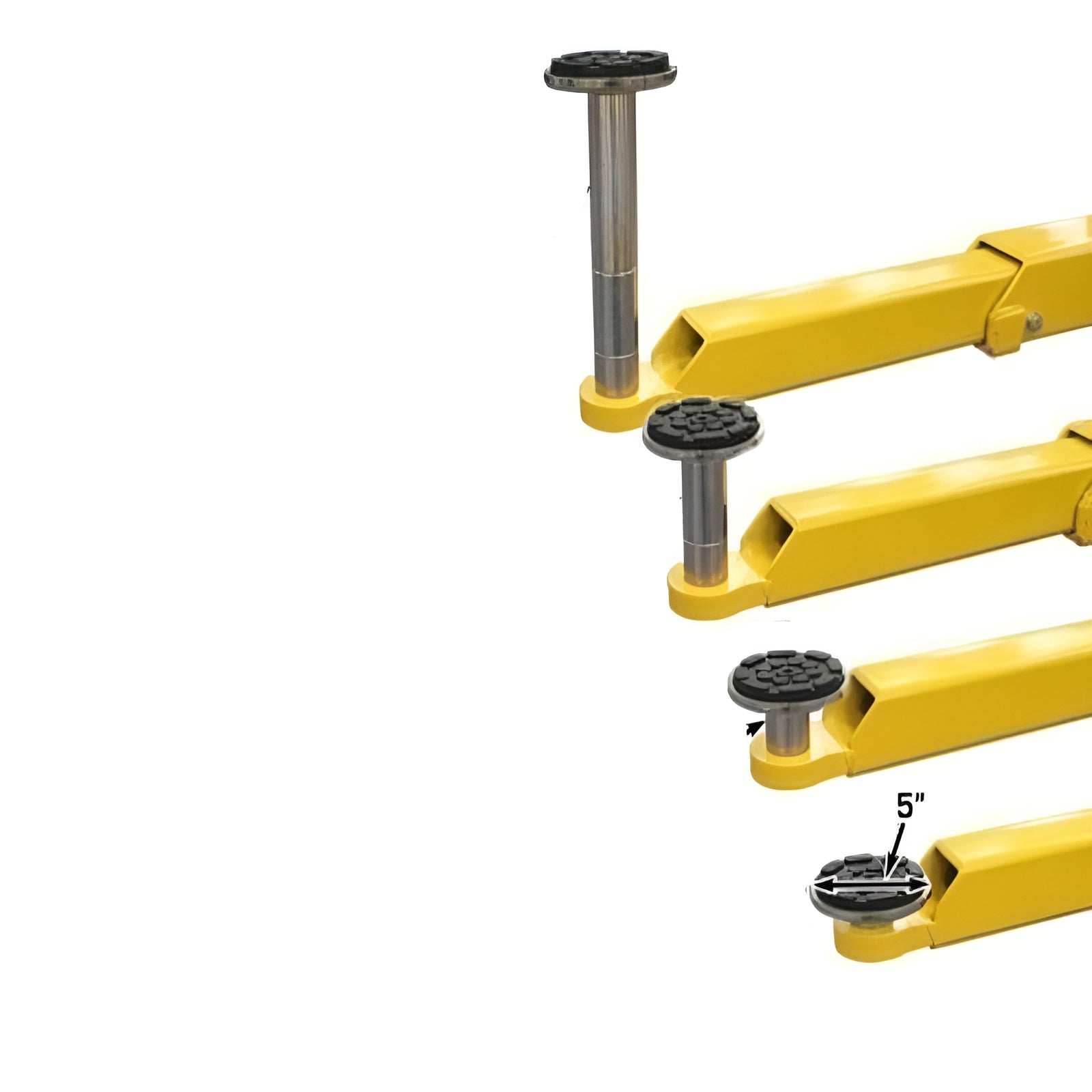

•     12-piece Truck Adapter Set

Atlas BP8000 Documentation:

   Atlas BP8000 Post Lift Product Manual
