Atlas FM9SL 9,000 lb In Ground Full-Rise Lift

FM9SL Full-Rise Lift by Atlas

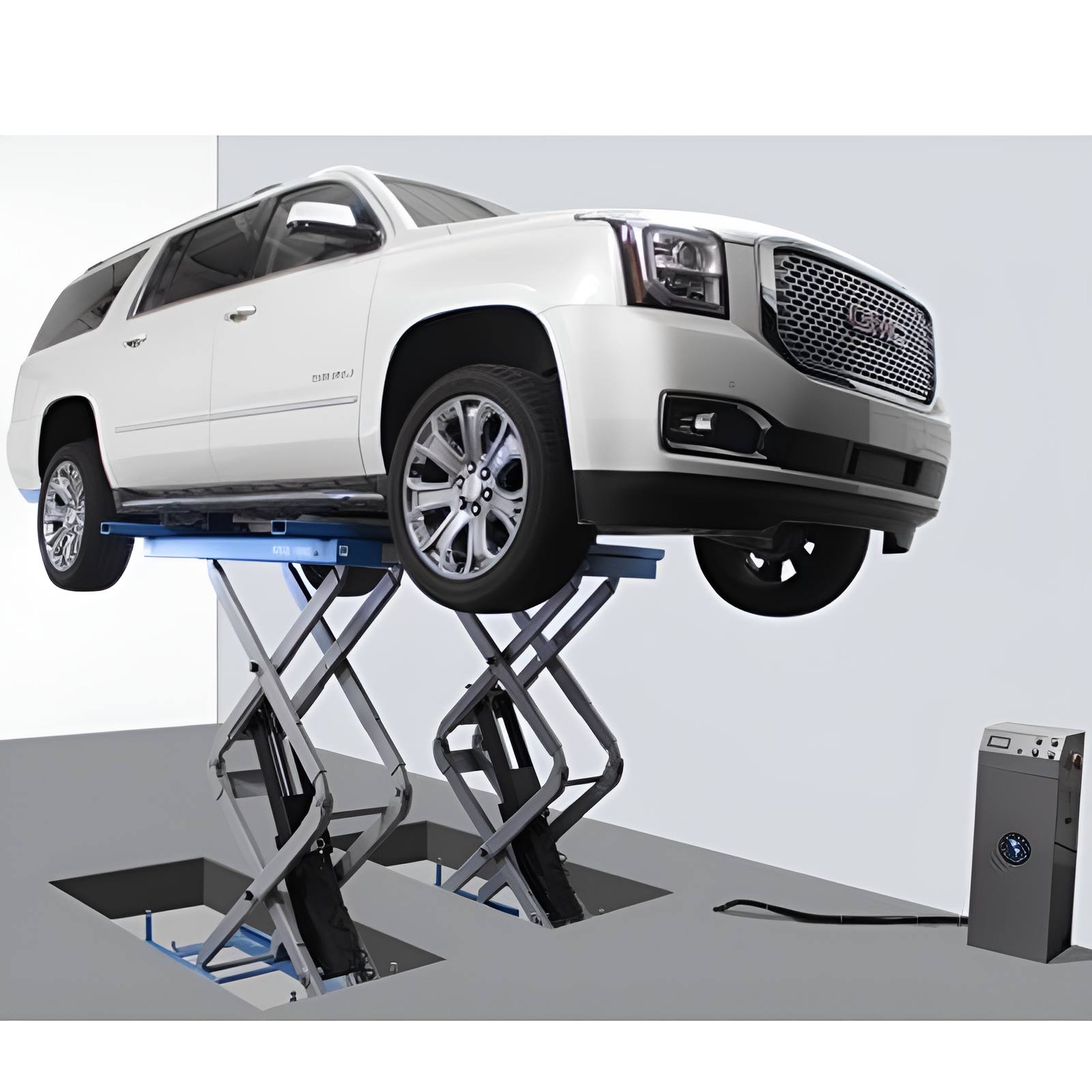

The Atlas® FM9SL 9,000 lb. flush-mounted scissor lift is the optimal solution for service facilities aiming to maximize their vehicle lift capacity within limited square footage. Offering a seamless "clean floor look" without above-ground lifts, the Atlas® FM9SL presents an ideal alternative for service departments prioritizing aesthetics. Unlike traditional in-ground lifts, minimal excavation is required for the flush-mounted design, and access to the electric/hydraulic power unit during maintenance is effortless.

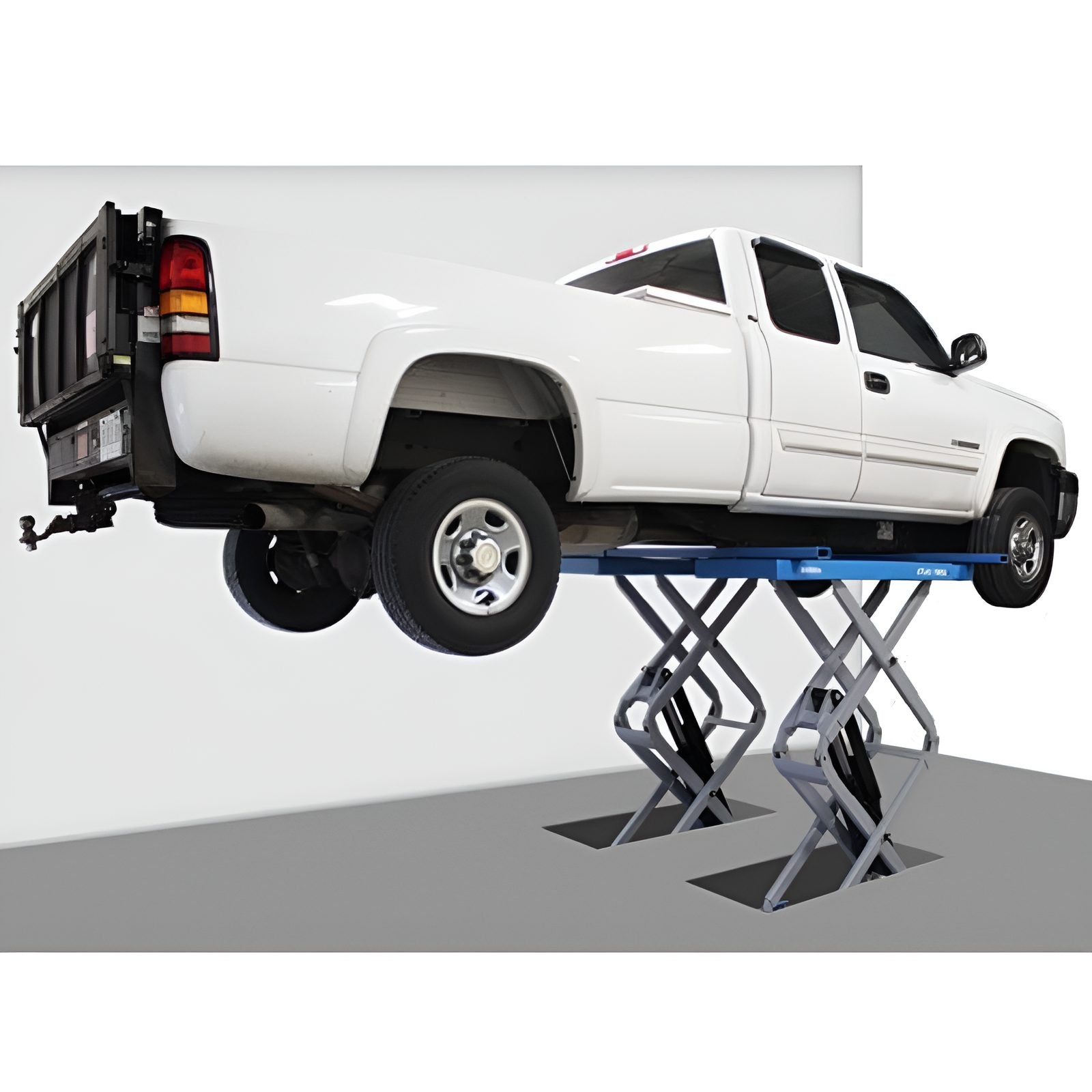

Featuring flush-mounted platforms devoid of any above-ground obstruction, vehicles can be seamlessly driven over from any direction, enabling precise positioning even in tight spaces. With both front and rear platform extensions, the Atlas® FM9SL accommodates long wheelbase pickup trucks effortlessly.

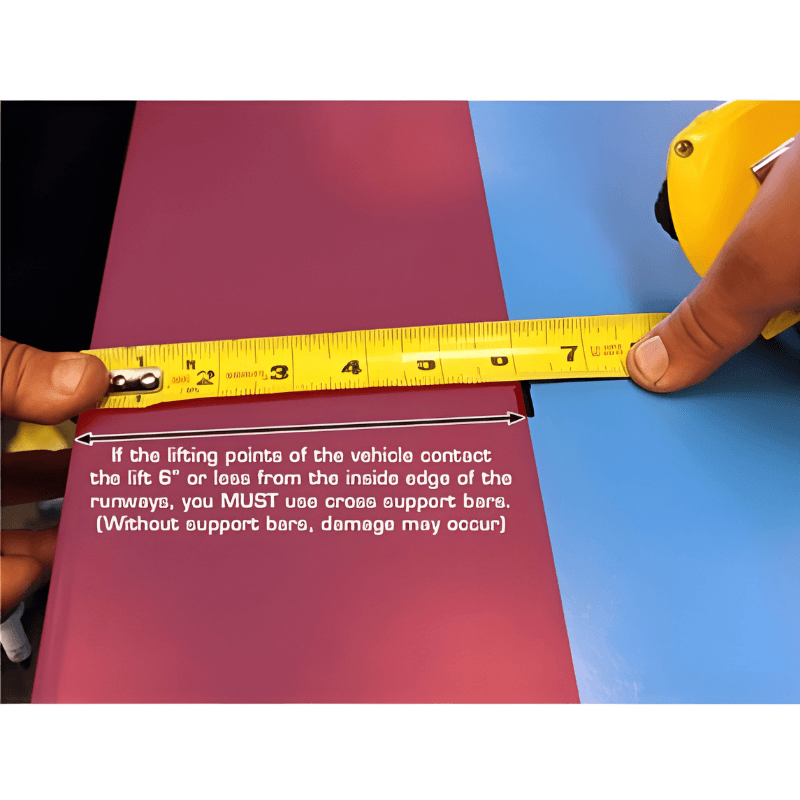

However, as with any open scissor lift lacking cross-support bars, operators must ensure proper vehicle positioning, maintaining a minimum 6-inch distance between the vehicle's frame and the inside of the platform. Failure to do so may result in platform misalignment, potentially causing damage.

Full-Rise FM9SL Specifications:

• Lifting Capacity: 9,000 lbs.
• Max Lifting Height Above Floor w/ Standard Lifting Blocks: 73 3/4" (6' 1 3/4")

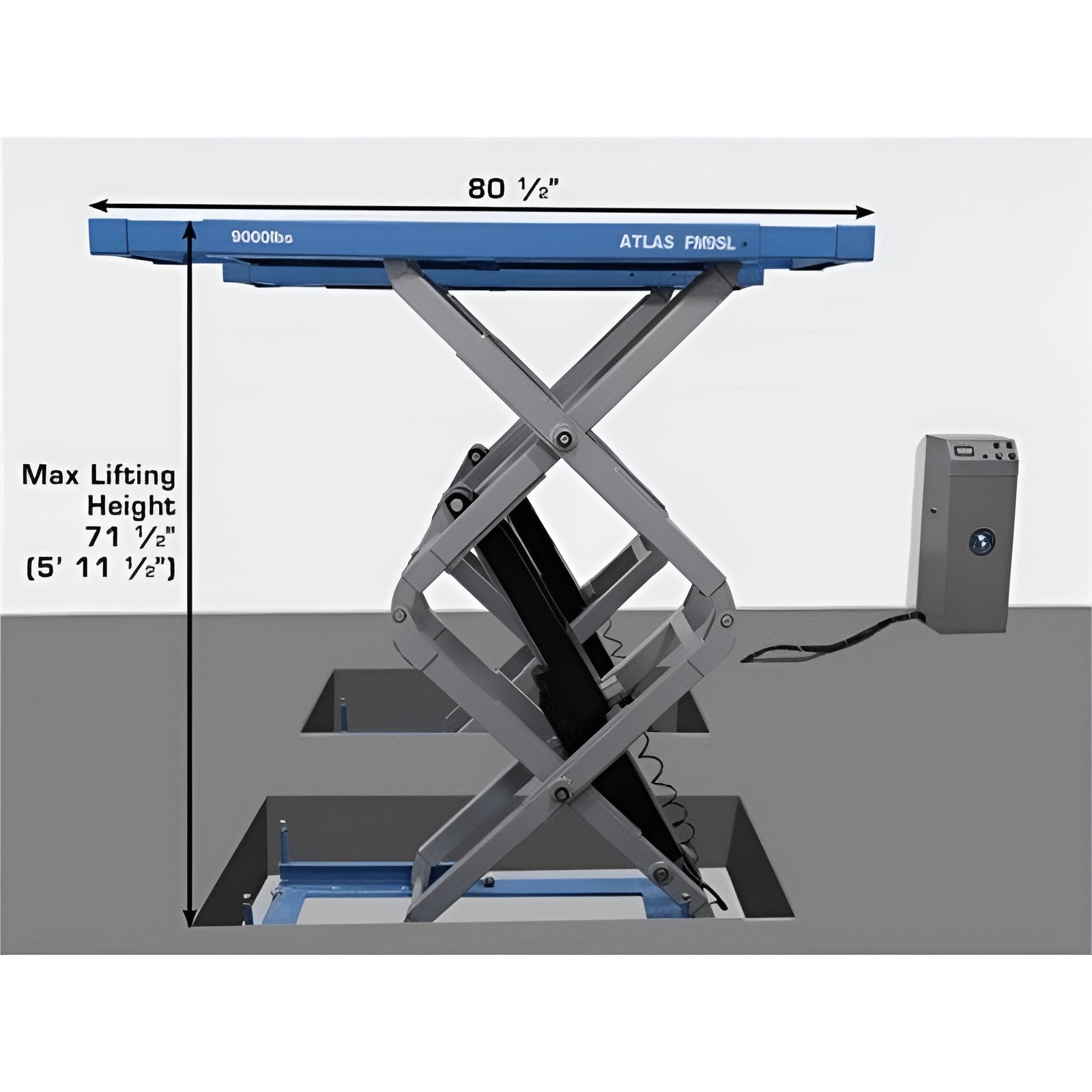

• Max Lifting Height Above Floor w/o Standard Lifting Blocks: 71" (5' 11")
• Overall Length w/ Extensions out: 80" (6' 8")
• Overall Length w/ Extensions in: 64" (5' 4")
• Platform Width: 21 "
• Platform Thickness: 4"

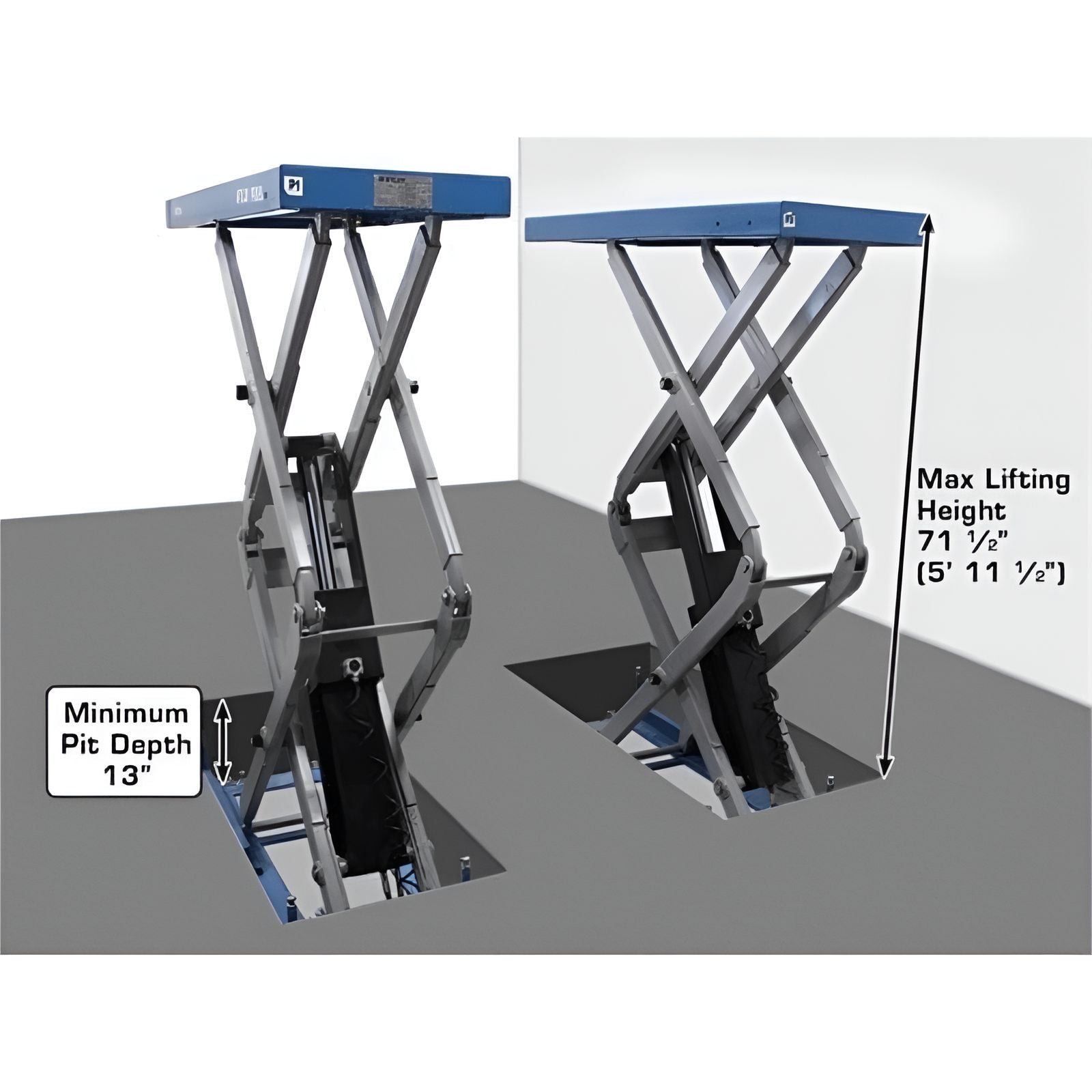

• Minimum Lowered Height (In Ground): 13"

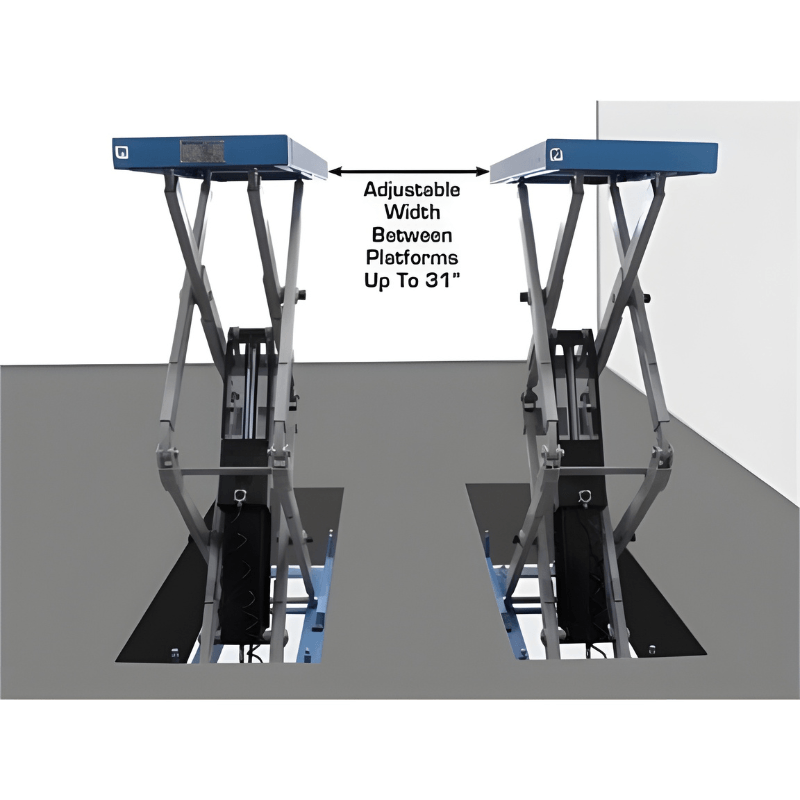

• Width Between Platforms: Adjustable up to 31"
• Air Requirement: 90-120 PS(
• Power Unit: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

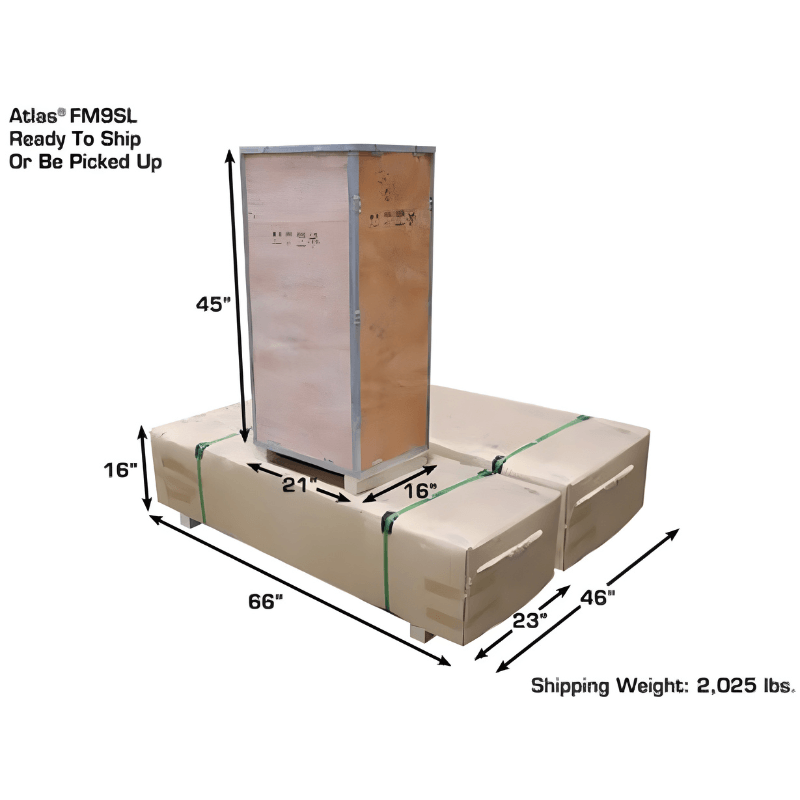

• Shipping Weight: 2,025 lbs.

FM9SL 9,000 lb Full-Rise Special Features:

• 9,000 lb. Capacity
• Commercial Grade
• Full Rise Lift
• Adjustable Width

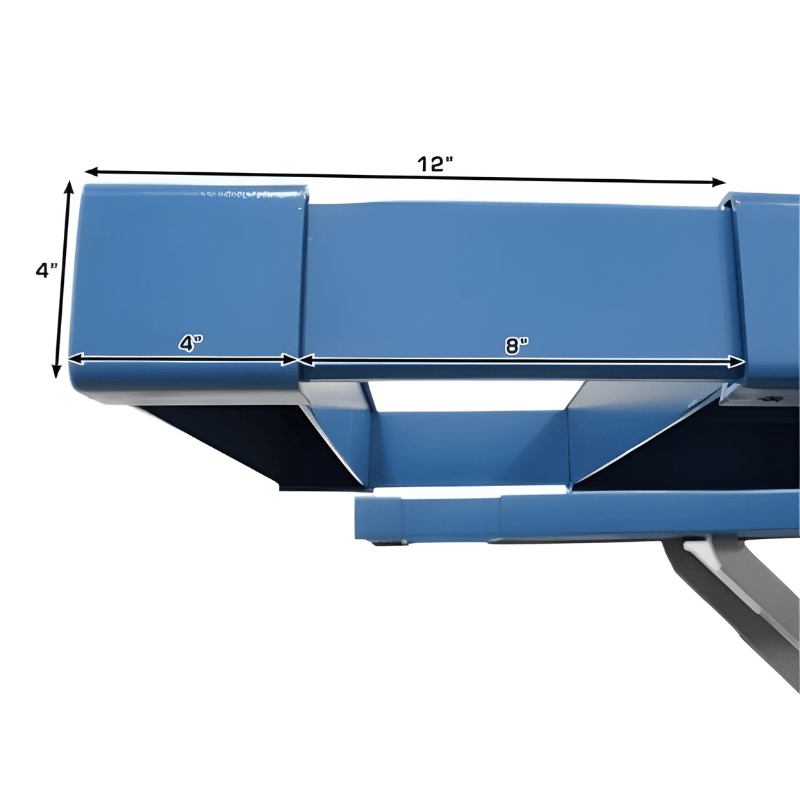

• Platforms Extend, Both Ends

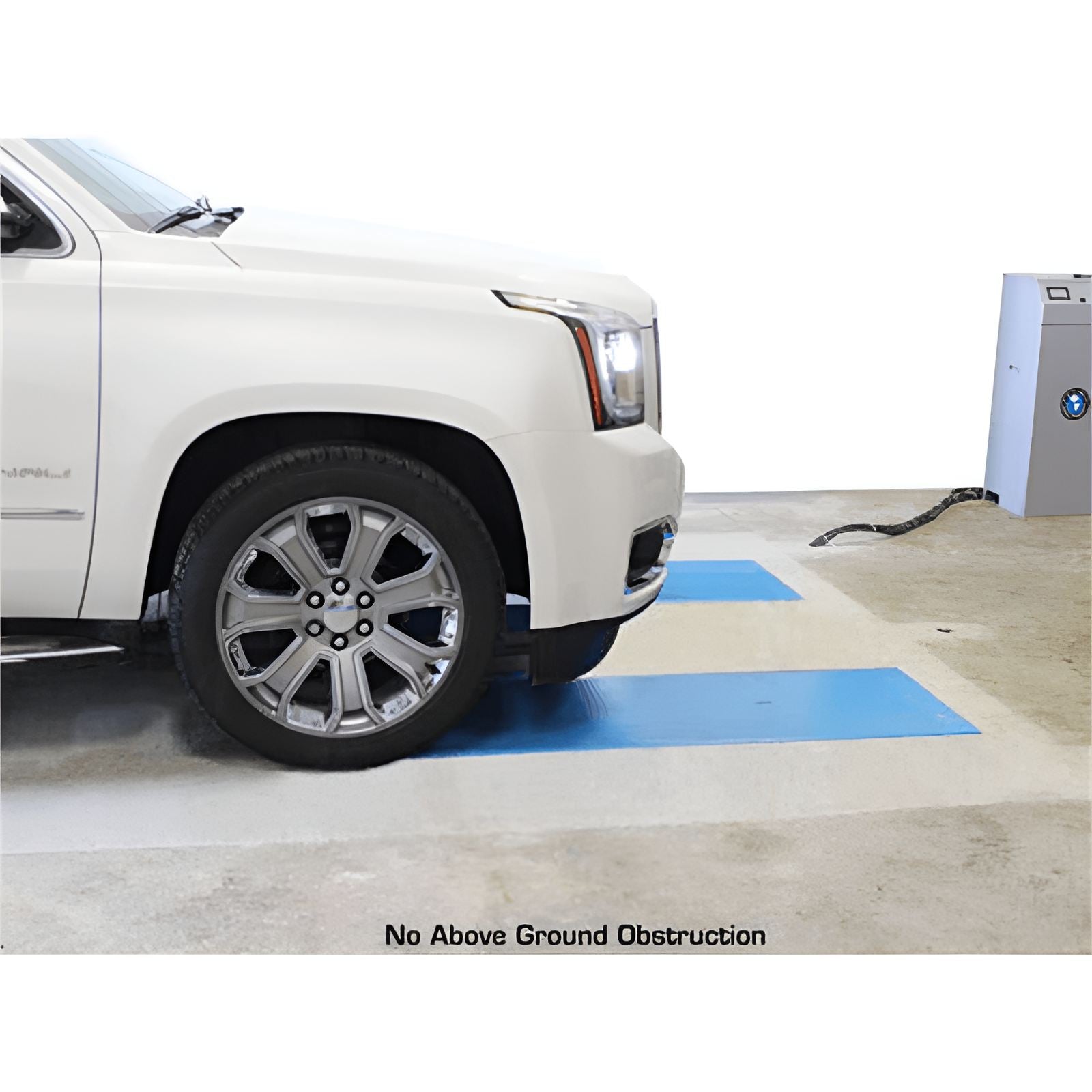

• No above ground obstruction
• CE Certified

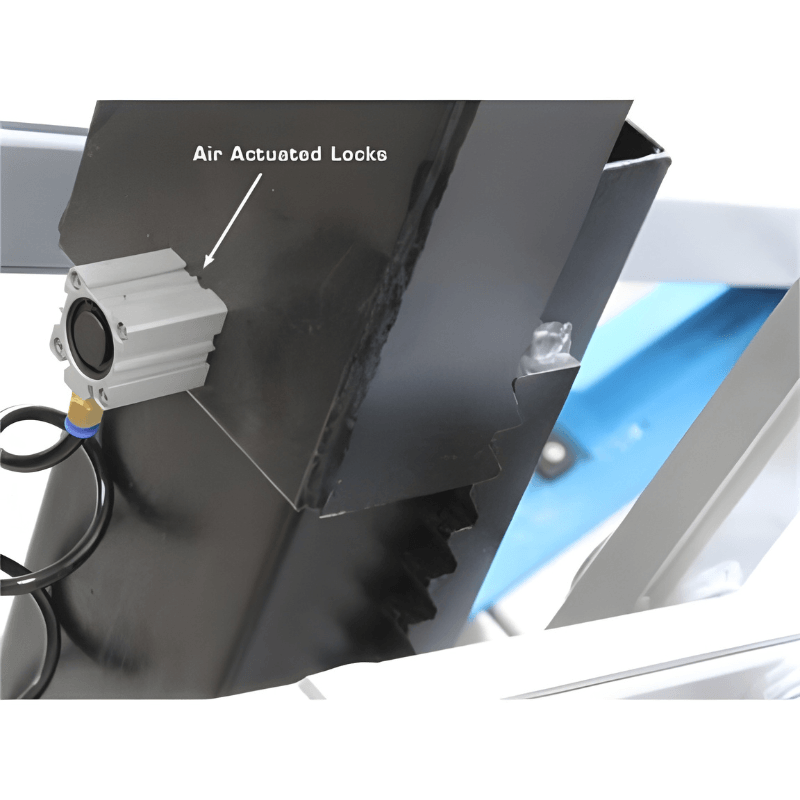

• Air-Operated Single Point Lock Release (External Air Supply Required)
• Open Center Design

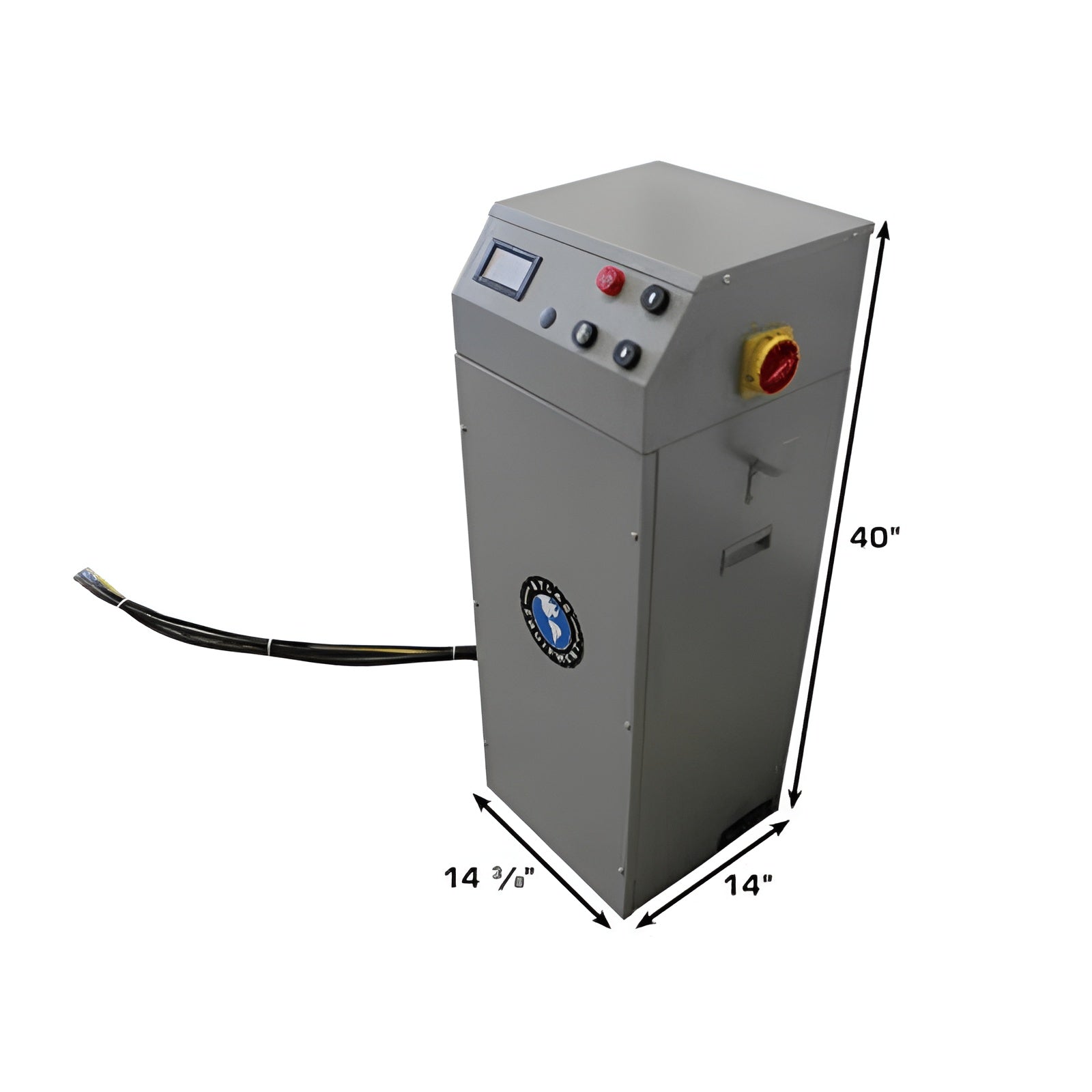

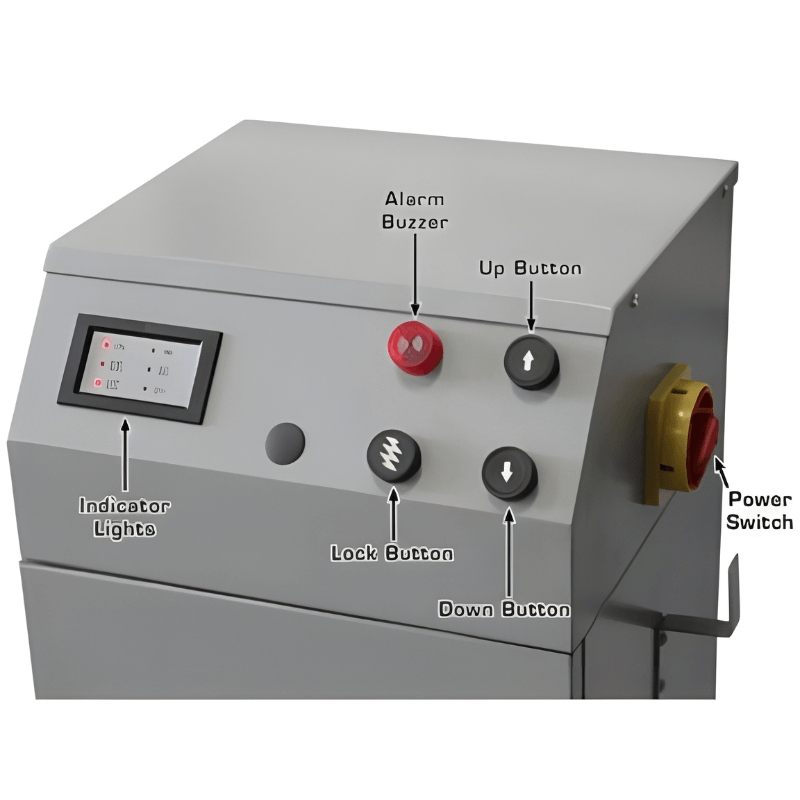

• Separate Self-Contained Control Unit
• Grease Zerk Fittings at each Hinge Point

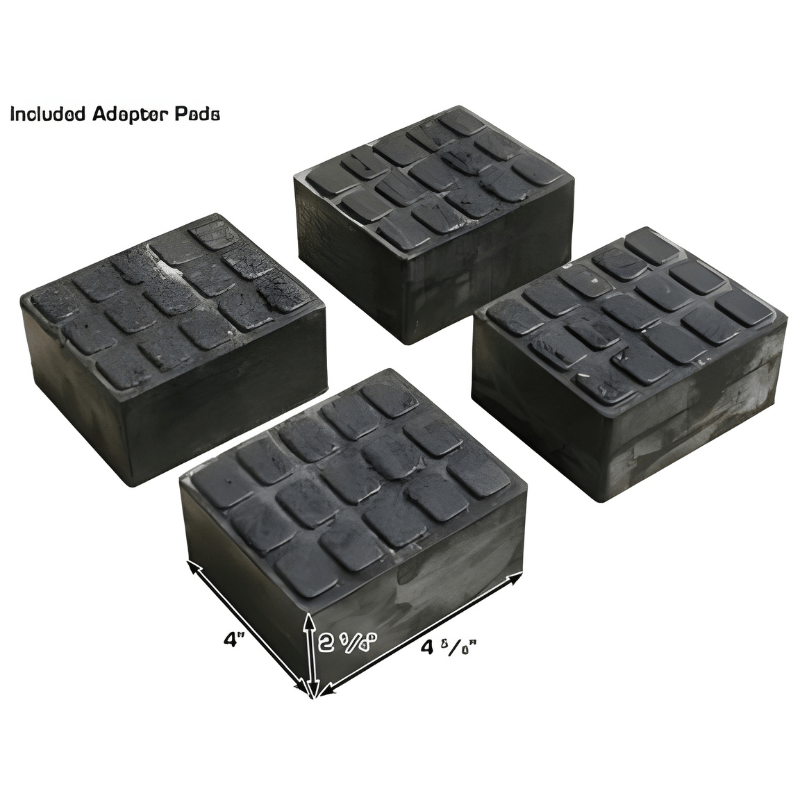

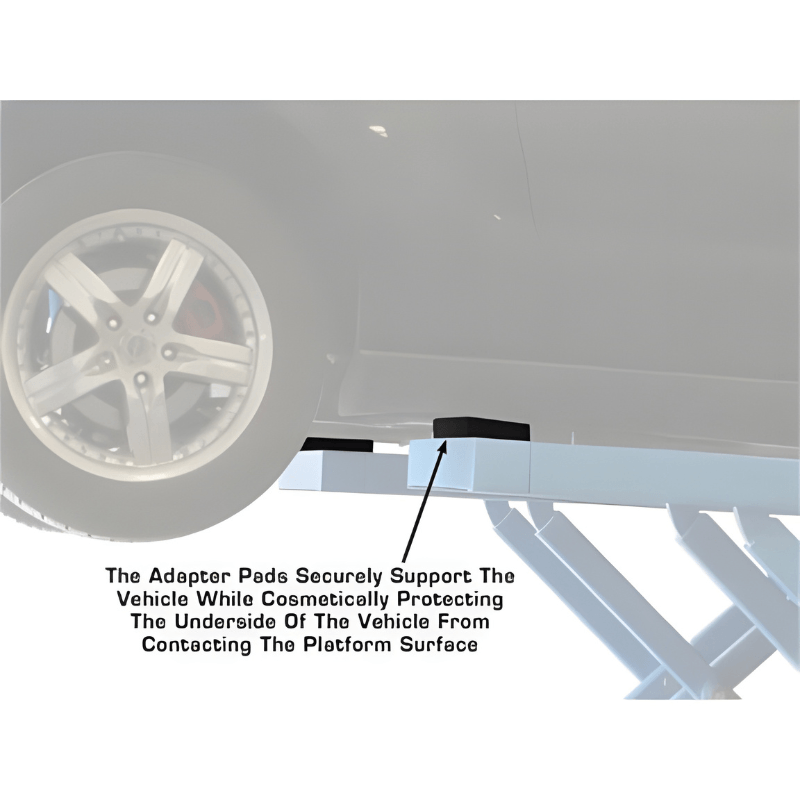

• Heavy Duty Rubber Lifting Blocks Included
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 2,025 lb.
• 1 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas FM9SL Documentation:

  Atlas FM9SL Full-Rise Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $499

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ


**THIS IS A SPECIAL-ORDER ITEM - LEADTIMES VARY (TYPICALLY 4-6 WEEKS)
