Atlas LR06 6,000 lbs Portable Low Rise Lift

Atlas LR-06P Low Rise Lift

Performing wheel service, body work, or undercar maintenance can be cumbersome when a reliable, low-profile lifting solution isn’t available. Many small garages and service bays struggle to safely raise vehicles to an optimal working height without complex setups or bulky equipment.

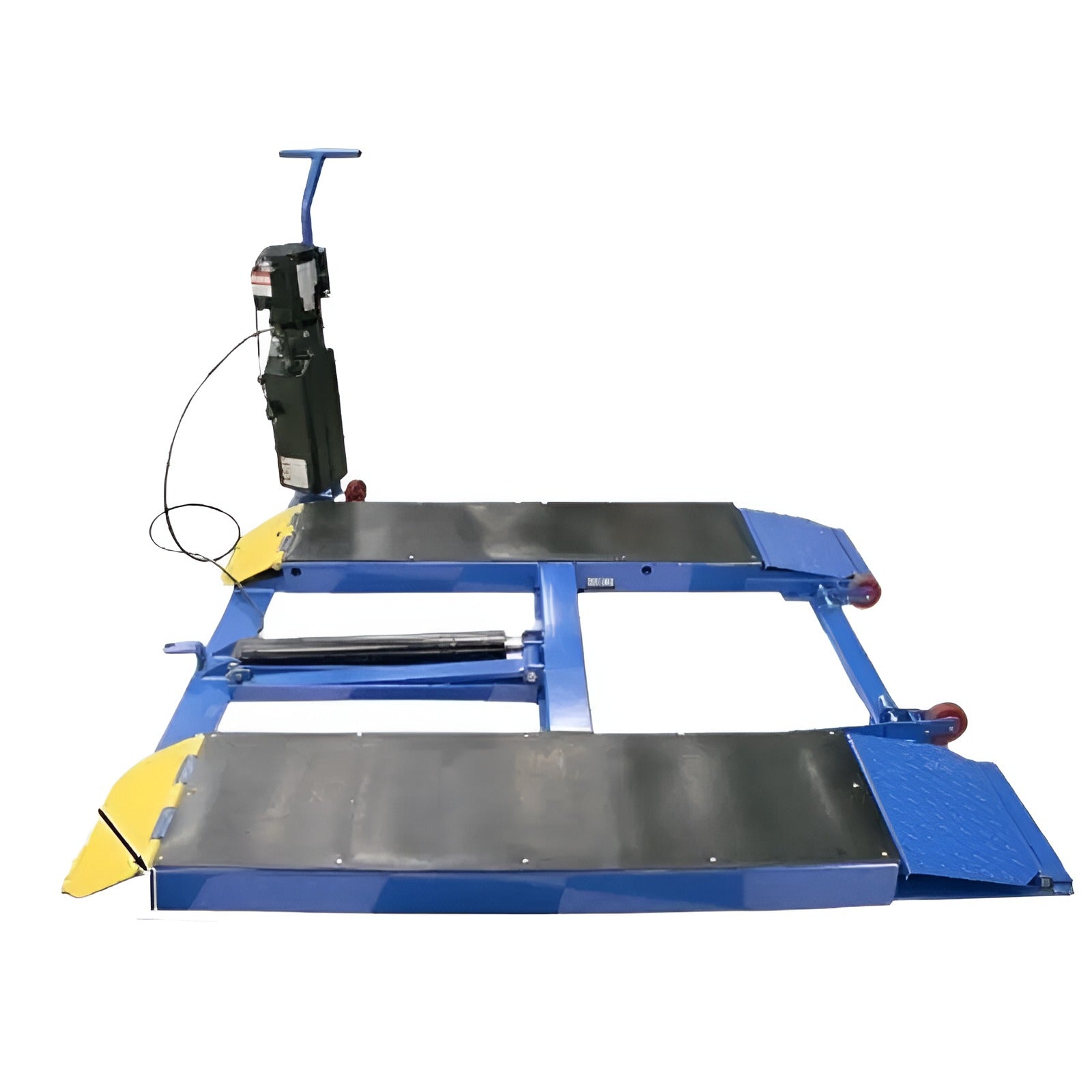

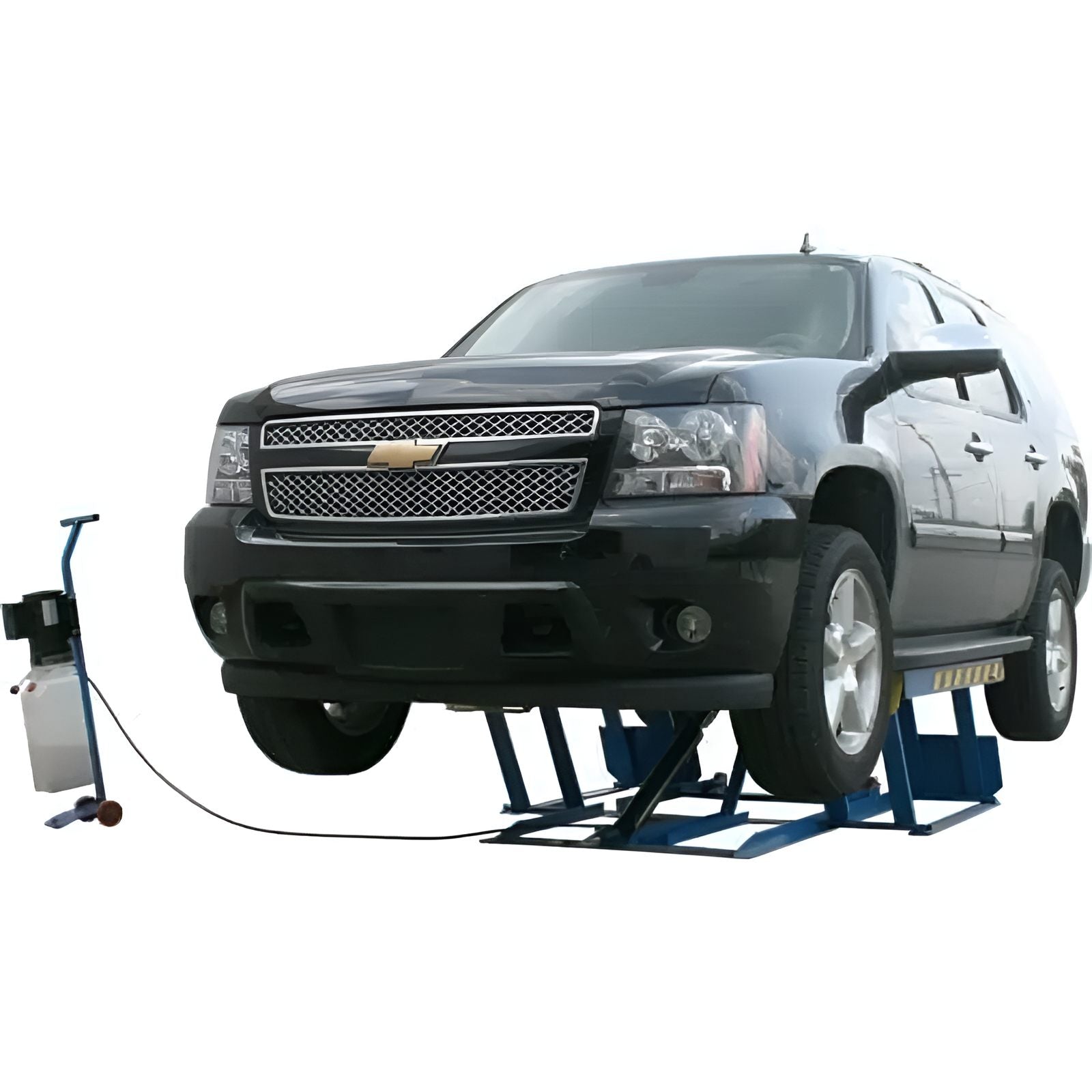

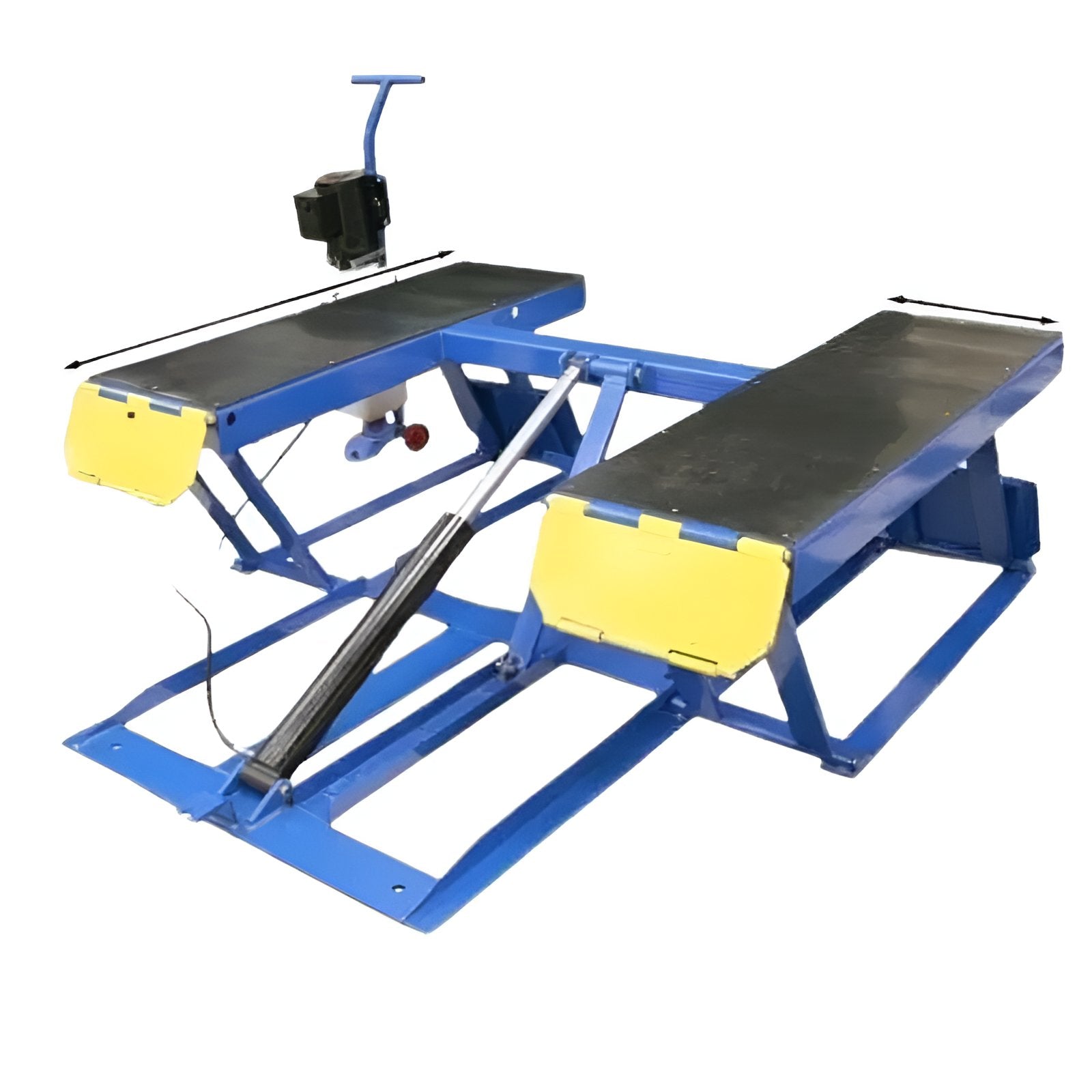

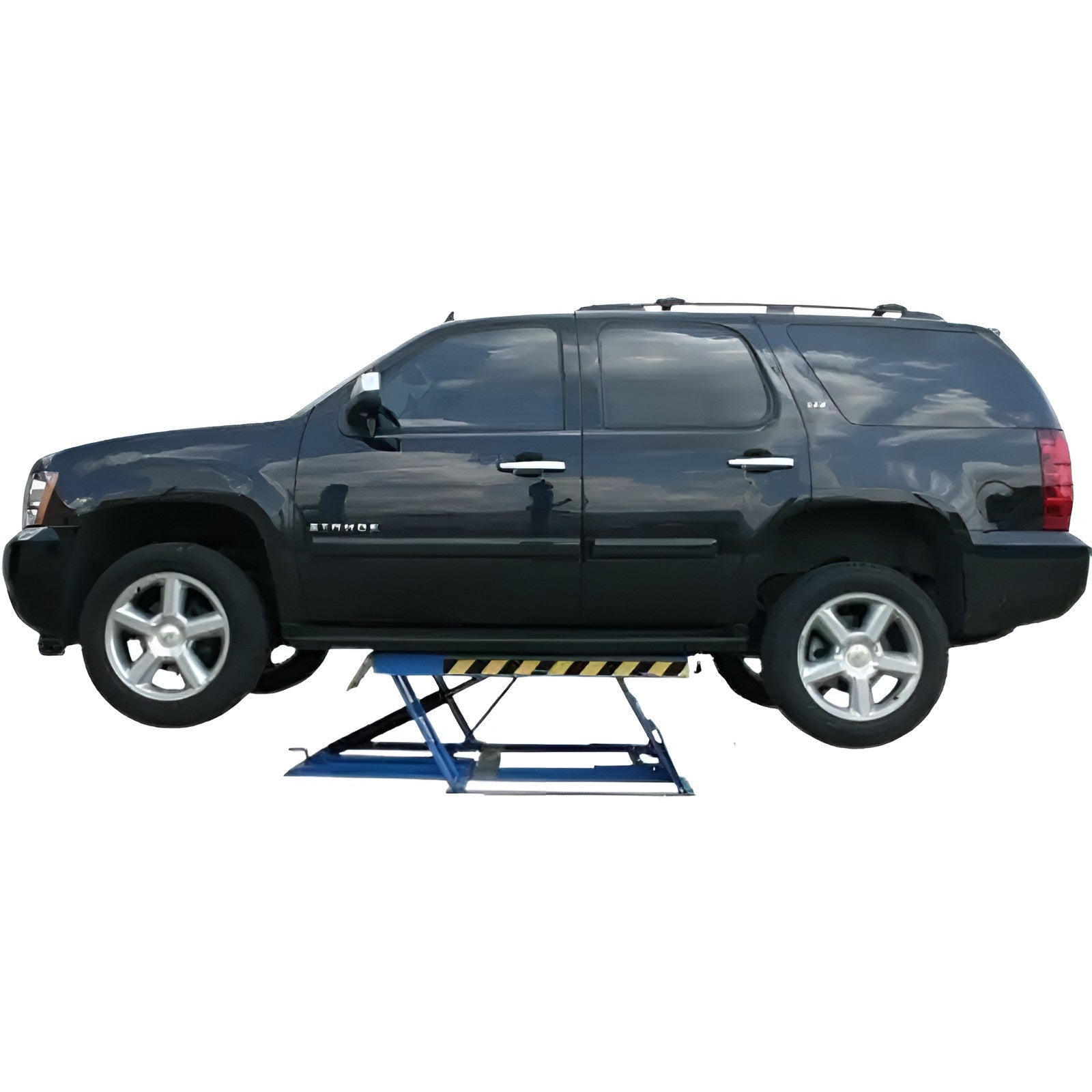

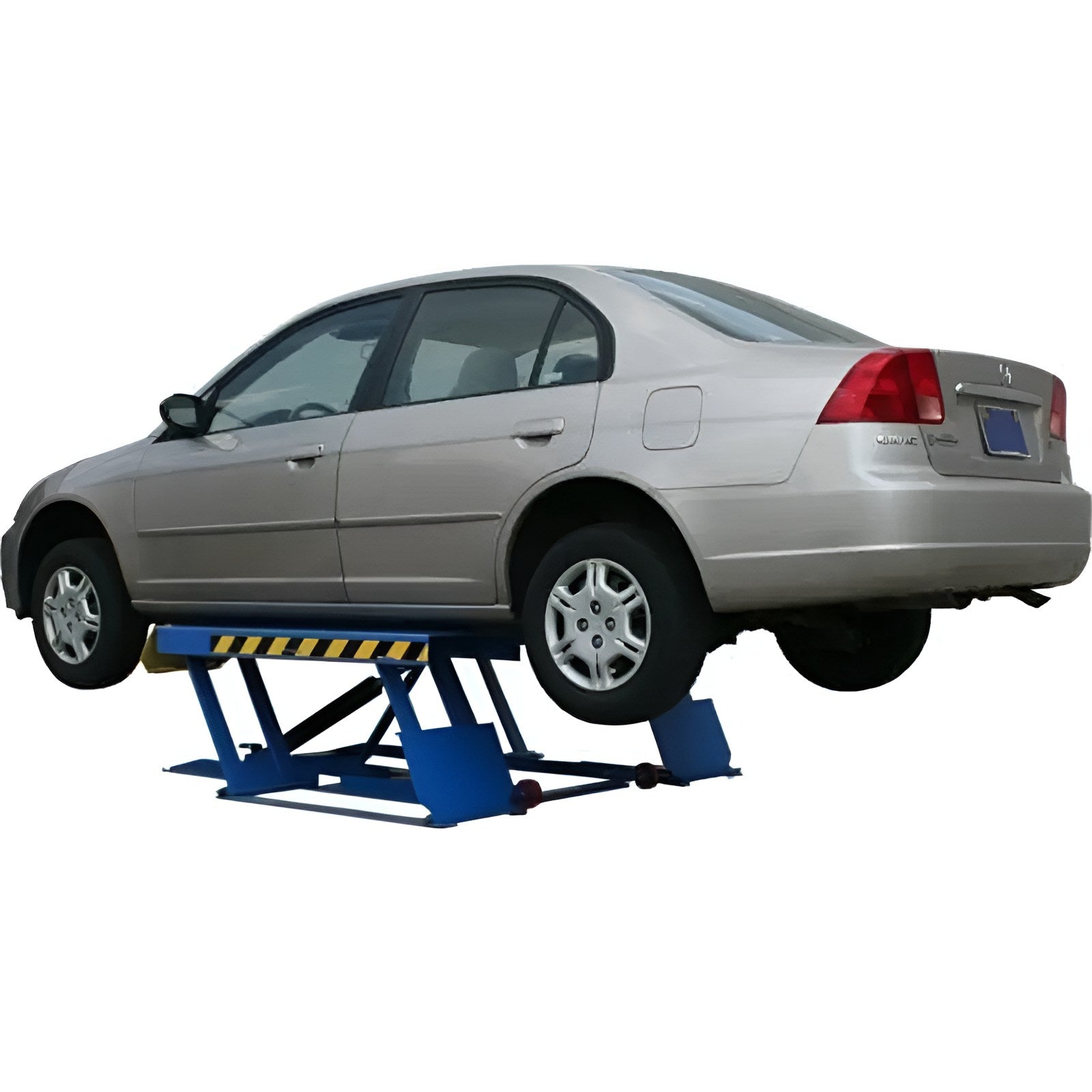

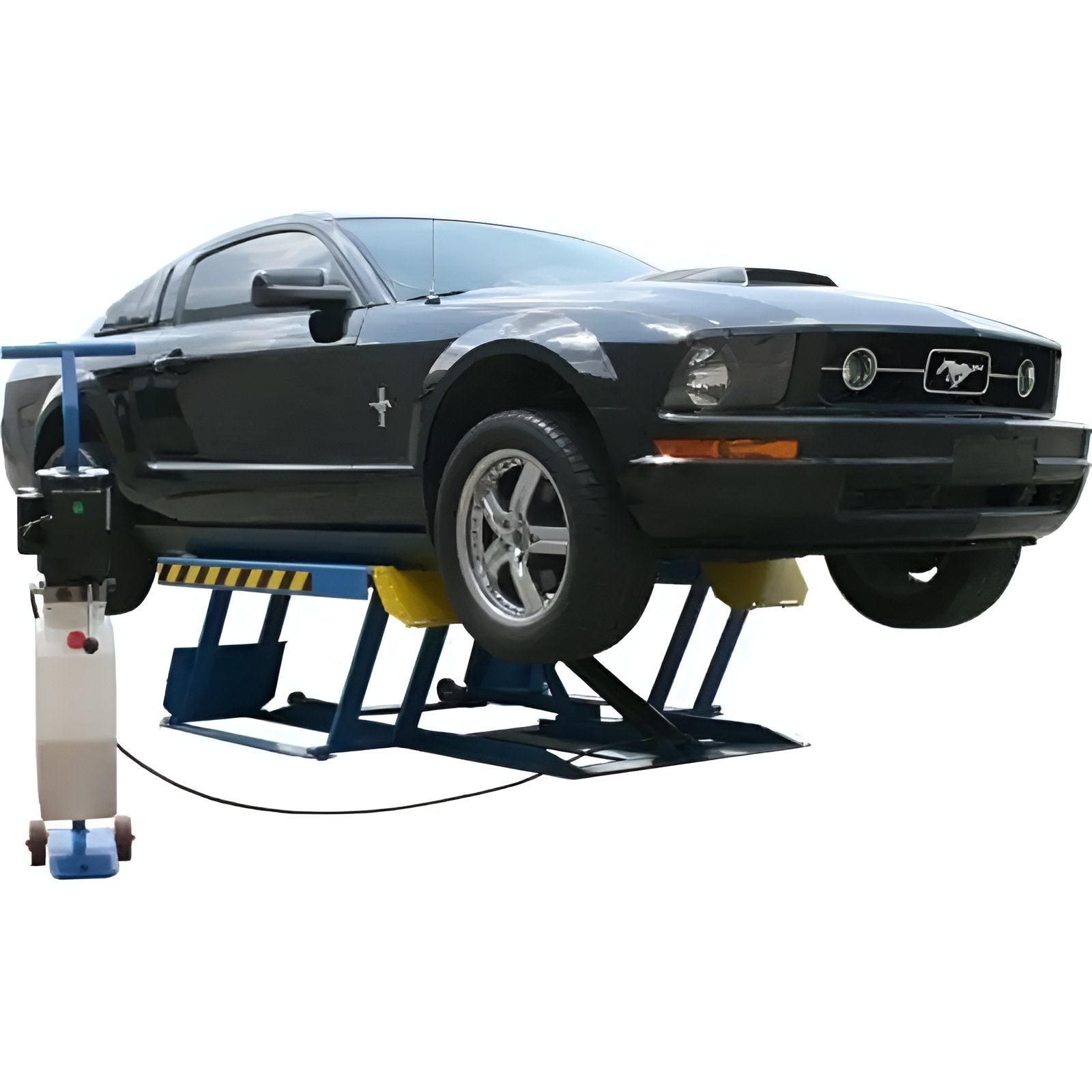

The Atlas LR06 solves these challenges with a portable 6,000 lb low-rise lift that combines simplicity, stability, and versatility. Its 4" low-profile frame allows easy positioning under most vehicles, while multiple lock positions and a self-actuating lock bar provide safe, adjustable working heights. Operators can drive the vehicle over the lift, position the rubber pads at the proper lifting points, and quickly raise the car to the desired height for service.

Built on a heavy steel frame with durable horizontal cylinders, the LR06 ensures a rock-solid platform for wheel, brake, and body work. Its portability allows easy movement within the garage or to external service areas, while the intuitive hydraulic controls make lifting and lowering quick and precise. This lift offers the perfect balance of convenience, safety, and efficiency for any small to medium service facility.

ATEATTD-LR06 Specifications:

• Lifting Capacity: 6,000 lbs

• Maximum Lifting Height: 24" (2')

• Locking Position Heights: 12 1/4", 18 1/2", 22 1/4"

• Overall Pad Length: 53 1/4" (4' 5 1/4")

• Overall Width: 70" (5' 10")

• Overall Length: 79 3/4" (6' 7 3/4")

• Lowered Height: 4"

• Motor / Electrical: 110V

• Oil Requirement: 1.5–2 gallons AW32 or AW46 (not included)

• Shipping Weight: 965 lbs

• Shipping Dimensions: 83" x 72" x 23" - 965 lb.
  • Available to be delivered via LiftGate

LR06 6,000 lbs Low Rise Lift Special Features:

• 6,000 lb commercial-grade lifting capacity

• Portable design for indoor or outdoor use

• 4" low-profile frame accommodates most vehicles

• Multi-position manual safety locks with self-actuating lock bar

• Rubber lifting pads included for vehicle protection

• Simple hydraulic controls for quick, precise lifting and lowering

• Heavy steel frame for stable and secure operation

• Ideal for wheel service, brake work, and light body repairs

• Moves easily on concrete floors using standard wheel kit and power unit stand

• 2-year structural and 1-year hydraulic warranty

LR06 Manual

   Atlas LR06 Manual
