Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

OHX10000X 10,000 lb Extra Tall 2-Post Lift by Atlas

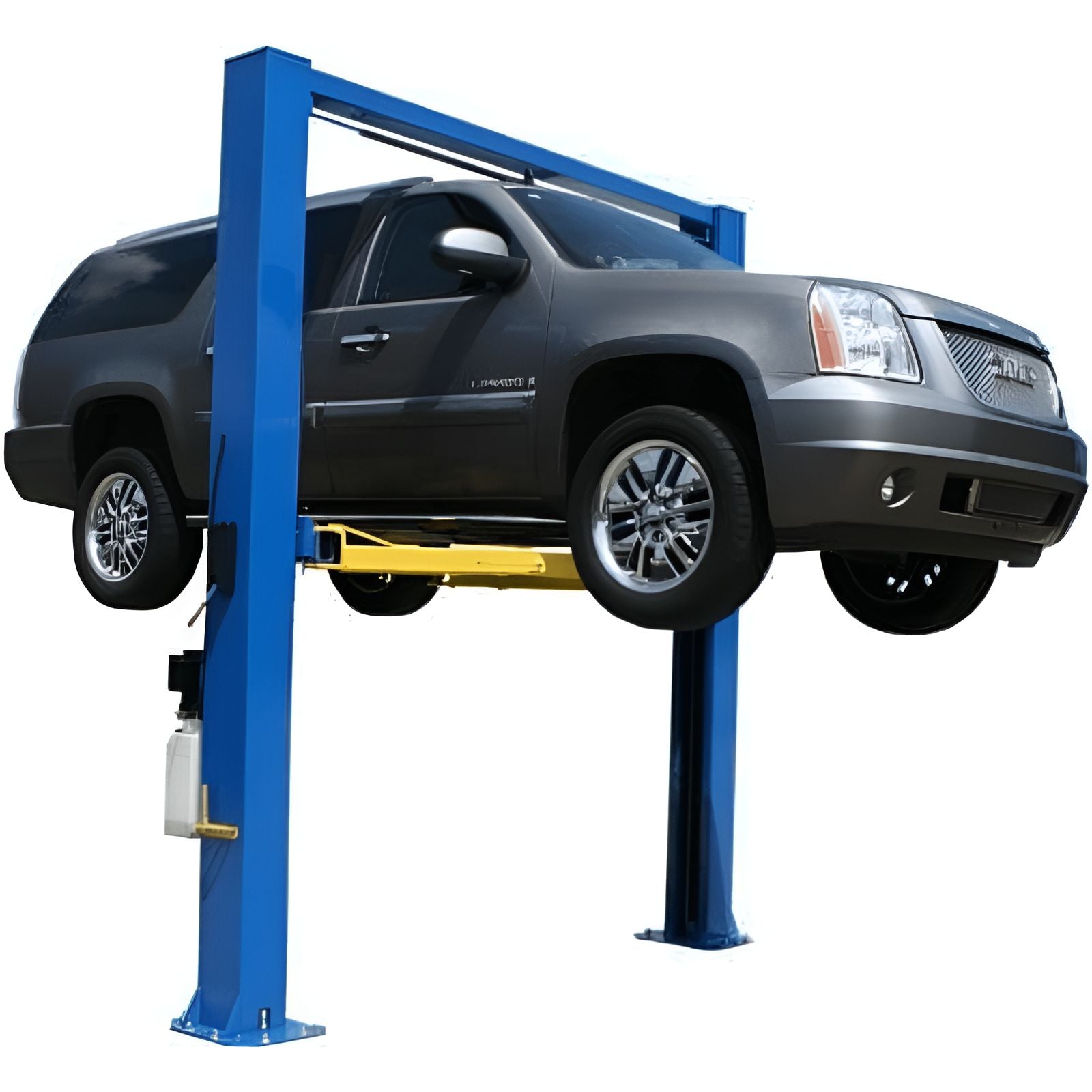

The Atlas OHX10000X Two Post Lift is an excellent choice for both large commercial repair shops and homeowners who want top-tier performance at an affordable price. With a true 10,000 lb capacity, this lift offers impressive versatility, designed to handle a wide range of vehicles, including longer wheel-base models like one-ton diesel dually trucks. The extra lifting height and increased width between the columns provide flexibility when working on vehicles of various sizes and make driving through or lifting taller vehicles, such as vans and ladder trucks, much easier. The drive-through width, arm length, and arm style are specifically engineered to maximize space and accommodate larger vehicles.

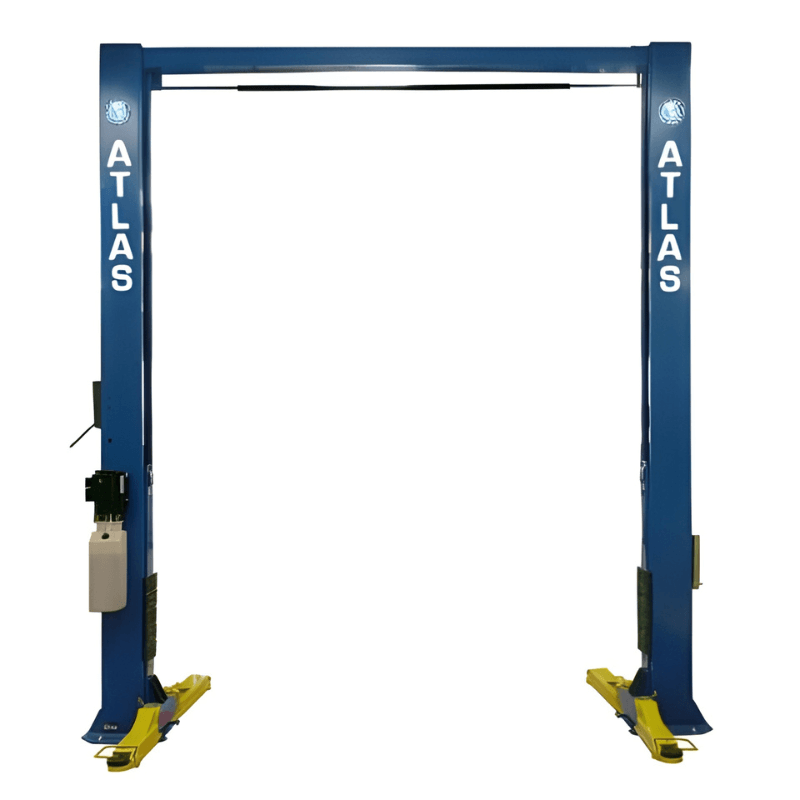

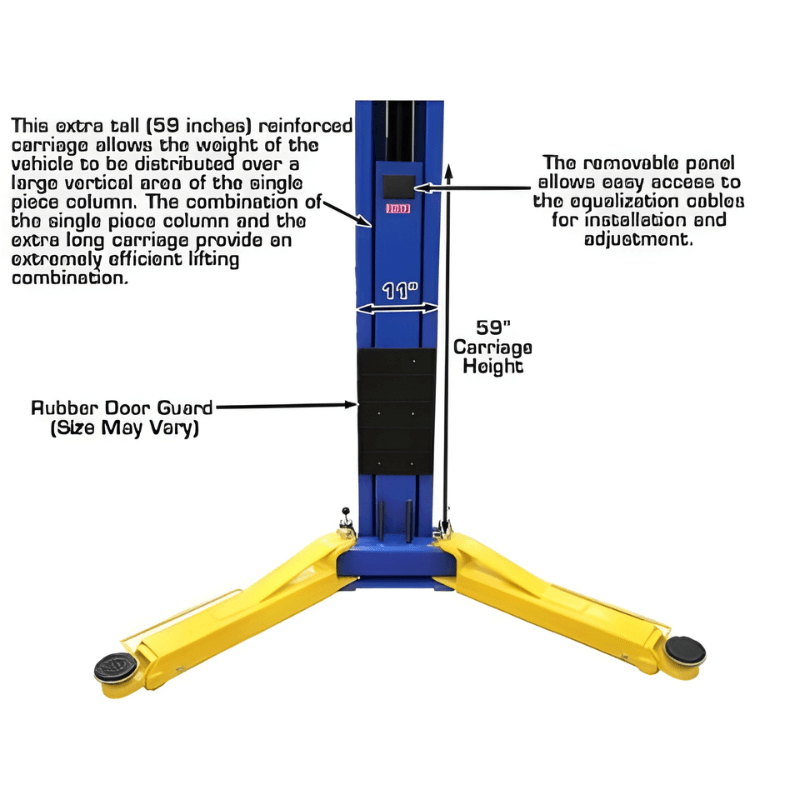

The Atlas OHX10000X features a single-piece 12' 7" formed column and an extended carriage, providing exceptional column and arm strength to securely lift and support up to 10,000 lbs. Its longer cylinders allow vehicles to be lifted 3 inches higher than many other comparable models, making it ideal for taller operators or those needing extra clearance. This commercial-grade lift requires a minimum ceiling height of 13 feet for proper installation, making it a robust and reliable choice for heavy-duty vehicle maintenance.

2-Post Lift OHX10000X Specification

• Capacity: 10,000 LB

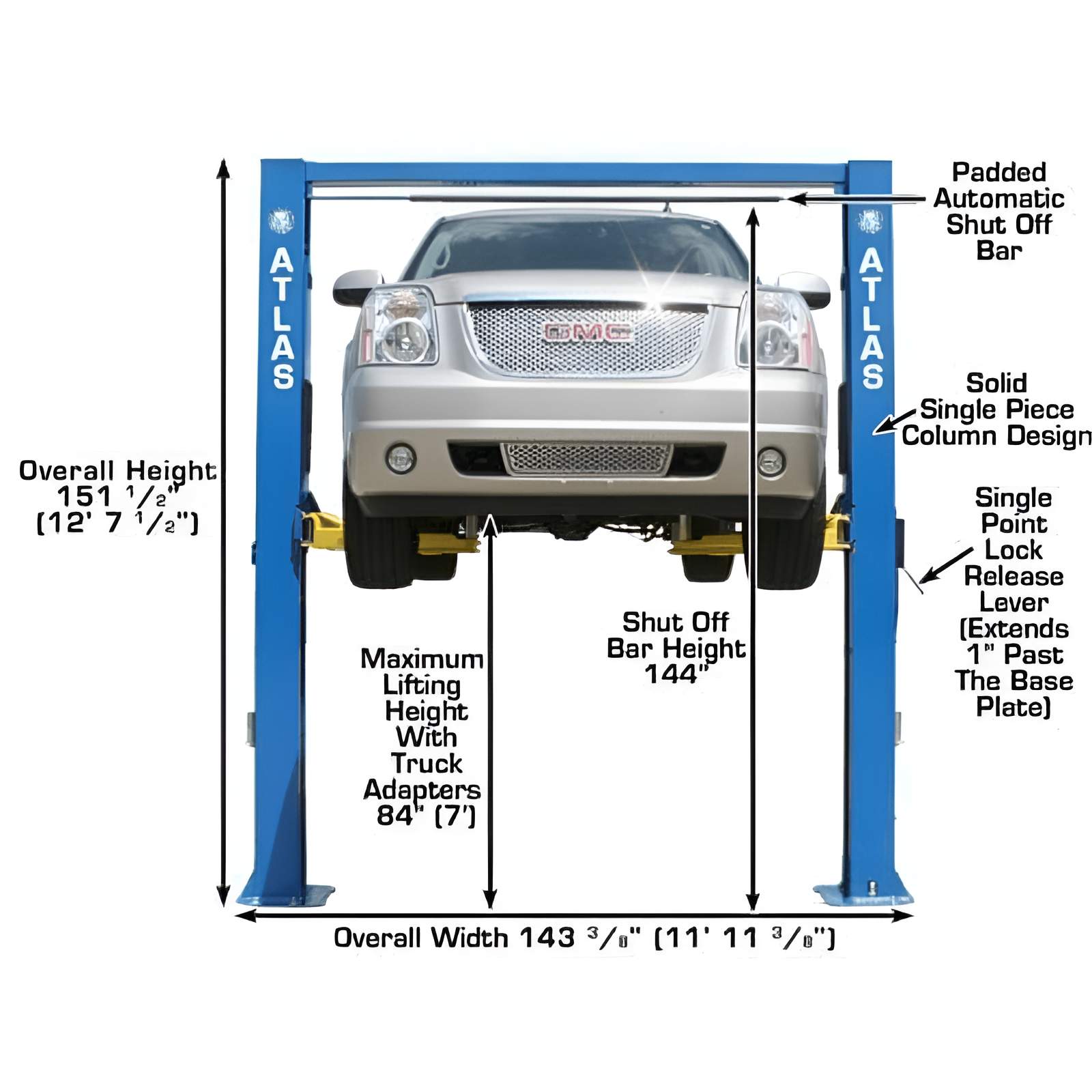

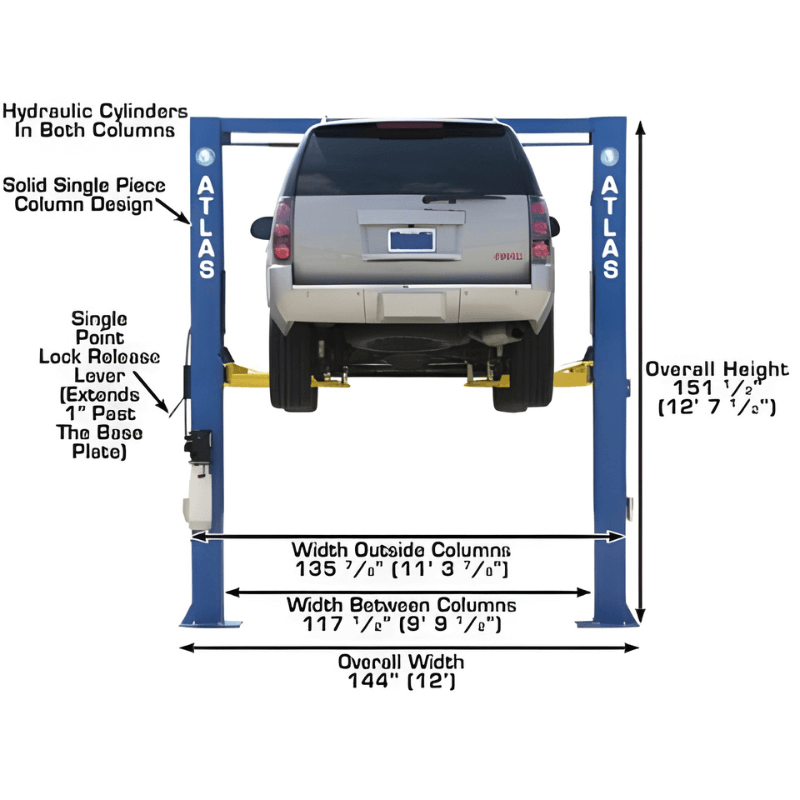

• Overall Height: 152" (12’ 8”)

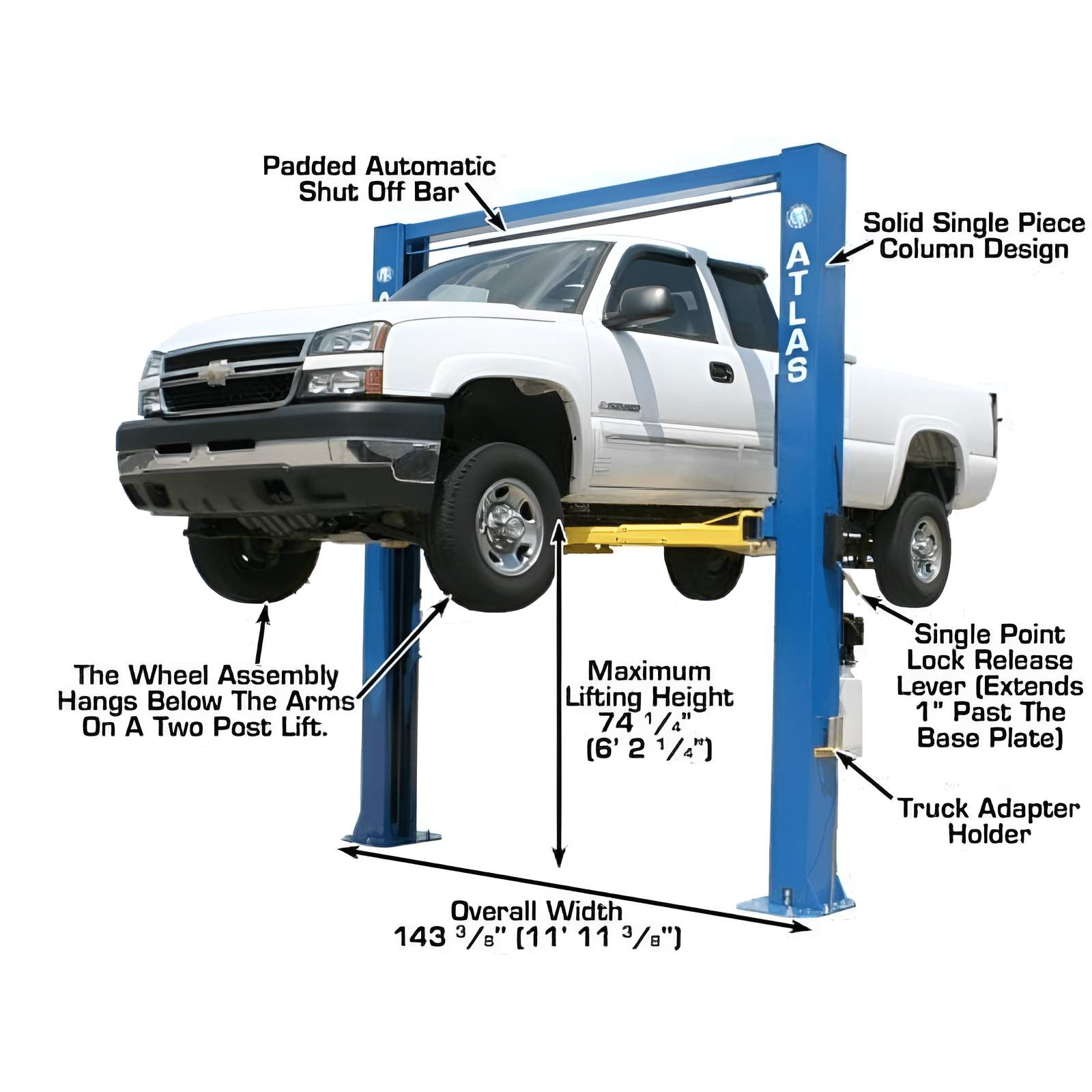

• Overall Floor Width: 144 3/8" (12’ 3/8”)
• Outside Column to Outside Column: 136" (11’ 4”)

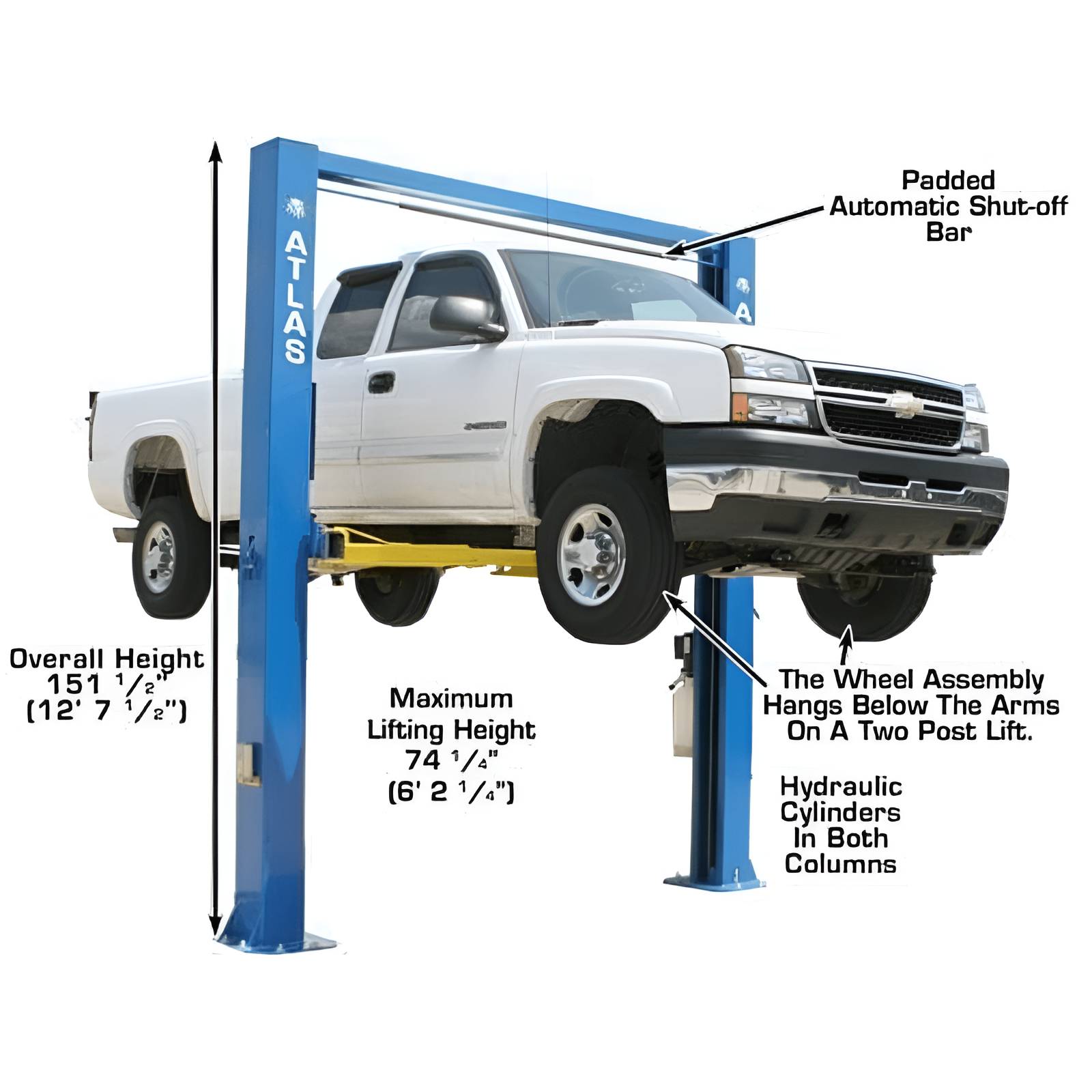

• Maximum Lift Height (Without Adapters): 74 3/4"

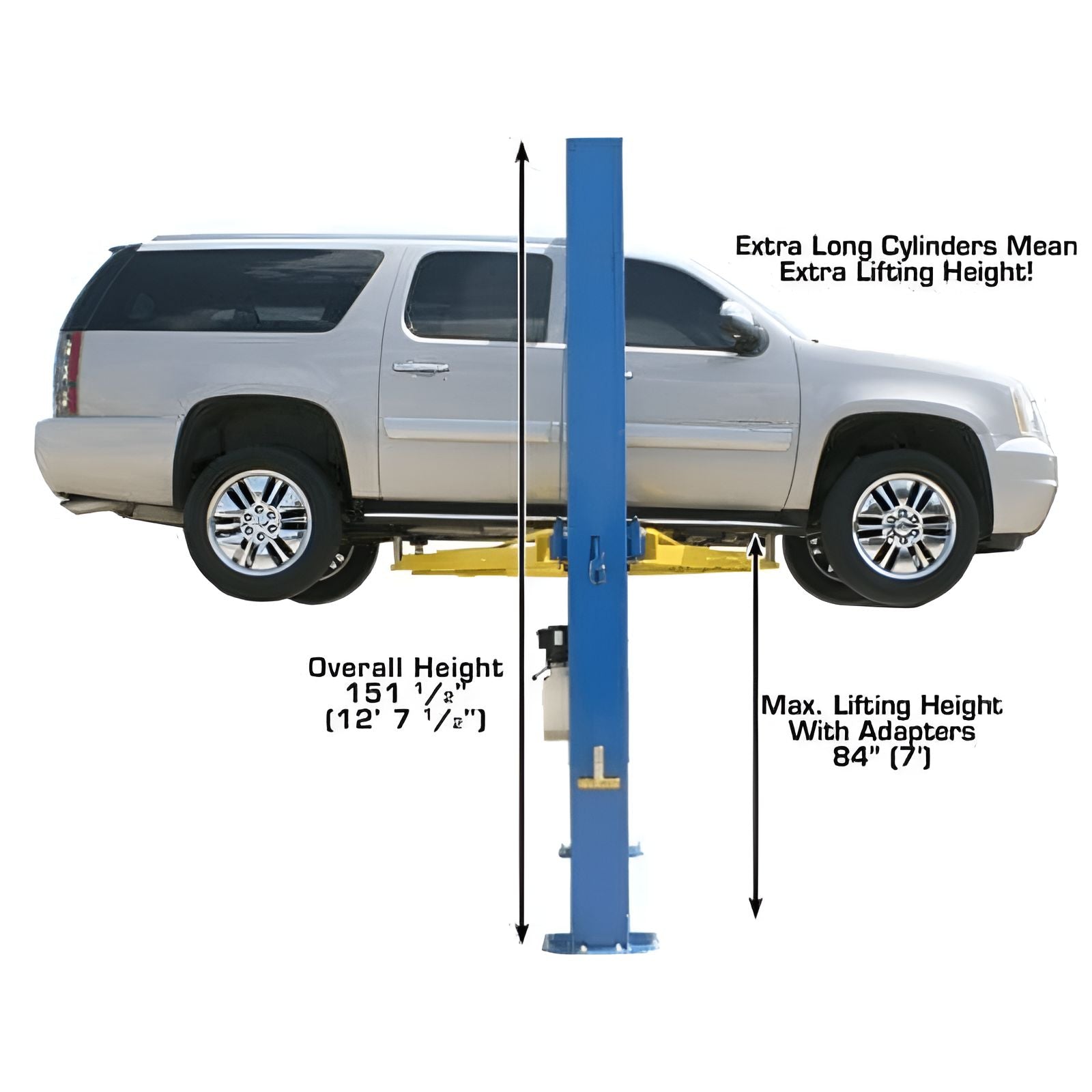

• Maximum Lift Height (With Adapters): 85 3/4"
• Minimum Arm Height: 4 1/2"

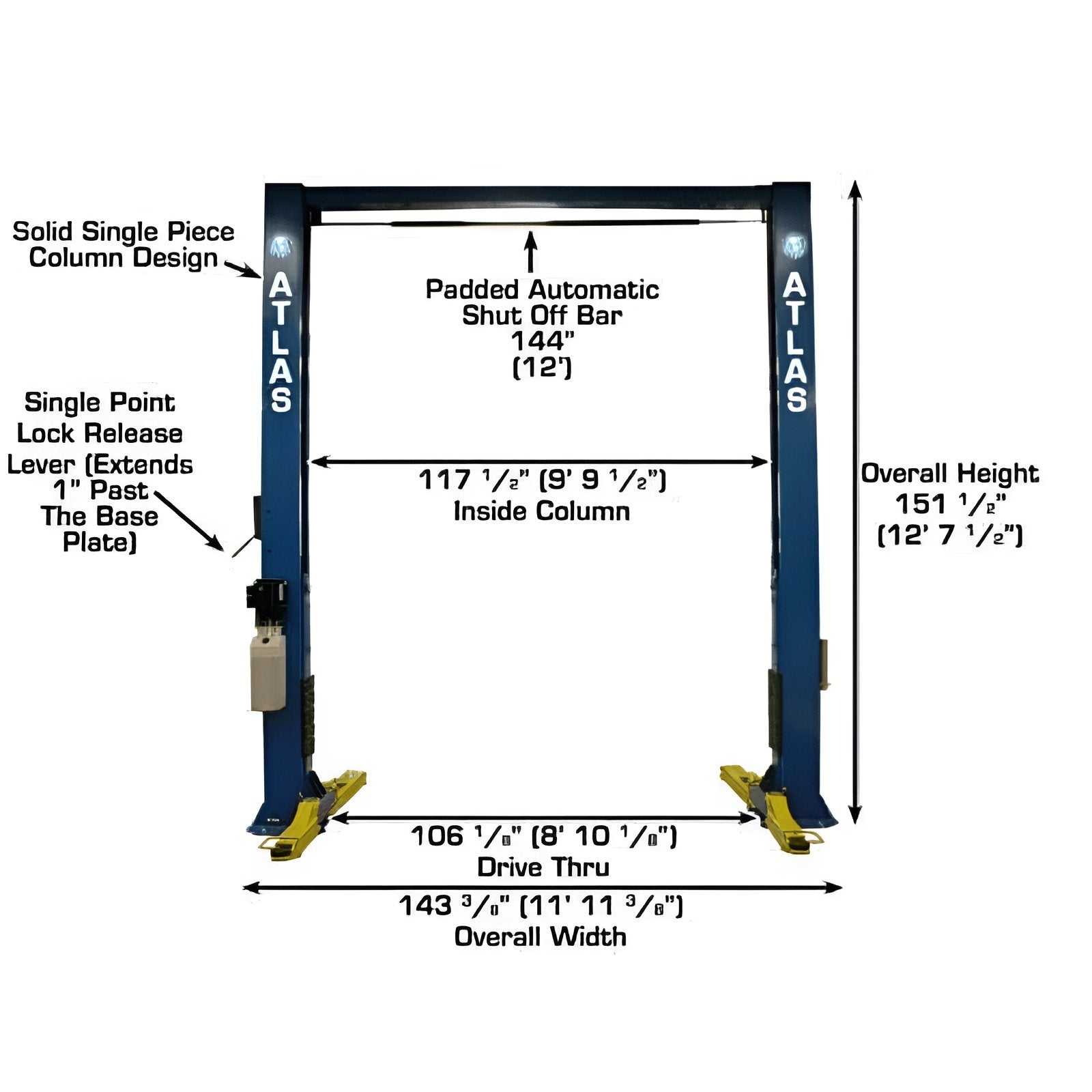

• Inside Column Width: 118 1/4” (9’ 10 1/4”)
• Drive Thru Width: 106 7/8” (8’ 10 7/8”)
• Column Size: 9 1/8" x 11"
• Column Thickness of Steel: 5mm

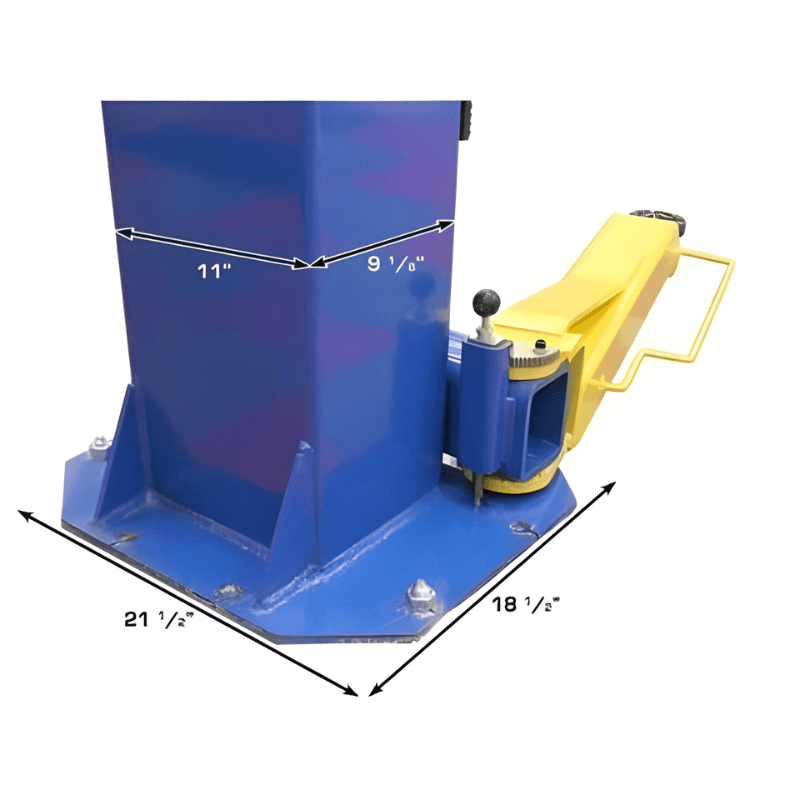

• Base of Lift Dimensions: 18 1/2" x 21 1/2"

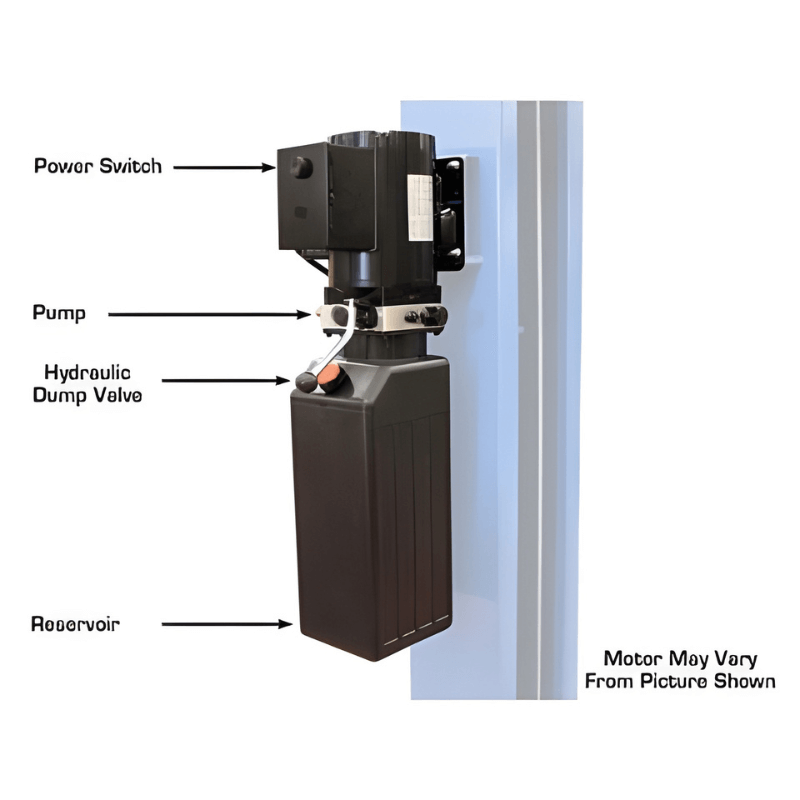

• Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

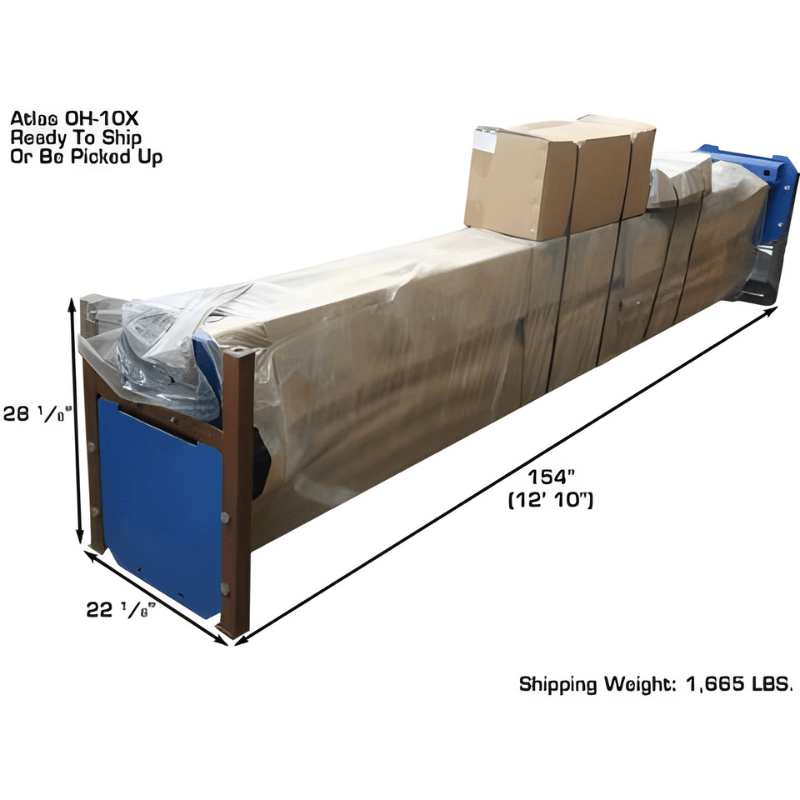

• Shipping Weight: 1,665 LBS

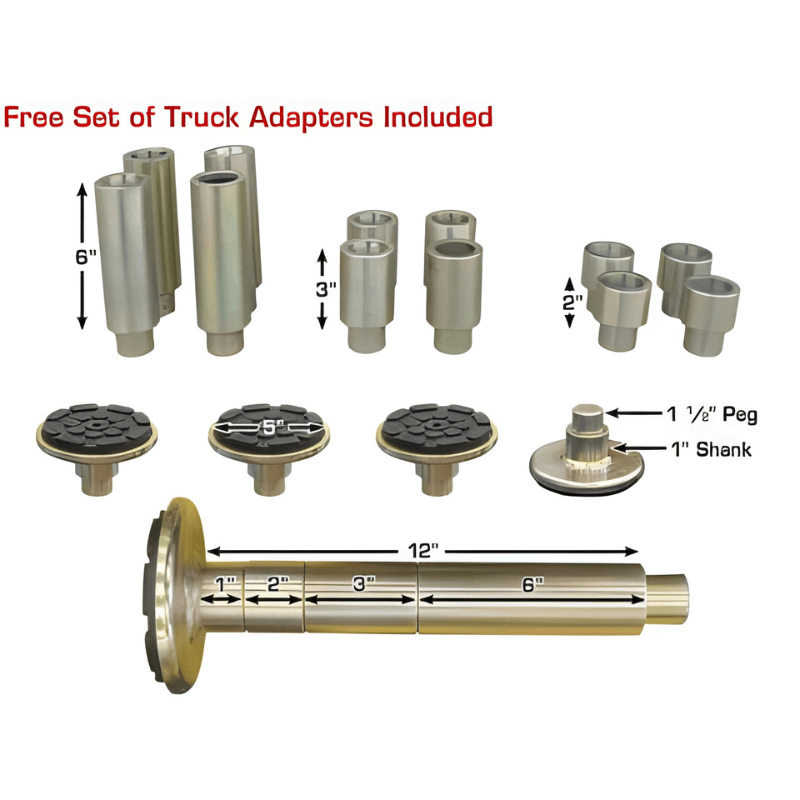

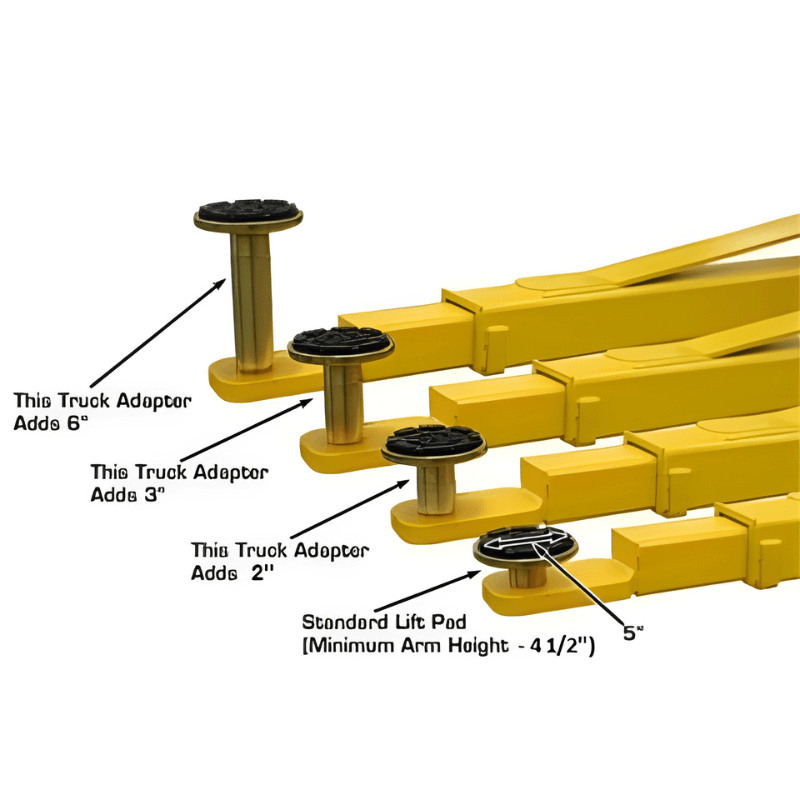

• Adapter Heights: 4 Each: 2”, 3”, 6”
• Arm Hole/Adapter Peg Size: 1.5”

OHX10000X 10,000 lb 2-Post Lift Special Features

• 10,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide
• Overall height: 152″ (12′ 8″)

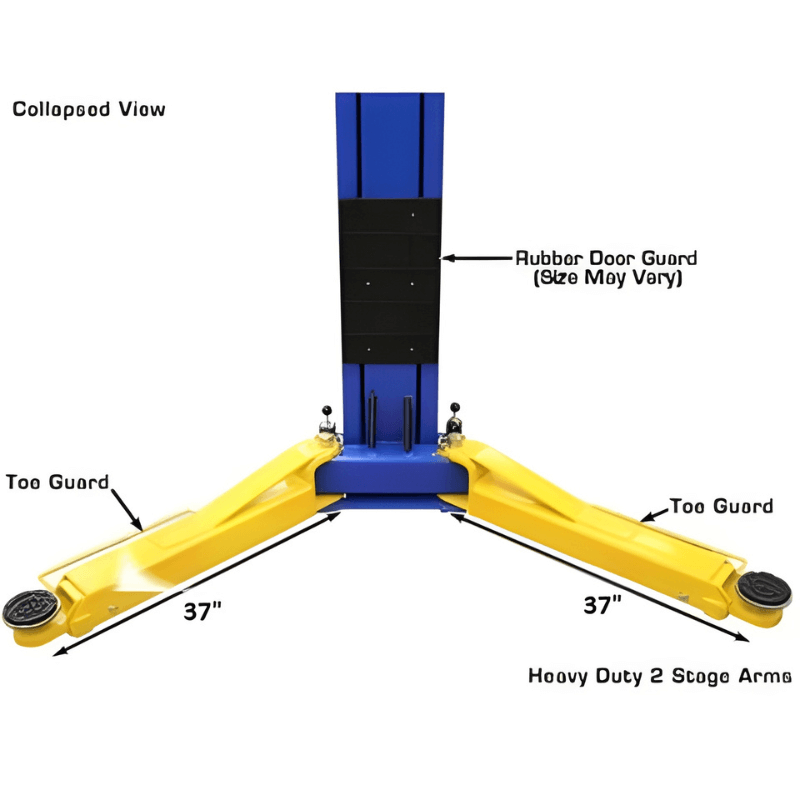

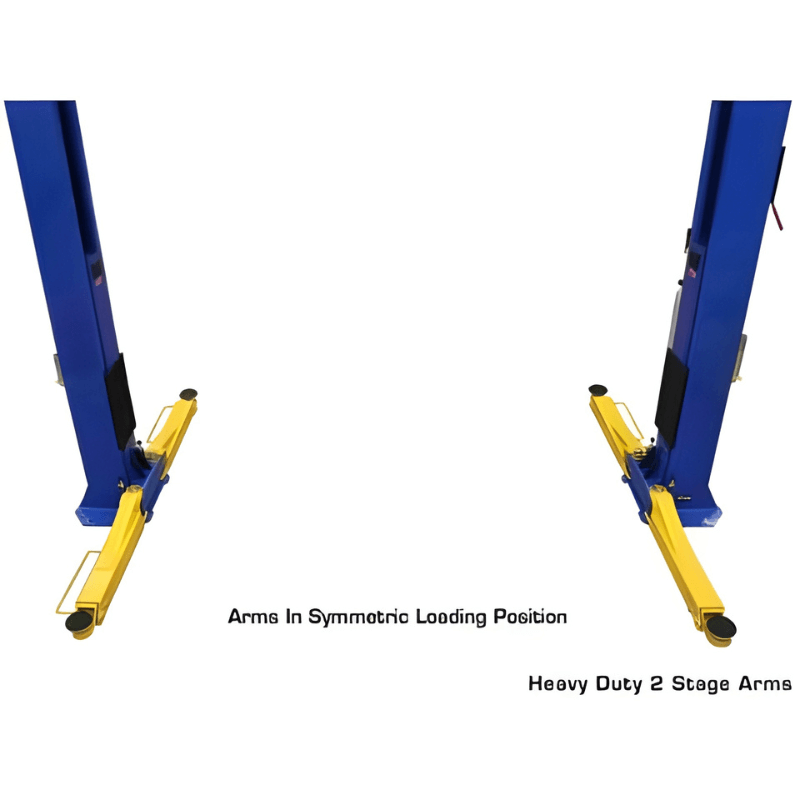

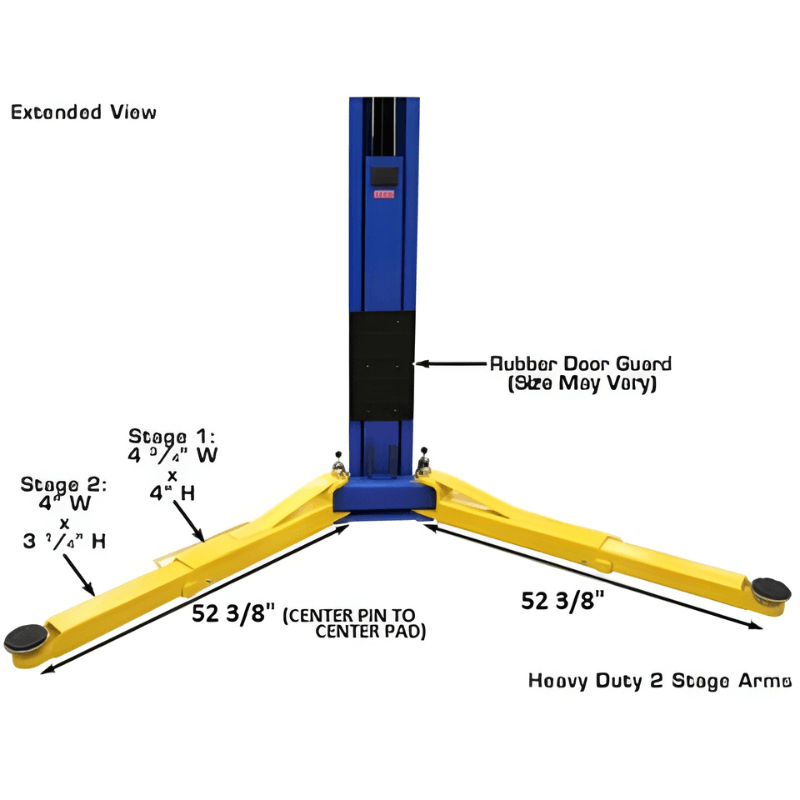

• Symmetric arms

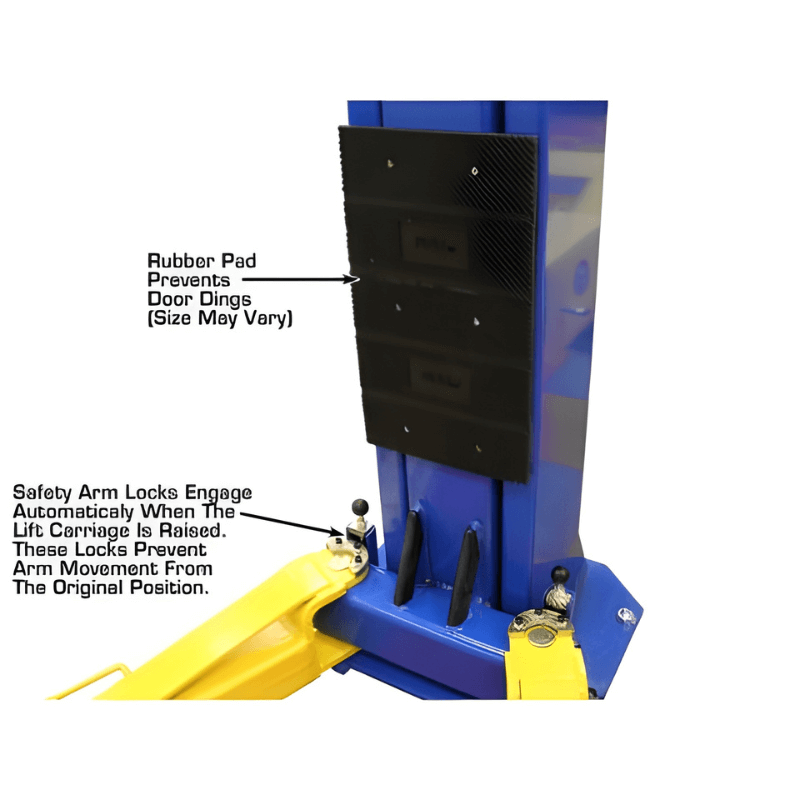

• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Rubber Covers on Carriages

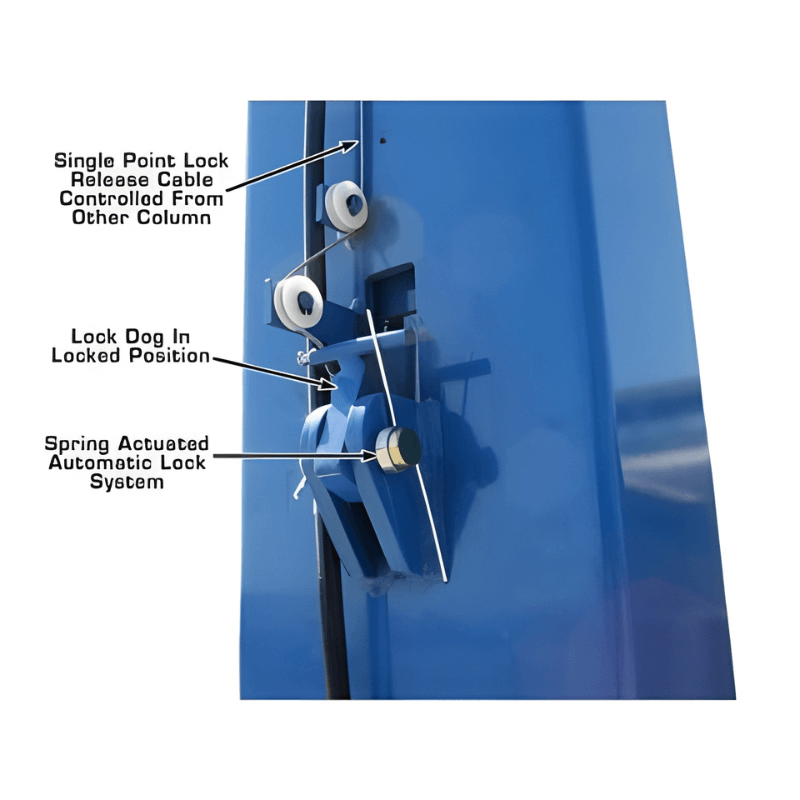

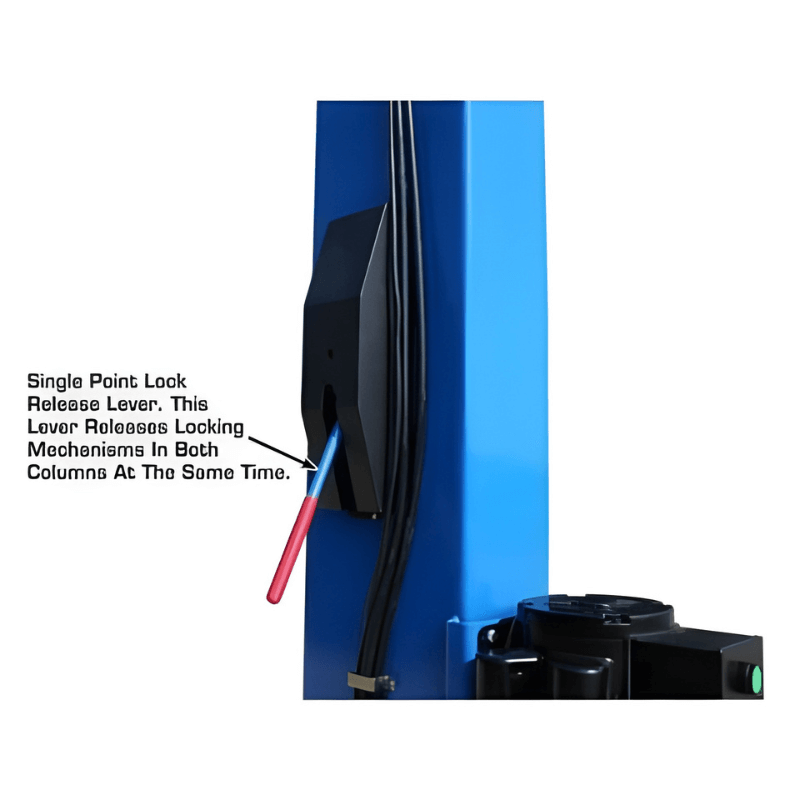

• Single Point Lock Release
• Dual Direct-Drive Cylinders
• Powder Coat Finish

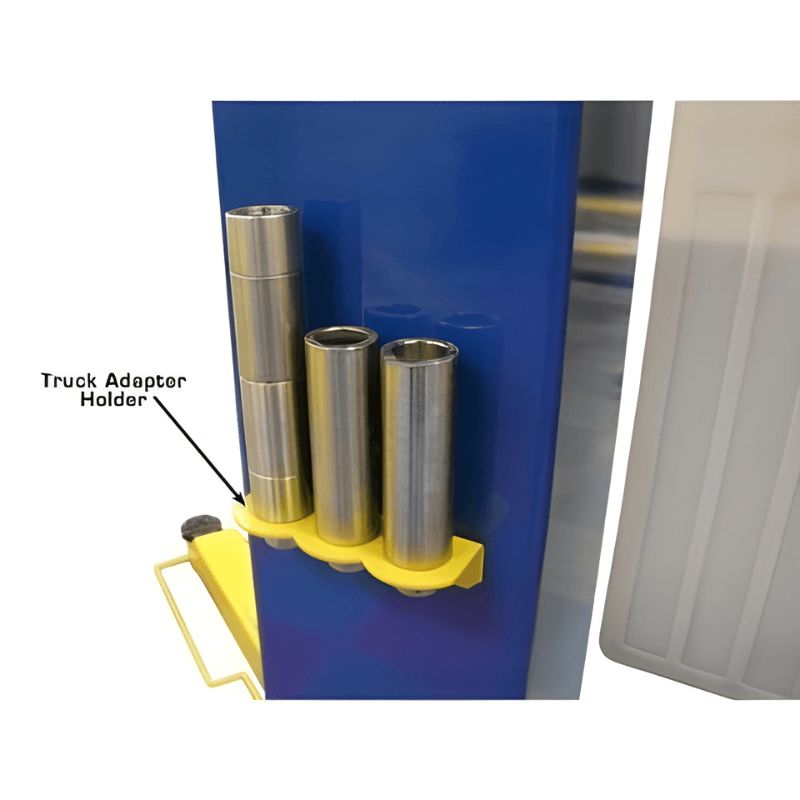

• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,665 lbs
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas OHX10000X Documentation

  Atlas OHX10000X 2-Post Lift Installation Operation Manual
