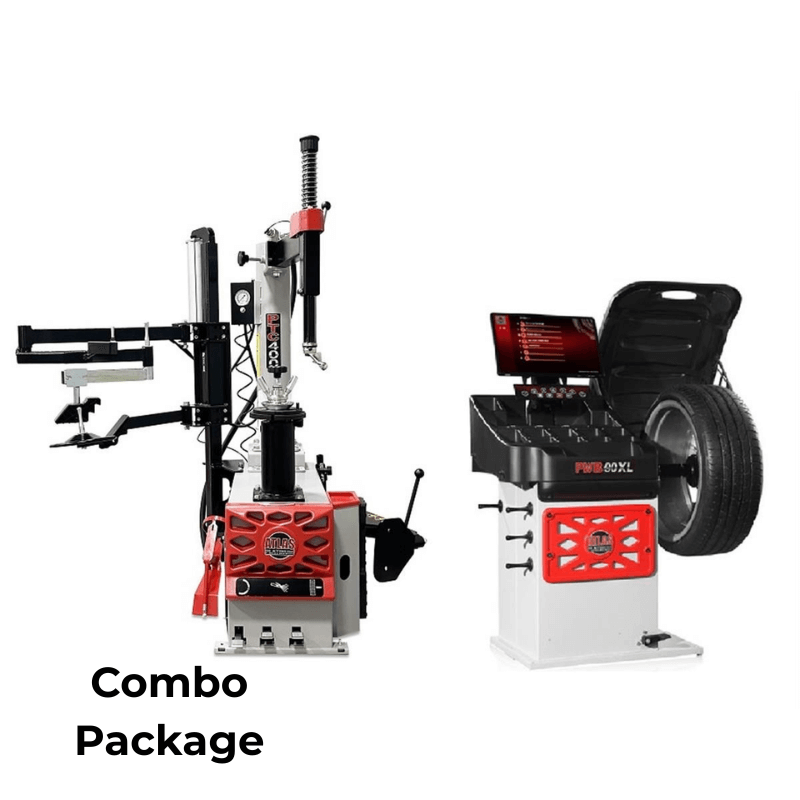

Atlas Platinum PTC400 + PWB90XL Tire Changer and Wheel Balancer Combo

Advanced Center-Post Tire Changer with 3D Video Wheel Balancer

The Atlas Platinum PTC400 + PWB90XL Combo is engineered for professional tire shops that demand precision, speed, and durability from their equipment. This powerful duo combines the robust performance of the PTC400 center-post tire changer with the advanced technology of the PWB90XL 3D video wheel balancer—ensuring your shop can tackle everything from low-profile performance tires to large light truck assemblies with absolute confidence.

The PTC400 Tire Changer features a heavy-duty center-post swing arm design, high-torque 110V turntable, and a left-hand assist arm to simplify even the toughest tire applications. Its air-operated bead breaker and external bead blast system help speed up service, while the metal mount/demount head with plastic inserts protects delicate wheels. Italian-engineered for reliability, this machine also comes with a full filter-regulator-lubricator system, tire tool, lube bucket, and a 2-year parts-only warranty.

The PWB90XL Wheel Balancer takes accuracy to the next level with Super Automatic 3D Data Entry and touchless sonar rim width measurement. A high-resolution video monitor, laser line weight placement guide, and LED wheel well lighting make every balance quick and precise. With 1g accuracy, a 7-second cycle time, and a 165 lb. wheel capacity, this balancer delivers exceptional performance for passenger cars, light trucks, and SUV wheels—without requiring floor anchoring.

 PTC 400 Specifications:

• Clamping Range: 10" – 26"

• Max Tire Diameter: 43"

• Max Wheel Width: 15" (13" for reverse)

• Rotating Speed: 7 RPM

• Bead Breaker Force: 6,924 lbs

• Operating Voltage: 110V

• Air Requirement: 120–145 PSI

• Shipping Weight: 620 lbs

Atlas PTC 400 Special Features

• Italian-engineered swing-arm center post design

• Left-hand assist arm for tough tire applications

• High-torque electric turntable (110V)

• Metal mount/demount head with replaceable plastic inserts

• Air-operated bead breaker (external air supply required)

• External flexible bead blast system

• Bead breaker with plastic protective cover

• Filter/regulator/lubricator system included

• Tire tool, lube bucket, and brush included

• Anodized aluminum bead breaker cylinder

• Durable construction with quality components

• Replacement parts and wear items readily available

• 2-year parts-only warranty

PWB90XL Wheel Balancer Specifications

• Max Tire Diameter: 43"

• Rim Sizes (Cars/Light Trucks): 10"–30"

• Rim Width: 1.5"–20"

• Shaft Size: 40mm

• Max Wheel Weight: 165 lbs

• Balancing Speed: 130 RPM

• Data Entry: Super Automatic 3D

• Accuracy: 1 gram

• Cycle Time: 7 seconds

• Weight Position Resolution: 1.4°

• Power Supply: 110V

• Shipping Weight: 290 lbs

PWB90XL Wheel Balancer Key Features

• Platinum 3D video motorized spin balancer

• Super Automatic 3D Data Entry with touchless sonar

• High-resolution video monitor display

• Laser line to guide weight placement

• LED light illuminates wheel interior

• Static and dynamic balancing modes

• Optimatch, FES (Split), OPF (Opposite Position) functions

• NWN (no-wheel-needed) system

• Self-diagnosing and self-calibrating

• Includes cones, quick-release nut, pliers, and calipers

• No anchor-down installation required

• 2-year parts-only warranty

Atlas Platinum PTC400 + PWB90XL Manual

Not Available

Atlas PTC400 + PWB90X Optional Item Sold Separately

• PTC400 Center Post Tire Changer with Assist Arm
• PWB90XL 3D Video Wheel Balancer W/ Laser Line
