Atlas PRO14KCFA-EXT-COMBO 14000lb Includes Alignment Kit & (2) RJ8

PRO14KCFA-EXT-COMBO Alignment Kit

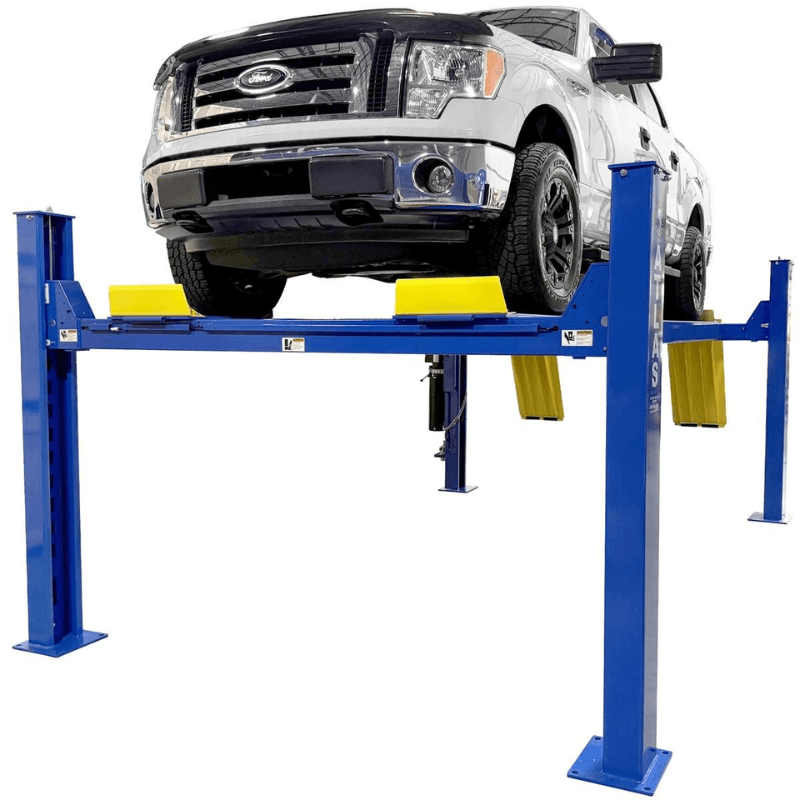

Equip your shop with a complete lifting and alignment solution designed for heavy-duty commercial service. The Atlas PRO14KCFA-EXT-COMBO combines the Atlas PRO14KCF-EXT Extended 4-Post Lift, a complete alignment kit, and two Atlas RJ8A 8,000 lb. rolling bridge jacks to provide everything needed for wheel alignments, tire service, suspension work, brake repairs, and general vehicle maintenance. With a 14,000 lb. lifting capacity, extra-long runways, and an extra-tall, extra-wide design, this package is built to handle passenger vehicles, long-wheelbase trucks, vans, SUVs, and commercial vehicles.

Designed for demanding commercial environments, the PRO14KCF-EXT features a high-strength cable lifting system with an under-runway hydraulic cylinder for smooth, dependable operation. The lift includes an air-operated single-point lock release, lock ladder design, and double-lock safety system for reliable performance throughout the workday. Integrated bridge jack tracks allow the included dual RJ8A rolling bridge jacks to move easily between the runways, making wheel-free service fast and efficient.

The included alignment package features heavy-duty turntables, slip plates, spacers, and alignment ramps, allowing technicians to perform accurate wheel alignments immediately after installation. Combined with the two air/hydraulic rolling bridge jacks and truck adapter sets.

Combo Specification

Atlas PRO14KCF-EXT Lift

• Brand: Atlas
• Model: PRO14KCFA-EXT-COMBO
• Product Type: Extended 4-Post Alignment Lift & Dual Rolling Jack Combo
• Lift Capacity: 14,000 lbs.
• Lift Style: Heavy-Duty Commercial Grade
• Configuration: Extra Tall, Extra Wide, 24" Extended Length

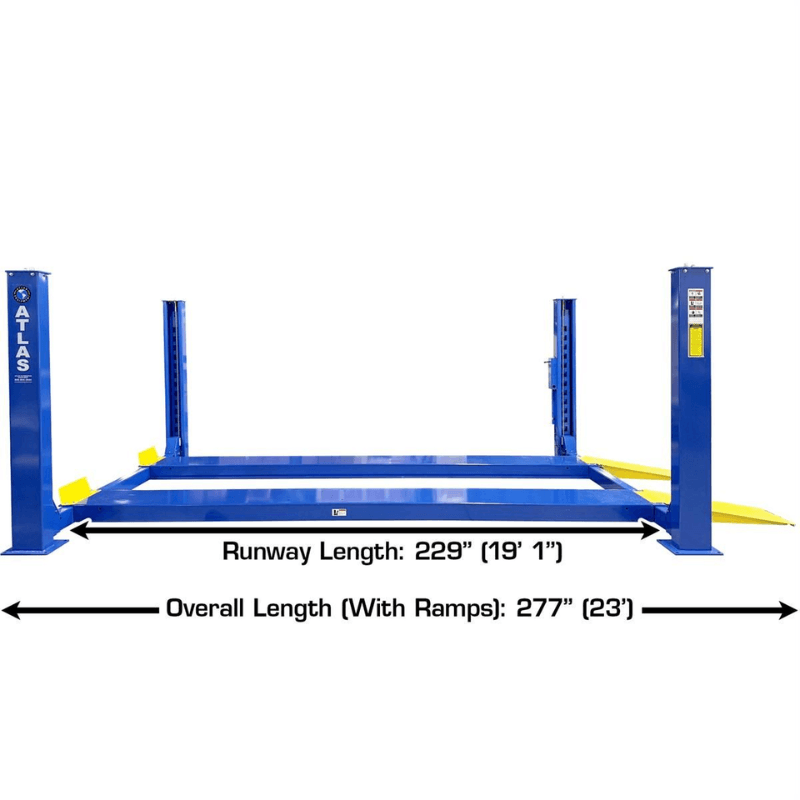

• Overall Length (With Ramps): 277"
• Runway Length: 229"

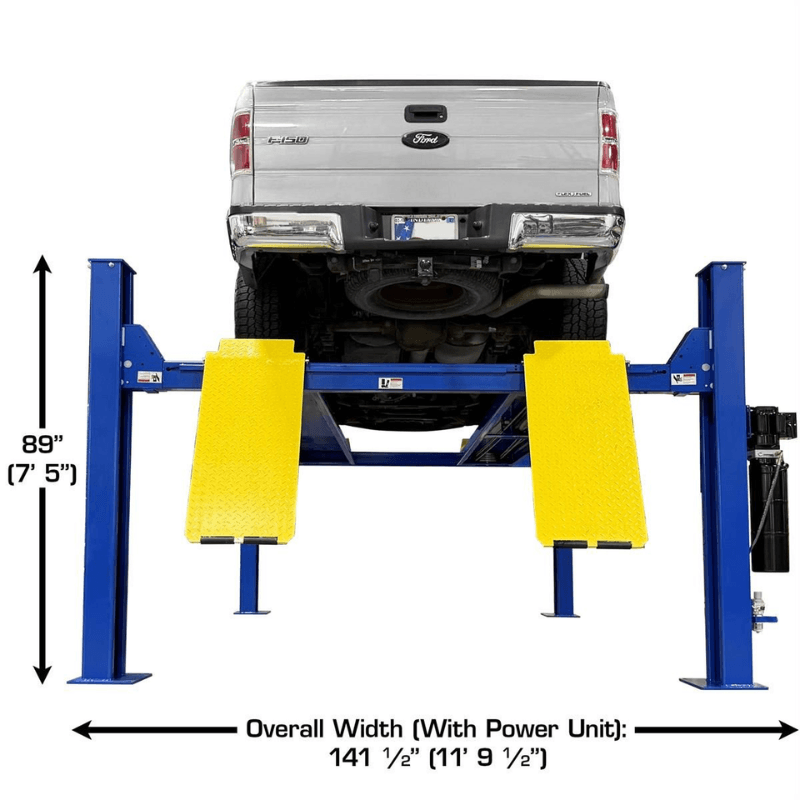

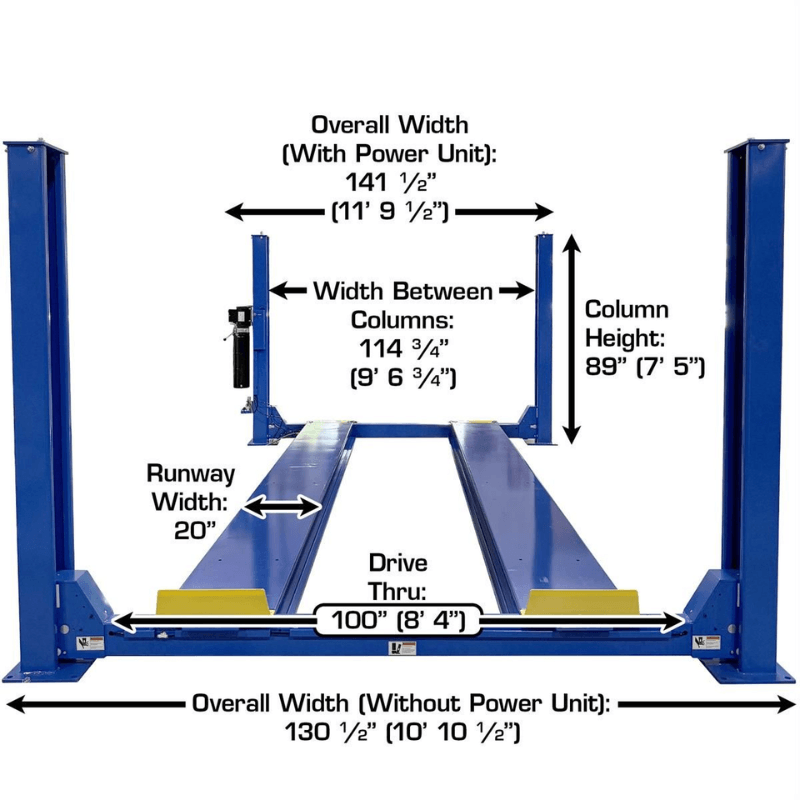

• Overall Width (With Motor): 141-1/2"
• Width Between Columns: 114-3/4"
• Drive-Thru Clearance: 100"
• Column Height: 89"

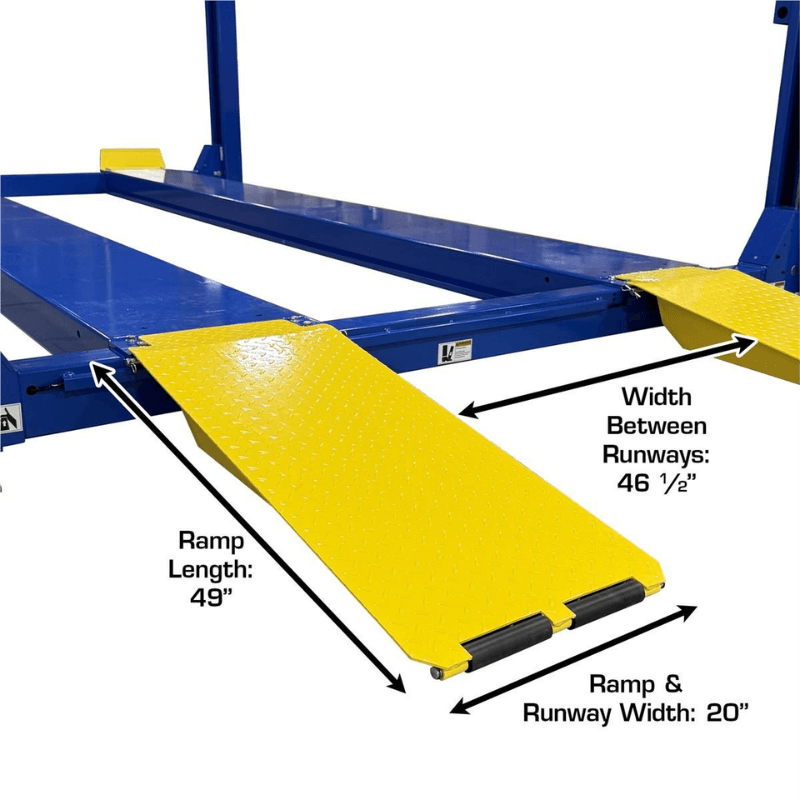

• Runway Width: 20"
• Width Between Runways: 42-1/2" – 46-1/2"
• Outside Runway Width: 62-1/2" – 66-1/2"
• Length Between Columns: 213-3/4"

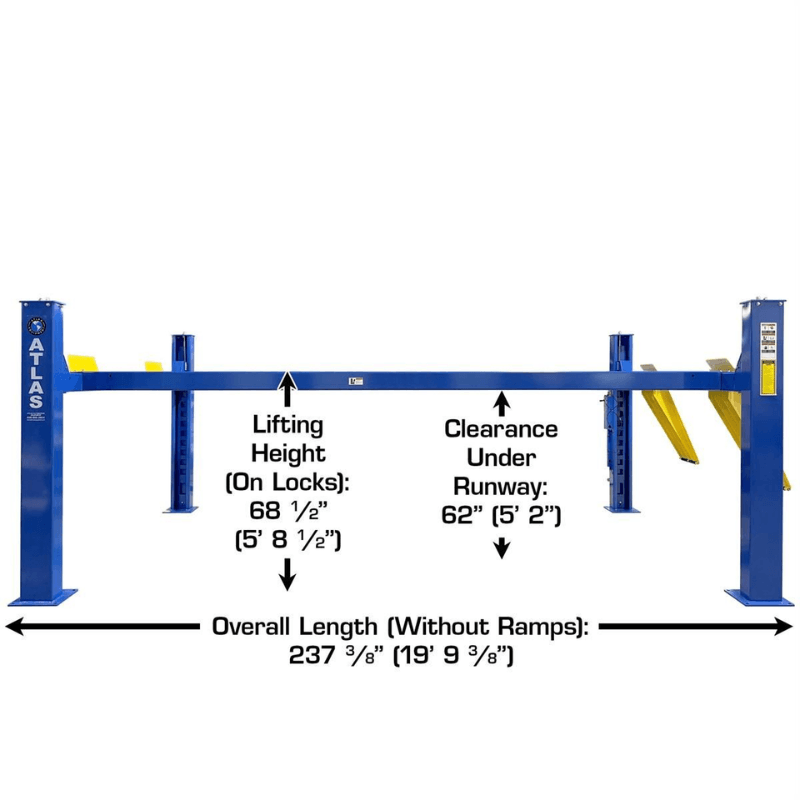

• Maximum Lifting Height: 68-1/2"
• Clearance Under Runways: 61-1/2"

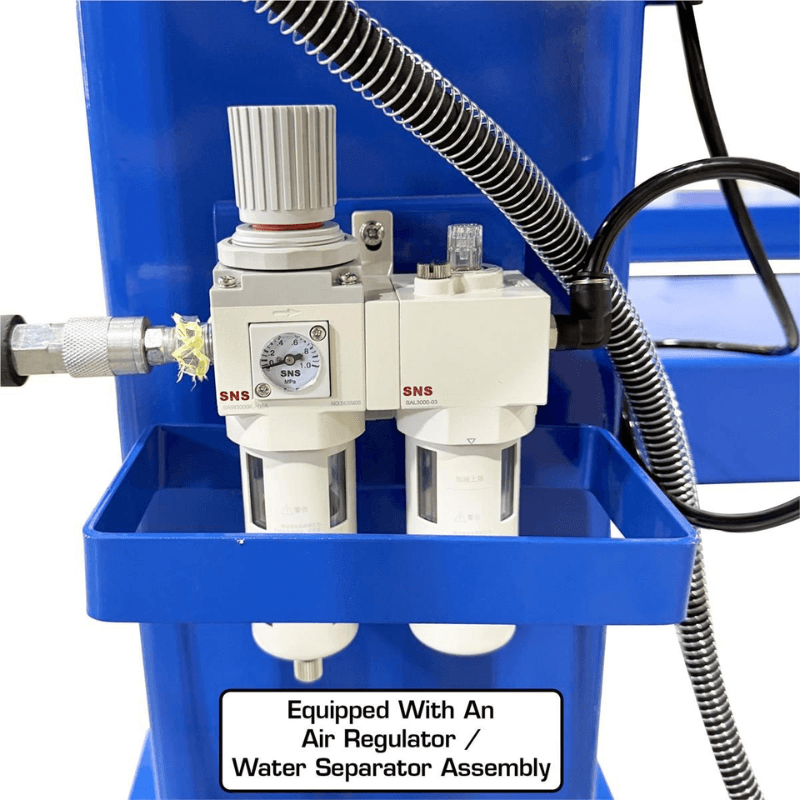

• Air Requirement: 85–115 PSI (External Air Supply Required)
• Electrical Requirement: 220V, Single Phase, 30 Amp Breaker Recommended
• Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)

Atlas RJ8A Rolling Bridge Jacks (2 Included)

• Quantity: Two (2)
• Capacity (Each): 8,000 lbs.
• Operation: Air/Hydraulic
• Minimum Width: 40"
• Maximum Width: 66-1/2"
• Maximum Lifting Height (With Adapters): 30"
• Adapter Heights: Two 2.5" Adapters & Two 5" Adapters Per Jack

Additional Information

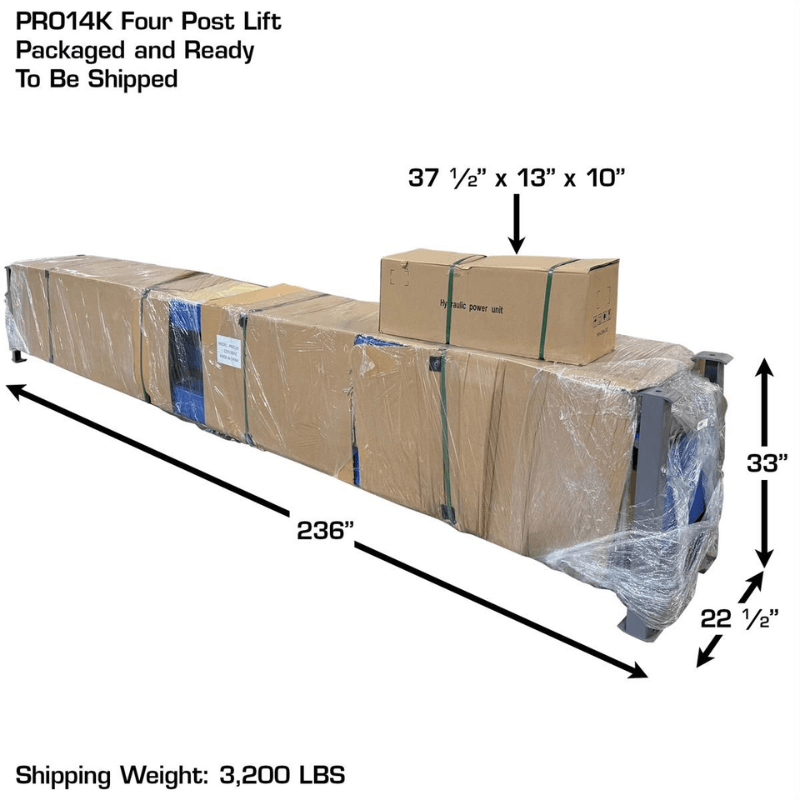

• Combined Shipping Weight: 4,600 lbs.
• Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)
• Availability: Will Call Only

Combo Special Features

Atlas PRO14KCF-EXT Lift

• 14,000 lb. commercial lifting capacity
• Extra-tall, extra-wide, and 24" extended design
• Heavy-duty commercial-grade construction

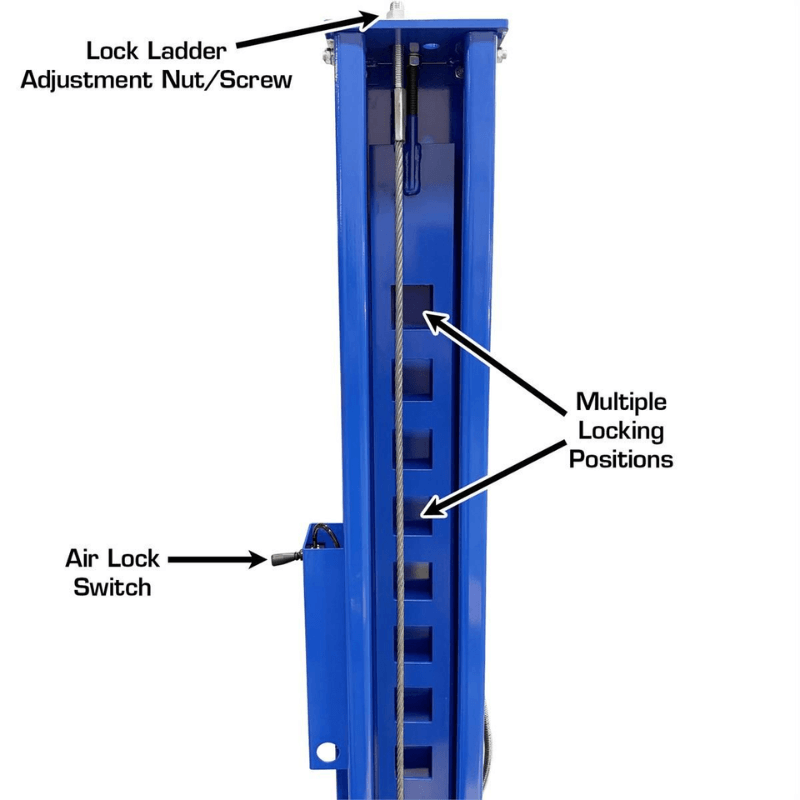

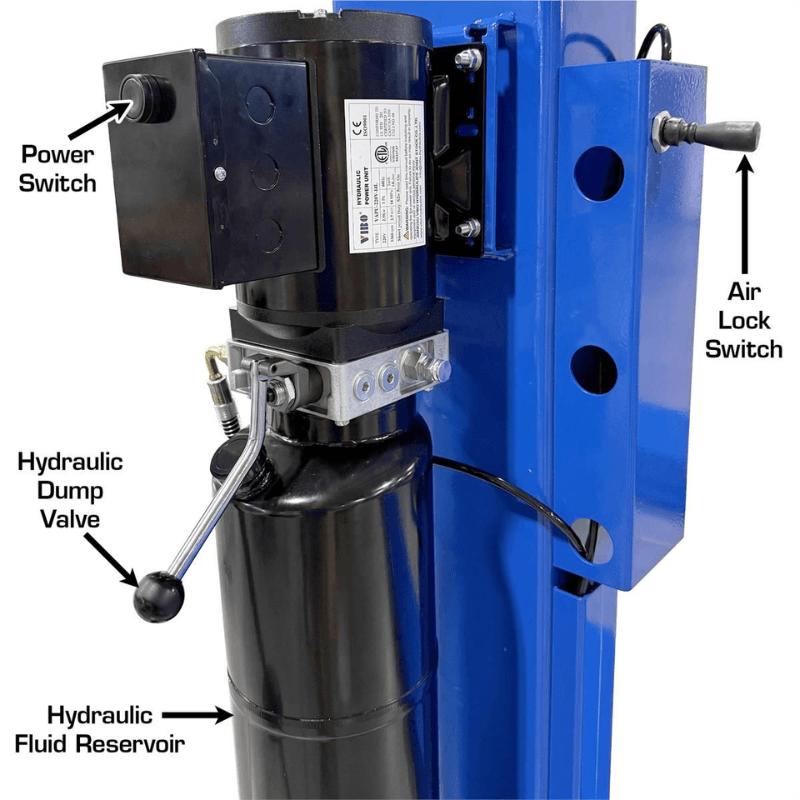

• Air-operated single-point lock release
• Double-lock safety system
• Lock ladder safety design

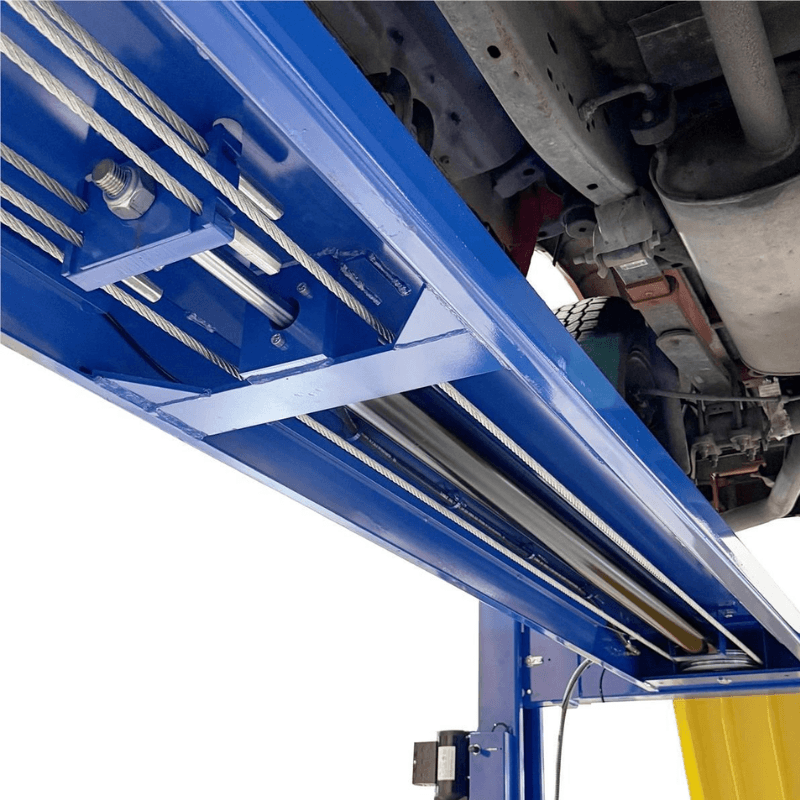

• High-strength cable lifting system
• Under-runway hydraulic cylinder
• Rolling bridge jack tracks built into the runways
• Steel approach ramps included
• One pair of rubber wheel chocks included
• Mounting hardware included

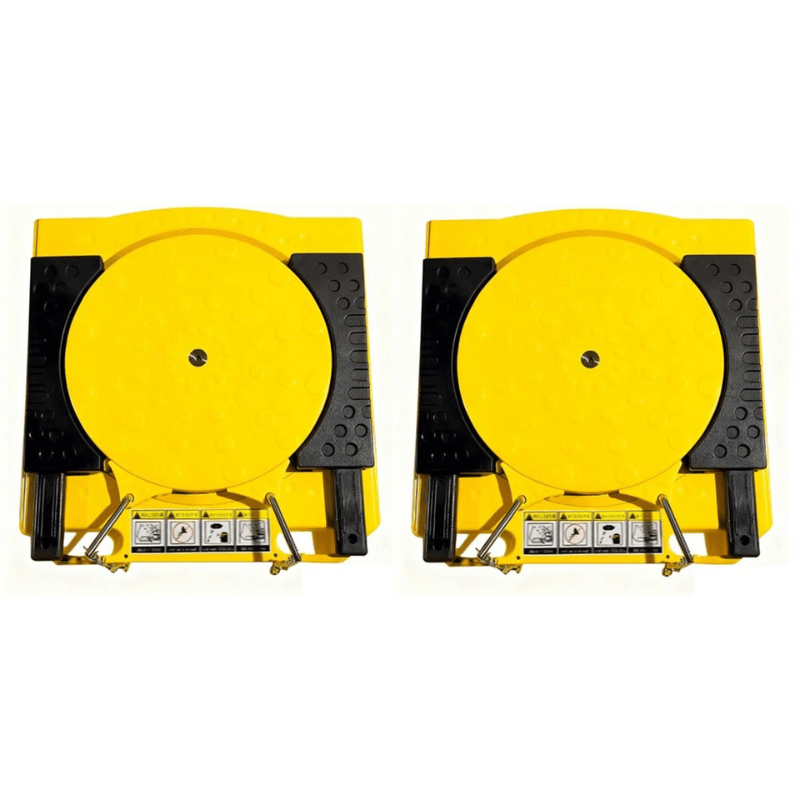

Alignment Package

• Heavy-duty alignment turntables

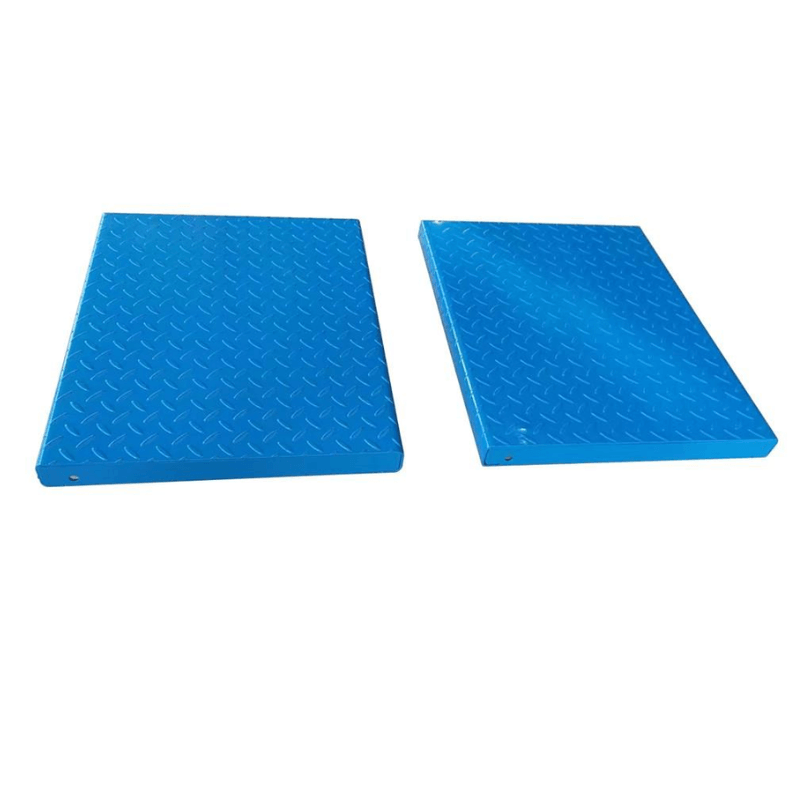

• Slip plates included
• Alignment spacers included

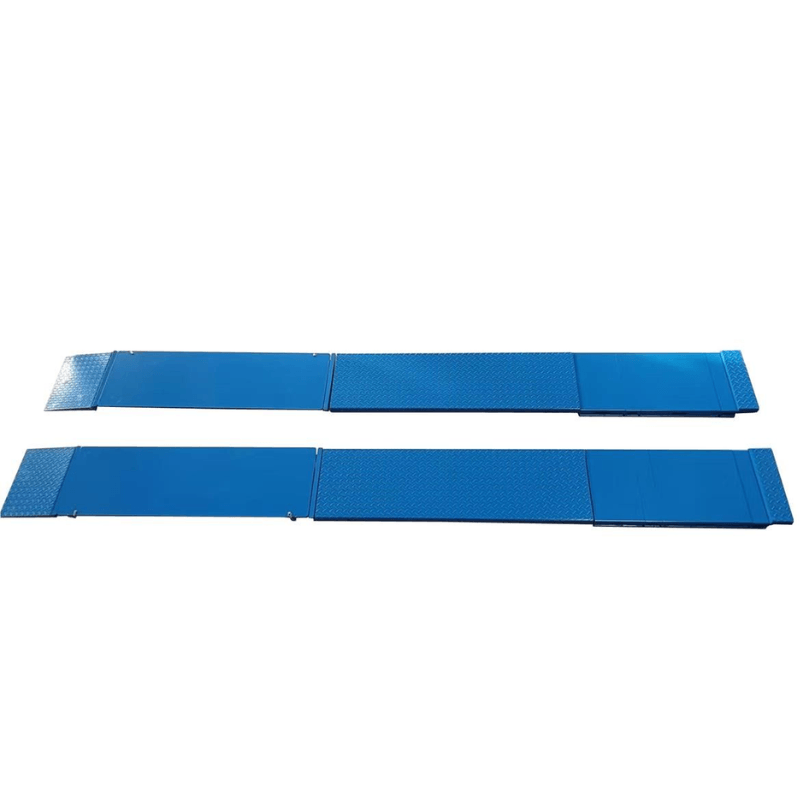

• Alignment ramps included
• Ready for professional wheel alignment service

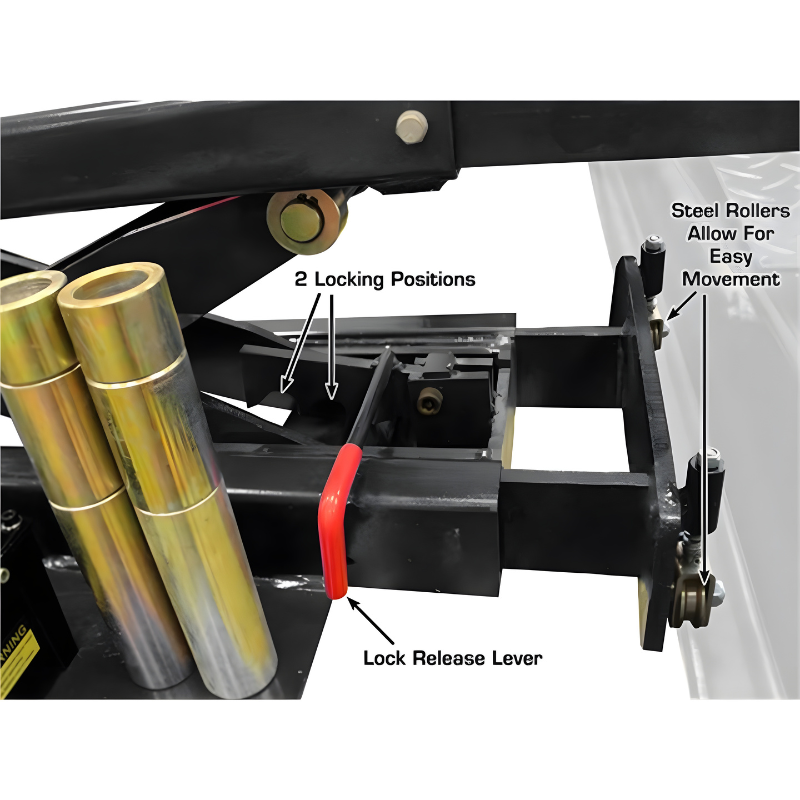

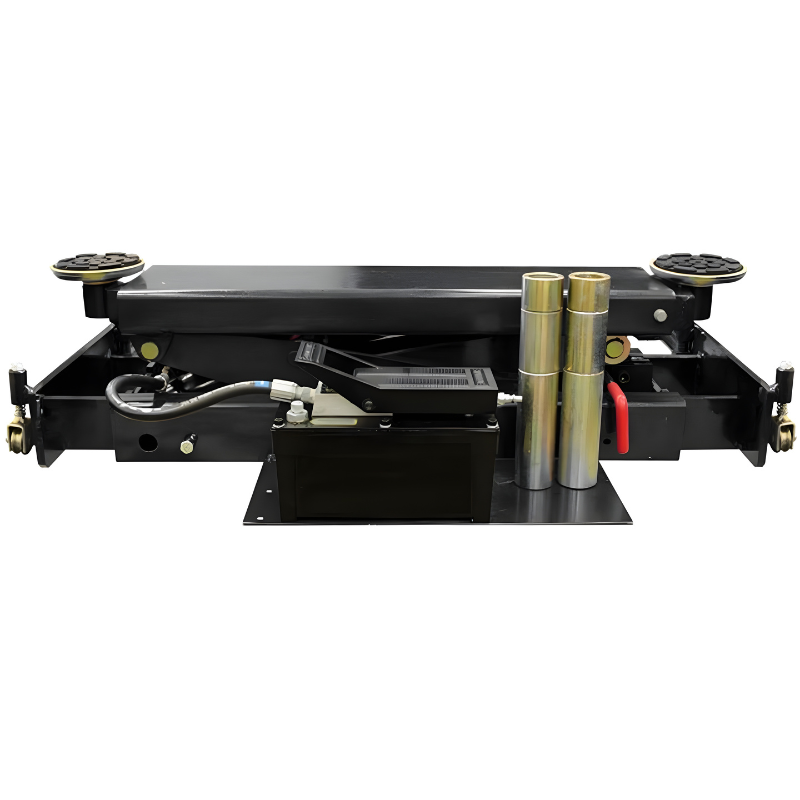

Atlas RJ8A Rolling Bridge Jacks

• Two 8,000 lb. air/hydraulic rolling bridge jacks included
• Smooth rolling operation between lift runways
• Adjustable width for multiple vehicle sizes
• Includes four-piece truck adapter set with each jack
• Ideal for wheel-free brake, suspension, and tire service

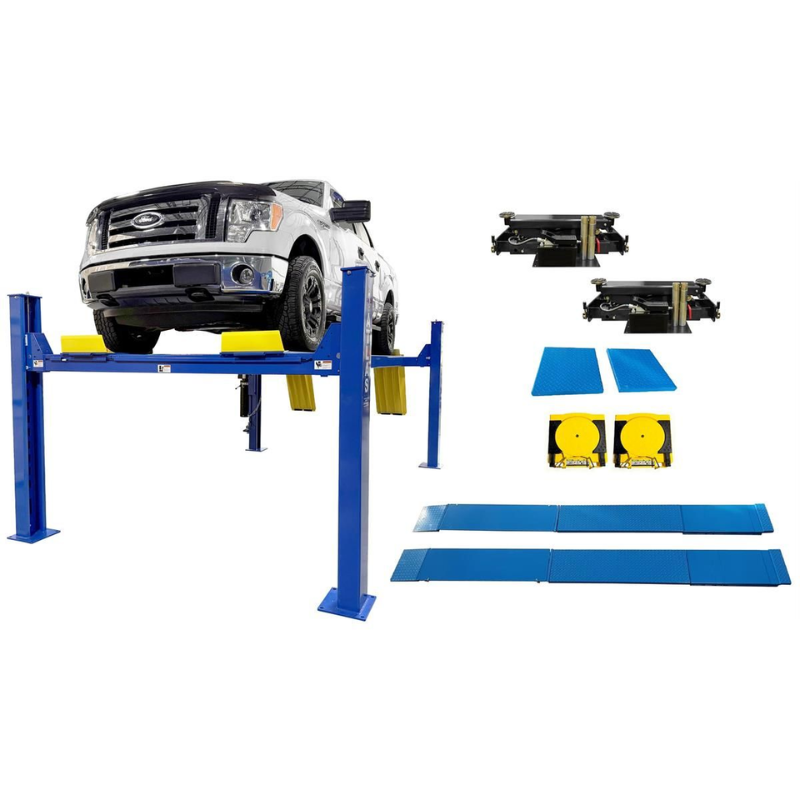

What's Included

• Atlas PRO14KCF-EXT 14,000 lb. Extended 4-Post Lift
• Complete Alignment Kit
  • Heavy-Duty Turntables
  • Slip Plates
  • Alignment Spacers
  • Alignment Ramps
• Two (2) Atlas RJ8A 8,000 lb. Air/Hydraulic Rolling Bridge Jacks
• Two (2) Four-Piece Truck Adapter Sets
• Steel Approach Ramps
• One (1) Pair of Rubber Wheel Chocks

Atlas PRO14KCFA-EXT-COMBO Optional Item Sold Separately

• Atlas PRO14KCF-EXT 14,00lb 4 Post Lift - Extra Long
• Atlas RJ8A 8,000 lb. Air/Hydraulic Rolling Bridge Jack
