Atlas ATEXH-PRO14KCFA-EXT-KIT 14,000 lb Extended 4-Post Lift w/ Alignment Kit Combo

ATEXH-PRO14KCFA-EXT-KIT 14,000 lb Extended 4-Post Lift w/ Alignment Kit Combo

Long-wheelbase trucks, vans, SUVs, and commercial vehicles require more lifting capacity and runway length than standard 4-post lifts can provide. A shorter lift can limit vehicle compatibility and leave professional shops without the equipment needed for efficient wheel alignment service.

Working with larger vehicles can become more difficult when the lift lacks sufficient runway length, clearance, or alignment equipment. Separate alignment accessories can also add setup time and increase the amount of equipment needed around the service bay. The Atlas ATEXH-PRO14KCFA-EXT-KIT addresses these requirements with a 14,000 lb. capacity, 24" extended design, extra-tall and extra-wide construction, and a complete alignment kit.

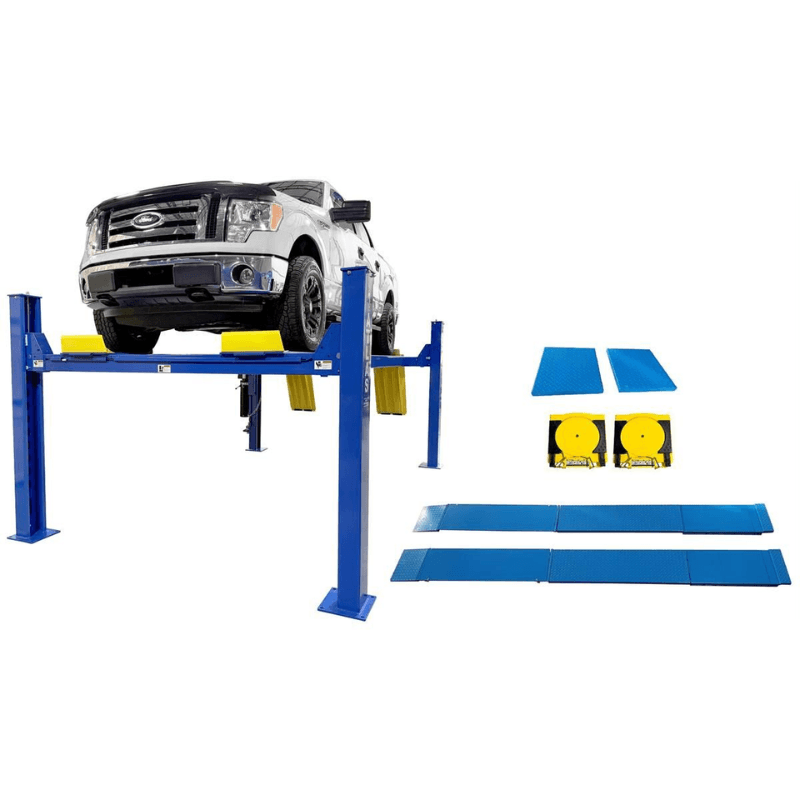

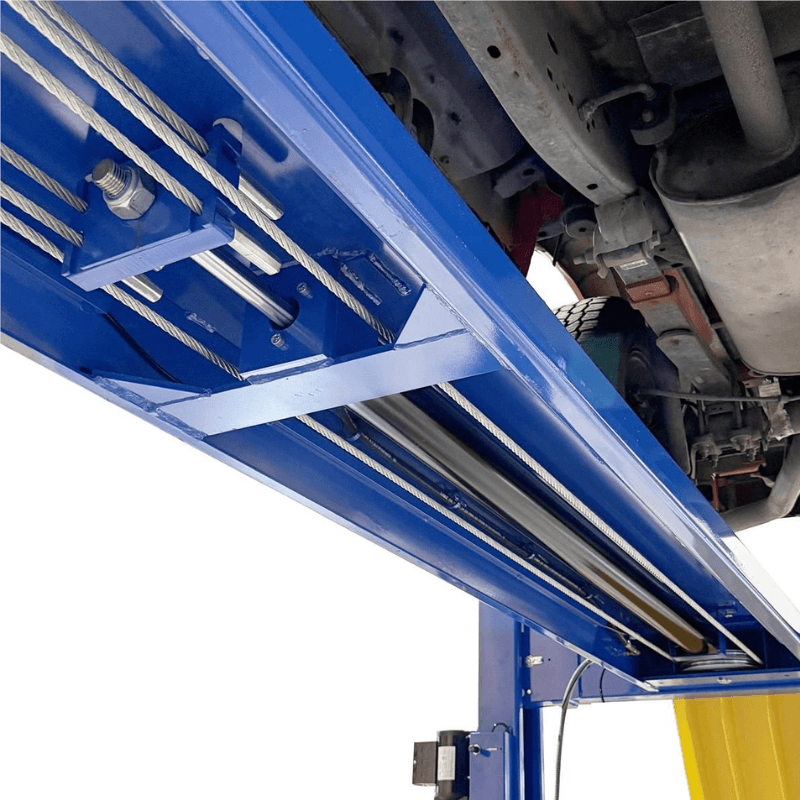

The package includes the Atlas PRO14KCF-EXT extended 4-post lift, heavy-duty turntables, slip plates, spacers, alignment ramps, steel approach ramps, rubber wheel chocks, and mounting hardware. The lift uses a high-strength cable system with an under-runway hydraulic cylinder, plus an air-operated single-point lock release, double-lock safety system, and rolling bridge jack tracks for added service versatility.

ATEXH-PRO14KCFA-EXT-KIT Combo Specification

• Brand: Atlas
• Model: ATEXH-PRO14KCFA-EXT-KIT
• Product Type: Extended 4-Post Alignment Lift Combo
• Lift Capacity: 14,000 lbs.
• Lift Style: Commercial Grade 4-Post Lift
• Configuration: Extra Tall & Extra Wide with 24" Extended Length

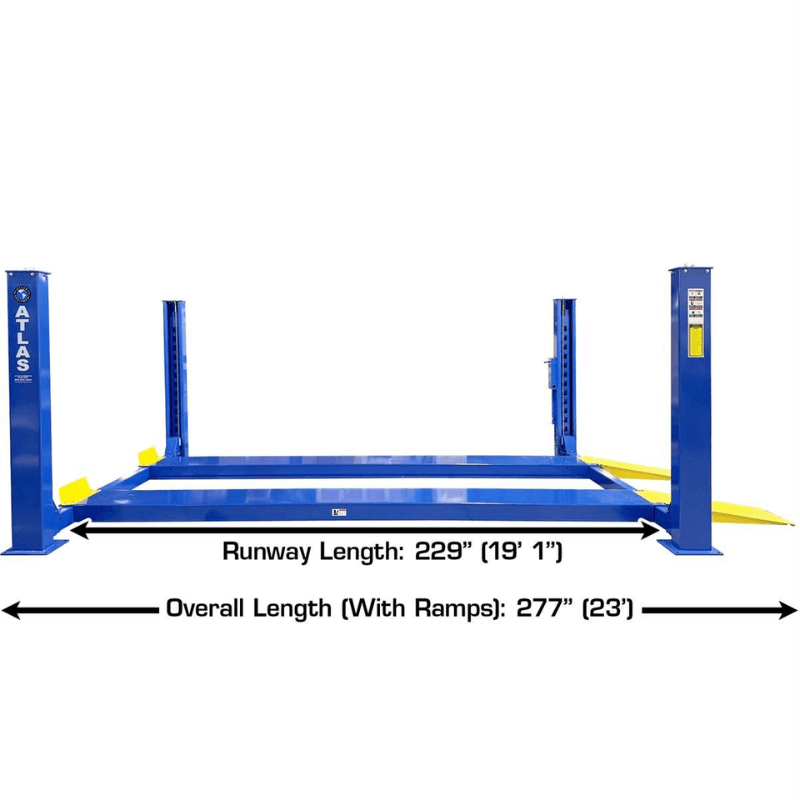

• Overall Length (With Ramps): 277"
• Runway Length: 229"

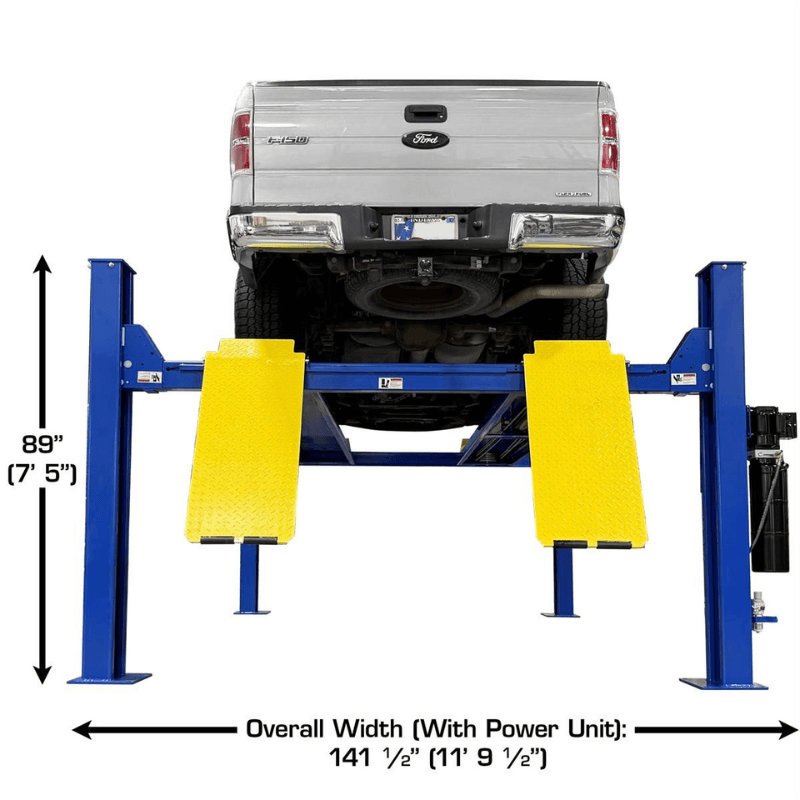

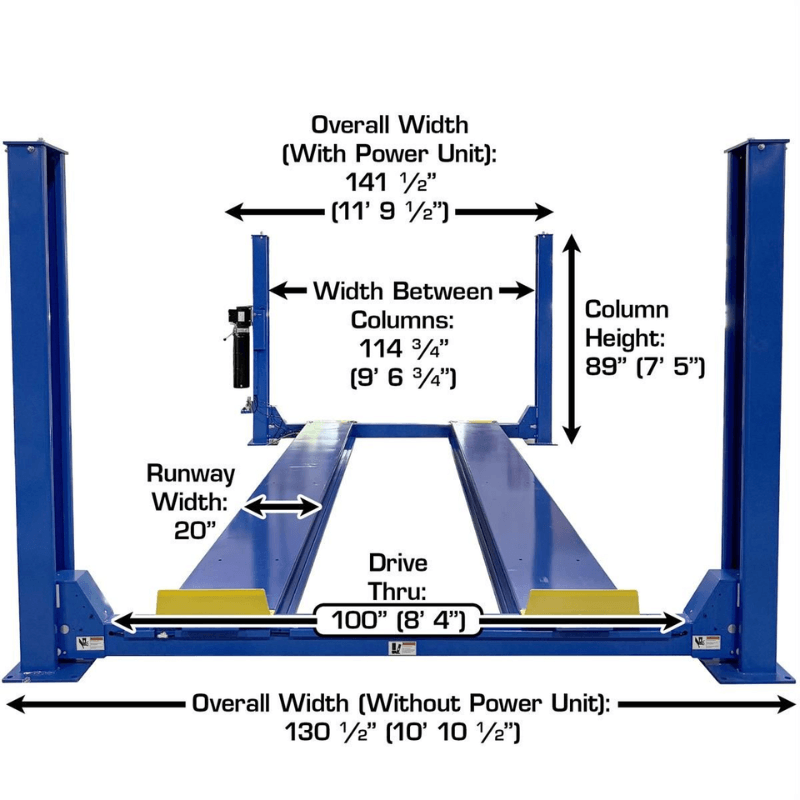

• Overall Width (With Motor): 141-7/16"
• Width Between Columns: 114-13/16"
• Drive-Thru Clearance: 100"
• Column Height: 89"

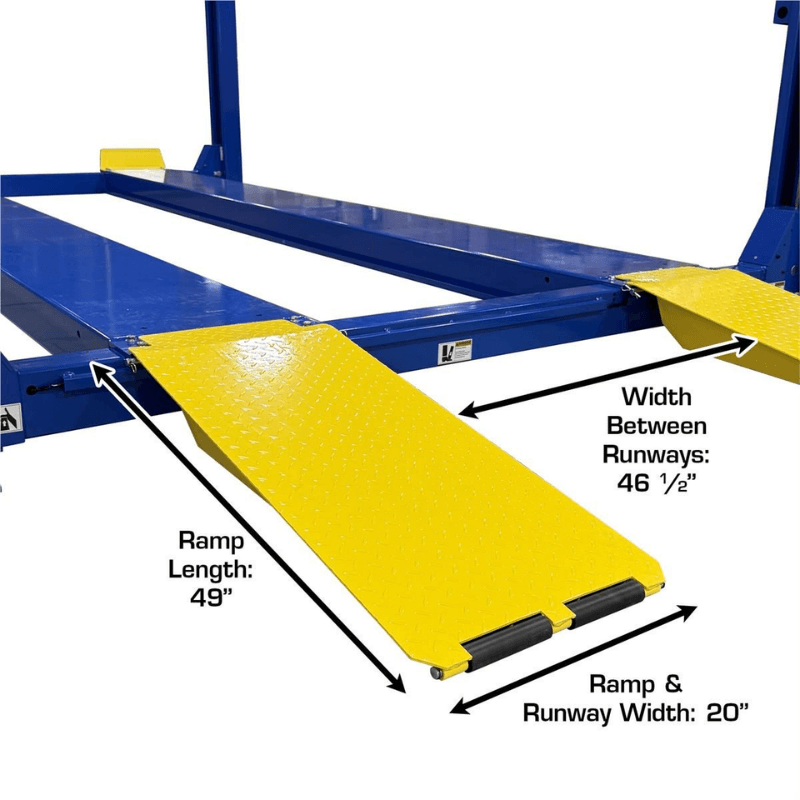

• Runway Width: 20"
• Width Between Runways: 42-1/2" – 46-1/2"
• Outside Runway Width: 62-1/2" – 66-1/2"
• Length Between Columns: 213-3/4"

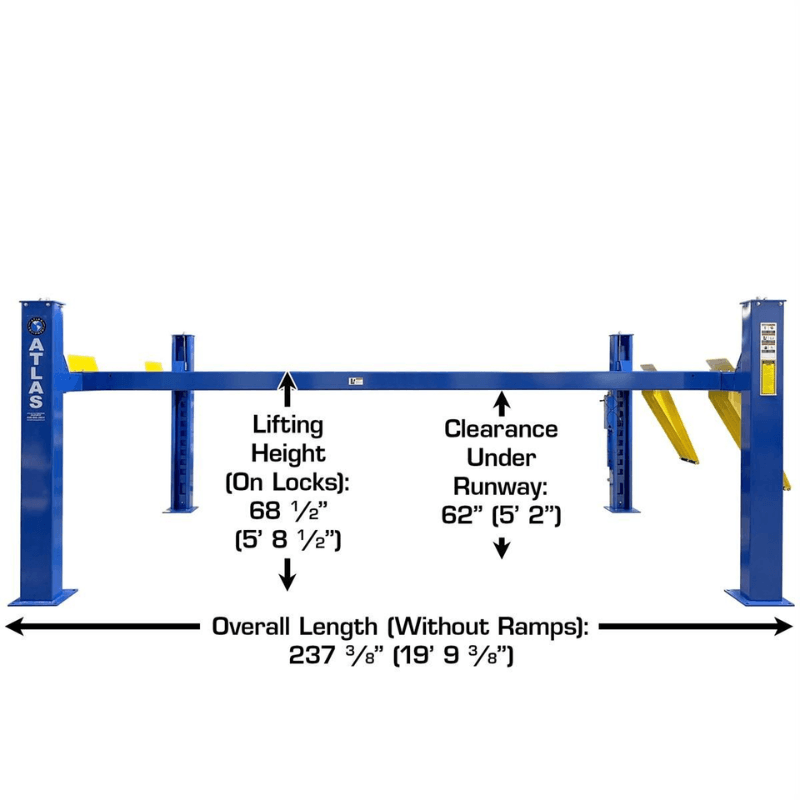

• Maximum Lifting Height: 68-1/2"
• Clearance Under Runways: 61-1/2"

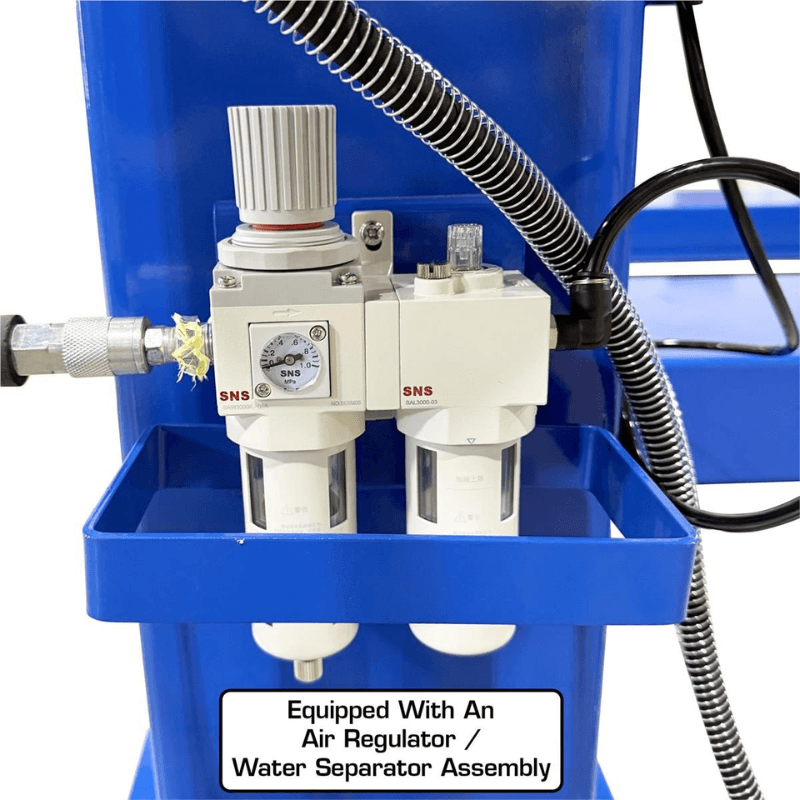

• Air Requirement: 85–115 PSI (External Air Supply Required)
• Electrical Requirement: 220V, Single Phase, 30 Amp Breaker Recommended
• Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)
• Minimum Concrete Requirement: 6" Thick, 3,000 PSI
• Shipping Weight: 3,900 lbs.
• Warranty: 5-Year Structural / 2-Year Hydraulic (Parts Only)

ATEXH-PRO14KCFA-EXT-KIT Combo Special Features

• 14,000 lb. commercial lifting capacity
• Extra-tall, extra-wide, and 24" extended design
• Heavy-duty commercial-grade construction

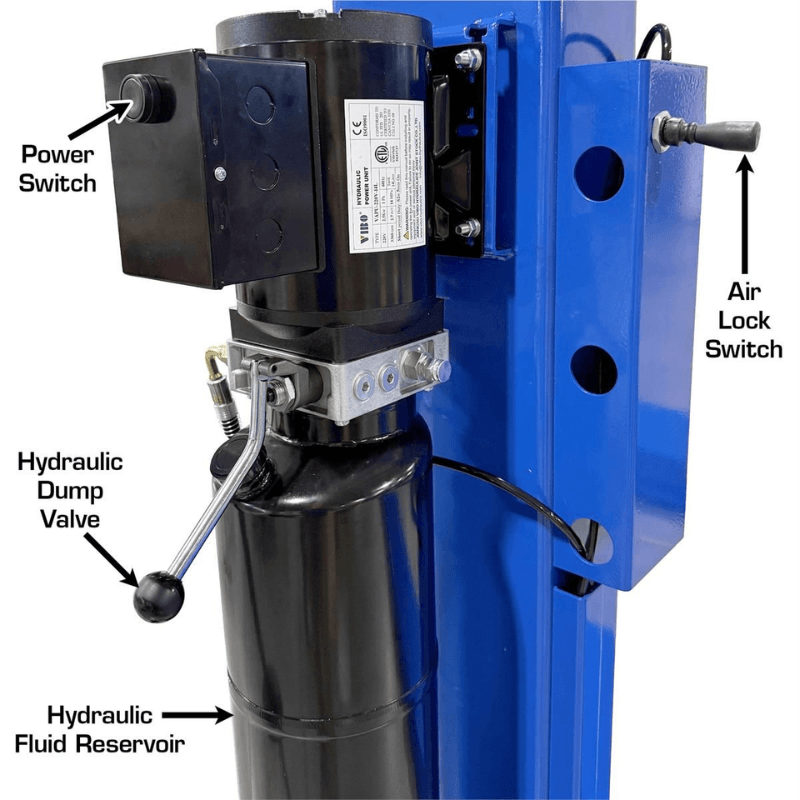

• Air-operated single-point lock release
• Double-lock safety system

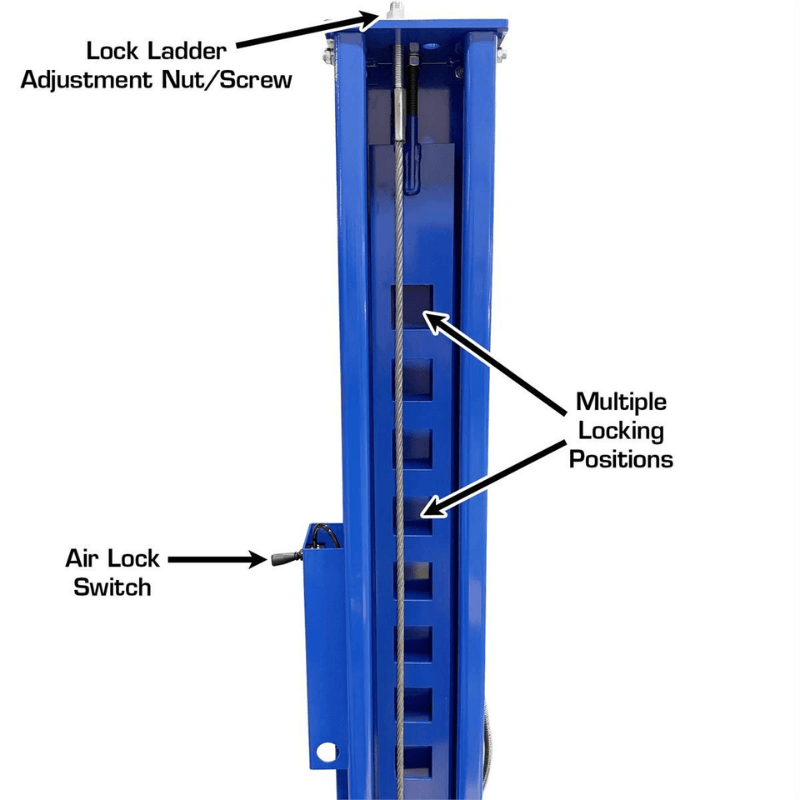

• Lock ladder safety design
• High-strength cable lifting system
• Under-runway hydraulic cylinder design
• Tracks for compatible rolling bridge jacks
• Powder-coated finish for long-lasting durability
• Includes heavy-duty alignment turntables
• Includes slip plates, spacers, and alignment ramps
• Includes steel approach ramps
• Includes one pair of rubber wheel chocks
• Mounting hardware included
• Ideal for professional wheel alignment and vehicle service

What's Included

• Atlas PRO14KCF-EXT 14,000 lb. Extended 4-Post Lift
• Complete Alignment Kit

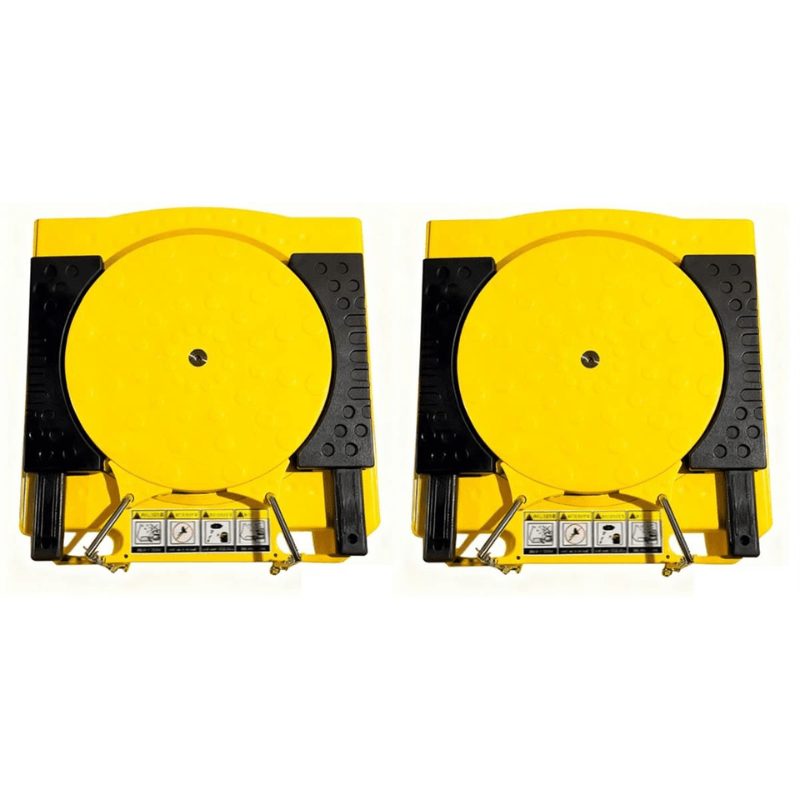

  • Heavy-Duty Turntables

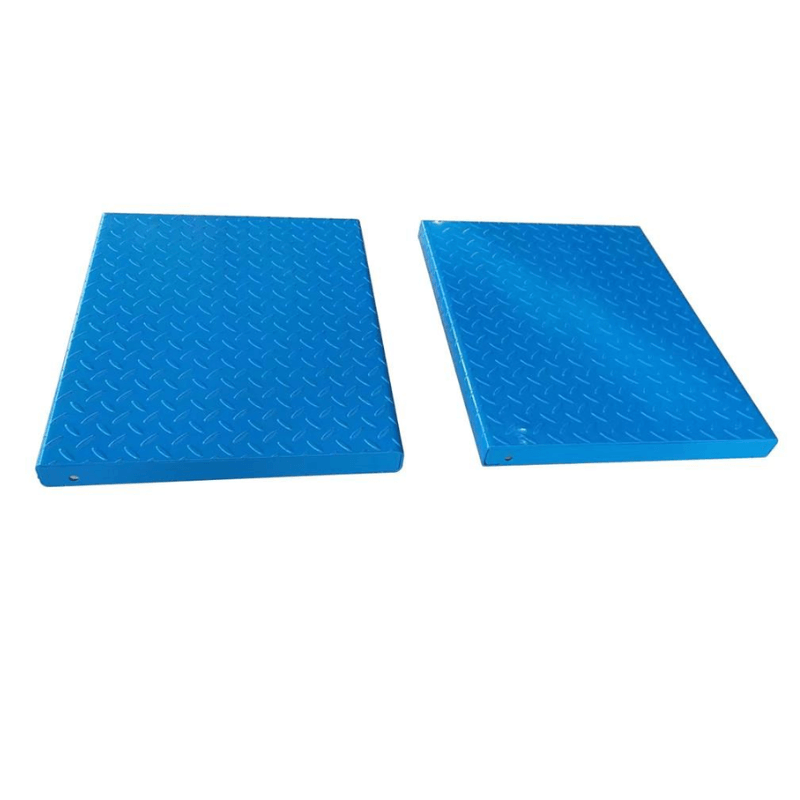

  • Slip Plates
  • Alignment Spacers

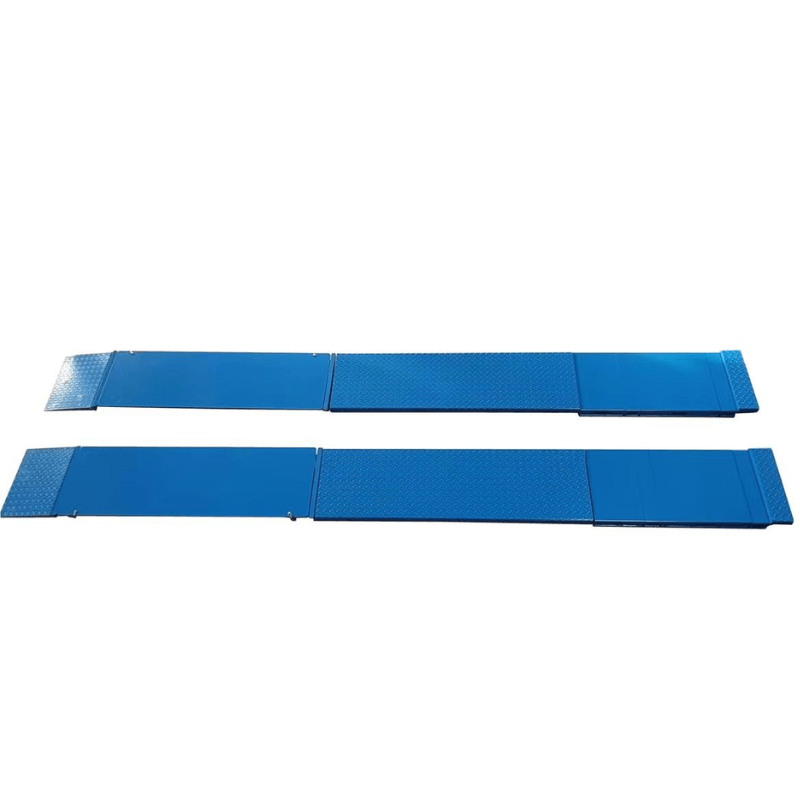

  • Alignment Ramps
• Steel Approach Ramps
• One (1) Pair of Rubber Wheel Chocks
• Mounting Hardware

Atlas ATEXH-PRO14KCFA-EXT-KIT Optional Item Sold Separately

• Atlas PRO14KCF-EXT 14,00lb 4 Post Lift - Extra Long
