Atlas Pro8000, 8,000 lb 4 Post Parking Lift

SKU ATEXH-PRO8000
by Atlas
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$3,199.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

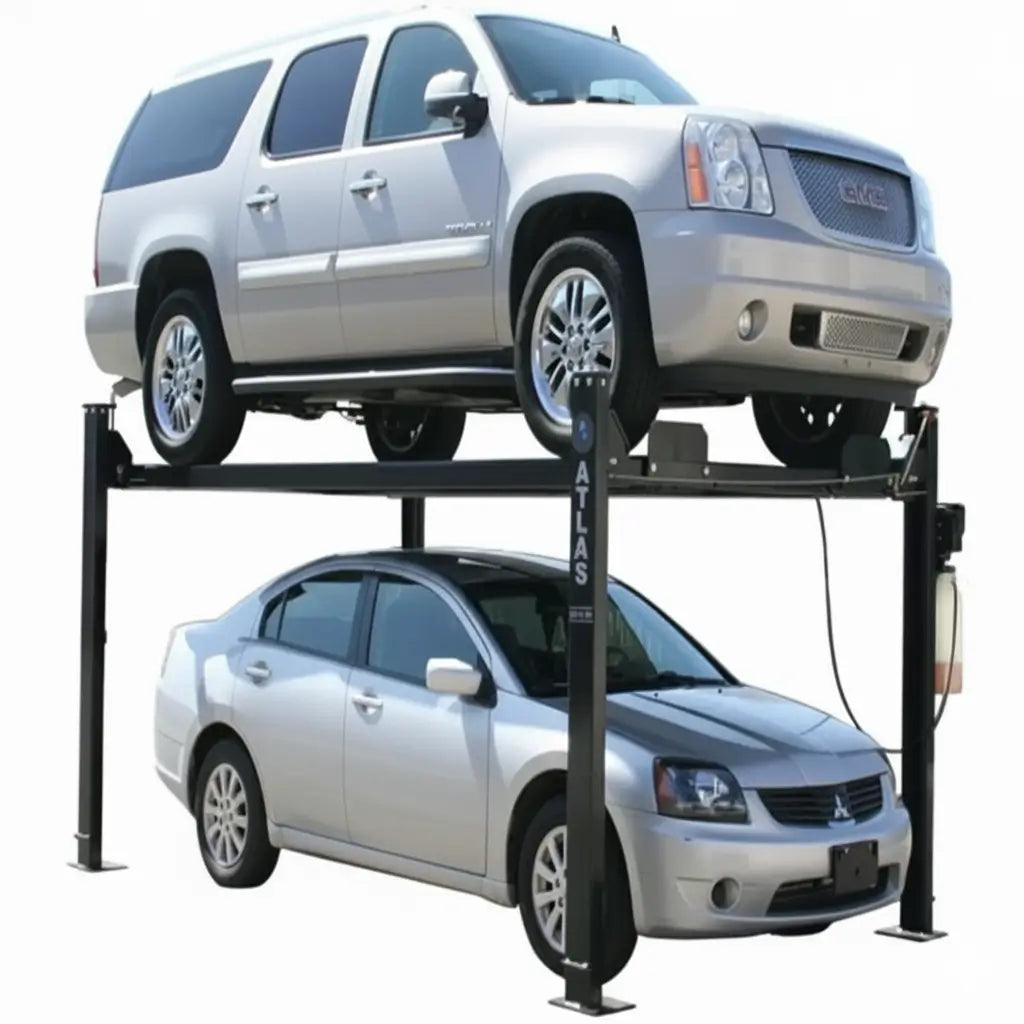

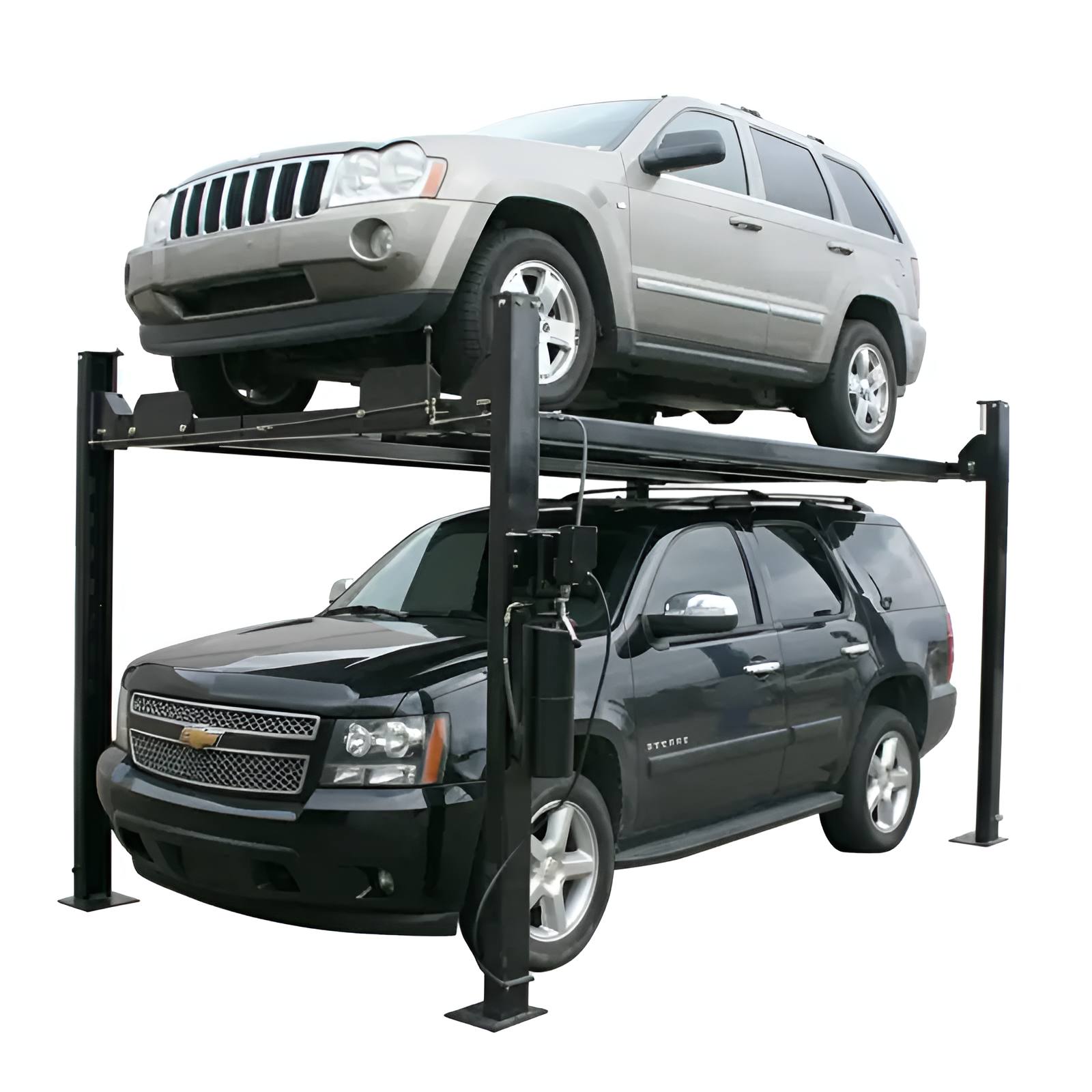

Atlas Garage Pro 8000 4 Post Parking Lift

Your garage is maxed out. You're rejecting profitable projects due to lack of space, and your team wastes time constantly shuffling vehicles. What if you could double your workspace without expensive renovations? Imagine completing more projects simultaneously, boosting revenue without increasing overhead. The Atlas® Garage PRO8000 is about to revolutionize your shop's efficiency.

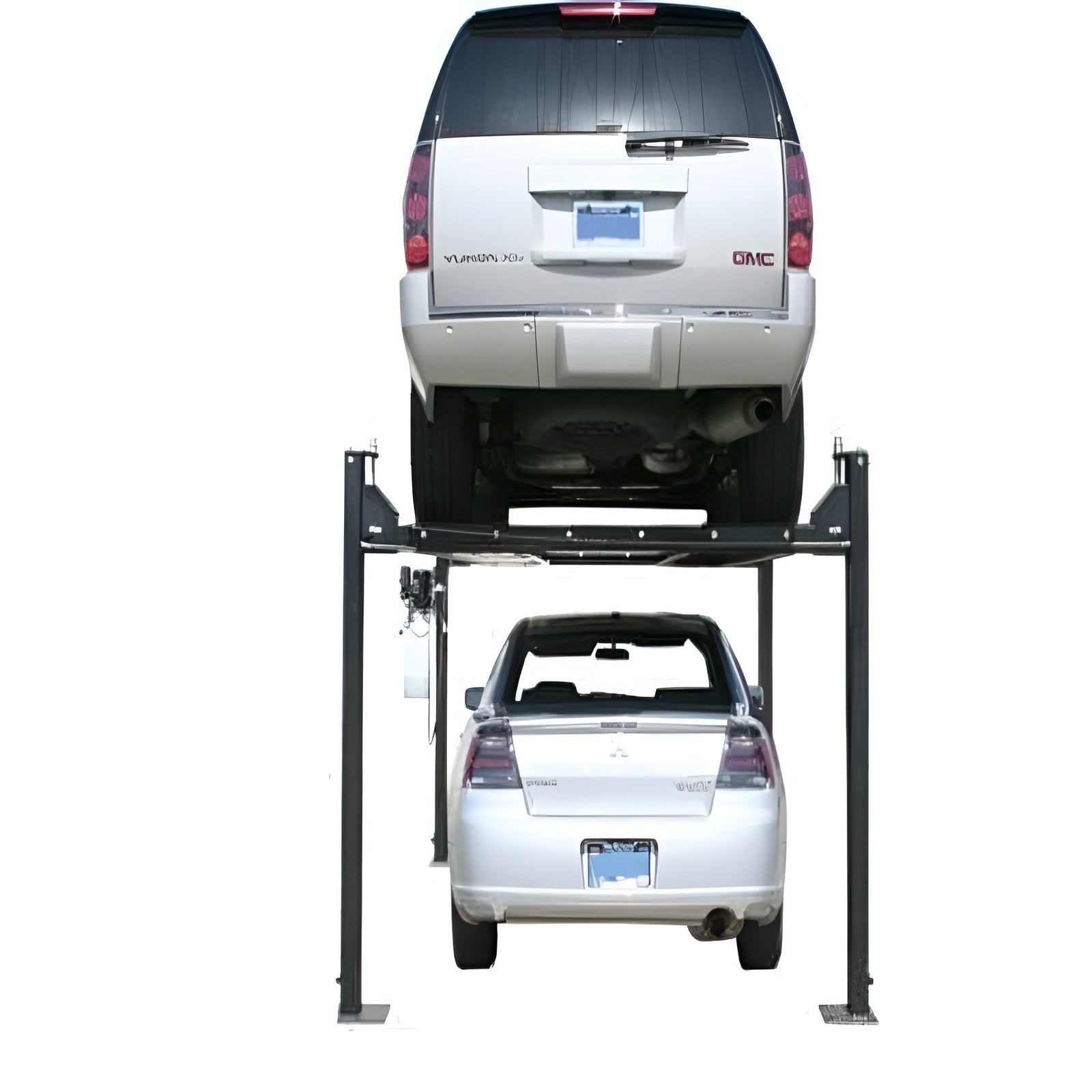

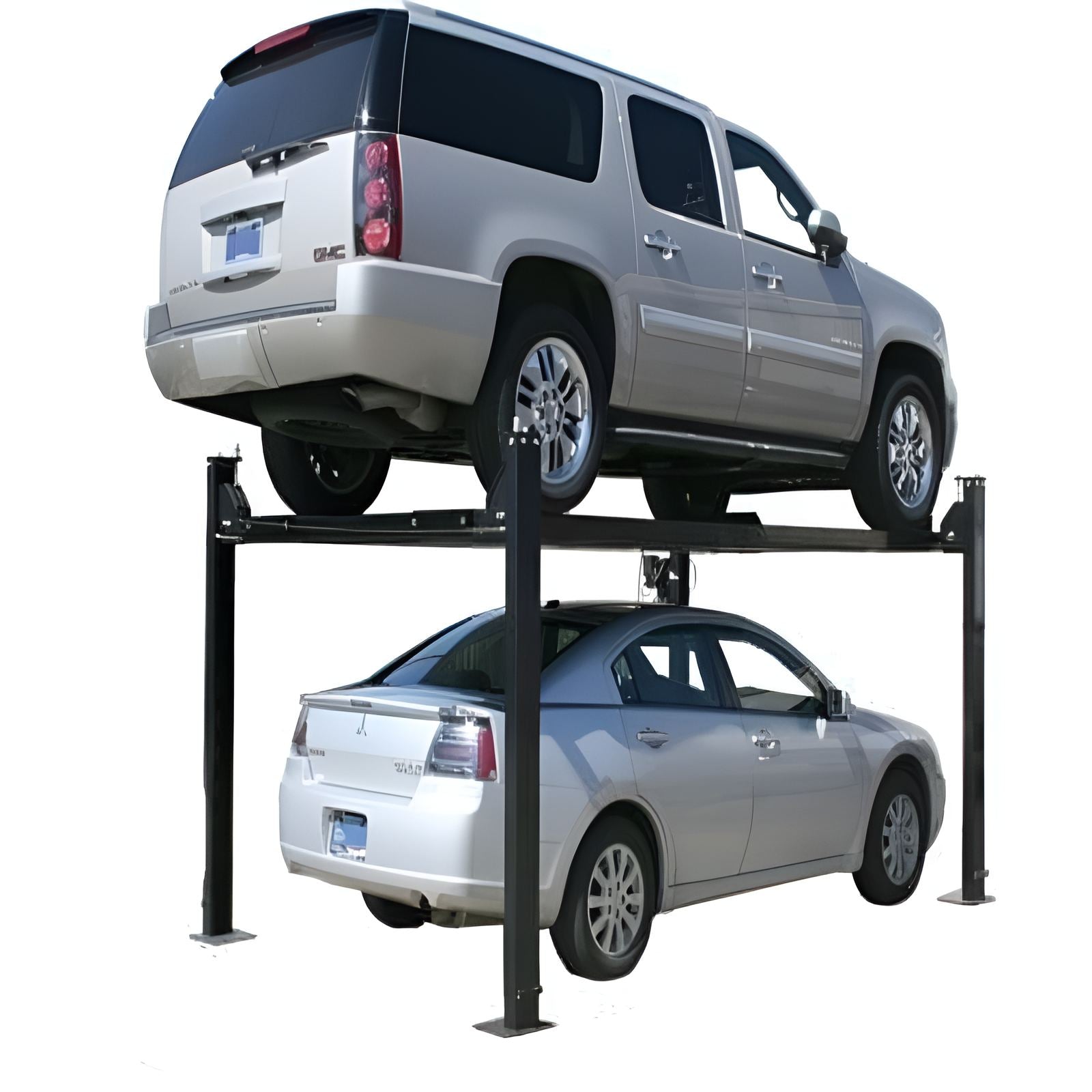

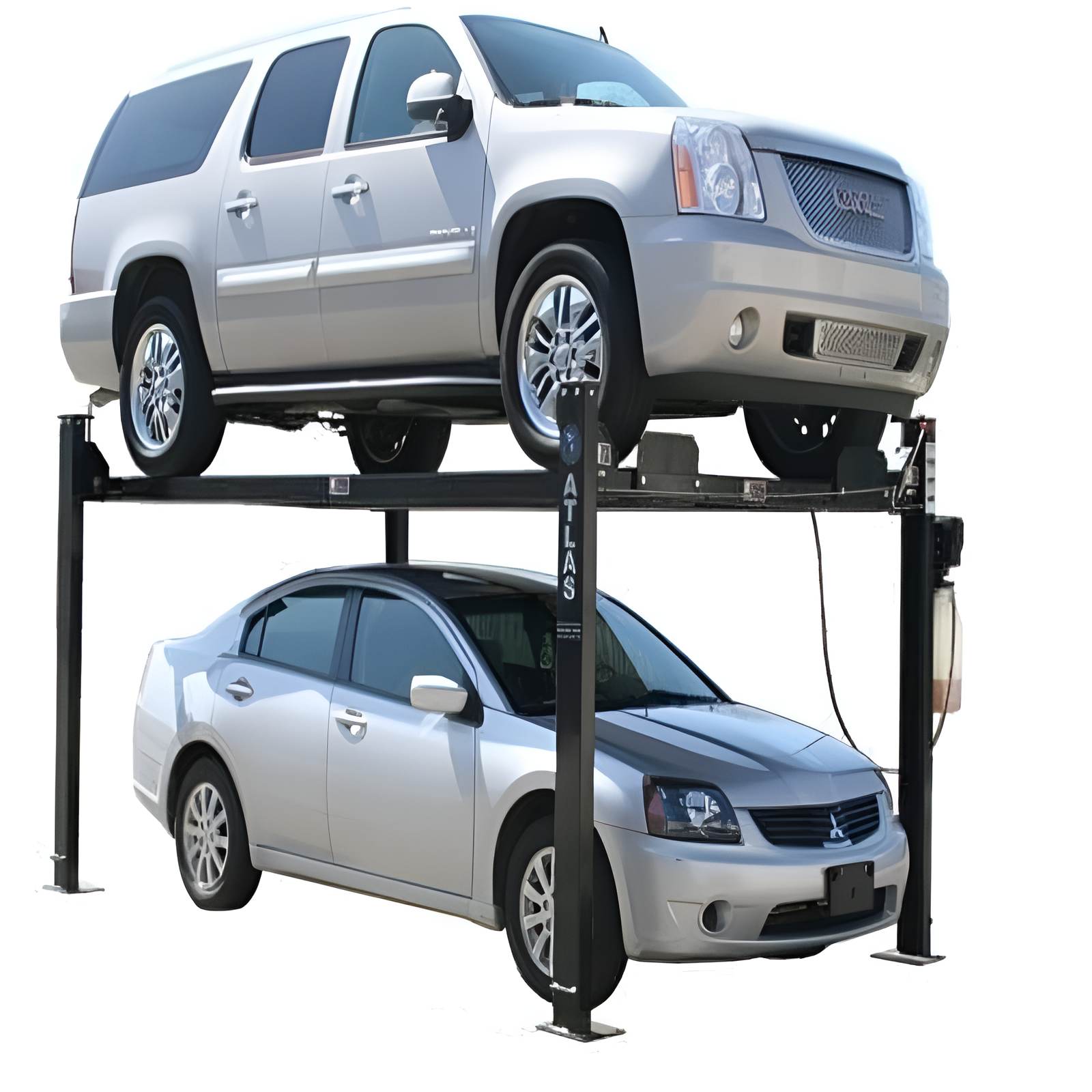

This 4-post lift is your key to shop optimization. With an 8,000 lb capacity and a lifting height of 72 inches, you'll instantly create double-decker parking. The 67-inch clearance under the runways provides ample workspace for your team. At 115 inches wide (with motor) and 206.75 inches long (with ramps), it fits most shop layouts while accommodating a wide range of vehicles. The PRO8000's versatility sets it apart. Its caster kit allows easy relocation, adapting to your shop's changing needs. The 21.5-inch wide runways with 37 inches between them ensure stability and accessibility for various vehicle sizes. Running on 110-volt electricity with a 30-amp breaker, it's easy to install. Included plastic drip trays and a steel jack tray equip you for any challenge.

4 Post Parking Lift Pro8000 Specifications:

  • Capacity 8,000 lb.
  • Lifting Height To Top Of Runway 72" (6')
  • Clearance Under Runways 67 (5' 7")

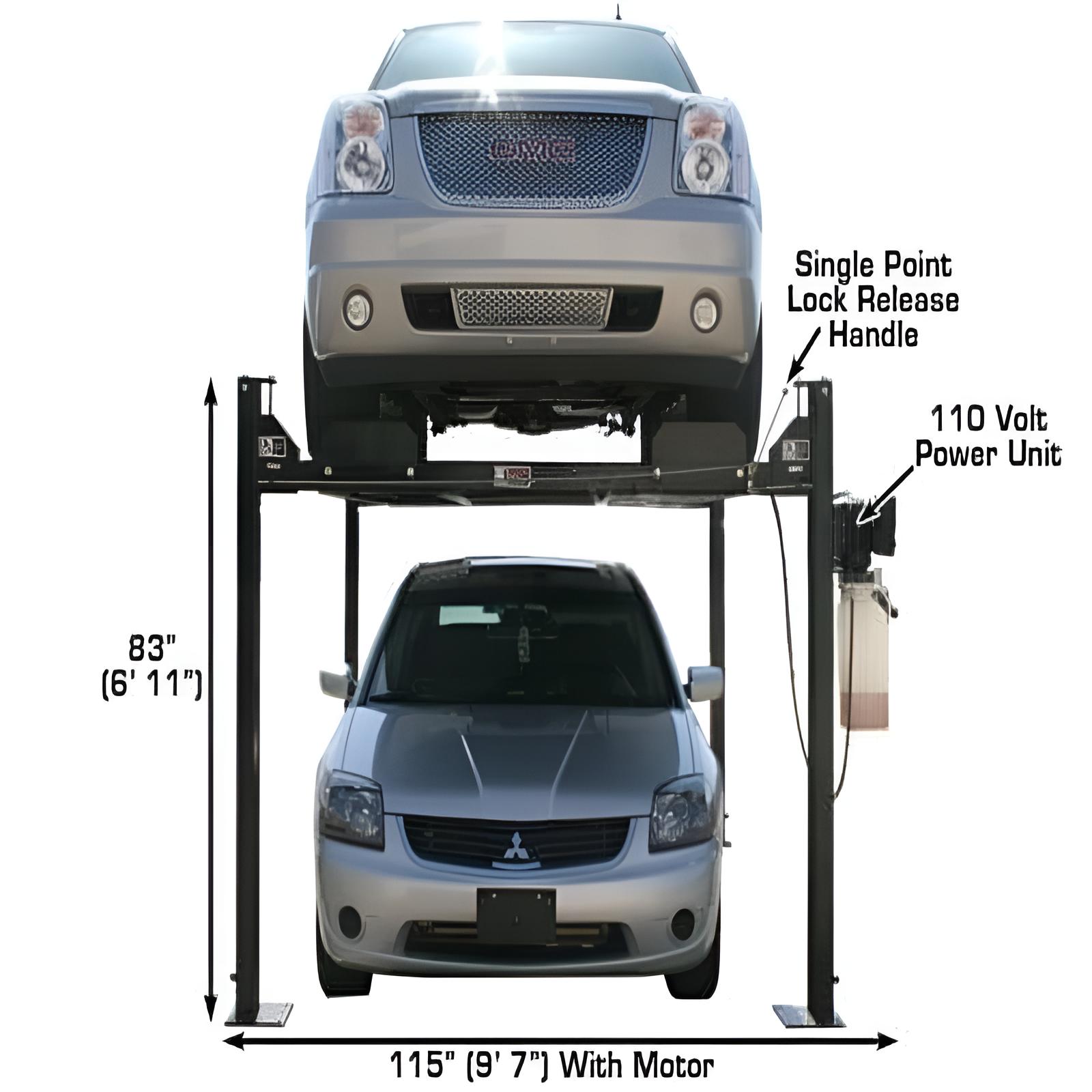

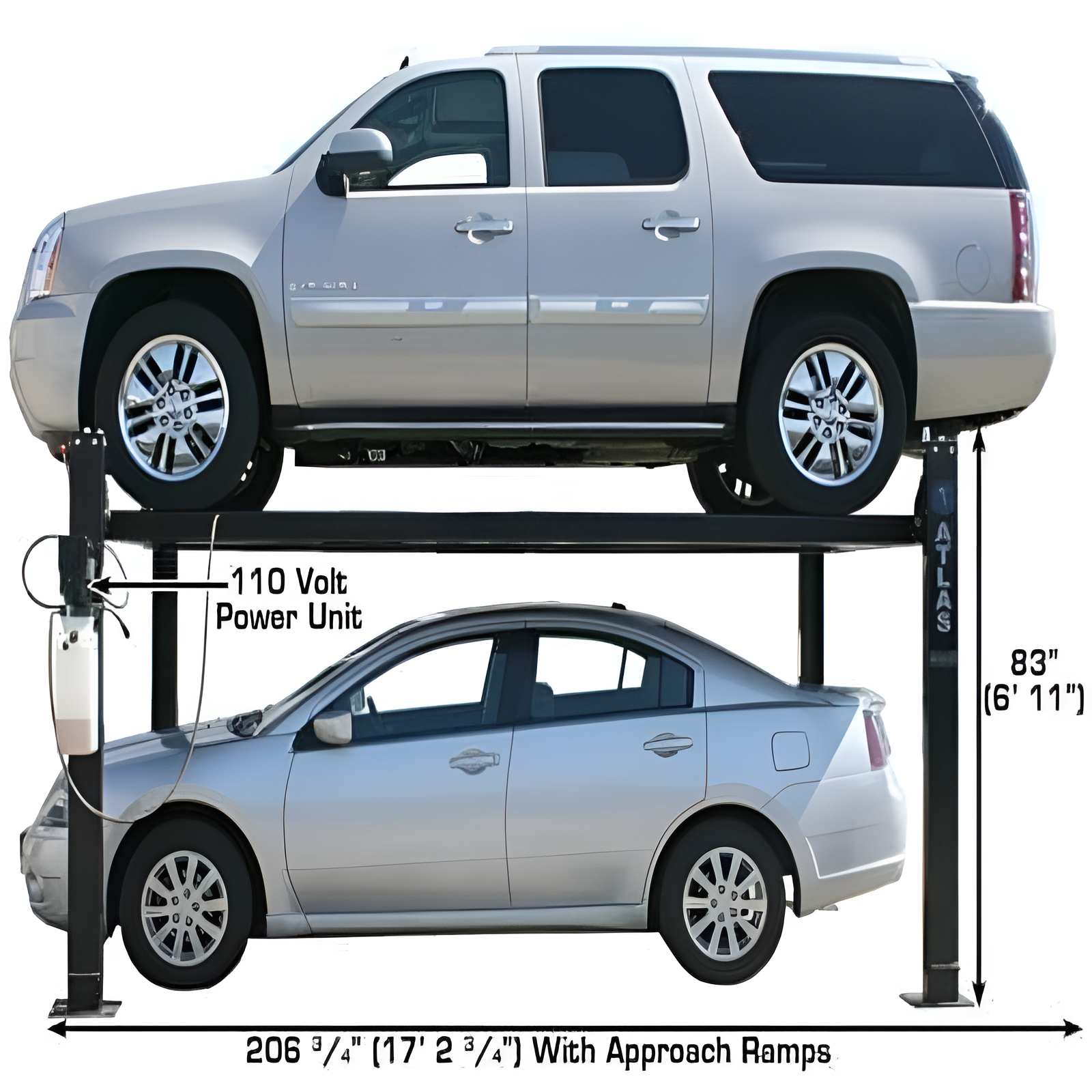

  • Height Of Columns 83" (6' 11")
  • Overall Width (Without Motor) 104 1/2" (8' 8 1/2")

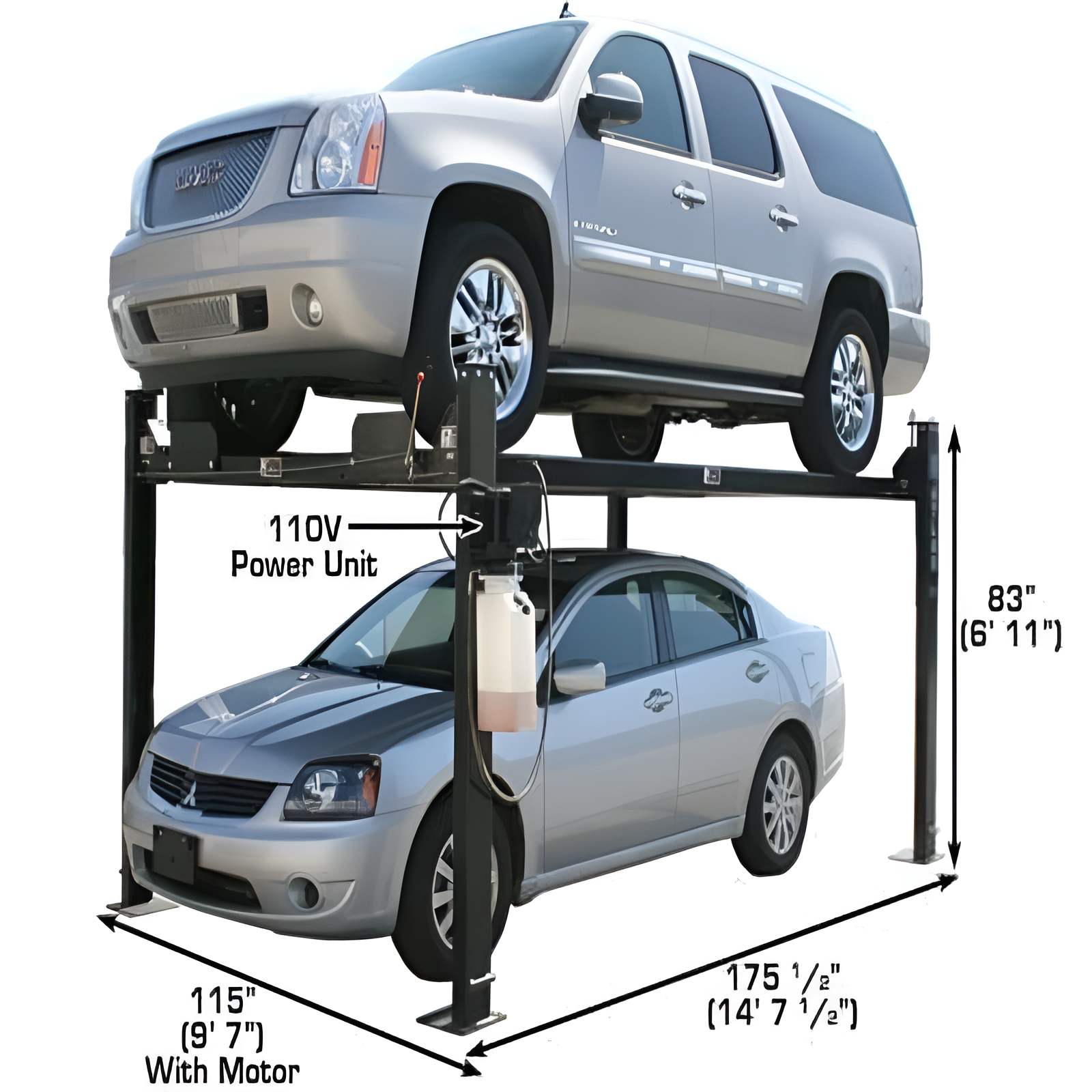

  • Overall Width (With Motor) 115" (9' 7")

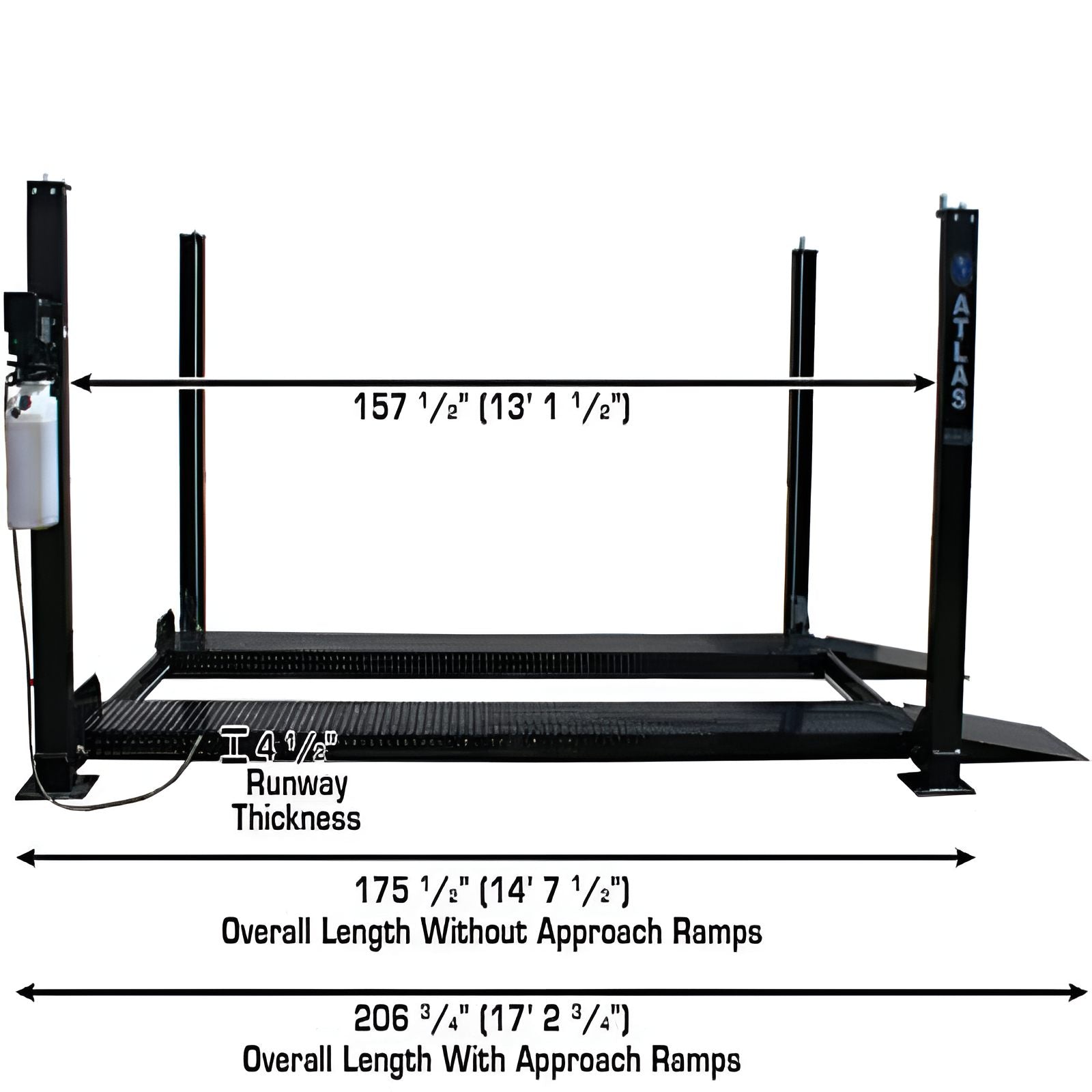

  • Overall Length With Approach Ramp 206 3/4" (17' 2 3/4")
  • Approach Ramp 37" (3' 1")

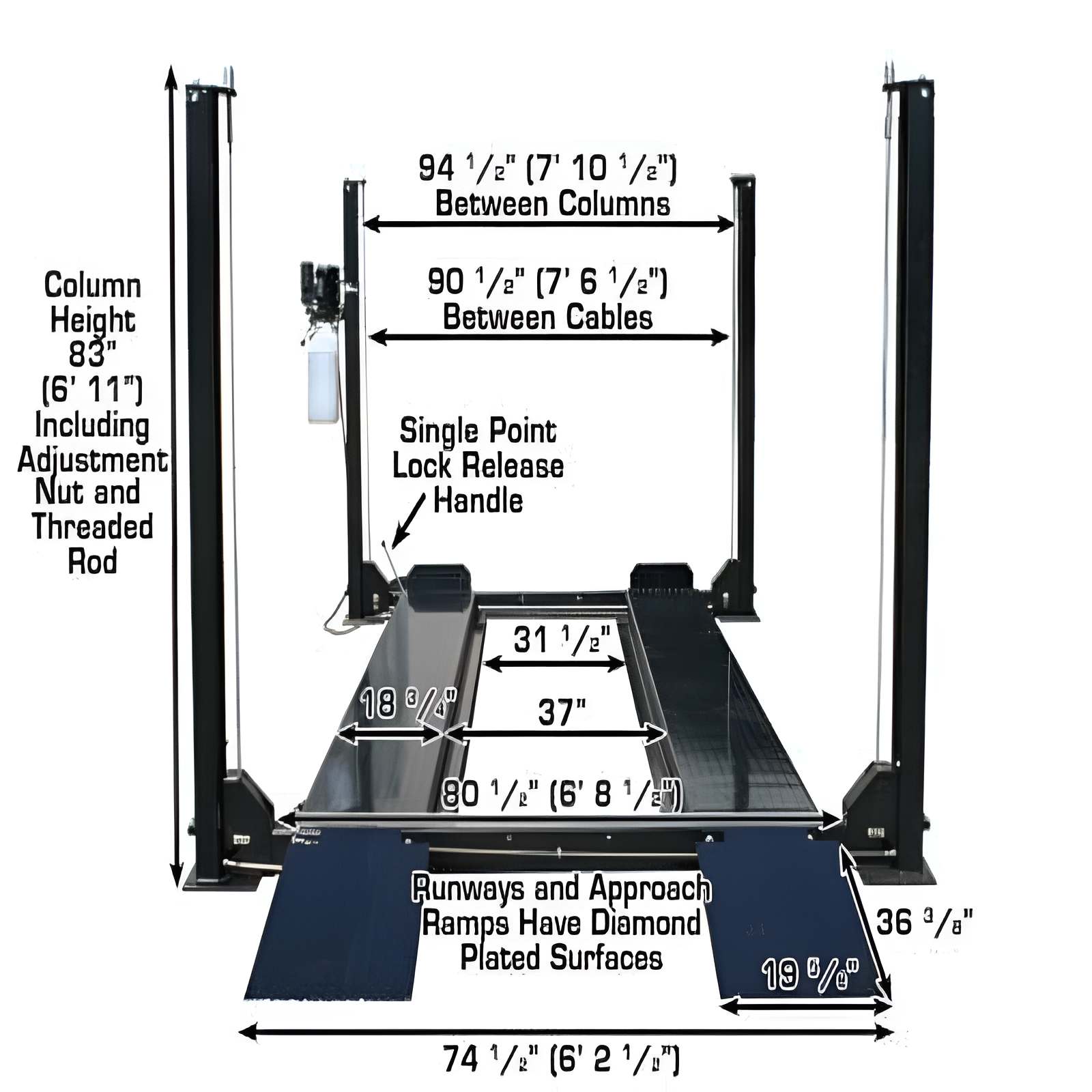

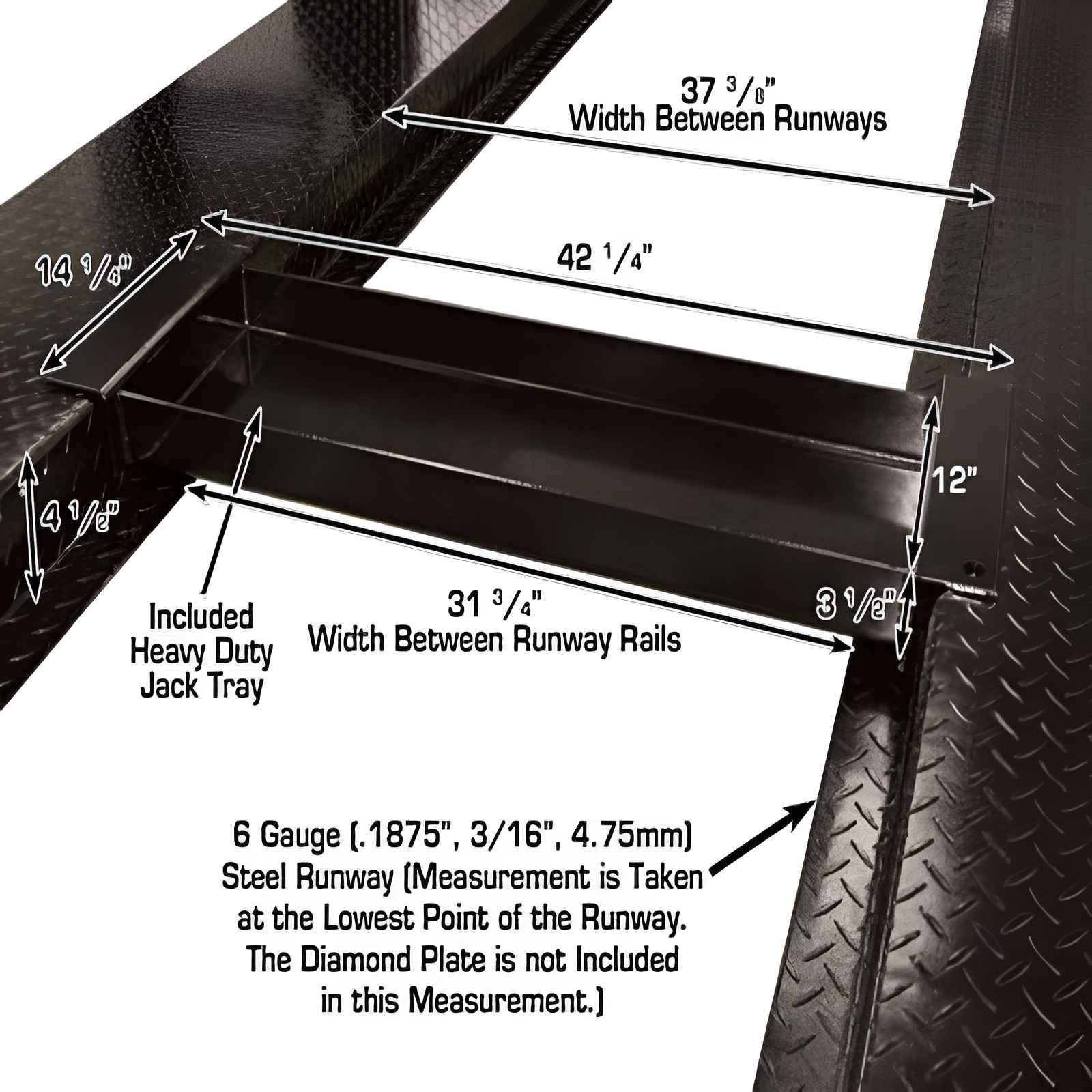

  • Runway Width 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
  • Runway Length 165 3/4" (13' 9 3/4")
  • Runway Thickness 4 1/2"
  • Width Between Runways 37" (3' 1")
  • Width Between Runway Rails 31 1/2" (2' 7 1/2")
  • Outside Runway To Outside Runway 74 5/8" (6' 2 5/8")
  • Clearance Between Columns 94 1/2" (7' 10 1/2")
  • Length Between Columns 157 1/2" (13' 1 1/2")

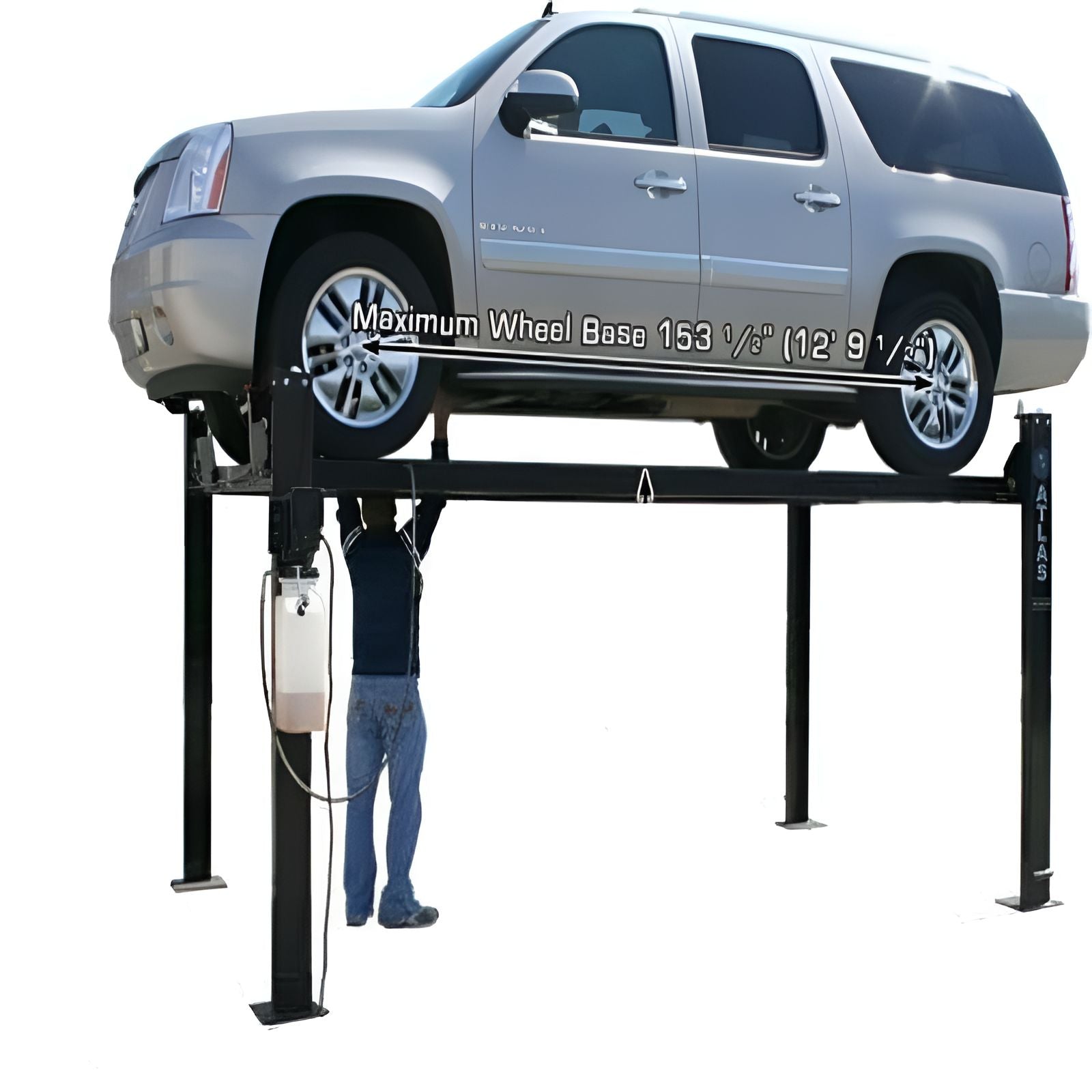

  • Maximum Wheel Base 153 1/2" (12' 9 1/2")
  • Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2" (6' 8 1/2")

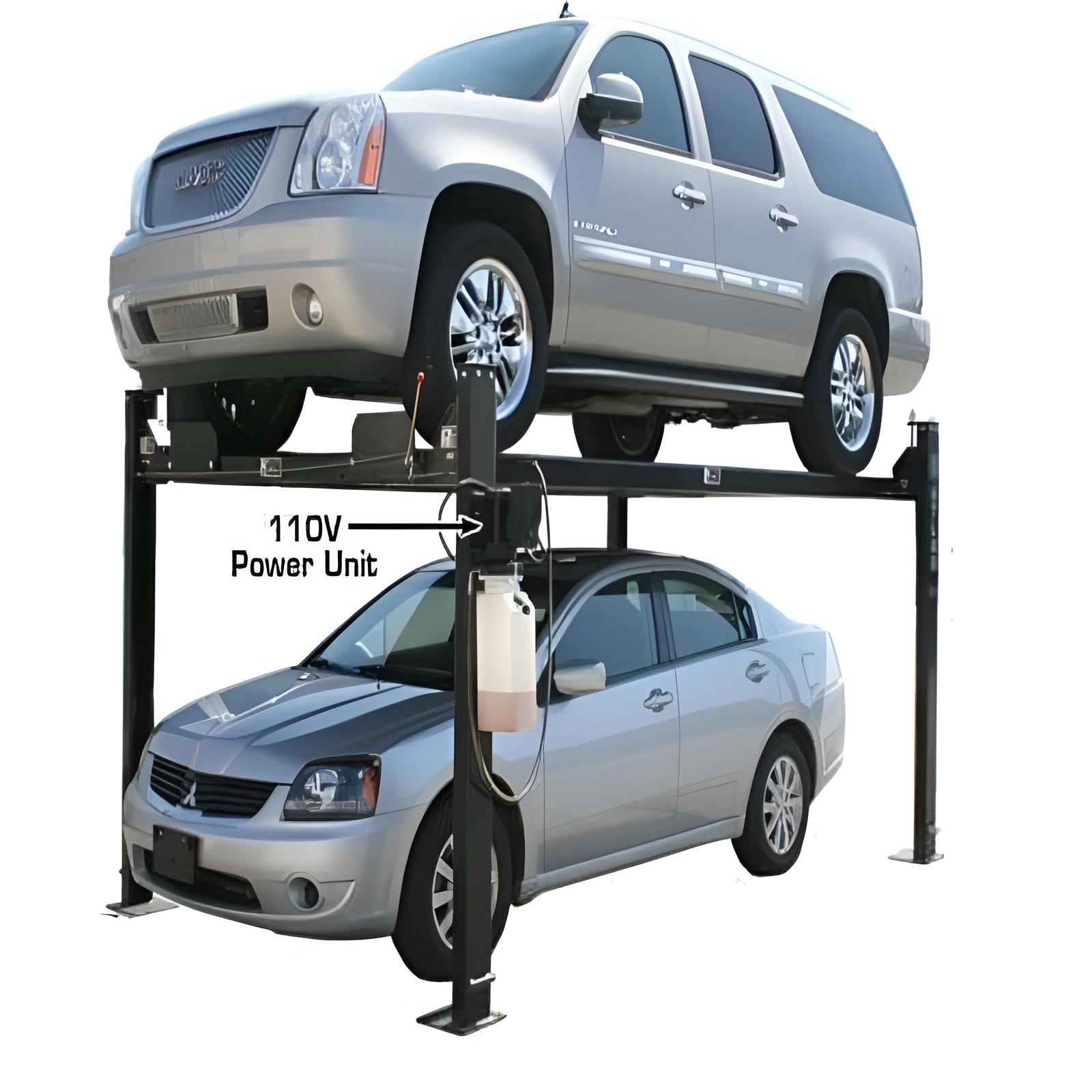

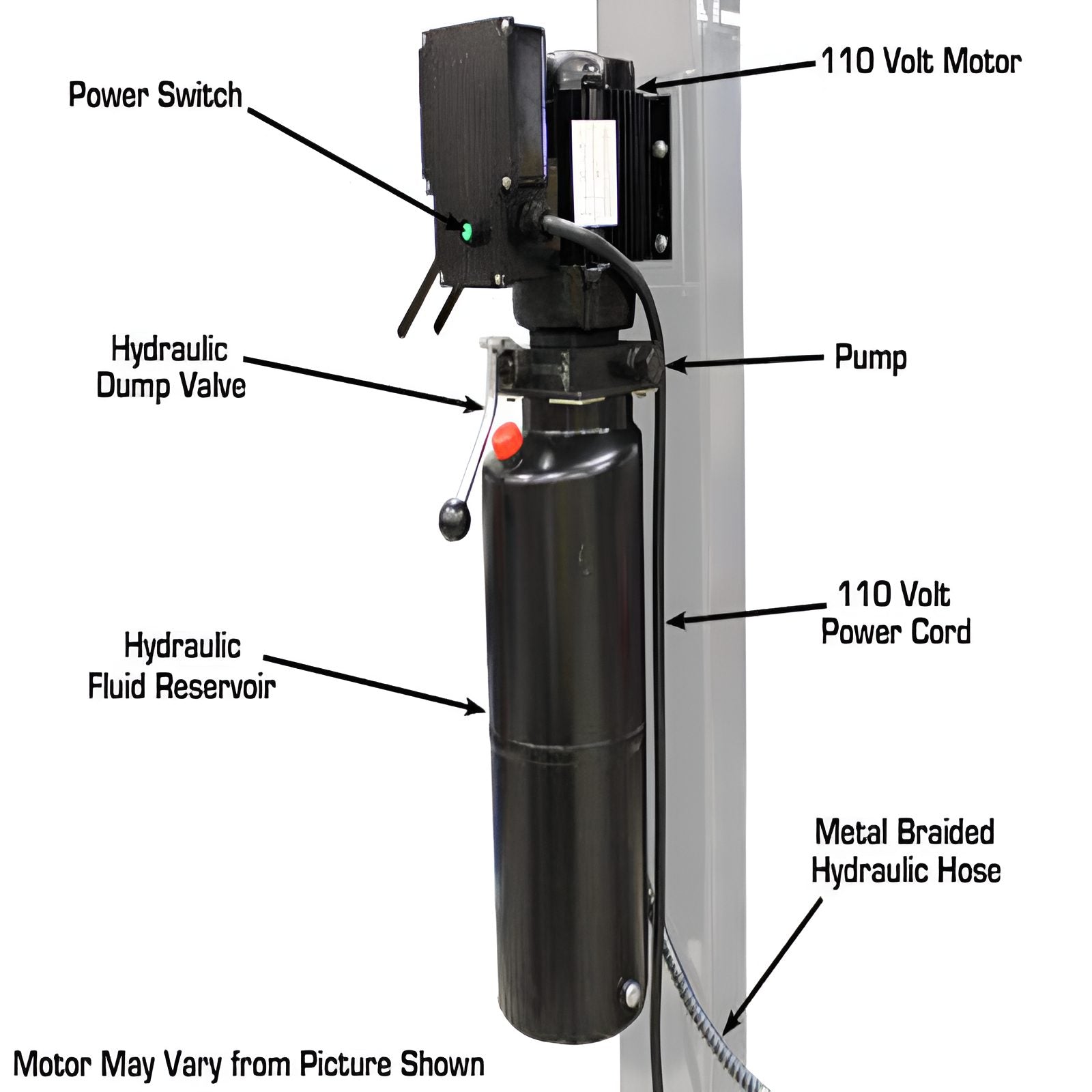

  • Power:  110volt Electric Operation (30 AMP BREAKER REQUIRED)
  • Shipping Weight 1,800 lbs.

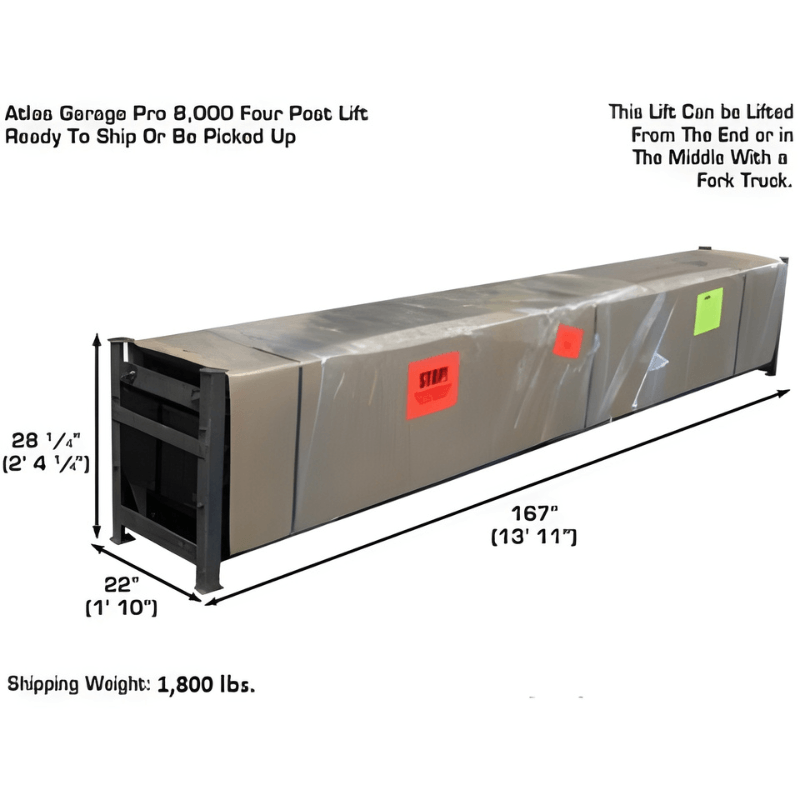

  • Pallet Size:  167" Long x 28-1/2" Tall x 22" Wide

Pro8000 8,000 lb 4 Post Parking Lift Special Features:

  • Capacity: 8,000 lb
  • Design Free Standing & Portable
  • Diamond Plated Runways

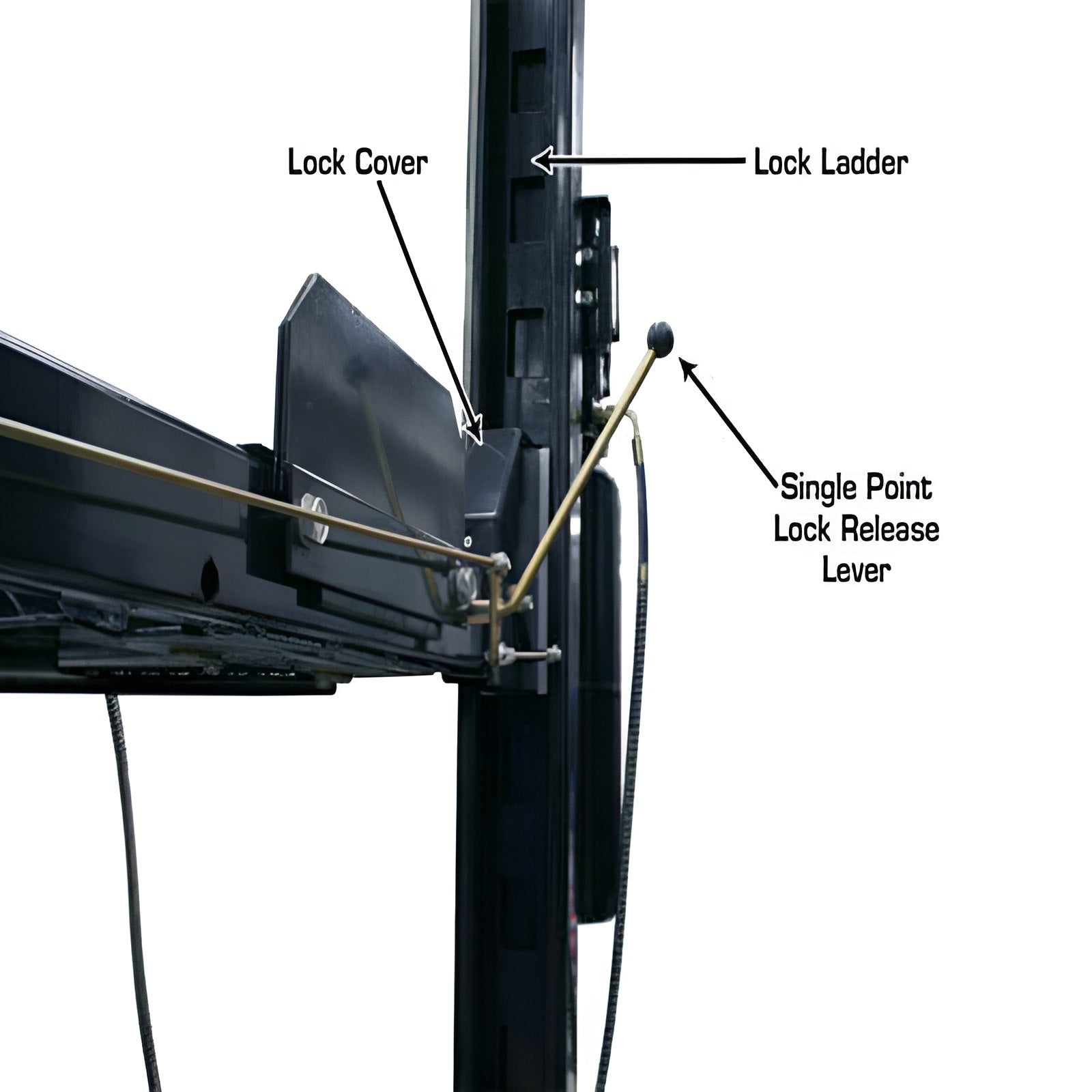

  • Lock Release: Single-Point

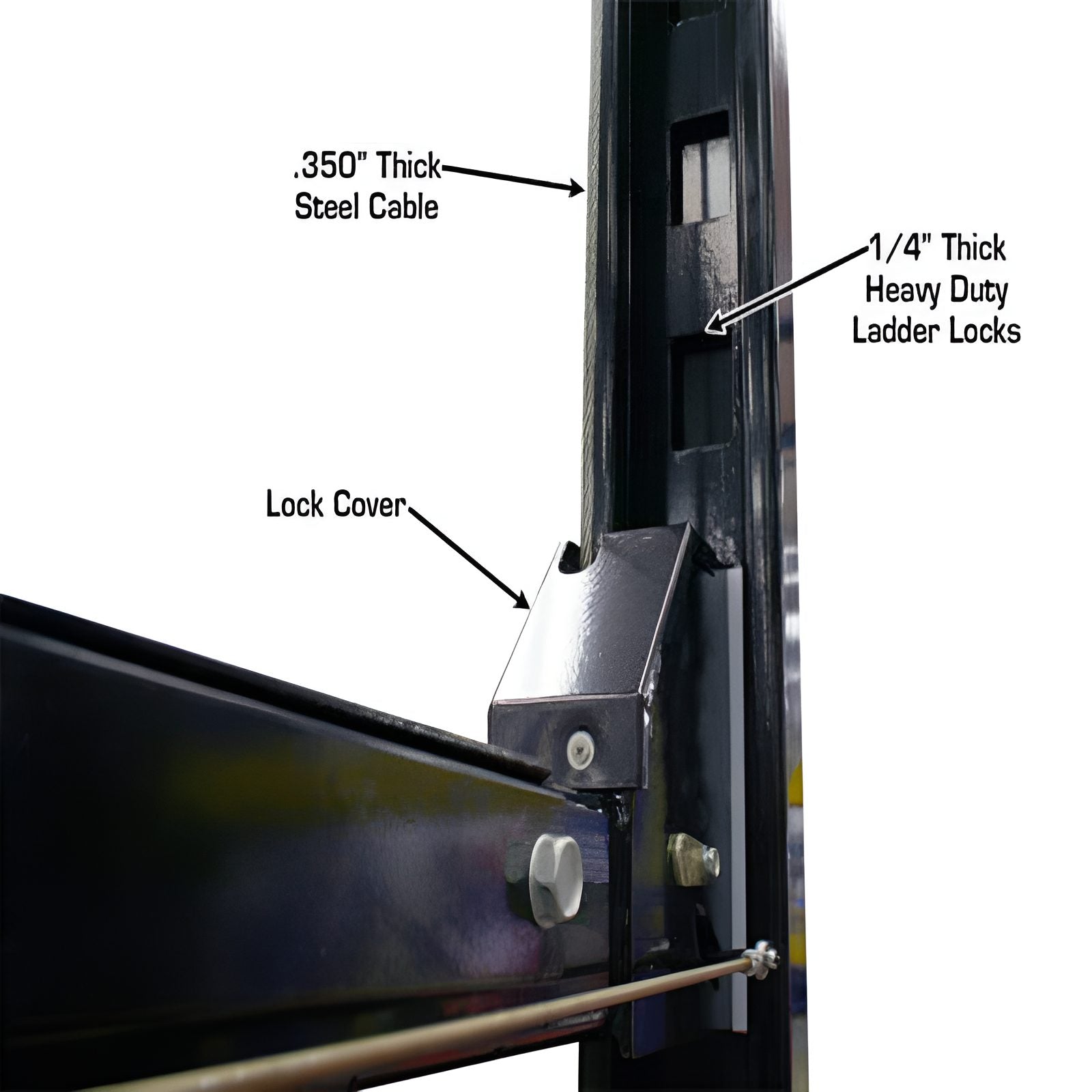

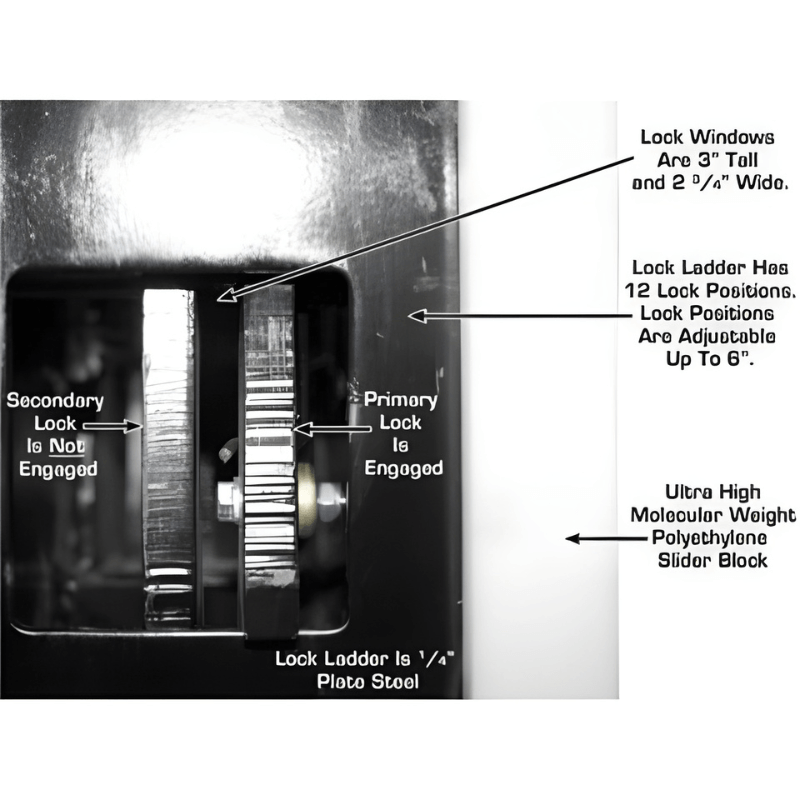

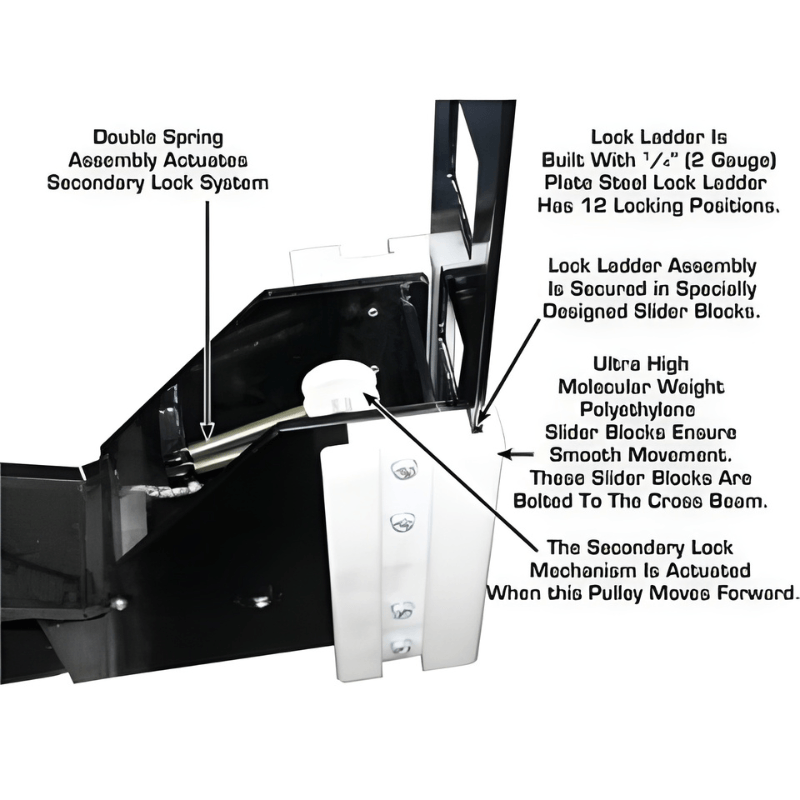

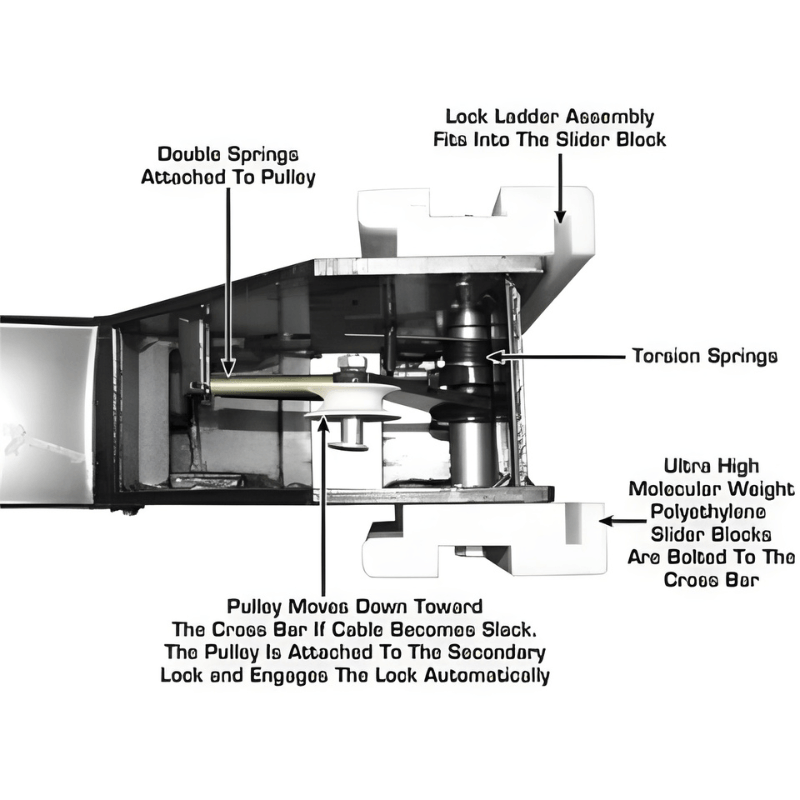

  • Lock Design Lock Ladder w/ Double Lock Safety System
  • Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
  • Unit Includes:

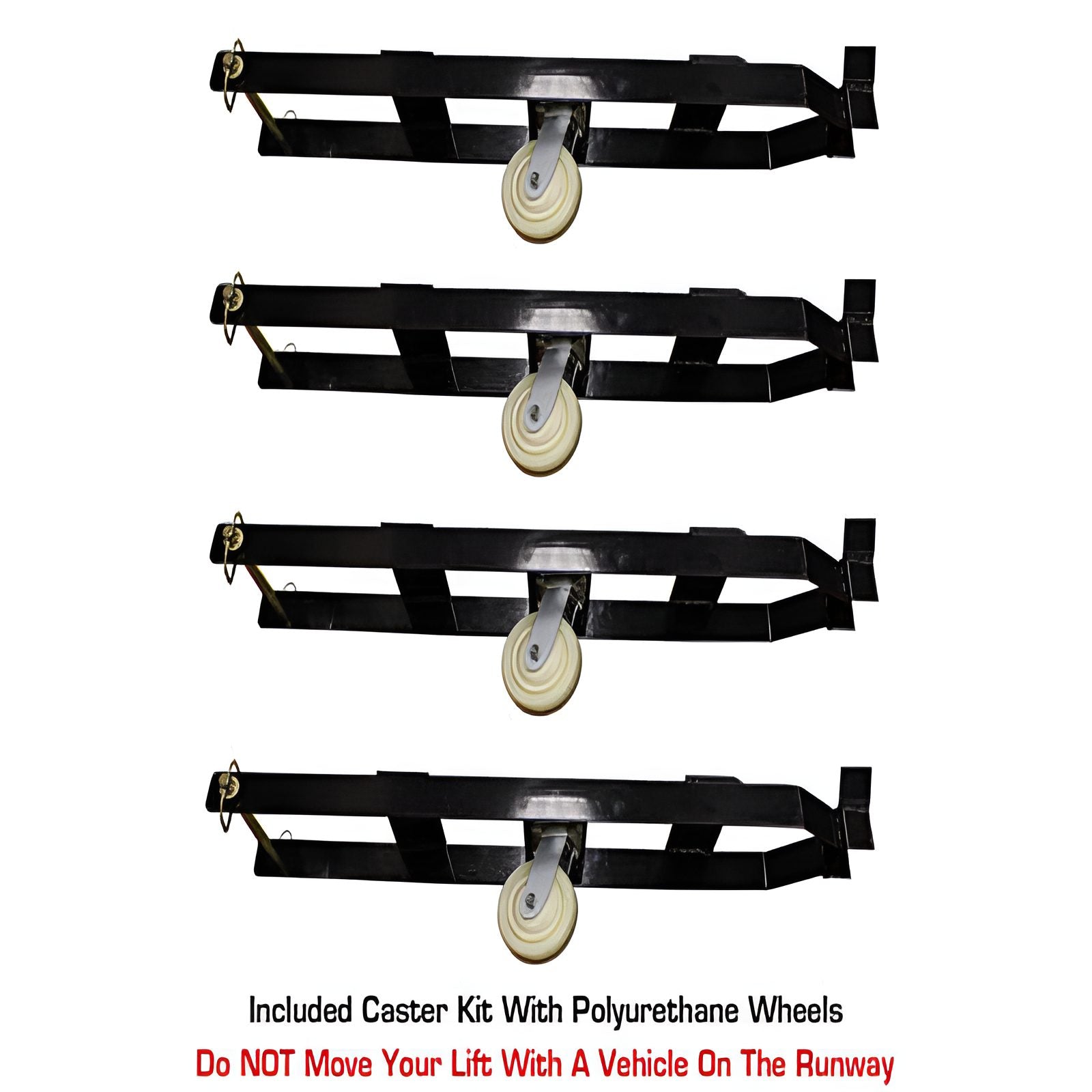

  •      Caster Kit with Polyurethane Wheels Included

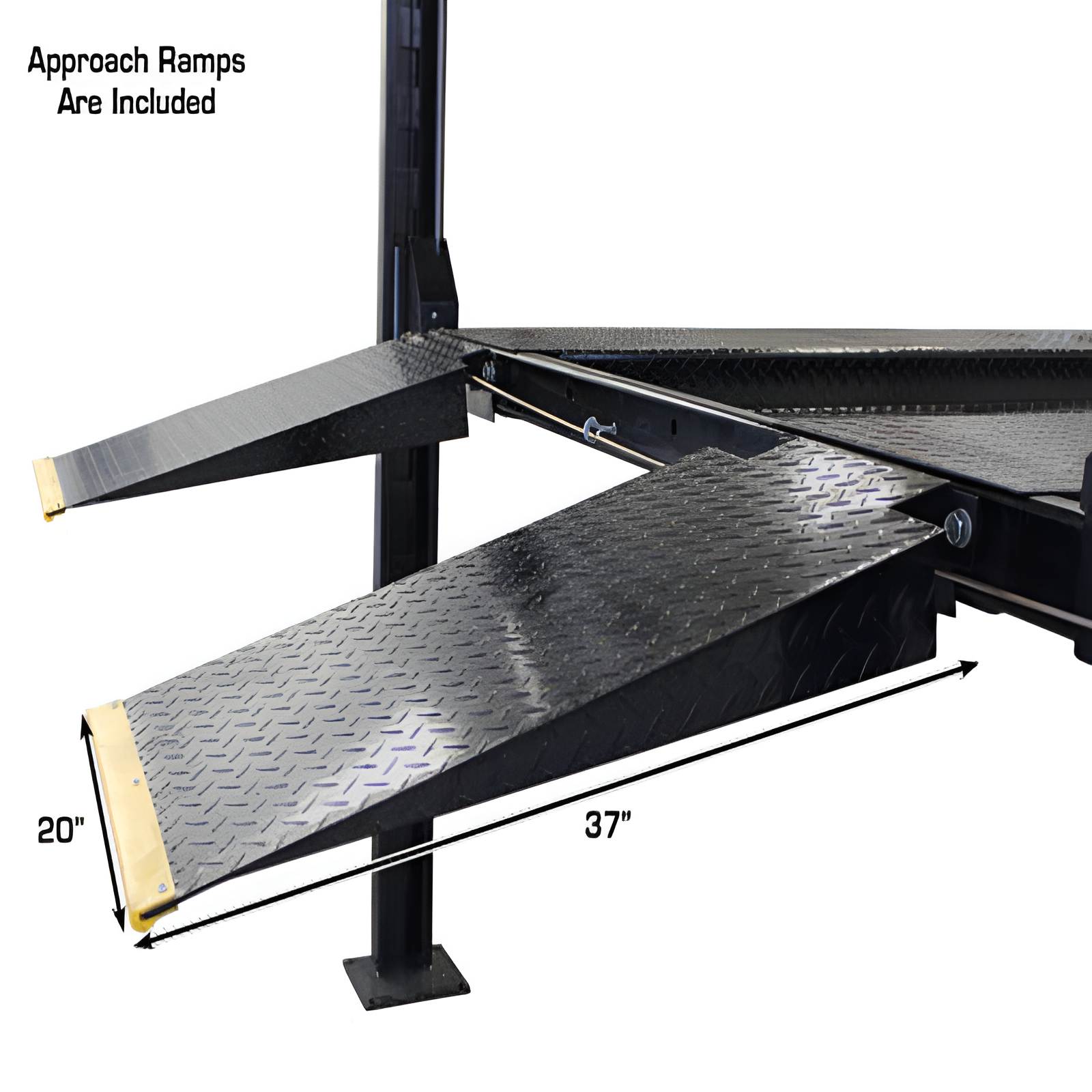

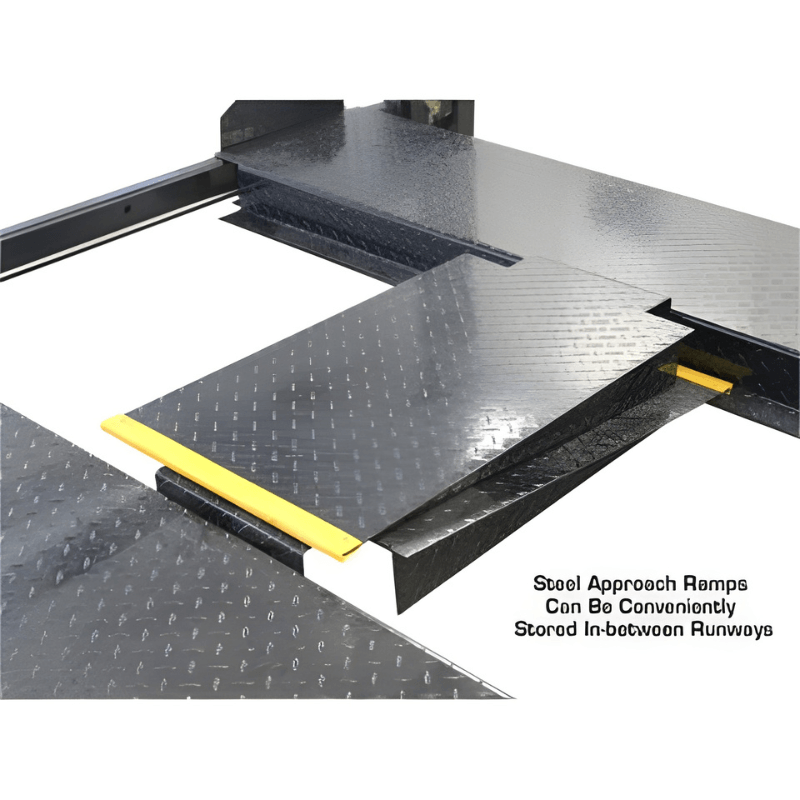

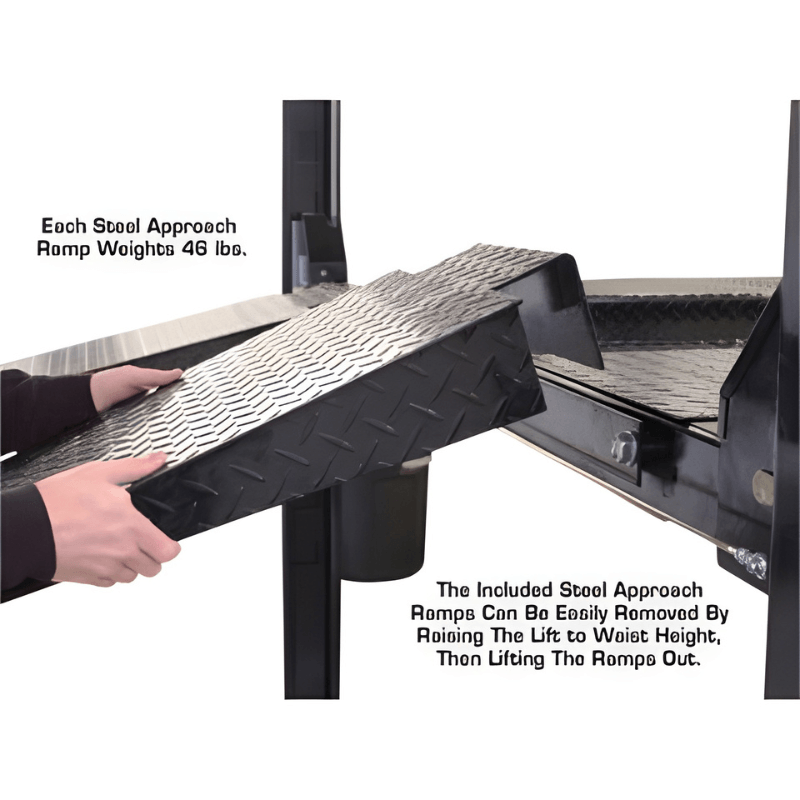

  •      Steel Approach Ramps Included

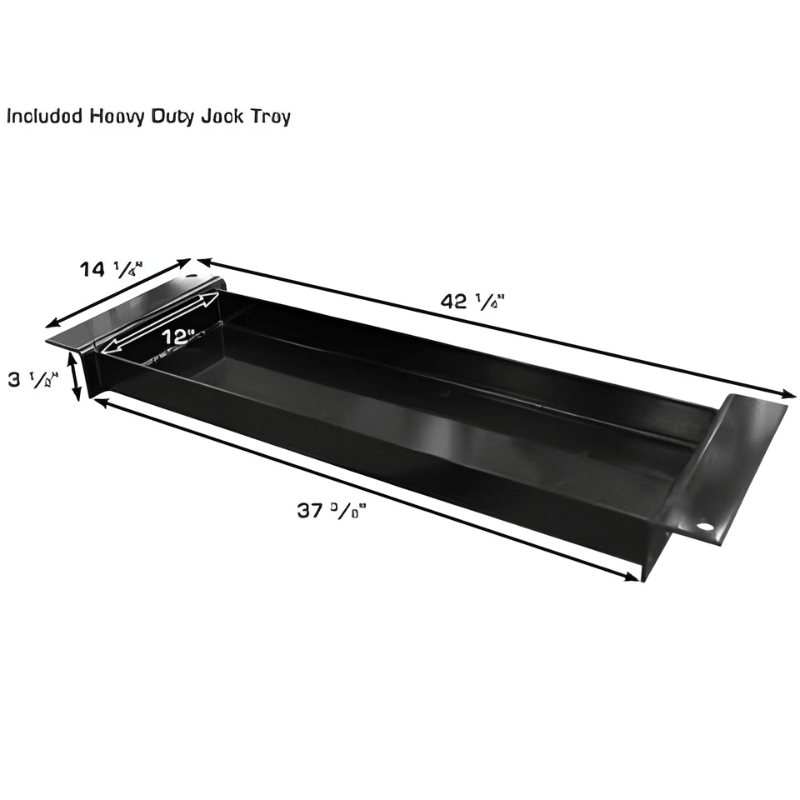

  •      Steel Jack Tray Included

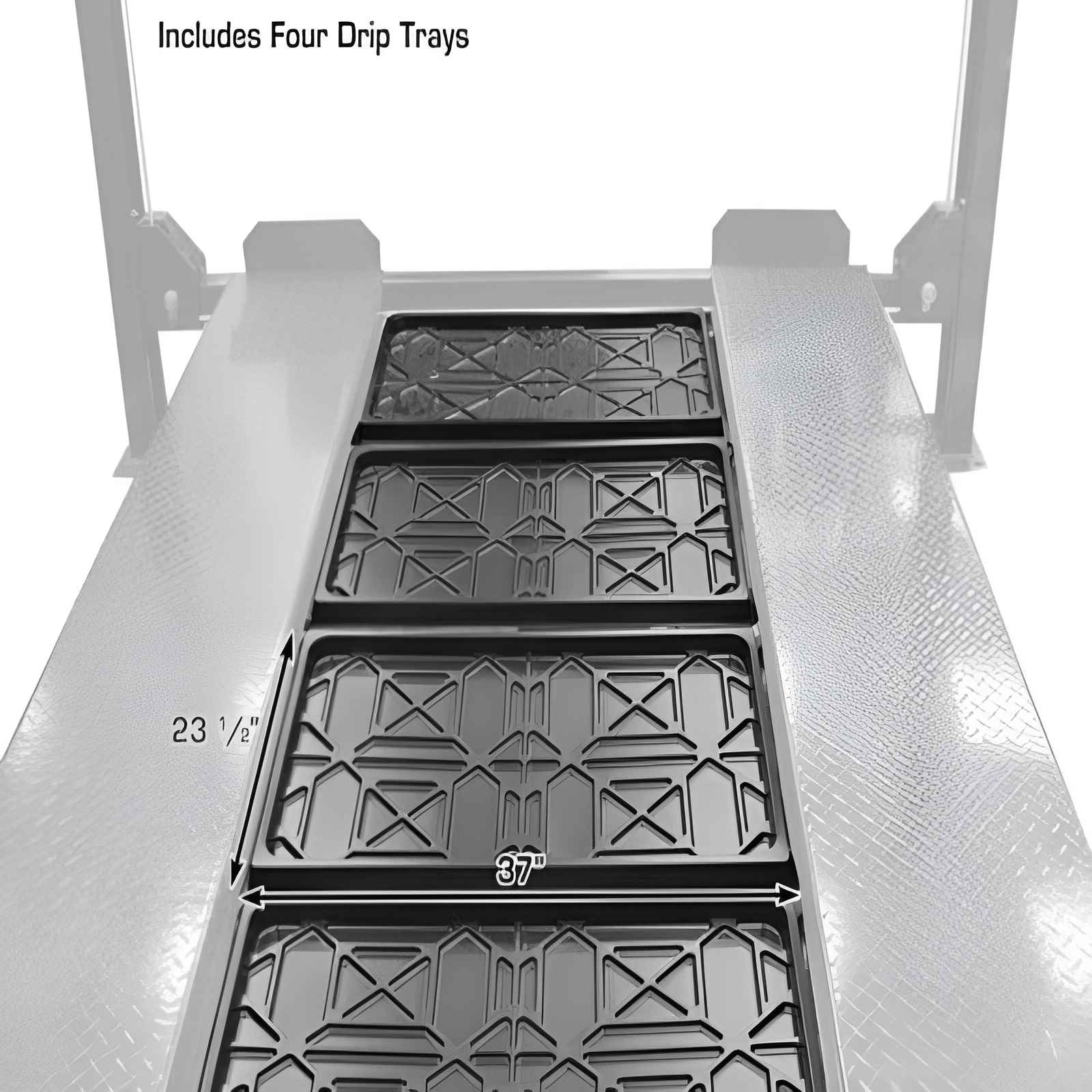

  •     4 Plastic Drip Trays
  •     4 Wheel Stops

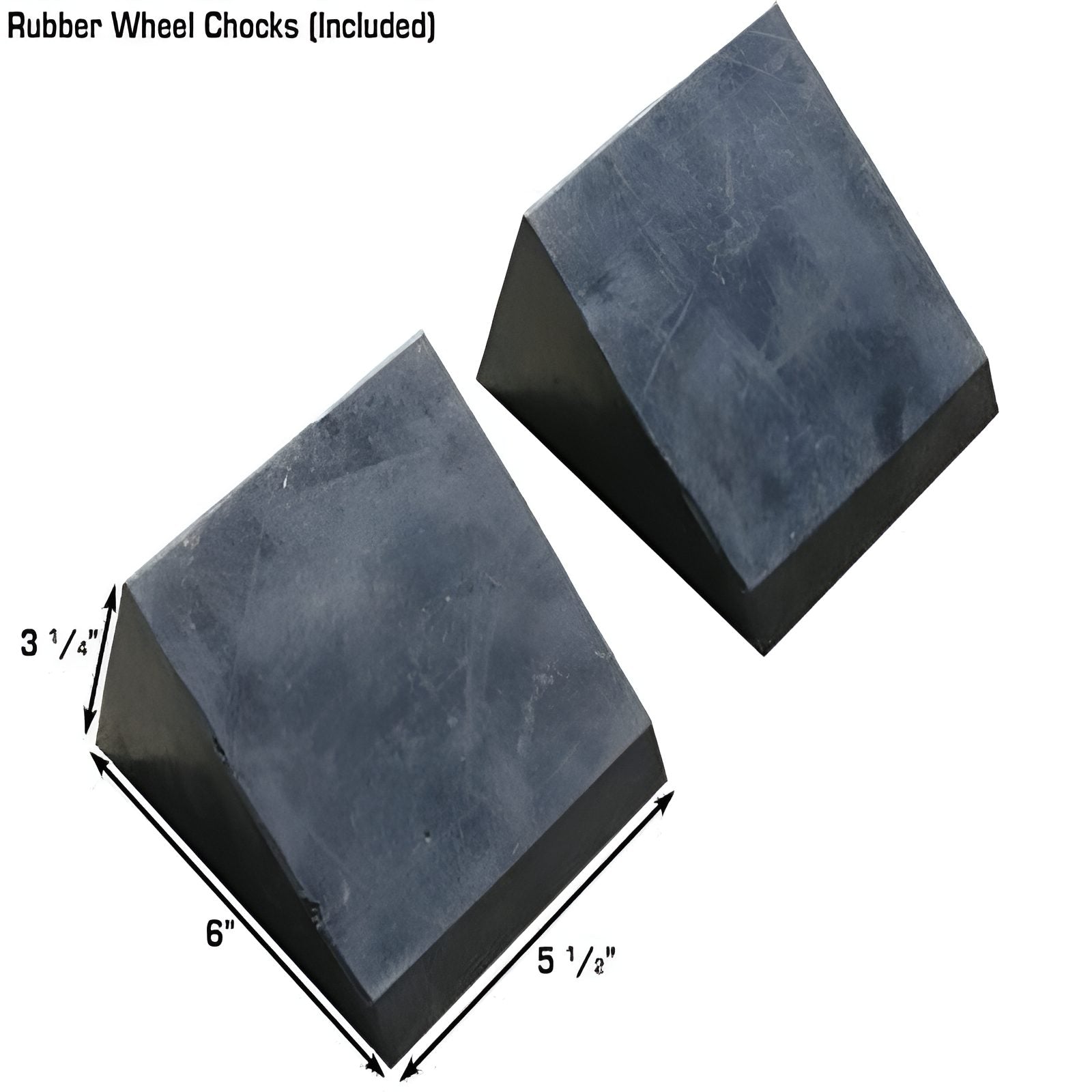

  •     2 Rubber Wheel
  • Buy as a Combo Atlas PRO8000 + RJ35
  • Optional Item(Sold Separately):
    • 37" Steel Jack Tray

Pro8000 4 Post Parking Lift Optional Items (sold separately):

Atlas Garage Pro 8000 Documentation:

Parking Lift Pro8000 Lift Product Manual   Atlas Pro8000 Parking Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $399
