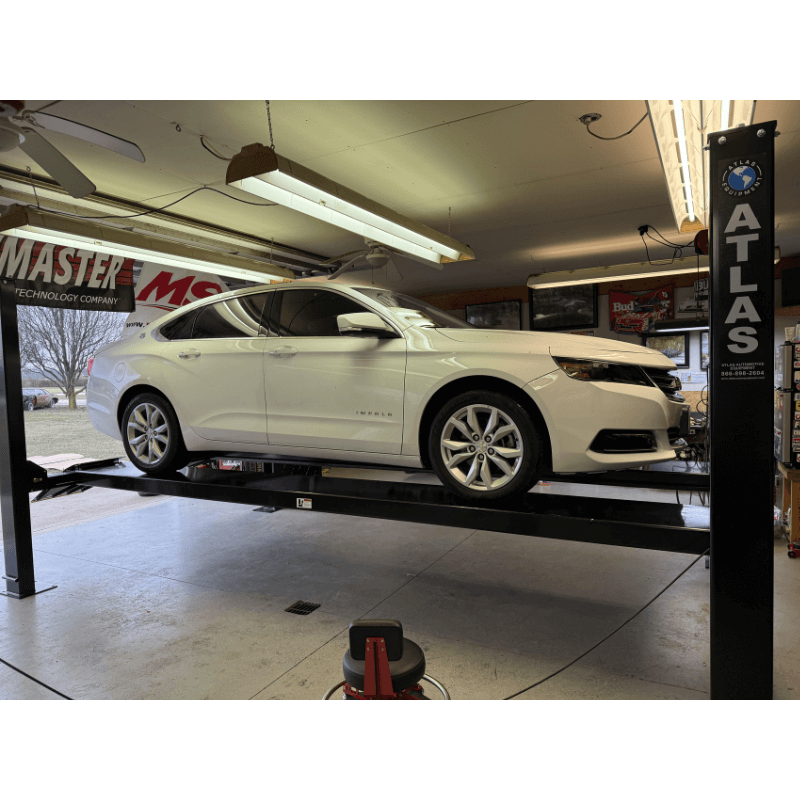

PRO9000 4 Post Lift + RJ6 Rolling Jacks Combo by Atlas

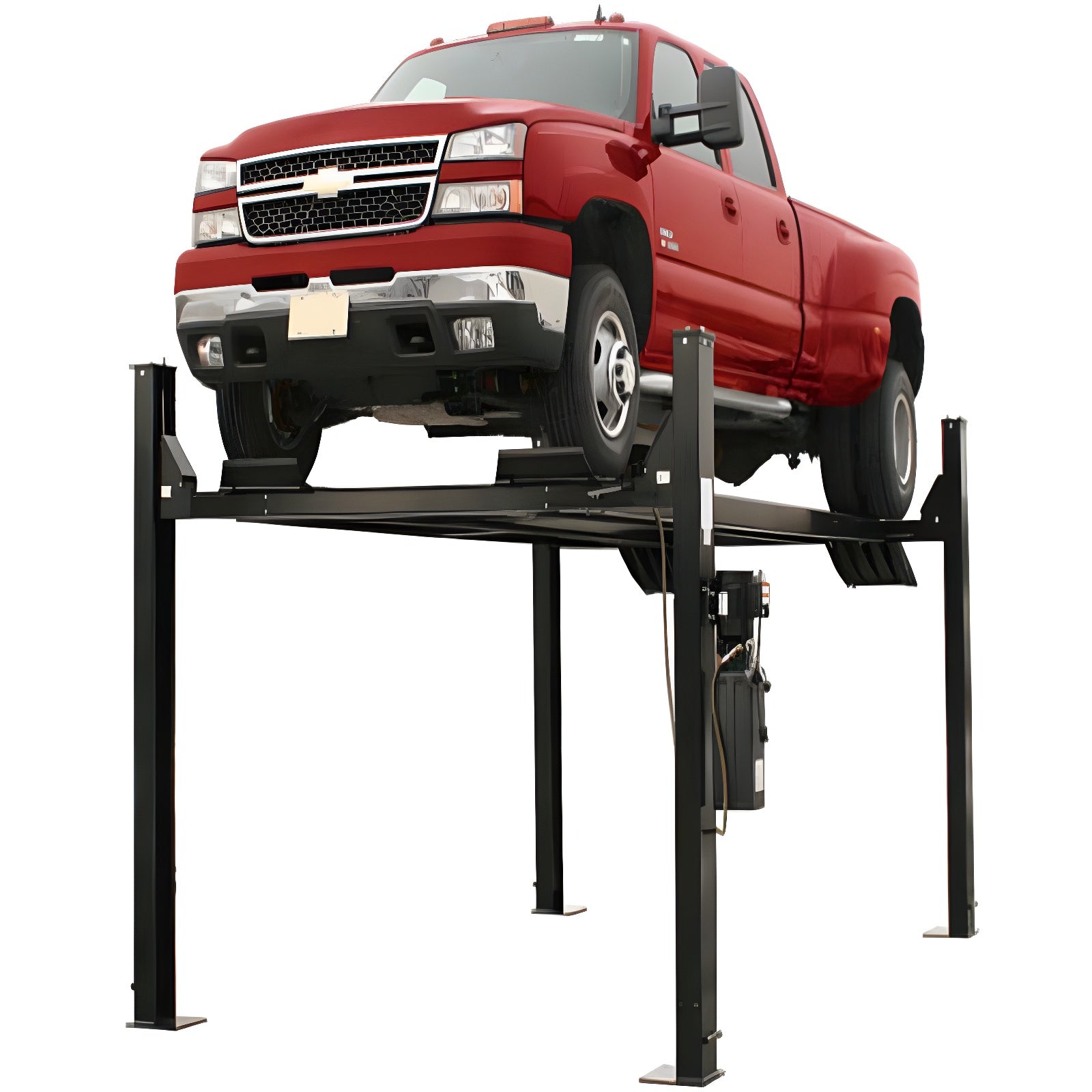

The Atlas Garage PRO9000 4-post lift is a robust hobbyist lift with the highest lifting capacity in our Garage PRO series. It boasts extra-long runways, believed to be the longest available in a portable 9,000 lb. four-post lift, making it ideal for handling vehicles with long wheelbases. The PRO9000 is also extra-wide, accommodating even Diesel Duallys with ease. Additionally, its extra height allows it to park vehicles ranging from Smart Cars to Duallys both underneath and on the runways.
With its commercial-grade features, the Garage PRO9000 is an excellent choice for both automotive service centers and homeowners seeking a portable, professional four-post lift at a competitive price.
This combo package also includes two popular Atlas RJ6 rolling bridge jacks, perfect for lifting a vehicle's wheels off the lift’s runways for tire and brake service.
4 Post Parking Lift Pro9000 + Rolling Jacks RJ6 Specifications:
PRO9000
- Capacity: 9,000 lbs

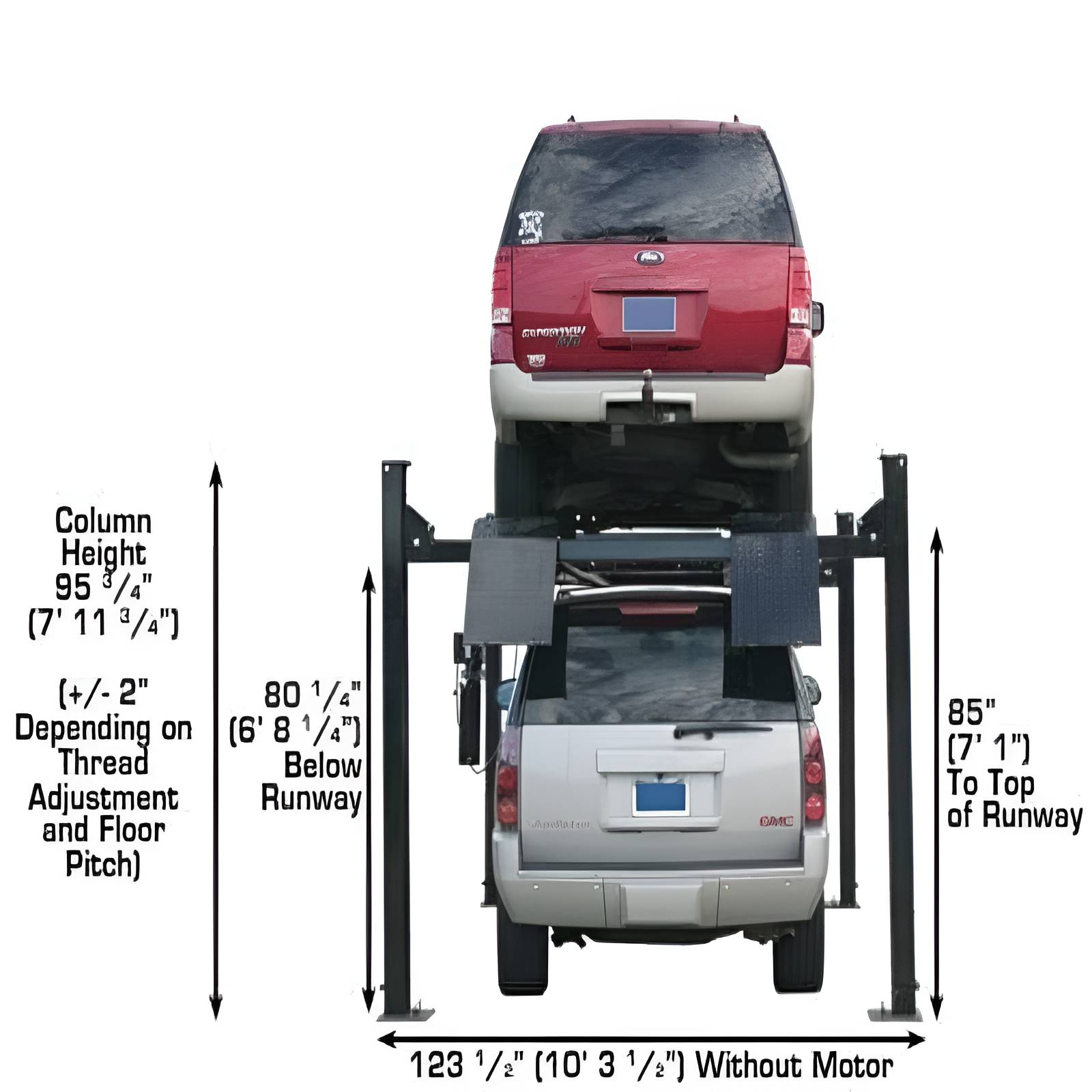

- Lifting Height to Top of Runway: 85" (7' 1")

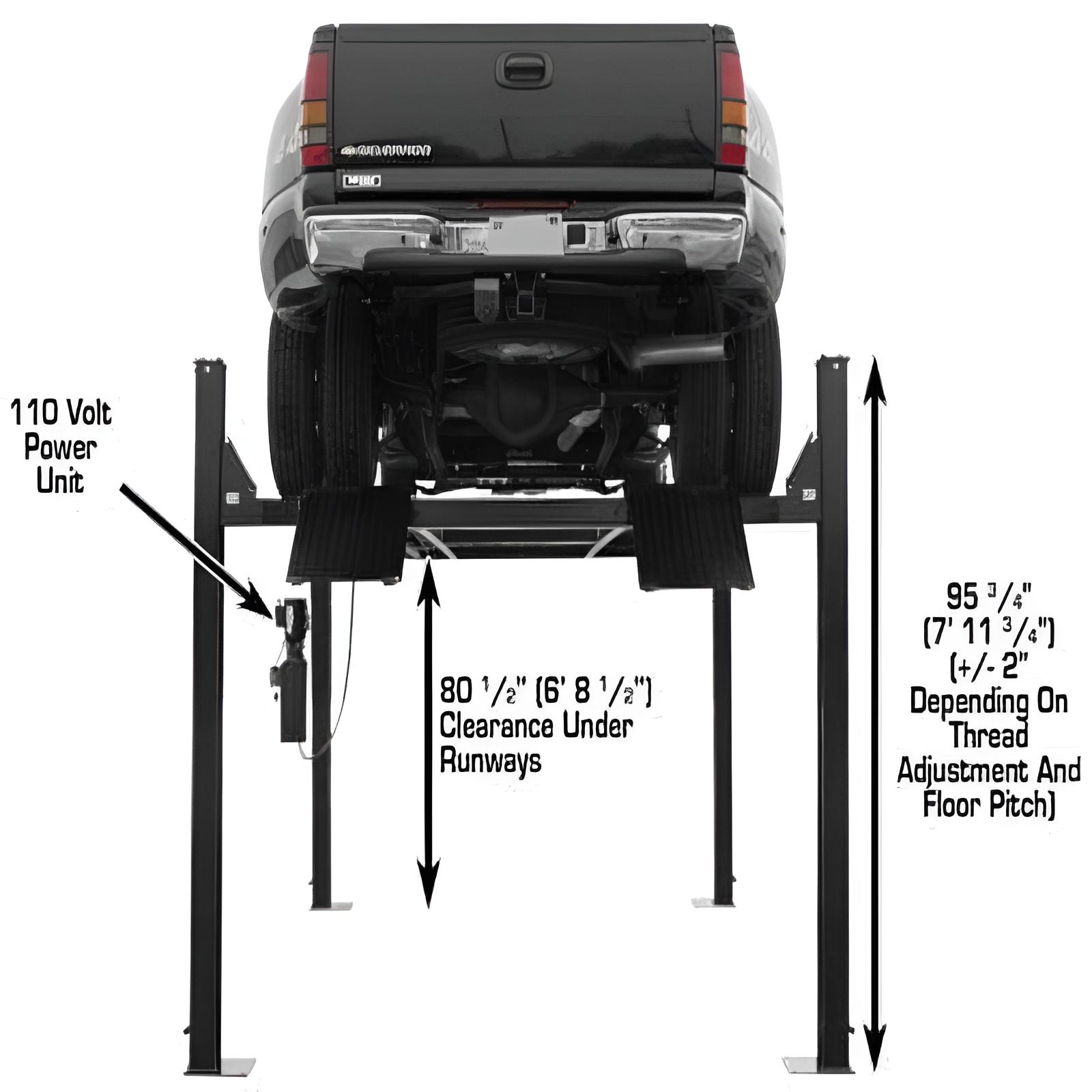

- Clearance Under Runways: 80 1/4" (6' 8 1/4")

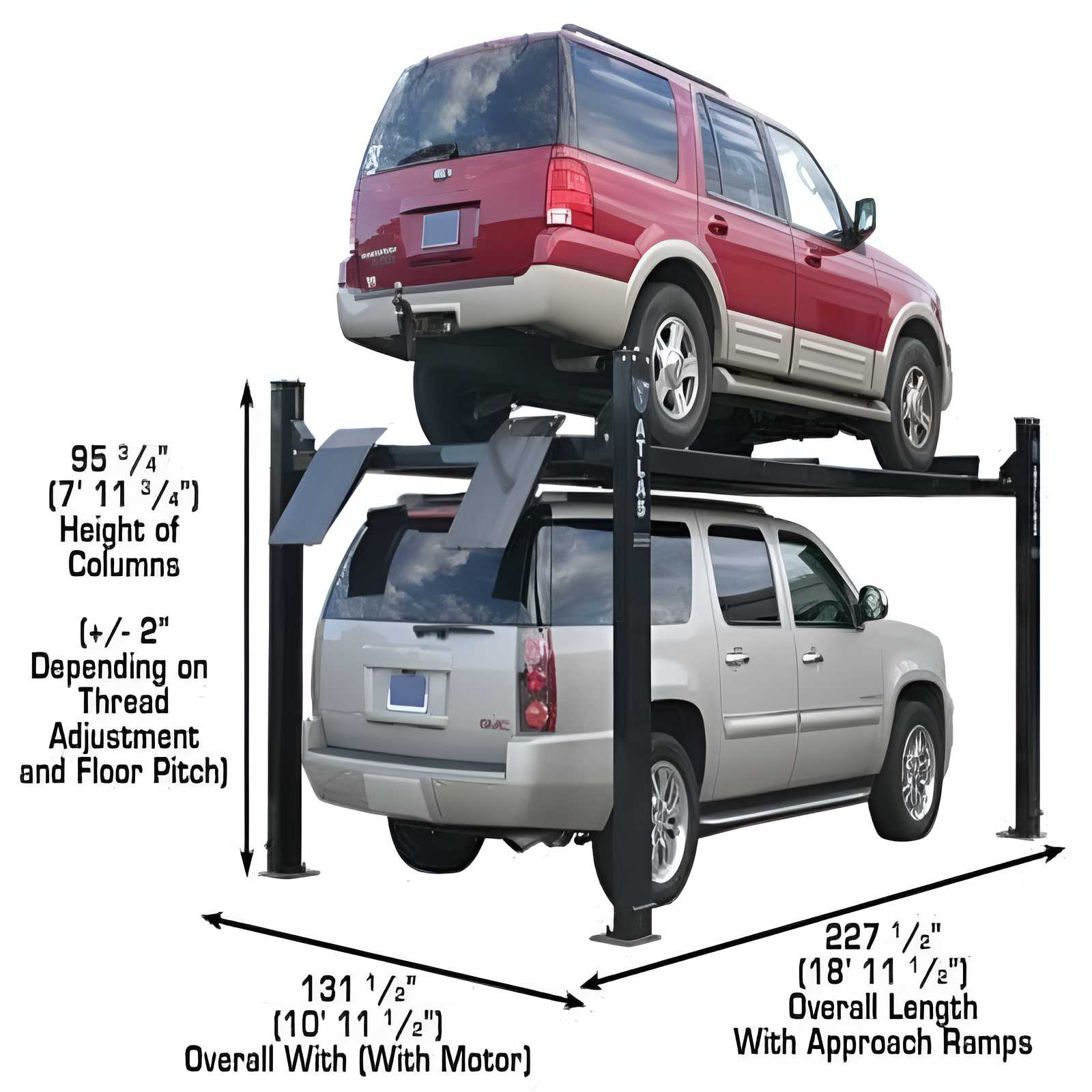

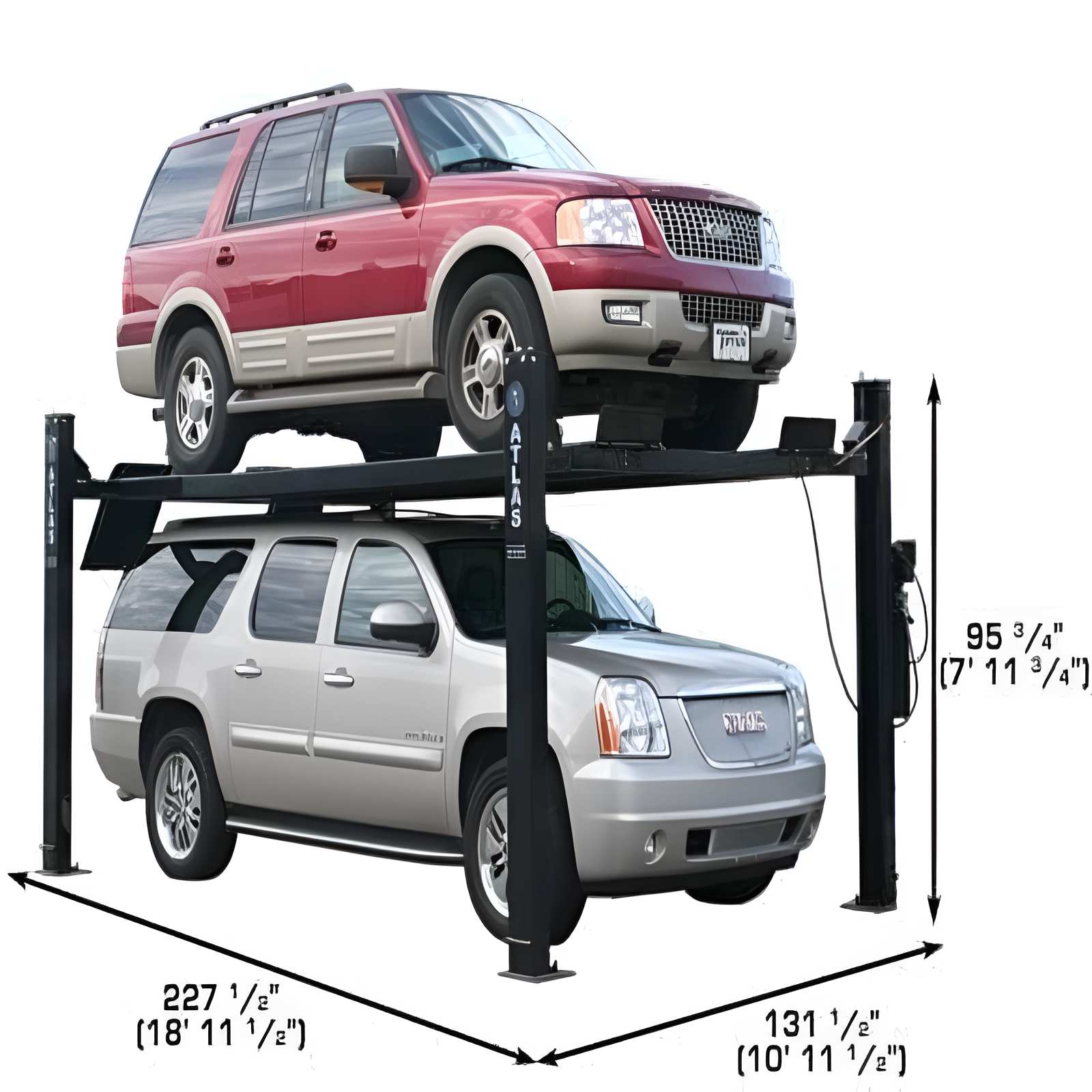

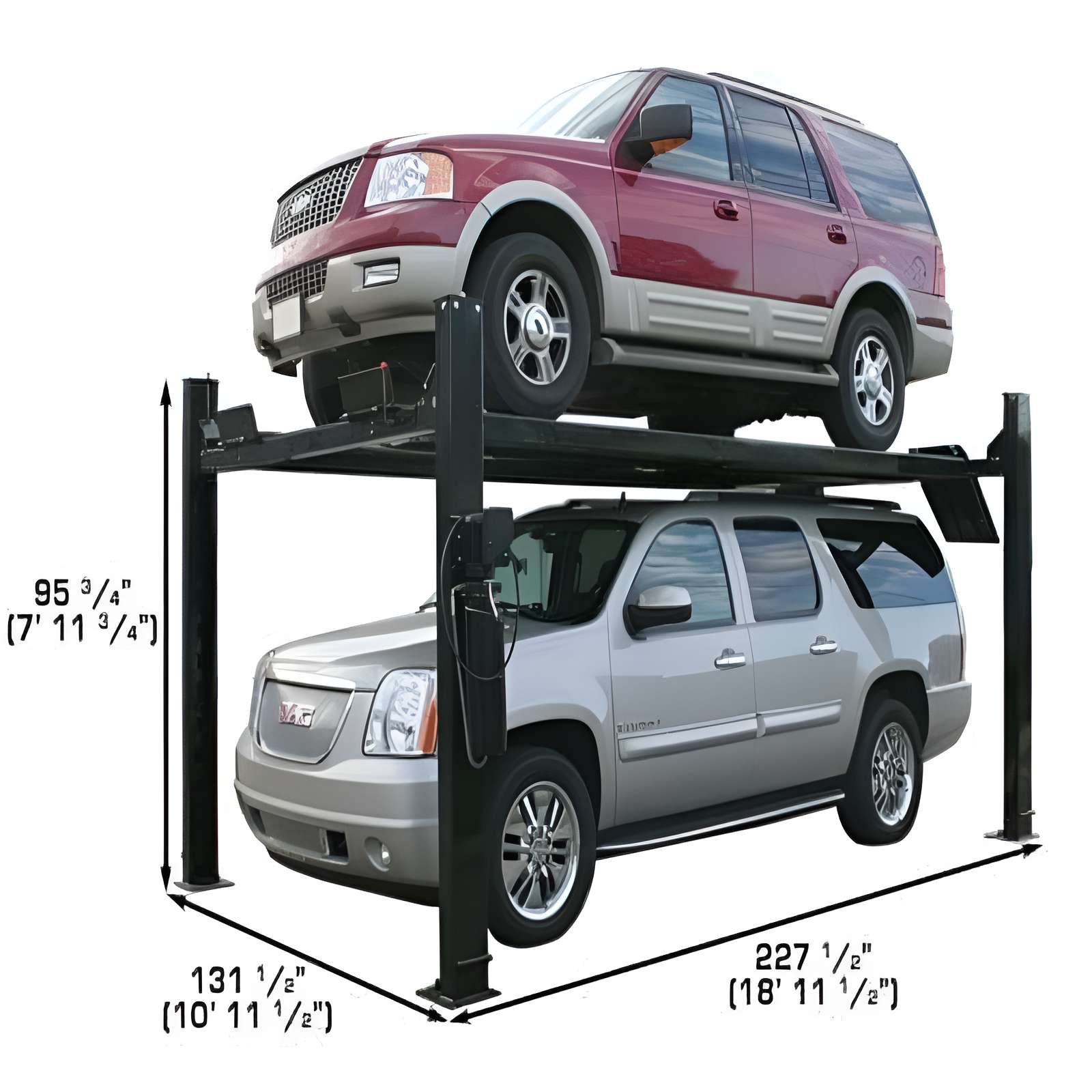

- Height of Columns: 95 3/4" (7' 11 3/4")
- Overall Width (Without Motor): 123 1/2" (10' 3 1/2")
- Overall Width (With Motor): 131 1/2" (10' 11 1/2")

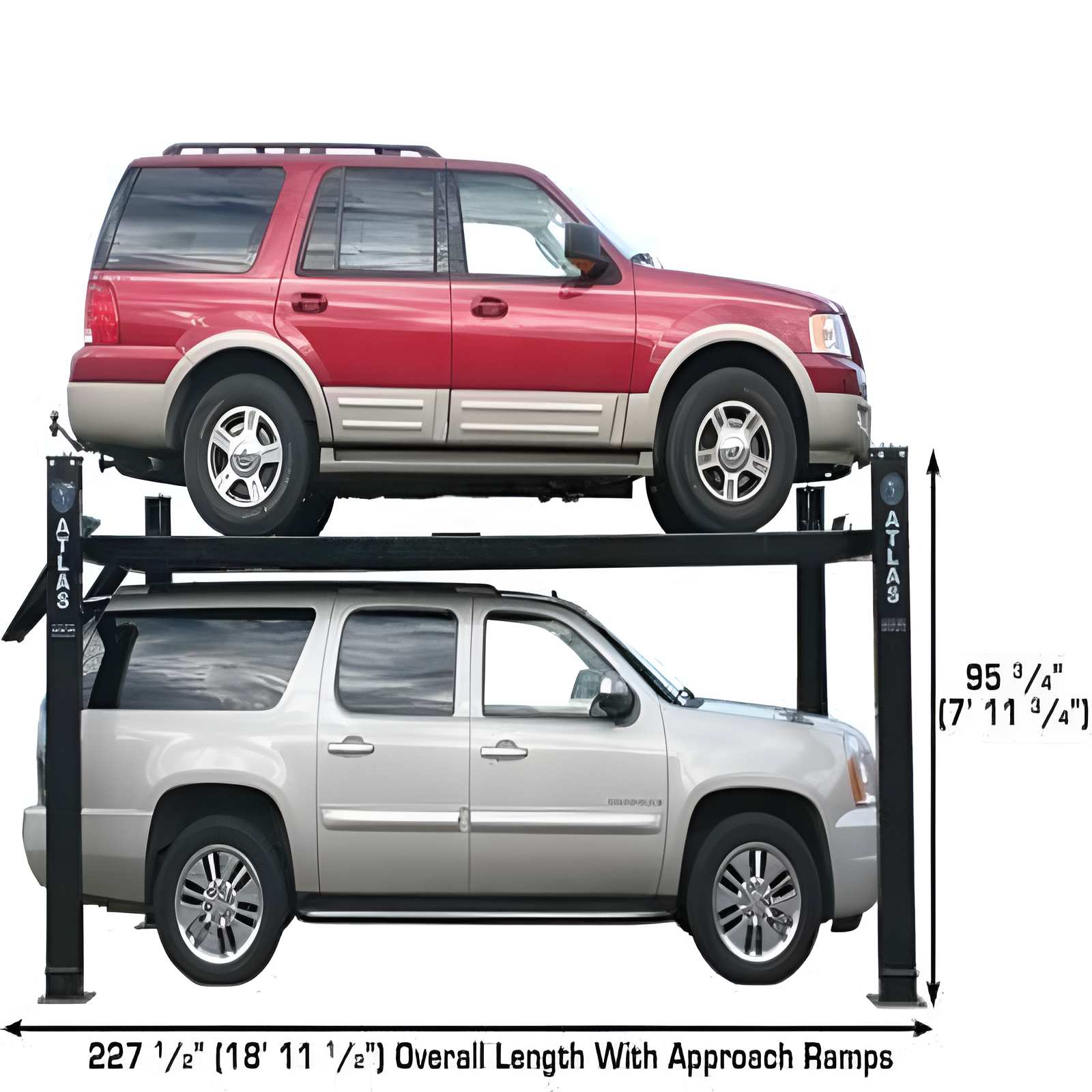

- Overall Length With Approach Ramp: 227 1/2" (18’ 11 1/2”)
- Approach Ramp: 31" (2' 7")
- Runway Width: 21 1/4" (with Rails) or 20" (Driving Surface)
- Runway Length: 199 1/2" (16' 7 1/2")
- Runway Thickness: 4 3/4"
- Width Between Runways: 39 3/4" (3' 3 3/4")
- Width Between Runway Rails: 35 1/2" (2’ 11 1/2")
- Outside Runway to Outside Runway: 79" (6' 7")

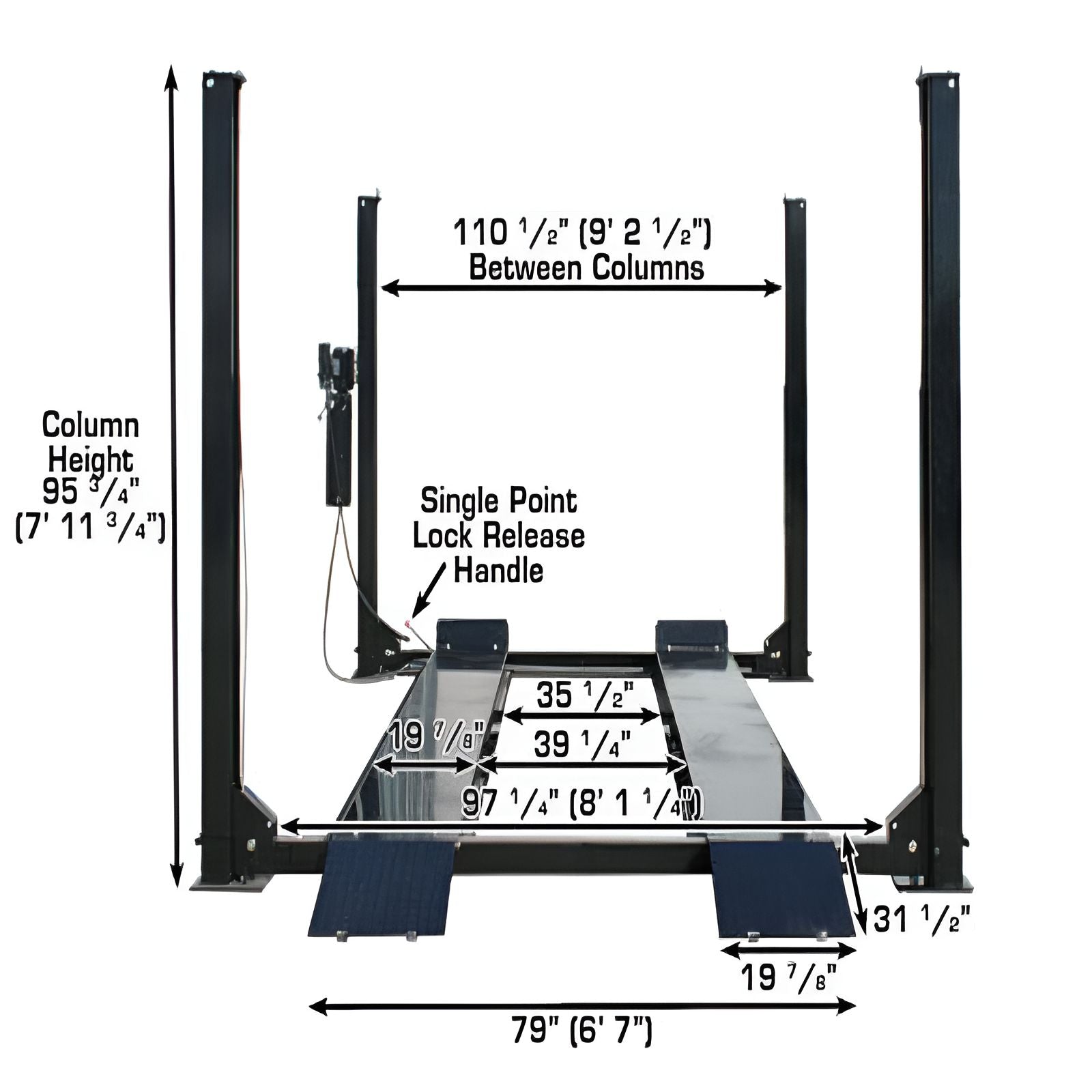

- Clearance Between Columns: 110 1/2" (9' 2 1/2")

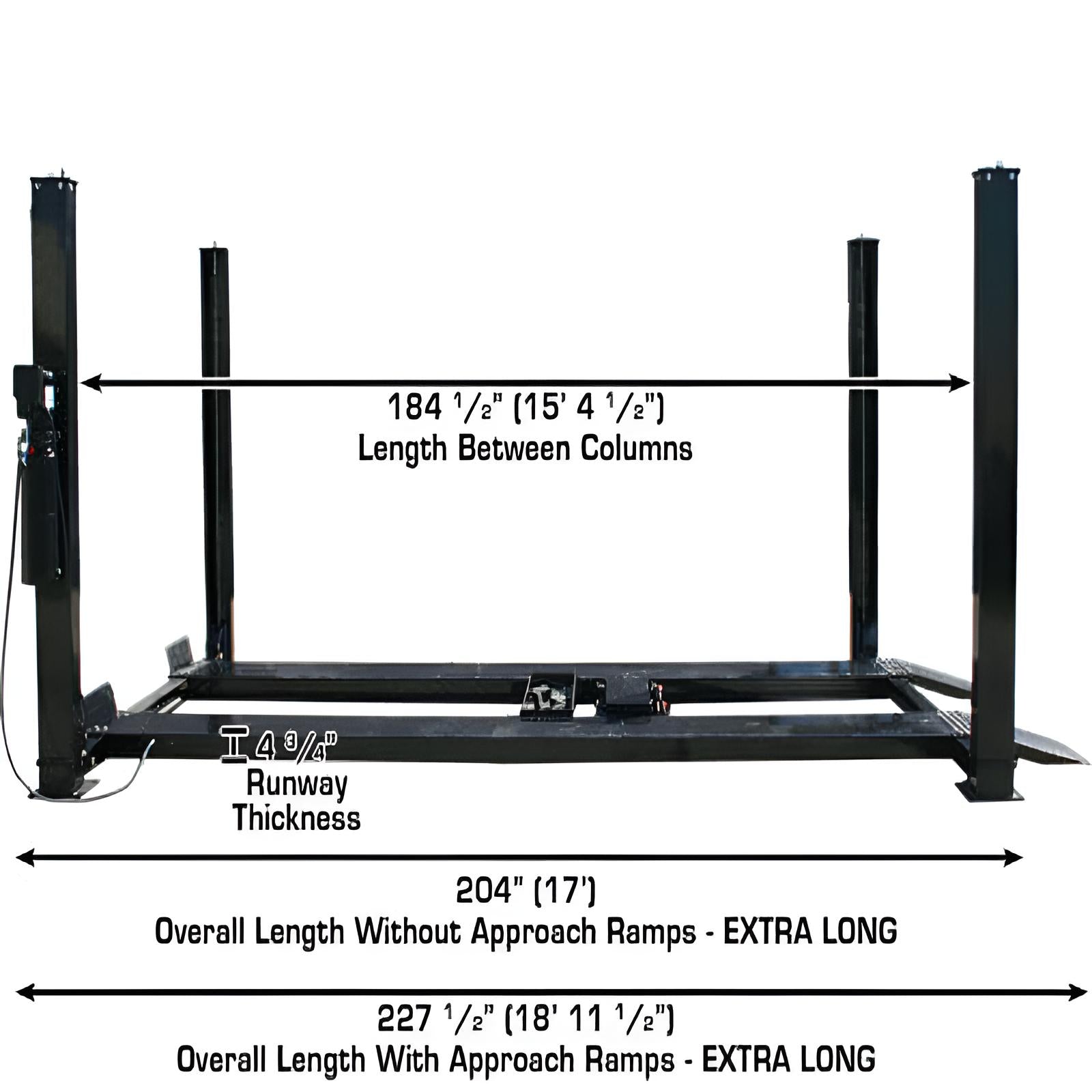

- Length Between Columns: 184 1/2" (15' 4 1/2")
- Maximum Wheel Base: 187" (15' 7")
- Drive Thru (Outside of Tire to Outside of Tire): 97 1/4" (8' 1 1/4")
- Motor/Electrical Requirement: 110 Volt, 30 AMP Breaker Required
- Shipping Weight: 2,300 lbs

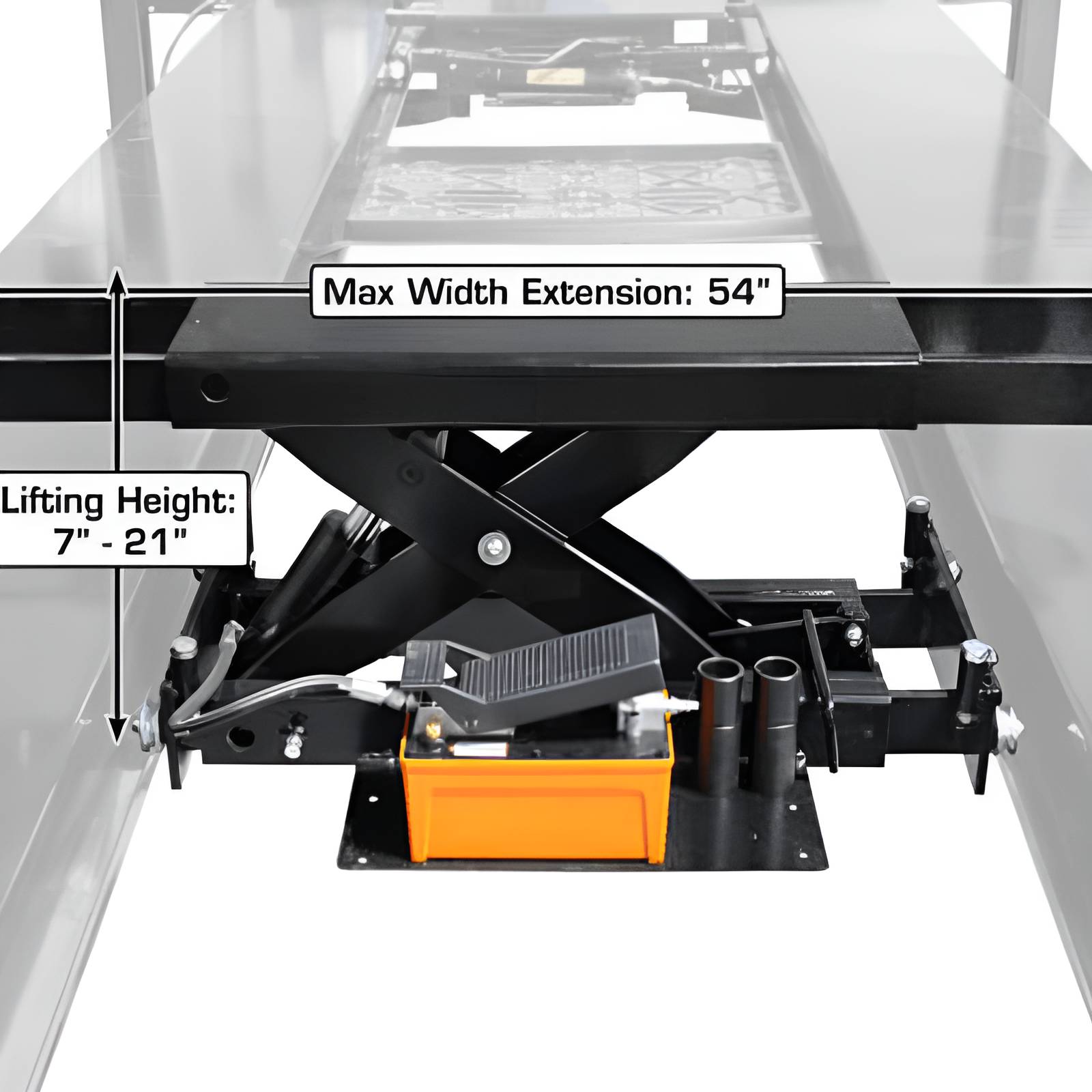

RJ6
- Maximum Capacity: 6,000 lbs

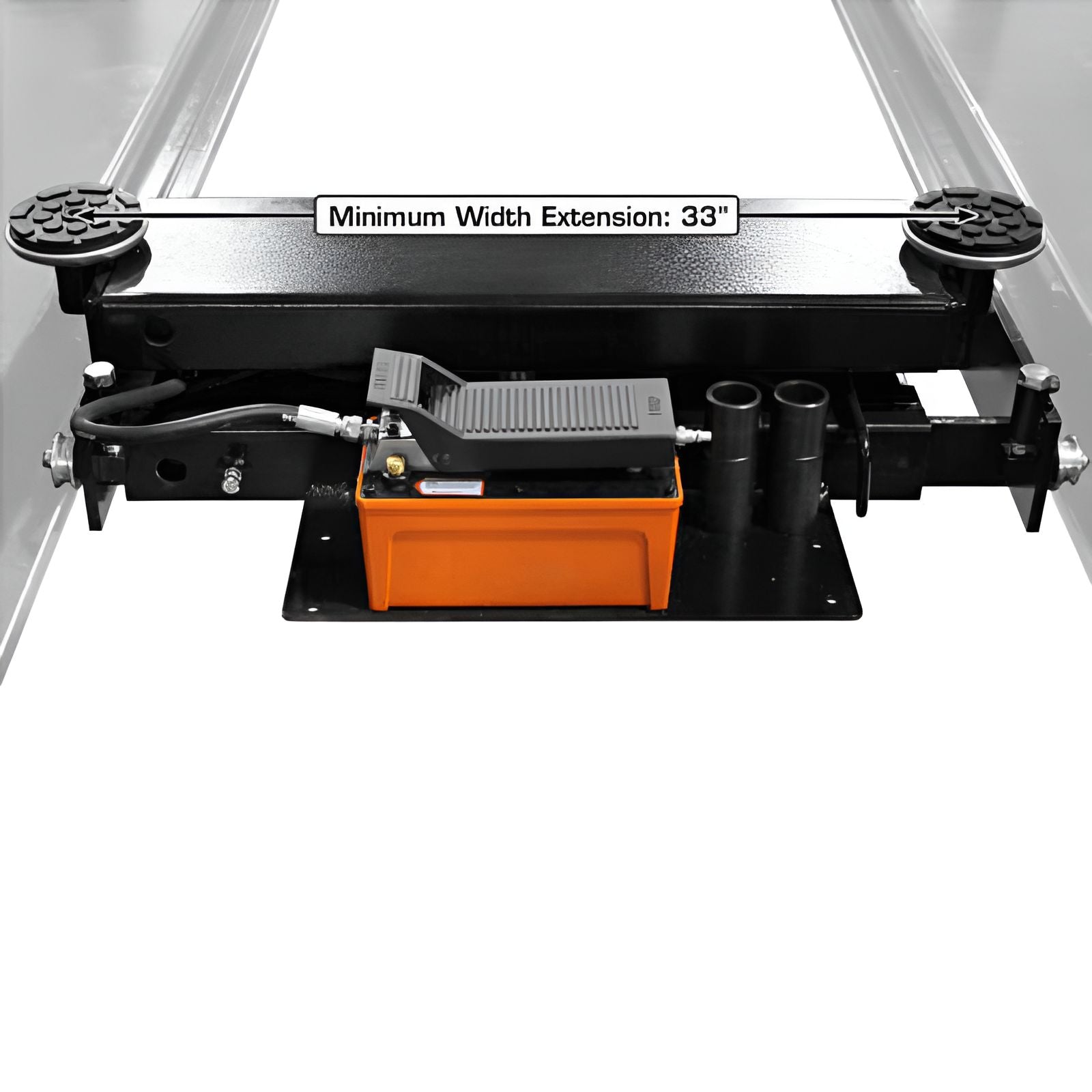

- Maximum Width: 55" (4' 7")
- Minimum Width: 35" (2' 11")
- Distance Between Runway Capability: 32"-52"

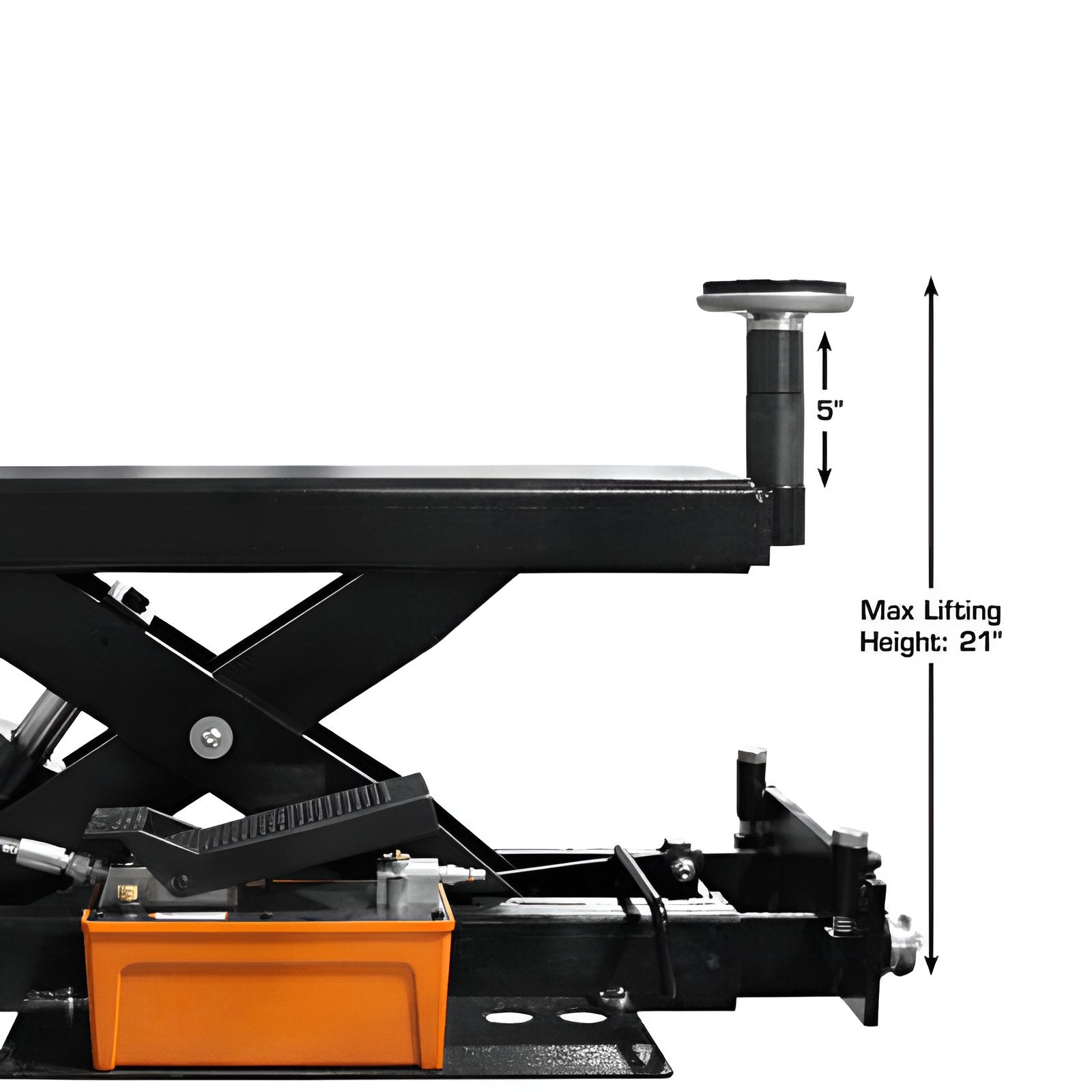

- Maximum Lifting Height (With Adapters): 21" (1' 9")
- Air Requirement: 70-115 PSI
- Shipping Weight: 350 lbs
- Adapter Heights: 2 Each 2", 3"
- Arm Hole/Adapter Peg Size: 1.5"
PRO9000 4 Post Lift + RJ6 Rolling Jacks Special Features:
PRO9000
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long

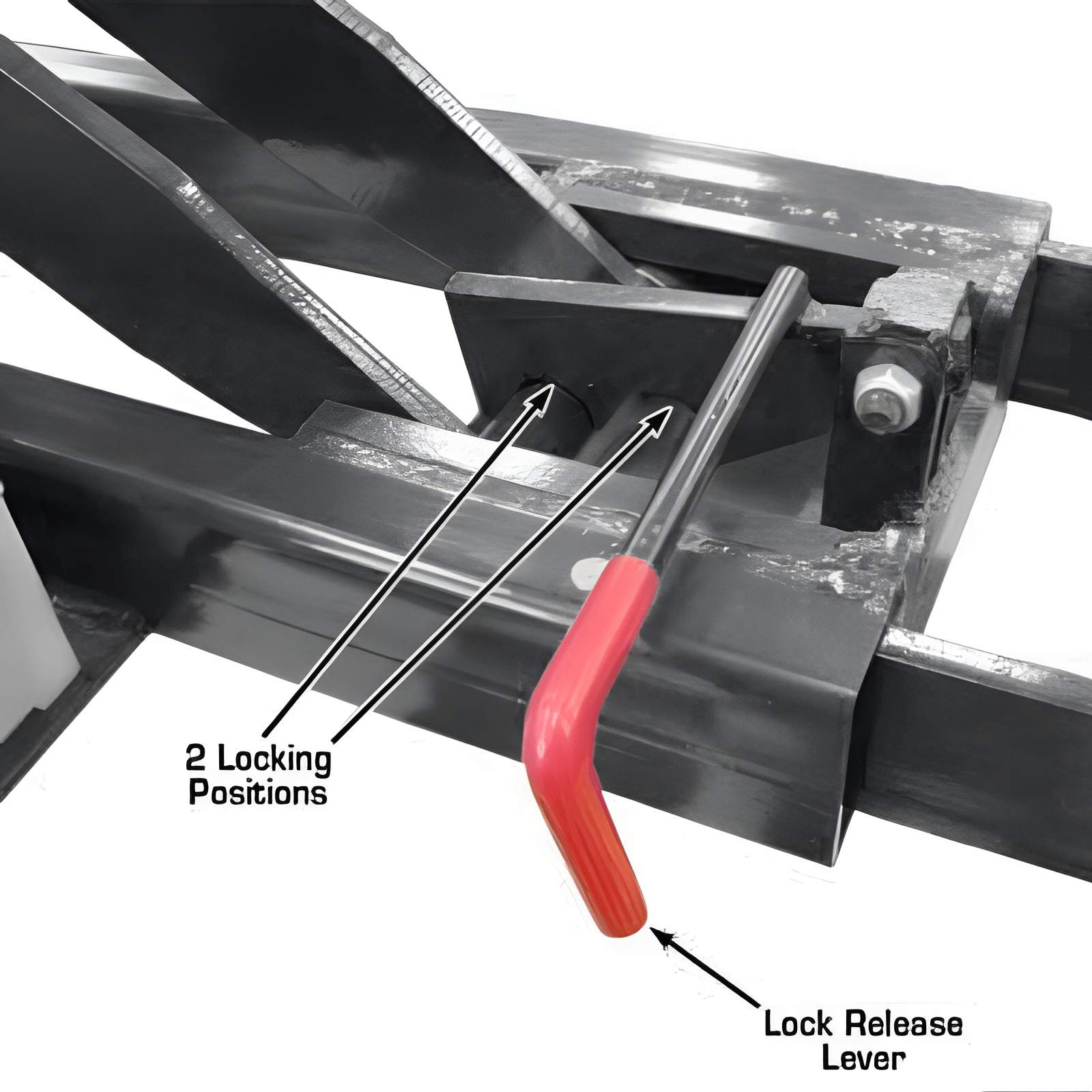

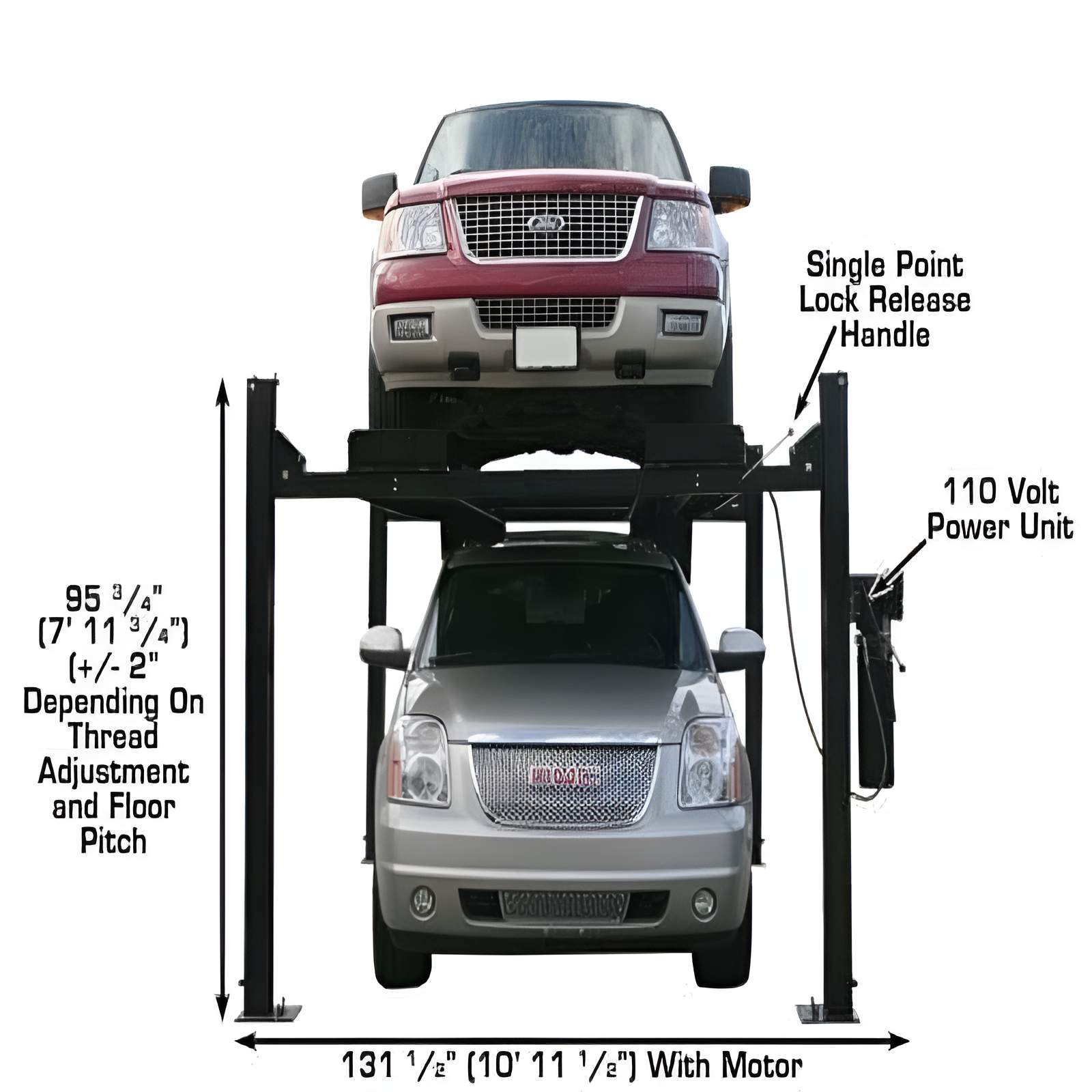

- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System

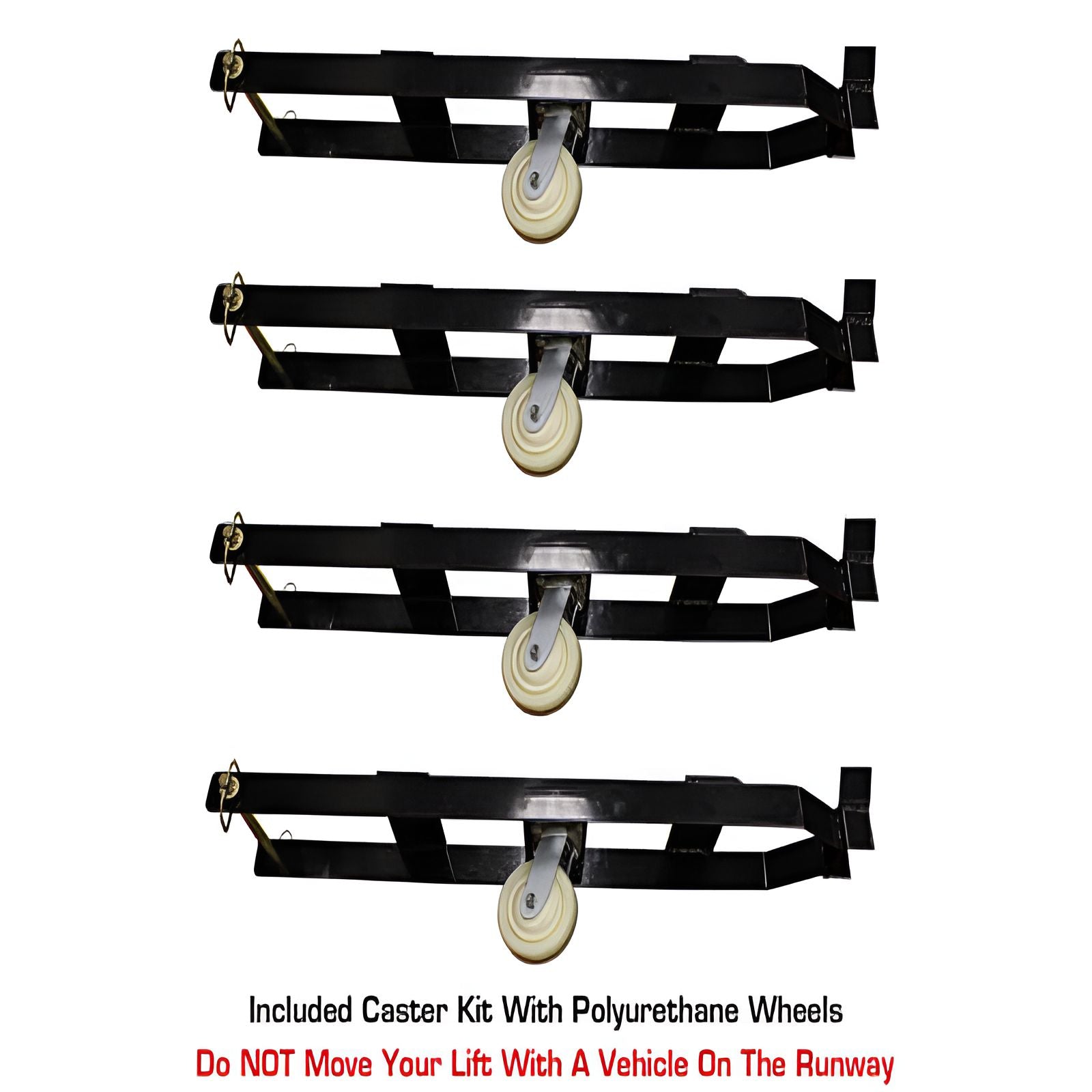

- Caster Kit With Polyurethane Wheels Included

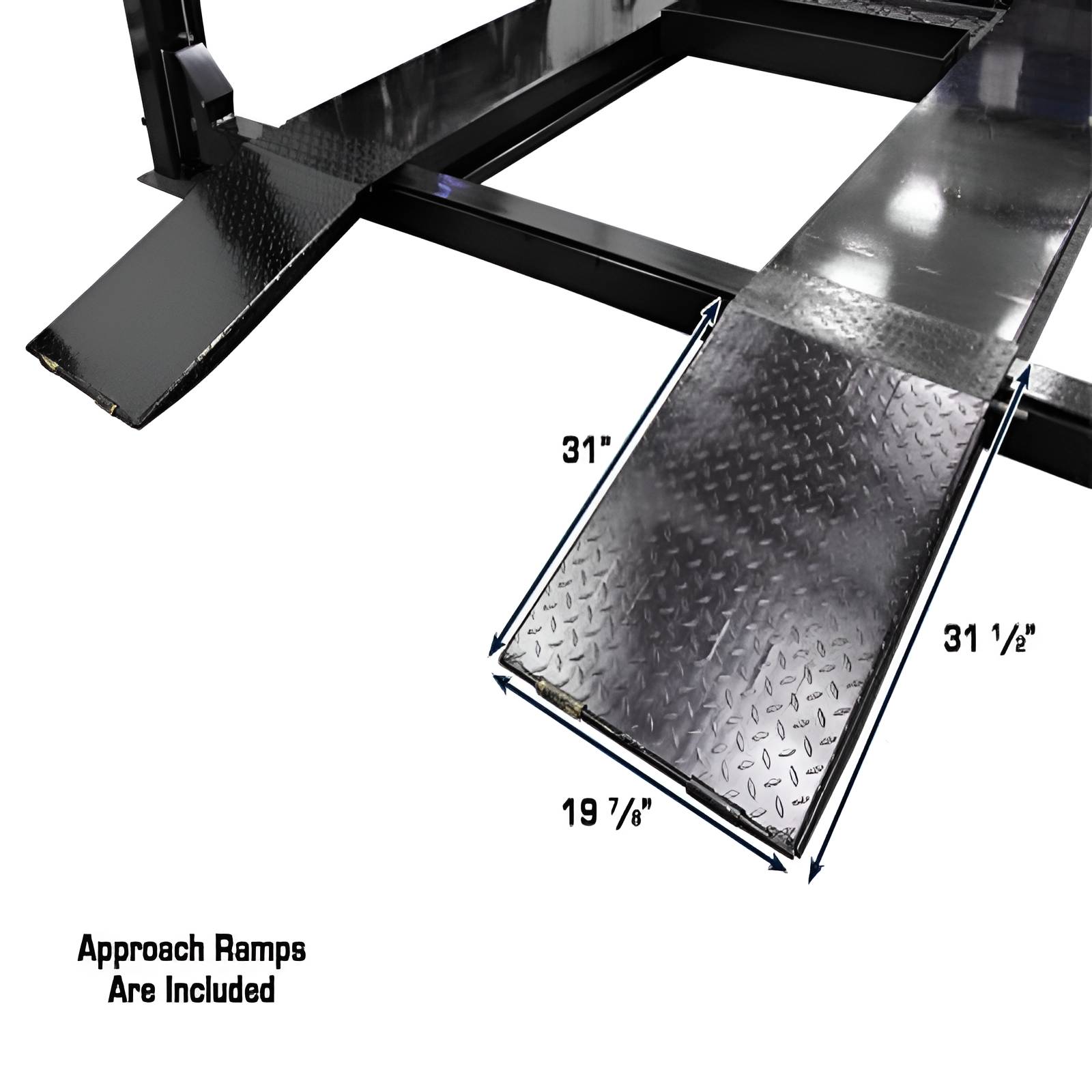

- Steel Approach Ramps Included

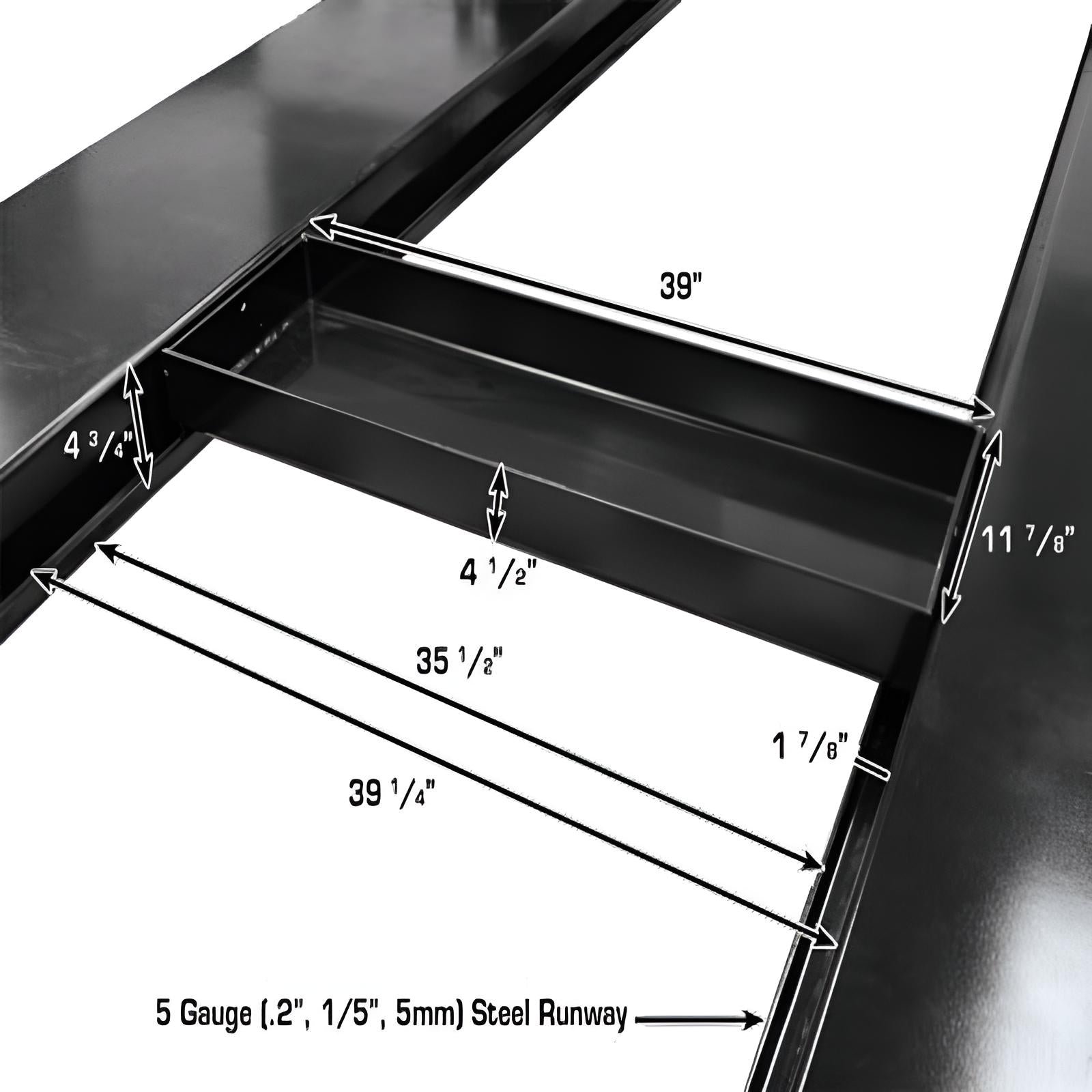

- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 2,300 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

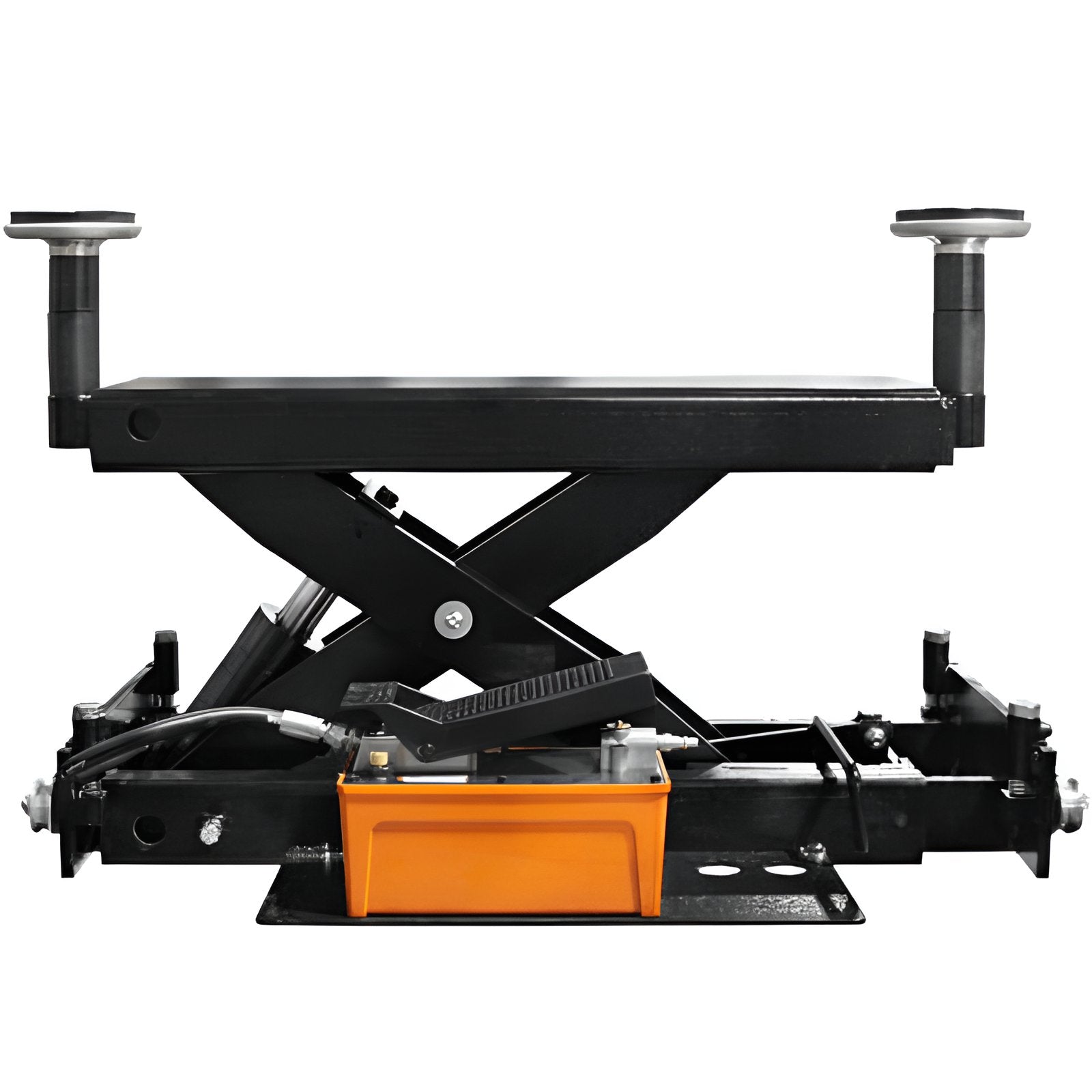

RJ6BK
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Atlas Garage Pro 9000 Documentation:
Atlas Pro9000 4 Post Parking Lift Product Manual
Atlas Pro9000, 9,000 lb 4 Post Parking Lift Optional Item (Sold Separately)
This Item has a FLAT RATE SHIPPING FEE: $699
*Due to Extra Large Size, product cannot be delivered to a freight terminal.
