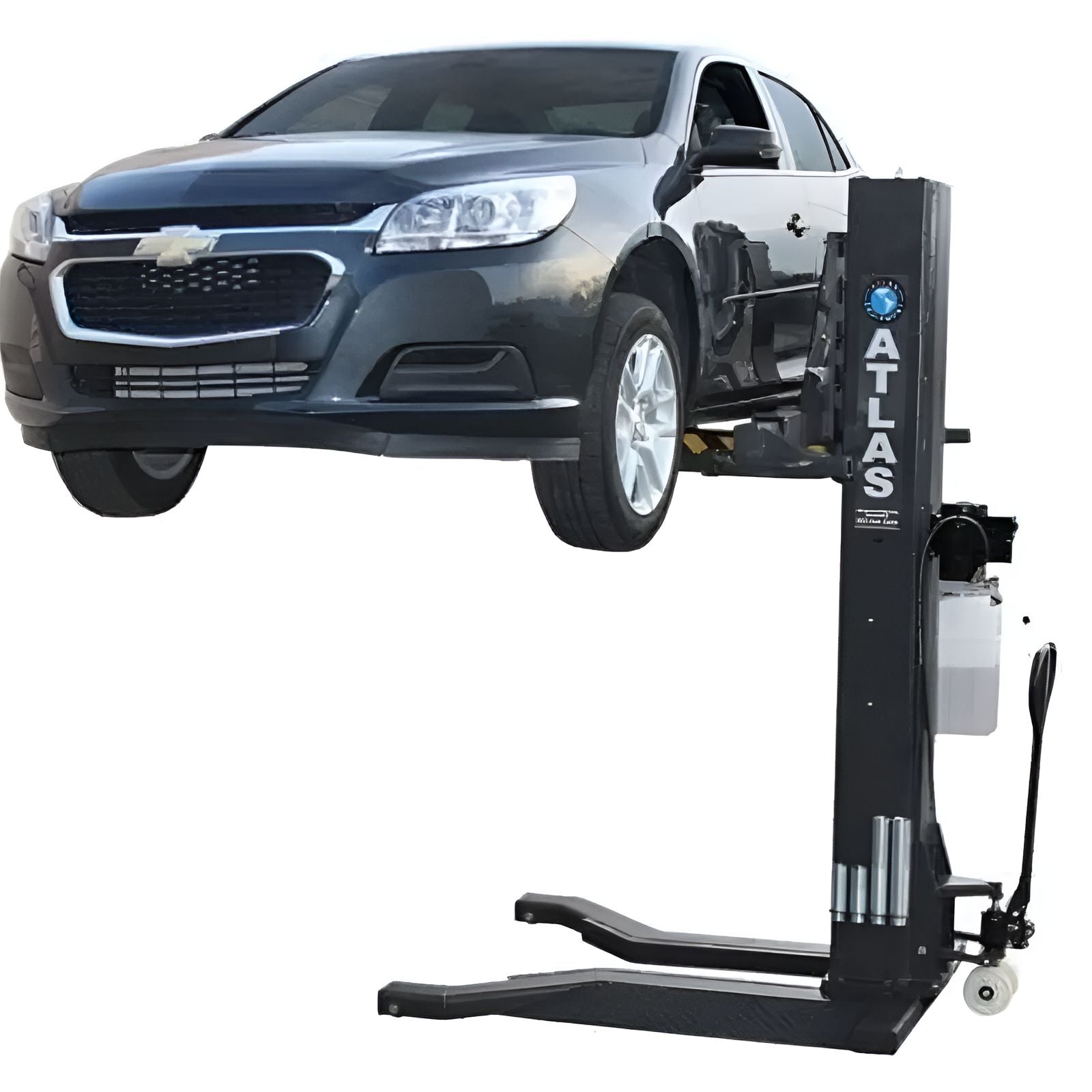

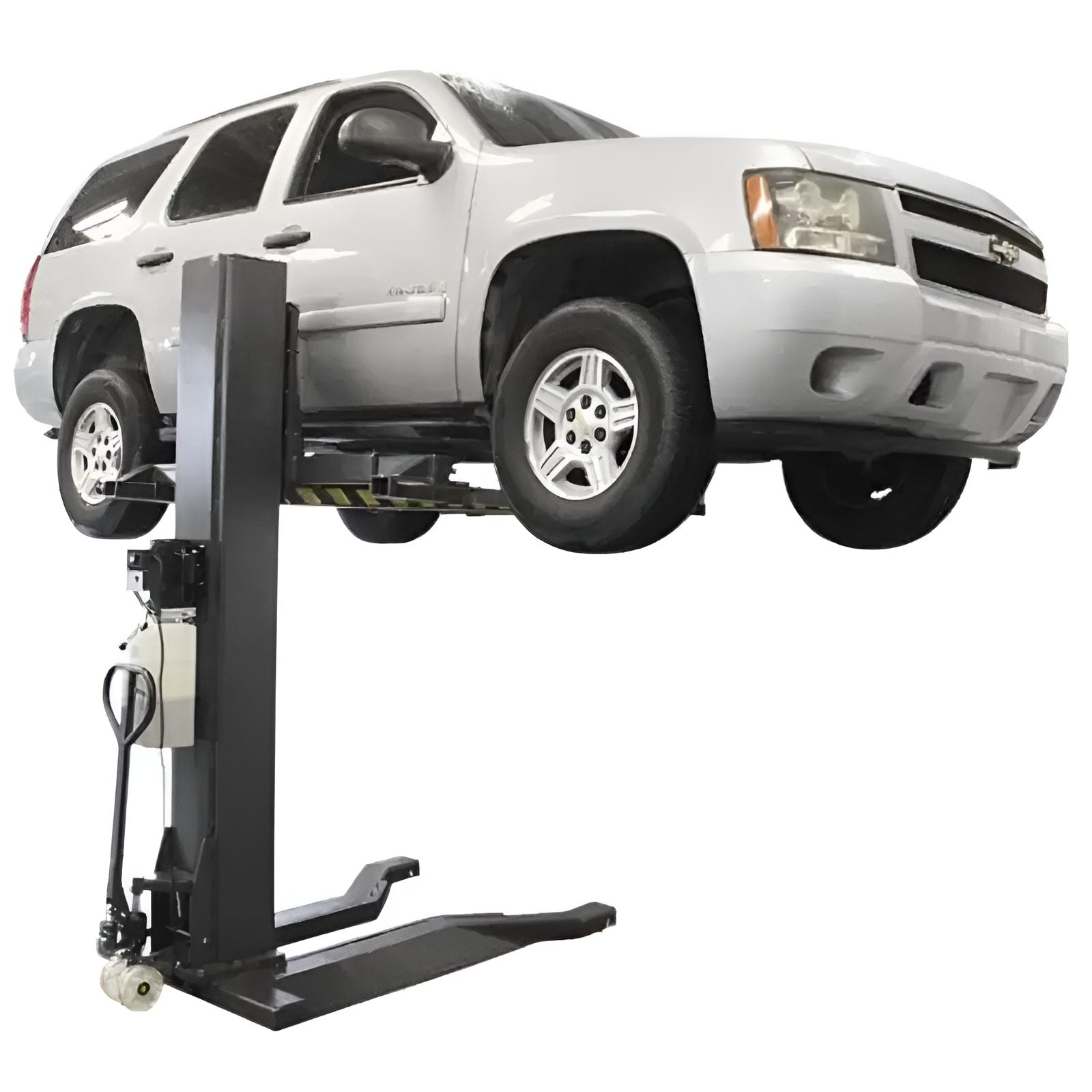

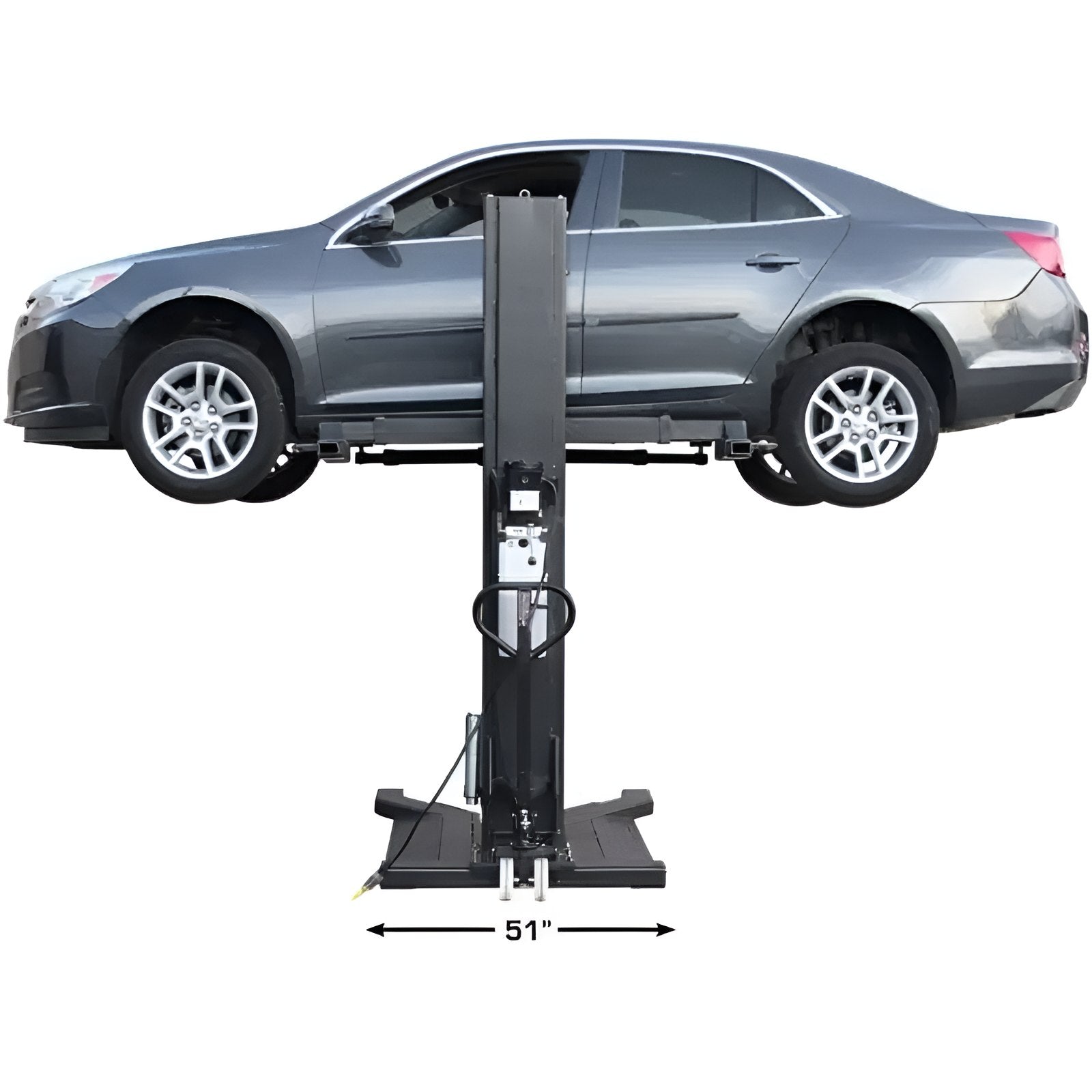

Atlas PSP-6000 6,000 lbs Portable Single Post Lift

PSP-6000 Post Lift by Atlas

Whether it's a commercial service shop or a homeowner's garage, limited space poses challenges for vehicle maintenance. Traditional above-ground lifts can occupy valuable bay space, restricting flexibility and maneuverability.

The Atlas® PSP-6000 offers a versatile solution for these space constraints. Designed for both commercial and residential use, this portable single post lift allows operators to perform wheel service with ease. Its mobility enables users to walk under or around the vehicle during maintenance tasks, providing unparalleled accessibility. When not in use, the lift can be conveniently rolled into a corner, maximizing garage space efficiency. Additionally, the built-in ramp allows vehicles to drive over the lift, further optimizing the garage layout.

Safety Measure: Equipped with a chain break mechanism, the Atlas® PSP-6000 ensures safety by automatically locking the carriage in place in the event of a chain failure. This feature provides peace of mind to users, mitigating potential risks during operation.

In summary, the Atlas® PSP-6000 Portable Single Post Lift offers a space-efficient and versatile solution for vehicle maintenance, making it an ideal choice for both commercial service shops and homeowners seeking convenience and functionality.

Post Lift PSP-6000 Specifications:

• Capacity: 6,000 LB.

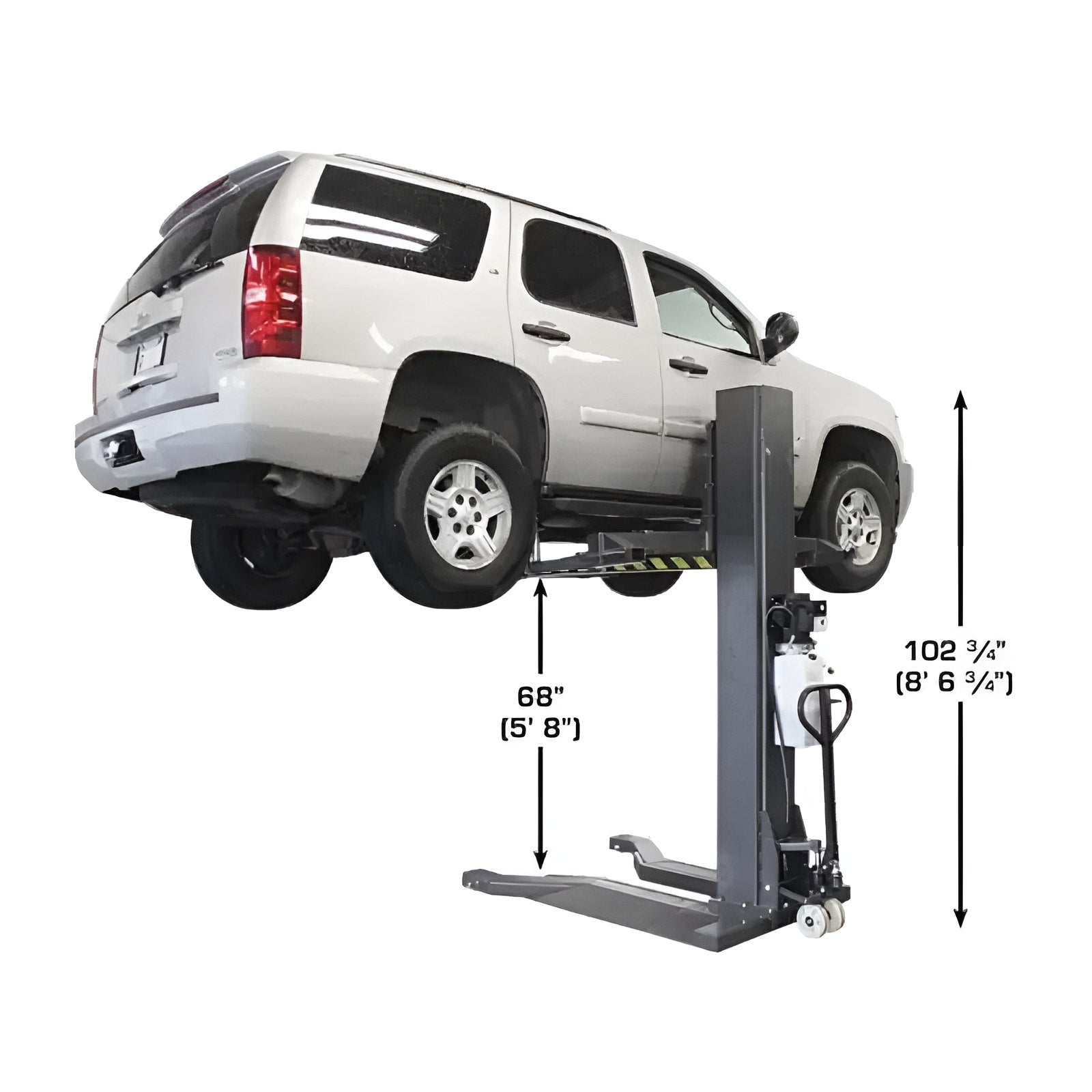

• Overall Height: 102 3/4" (8' 6 3/4")

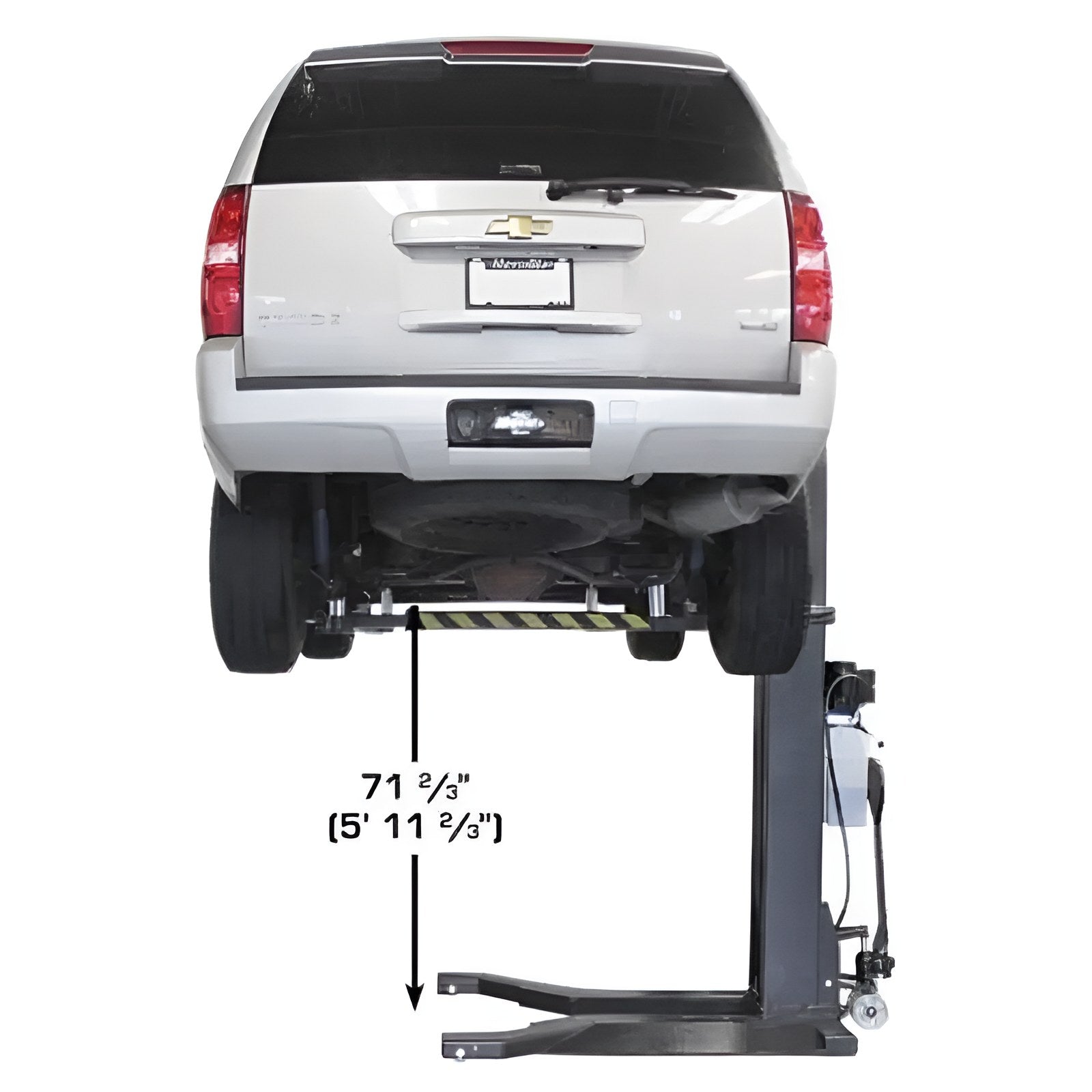

• Max. Lifting Height (Without Truck Adapters): 71 2/3" (5' 11 2/3")
• Max. Clearance: 68" (5' 8")
• Minimum Height: 5"
• Overall Maximum Dimensions: L: 111 1/2" x W: 96" x H: 102 3/4"
• Column Size: 10 1/2" x 12 1/2"
• Distance Between Lifting Pads (Column Side to Offside): 39 1/2" to 81"

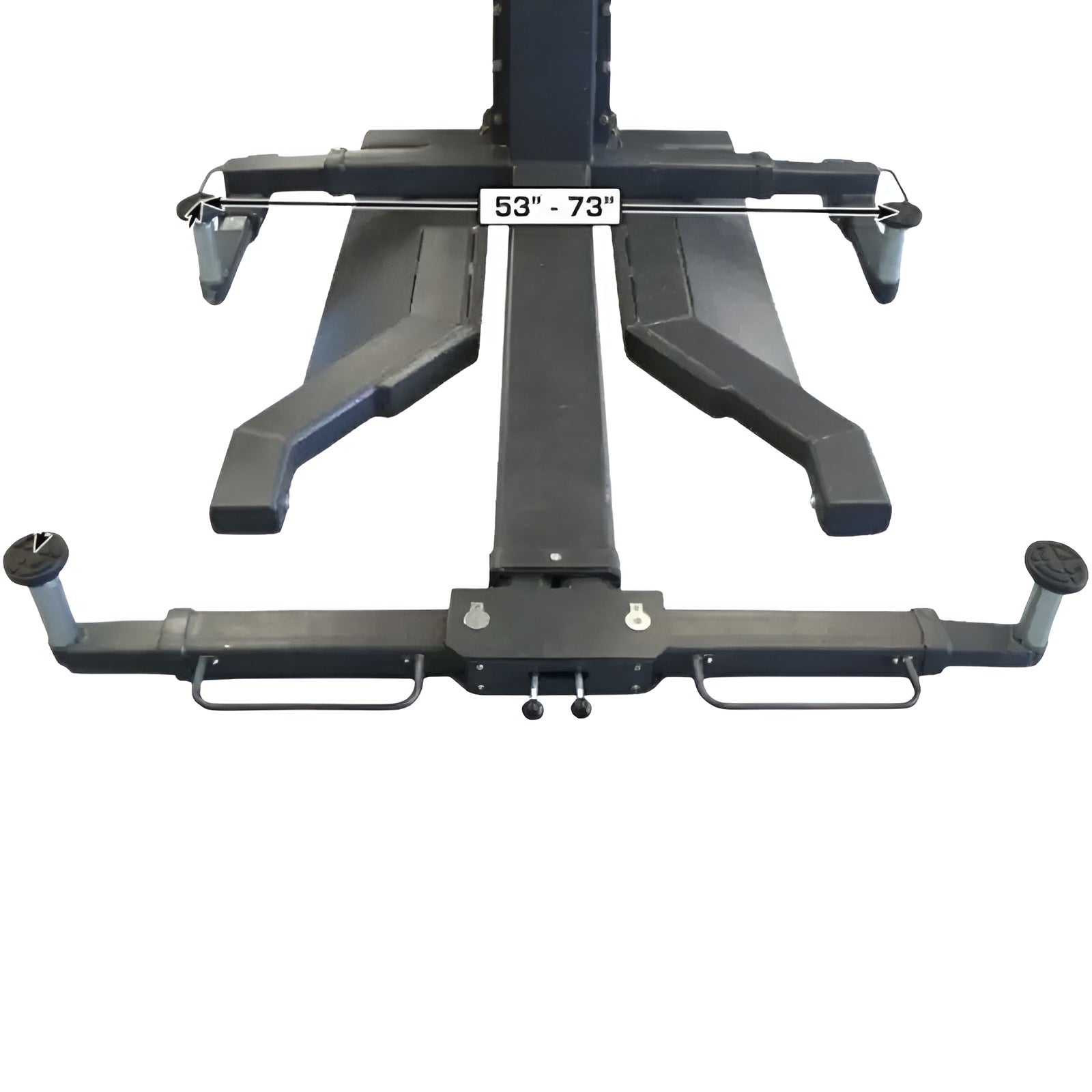

• Distance Between Lifting Pads (Column Side to Column Side): 53" to 73"
• Distance Between Lifting Pads (Offside Side to Offside): 54 1/3" to 91 1/2"
• Motor/Electric Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 1,900 lbs.
• Adapter Heights: 4 Each 2.75", 6”
• Arm Hole/Adapter Peg Size: 2”

PSP-6000 6,000 lbs Post Lift Special Features:

• Capacity: 6,000 lbs.
• Portable: Easily transportable for versatile use.
• Low Profile Design: Facilitates easy access to vehicles with low ground clearance.
• Rigid Base Construction: Ensures stability and durability during operation.
• Built-in Drive-over Ramps: Simplifies vehicle positioning onto the lift.
• Single Point Lock Release: Streamlines operation for efficient lifting and lowering.
• Two-Stage Telescoping Swing Arms: Provides flexibility for various vehicle sizes.
• Locking Arm Restraints: Enhances safety and security during operation.
• Lifting Height: 5′ 11 2/3″ (71 2/3″)
• Electric Operation: 110volt electric operation requiring a 30amp breaker.
• Free 8 Piece Truck Adapter Set: Includes adapters for different vehicle types.

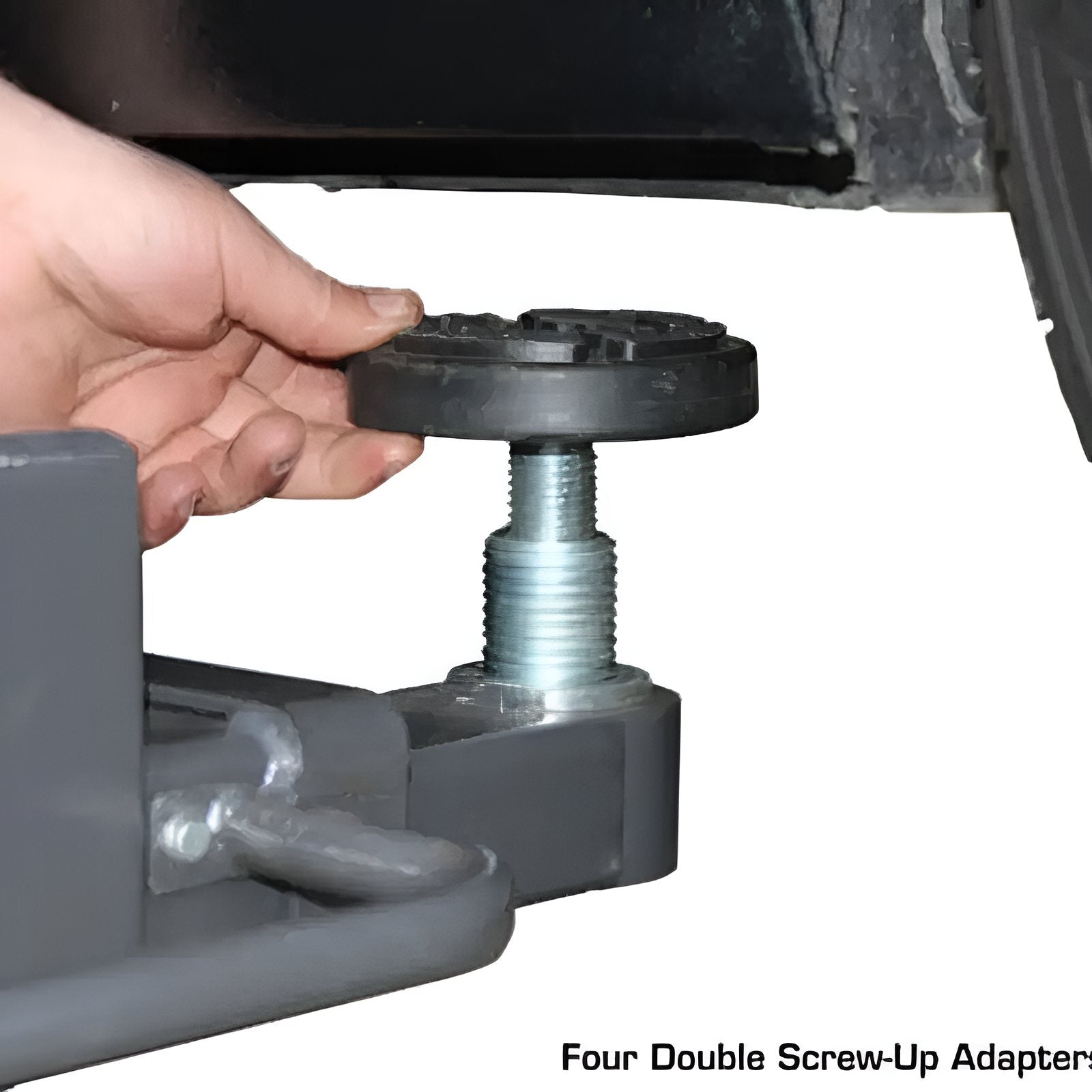

• Includes Double Screw-up Adapters: Further enhances lifting capabilities.
• Shipping Weight: 1,900 lbs.
• Warranty: 2-year structural warranty, 1-year hydraulic warranty (parts only).

Atlas PSP-6000 Documentation:

   Atlas PSP-6000 Post Lift Product Manual
