Atlas Platinum TCWB-COMBO1 PTC300 Tire Changer & PWB50 Wheel Balancer Combo

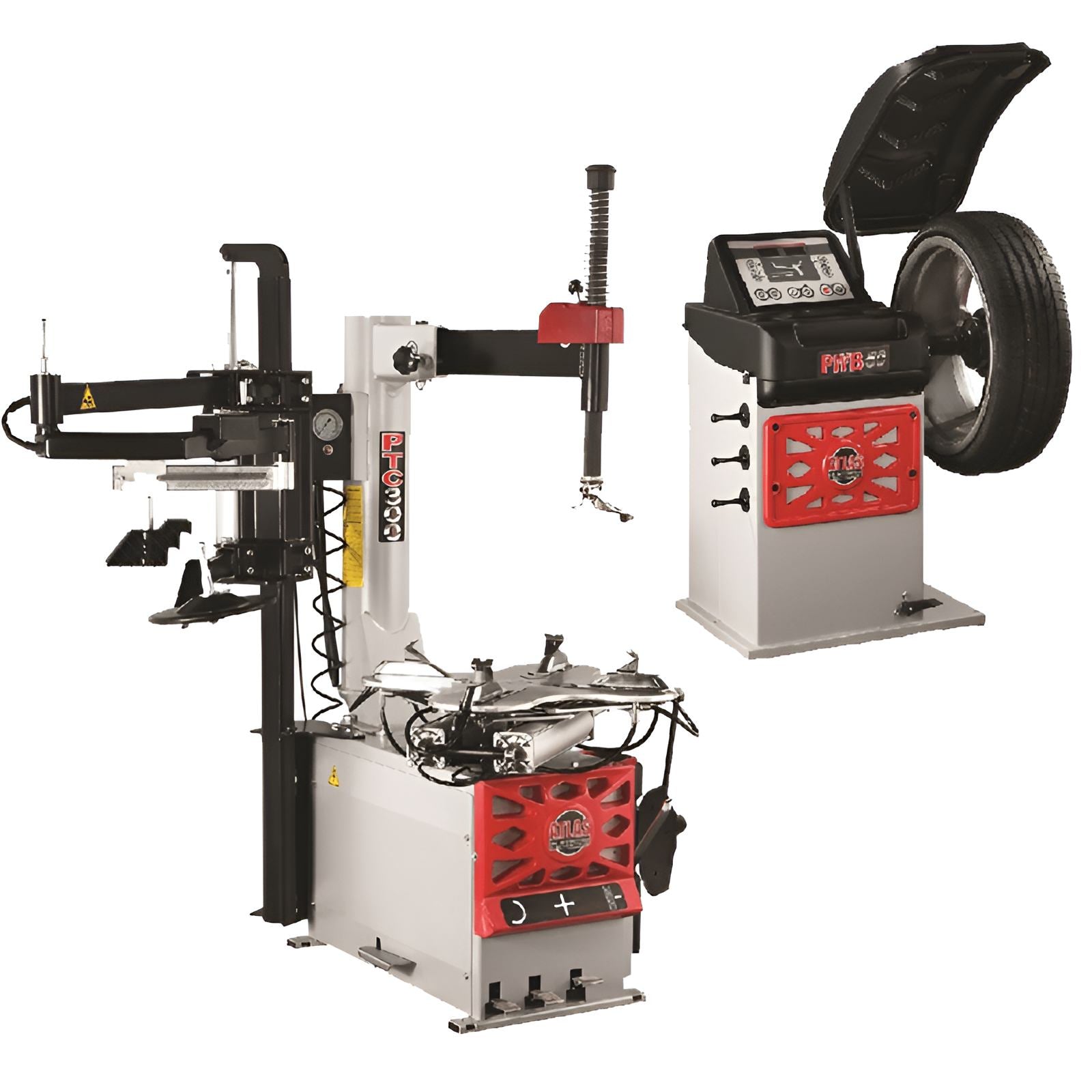

TCWB-COMBO1 Tire Changer and Wheel Balancer Combo by Atlas

Tired of wrestling with tires and chasing elusive wheel balance? The Atlas® Platinum Tire and Wheel Service Combo is your automotive knight in shining armor. This duo of tire changer and wheel balancer is the ultimate weapon against time-consuming and frustrating service tasks.

Thanks to the PTC300 Tire Changer's powerful 6,924 lb. bead breaker and extra-large turntable. Coupled with the PWB50 Wheel Balancer's precision technology, which can handle wheels up to 30 inches in diameter and 20 inches wide, this combo ensures you can tackle any vehicle that rolls into your shop. With features like the PWB50's automatic 2D data entry and the PTC300's left-hand assist arm, you'll save time and reduce operator fatigue. Don't settle for mediocre equipment that slows you down. Upgrade to the Atlas® Platinum Tire and Wheel Service Combo and watch your shop's efficiency soar.

Tire Changer PTC300 Specifications:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension: 10" - 24"
• Internal Locking Rim Dimension: 12" - 26"
• Maximum Tire Diameter: 43"
• Maximum Wheel Width (Bead Breaker): 15"
• Turntable Rotating Speed: 7 RPM
• Bead Breaker: 6,924 LB. Force
• Air Requirement: 120-145 PSI
• Operating Voltage: 110 volt
• Shipping Weight: 620 lbs.

Wheel Balancer PWB50 Specifications:

• Max Tire Diameter: 43"
• Rim Sizes (Cars And Light Trucks): 10"-30"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 165 lbs.
• Balancing Speed: 130 rpm
• Data Entry: Automatic 2D
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Cycle Time: 7 seconds
• Power Supply: 110volt
• Shipping Weight: 230 lbs.

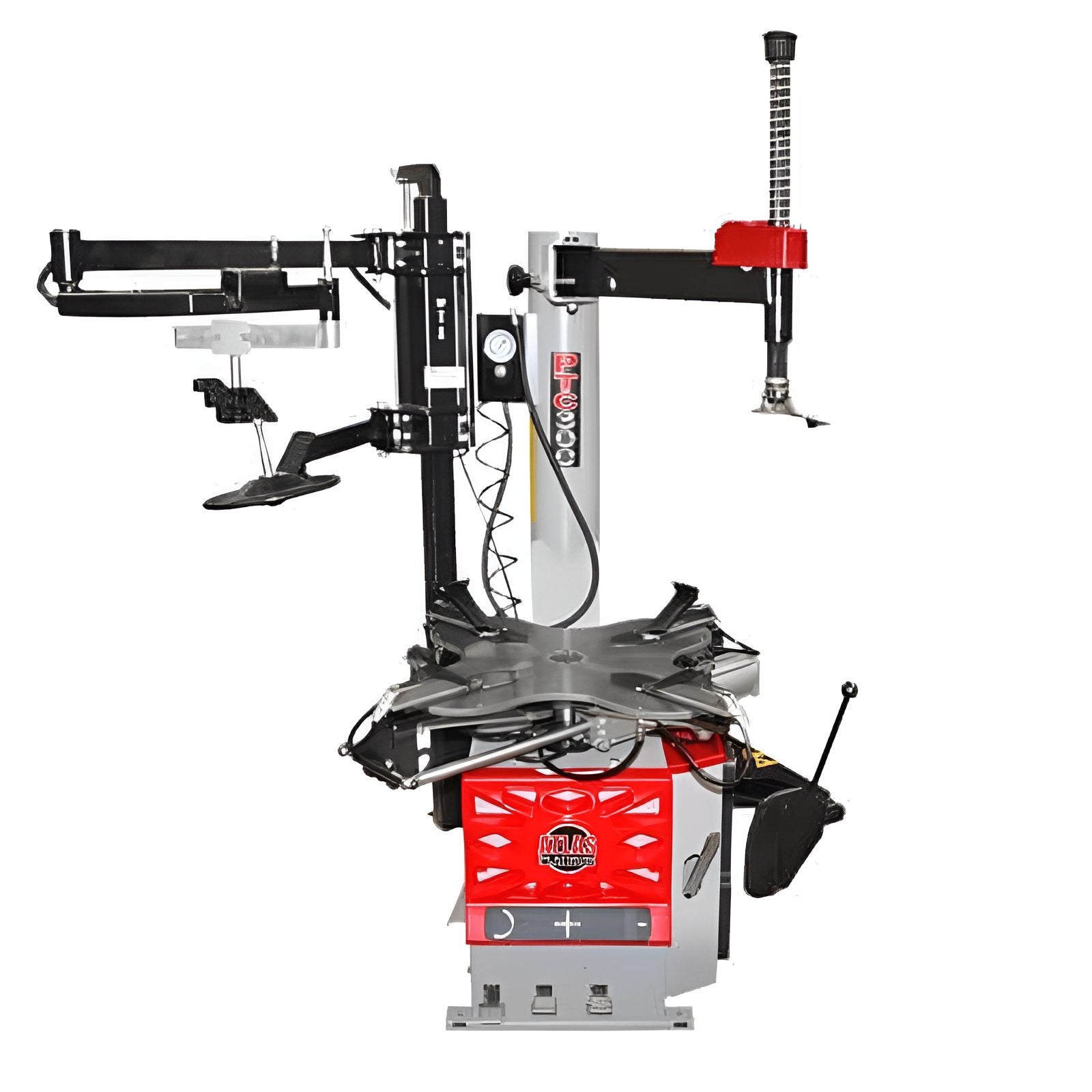

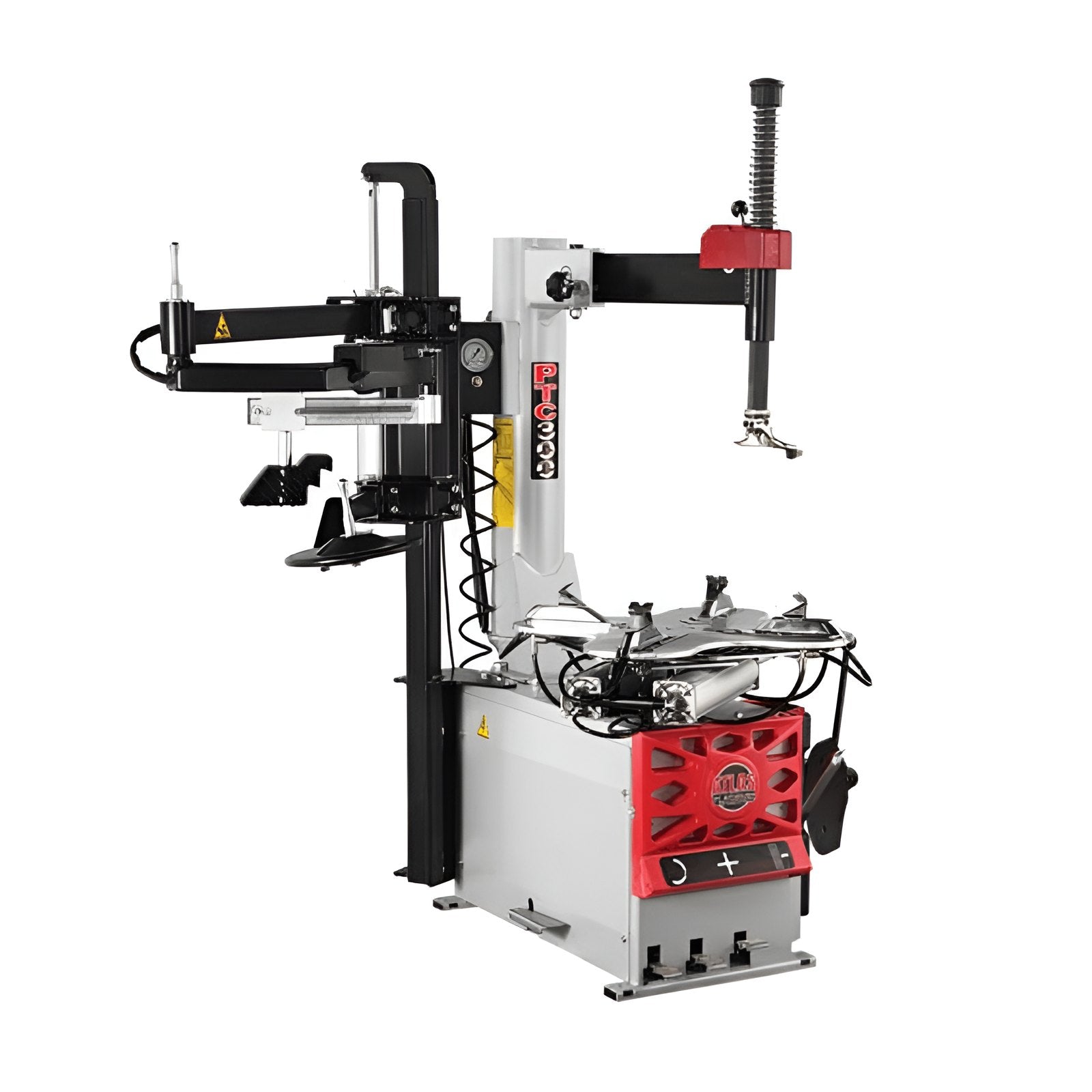

PTC300 Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Extra Large Star Shaped Turntable
• Built-in “Beadblaster”
• Left Hand Assist Arm, Pressing/Lifting disk and Pressing Block
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

PWB50 Wheel Balancer Special Features:

• Platinum Computer Controlled Motorized Spin Balancer
• Italian Engineering and Components
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Optimatch, FES (Split), OPF (Opposite Position) Functions
• Special ALU-S and other ALU Programs
• Automatic 2D Data Entry
• NWN (no wheel need) System
• Self-Diagnosing and Self-calibrating
• USB hub for firmware update through PC/Notebook
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

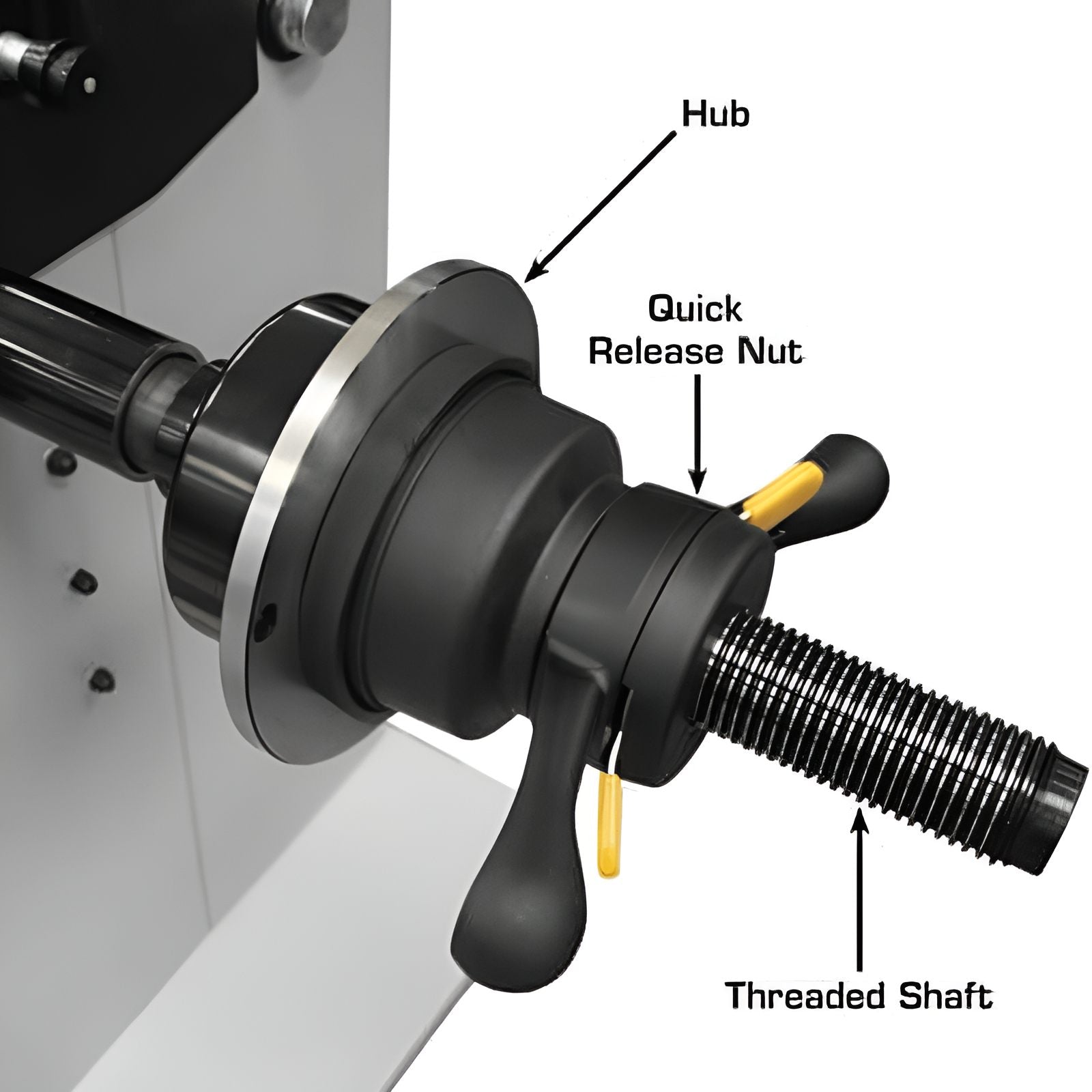

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

Atlas PTC300 Documentation:

   Atlas PTC300 Tire Changer Product Manual

Atlas PWB50 Documentation:

   Atlas PWB50 Wheel Balancer Product Manual

PTC300 Tire Change and PWB50 Wheel Balancer - Sold Separately

• Tire Changer PTC300
• Wheel Balancer PWB50

This Item has a FLAT RATE SHIPPING FEE: $299

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA

• Fresno, CA

PTC300 Video
