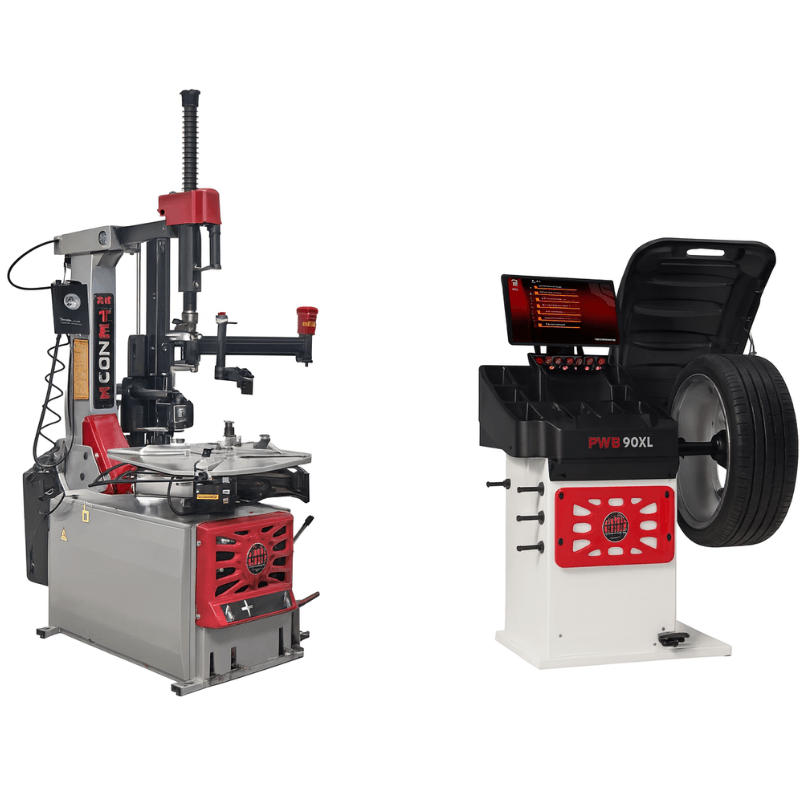

Atlas Platinum PTC600 Tire Changer and PWB90XL Wheel Balancer Combo Package

Platinum PTC600 Tire Changer & PWB90XL Wheel Balancer Combo

The Atlas Platinum PTC600 Tire Changer and PWB90XL Wheel Balancer Combo Package delivers a complete professional-grade solution for shops looking to upgrade their tire service equipment. Engineered with advanced Italian components, the PTC600 features a tilt-back design, pneumatic assist arm, air-operated jaws, and a built-in Beadblaster to make mounting and demounting tires faster and safer. Paired with the PWB90XL’s 3D data entry, touchless sonar, and laser-guided weight placement, this combo ensures accuracy, efficiency, and reduced operator error.

The PTC600 Tire Changer is equipped with a powerful 110V electric turntable, 29-inch clamping capability, and an anodized aluminum bead breaker cylinder that ensures ease of use and exceptional durability. The assist arm and bead roller work in tandem to help effortlessly mount and demount tires, while the integrated bead blast system guarantees a thorough job every time. On the balancing side, the PWB90XL is built with advanced features like the Optimatch software for balancing optimization, laser-guided weight placement, and super automatic 3D data entry. This wheel balancer streamlines the process with a self-calibrating system and offers both static and dynamic balancing modes, ensuring flawless results every time.

ATEAP-PTC600 Specifications:

• External Locking Rim Diameter: 10"–27"

• Internal Locking Rim Diameter: 12"–29"

• Maximum Tire Diameter: 43"

• Maximum Wheel Width: 16"

• Turntable Speed: 7 RPM

• Bead Breaker Force: 6,924 lbs

• Air Requirement: 120–145 PSI

• Operating Voltage: 110V

• Shipping Weight: 795 lbs

• Tilt-Back Pneumatic Column

• Italian Engineered Components

Wheel Balancer PWB90XL Specifications:

• Max Tire Diameter: 43"

• Rim Sizes (Cars & Light Trucks): 10"–30"

• Rim Width: 1 1/2"–20"

• Shaft Size: 40mm

• Max Wheel Weight: 165 lbs.

• Balancing Speed: 130 rpm

• Data Entry: Super Automatic 3D

• Measurements: Standard or Metric

• Accuracy: 1 gram

• Weight Position Resolution: 1.4 degrees

• Self Calibration: Yes

• Cycle Time: 7 seconds

• Power Supply: 110V

• Shipping Weight: 290 lbs.

Platinum PTC600 Tire Changer Special Features

• Tilt-back rim clamp design for safer, easier operation

• Right-hand assist arm for pressing and bead rolling

• Air-operated jaws and bead breaker

• High-torque 110V electric turntable

• Metal mount/demount head with replaceable plastic inserts

• Column-mounted inflator box with pressure gauge

• Built-in bead blaster for fast seating

• Filter/Regulator/Lubricator (FRL) included

• Tire tool, lube bucket, and brush included

• Large plastic jaw protectors included

• Bead breaker shovel plastic cover included

• Replacement plastic inserts included

• Replacement parts always in stock

PWB90XL Wheel Balancer – Special Features:

• Platinum 3D video motorized spin balancer

• Italian engineering and premium components

• High-resolution video monitor display

• Super Automatic 3D data entry with touchless sonar for rim width

• Laser line for precise weight placement

• LED light to illuminate the wheel interior

• Static and dynamic balancing modes

• Optimatch, FES (Split), and OPF (Opposite Position) functions

• Special ALU-S and multiple ALU balancing programs

• NWN (No Wheel Needed) system

• Self-diagnosing and self-calibrating capability

• USB hub for firmware updates via PC or laptop

• Exceptional accuracy in reading unbalance between planes

• Measurement display in grams/ounces and mm/inches

• No anchor-down installation required

• Includes: plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers

• Replacement parts and wear items always in stock

• 2-year parts-only warranty

• Optional (sold separately): Truck Adapter Set
