Atlas PV15PX 15,000 lb Overhead 2-Post Lift

PV15PX 15,000 lb Overhead 2-Post Lift by Atlas

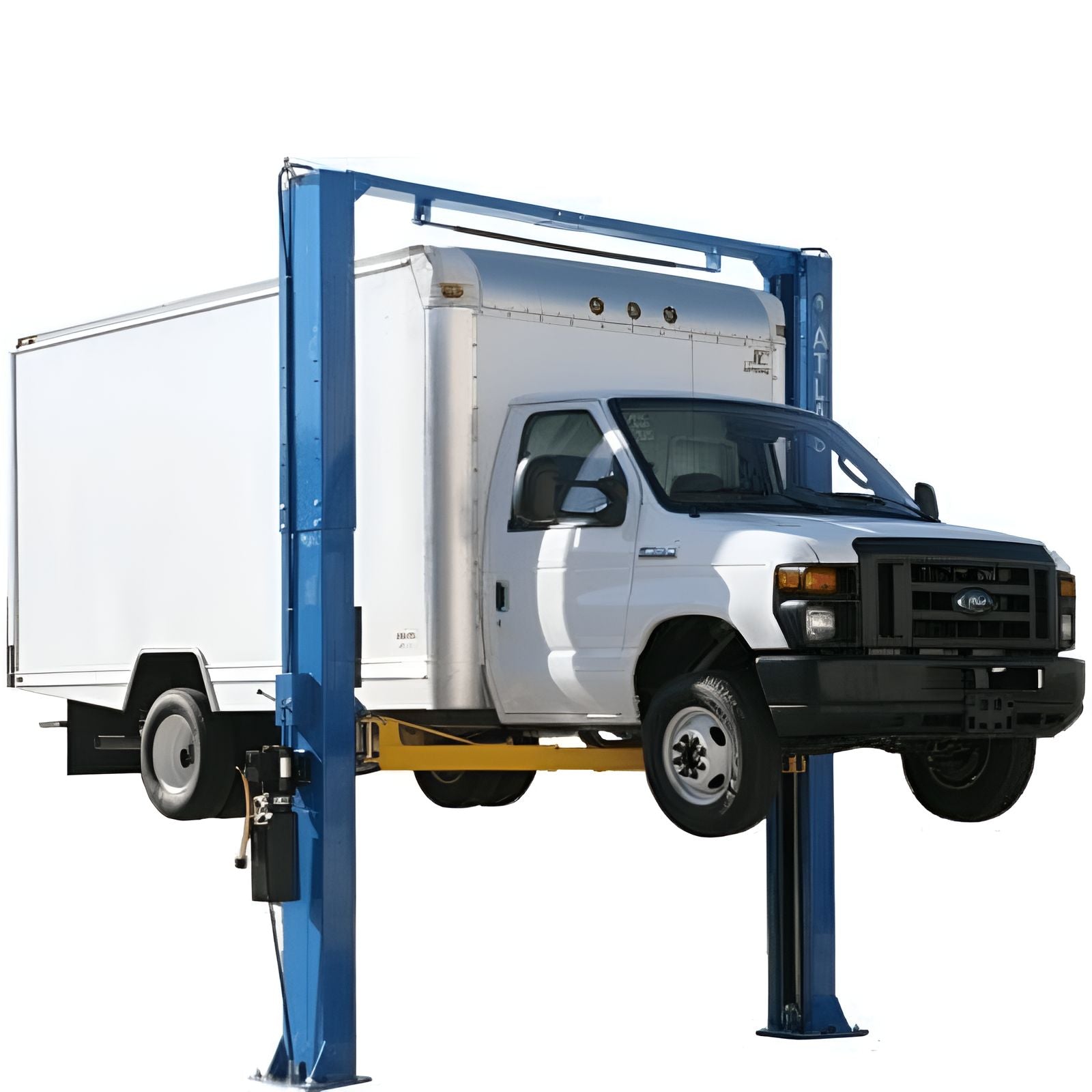

If you're on the hunt for a professional-grade lift that can handle the biggest, baddest trucks while still accommodating regular cars, the Atlas PV15PX 15,000 lb Two Post Lift is your solution. Built for heavy-duty work, this lift boasts a massive 15,000 lb capacity, and with its 109" drive-through space, it's ready for everything from standard cars to wide service trucks with ease. The robust construction and trusted reputation of the Atlas PV series make this lift a smart investment for any garage looking for versatility and reliability.

What makes the PV15PX stand out? With adjustable height settings, you can lift even the tallest vehicles—vans, box trucks, you name it—without worrying about clearance. The extended symmetrical arms and peg-style truck adapter ensure long wheelbase trucks are securely lifted, while safety features like automatic arm restraints and a padded shut-off bar make operations smooth and secure. Whether you’ve got low ceilings or tall tasks, the PV15PX has you covered with flexibility and unbeatable performance.

2-Post Lift PV15PX Specification

• Capacity: 15,000 LB

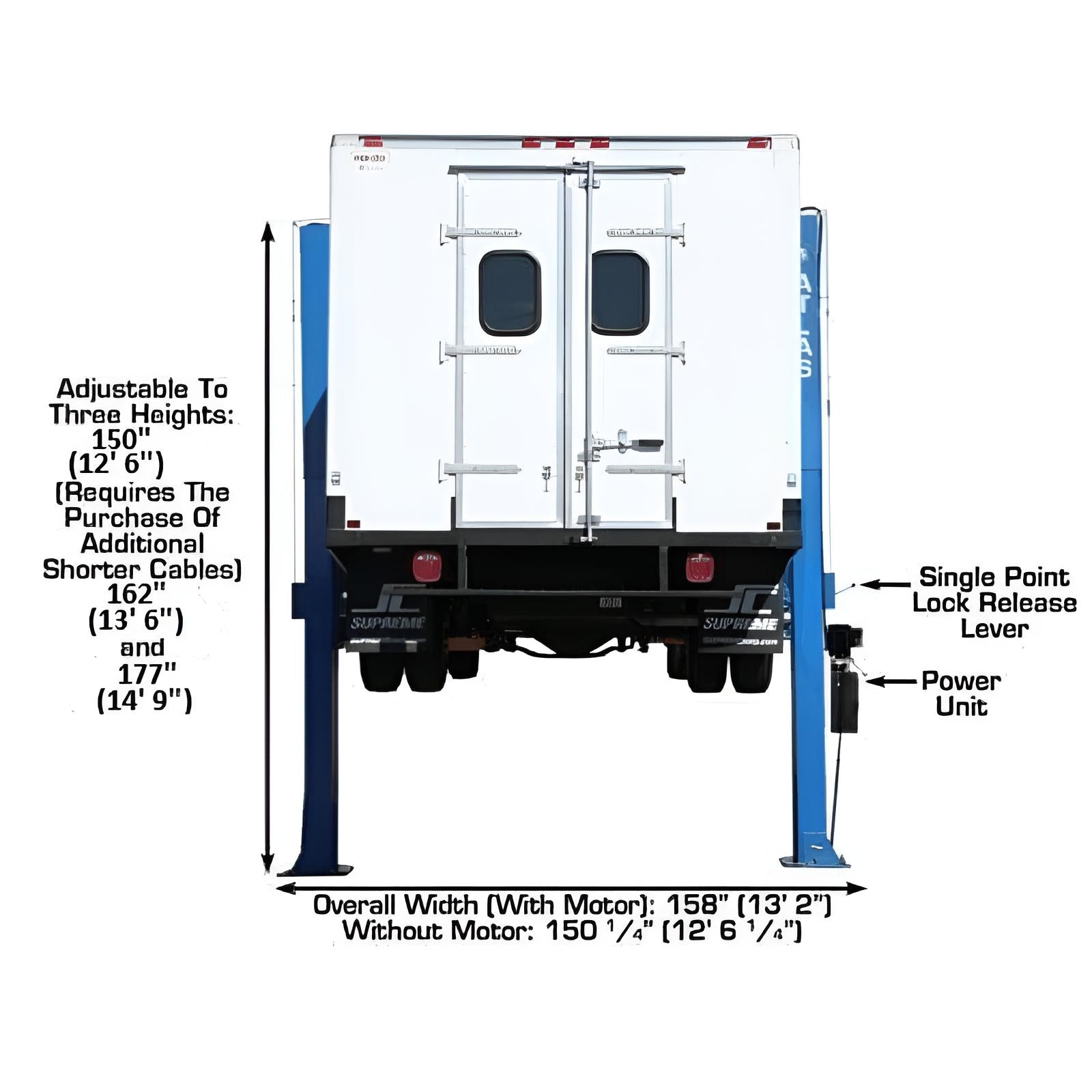

• Overall Height: 165" (13’ 9”) or 177” (14’ 9”)
• Special Low Height: 150" (12’ 6”) (Requires Purchase of Extra Cables)

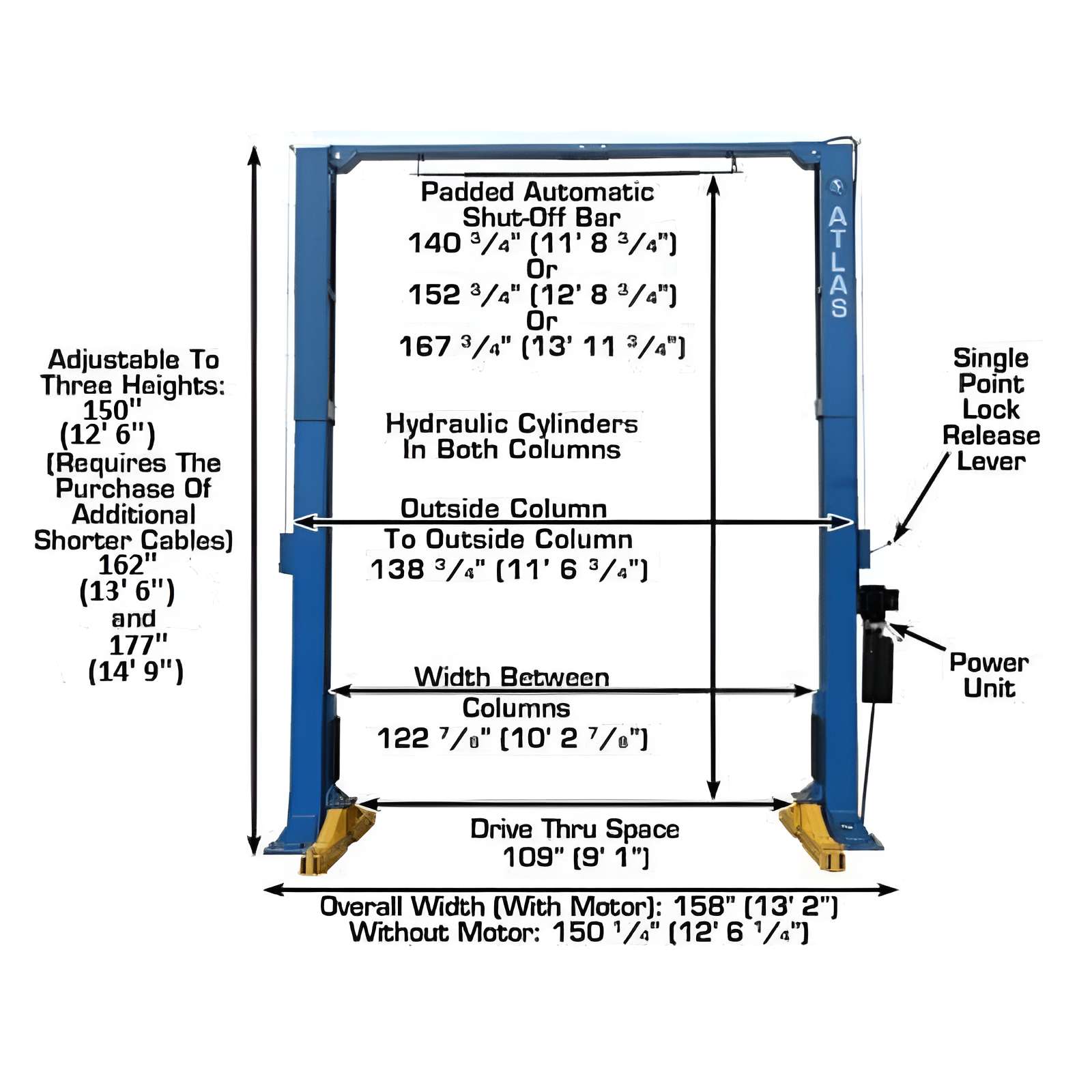

• Overall Floor Width: 150 3/4" (12’ 6 3/4”)
• Outside Column to Outside Column: 139 1/8" (11’ 7 1/8")
• Maximum Lift Height (Without Adapters): 72 1/4"

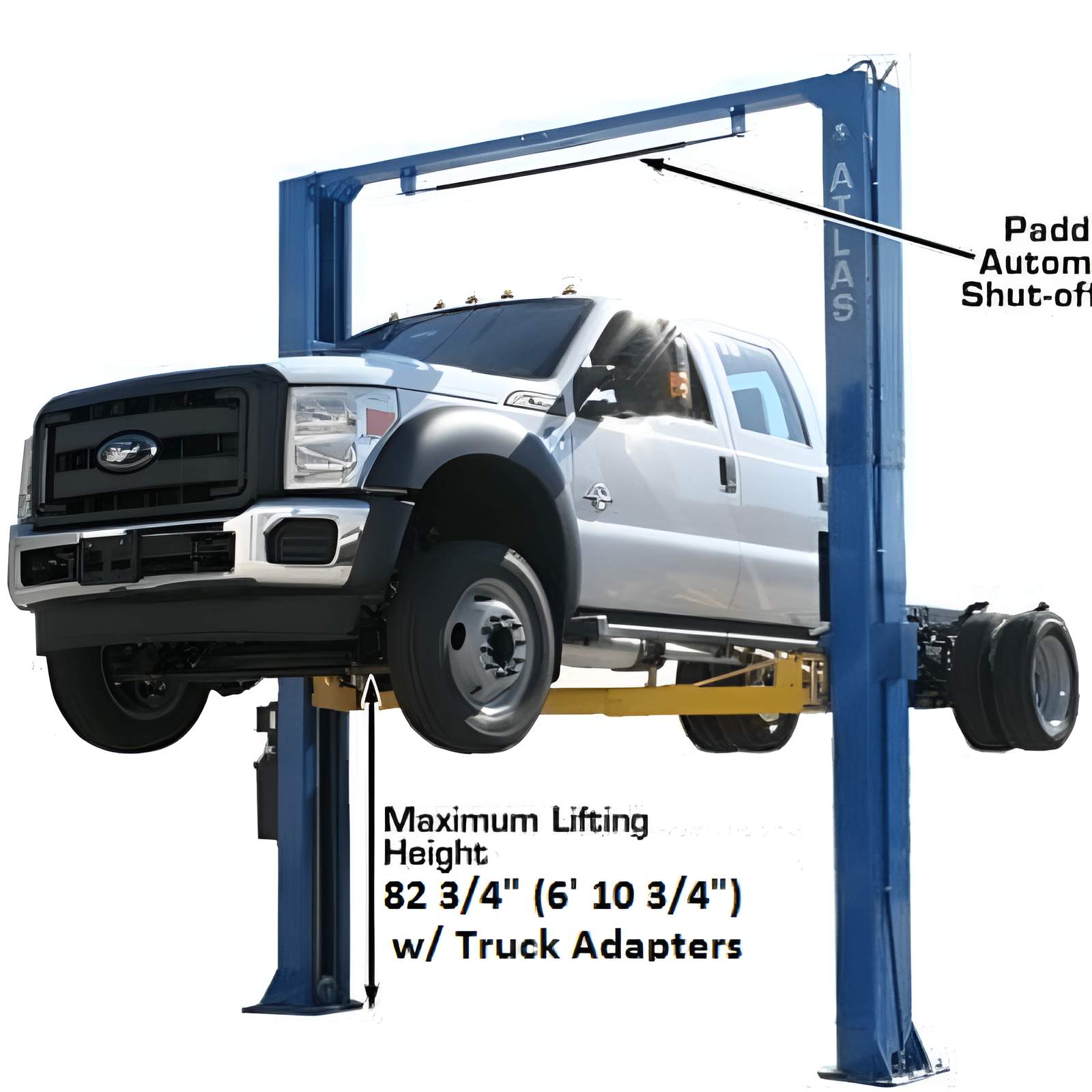

• Maximum Lift Height (With Adapters): 81"
• Minimum Pad Height: 7 1/4"
• Inside Column Width: 123 1/2” (10’ 3 1/2”)
• Drive Thru Width: 109 1/2" (9’ 1 1/2”)
• Column Size: 7 1/2" x 14 1/2"
• Column Thickness of Steel: 6mm

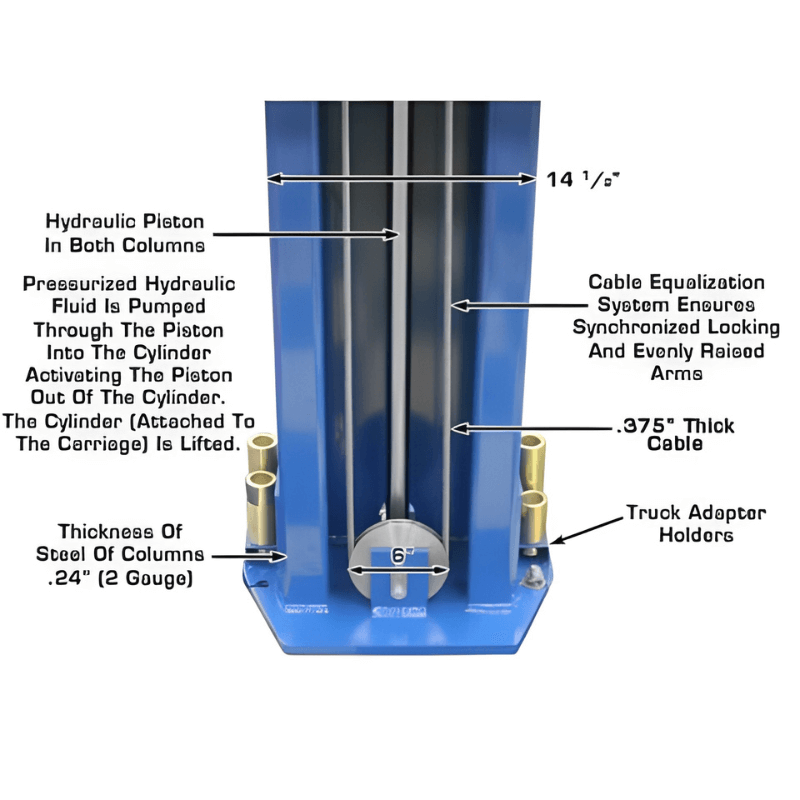

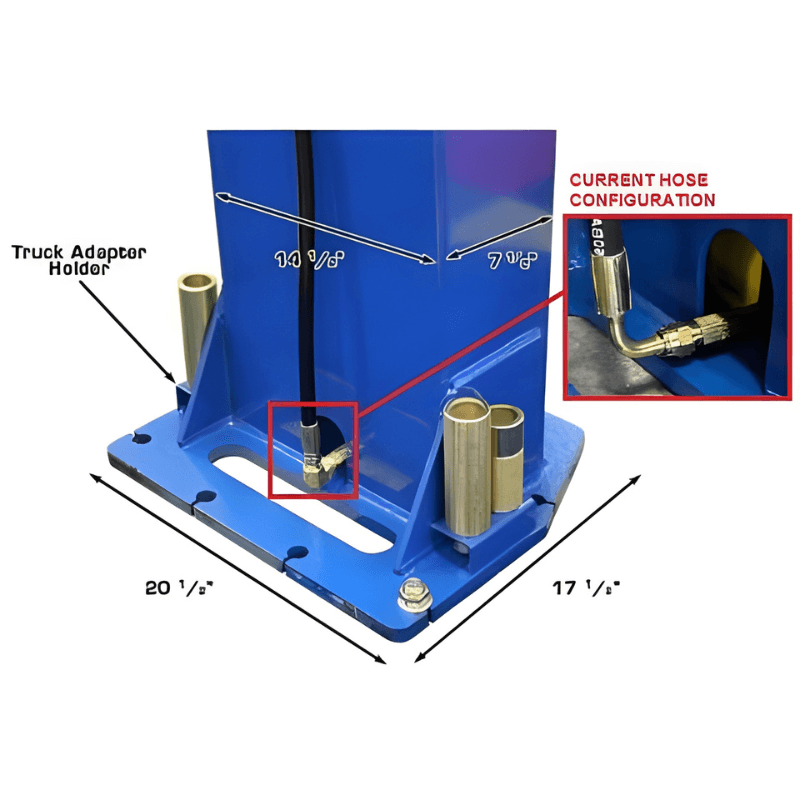

• Base of Lift Dimensions: 17 1/2" x 20 1/2"
• Motor/Electrical Requirement: 220 volt single (1) phase, 30 amp breaker recommended
• Oil Requirement: 3-5 Gallons AW32/AW46 (Not Included)

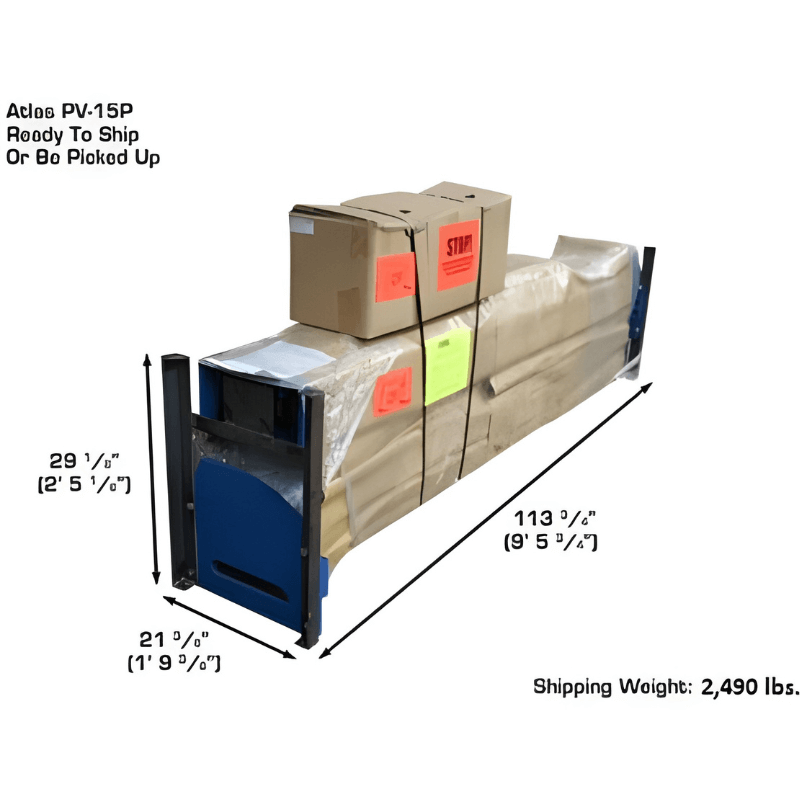

• Shipping Weight: 2,490 LBS
• Adapter Heights: 4 Each: 1.25”, 2.5", 5"
• Arm Hole/Adapter Peg Size: 1.5”

PV15PX 15,000 lb 2-Post Lift Special Features

• 15,000 lb capacity
• Extra Tall & Extra Wide
• Commercial Grade

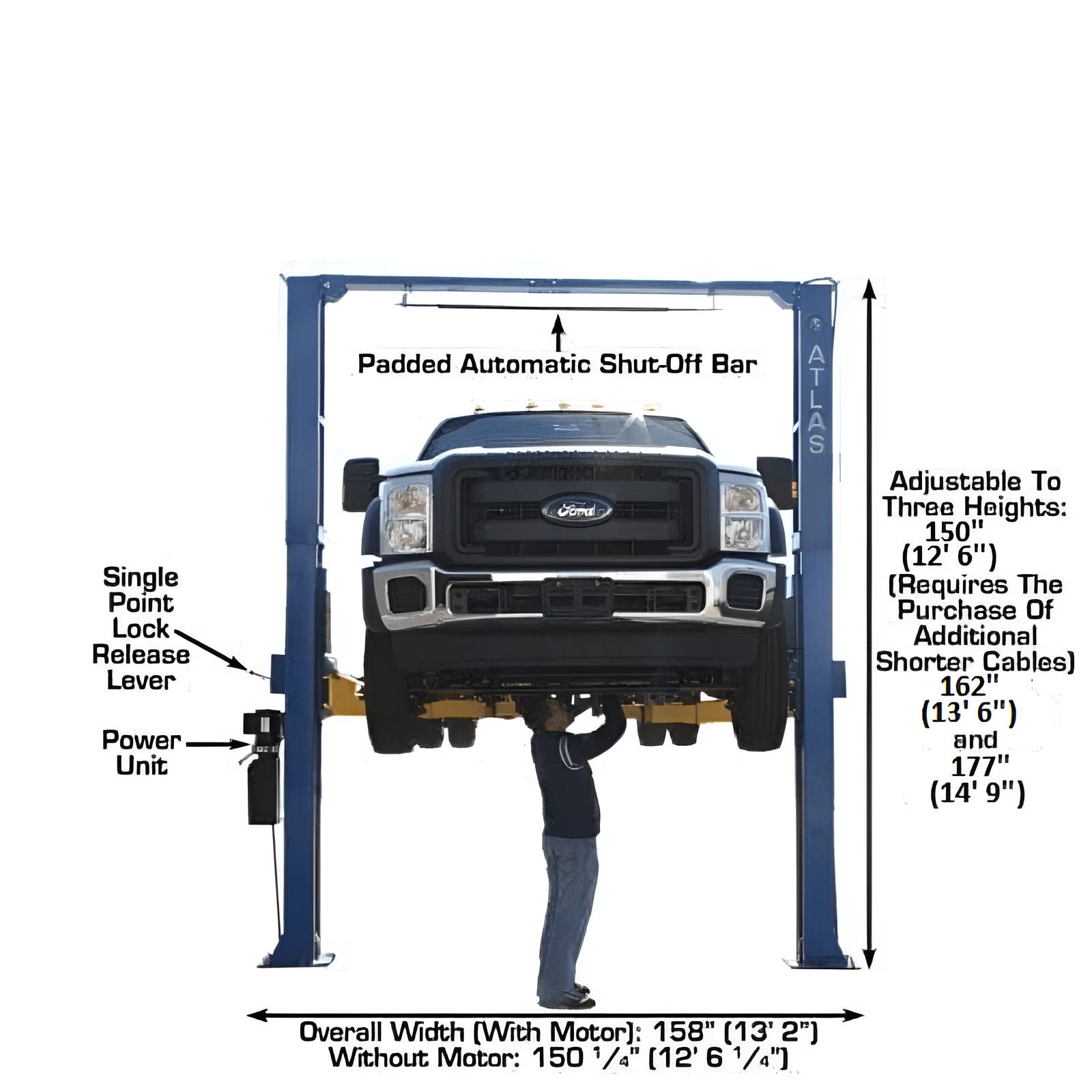

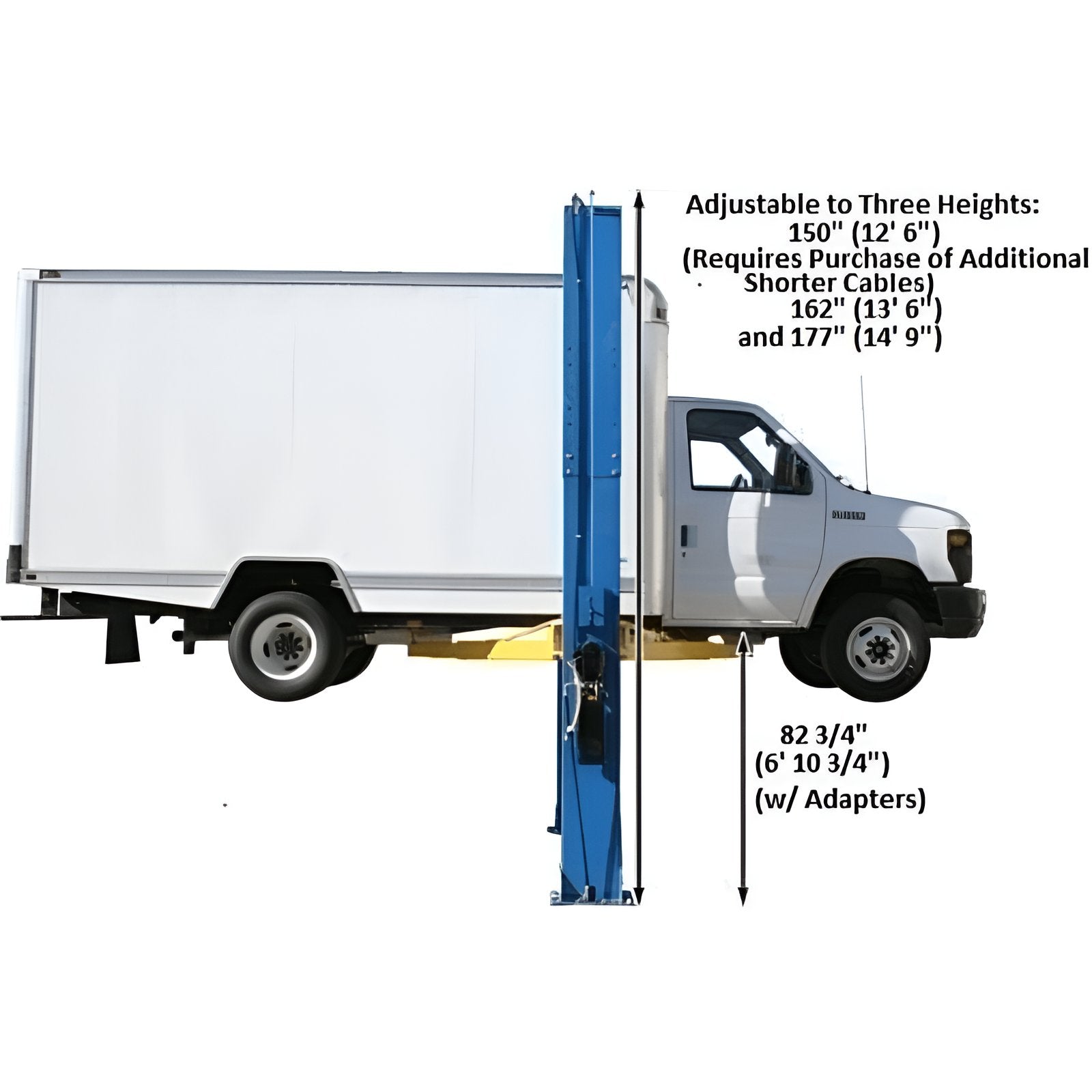

• Adjustable height 165″ (13′ 9″) or 177″ (14′ 9″)
• Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

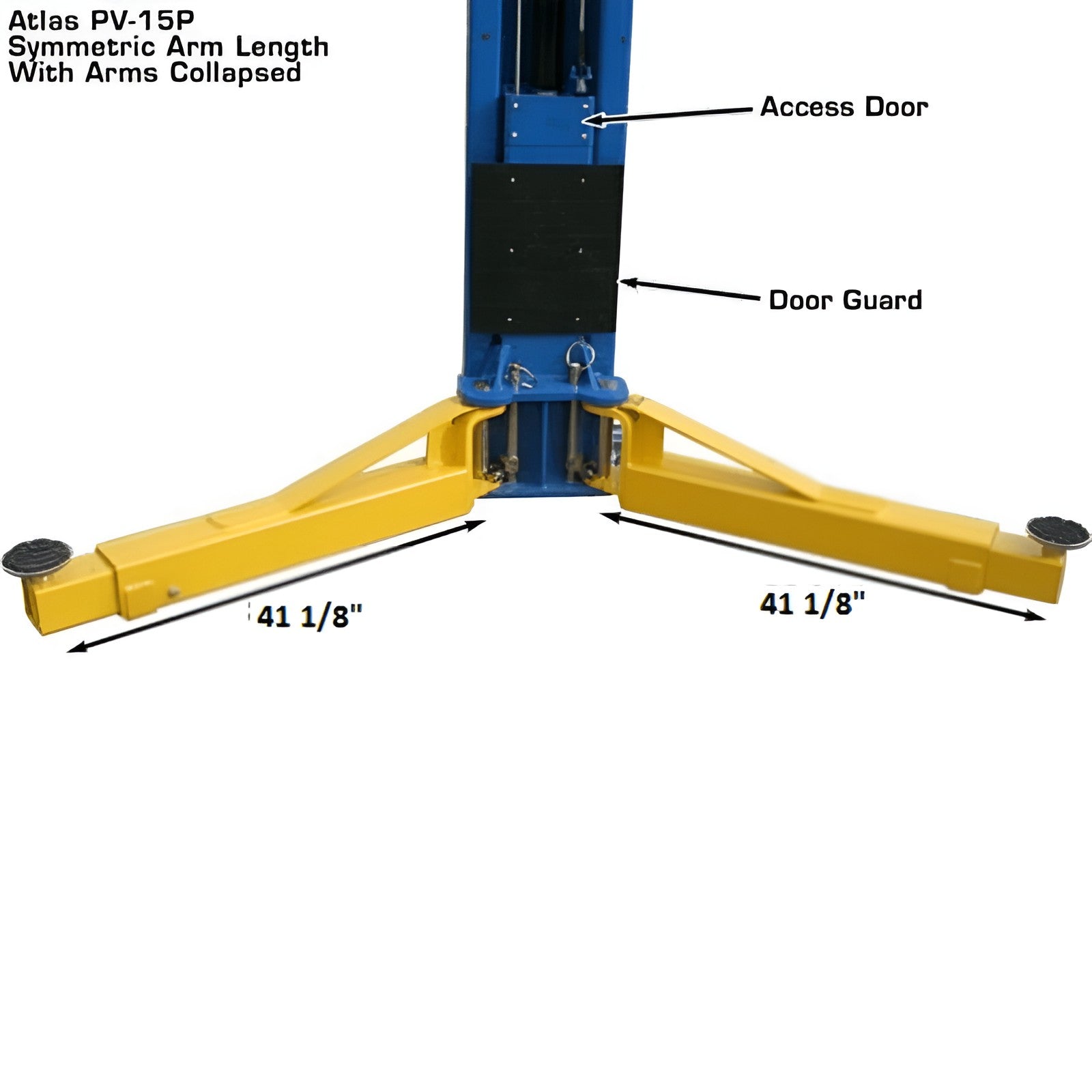

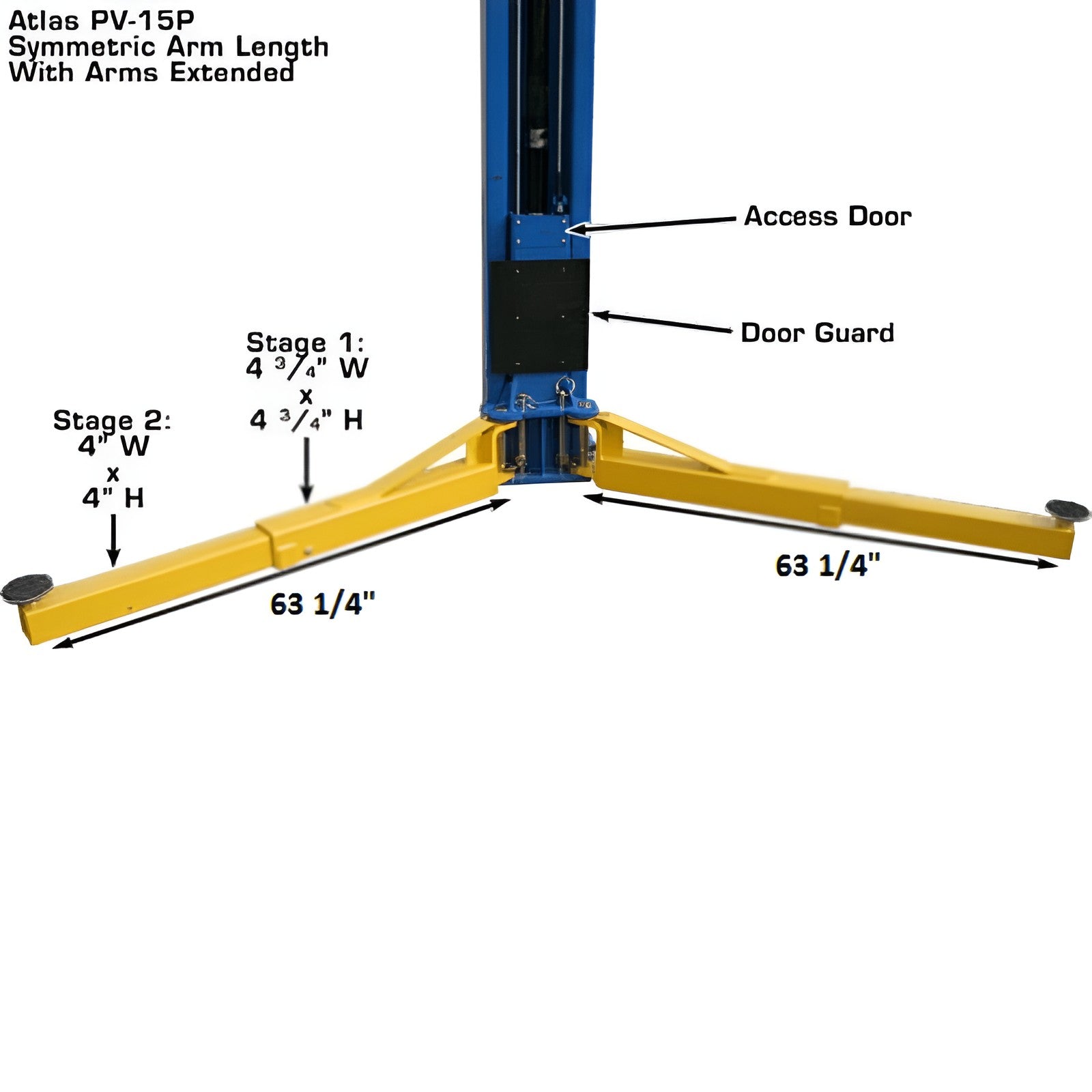

• Symmetric arms

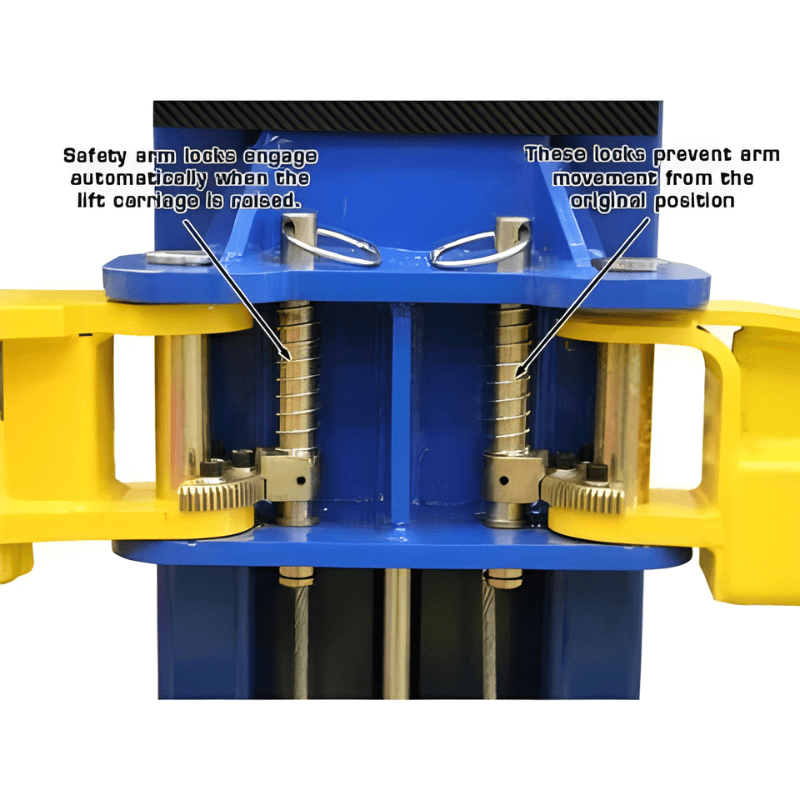

• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Door Guards on Carriages

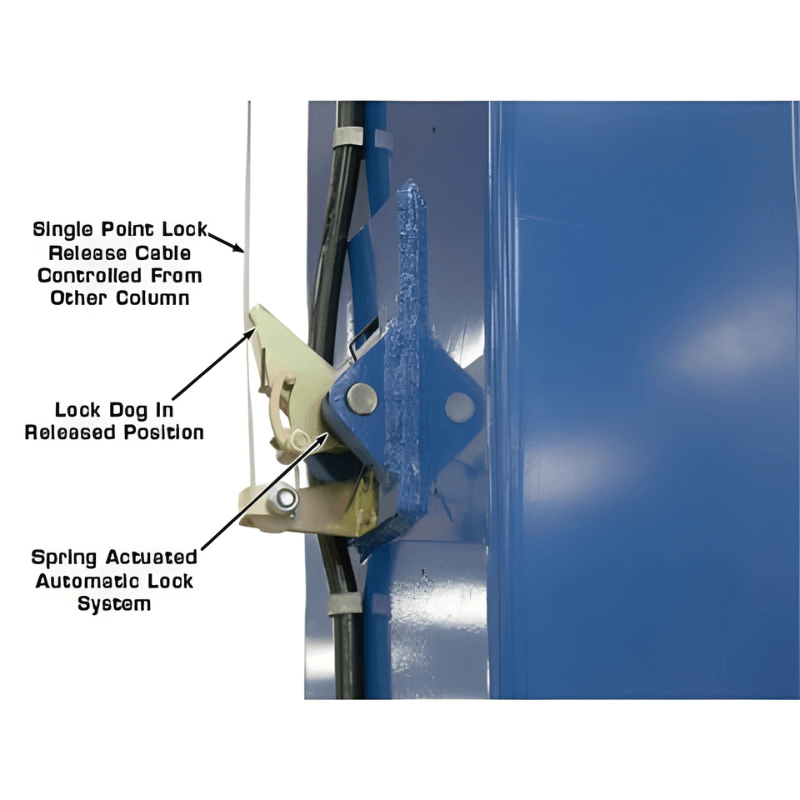

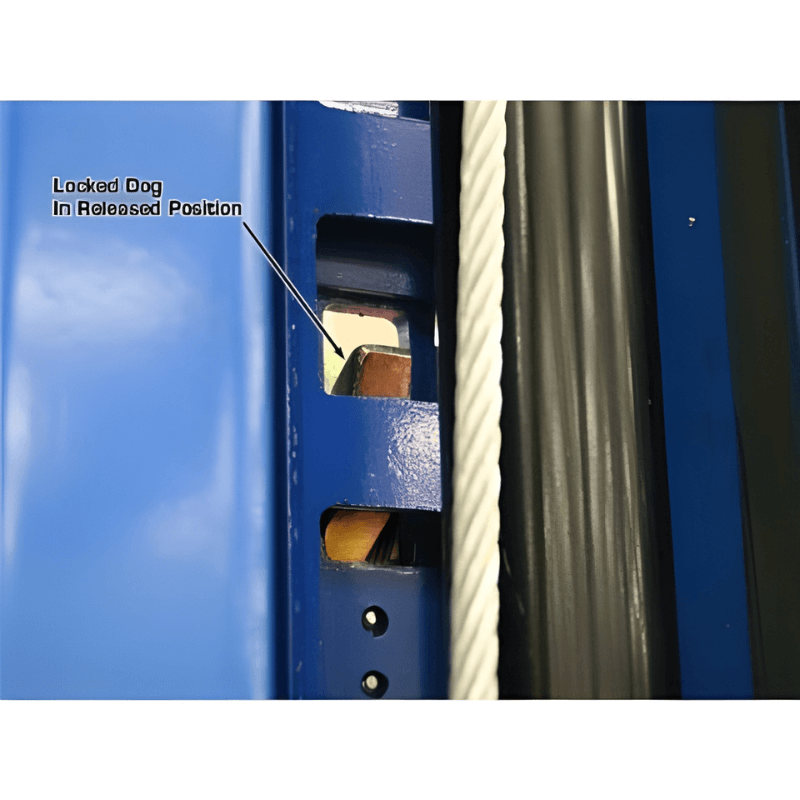

• Single Point Lock Release

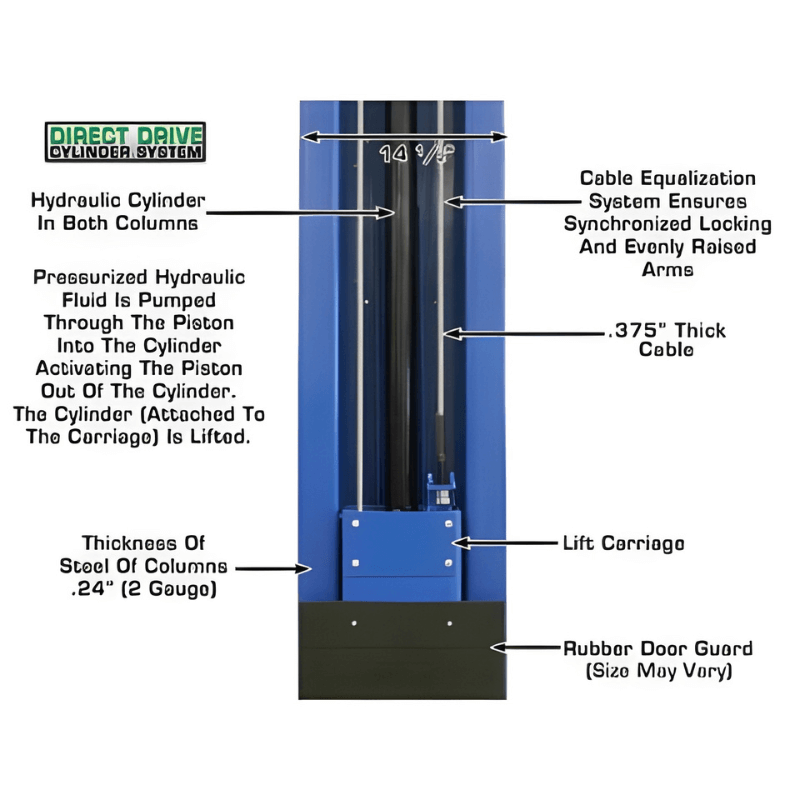

• Direct-Drive Cylinders
• Powder Coat Finish

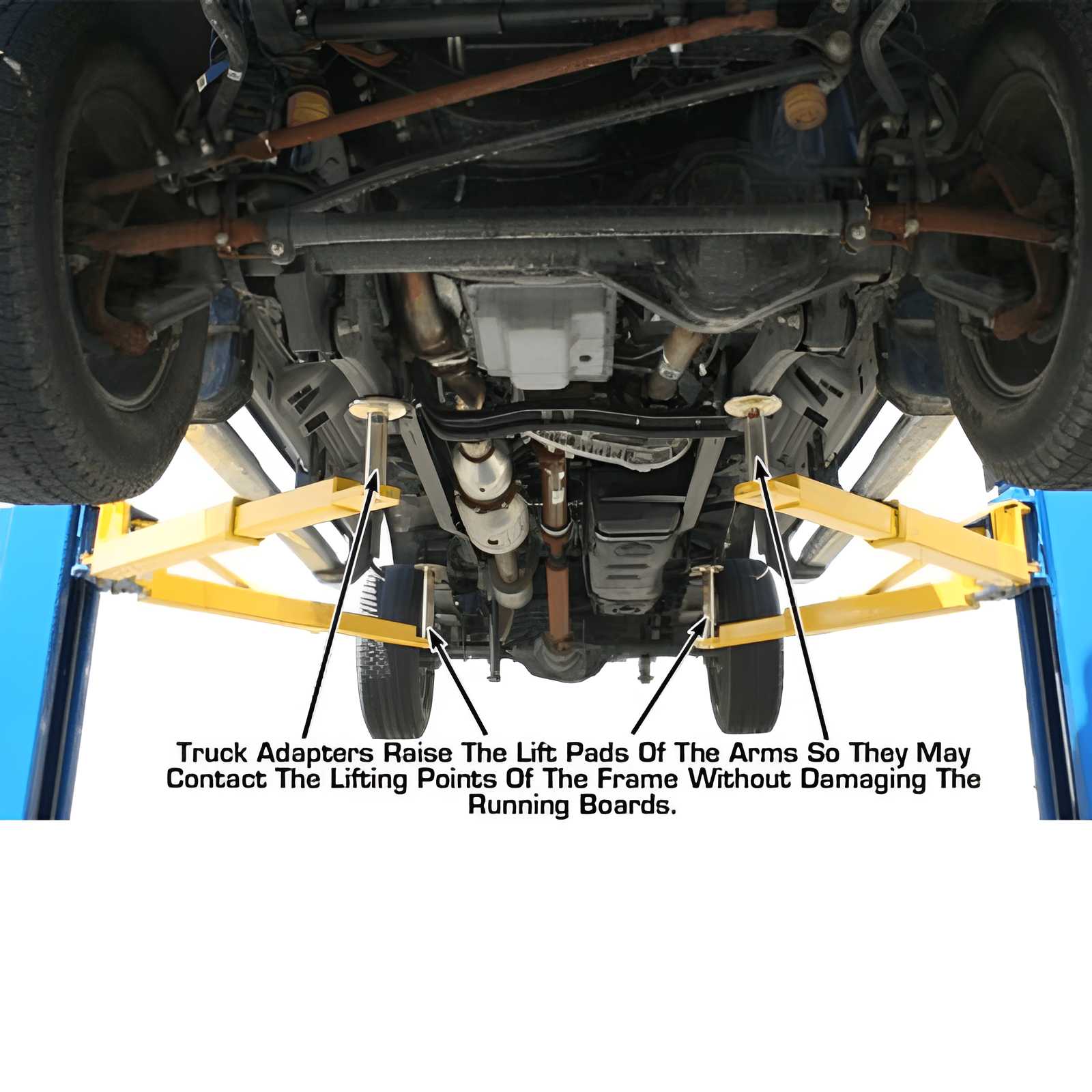

• Free 12 Piece Truck Adapter Set

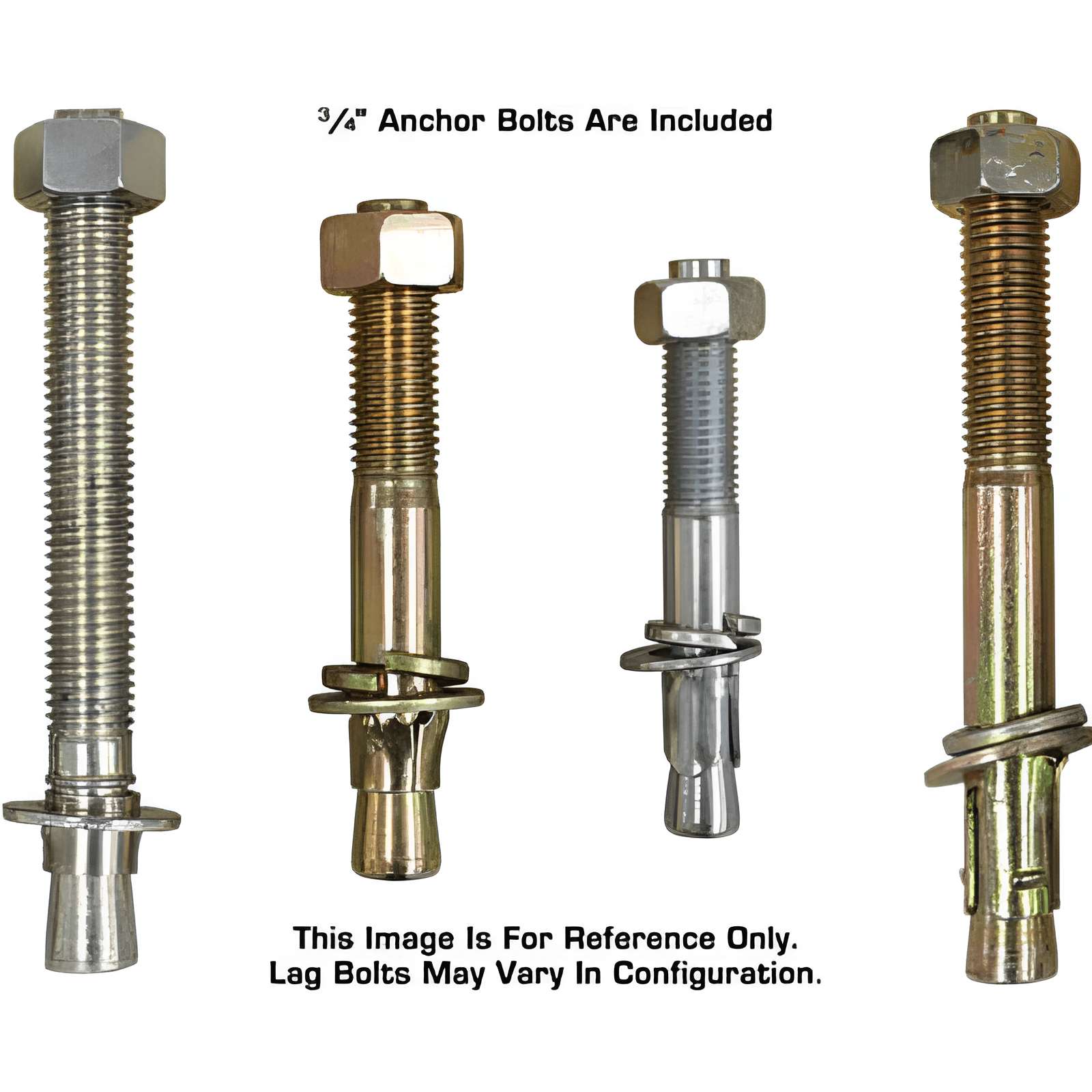

• Mounting Hardware Included
• Shipping weight: 2,490 lbs.
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas PV12PX Documentation

  Atlas PV15PX  2-Post Lift Installation Operation Manual
