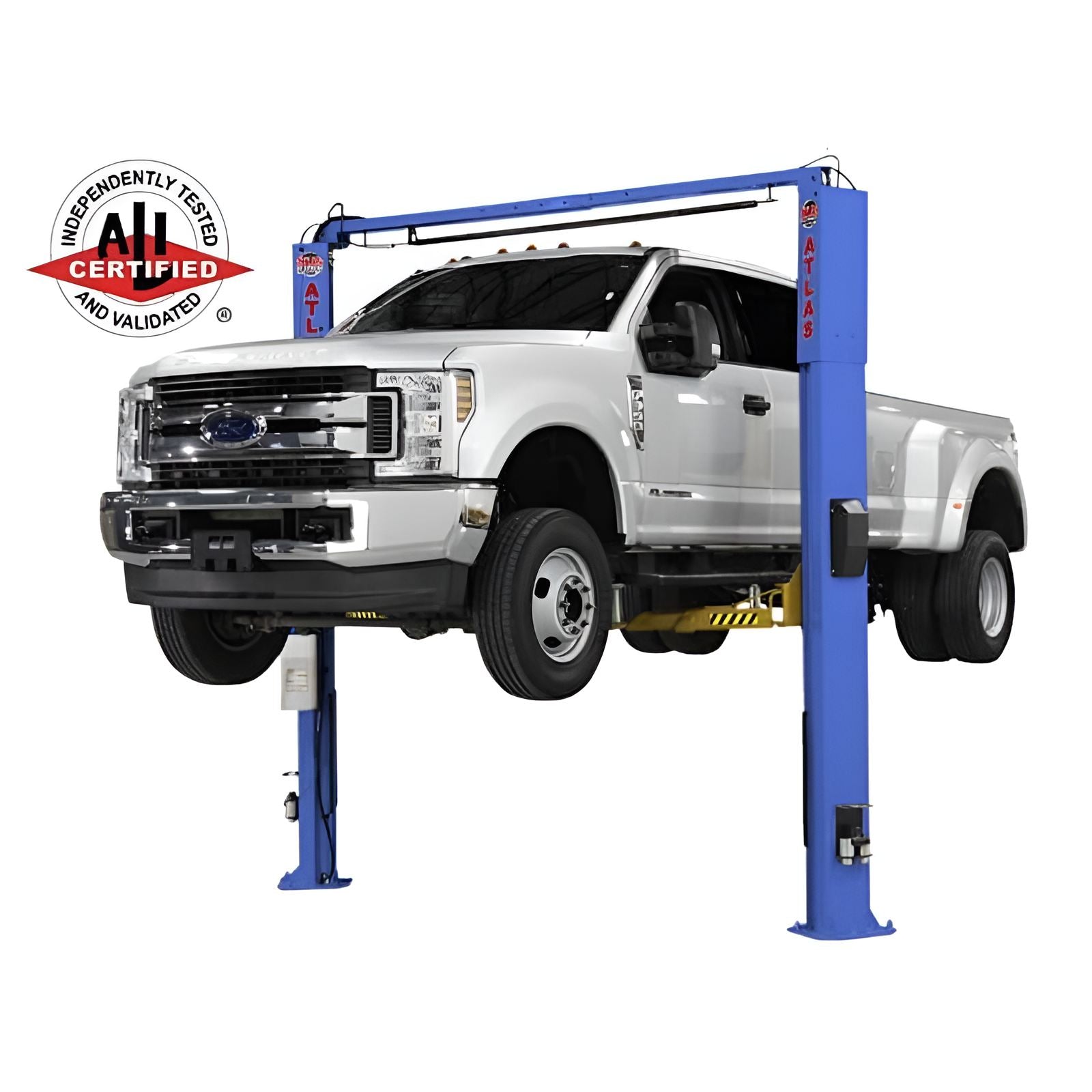

Atlas PVL10, 10,000 lb 2 Post Lift - ALI Certified

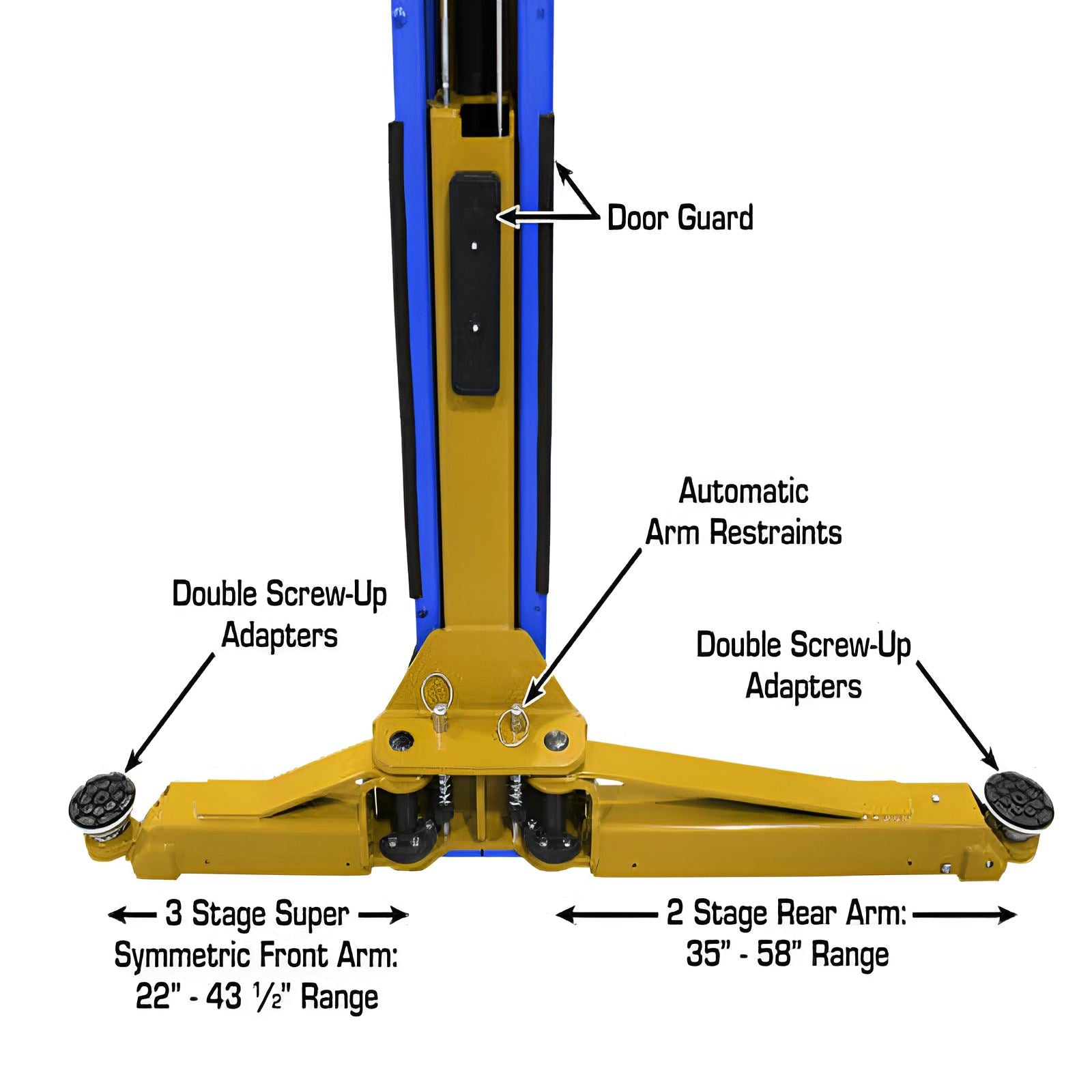

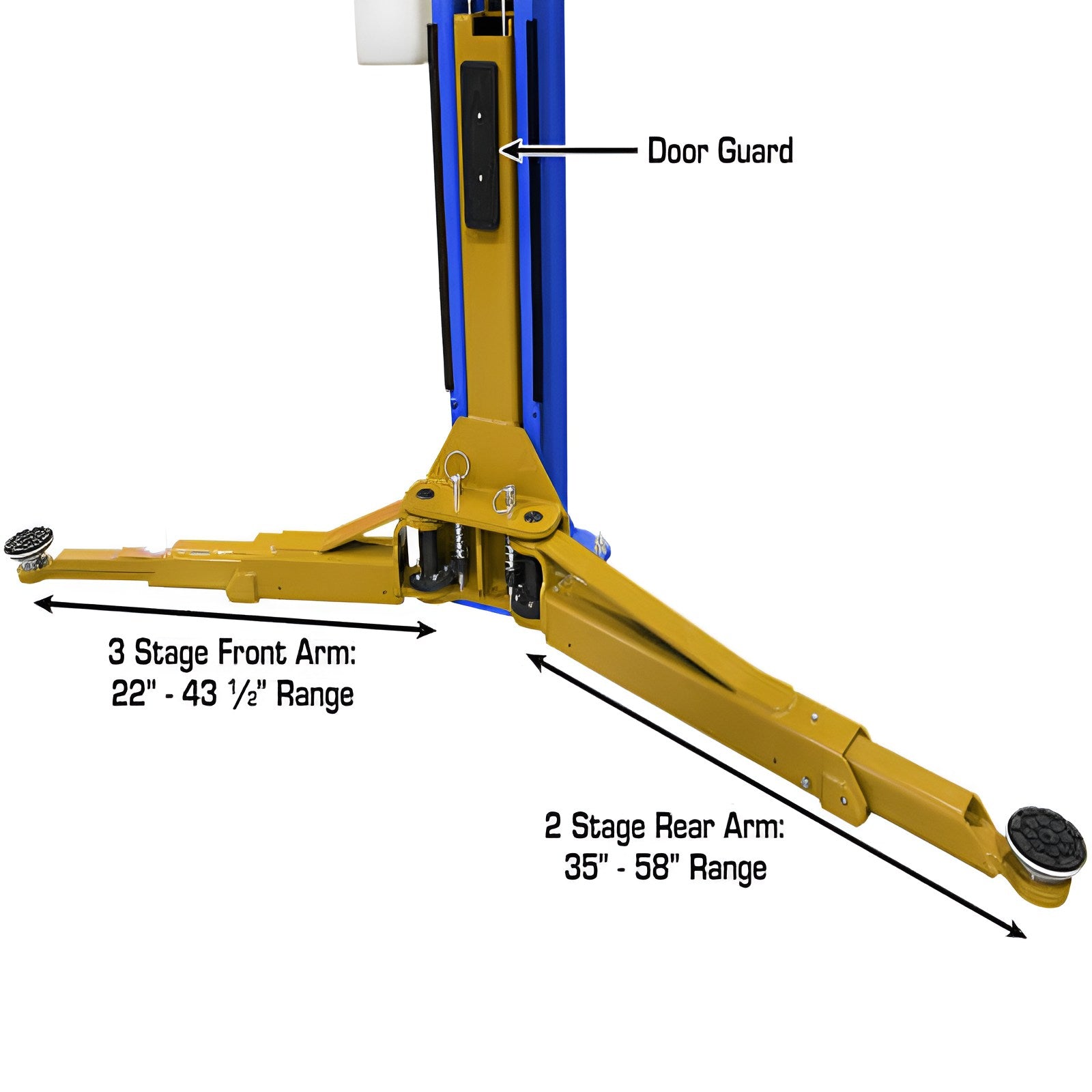

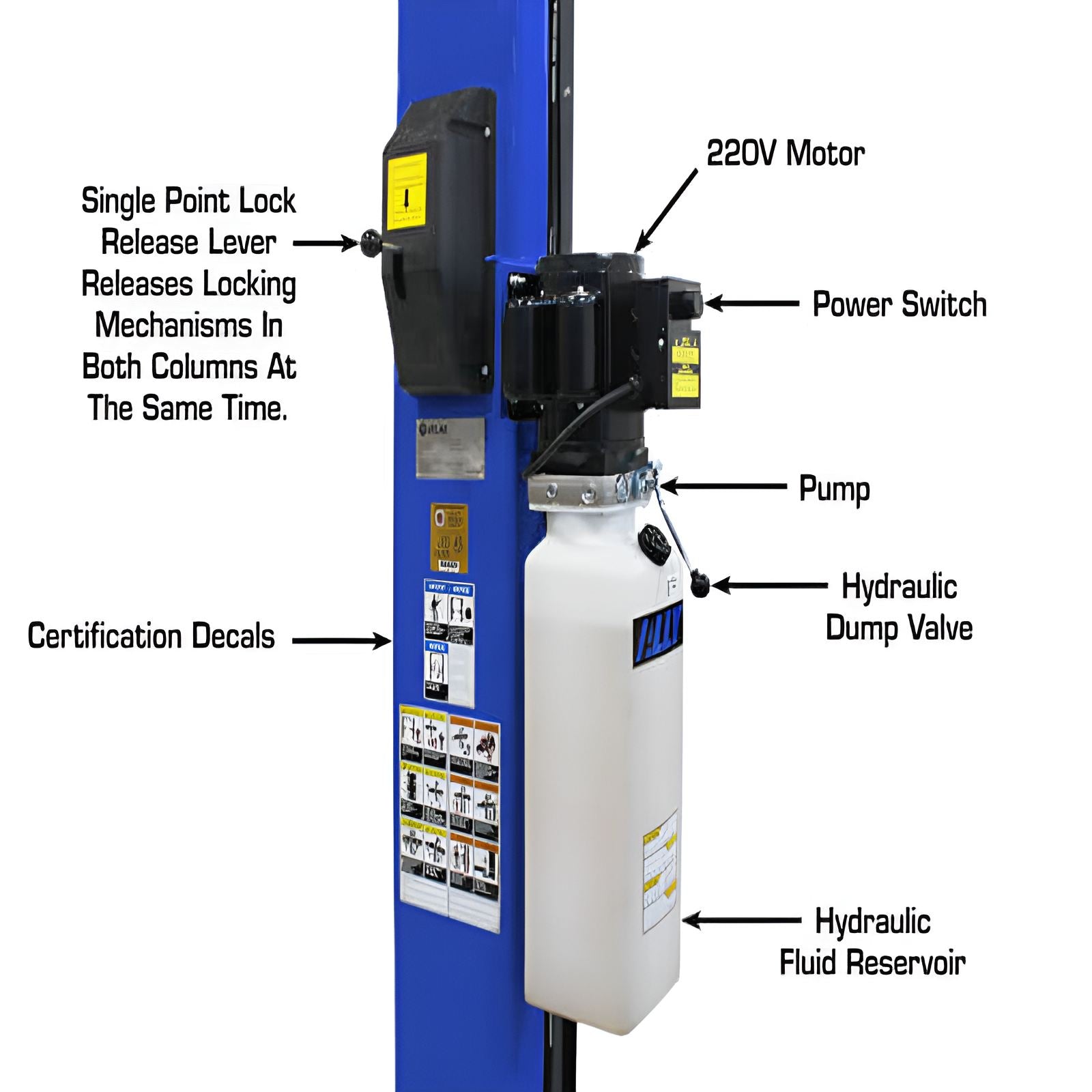

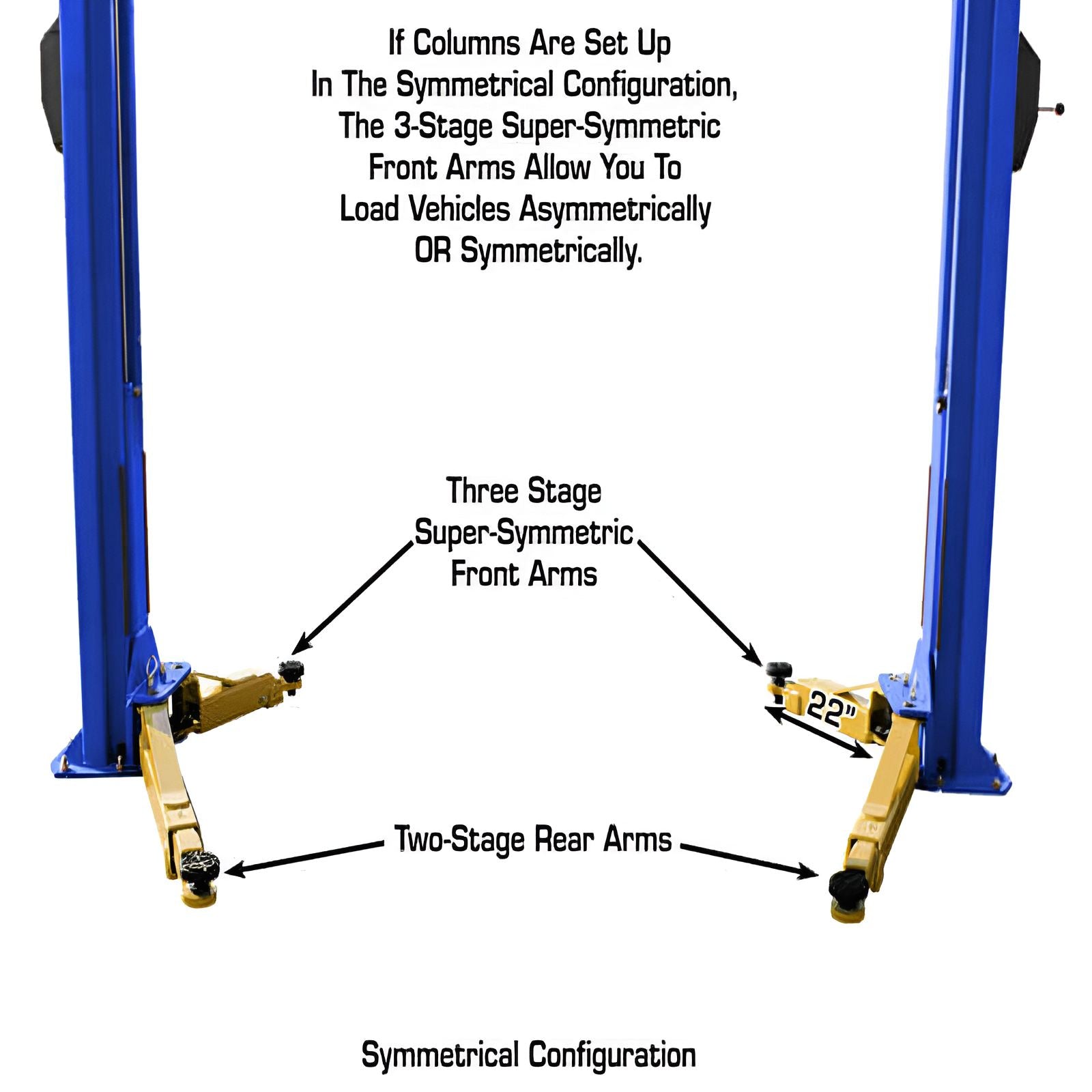

 The Atlas® Platinum PVL10 2-post lift offers a 10,000 lb. capacity and is ALI Certified for commercial use. Constructed with the needs of professional shops in mind, this lift features the highly sought-after Double S column design, which has been praised for its reliability and protected by a patent (now expired). With the ability to be installed symmetrically or asymmetrically, the lift provides easy vehicle access and support thanks to its three stage front arm design. Additionally, the Atlas® Platinum PVL10 comes with a premium ALLY Hydraulic AL2850 Power Unit that has been certified for electrical compliance in both the United States and Canada. This power unit boasts extra heavy-duty armatures and increased motor windings for better heat generation control and a two-year limited warranty.

Post Lift PVL10 Specifications:

• Capacity 10,000 LB.

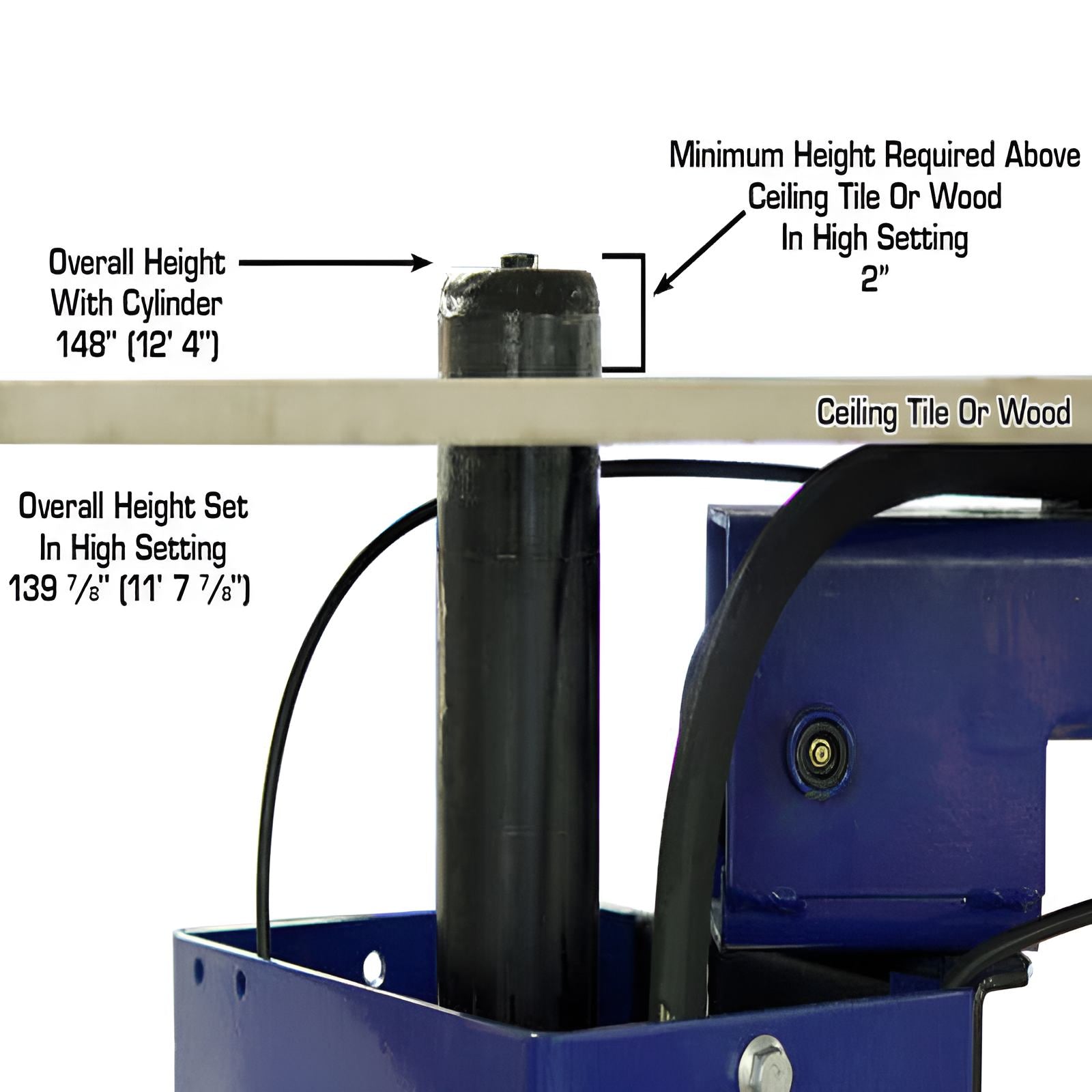

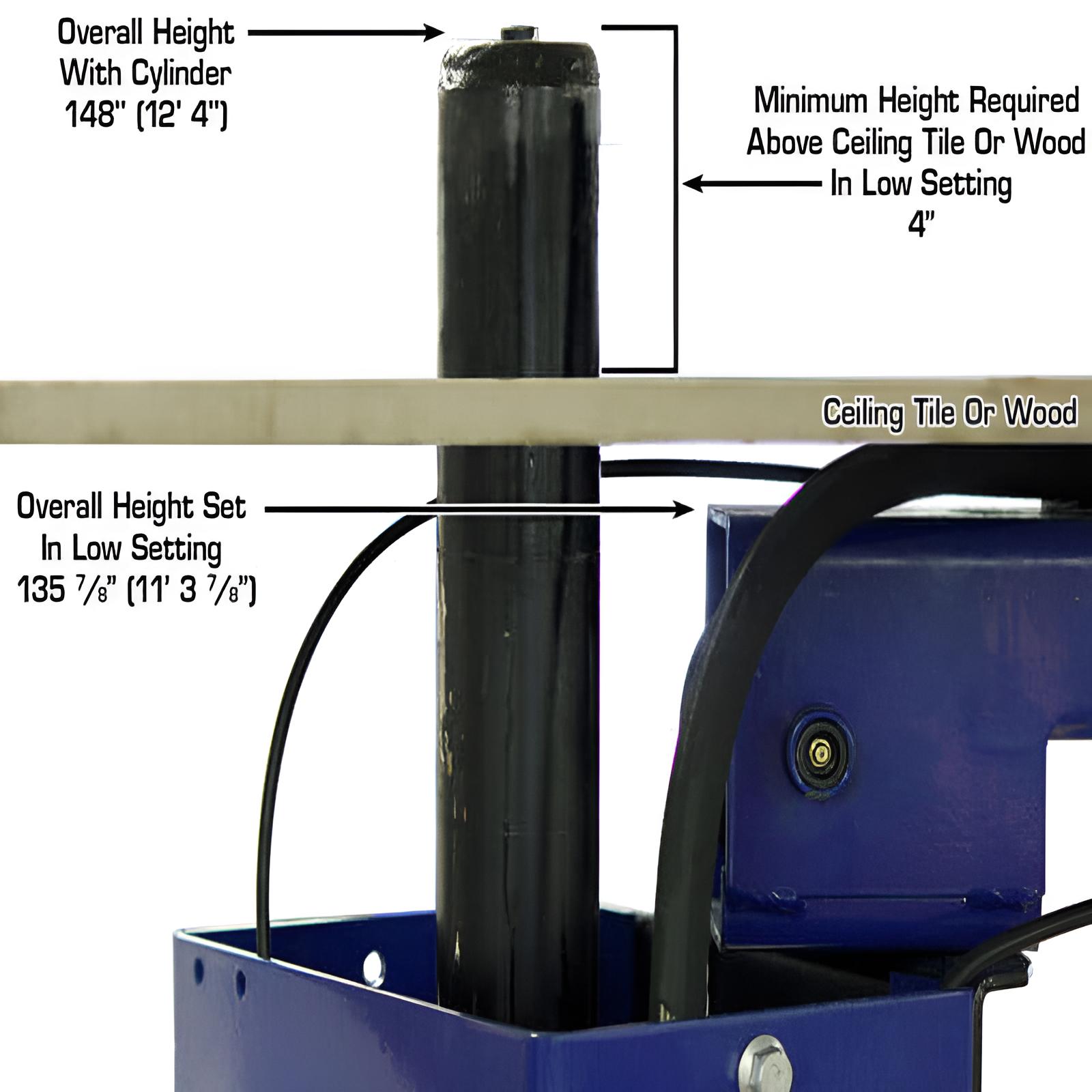

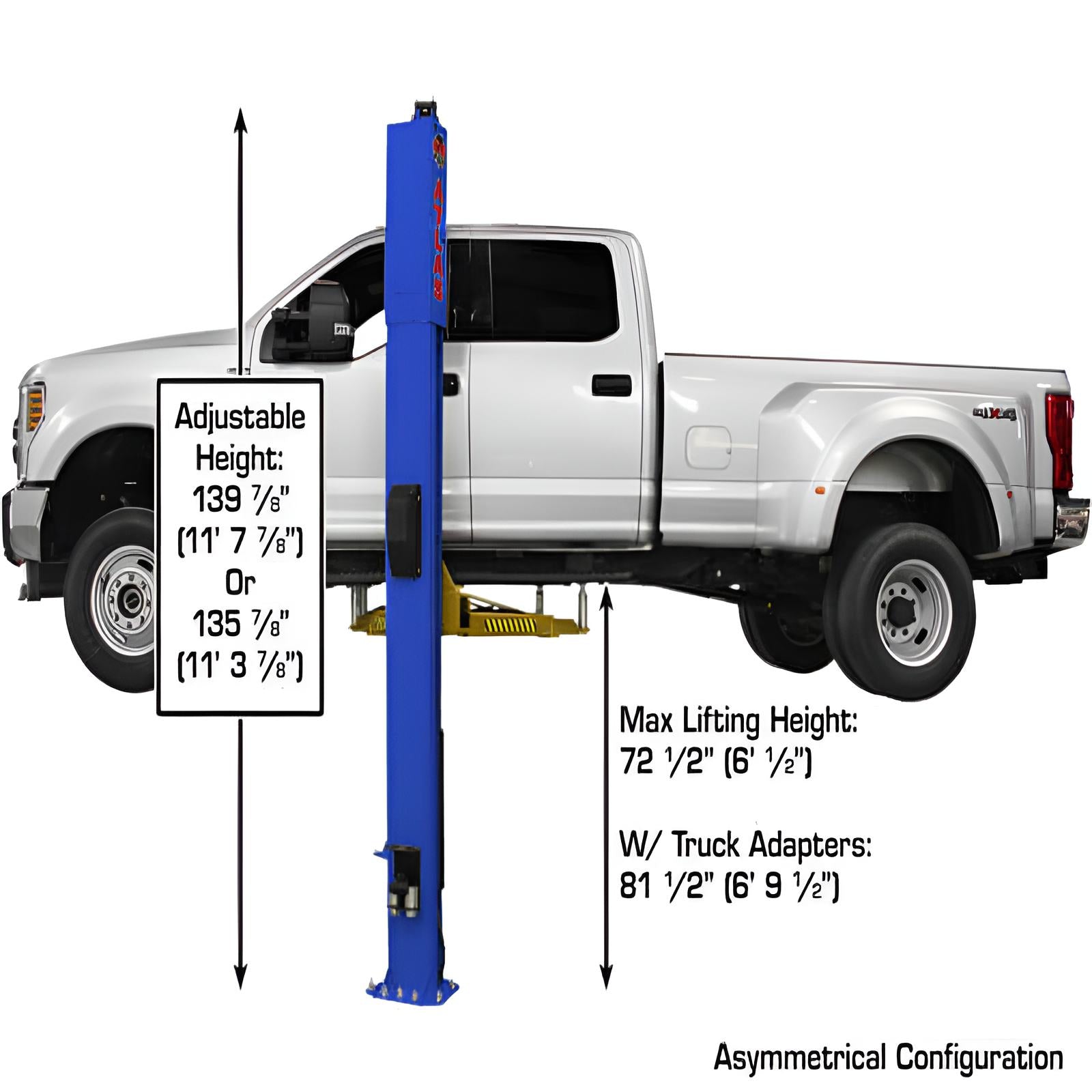

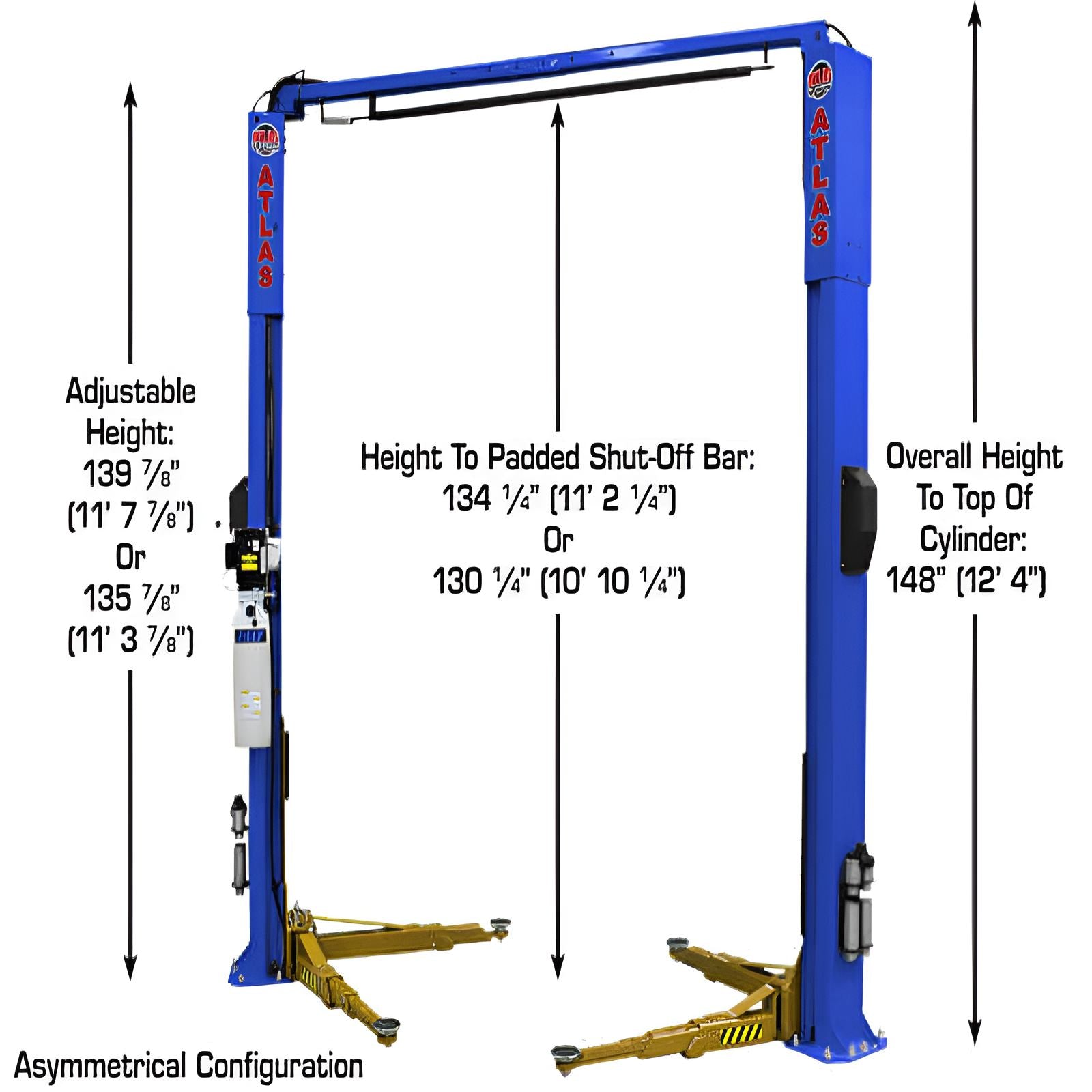

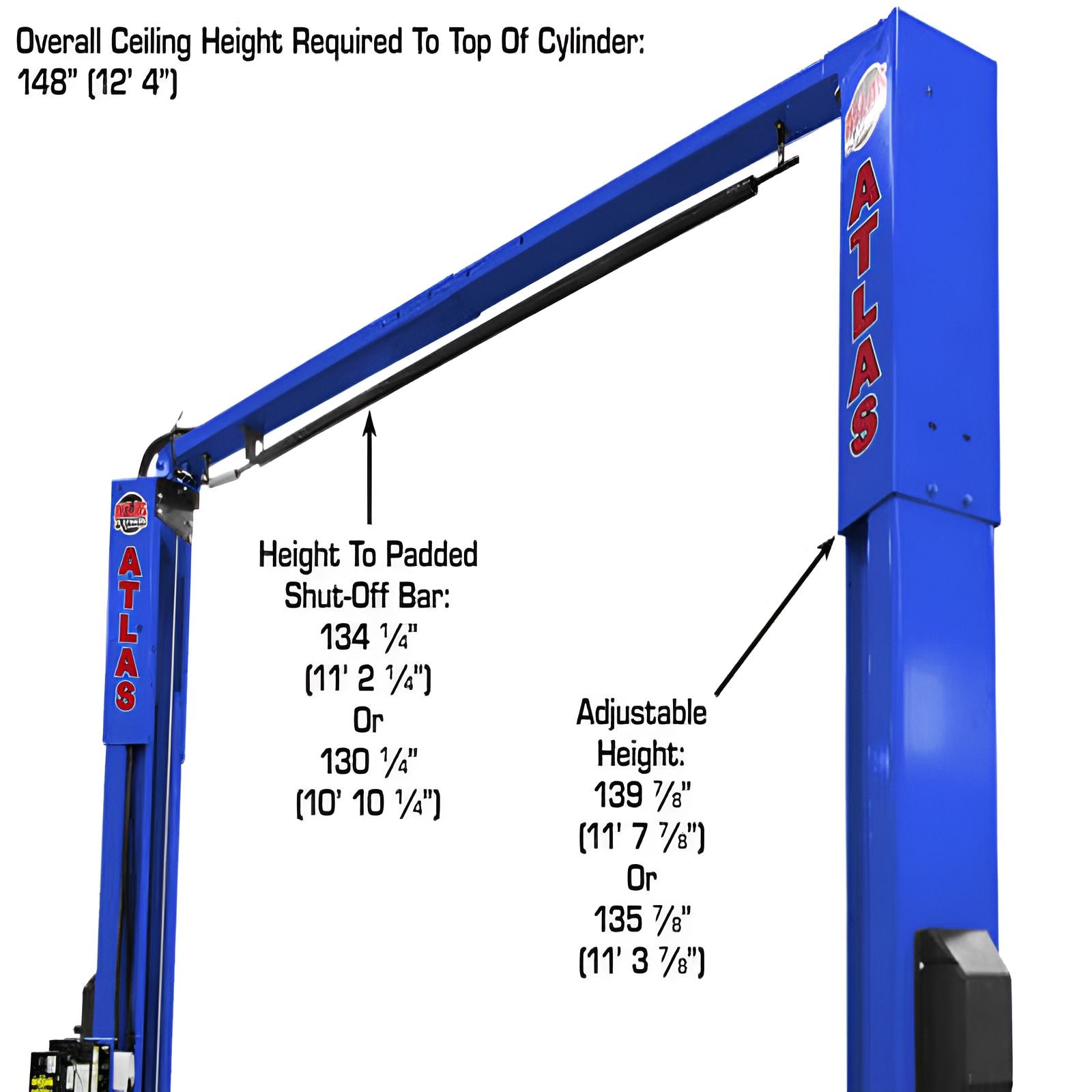

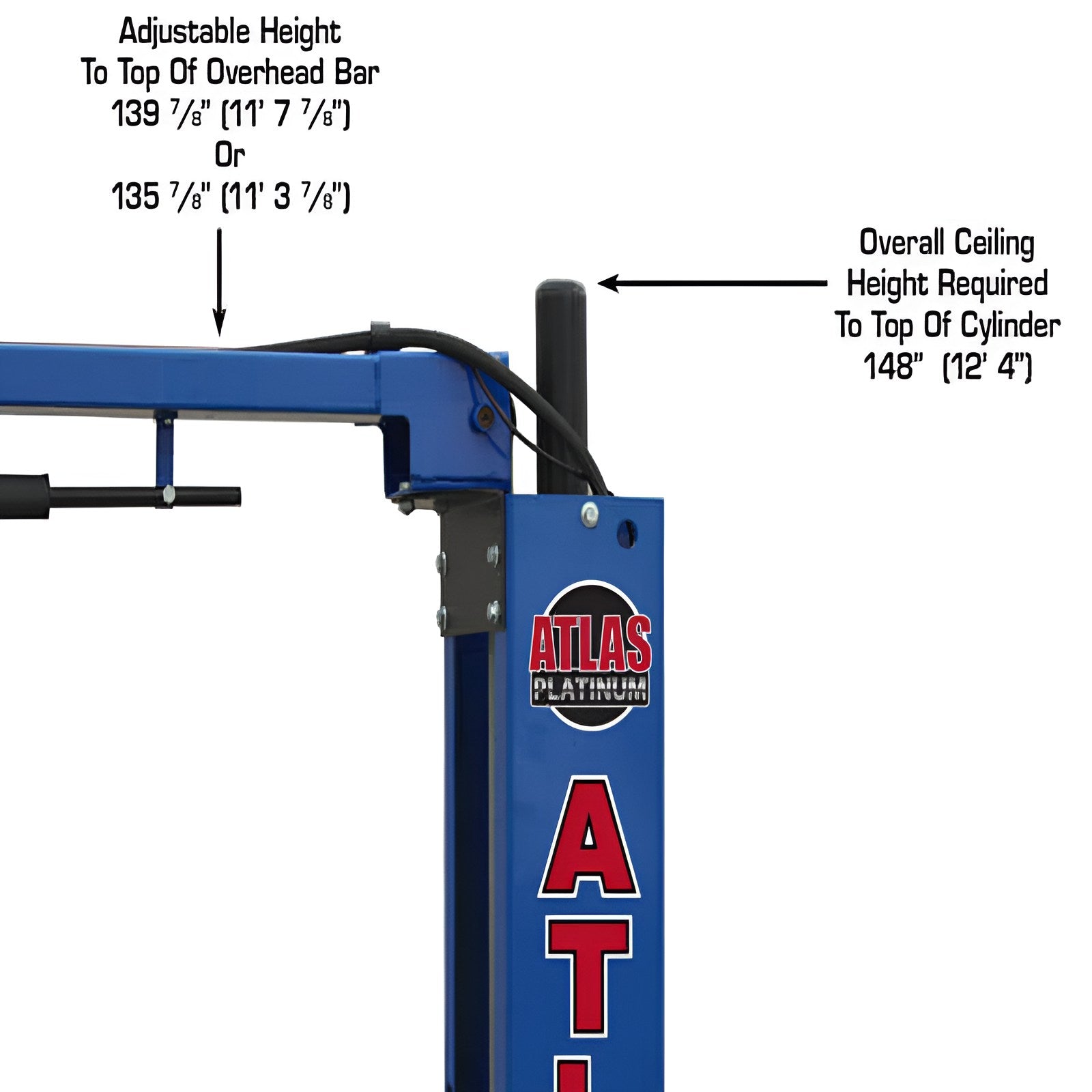

• Overall Height 135 7/8" (11' 3 7/8”) or 139 7/8” (11' 7 7/8”) ‐ (CYLINDER EXTENDS TO 12' 4”)

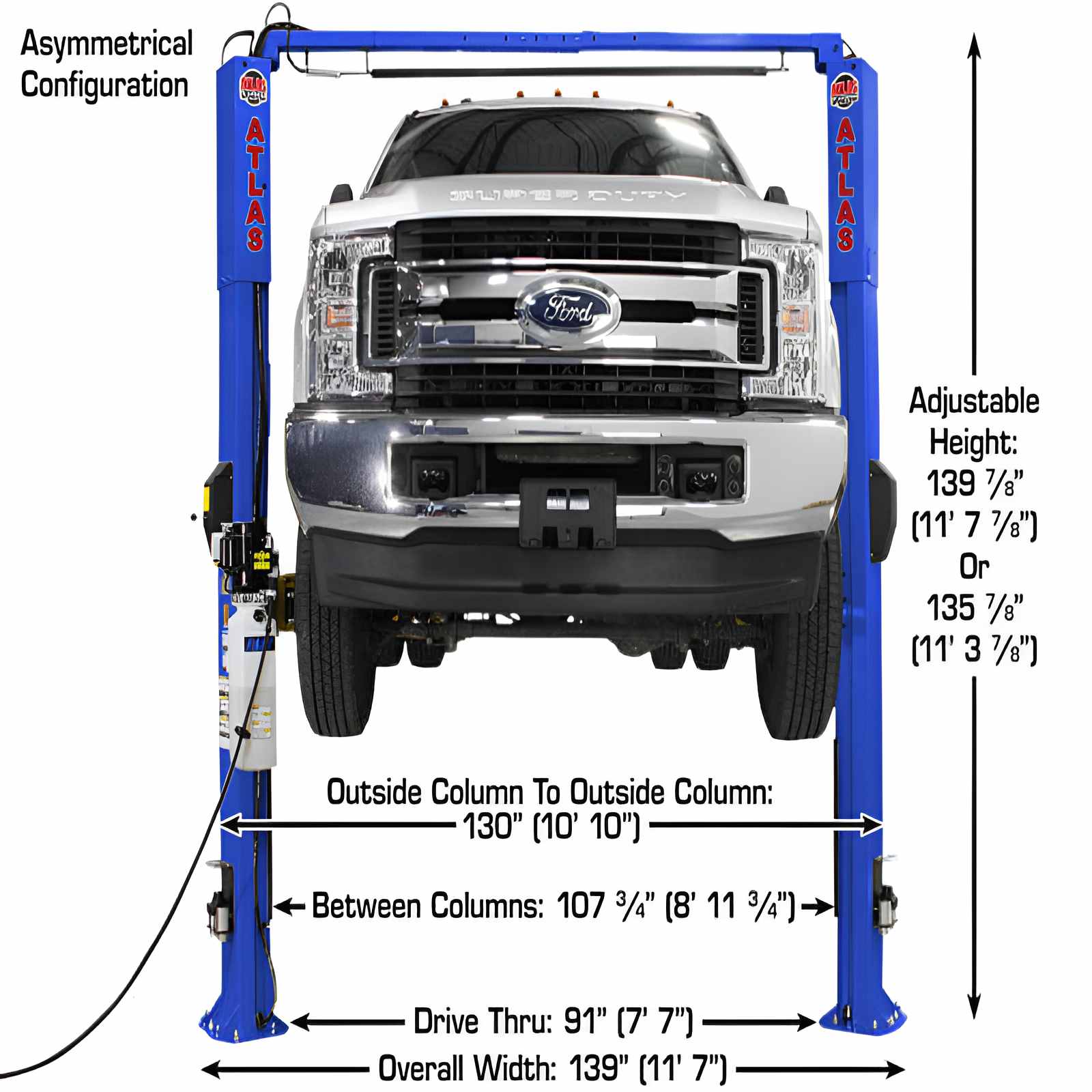

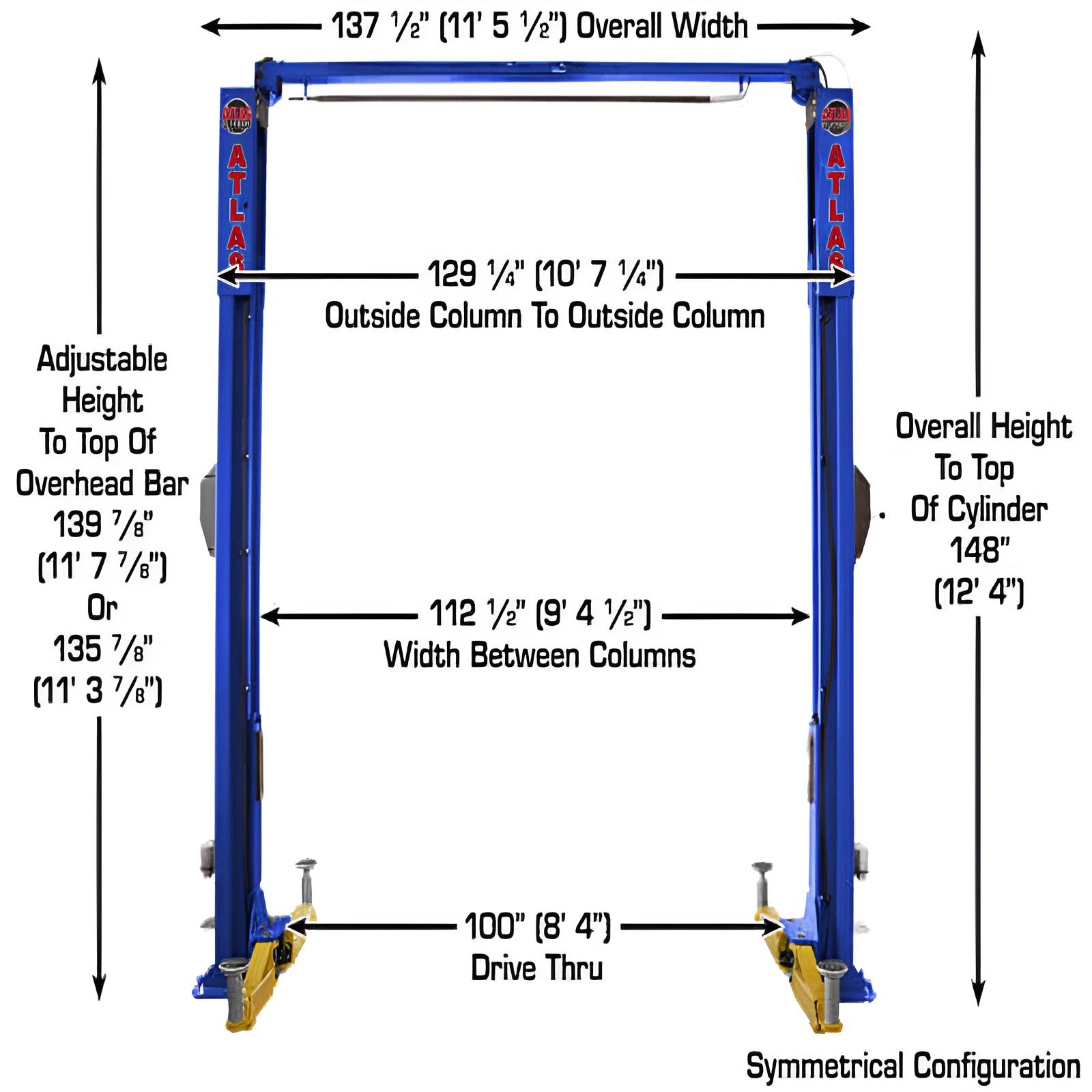

• Overall Floor Width 139" (11' 7”) Asymmetric/137 1/2” (11' 5 1/2”) Symmetric
• Outside Column to Outside Column 130" (10' 10") Asymmetric/129 1/4” (10' 9 1/4") Symmetric
• Maximum Lift Height (Without Adapters) 72 1/2"
• Maximum Lift Height (With Adapters) 81 1/2"
• Minimum Arm Height 4"

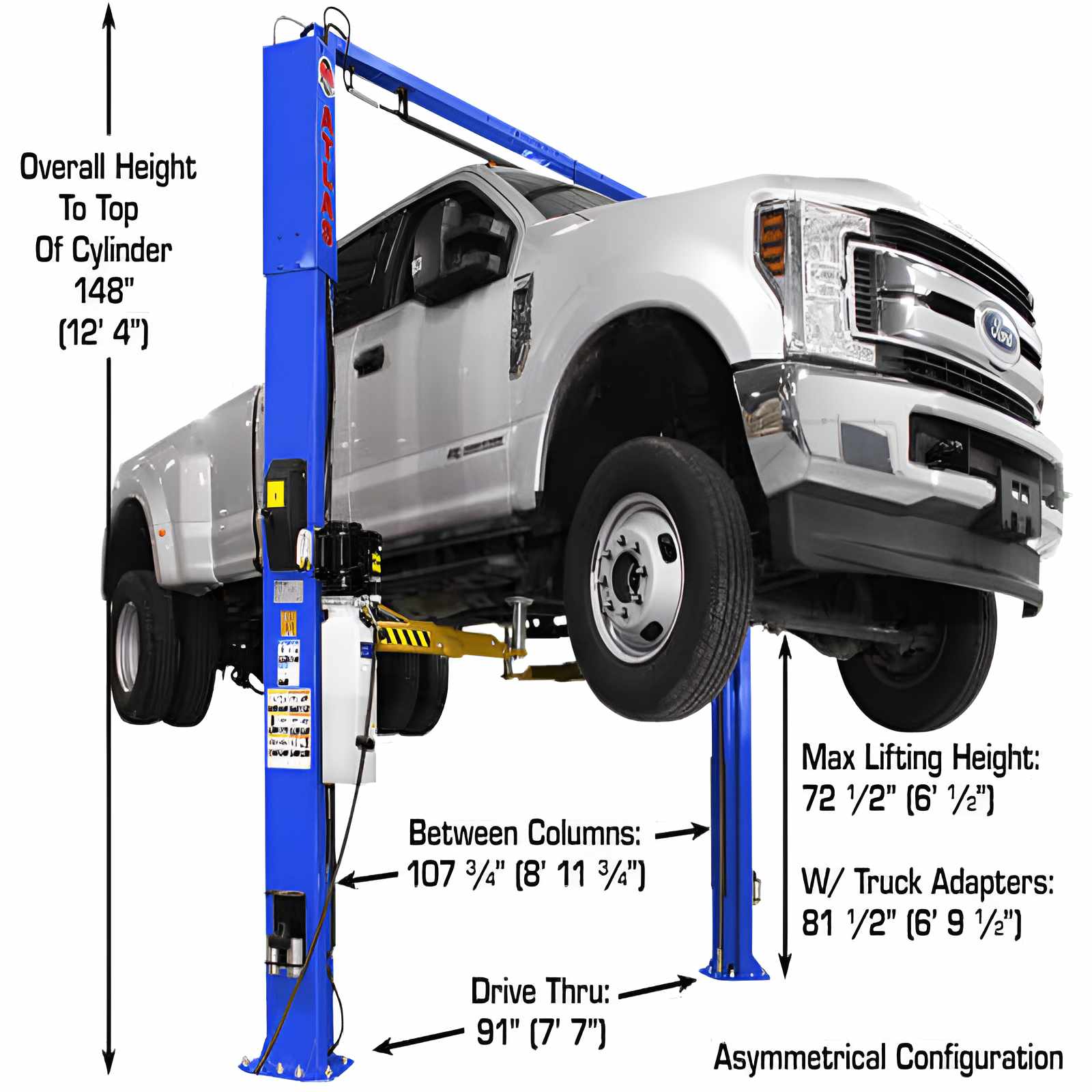

• Inside Column 107 3/4” (8' 11 3/4”) Asymmetric/ 112 1/2" (9' 4 1/2") Symmetric
• Drive Thru 91” Asymmetric/99 1/2” Symmetric
• Column Size 7" x 10 1/4"
• Column Thickness of Steel 6mm
• Base Of Lift 15" x 18"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,850 LBS.
• Pallet Size:  115" Long x 22-1/2" Tall x 38" Wide
• Adapter Heights 4 Each 3”, 6”
• Arm Hole/Adapter Peg Size 2”
• Requires a minimum of 4" of concrete with a 3000 psi. rating

PVL10 10,000 lb Post Lift Special Features:

• ALI Certified
• Extra Column Strength with Double "S" Column Design
• Overhead, Open Floor Design

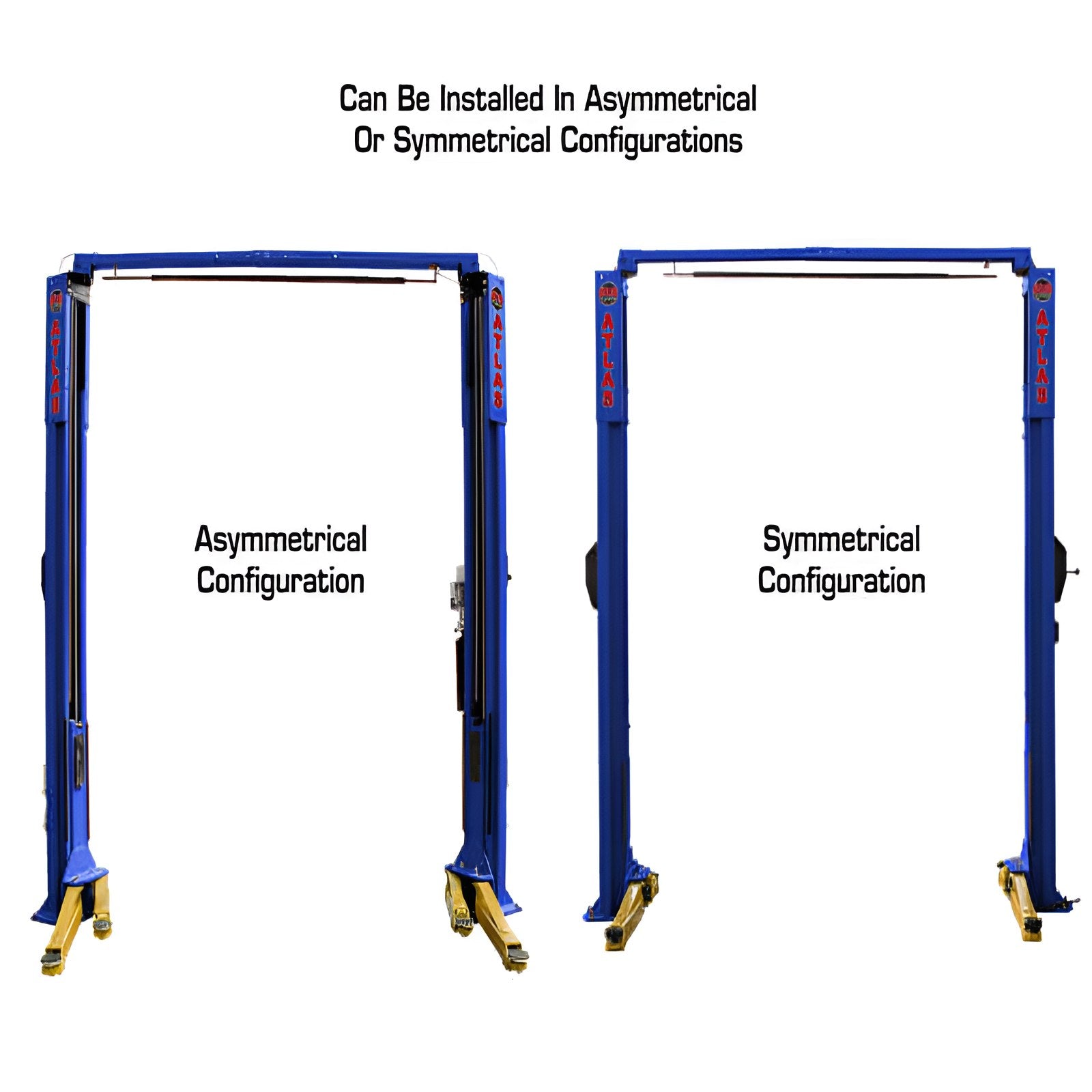

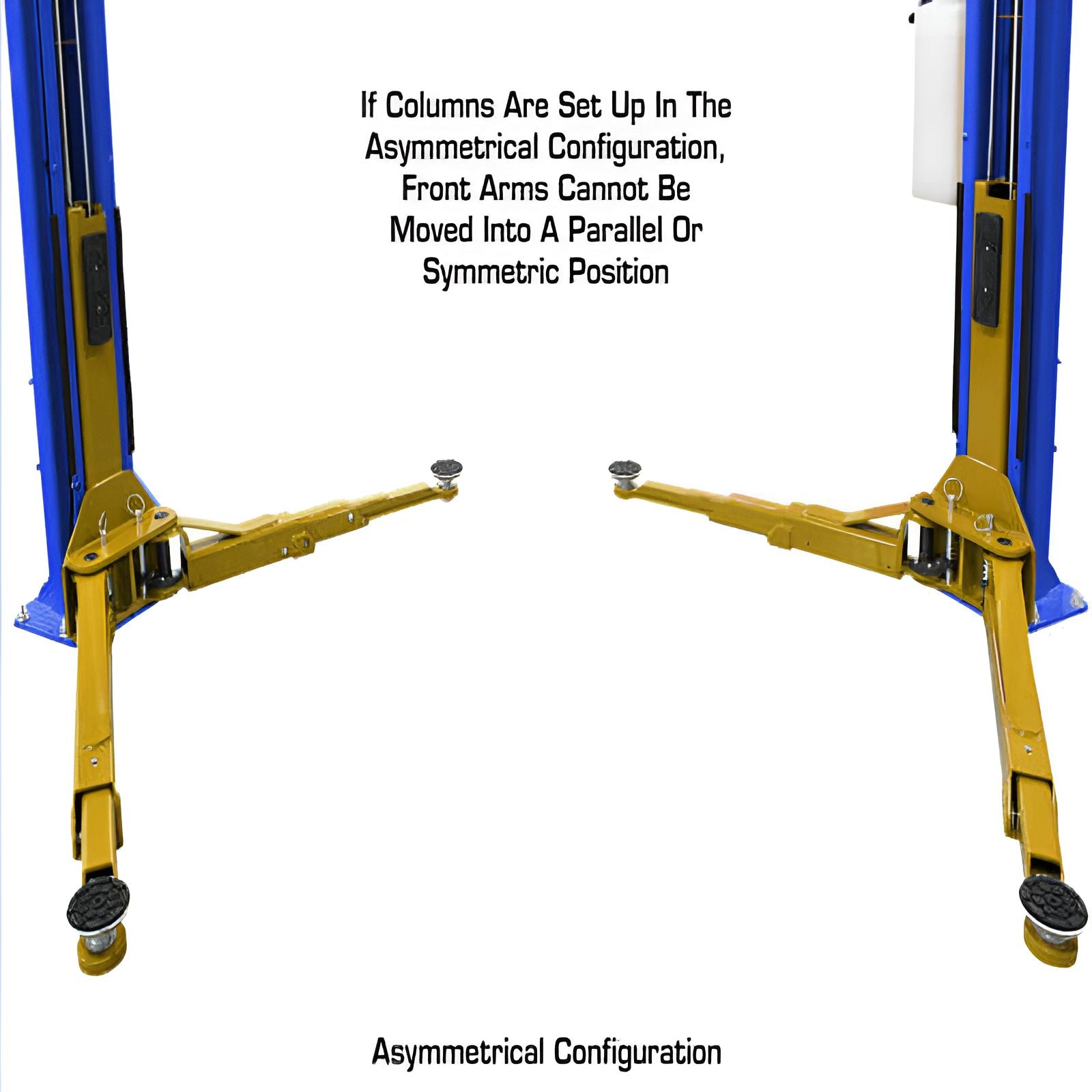

• Can be installed as Asymmetric or Symmetric
• Lock Release: Single Point
• Pads on Carriage
• Powder Coat Finish
• Secondary Lock System
• Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only

• Unit Includes:
•     Mounting Hardware

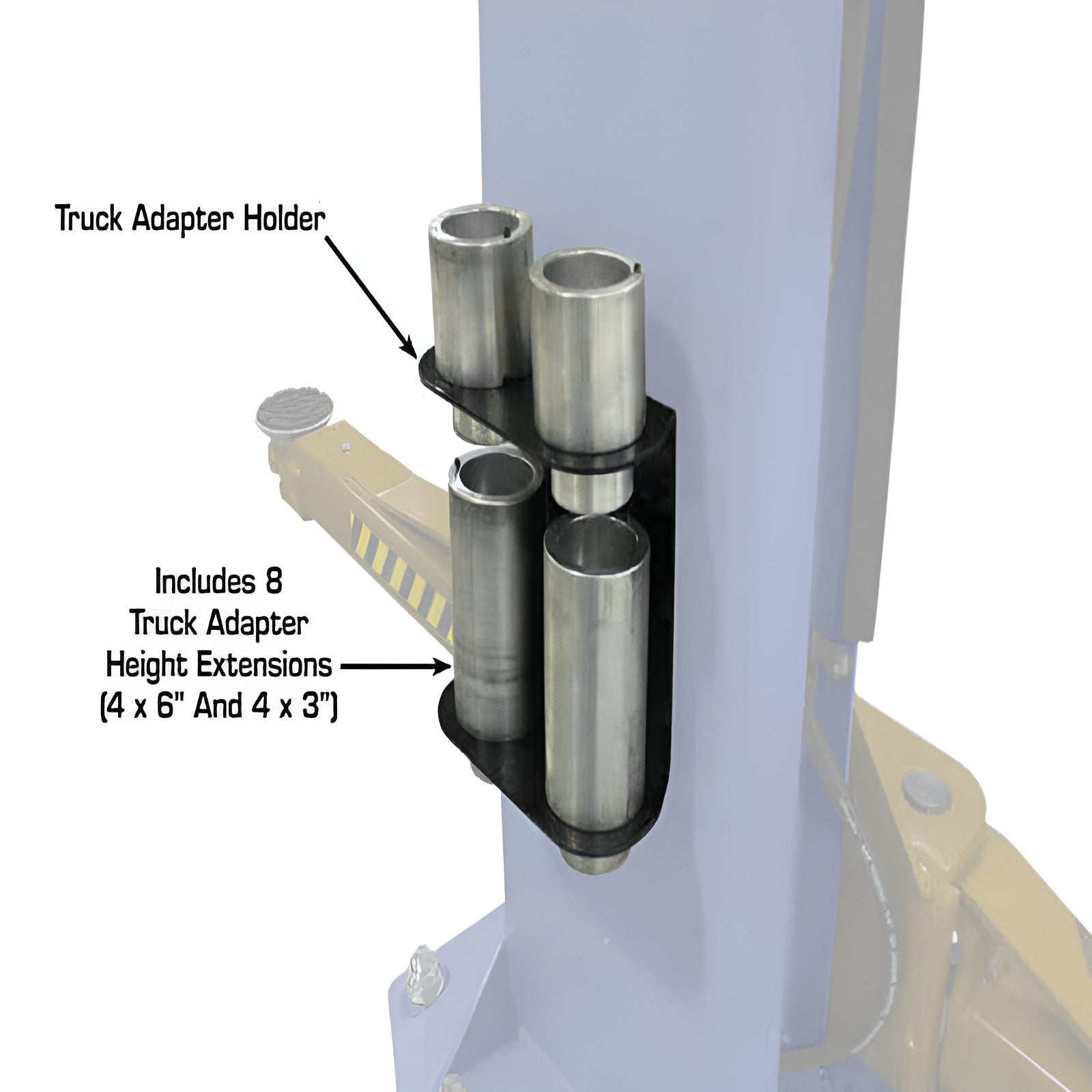

•     8-piece Truck Adapter Set

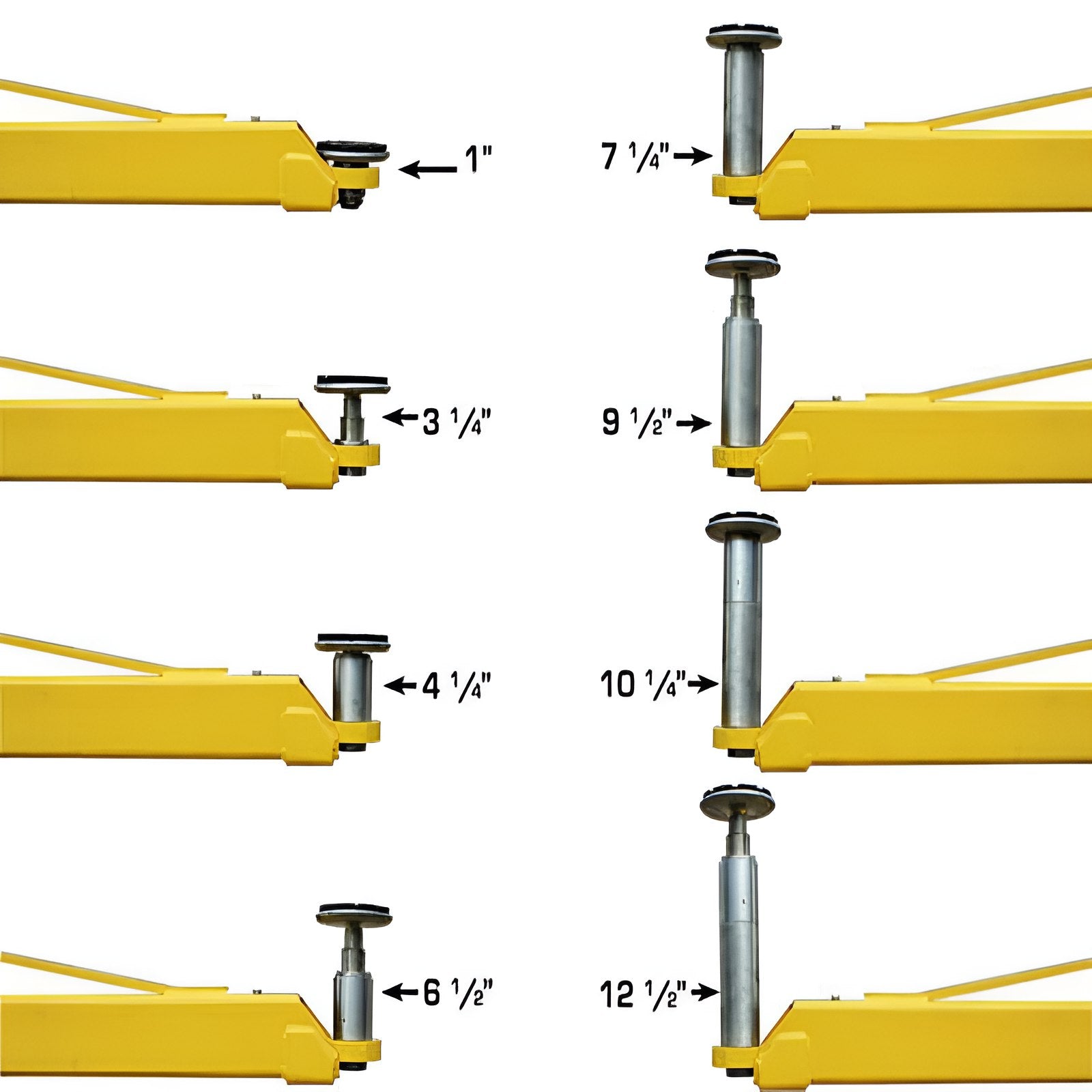

•     Double Screw-up Adapters

Atlas PVL10 Documentation:

   Atlas PVL10 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $399

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
