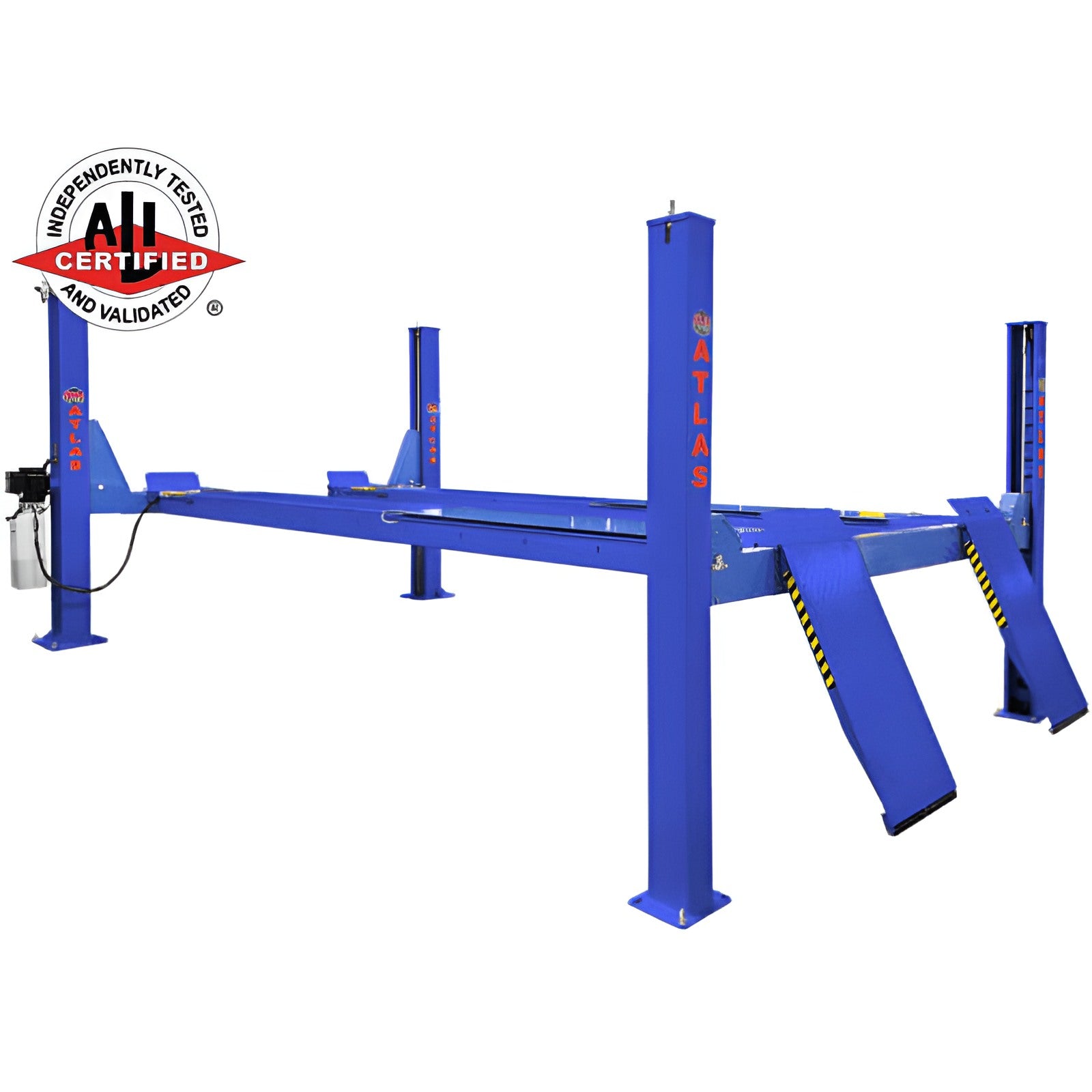

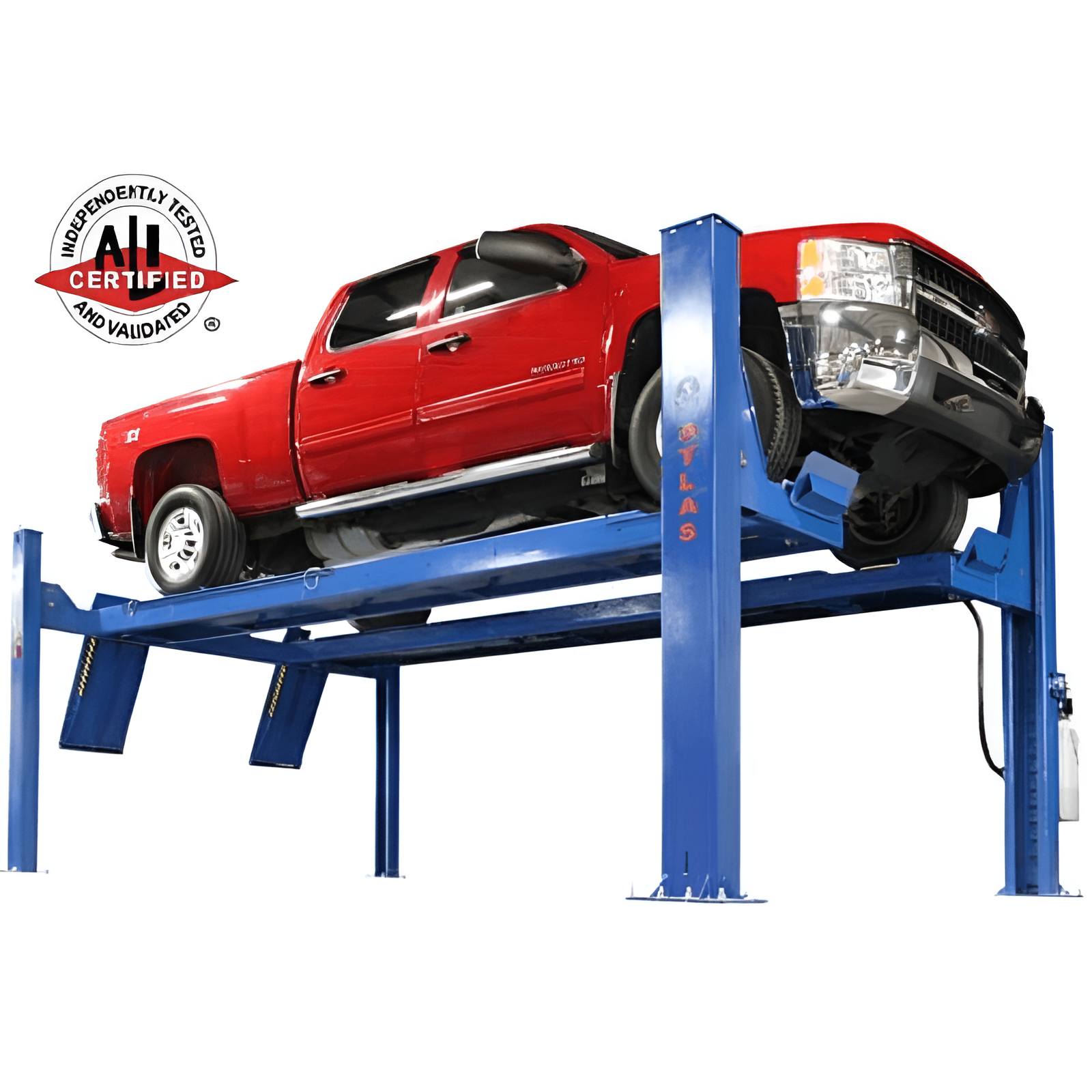

Atlas PVL14OF-EXT, 14,000 lb Alignment Lift - Open Front, ALI Certified

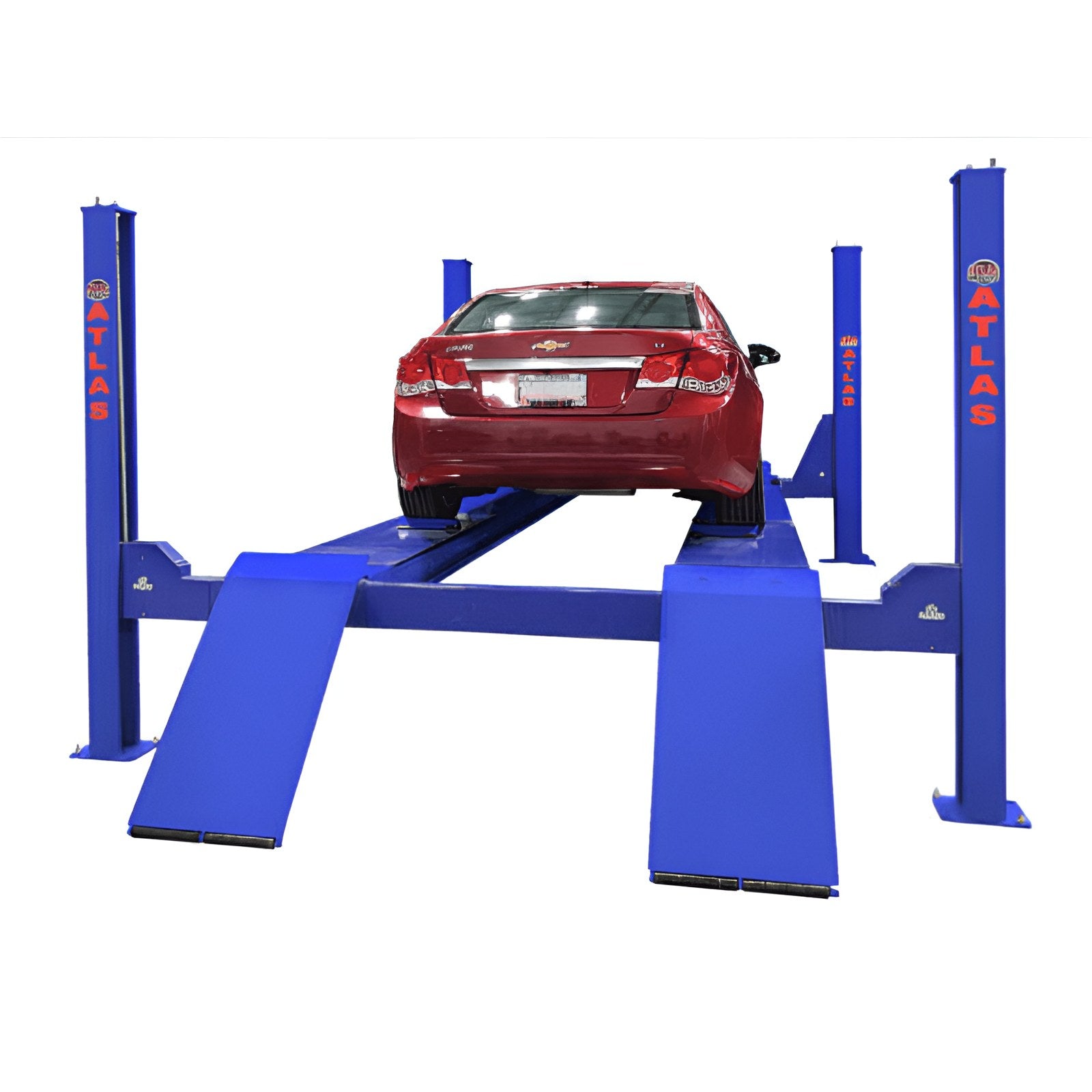

It’s time to upgrade to the Atlas® Platinum PVL14OF-EXT, the four-post Open-Front Alignment lift that’s designed to make your life easier and your shop more efficient. With a 14,000 lb capacity and extra-long runways that can accommodate everything from cars and vans to SUVs, trucks, and even commercial vehicles, this lift gives you the freedom to access the underside of any vehicle without the acrobatics. Powered by a robust 220-volt single-phase unit, the Platinum PVL14OF-EXT features a strong cable system and oversized hydraulic cylinder that safely raises and lowers your vehicles with ease.

But here’s where it really shines: the innovative track system between the runways allows for seamless use with a rolling bridge jack (like the Atlas® Platinum RJ7000, sold separately), making wheel alignments a breeze. And with built-in slip plates and heavy-duty turntables, you can say goodbye to the hassle of manual adjustments. This ALI certified lift not only meets the highest safety standards but also comes with the ALLY Hydraulic AL3000 Power Unit, certified for electrical compliance by MET Laboratories Inc. With its heavy-duty construction, open-front design for easy access, and a warranty that speaks volumes about its quality, this lift is the perfect addition for any professional shop looking to boost productivity and enhance service quality.

 Alignment Lift PVL14OF-EXT Specifications:

• Capacity 14,000 lb.
• Lifting Height 73 1/4" (6' 1 1/4")

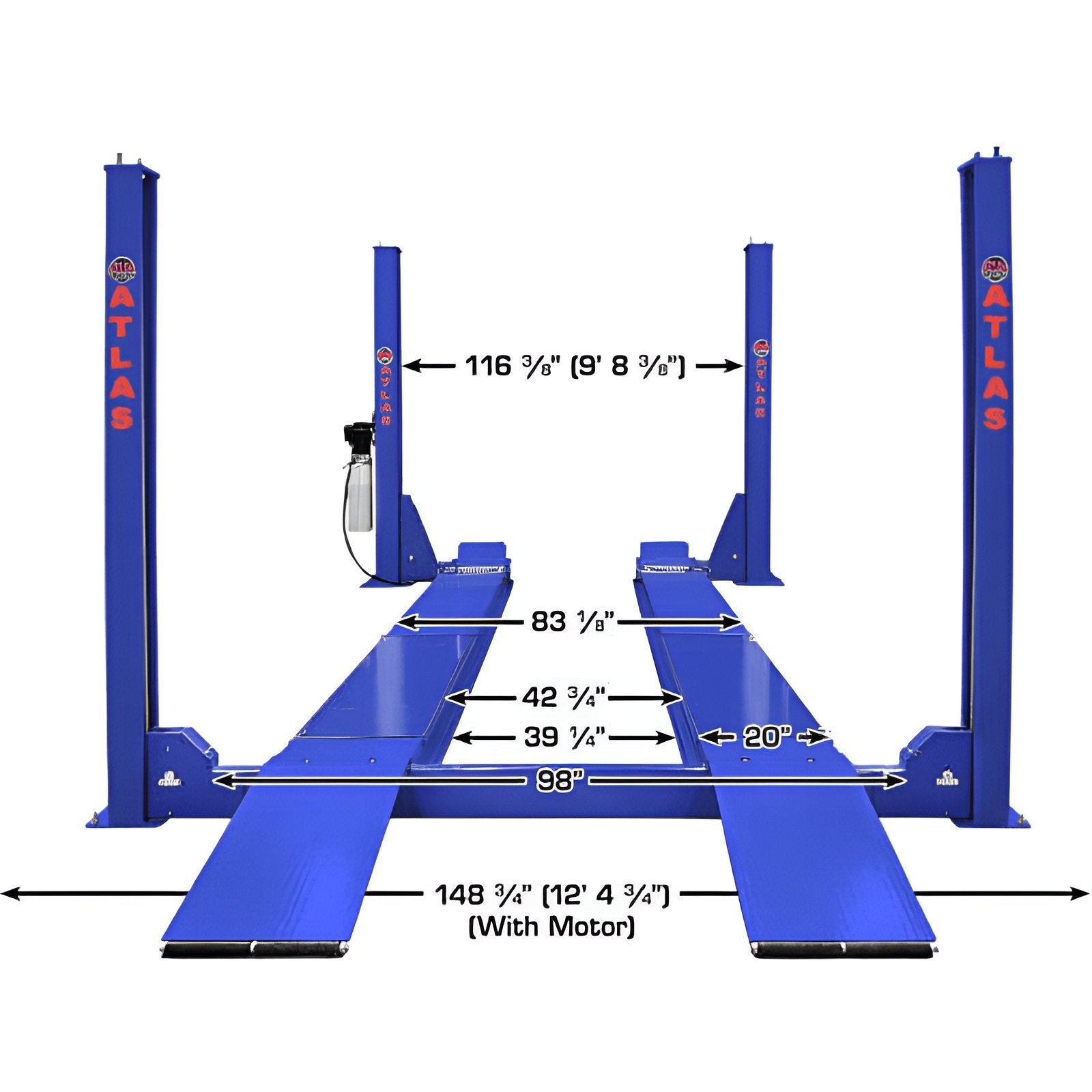

• Overall Width Of Columns (Without Motor) 140 1/8" (11' 8 1/8")
• Overall Width Of Columns (With Motor) 148 3/4" (12' 4 3/4")
• Overall Length With Approach Ramp 272 1/8" (22' 8 1/8")
• Length Between Columns 207" (17' 3")
• Runway Length 223 1/2" (18' 7 1/2")

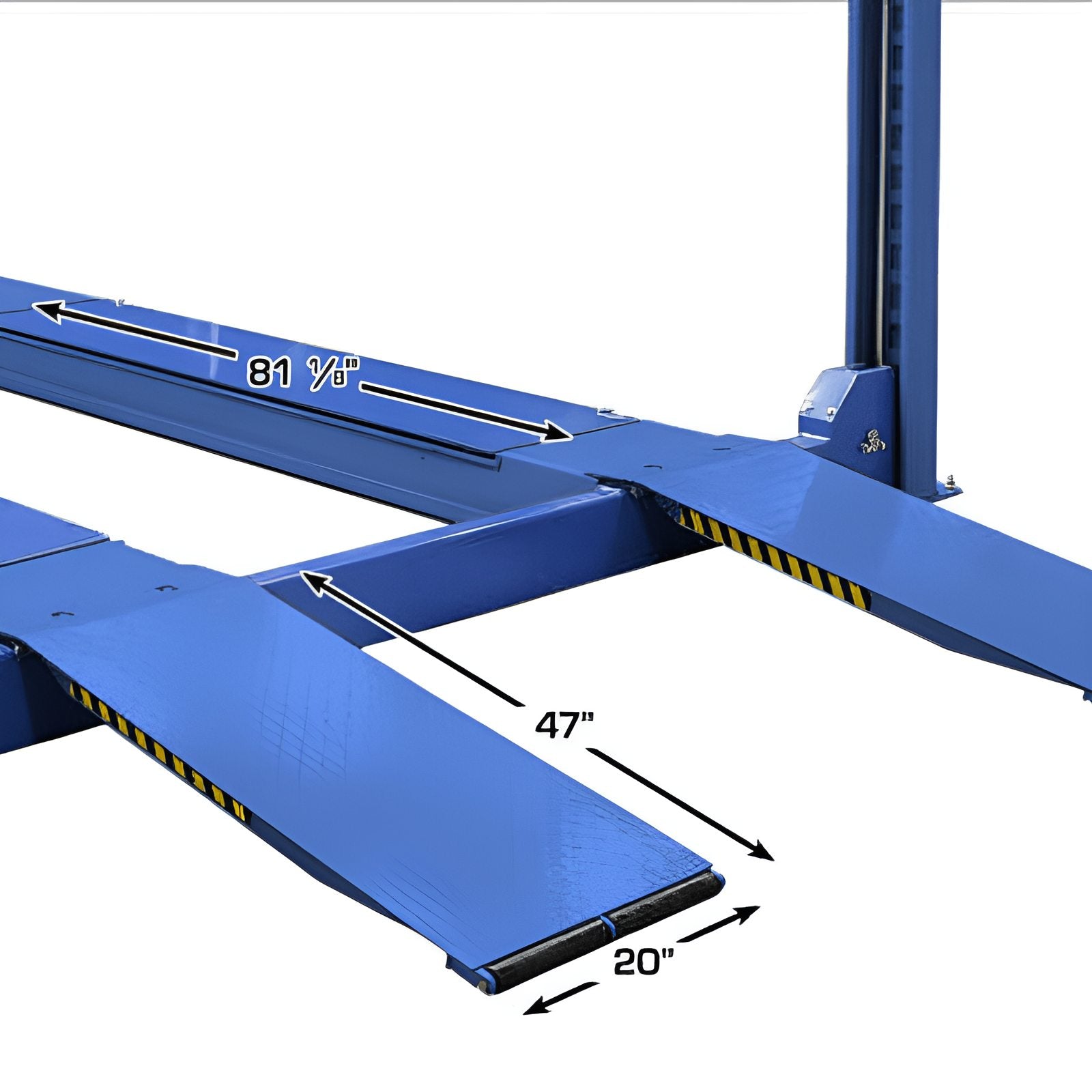

• Runway Width 20"
• Thickness Of Runway 7"
• Width Between Runways 42 3/4" (w/ Rail 39 1/4")
• Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")

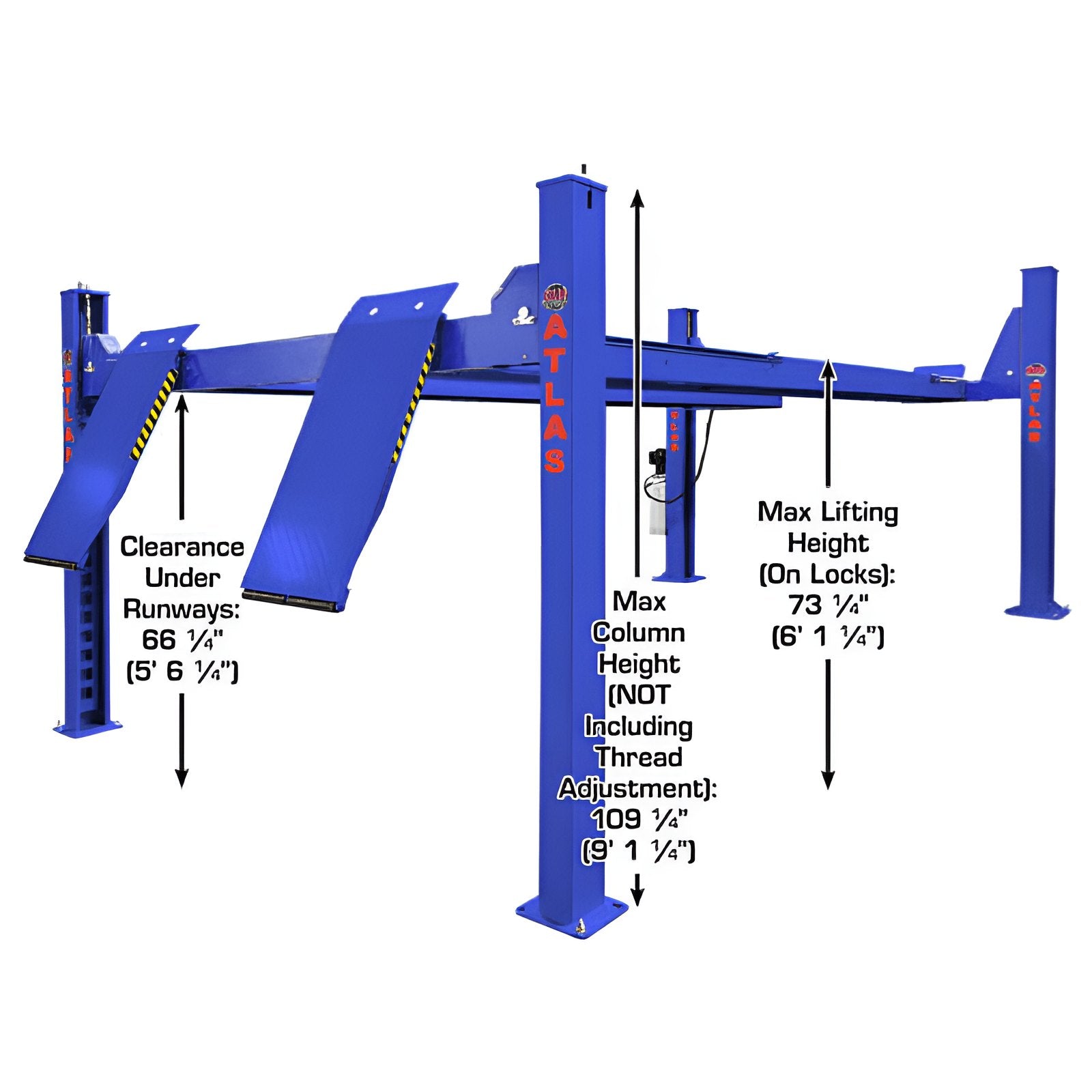

• Clearance Under Runways 66 1/4" (5' 6 1/4")
• Clearance Between Columns 116 3/8" (9' 8 3/8")

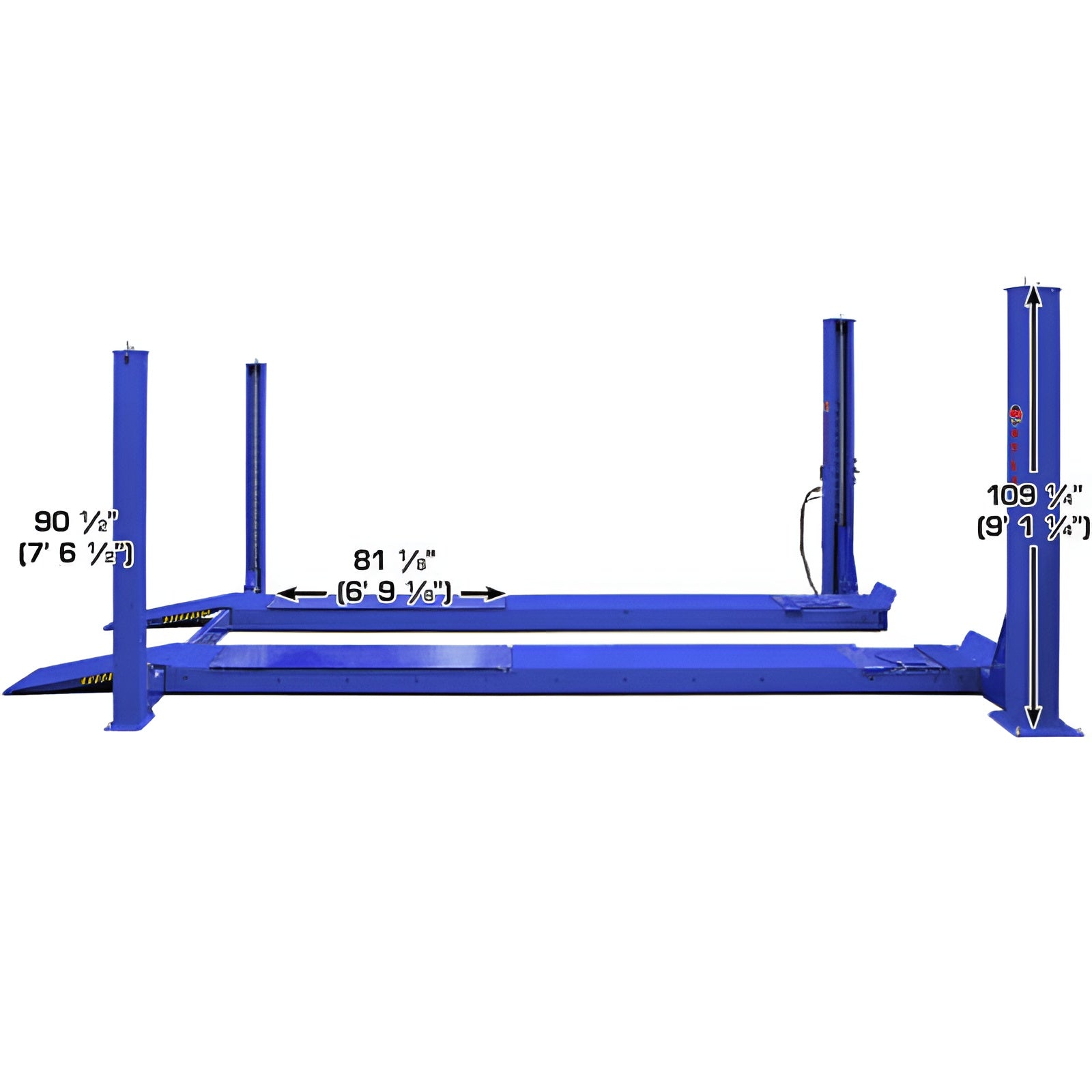

• Height Of Columns 92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front
• Maximum Wheel Base 203" (16' 11")
• Drive Thru 94 1/2" (7' 10 1/2")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

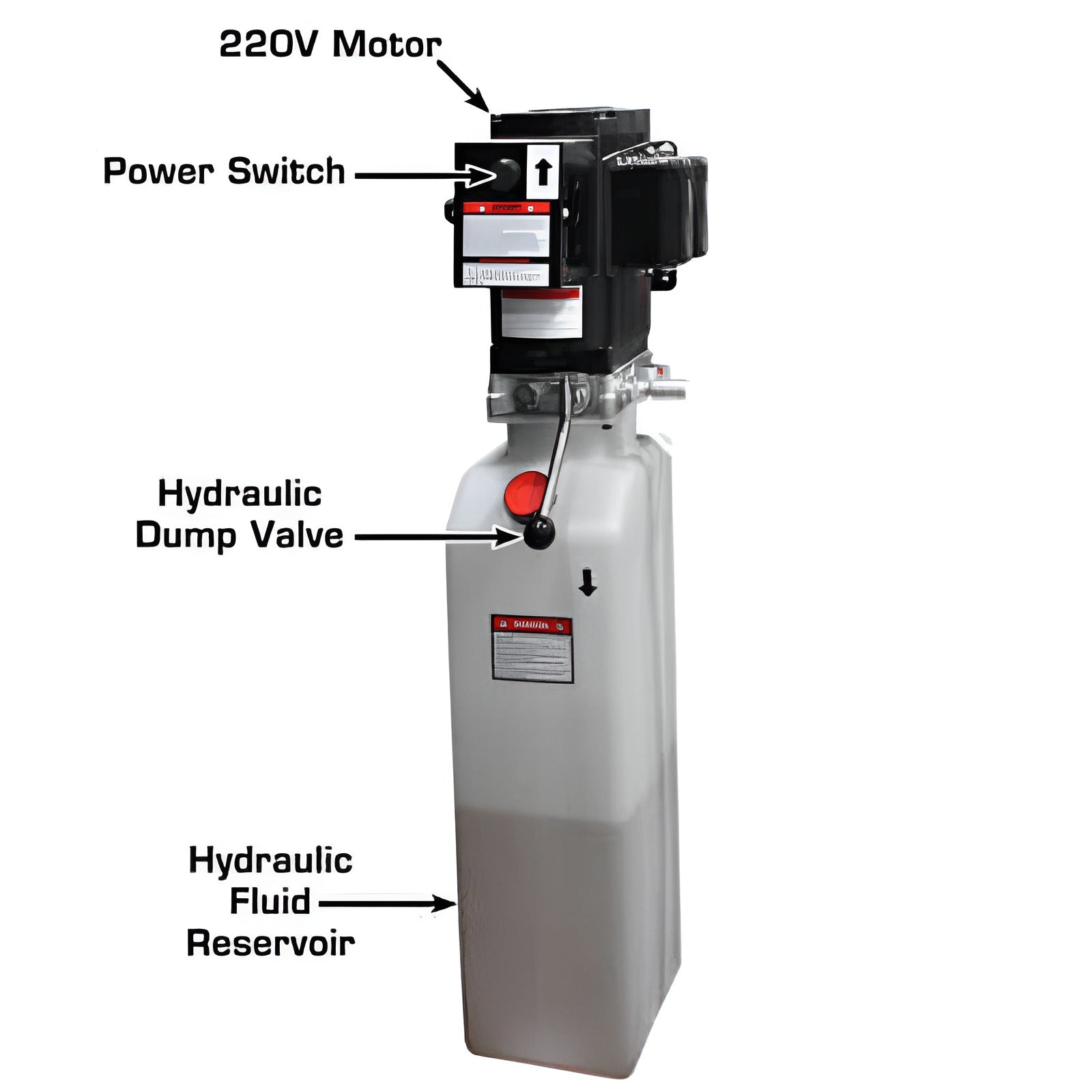

• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

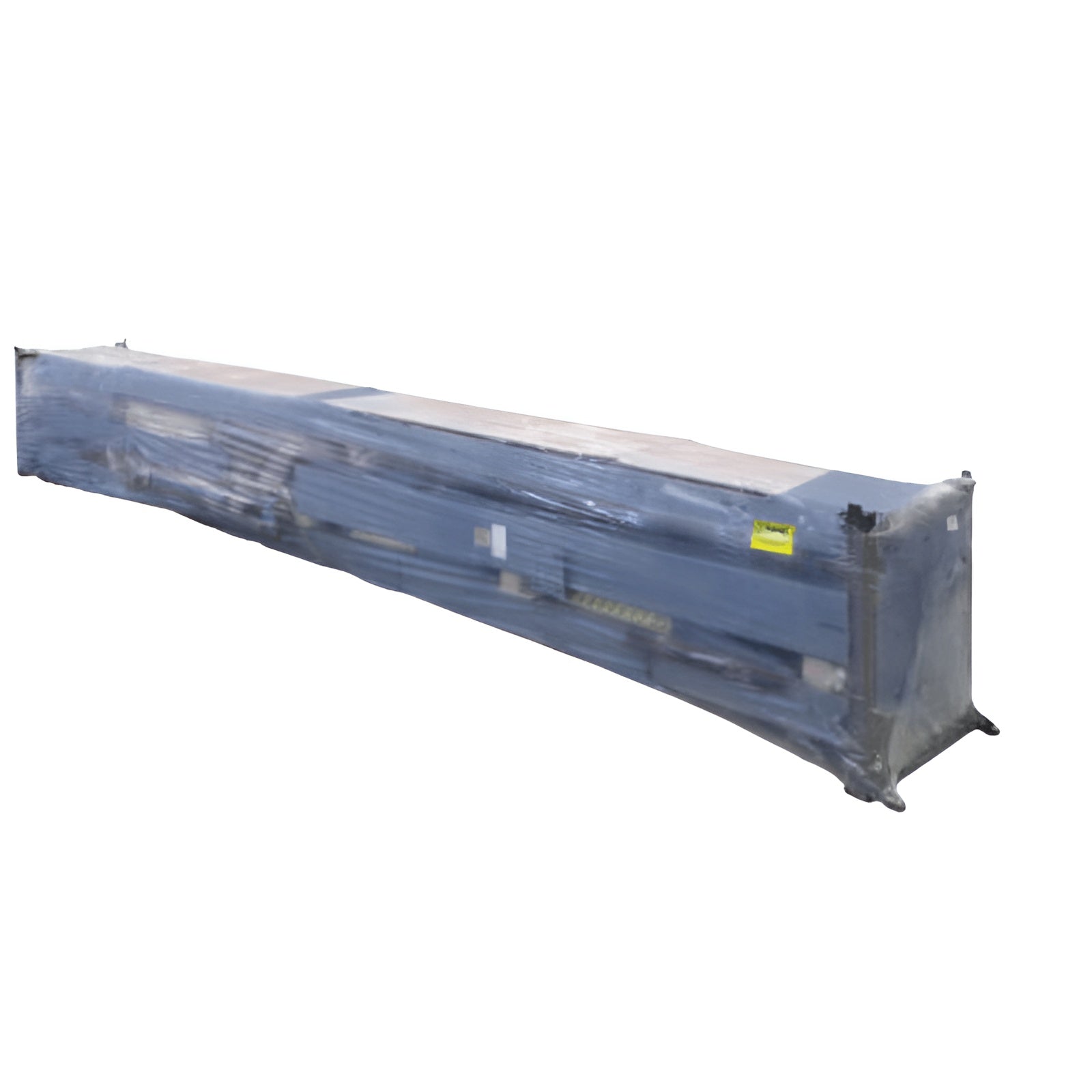

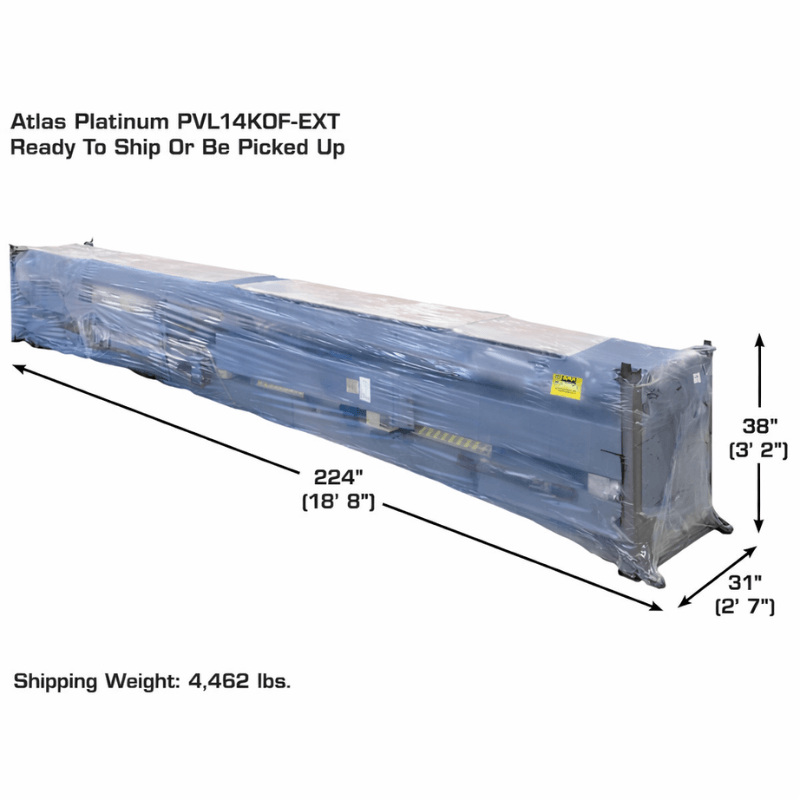

• Shipping Weight 4,462 LBS.

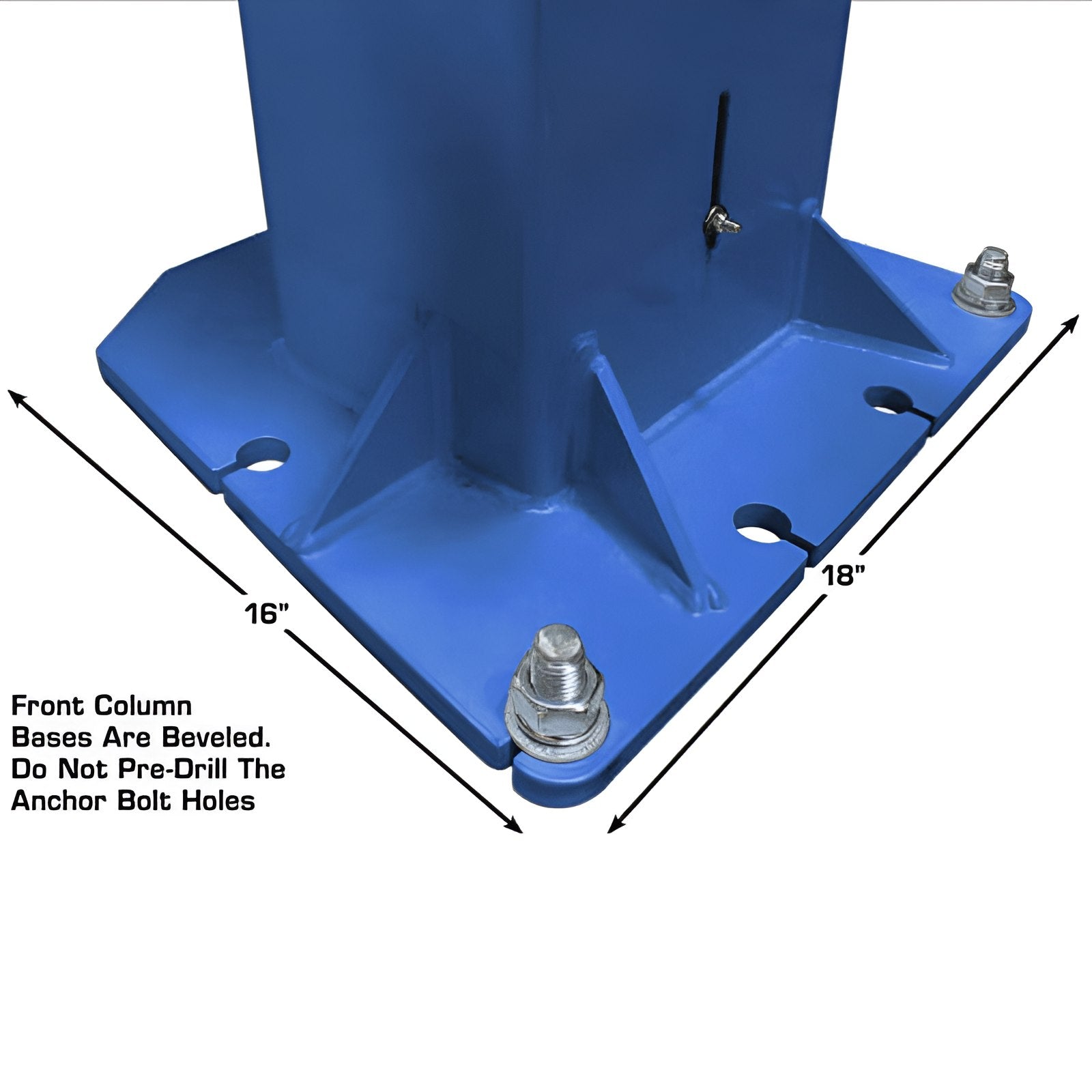

• Requires a minimum of 6" of concrete with a 3000 psi. rating

PVL14OF-EXT Alignment Lift Special Features:

• ALI Certified
• Alignment Lift
• Open Front Design for Easier Access
• Heavy Duty/Commercial Grade
• Extra Long Runways

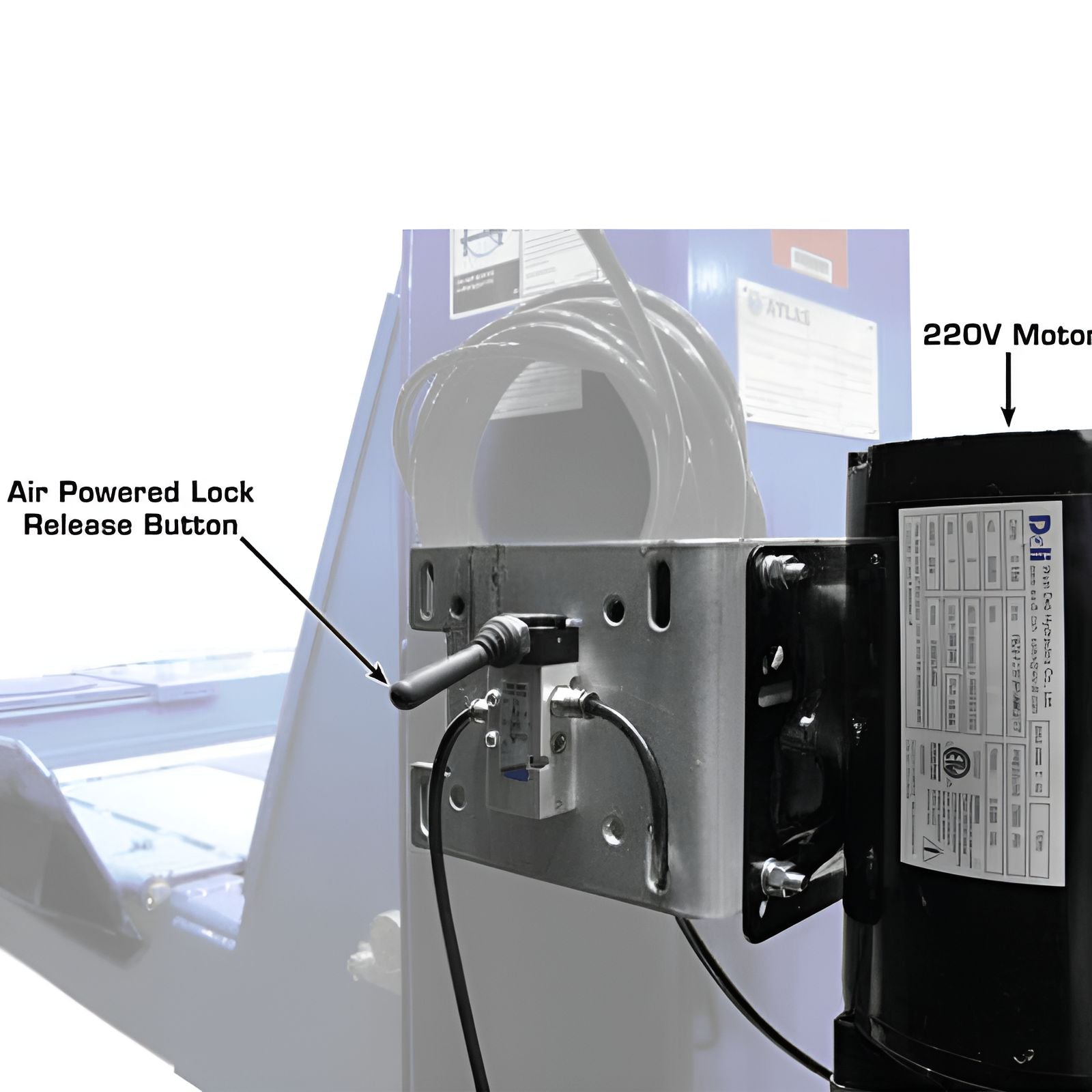

• Lock Release: Air Operated Single-Point (External Air Supply Required)
• Lock Design: Double Lock Safety System

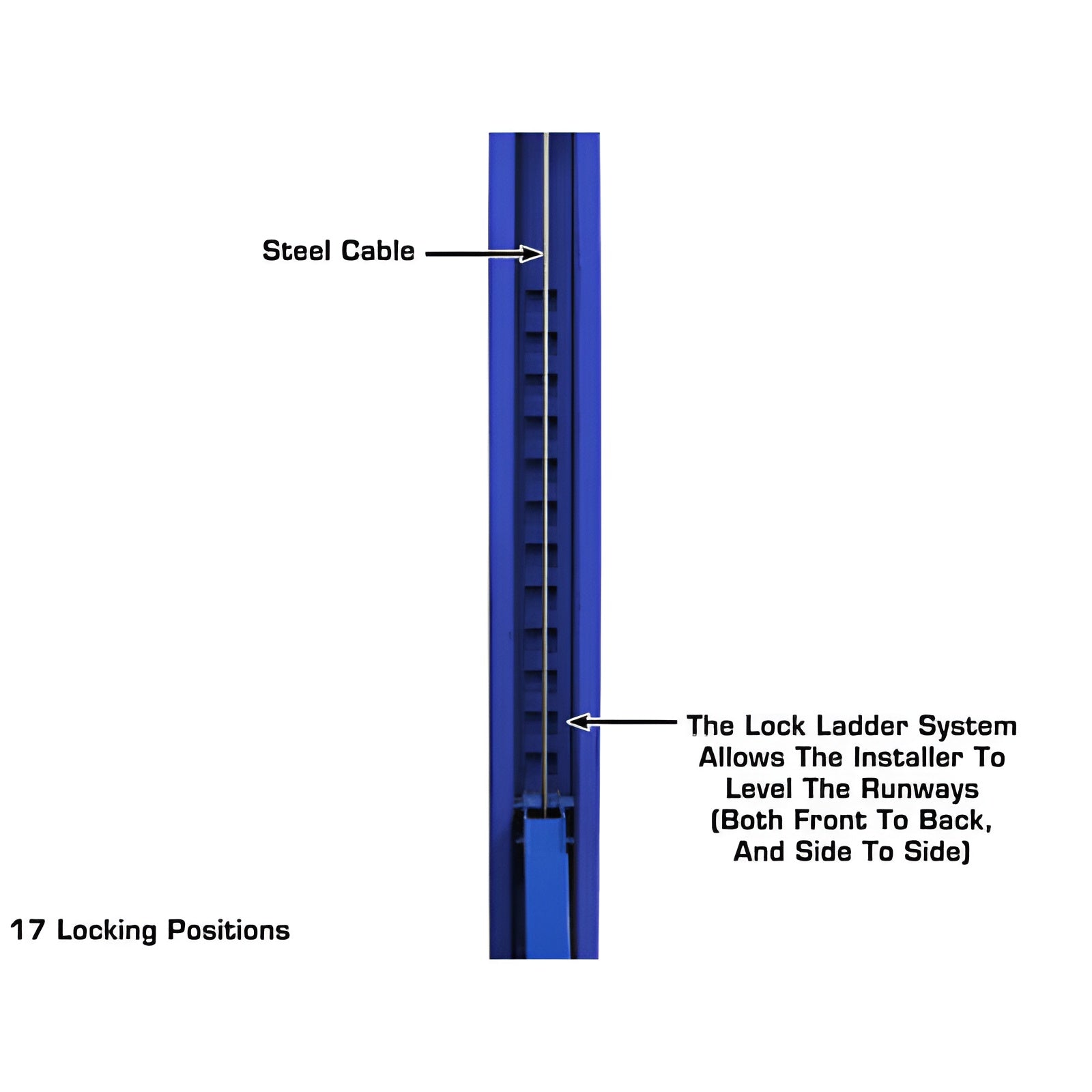

• Adjustable Ladder Lock Design
• Powder Coat Finish
• Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
• Unit Includes:
  •    Built in Slip Plates

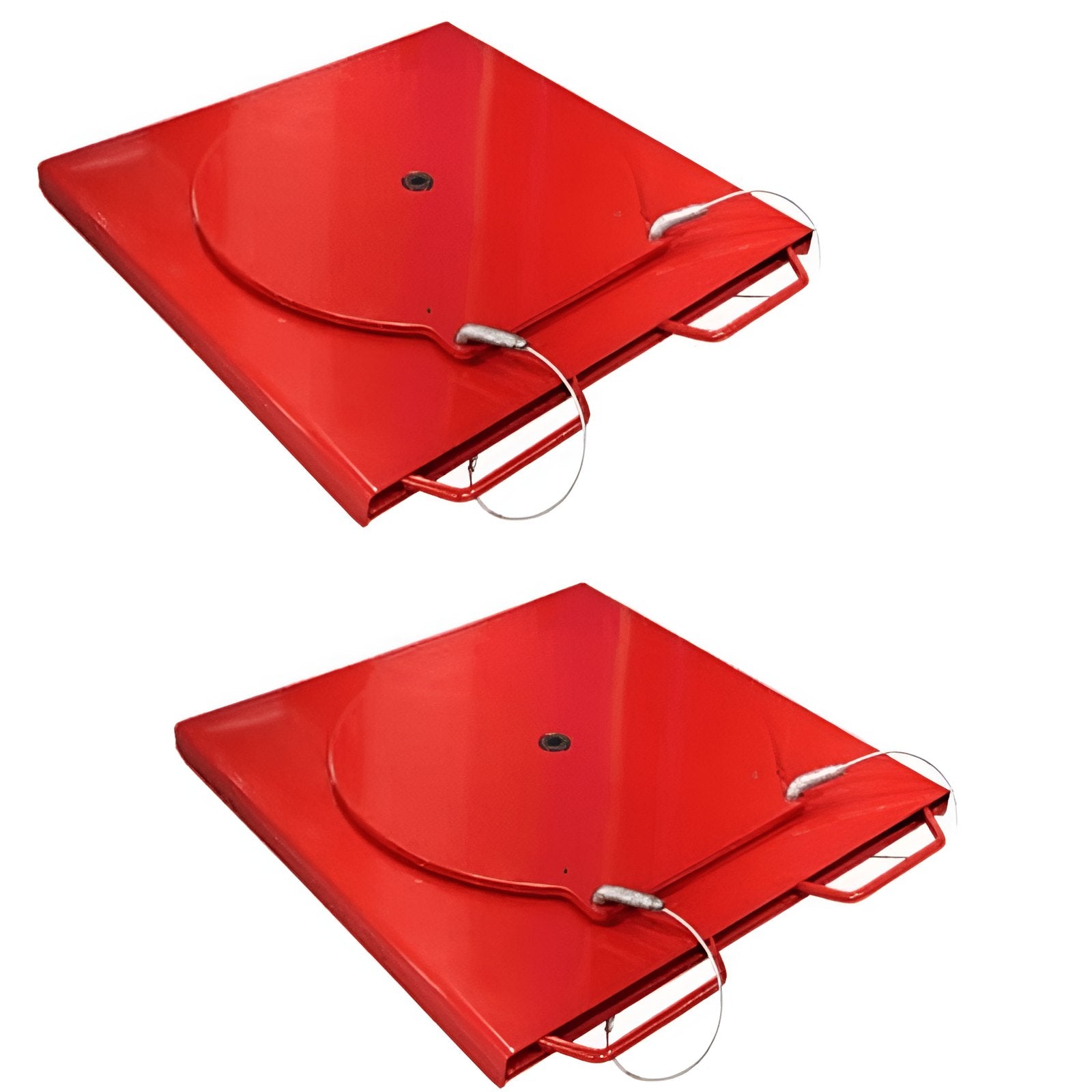

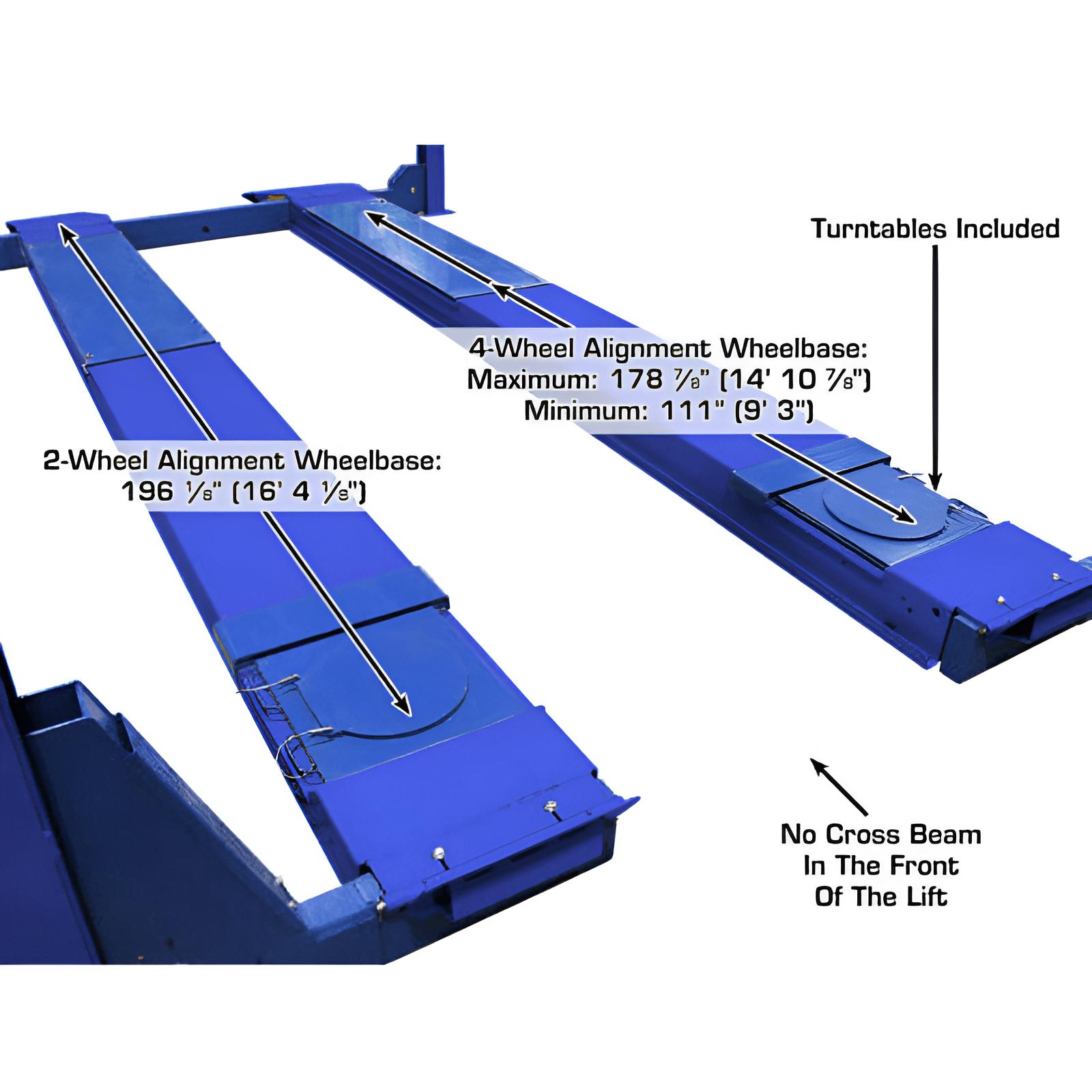

  •    Turntables

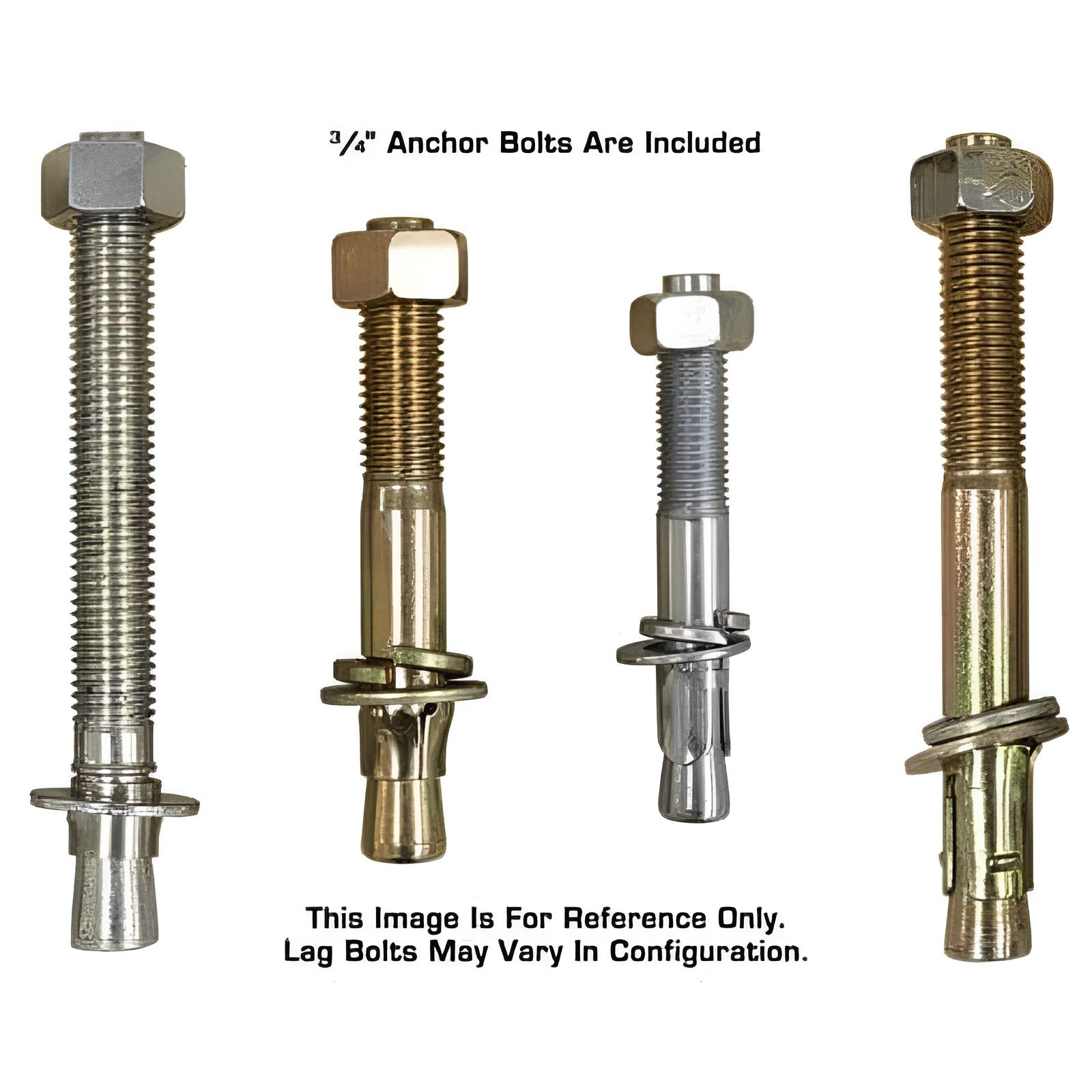

  •    Mount Hardware

Atlas PVL14OF-EXT Documentation:

   Atlas PVL14OF-EXT Alignment Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $1199

*Warehouse pickup is not an option on Atlas alignment lifts.

*Due to Extra Large Size, product cannot be delivered to a freight terminal.
