Atlas PVL15, 15,000 lb 2 Post Lift - Commercial Grade

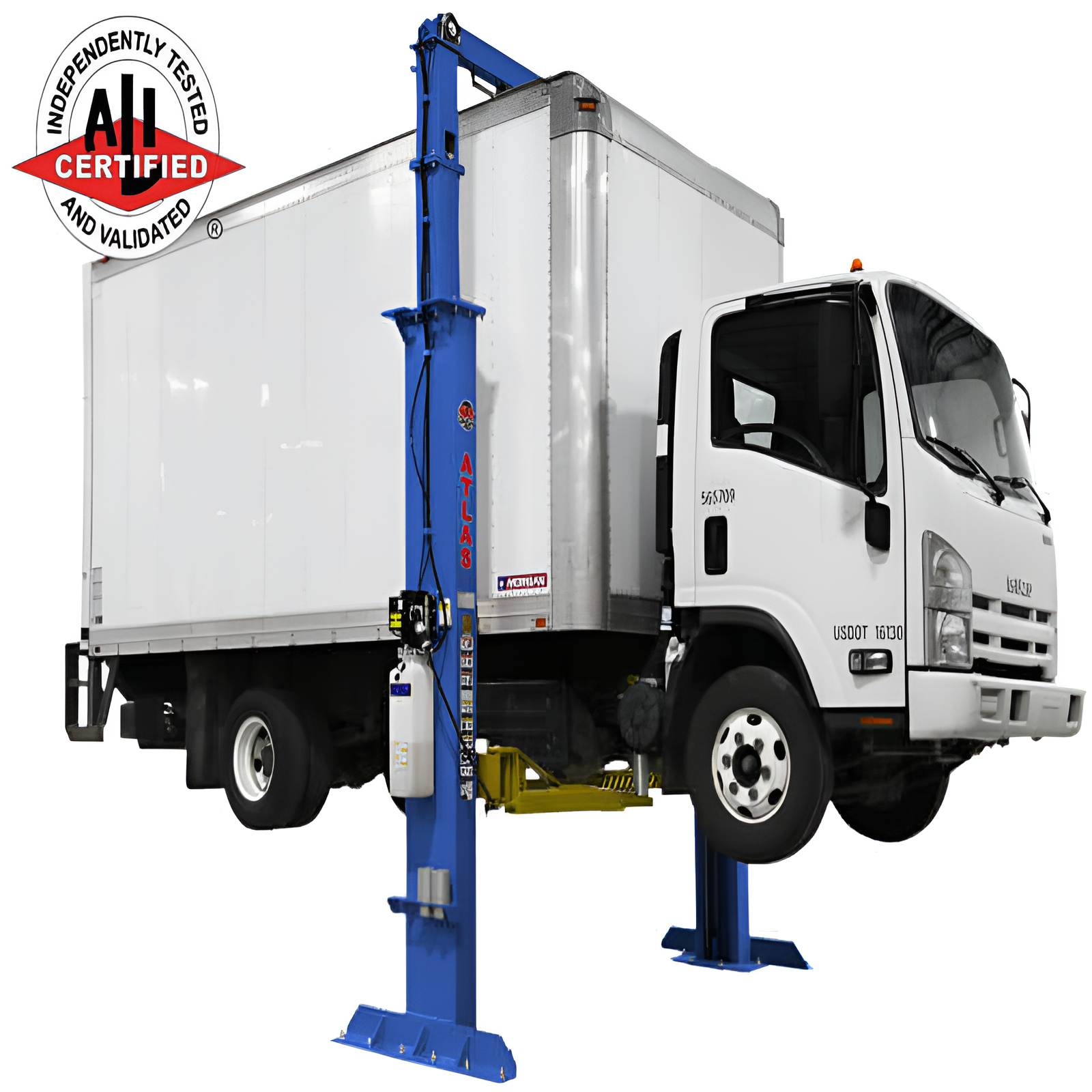

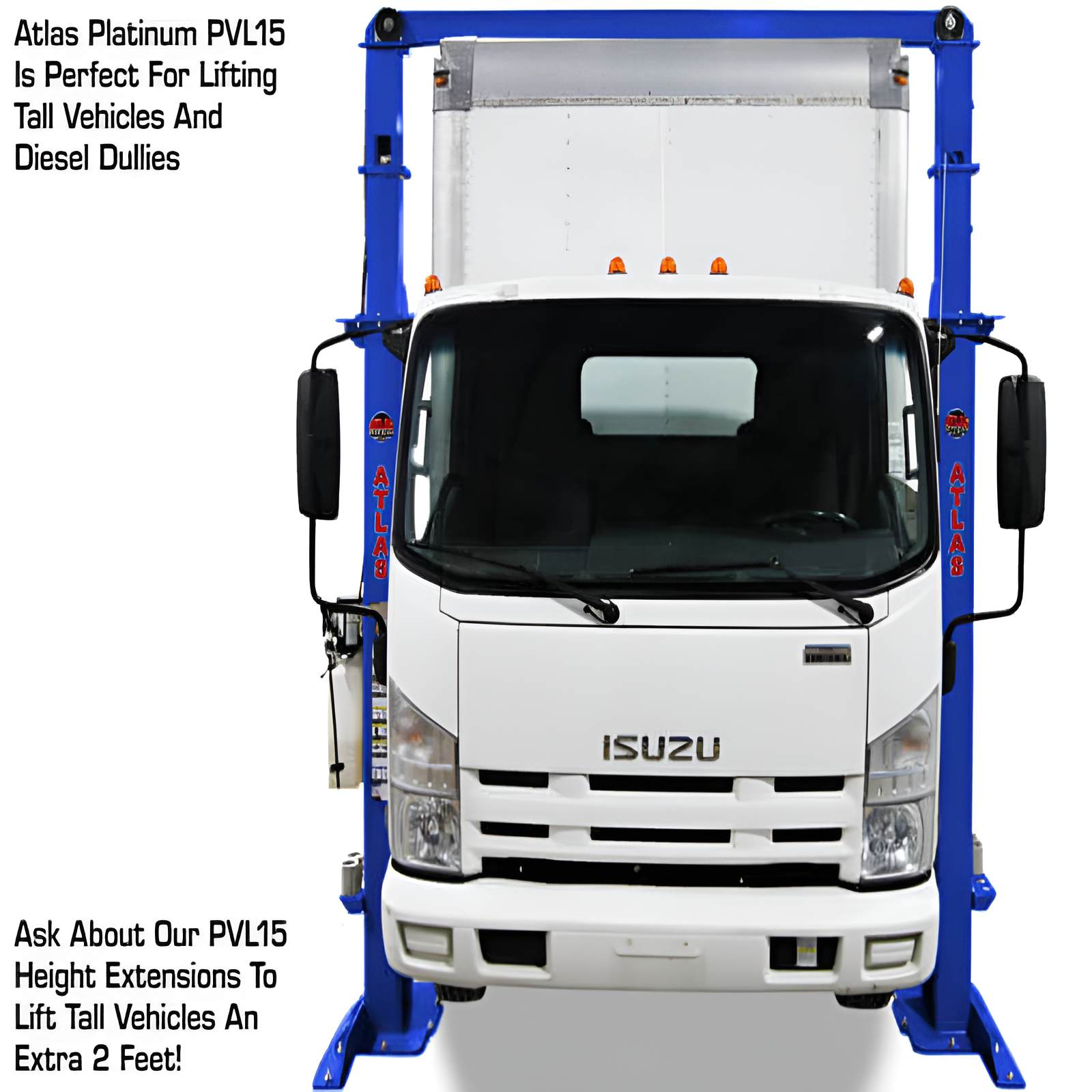

Featuring an ALLY Hydraulic AL2300 Power Unit, the Atlas® Platinum PVL15 is a commercial grade, ALI CERTIFIED, two-post lift capable of handling up to 15,000 lbs. With an overall height of 174 1/20", it can accommodate both long wheel base trucks and service trucks. Need extra height for taller vehicles? Simply add on the Height Extension Kit for an additional 2 feet. Plus, this power unit is certified by MET Laboratories Inc. for electrical compliance in the US and Canada, and comes with an industry leading two-year limited warranty, thanks to its extra heavy-duty armatures, increased motor windings, and silver metal in the wires and connections for less heat generation and consistent torque.

Post Lift PVL15 Specifications:

• Capacity 15,000 LB.

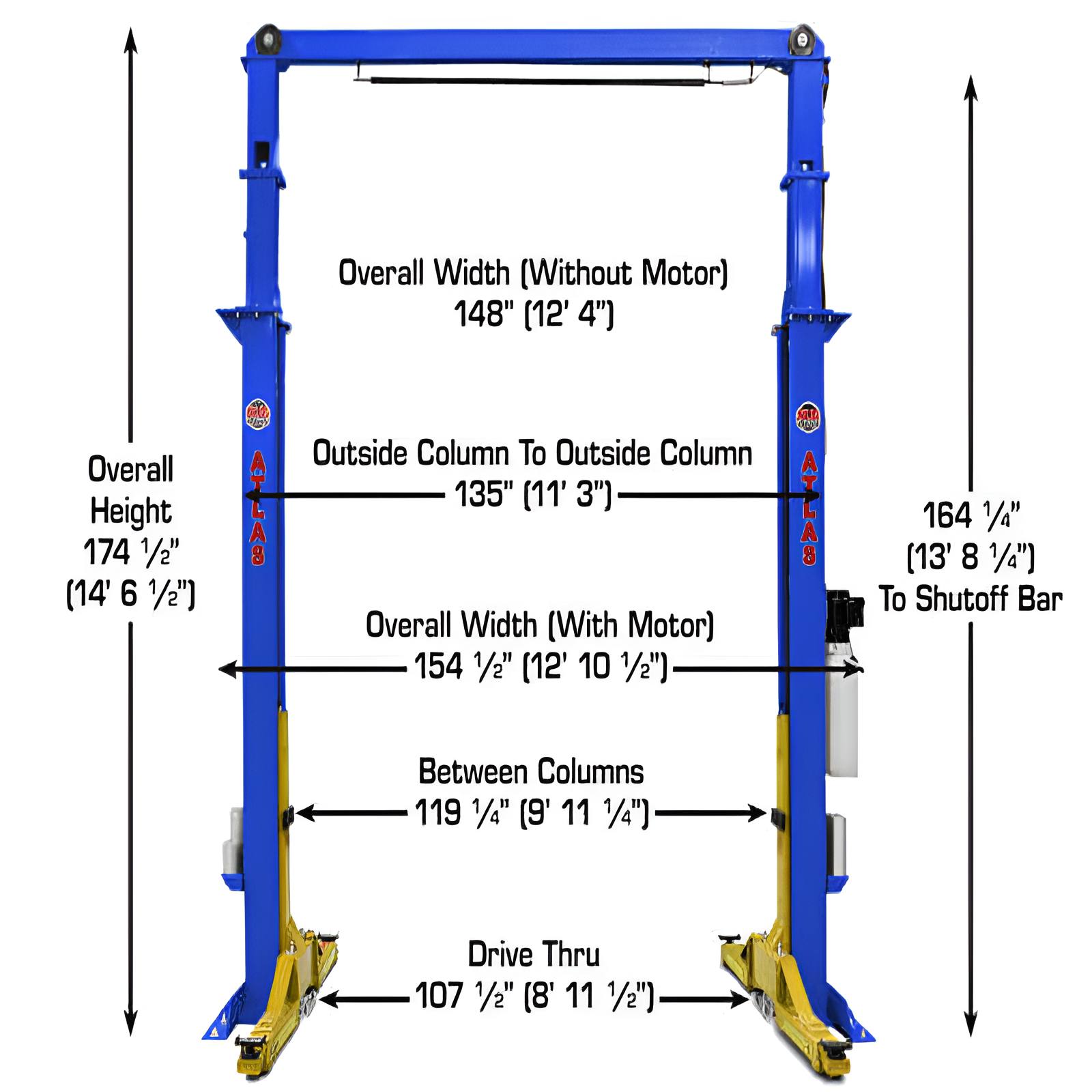

• Overall Height 174 1/2" (14' 6 1/2”)
• Overall Floor Width 148" (12' 4”)
• Outside Column to Outside Column 135" (11' 3")

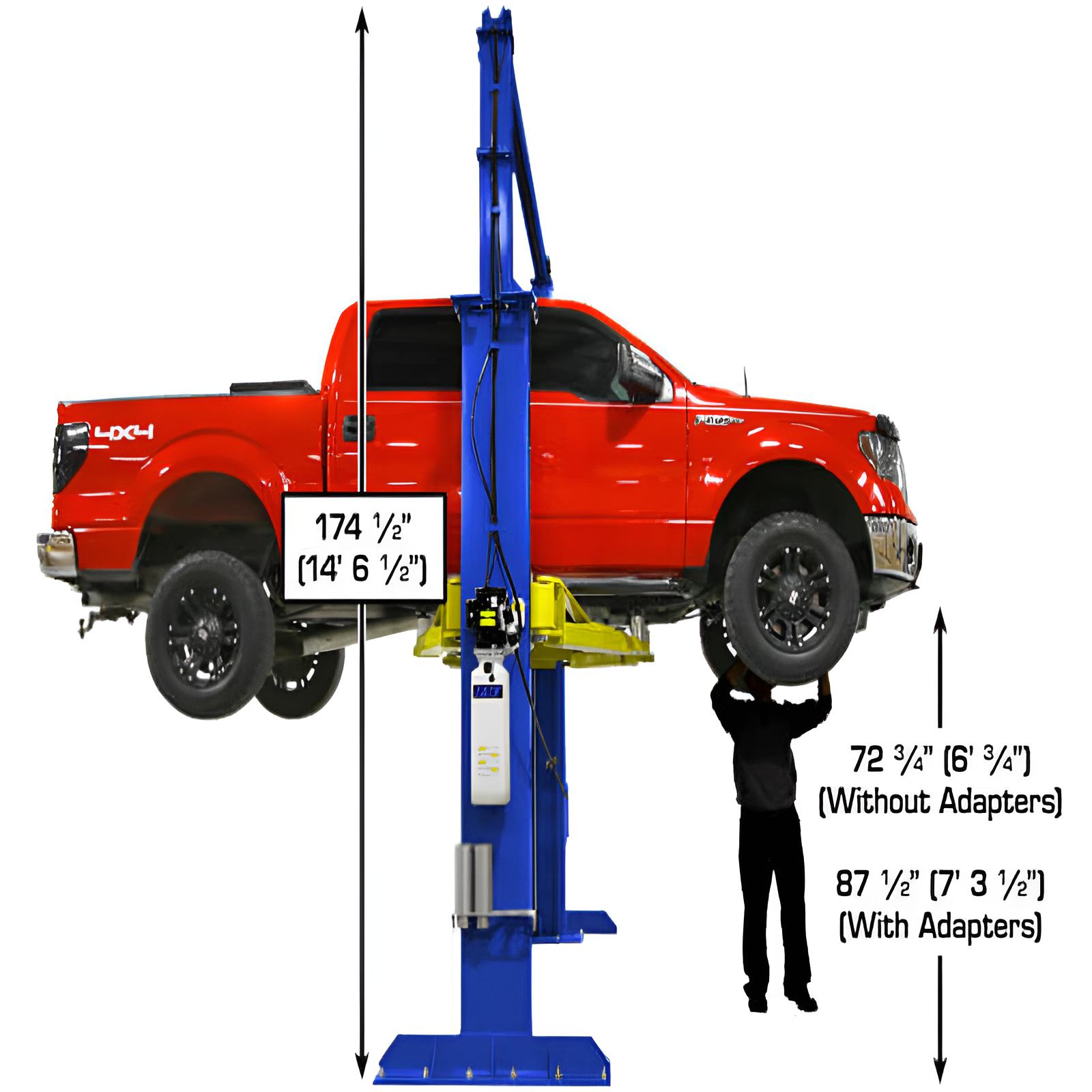

• Maximum Lift Height (Without Adapters) 72 3/4"
• Maximum Lift Height (With Adapters) 87 1/2"
• Minimum Arm Height 6"

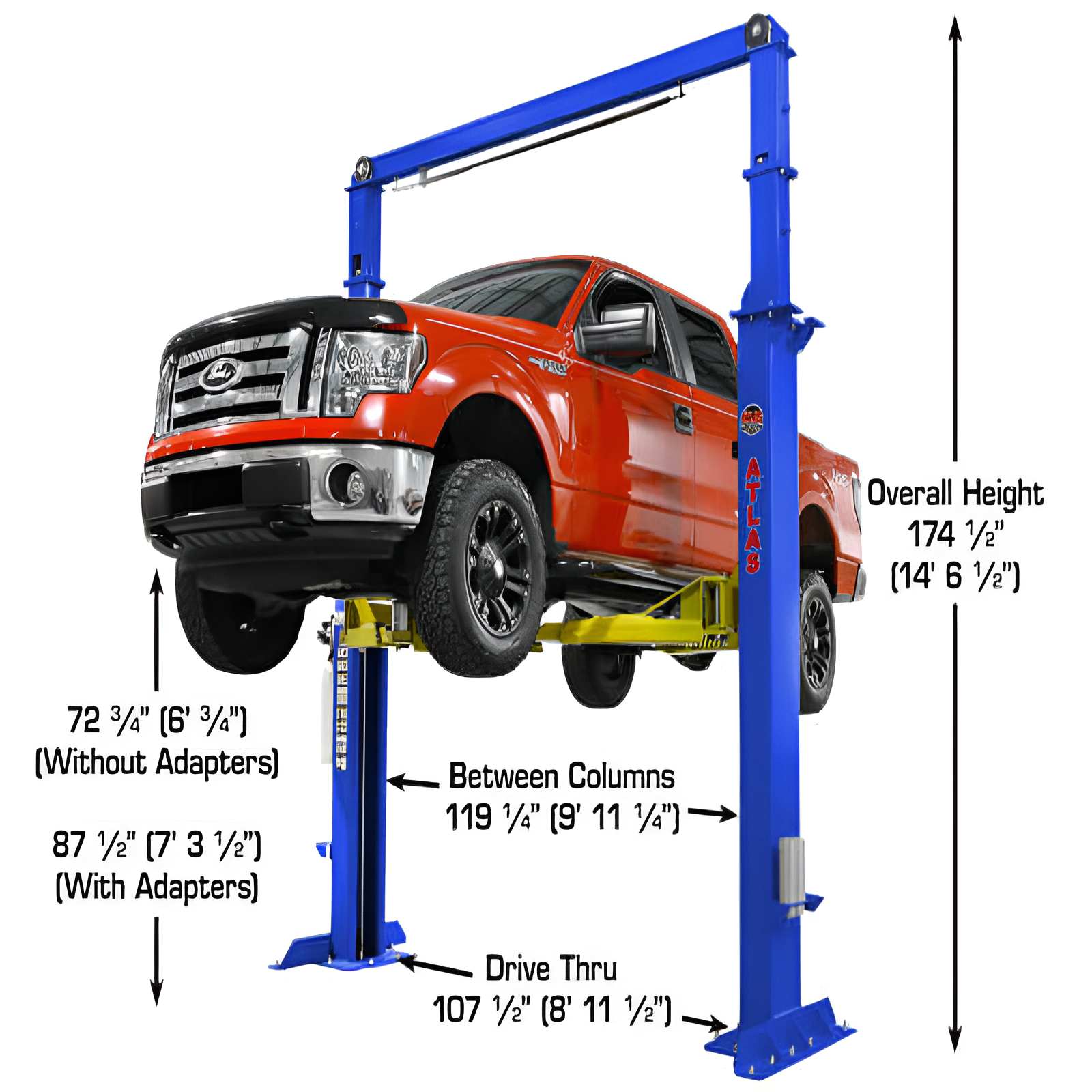

• Inside Column 119 1/4” (9' 11 1/4”)
• Drive Thru 107 1/2” (8' 11 1/2”)
• Column Size 8" x 14 1/2"
• Column Thickness of Steel 8mm

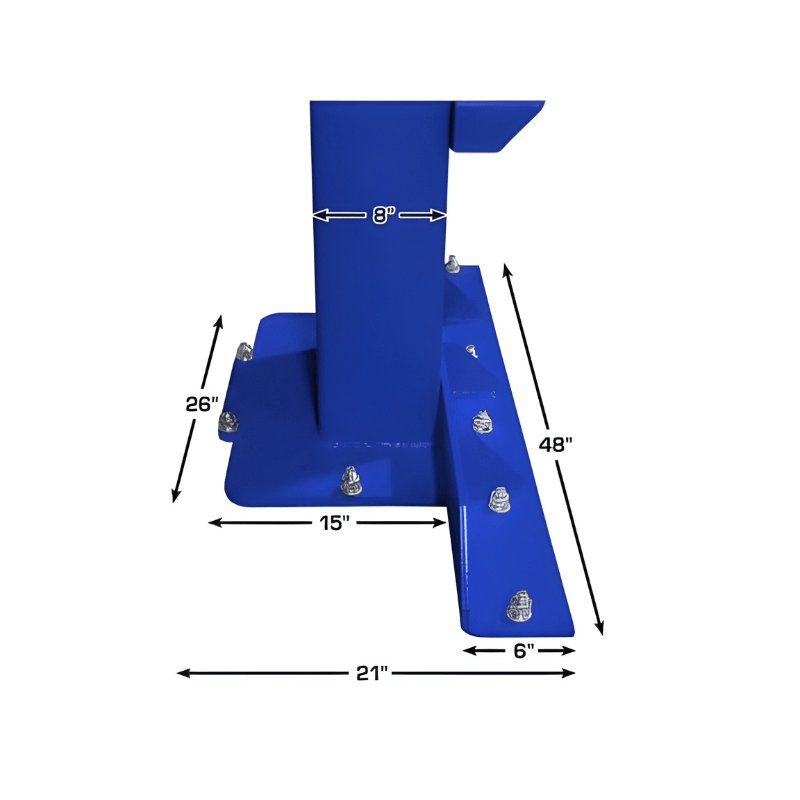

• Base Of Lift 21" x 48"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,600 LBS.

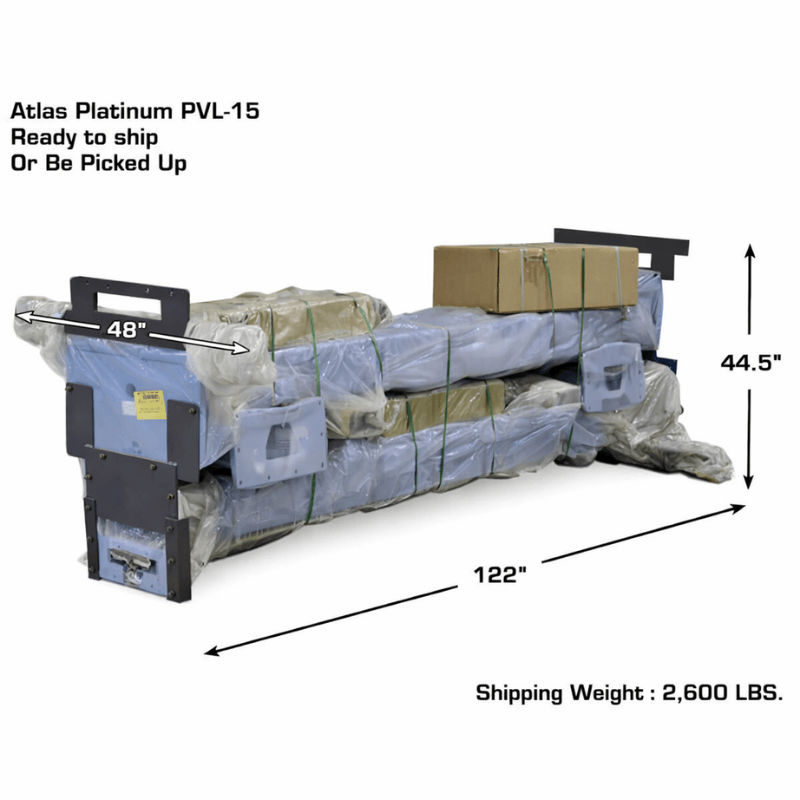

• Pallet Size:  122" Long x 44.5" Tall x 48" Wide

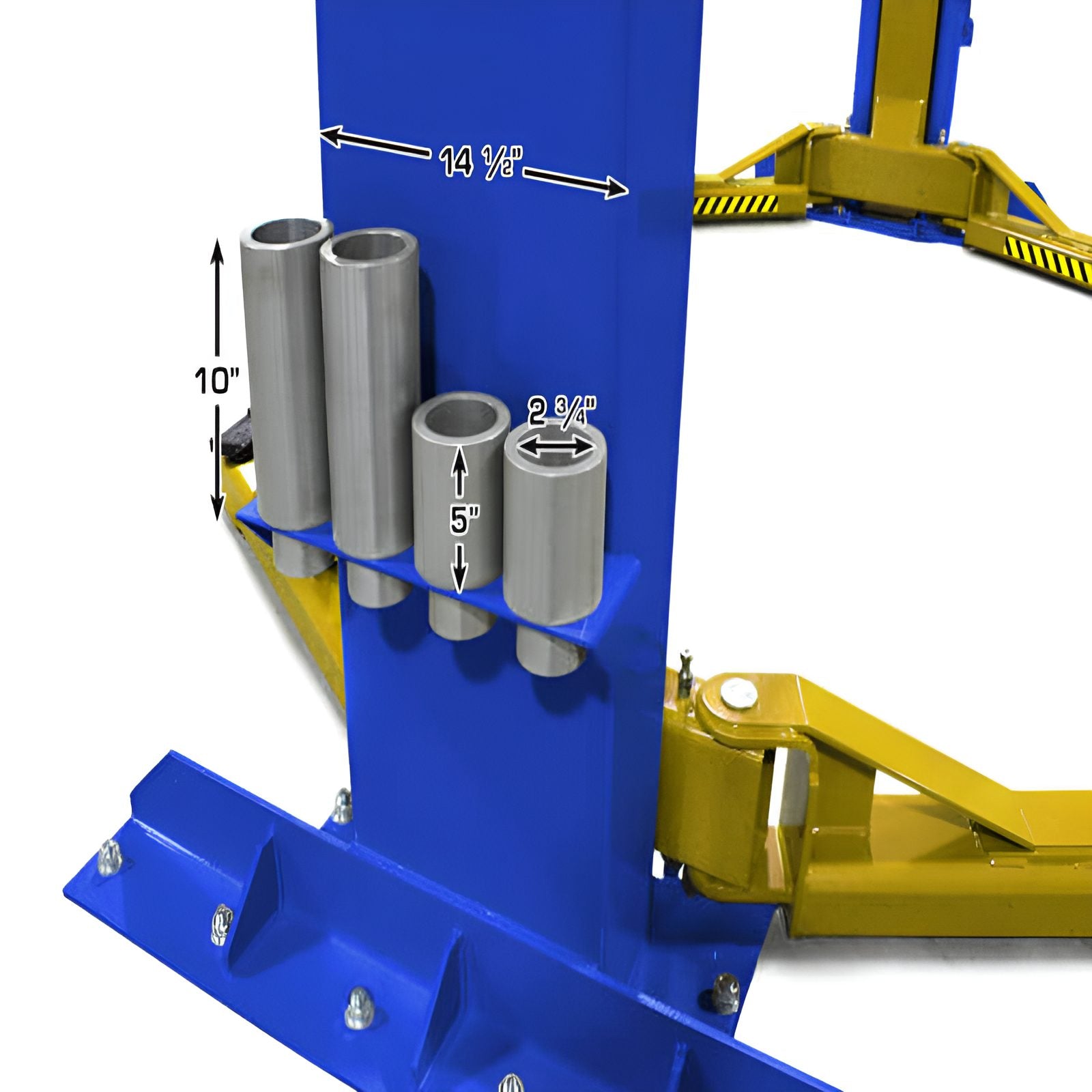

• Adapter Heights 4 Each 5”, 10”
• Arm Hole/Adapter Peg Size 2.75”
• Requires a minimum of 6" of concrete with a 3000 psi. rating

PVL15 15,000 lb Post Lift Special Features:

• ALI Certified
• Heavy Duty; Commercial Grade
• Overhead, Open Floor Design

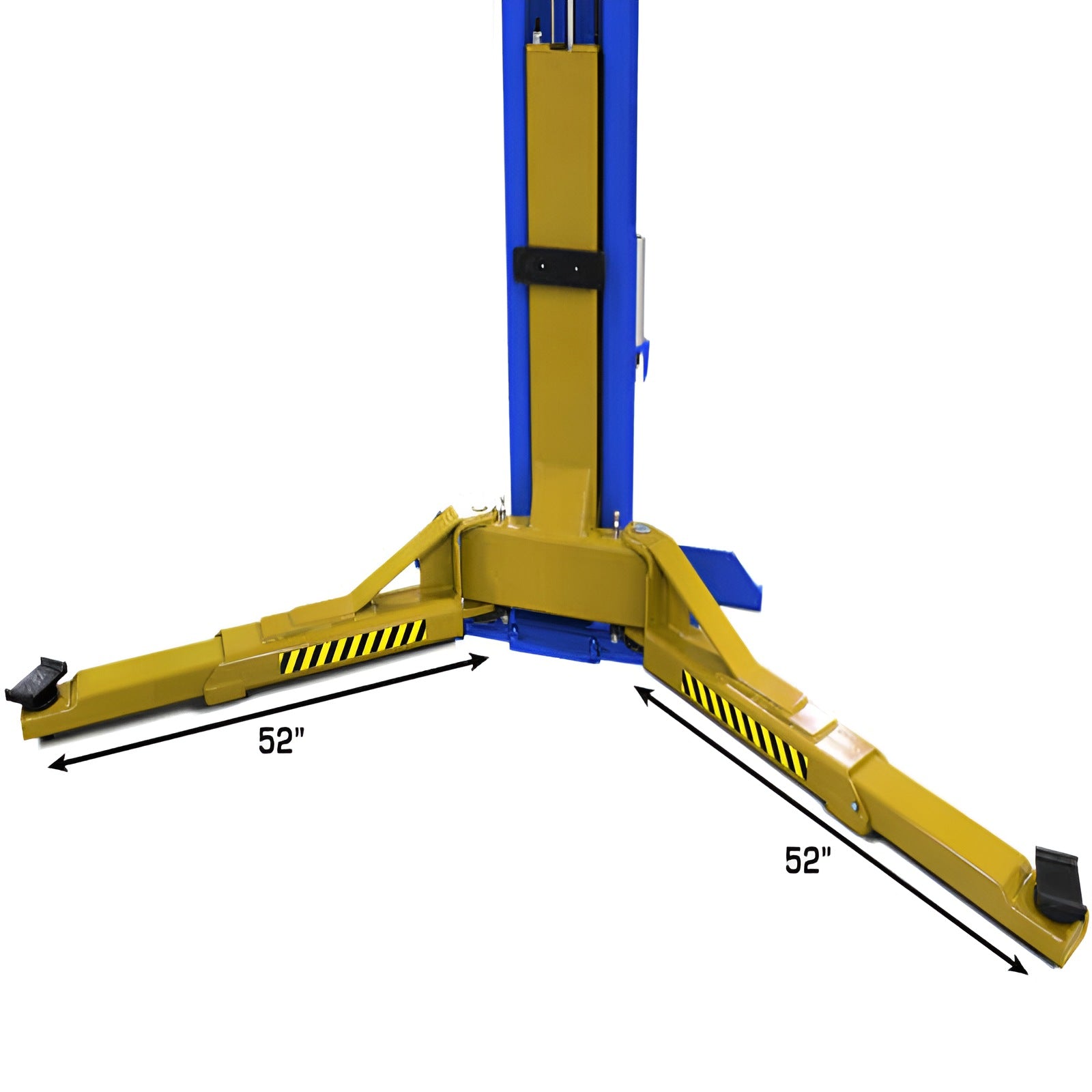

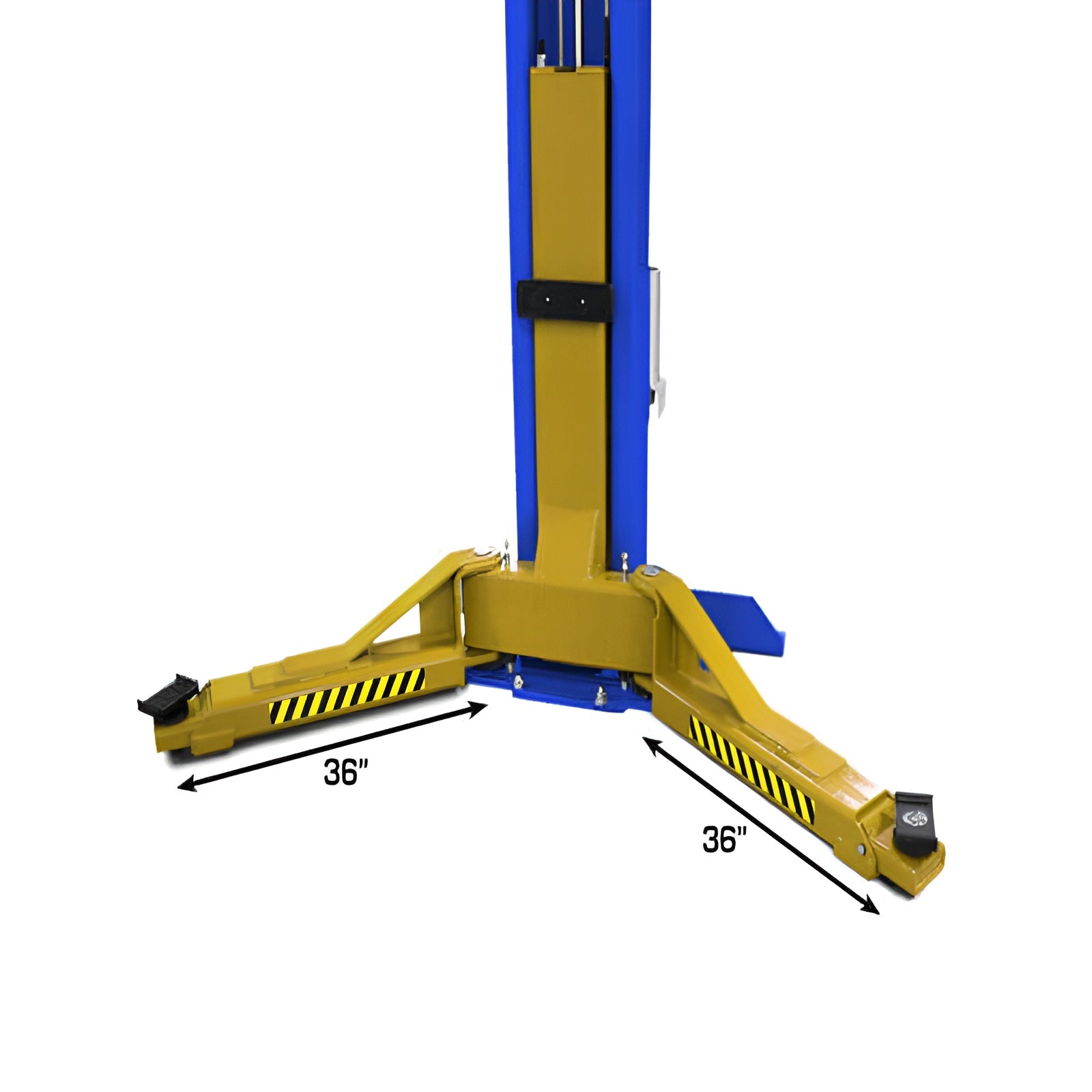

• Symmetric Arms
• Arm Lock Restraint System - Commercial Grade
• Lock Release: Single Point
• Dual Direct Drive Hydraulic Cylinders
• Padded Carriages

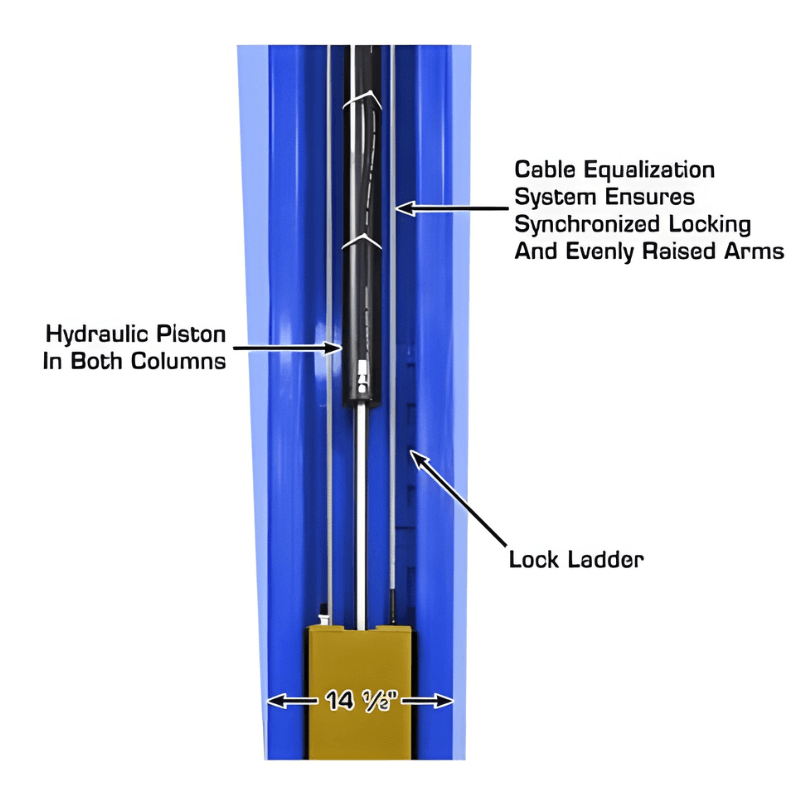

• Heavy Duty 3/8" Equalization Cables
• Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only

• Unit Includes:
•     Mounting Hardware

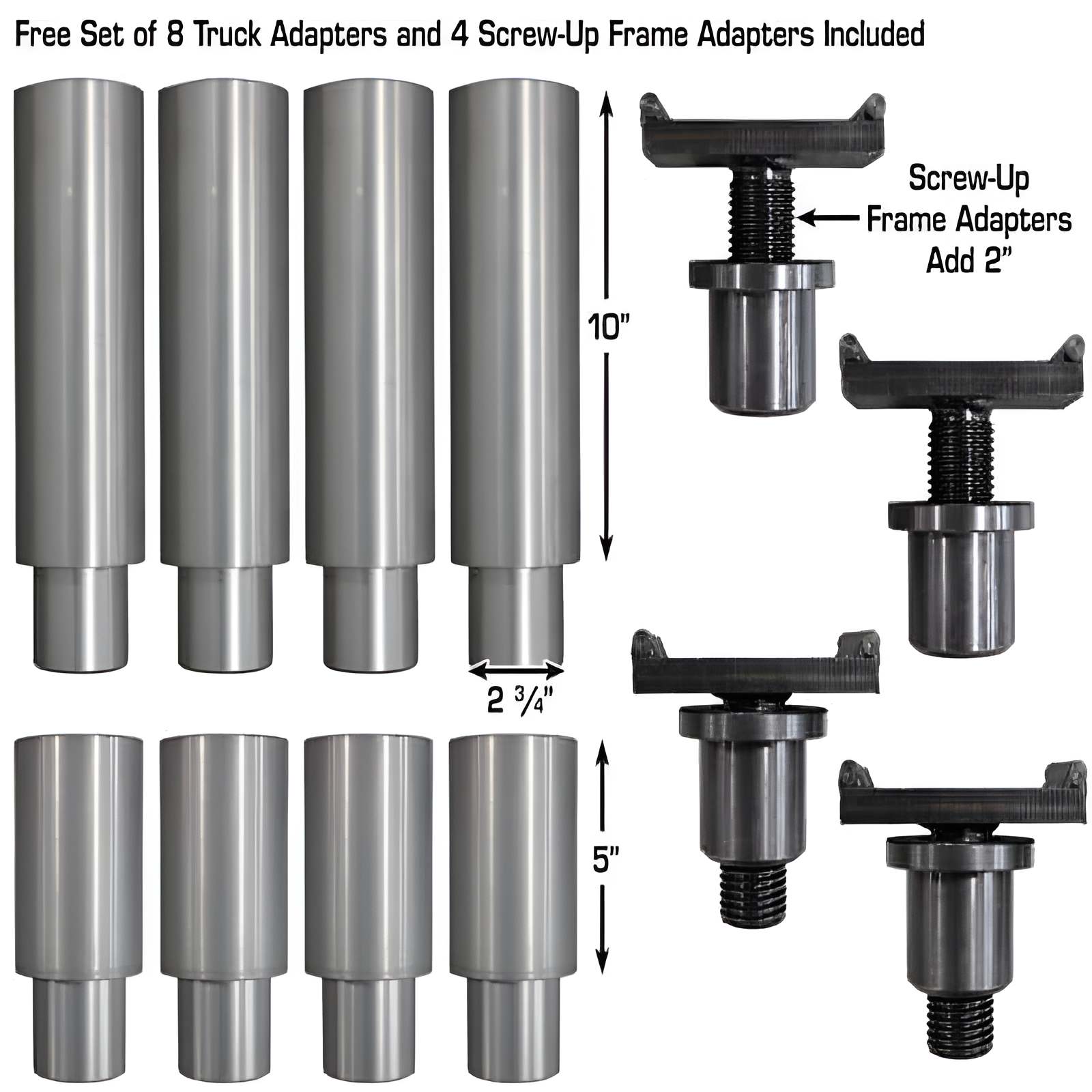

•     8-piece Truck Adapter Set
•     4 Screw-up Frame Adapters

Atlas PVL15 Documentation:

   Atlas PVL15 Post Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $599

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ
