Atlas SLP9K 9,000 lb Full-Rise Scissor Lift

SLP9K Scissor Lift by Atlas

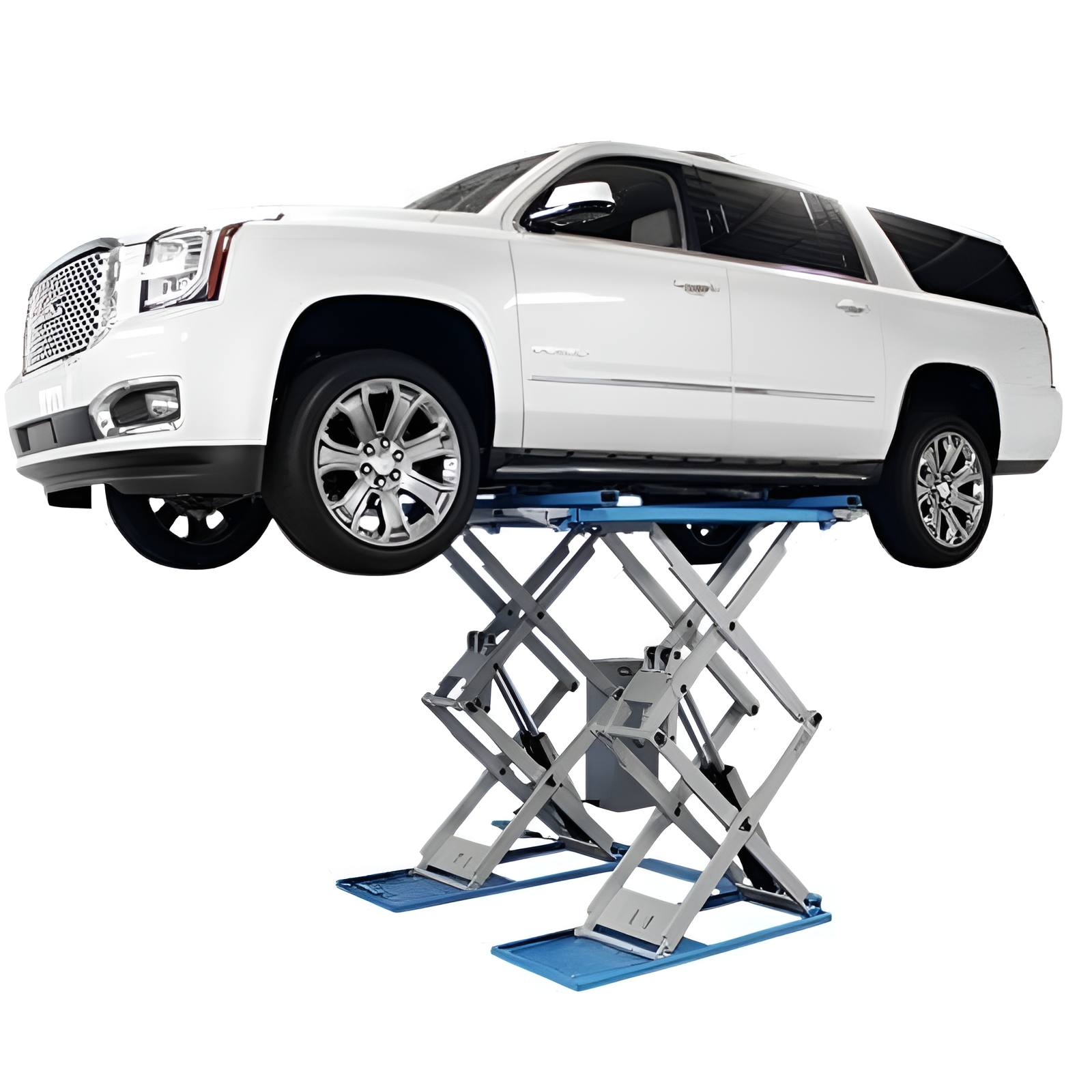

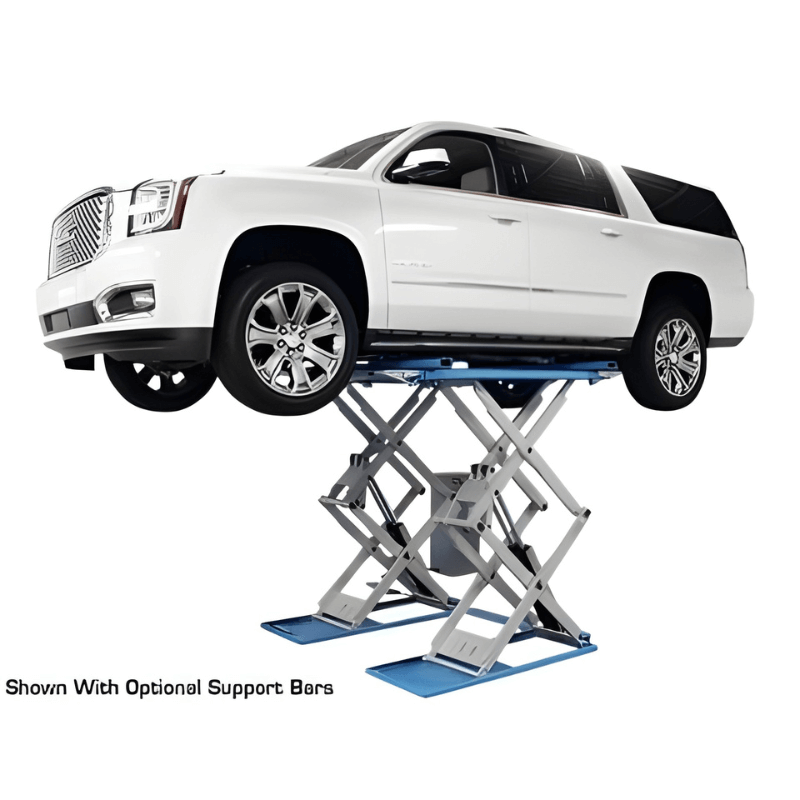

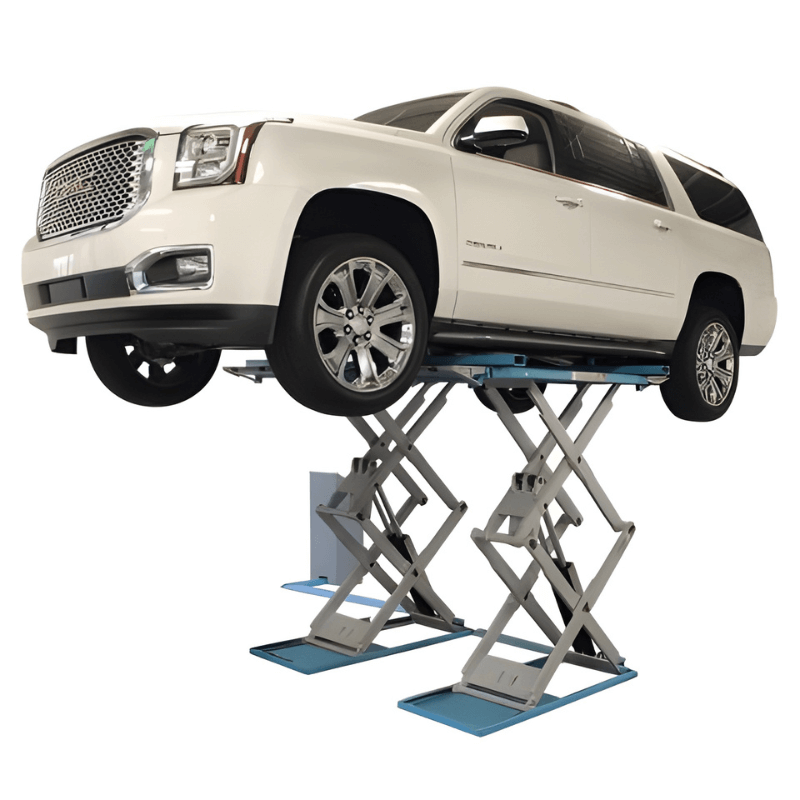

The Atlas® SLP9K full-rise scissor lift combines a remarkably low lift platform height with a 78-inch full-rise scissor jack system, offering the perfect solution for customers facing ceiling height constraints yet requiring ample lift to handle pickup trucks. Ideal for service shops seeking a clutter-free environment, this lift streamlines operations with its above-ground design, avoiding the need for numerous vertical lift columns.

With the option for flush mounting, the Atlas® SLP9K adds a clean aesthetic to the service area while providing a flat, easily accessible surface from any angle, simplifying vehicle positioning.

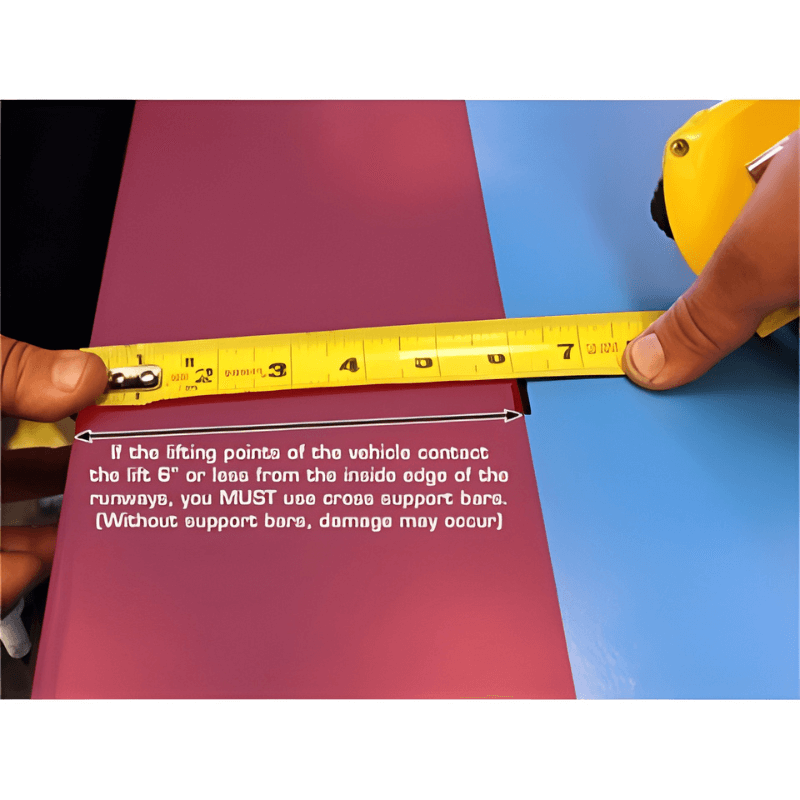

Featuring a 31" adjustable distance between lift platforms, the Atlas® SLP9K accommodates various vehicle types, including full-frame, uni-body, or SUVs, with optimal positioning ensuring a 2-6 inch gap between the lifting points and the lift surface.

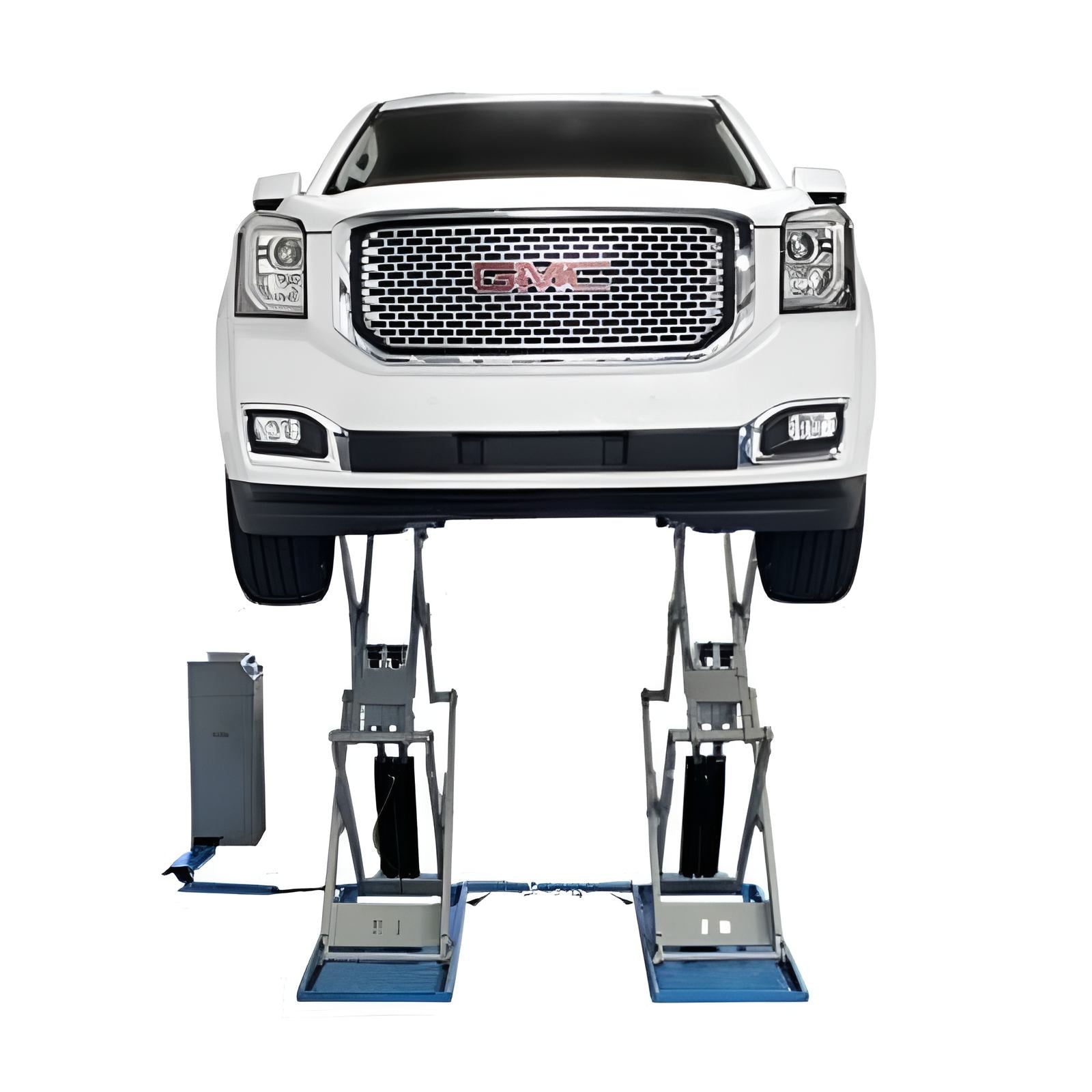

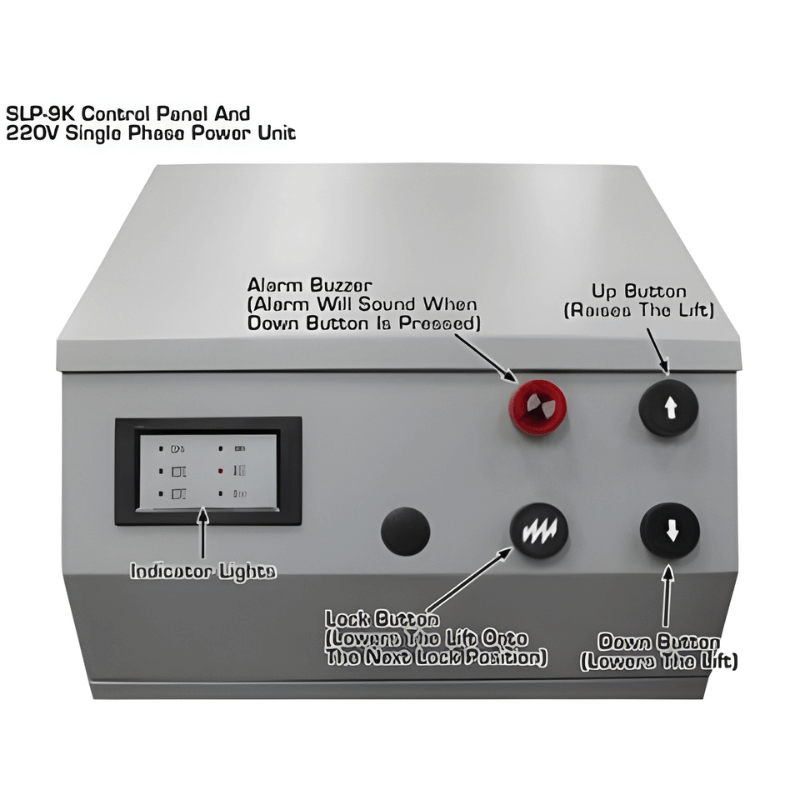

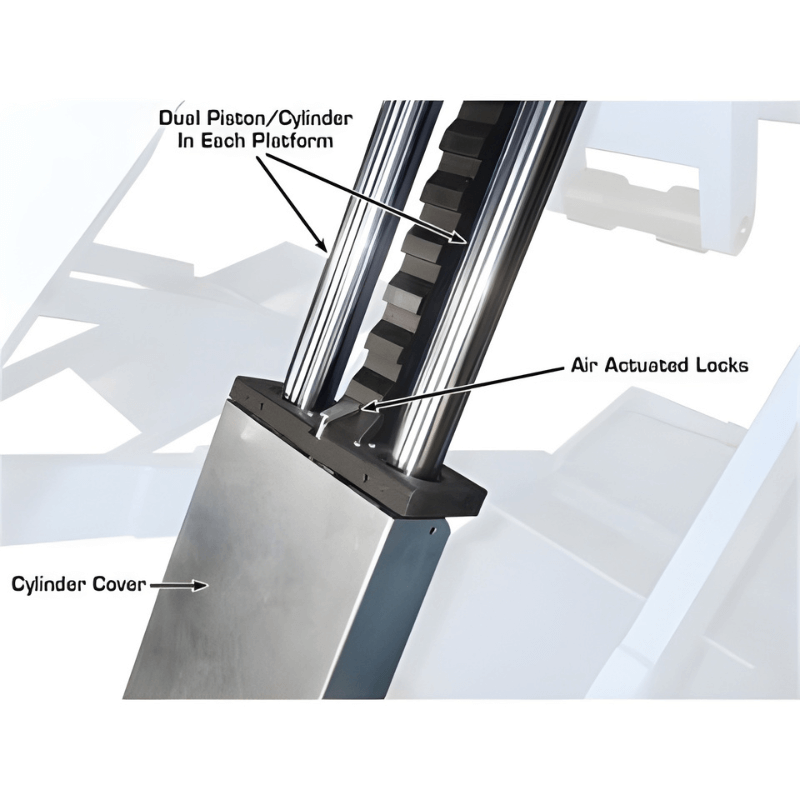

Conveniently positioned separate control panel grants easy access for operators, housing the 220-volt (single-phase) electric/hydraulic power unit within a durable metal enclosure. Push-button controls facilitate effortless lift operation, while the advanced 10-position air-actuated lock system engages and disengages automatically during lifting. Equipped with a safety lowering limit switch, the lift halts its descent when platforms reach 10 ½ inches from the ground, enhancing operational safety.

Scissor Lift SLP9K Specifications:

• Lifting Capacity: 9,000 lbs.

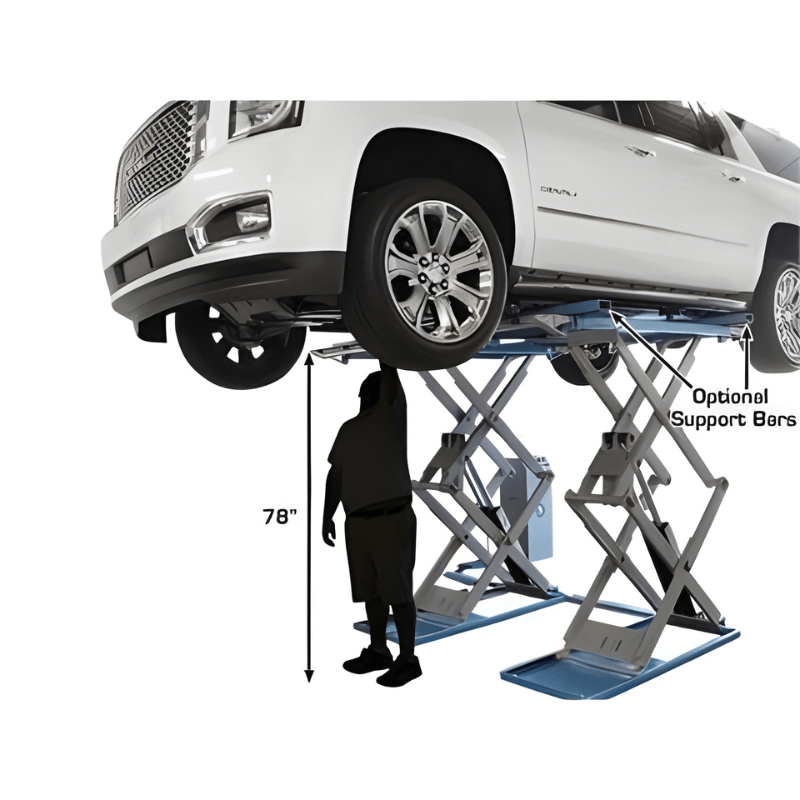

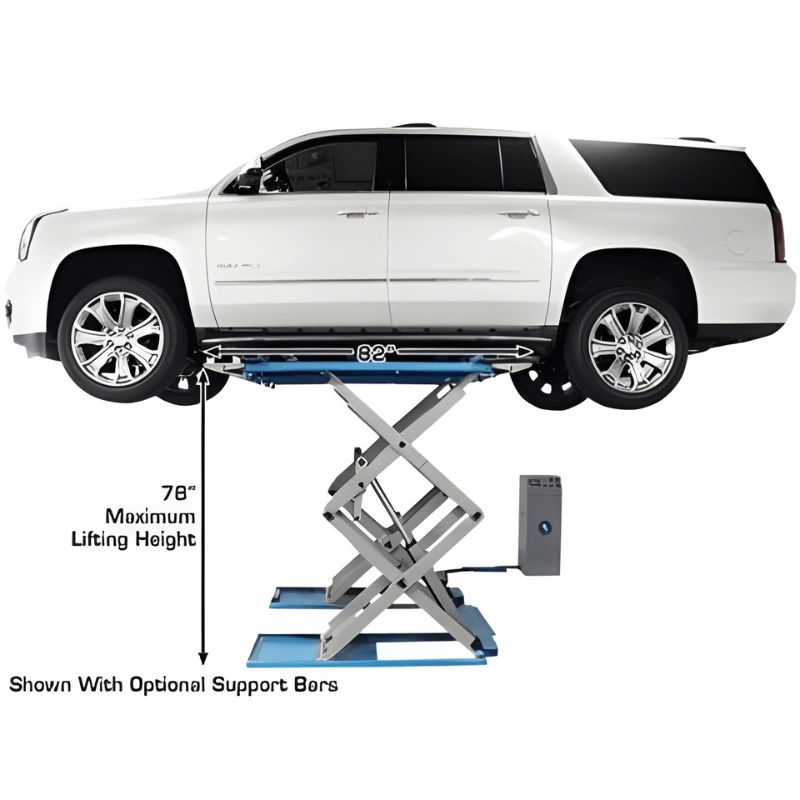

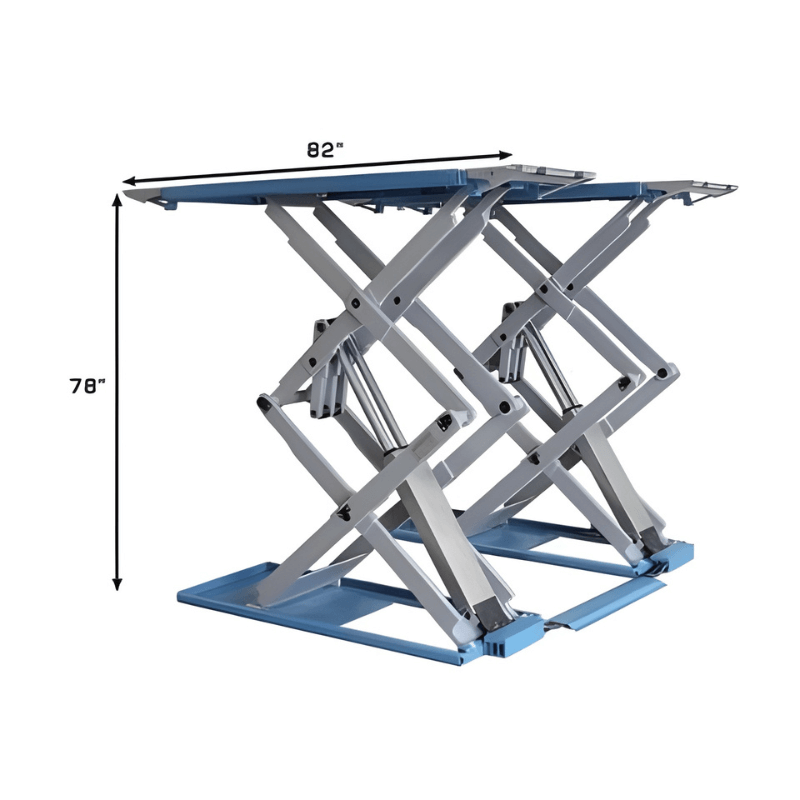

• Max Lifting Height: 78" (6' 6")

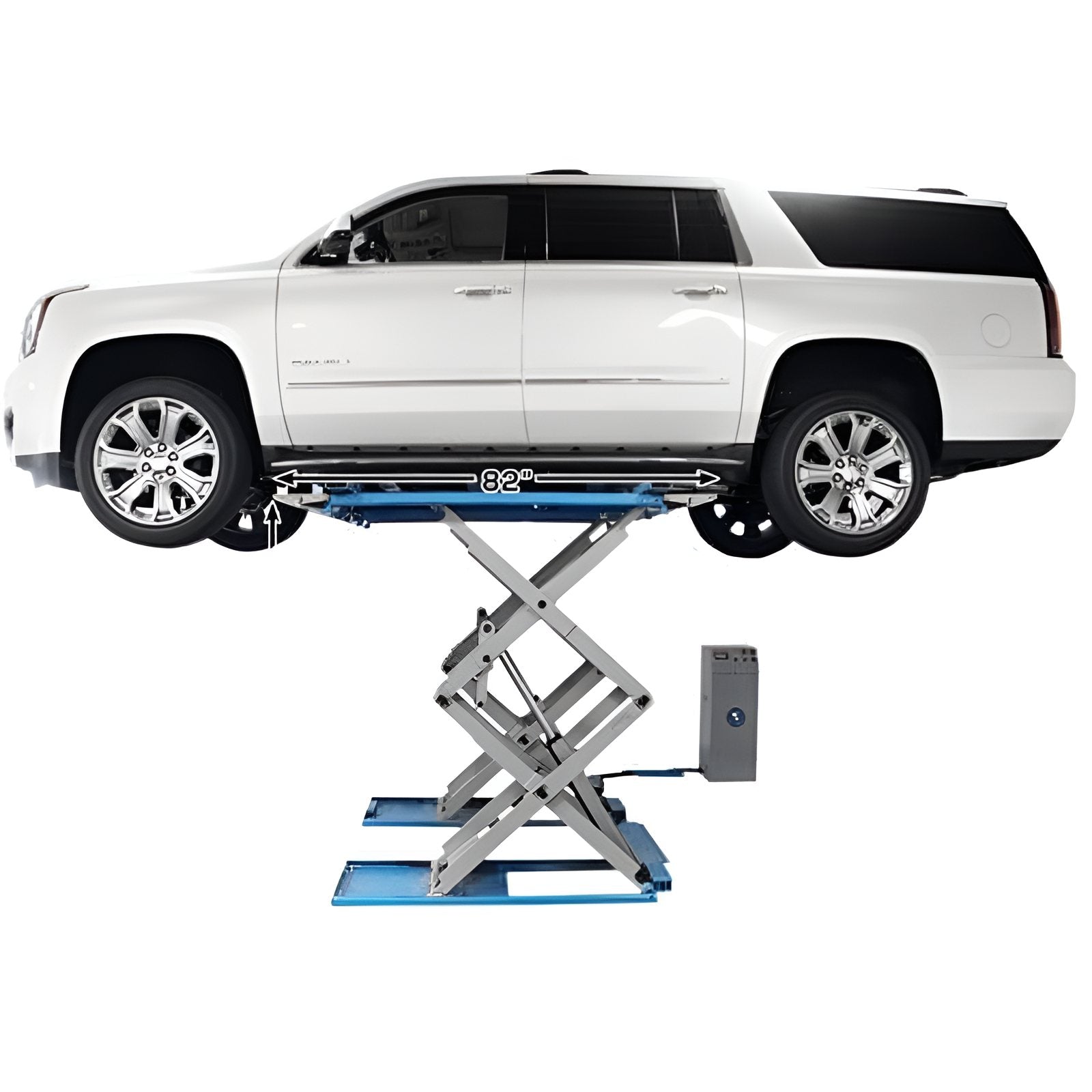

• Overall Length: 82" (6' 10")
• Max Overall Width: 82" (6' 10")

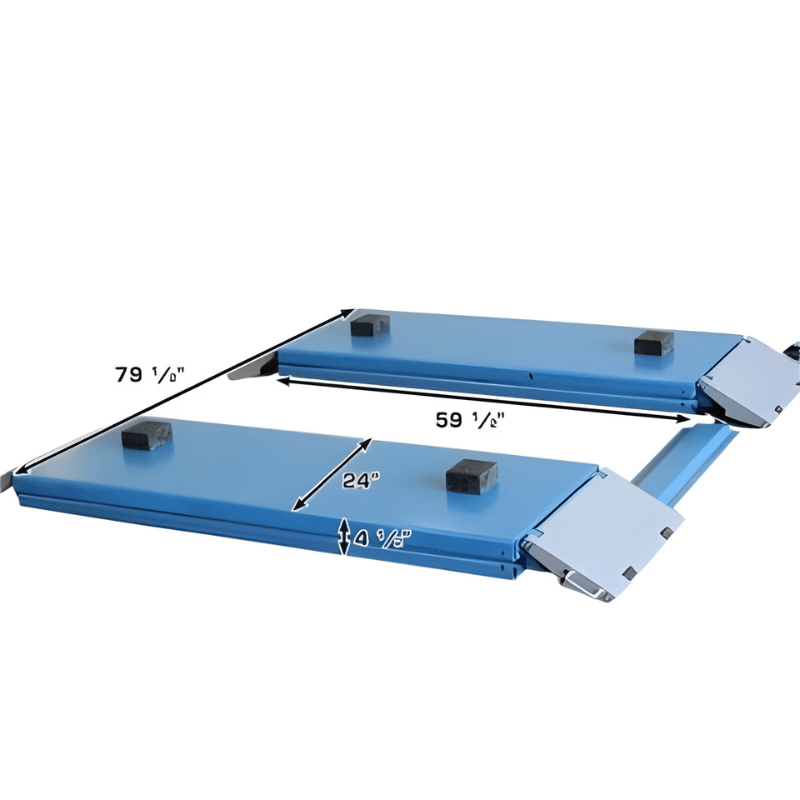

• Lift Platform: 59" x 24"
• Lowered Height: 4"

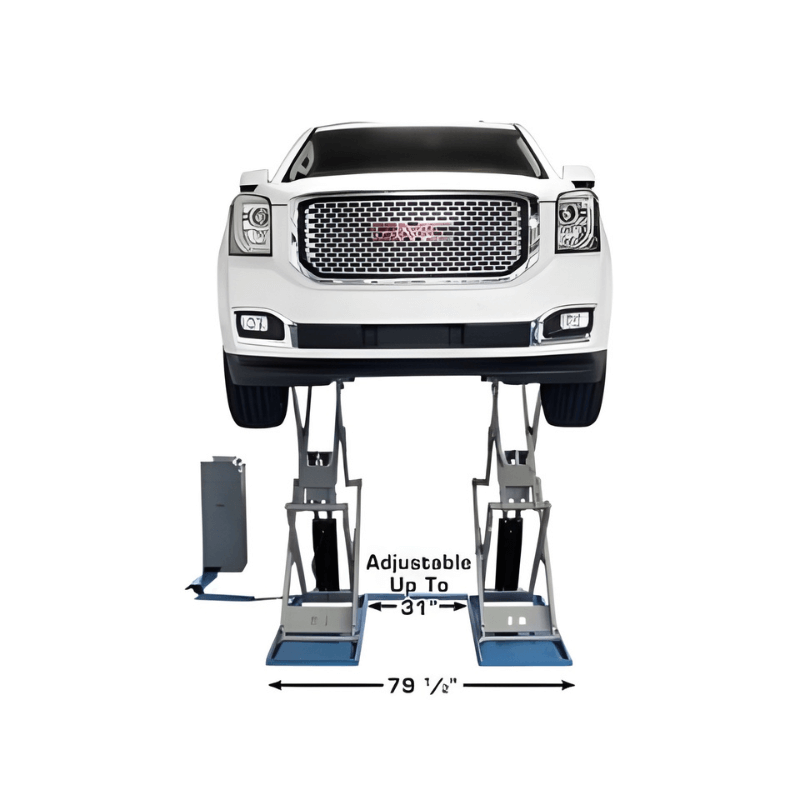

• Width Between Platforms: Adjustable up to 31"
• Approach Ramps: 11" x 24"
• Air Requirement: 90-120 PSI
• Power Unit: 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

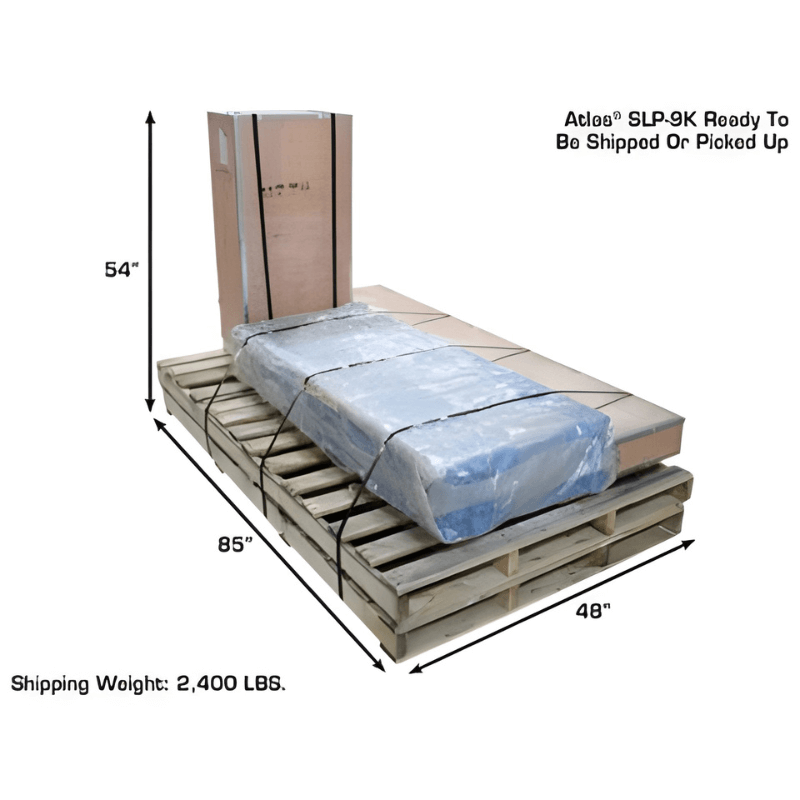

• Shipping Weight: 2,400 lbs.

SLP9K 9,000 lb Scissor Lift Special Features:

• 9,000 LB. Capacity
• Commercial Grade
• Full Rise Lift
• Open Center Design for Easy Access
• Adjustable width
• Air-Operated Single Point Lock Release (External Air Supply Required)
• 10 Locking Positions
• Locking Approach Ramps
• Grease Zerk Fittings at each Hinge Point

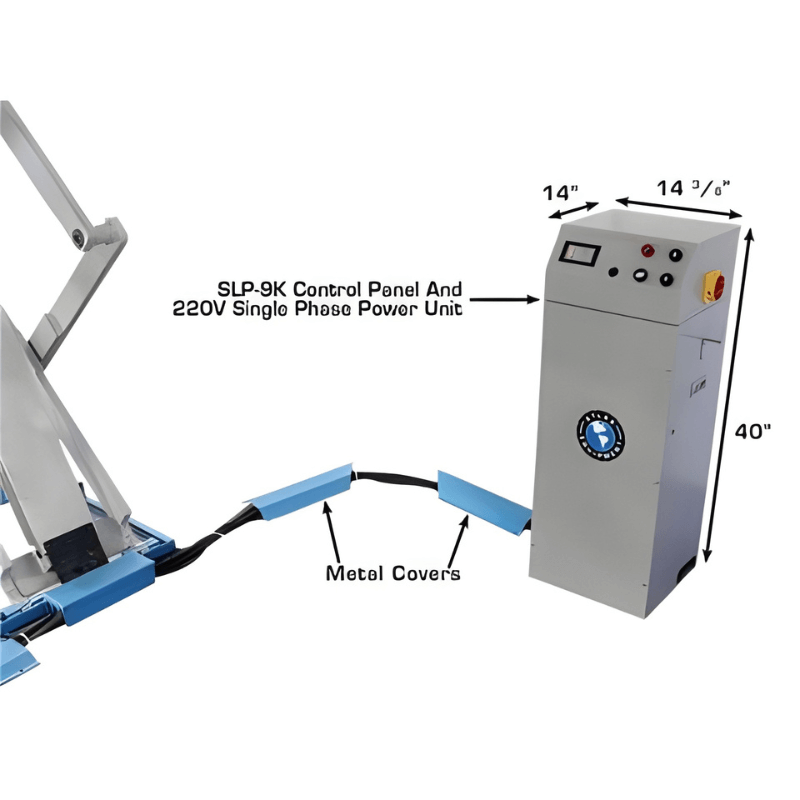

• Separate Self-Contained Control Panel
• CE Certified

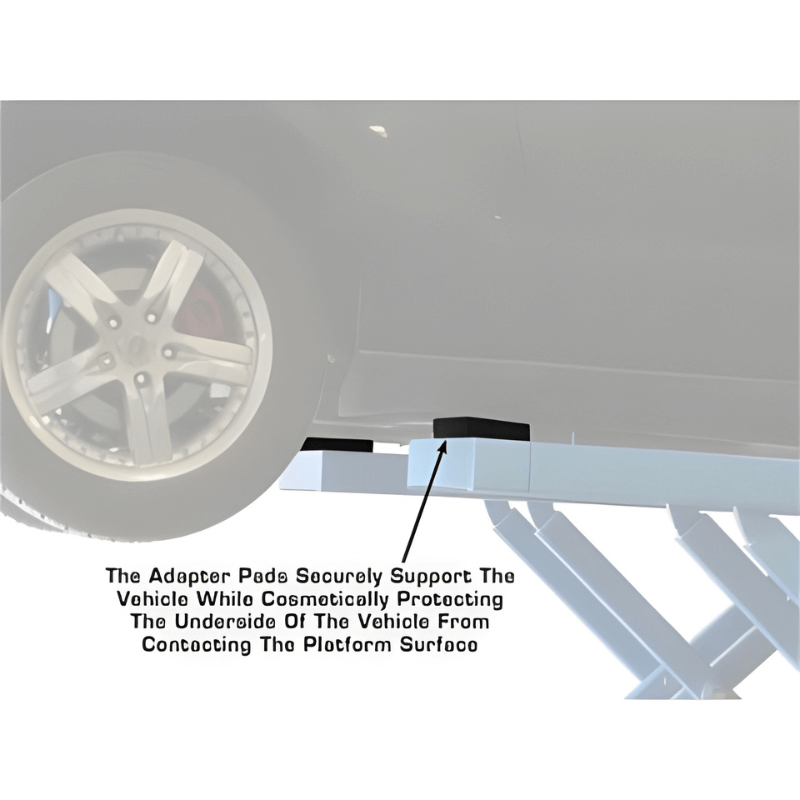

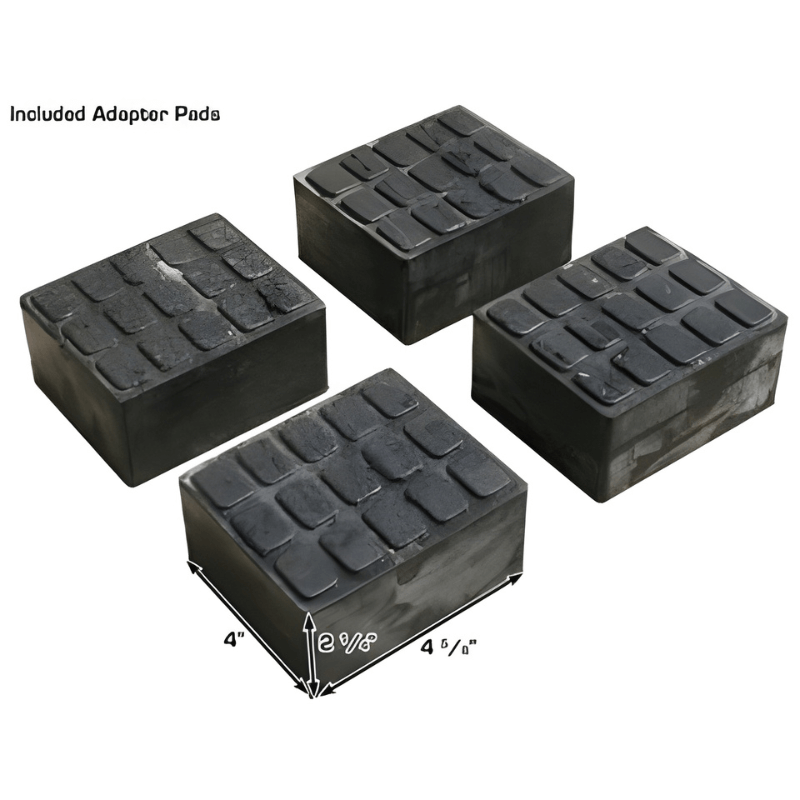

• Heavy Duty Rubber Lifting Blocks Included
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 2,400 lb.
• 1 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas SLP9K Documentation:

   Atlas SLP9K Scissor Lift Product Manual

This Item has a FLAT RATE SHIPPING FEE: $499

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Indianapolis, IN
