Atlas TC229 Tire Changer With WB11 Wheel Balancer Combo 1

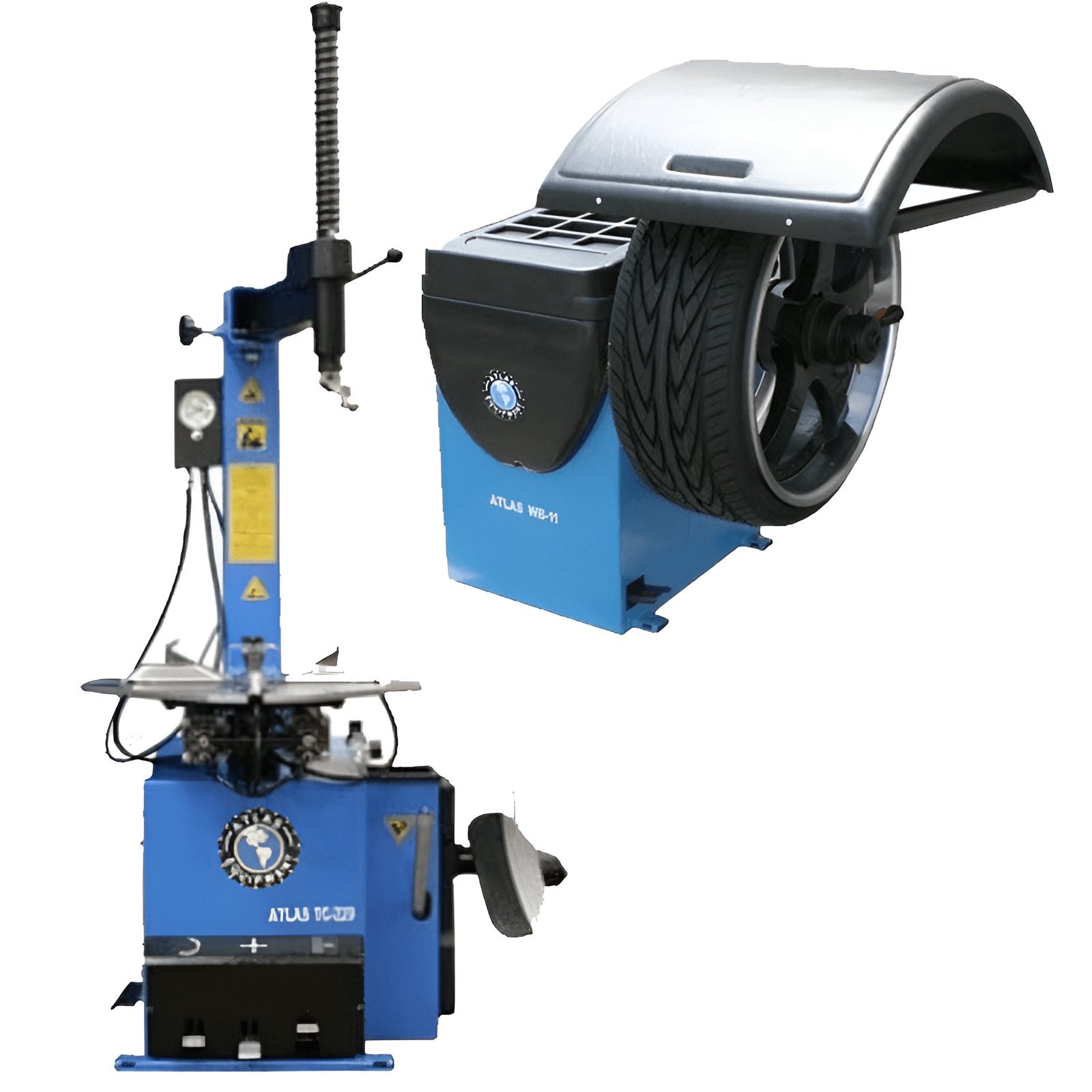

TC229 Tire Changer and WB11 Wheel Balancer Combo by Atlas

Tire service operations are often plagued by inefficiencies, slow turnaround times, and increased labor costs due to outdated or inadequate equipment. Struggling with big-ass tires, inaccurate wheel balances, and employee fatigue can significantly impact your shop's productivity and profitability. These challenges may lead to customer dissatisfaction and loss of business.

The Atlas Tire Changer and Wheel Balancer Combo won’t let that happen. The TC229 Tire Changer features a powerful 1 HP table motor, a 5,500 lb bead breaker, and adjustable jaws to handle a wide range of rim sizes efficiently. Its electric turntable and built-in bead blaster further enhance speed and precision. Paired with the WB11 Wheel Balancer, which boasts a 1/4 HP motor, 1-gram accuracy, and rapid optimization, this combo ensures accurate wheel balancing and minimizes operator input. Together, these deliver increased productivity, reduced labor costs, and improved customer satisfaction. Win-win!

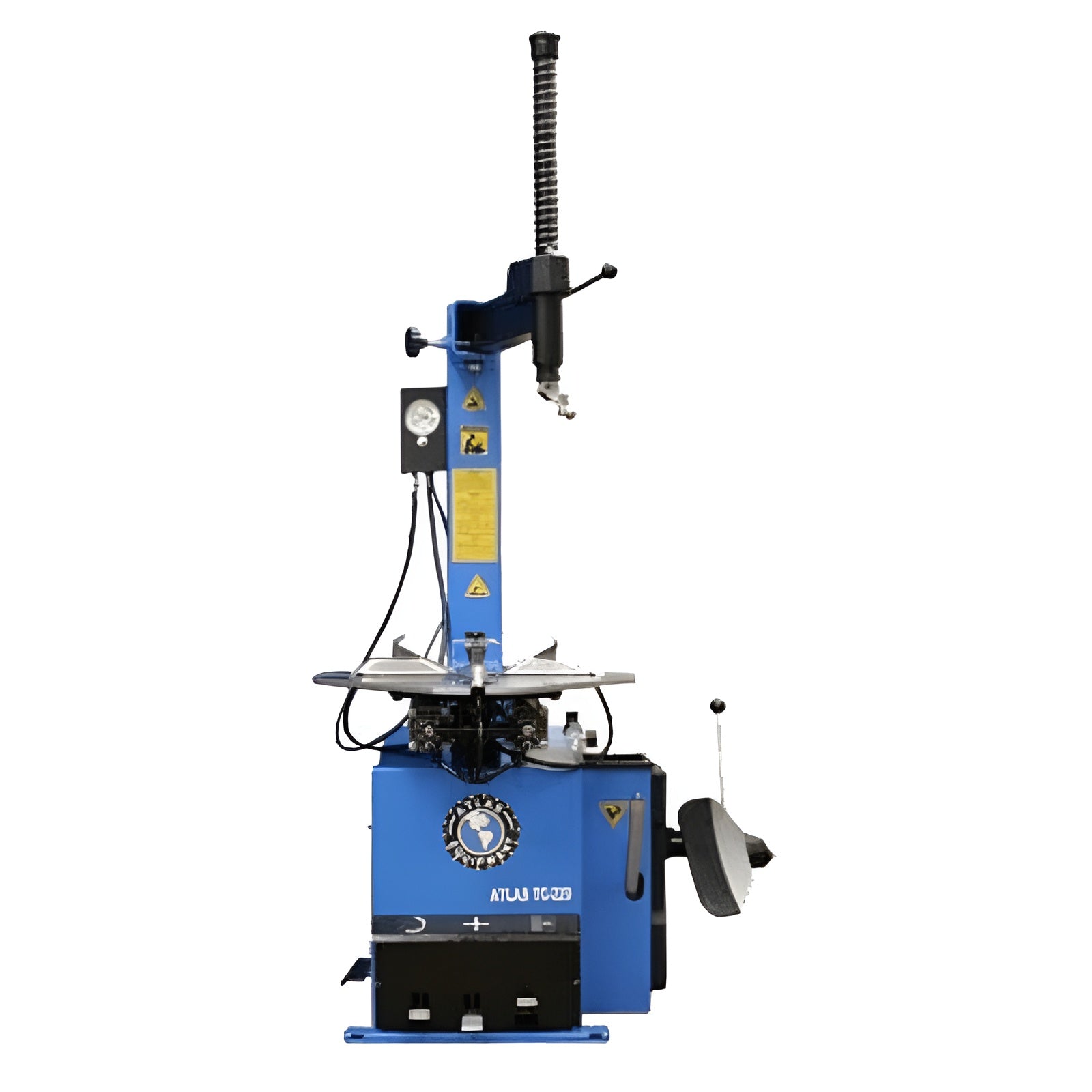

Tire Changer TC229 Specifications:

• Rims: Steel, Aluminum, Alloy

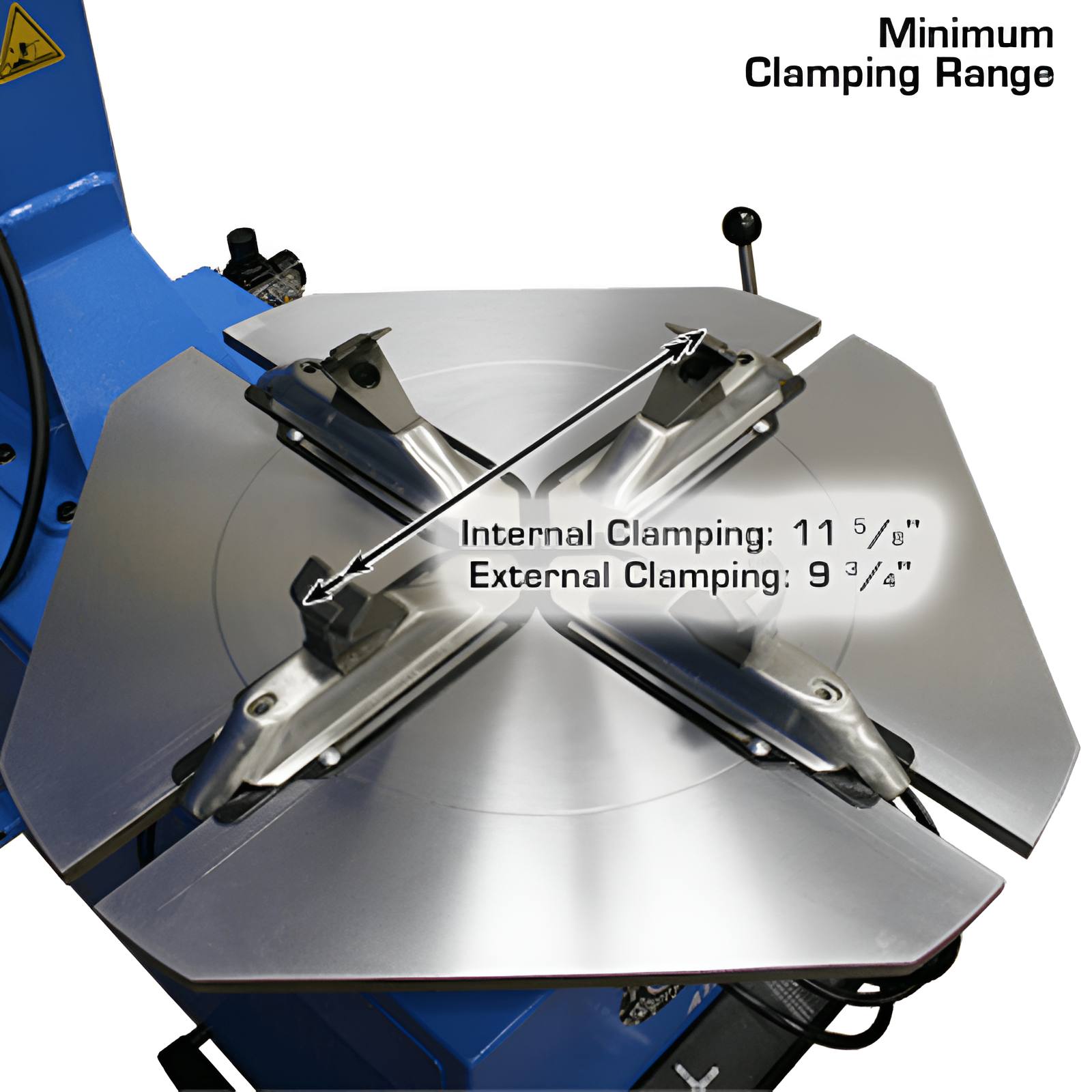

• External Locking Rim Dimension (3 Positions):
  1. 9 3/4" - 21 5/8"
  2. 10 3/4" - 22 1/2"
  3. 11 5/8" - 23 1/4"
• Internal Locking Rim Dimension (3 Positions):
  1. 11 5/8" - 23 1/4"
  2. 12 5/8" - 24 1/4"
  3. 13 1/2" - 25 1/4"
• Maximum Tire Diameter: 39"
• Maximum Wheel Width (Bead Breaker): 13"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 550 lbs.

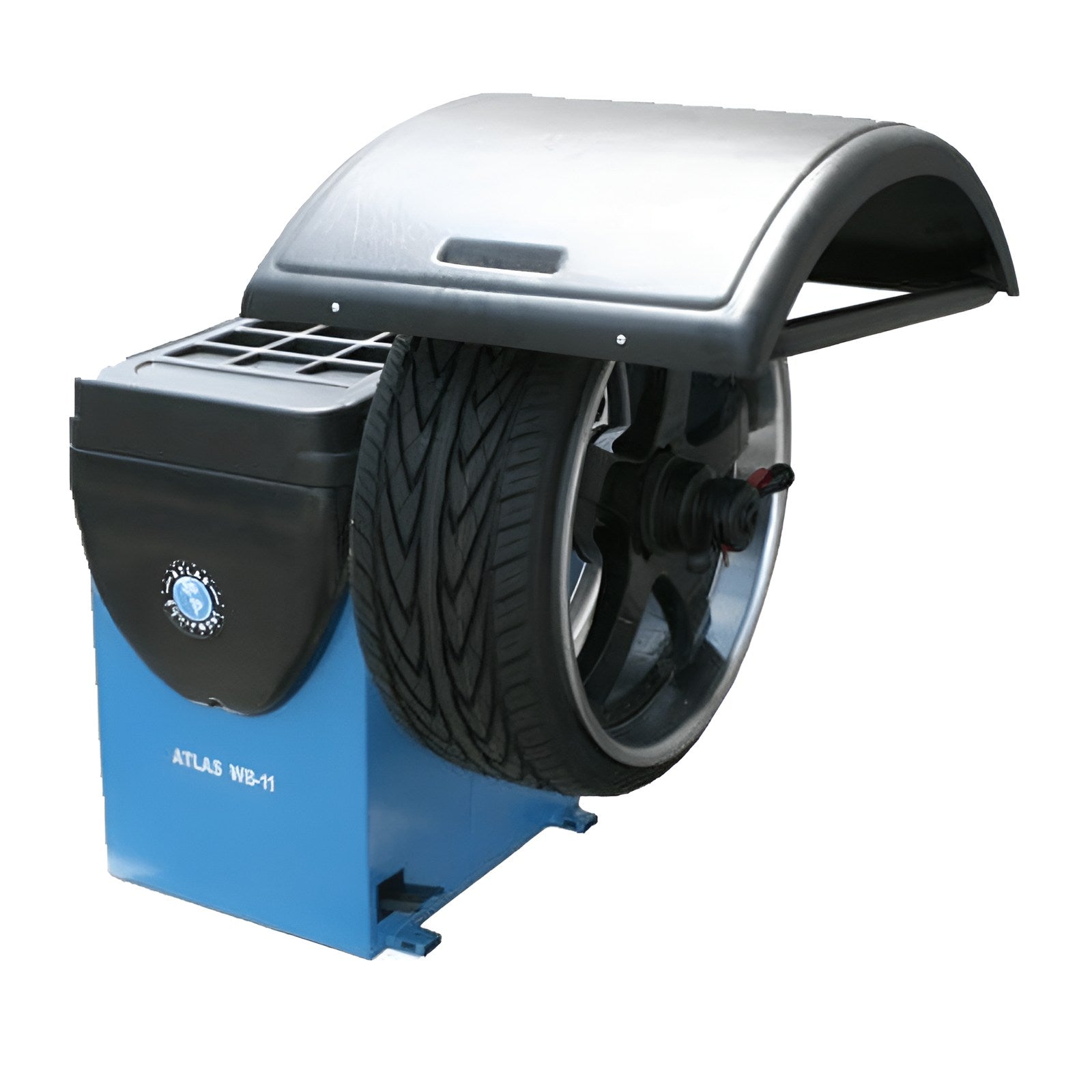

Wheel Balancer WB11 Specifications:

• Max Tire Diameter: 39" (3' 6")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"

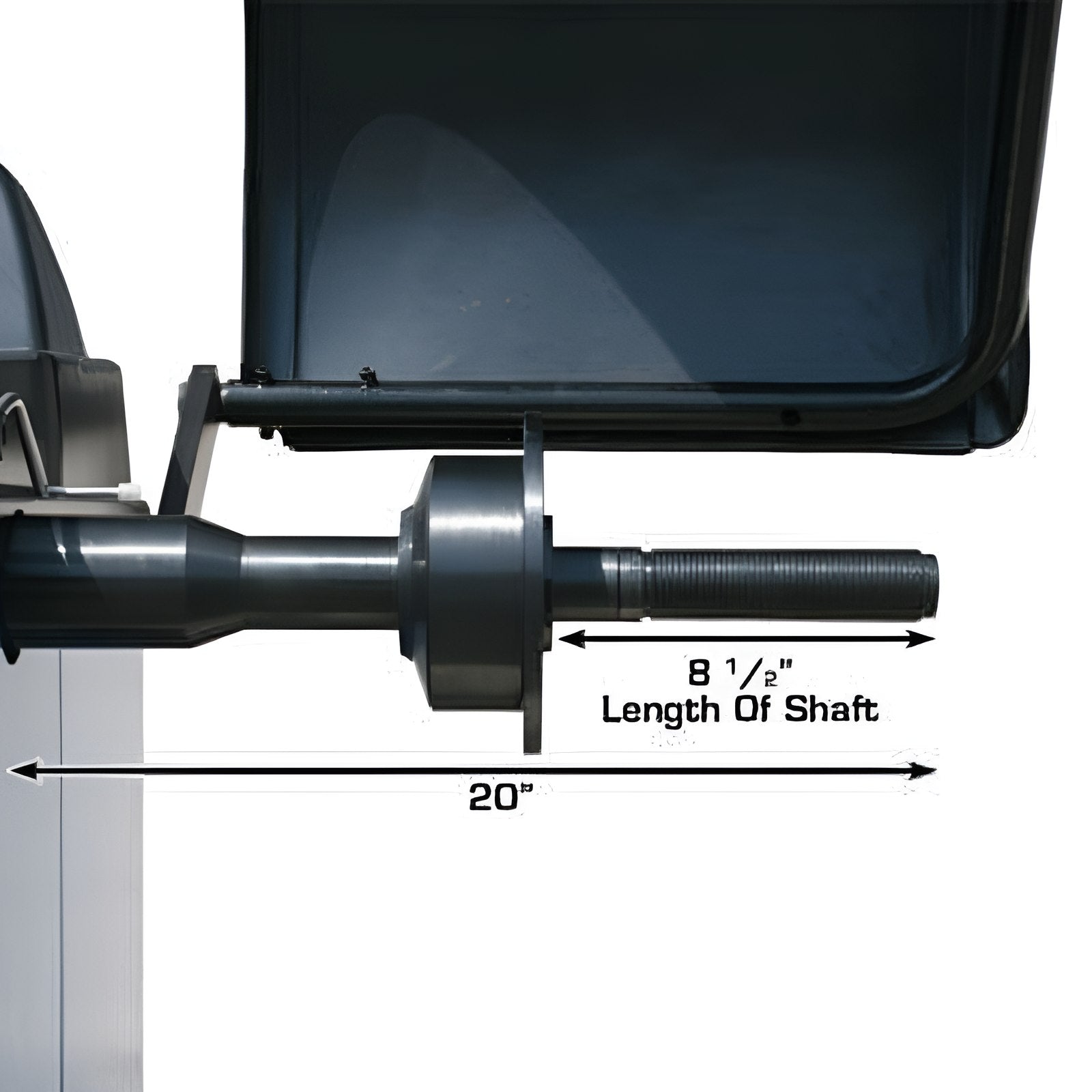

• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt
• Shipping Weight: 355 lbs.

TC229 Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Air operated jaws & bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws, three mounting positions
• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included
• Filter/Regulator/Lubricator Included
• 20″ Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included
• Built in “Beadblaster”

WB11 Wheel Balancer Special Features:

• Computer Controlled Motorized Spin Balancer
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed
• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Optional Item(Sold Separately)
  • Standard Motorcycle Adapter Kit

  • Truck Adapter Set

  • Deluxe Motorcycle Adapters

Atlas TC229 Documentation:

   Atlas TC229 Tire Changer Product Manual

Atlas WB11 Documentation:

   Atlas WB11 Wheel Balancer Product Manual
