Atlas TC229 Tire Changer With WB41 Wheel Balancer Combo 5

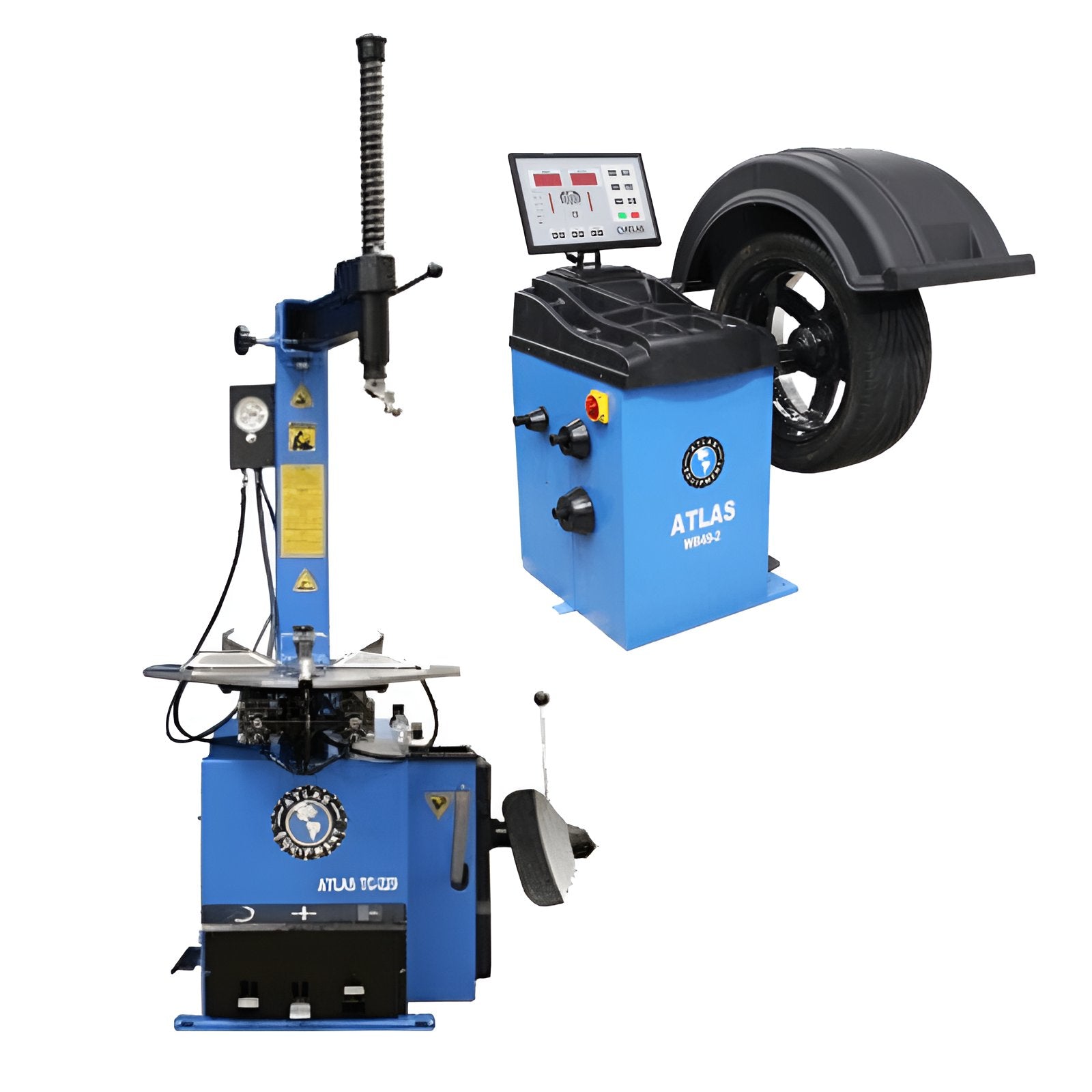

TC229 Tire Changer & WB41 Wheel Balancer Combo by Atlas

Get ready to revolutionize your shop with the ultimate tire service combo from Atlas: the TC229 Tire Changer With WB41 Wheel Balancer. This powerful duo combines speed, precision, and durability to tackle even the toughest tire jobs. The TC229 Tire Changer features a robust 1 HP table motor, a 5,500 lb bead breaker, and adjustable jaws for handling a wide range of rim sizes.

Its electric turntable and built-in bead blaster ensure quick and efficient tire mounting and demounting. Paired with the WB41 Wheel Balancer, boasting a 1/4 HP motor, 1-gram accuracy, and rapid optimization, you'll achieve perfect wheel balance every time.  Now your tire service will be a breeze, not a battle. This dynamic duo is designed to streamline your workflow and deliver exceptional results.

Tire Changer TC229 Specifications:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions):
  1. 9 3/4" - 21 5/8"
  2. 10 3/4" - 22 1/2"
  3. 11 5/8" - 23 1/4"
• Internal Locking Rim Dimension (3 Positions):
  1. 11 5/8" - 23 1/4"
  2. 12 5/8" - 24 1/4"
  3. 13 1/2" - 25 1/4"
• Maximum Tire Diameter: 39"
• Maximum Wheel Width (Bead Breaker): 13"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 550 lbs.

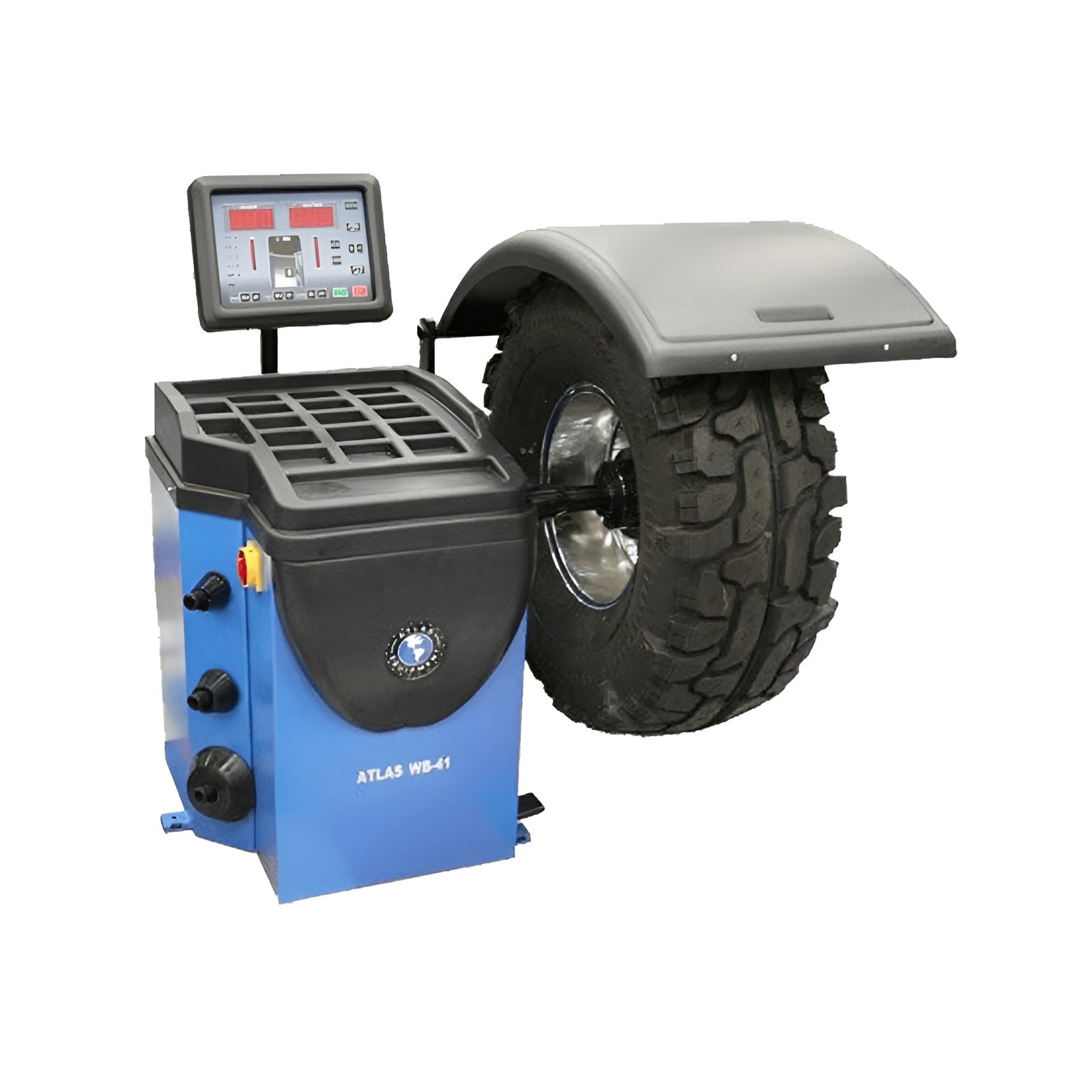

Wheel Balancer WB41 Specifications:

• Max Tire Diameter: 39" (3' 3")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"

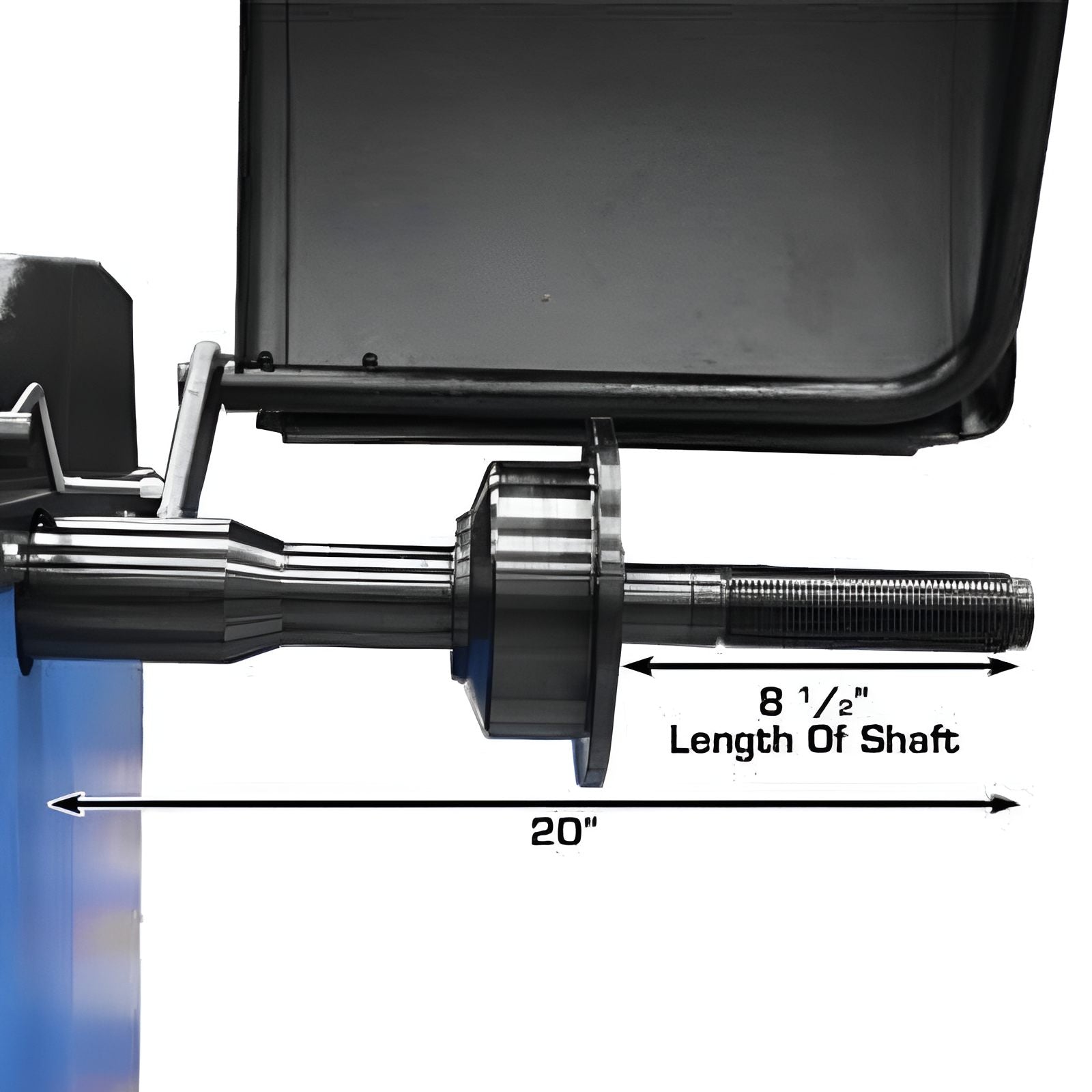

• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt
• Shipping Weight: 400 lbs.

TC229 Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Air operated jaws & bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws, three mounting positions
• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included
• Filter/Regulator/Lubricator Included
• 20″ Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included
• Built in “Beadblaster”

WB41 Wheel Balancer Special Features:

• Computer Controlled Motorized Spin Balancer

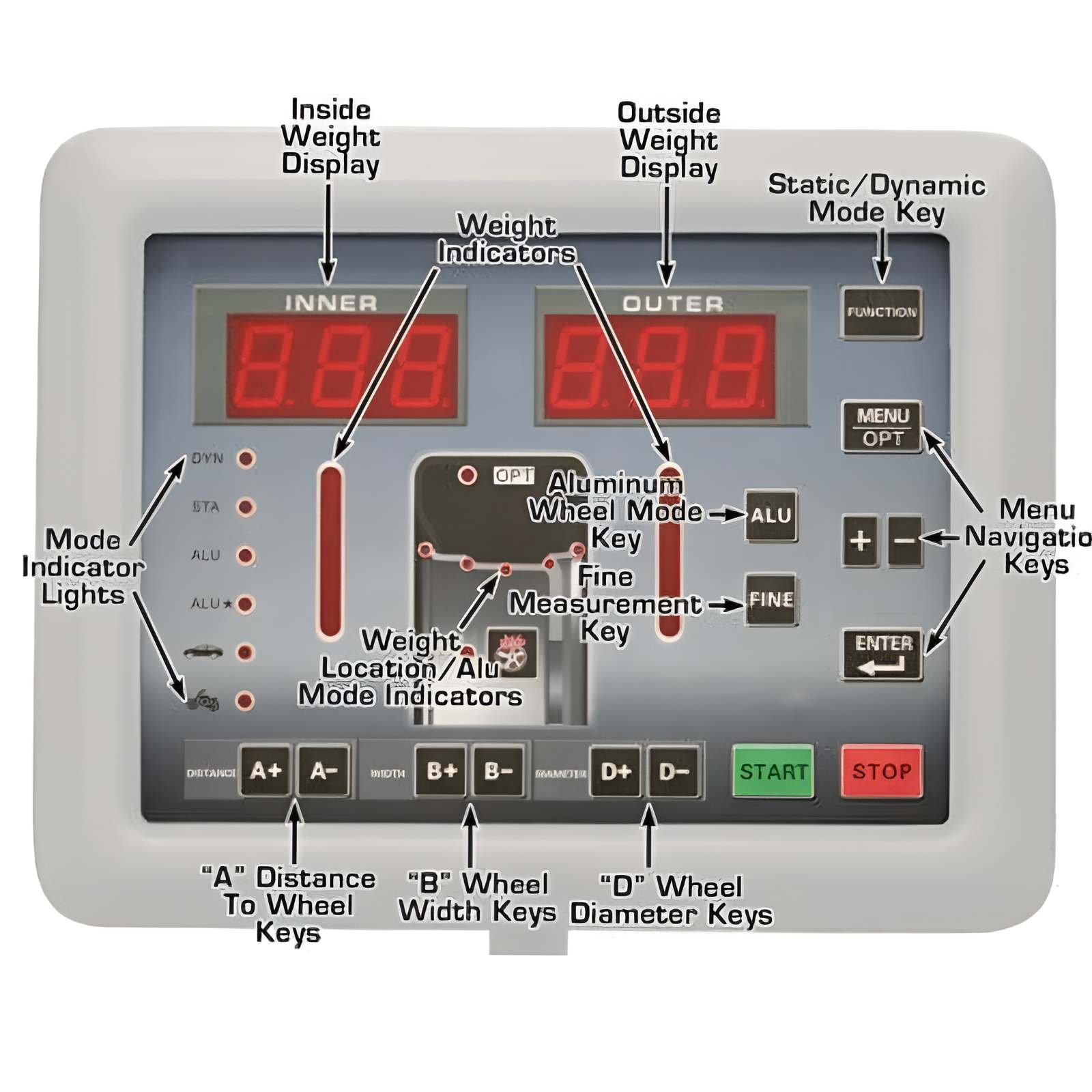

• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed

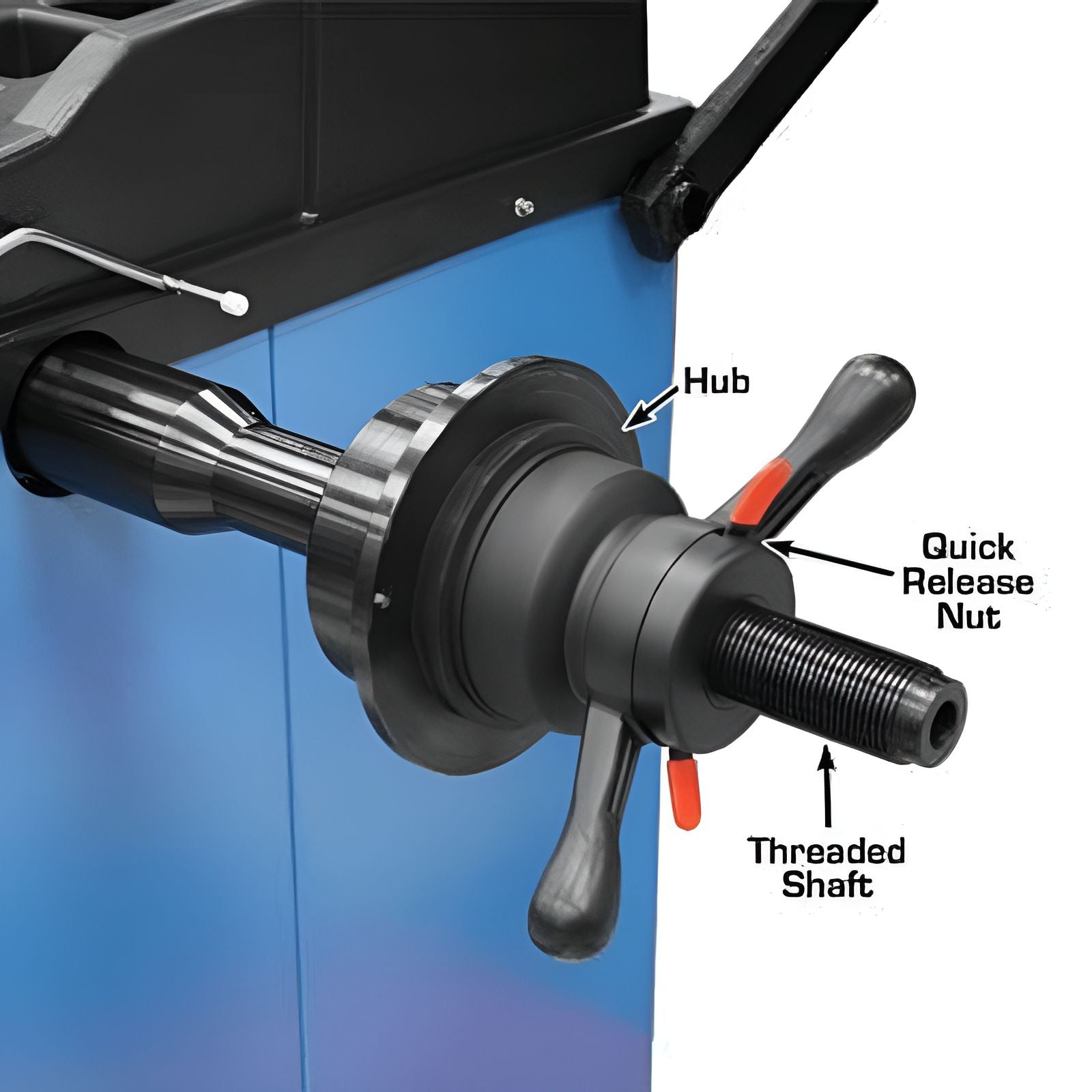

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Optional Item(Sold Separately)
  • Standard Motorcycle Adapter Kit

  • Truck Adapter Set

  • Deluxe Motorcycle Adapters

Atlas TC229 Documentation:

   Atlas TC229 Tire Changer Product Manual

Atlas WB41 Documentation:

   Atlas WB41 Wheel Balancer Product Manual

TC229 Tire Changer and WB41 Wheel Balancer - Sold Separately

• Tire Changer TC229
• Wheel Balancer WB41

This Item has a FLAT RATE SHIPPING FEE: $299

Warehouse Pickup locations (No shipping charge):

• Atlanta, GA
• Dallas, TX
• Fresno, CA
• Indianapolis, IN
• Phoenix, AZ
• Somerset, NJ


WB41 Video
