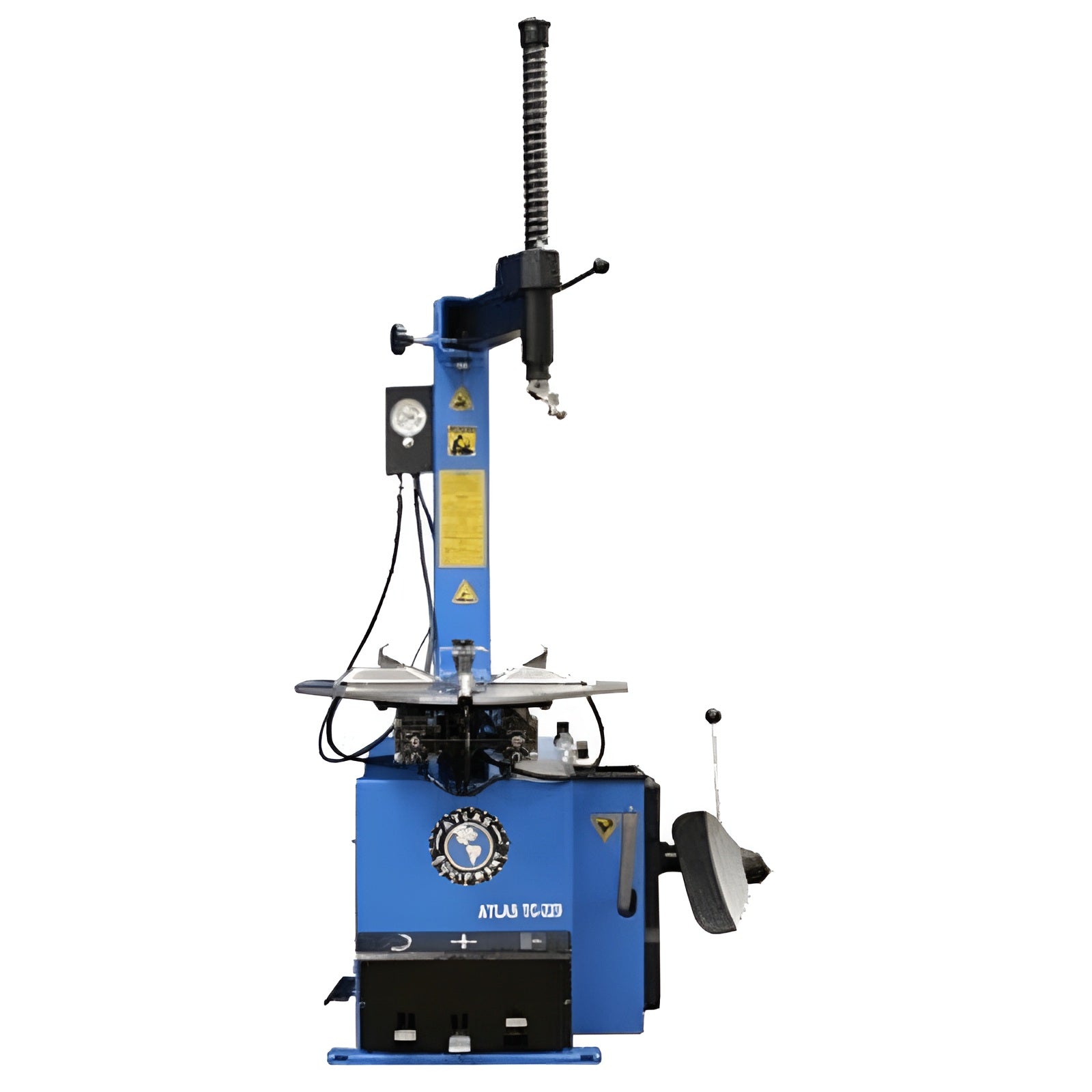

TC229 Tire Changer and WB49-2 Wheel Balancer Combo by Atlas
Tired of dealing with tire changers that can't handle the demands of your busy workshop? The Atlas® TC229 Tire Changer is here to change the game! This versatile and robust machine is designed to accommodate steel, aluminum, and alloy rims with ease. With adjustable external locking rim sizes from 9 3/4 inches to 23 1/4 inches and internal sizes from 11 5/8 inches to 25 1/4 inches, the TC229 can manage tires up to 39 inches in diameter and wheels up to 13 inches wide. Powered by a 1 HP table motor that delivers a formidable 885 ft/lbs of turntable torque and a bead breaker with an impressive 5,500 lbs of force, this tire changer is built to tackle any job that comes your way.
The WB49-2 Wheel Balancer is the perfect companion to the TC229, providing an advanced solution for precise wheel balancing. It accommodates tires up to 39 inches in diameter and rim sizes from 10 to 32 inches, handling wheel weights up to 150 lbs effortlessly. Operating with a 1/4 HP motor at 150 rpm, it offers accuracy within 1 gram, ensuring your customers leave with perfectly balanced wheels. The WB49-2 features automatic 2D data entry, LED lighting, and self-calibration, making it user-friendly and efficient without the need for anchor-down installation. Stop struggling with outdated equipment. Get this instead.
Tire Changer TC229 Specifications:
Rims: Steel, Aluminum, Alloy
External Locking Rim Dimension (3 Positions):
9 3/4" - 21 5/8"
10 3/4" - 22 1/2"
11 5/8" - 23 1/4"
Internal Locking Rim Dimension (3 Positions):
11 5/8" - 23 1/4"
12 5/8" - 24 1/4"
13 1/2" - 25 1/4"
Maximum Tire Diameter: 39"
Maximum Wheel Width (Bead Breaker): 13"
Table Motor: 1 HP
Turntable Rotating Torque: 885 ft/lbs
Bead Breaker: 5,500 LB. Force
Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
Operating Voltage: 110volt

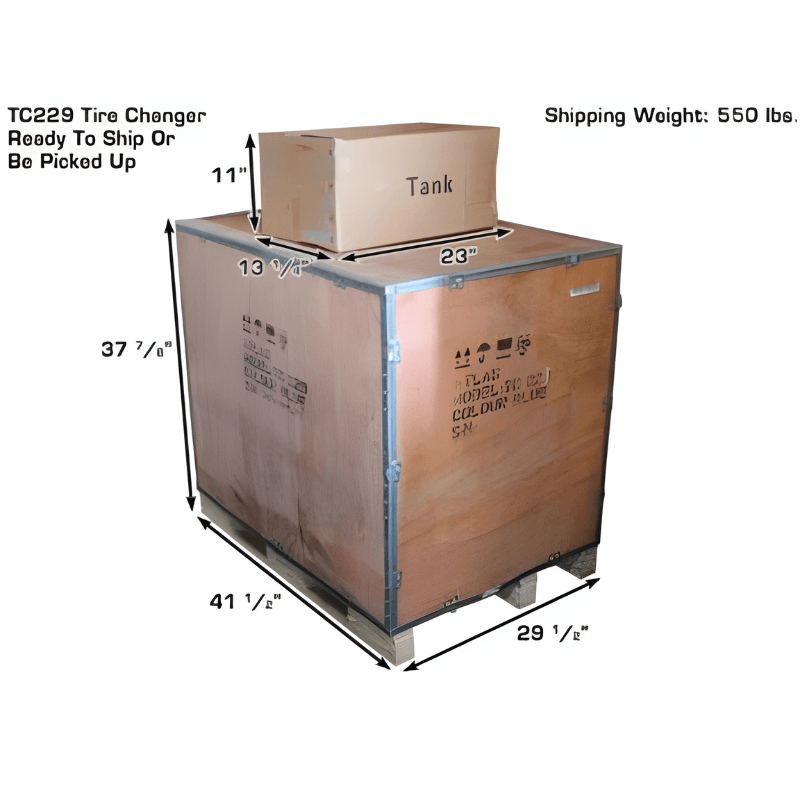

Shipping Weight: 550 lbs.
Wheel Balancer WB49-2 Specifications:
Max Tire Diameter: 39" (3' 6")
Rim Sizes (Cars And Light Trucks): 10"-32"
Rim Width: 1 1/2"-20"
Shaft Size: 40mm
Max. Wheel Weight: 150 lbs.
Balancing Speed: 150 rpm
Data Entry: Automatic 2D (Automatic 3D Optional)
Measurements: Standard Or Metric
Accuracy: 1 gram
Weight Position Resolution: 1.4 Degrees
Self Calibration: Yes
Motor: 1/4 HP
Power Supply: 110volt
Shipping Weight: 400 lbs.
TC229 Tire Changer Special Features:
Rim Clamp/Swing Arm Tire Changer
Air operated jaws & bead breaker (external air supply required)
Electric turntable
Adjustable jaws, three mounting positions
Metal mount/demount head w/ metal roller or replaceable plastic inserts
Column mounted inflator box w/ gauge Included
Filter/Regulator/Lubricator Included
20″ Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included
Built in “Beadblaster”
WB49-2 Wheel Balancer Special Features:
Computer Controlled Motorized Spin Balancer
Raised, Easy to Read Display
Large Wheel Weight Tray
Automatic 2D Data Entry
Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
Split-Weight Function for hiding weights behind spokes
Automatic LED Light
Auto-Positioning
Automatic and pedal operated brake.
Automatic start/stop when hood is lowered/raised.
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self-Diagnosing and Self-calibrating
Exceptional stability in reading the unbalance between planes.
Atlas TC229 Tire Changer Product Manual
Atlas WB49-2 Wheel Balancer Product Manual
