Atlas TC289 Tire Changer+ WB11 Wheel Balancer Deluxe Motorcycle Combo

TC289 Tire Changer+ WB11 Wheel Balancer Deluxe Motorcycle Combo by Atlas

Still manhandling tires and playing “guess the weight” with your wheel balancing? Let’s put an end to that. If you're tired of tools that can't keep up with your motorcycle projects, it's time to get serious about tire maintenance. Enter the TC289 Tire Changer + WB11 Wheel Balancer Deluxe Motorcycle Combo by Atlas, the combo that makes it all look ridiculously easy.

The TC289 Tire Changer? It's built with deluxe motorcycle adapters, plastic jaw covers, and an extra-large 28" turntable to handle even the biggest rims. With adjustable jaws and a 5,500-lb bead breaker, tires practically fall off the rim. And don’t forget the built-in "Beadblaster" for those extra-stubborn tires. From 11 7/8" to 29 7/8" rims, you’ve got three mounting positions to choose from, plus all the accessories—oiler, filter, regulator, and protectors—you didn’t know you needed. Then there’s the WB11 Wheel Balancer, which spins at 150 rpm and offers both static and dynamic modes for precision balancing. Rims from 10" to 32" and tires up to 150 lbs? No problem. And with self-calibration and accuracy down to 1 gram, you’ll be fine-tuning your ride like a pro—no guesswork, just results.

Tire Changer and Wheel Balancer Combo Atlas TC289+WB11 Specification

TC289

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions):
  1. 11 7/8" - 26"
  2. 12 7/8" - 27"
  3. 13 3/4" - 28"
• Internal Locking Rim Dimension (3 Positions):
  1. 13 7/8" - 27 7/8"
  2. 14 5/8" - 28 7/8"
  3. 15 5/8" - 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 620 lbs.

WB11

• Max Tire Diameter: 39" (3' 6")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt

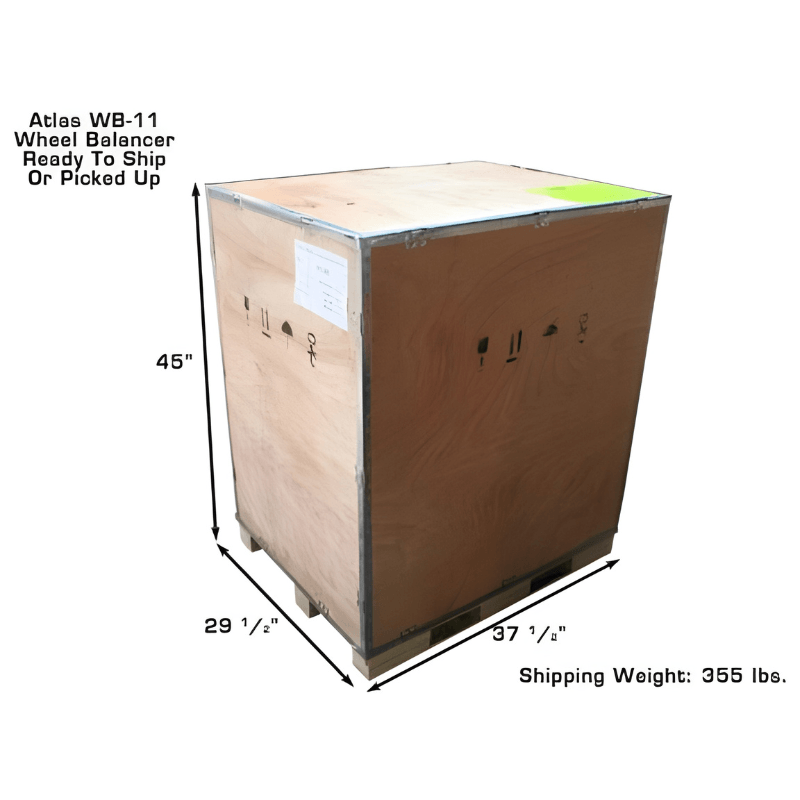

• Shipping Weight: 355 lbs.

TC289+WB11 Tire Changer and Wheel Balancer Combo Special Features

TC289

• Rim Clamp/Swing Arm Tire Changer
• Deluxe Motorcycle Adapters w/ Plastic Jaw Covers Included
• Extra Large Turntable, More Clearance
• Built-in “Beadblaster”
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

WB11

• Computer Controlled Spin Balancer
• Standard 14mm Motorcycle Adapter Kit Included
• Large 19mm Motorcycle Adapter Kit Included
• 19mm Extension Nut Included
• Spoke Support Adapter Included
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self Diagnosis/Self Calibration
• Display in grams or ounces, in mm or inches
• 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
• Optional Item(Sold Separately)
  • Universal Adapter

  • Truck Adapter Set

  • 200/700 Series Left-Hand Assist Arm

Atlas TC289 + WB11 Documentation

 Atlas TC289 Tire Changer Product Manual

  Atlas WB11 Wheel Balancer Product Manual
