Atlas TC289 Tire Changer With WB11 Wheel Balancer Combo 8

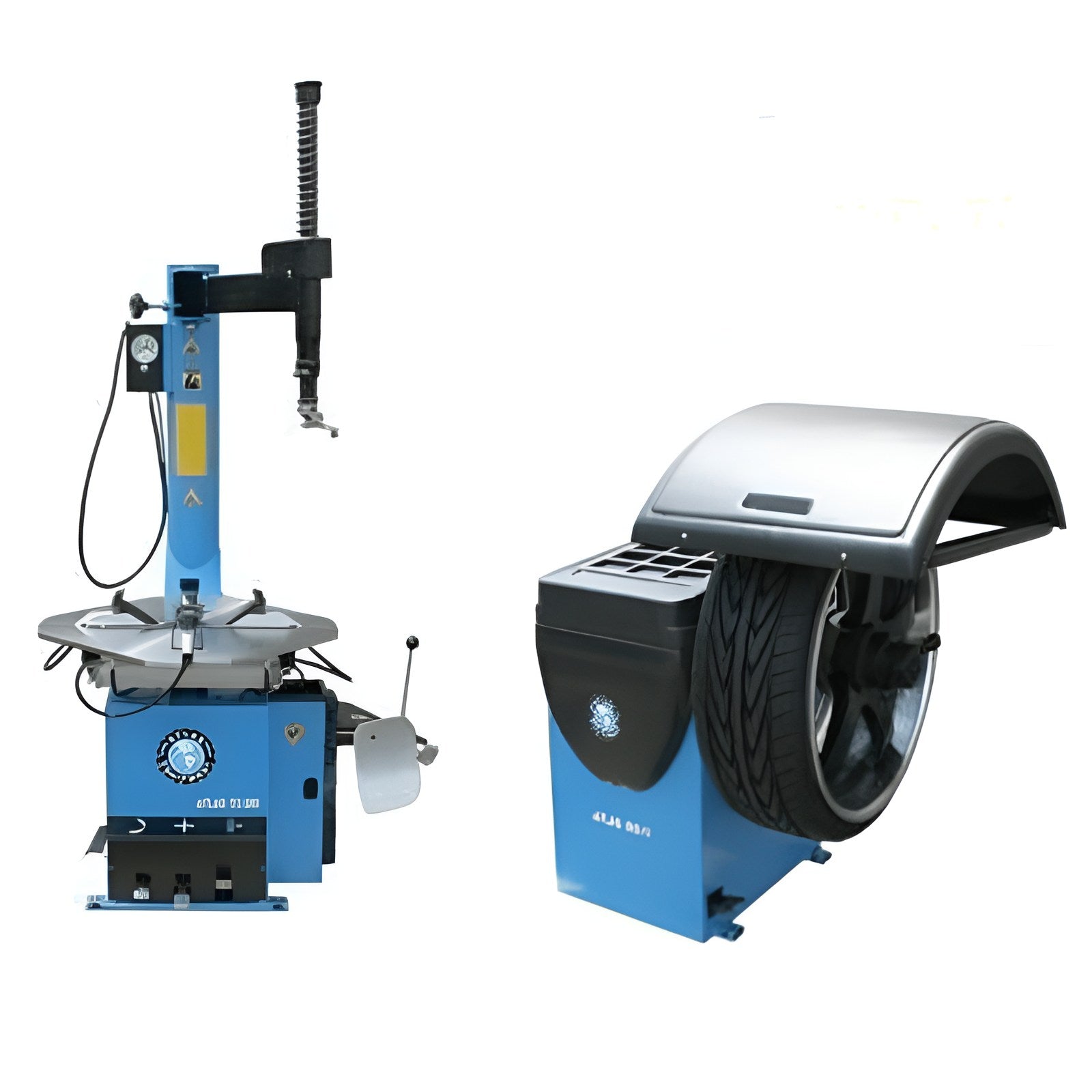

TC289 Tire Changer and WB11 Wheel balancer Combo by Atlas

Dealing with oversized tires and finicky wheel balancing? The Atlas® TC289 Tire Changer and WB11 Wheel Balancer are here to solve your woes. The TC289's adjustable bead breaker and three-position jaws adapt to tires up to 47" in diameter, while its built-in "Beadblaster" tames even the stiffest sidewalls.

Pair it with the WB11 Wheel Balancer for unbeatable precision. This computer-controlled marvel handles wheels up to 150 lbs, with rim sizes from 10" to 32". Its 1/4 HP motor spins at 150 rpm, offering 1-gram accuracy and 1.4-degree weight position resolution. With features like rapid optimization, self-calibration, and versatile measurement options, you'll breeze through balancing jobs.

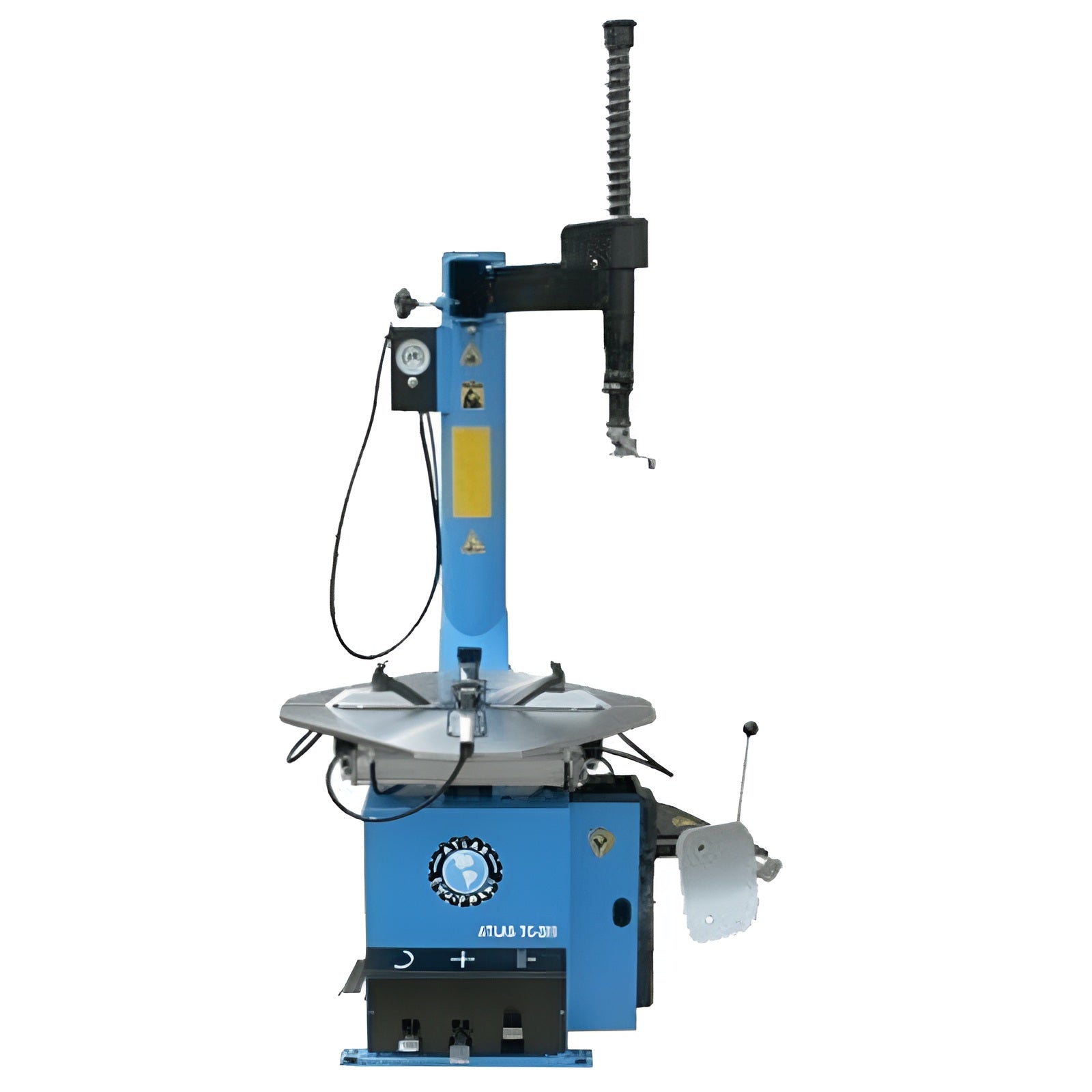

Tire Changer TC289 Specifications:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions):
  1. 11 7/8" - 26"
  2. 12 7/8" - 27"
  3. 13 3/4" - 28"
• Internal Locking Rim Dimension (3 Positions):
  1. 13 7/8" - 27 7/8"
  2. 14 5/8" - 28 7/8"
  3. 15 5/8" - 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 620 lbs.

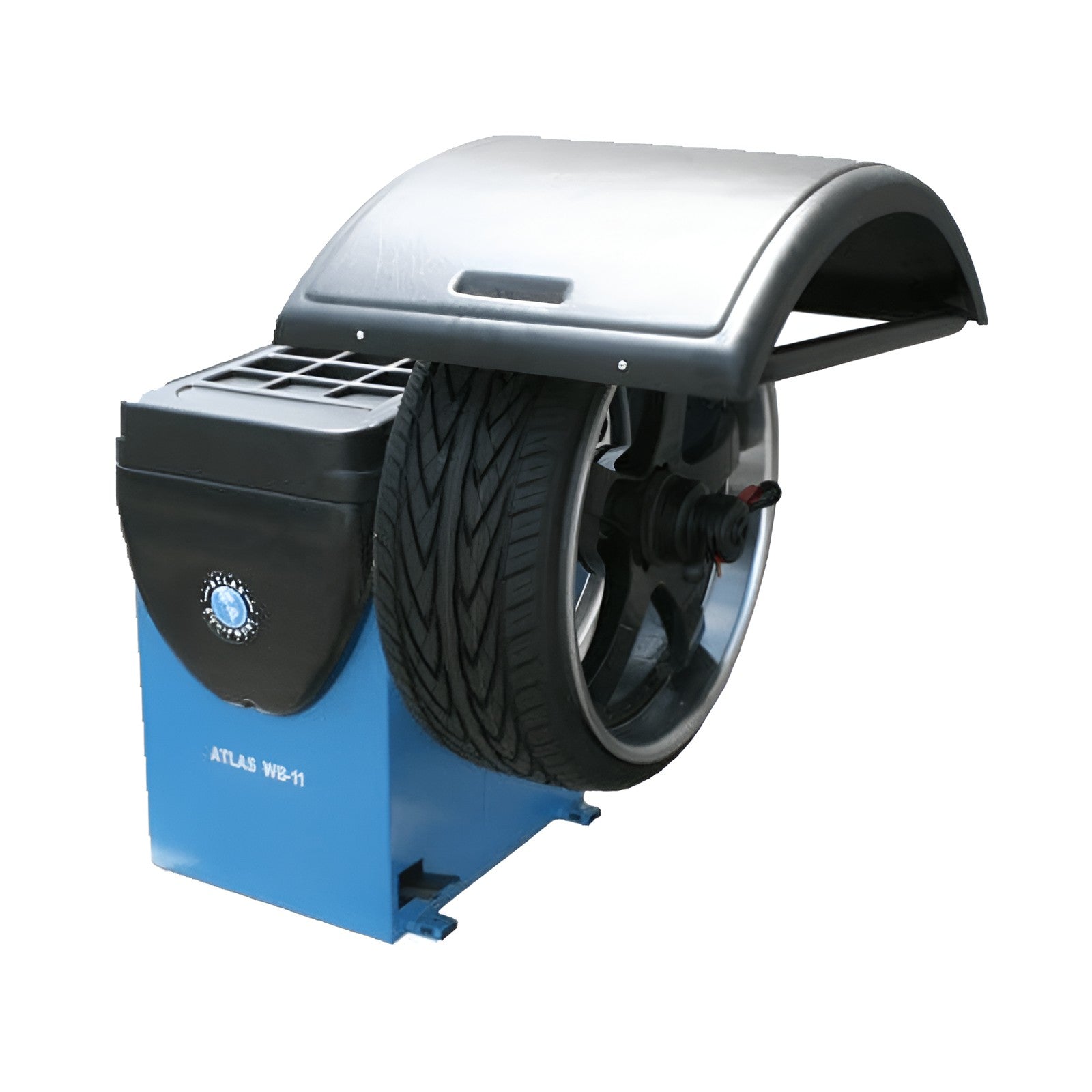

Wheel Balancer WB11 Specifications:

• Max Tire Diameter: 39" (3' 3")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110 volt

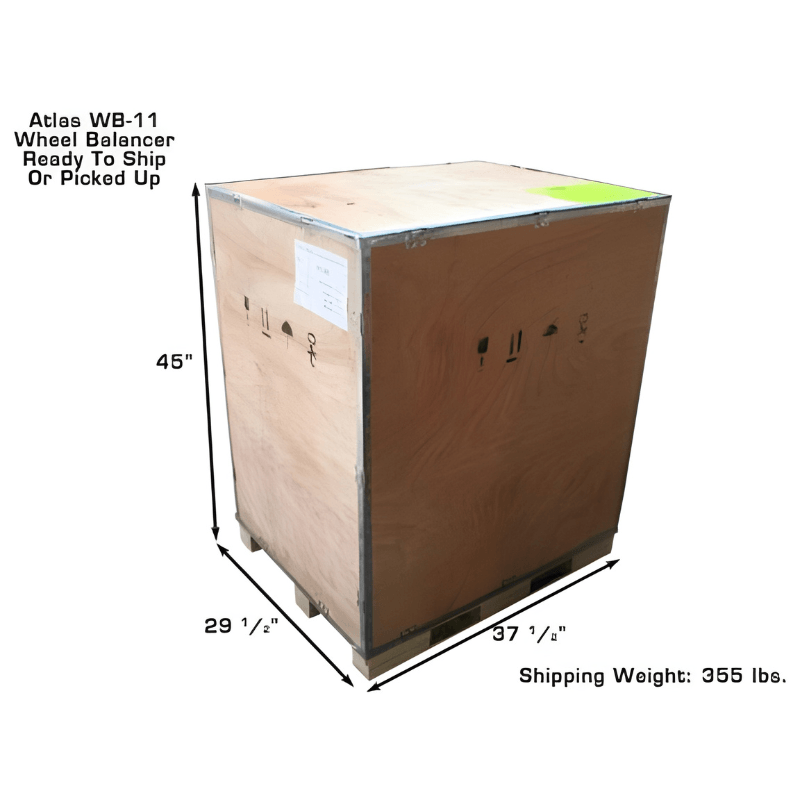

• Shipping Weight: 355 lbs.

TC289 Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Extra Large Turntable, More Clearance
• Built-in “Beadblaster”
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

Wheel Balancer WB11 Special Features:

• Computer Controlled Spin Balancer
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self Diagnosis/Self Calibration
• Display in grams or ounces, in mm or inches
• 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
• Optional Item(Sold Separately)
  • Universal Adapter

  • 200/700 Series Left-Hand Assist Arm
  • Truck Adapter Set

Atlas TC289 Documentation:

 Atlas TC289 Tire Changer Product Manual

Atlas WB11 Documentation:

  Atlas WB11 Wheel Balancer Product Manual

TC289 Tire Changer and WB11 Wheel Changer - Sold Separately

• Tire Changer TC289
• Wheel Balancer WB11
