Atlas TC289DAA Tire Changer With WB11 Wheel Balancer Combo

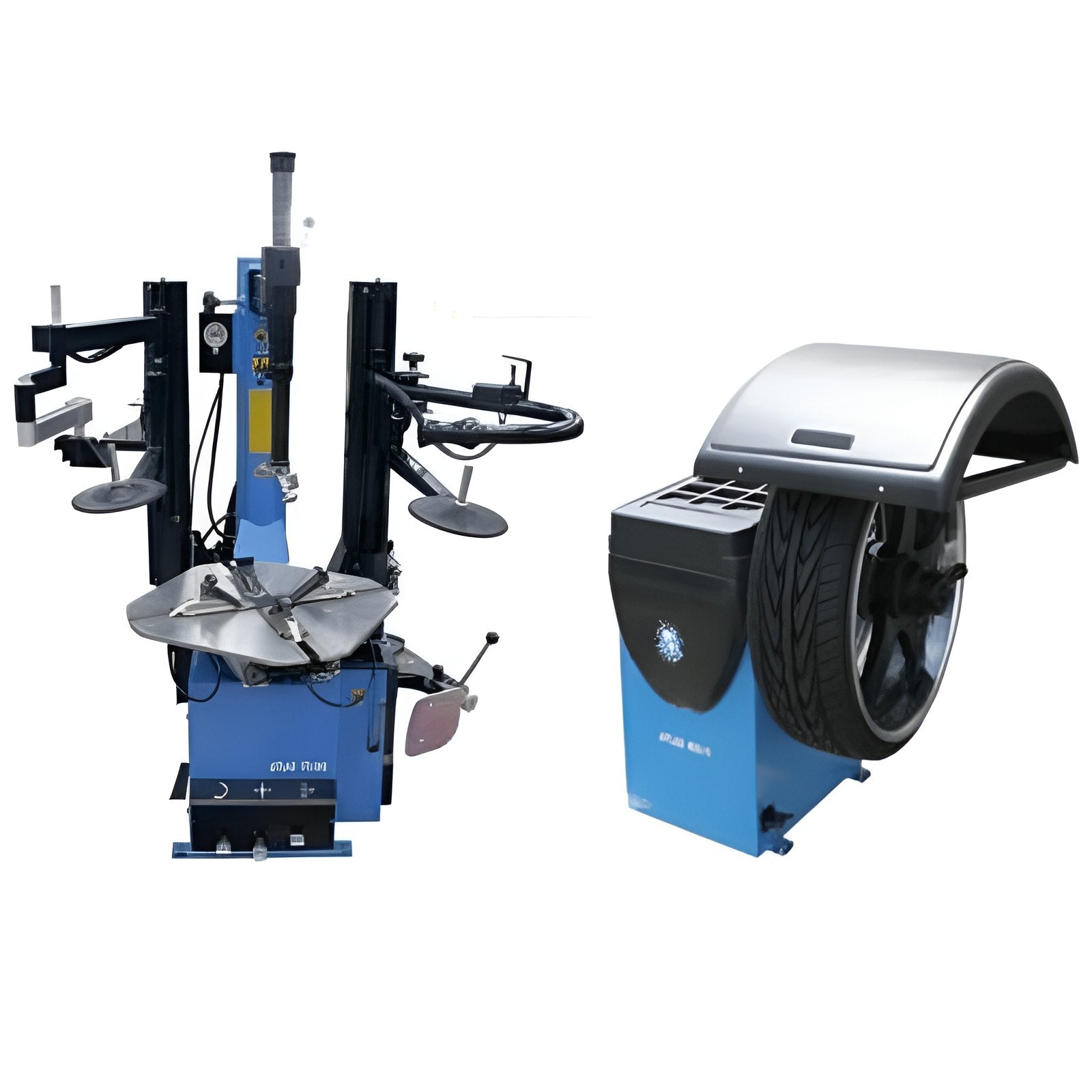

TC289DAA Tire Changer and WB11 Wheel Balancer by Atlas

The TC289DAA Tire Changer is a versatile and robust solution designed to handle a wide range of rims including steel, aluminum, and alloy. It features external and internal locking rim dimensions in multiple positions, accommodating rims from 11 7/8 inches to 29 7/8 inches in diameter. With a maximum tire diameter of 47 inches and a bead breaker force of 5,500 pounds, it efficiently handles various tire sizes and wheel widths up to 18 inches. Equipped with a powerful 1 HP table motor and offering 885 ft/lbs of rotating torque, it ensures reliable performance during tire mounting and demounting tasks. Additional features include left and right-hand assist arms, an adjustable bead breaker plate, built-in "Beadblaster" for easier bead seating, and comprehensive accessories such as plastic protectors, tire tools, lube bucket, and inflation box with gauge. This tire changer is ideal for professional workshops seeking efficiency, durability, and ease of use in tire service operations.

The WB11 Wheel Balancer combines precision and efficiency for optimal tire balancing. Designed for versatility, it accommodates tires up to 39 inches in diameter and rims ranging from 10 to 32 inches in size, with a width from 1 1/2 to 20 inches. Equipped with a 40mm shaft and powered by a 1/4 HP motor, it ensures accurate balancing at 150 rpm with a weight capacity of up to 150 lbs. This computer-controlled spin balancer offers both static and dynamic balancing modes, featuring rapid optimization (OPT) for streamlined operations. Its self-diagnosis and self-calibration capabilities maintain consistent accuracy, supported by a display that toggles between grams or ounces and metric or standard measurements. The WB11 includes essential accessories like 4 centering cones, a plastic quick-nut, wheel weight pliers, and wheel measuring calipers, making it a comprehensive solution for professional tire service needs.

Tire Changer TC289DAA Specifications:

• Rims: Steel, Aluminum, Alloy
• External Locking Rim Dimension (3 Positions):
  1. 11 7/8" - 26"
  2. 12 7/8" - 27"
  3. 13 3/4" - 28"
• Internal Locking Rim Dimension (3 Positions):
  1. 13 7/8" - 27 7/8"
  2. 14 5/8" - 28 7/8"
  3. 15 5/8" - 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs
• Bead Breaker: 5,500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage: 110volt
• Shipping Weight: 620 lbs.

Wheel Balancer WB11 Specifications:

• Max Tire Diameter: 39" (3' 3")
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"
• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110volt
• Shipping Weight: 355 lbs.

TC289DAA Tire Changer Special Features:

• Rim Clamp/Swing Arm Tire Changer
• Left Hand and Right Hand Assist Arms Included
• Extra Large Turntable, More Clearance
• Built-in “Beadblaster”
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors Included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

WB11 Wheel Balancer Special Features:

• Computer Controlled Spin Balancer
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self Diagnosis/Self Calibration
• Display in grams or ounces, in mm or inches
• 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included

Atlas TC289DAA Documentation:

   Atlas TC289DAA Tire Changer Product Manual

Atlas WB11 Documentation:

  Atlas WB11 Wheel Balancer Product Manual

TC289DAA Tire Changer and WB11 Wheel Balancer - Sold Separately

• Tire Changer TC289DAA
• Wheel Balancer WB11
