Atlas TC755EZ Tilt-Back Rim-Clamp Tire Changer w/ E-Z Arm

TC755EZ Tire Changer by Atlas

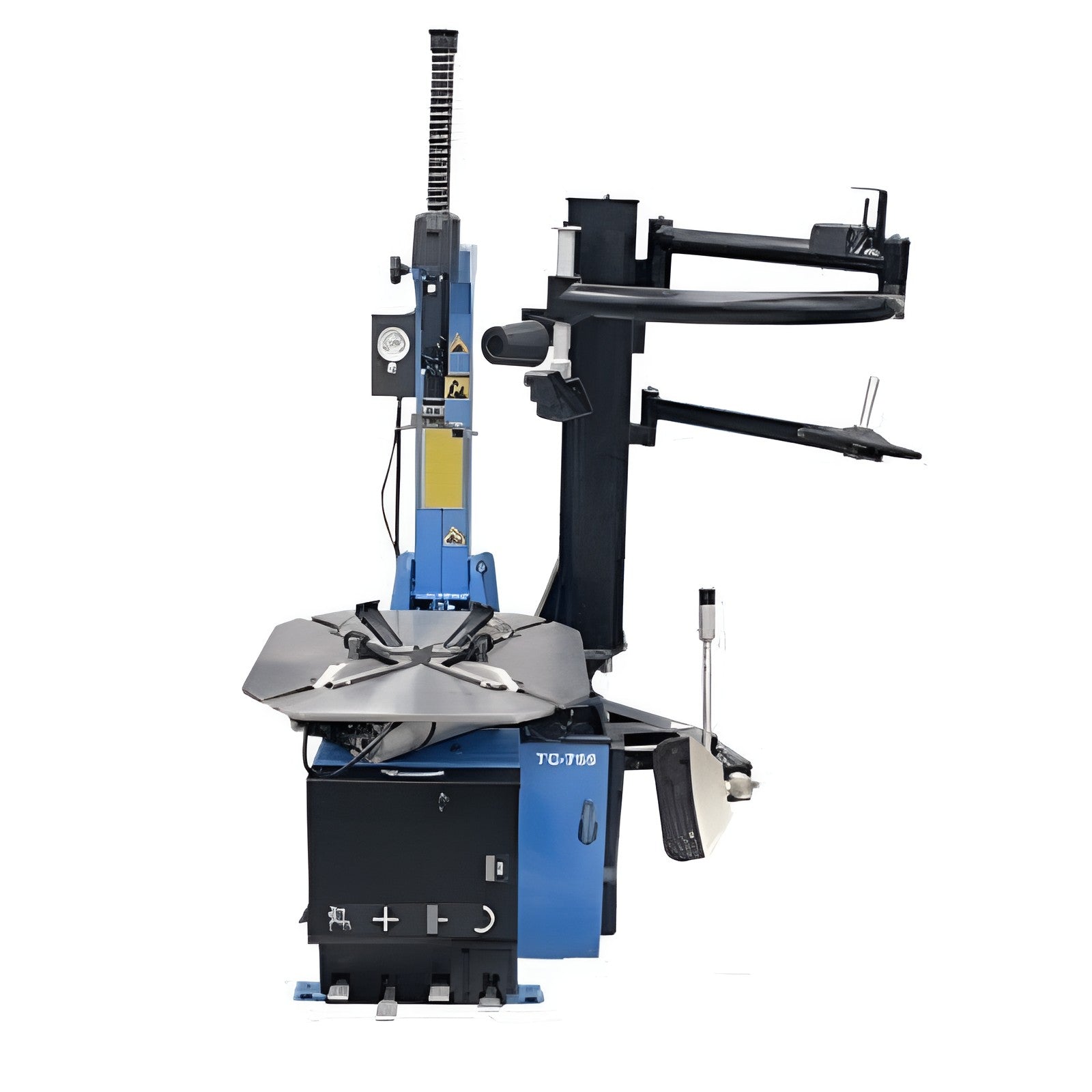

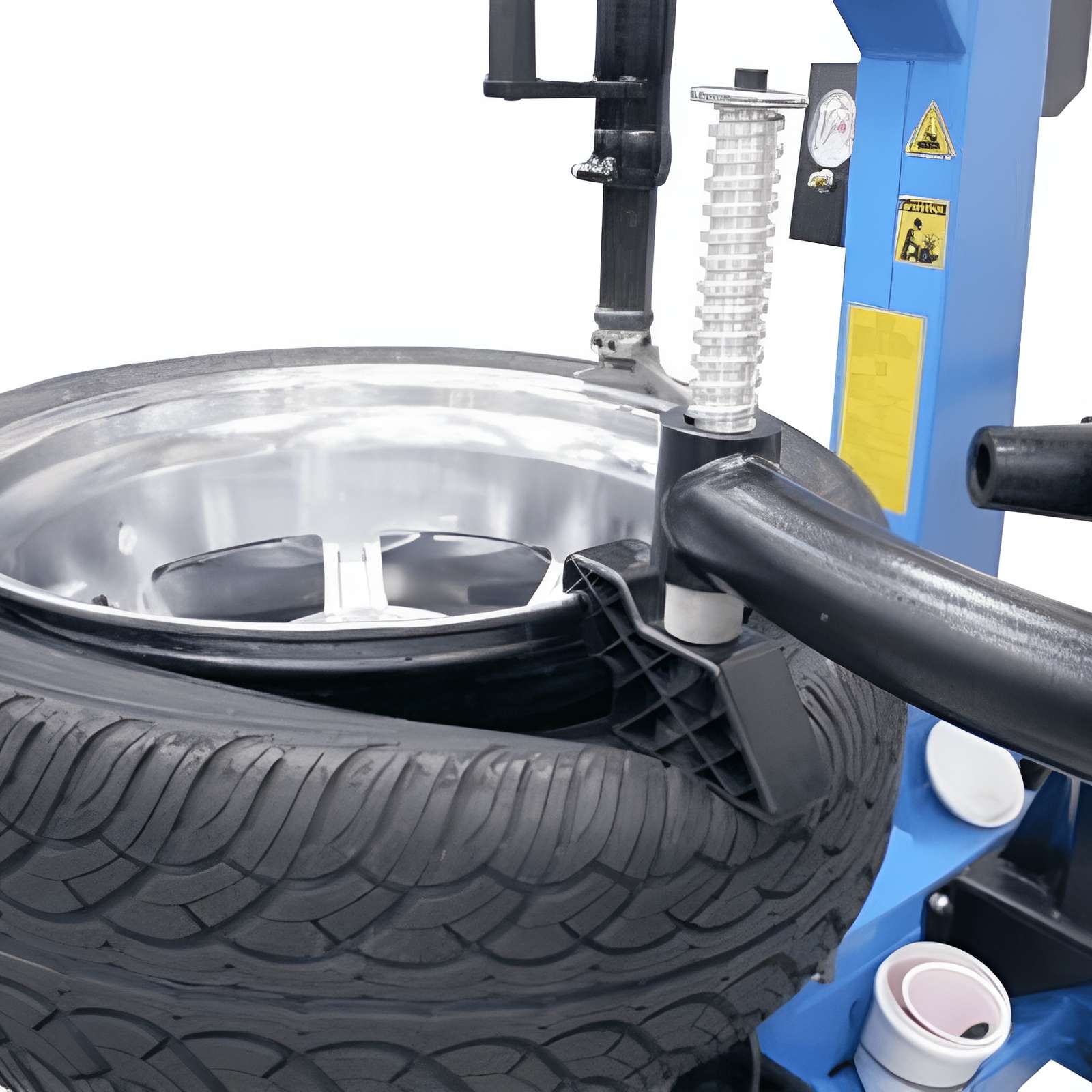

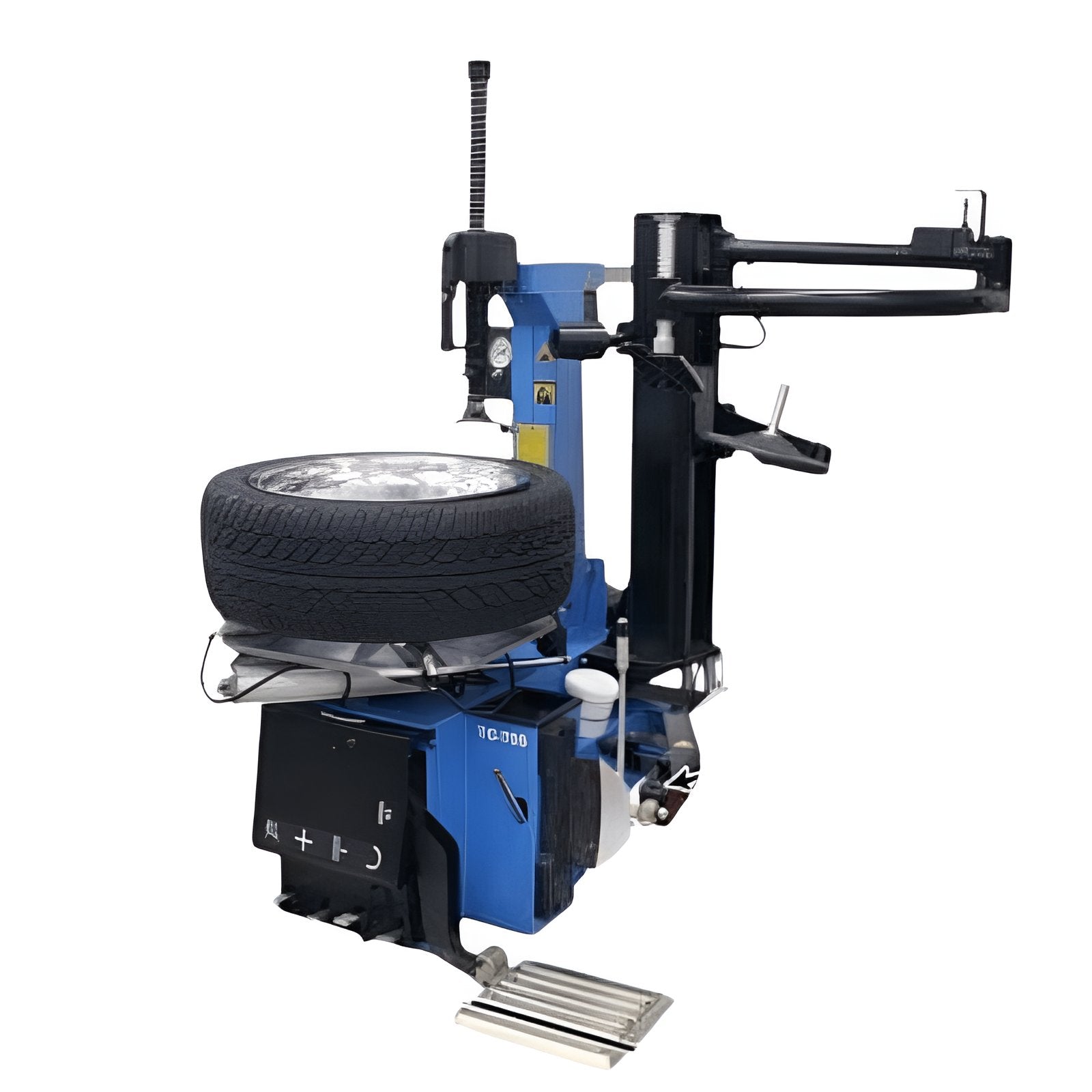

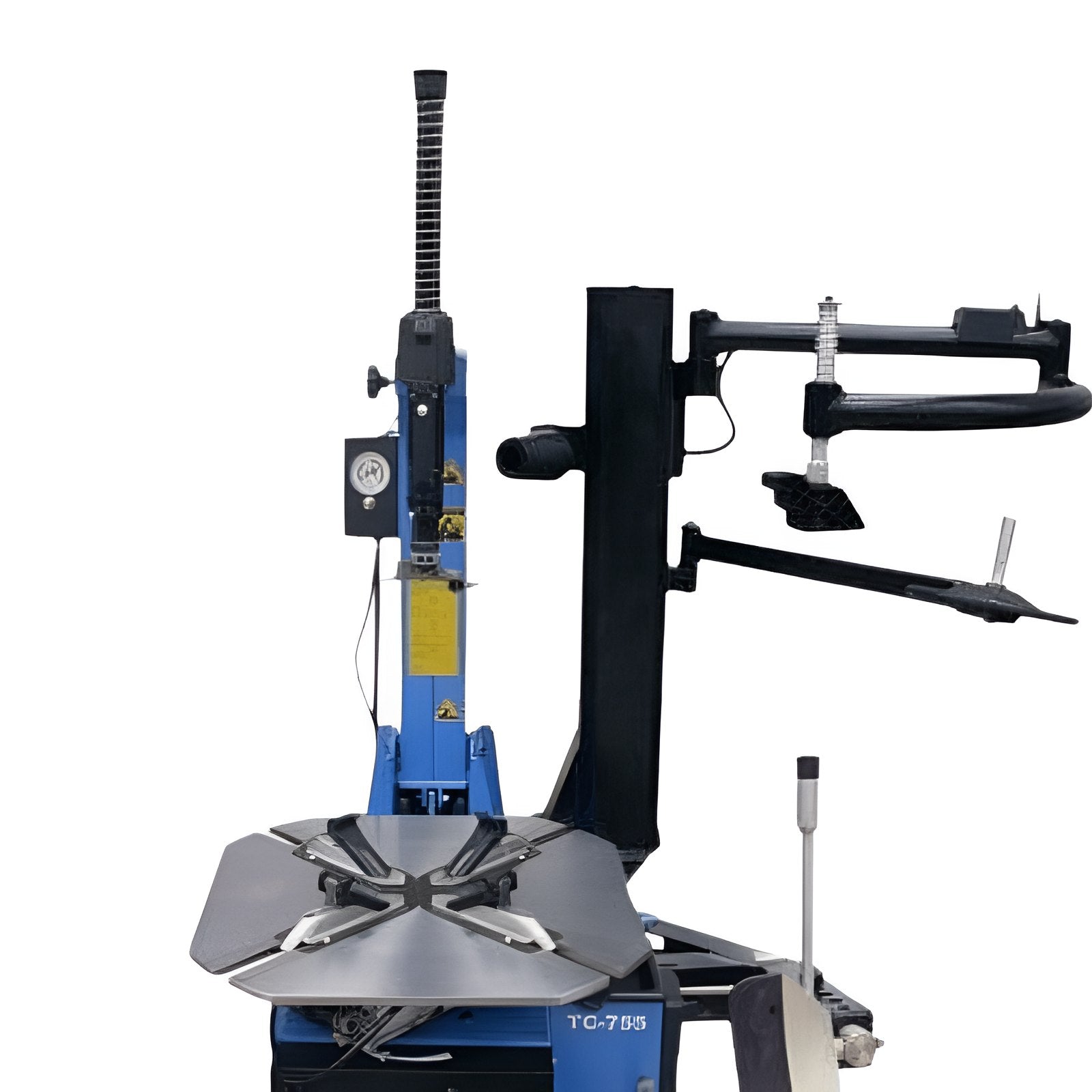

The Atlas® TC755EZ is a tilt-back style rim clamp tire changer tailored for professional tire dealerships or large car dealerships. This model of the Atlas® TC755 includes the E-Z right side mounted assist arm, which combines popular features of the standard Dual Assist Arm package. The E-Z arm incorporates a pressing/lifting disk, a bead roller, and a pressing block for enhanced functionality.

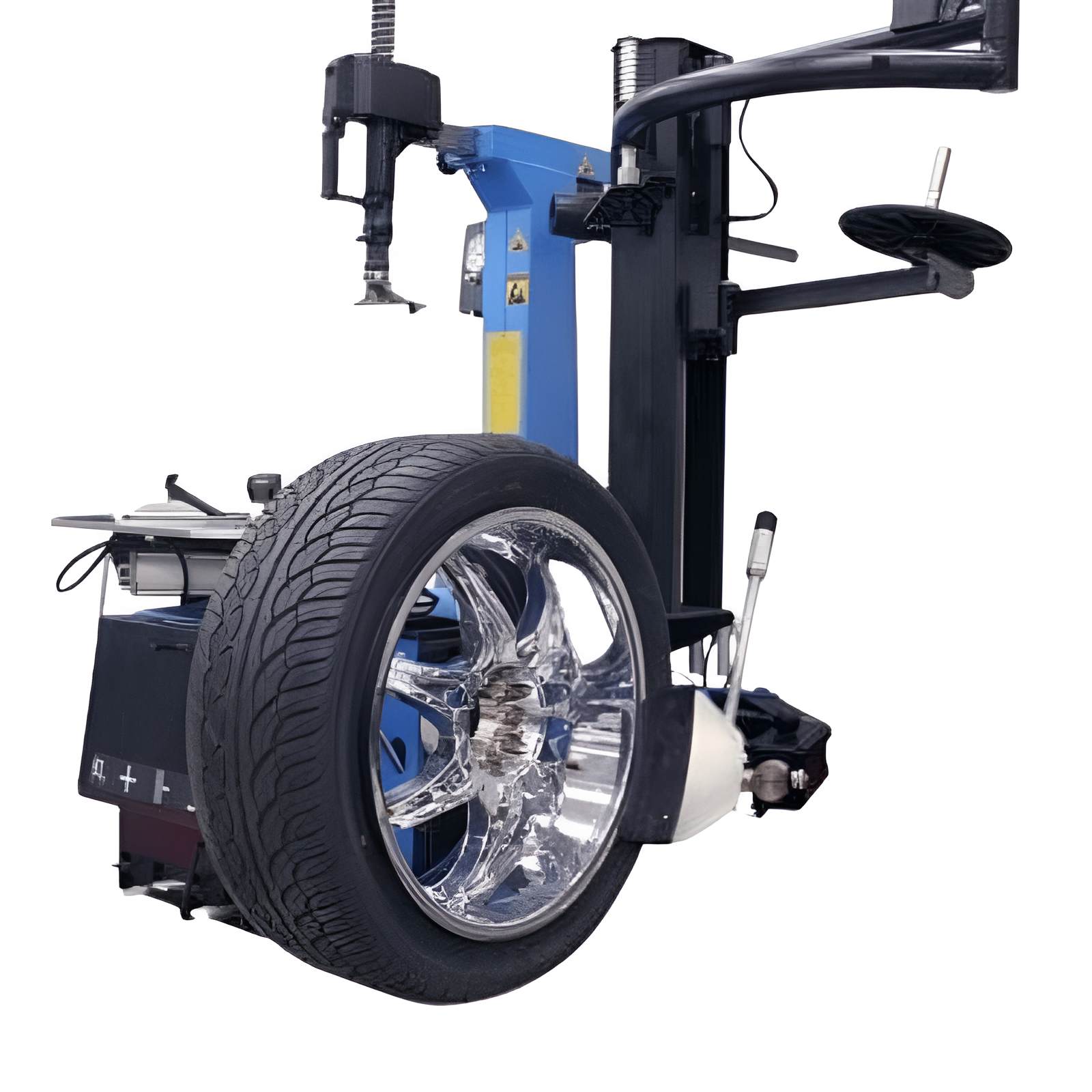

Featuring a foot-operated Tilt-Back column, the Atlas® TC755EZ facilitates quick and effortless mounting and unmounting of tires from the table without the need to adjust an arm or avoid contact with the column. With the tilt-back feature, the TC755EZ also boasts a pneumatic locking mount/demount head, significantly reducing the risk of head movement during use, thereby minimizing potential damage to the rim or tire. Additionally, the TC755EZ is equipped with an extra-large turntable, capable of accommodating most 26-inch chrome rims without requiring adapters.

The Atlas® TC755EZ is equipped with a built-in "Beadblaster" system, aiding in the inflation of stiff sidewall or challenging-to-inflate tires. Additionally, it features a powerful hand-controlled bead breaker located on the machine's side, designed to efficiently break even the most stubborn and rusted beads without causing damage to the rim. The turntable jaws securely hold the rim without surface damage and can be adjusted to three different positions along the turntable slide to accommodate various tire sizes.

Assembly is required for the Atlas® TC755EZ after purchase.

Tire Changer TC755EZ Specification:

• Rims    Steel, Aluminum, Alloy
• External Locking Rim Dimension
• (3 Positions)    1) 11 7/8" - 26"2) 12 7/8" - 27"3) 13 3/4" - 28"
• Internal Locking Rim Dimension
• (3 Positions)    1) 13 7/8" - 27 7/8"2) 14 5/8" - 28 7/8"3) 15 5/8" - 29 7/8"
• Maximum Tire Diameter    47"
• Maximum Wheel Width (Bead Breaker)    18"
• Table Motor    1 HP
• Turntable Rotating Torque    885 ft/lbs
• Bead Breaker    5,500 LB. Force
• Air Requirement    90-110 PSI (MUST NOT EXCEED 140 PSI)
• Operating Voltage    110volt
• Shipping Weight    900 lbs.

TC755EZ Tire Changer Special Features:

• Tilt-Back Column Tire Changer
• EZ Assist Arm Included
• Rim-Clamp Style
• Extra-Large turntable, more clearance
• Air operated jaws & bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws, three mounting positions
• Button-Controlled Bead Breaker (operated at blade)
• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included
• Filter/Regulator/Lubricator Included
• 20″ Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included
• Built in “Beadblaster”
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty

Atlas TC755EZ Documentation:

  Atlas TC755EZ Tire Changer Product Manual

TC755EZ Tire Changer Optional Item Sold Separately:

• Atlas TC755 Tire Changer

This Item has a FLAT RATE SHIPPING FEE: $199
