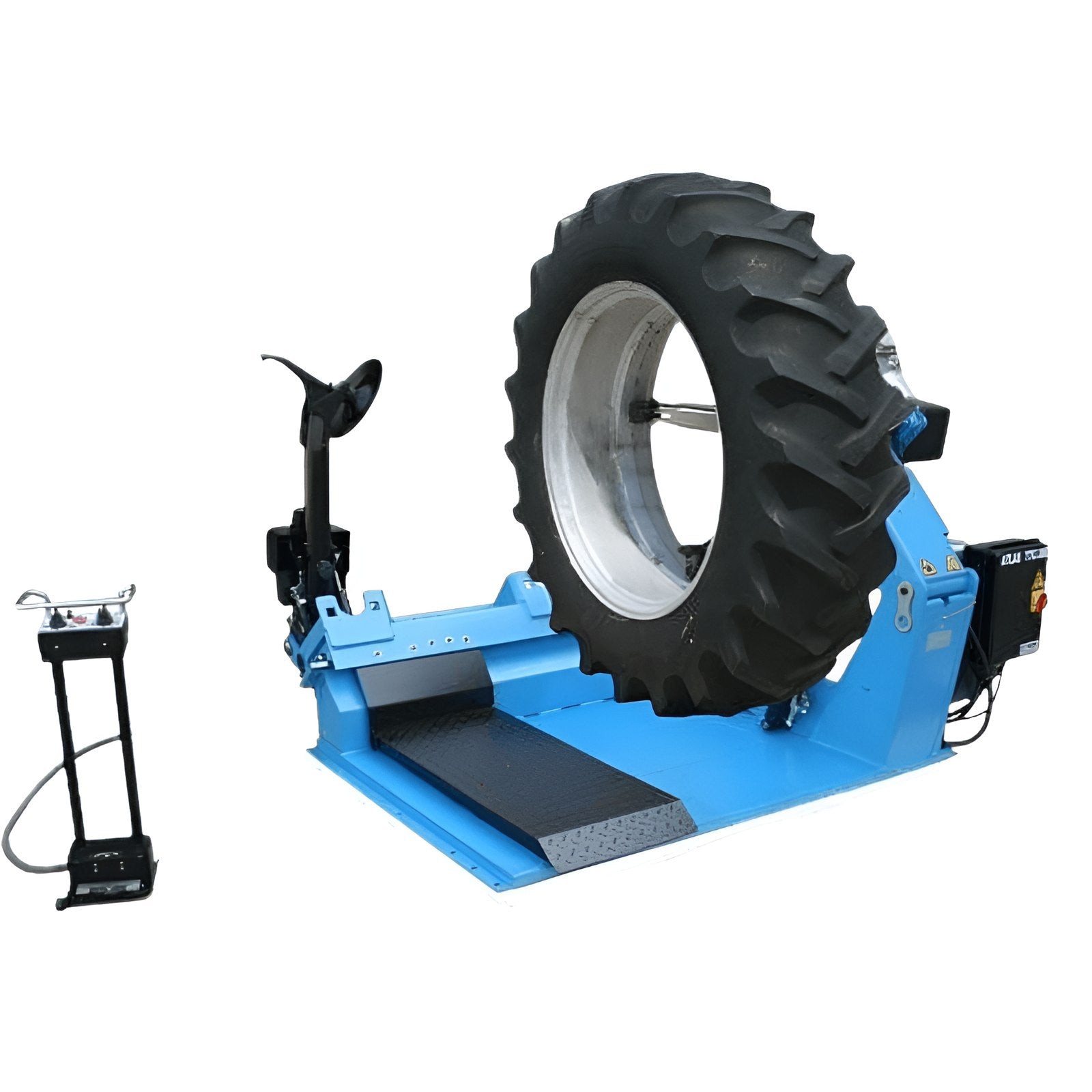

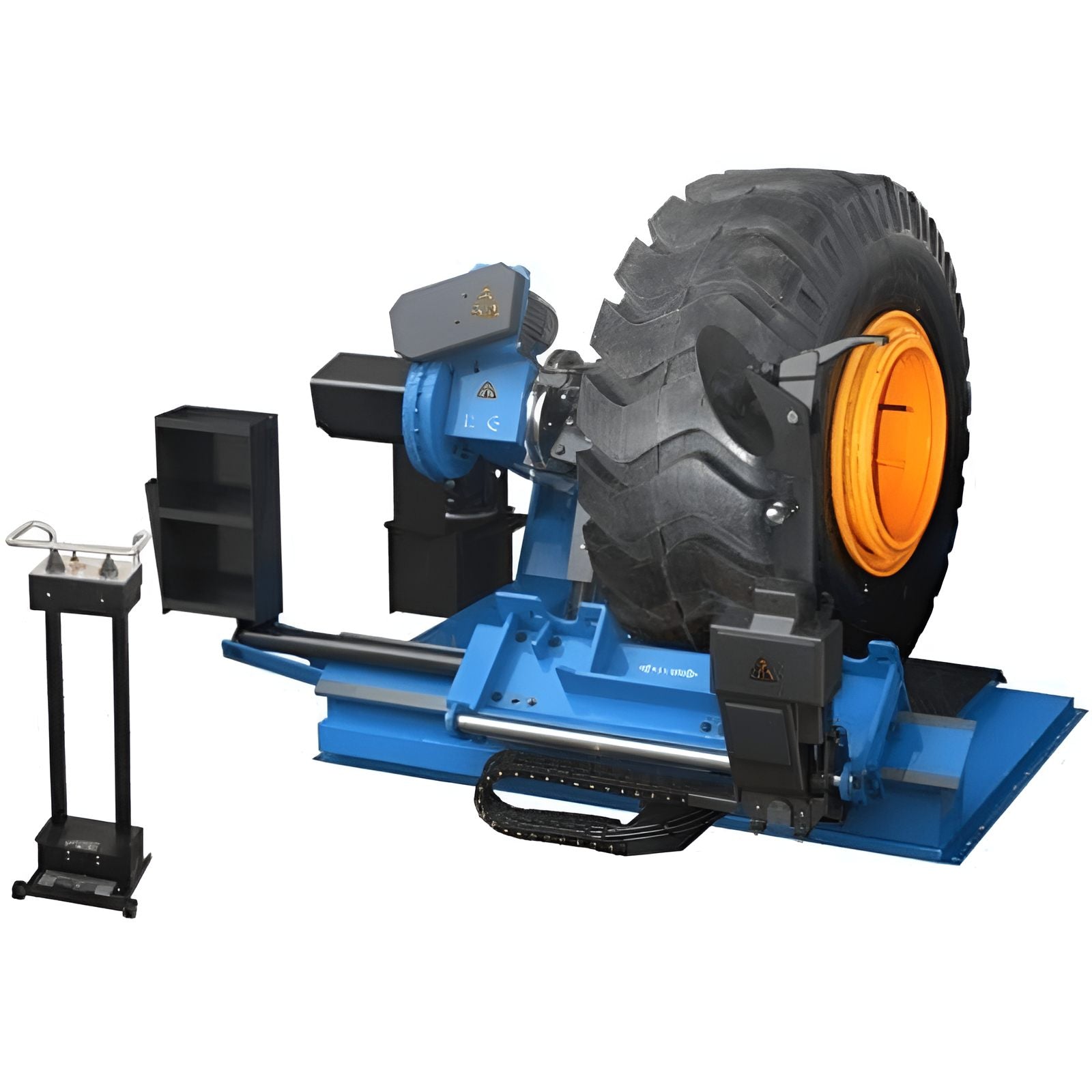

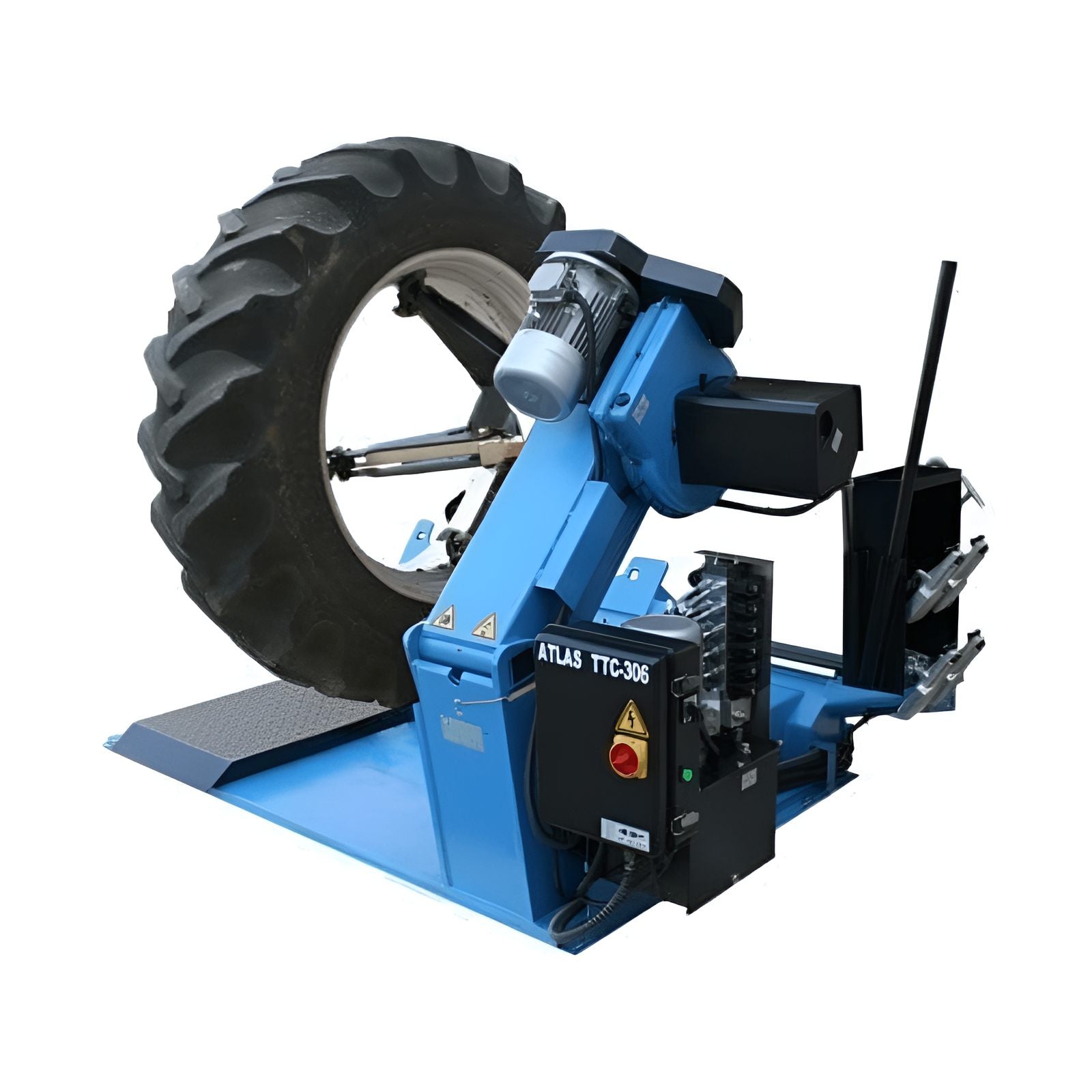

Atlas TTC306 Deluxe Automated Truck Tire Changer

TTC306 Tire Changer by Atlas

The Atlas® TTC306 shares many similarities with its predecessor, the Atlas® TTC303, but boasts additional features that enhance its functionality. With a remote control allowing operators to automatically adjust the bead breaker disc and mount/demount head, this Super Duty Atlas® truck tire changer is designed to handle rim sizes from 14 inches to 56 inches and tire diameters exceeding 97 inches. Accommodating tires with a maximum width of up to 53 inches, the Atlas® TTC306 is the ideal choice for companies requiring extra capacity to change large agricultural and earthmover tires. Offering identical features to high-end truck tire changers priced over $20,000, the Deluxe TTC306 provides exceptional value.

Controlled by a wired remote console, the automatic operation of the Atlas® TTC306 tire changer can optionally be made wireless, offering two key advantages: eliminating wires on the shop floor and allowing the control console to be positioned anywhere in the service area.

With a global presence, many of the component features of this tire changer stem from a previous joint venture between a prestigious Italian wheel service manufacturer and a leading wheel service equipment manufacturer in Asia.

Designed for high-volume truck, agricultural, and mine truck tire shops, the Atlas® TTC306 prioritizes dependability and durability. This Deluxe truck tire changer is well-suited for large truck tire centers handling extensive work on standard over-the-road wheel assemblies, as well as agricultural and off-road wheel assemblies. Capable of handling off-road tires, agricultural tires, super single tires, and skidder tires with ease, the TTC306 is a versatile solution for demanding tire service operations.

Tire Changer TTC306 Specification:

• Rim Clamping Range    14" - 46"
• Max Clamping Size W/ Extensions    56""
• Max Wheel Weight    3,968 lbs.
• Max Tire Diameter    98" (8' 2")
• Max Tire Width    42" (3' 6")
• Clamping Power    13,173 lbs.
• Operating Pressure    0-1885 PSI
• Acoustic Pressure    <70dBA
• Bead Breaker Force    5930 lbs.
• Tool Arm Positioning    Automatic
• Tool Head Positioning    Automatic
• Construction    Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power    3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker requiredv
• Chuck Motor Power    3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
• Shipping Weight    2,260 lbs.

TTC306 Tire Changer Special Features:

• Deluxe Automated Truck Tire Changer
• 220 VOLT 3 PHASE ELECTRIC
• 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions
• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
• Handles rims from 14″ to 56″ and tire diameters in excess of 97″
• Accommodates tires with a max width of up to 53″
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit (Wireless Control Optional)
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• Clamping Extensions Included
• 1 Year Parts Only Warranty

Atlas TTC306 Documentation:

  Atlas TTC306 Tire Changer Product Manual
