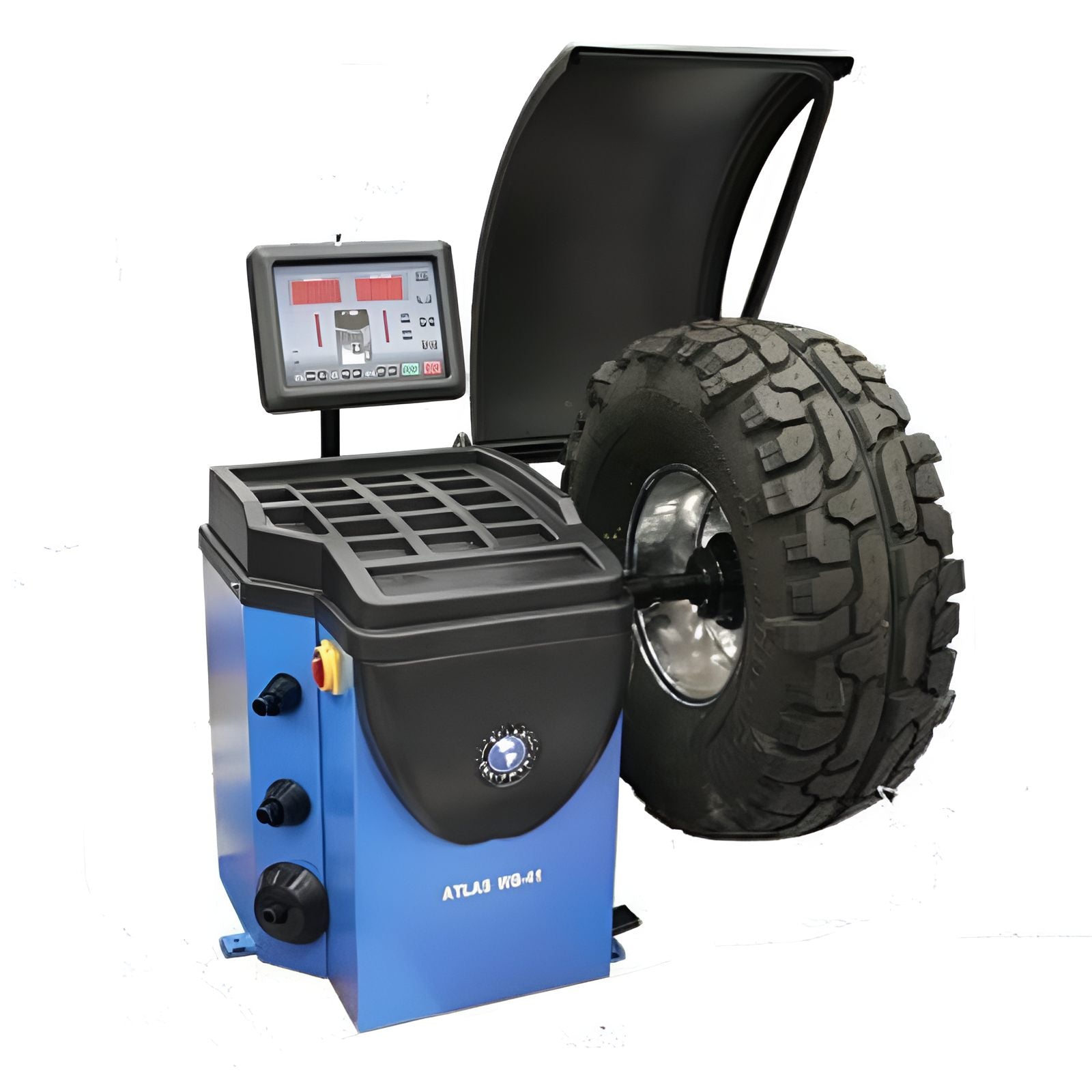

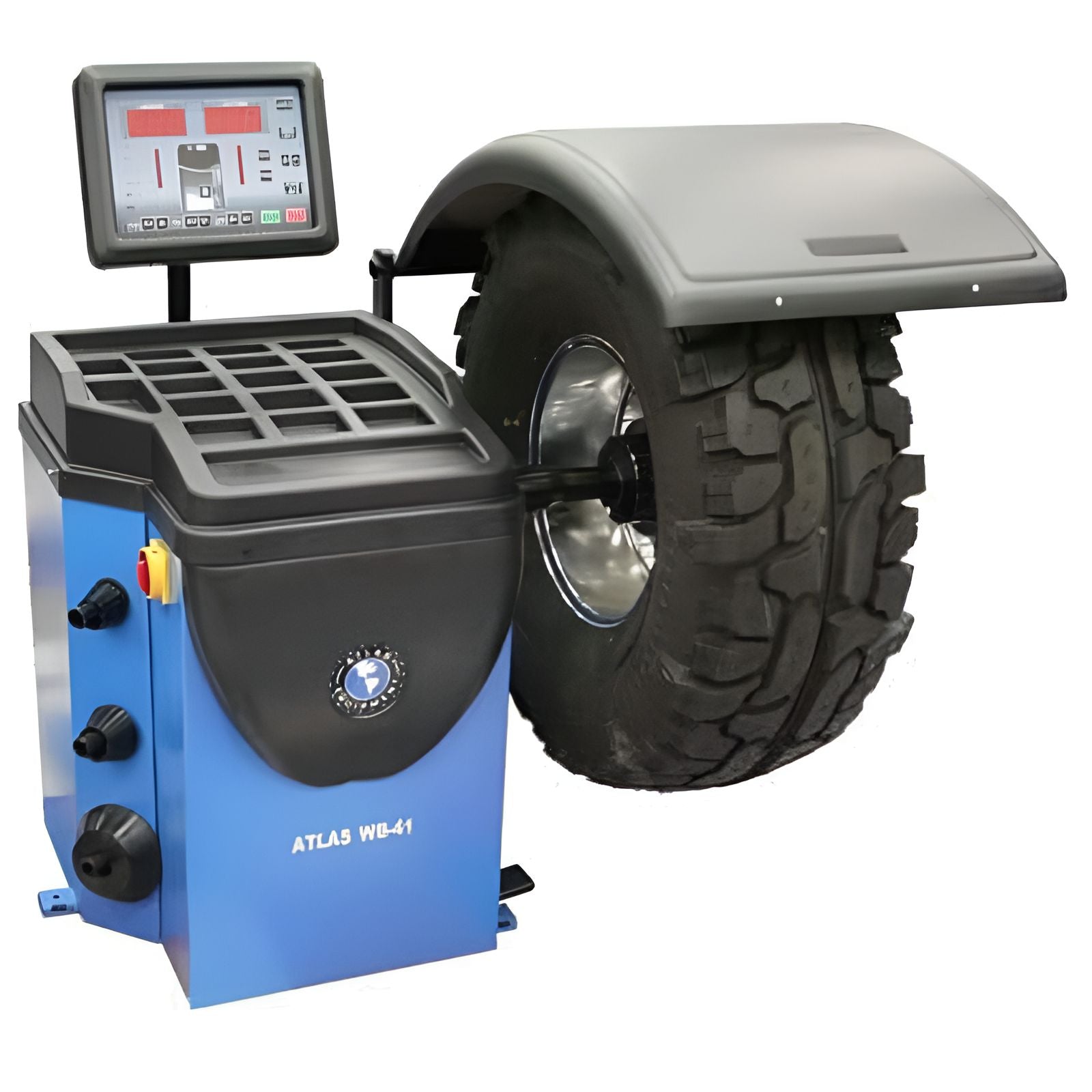

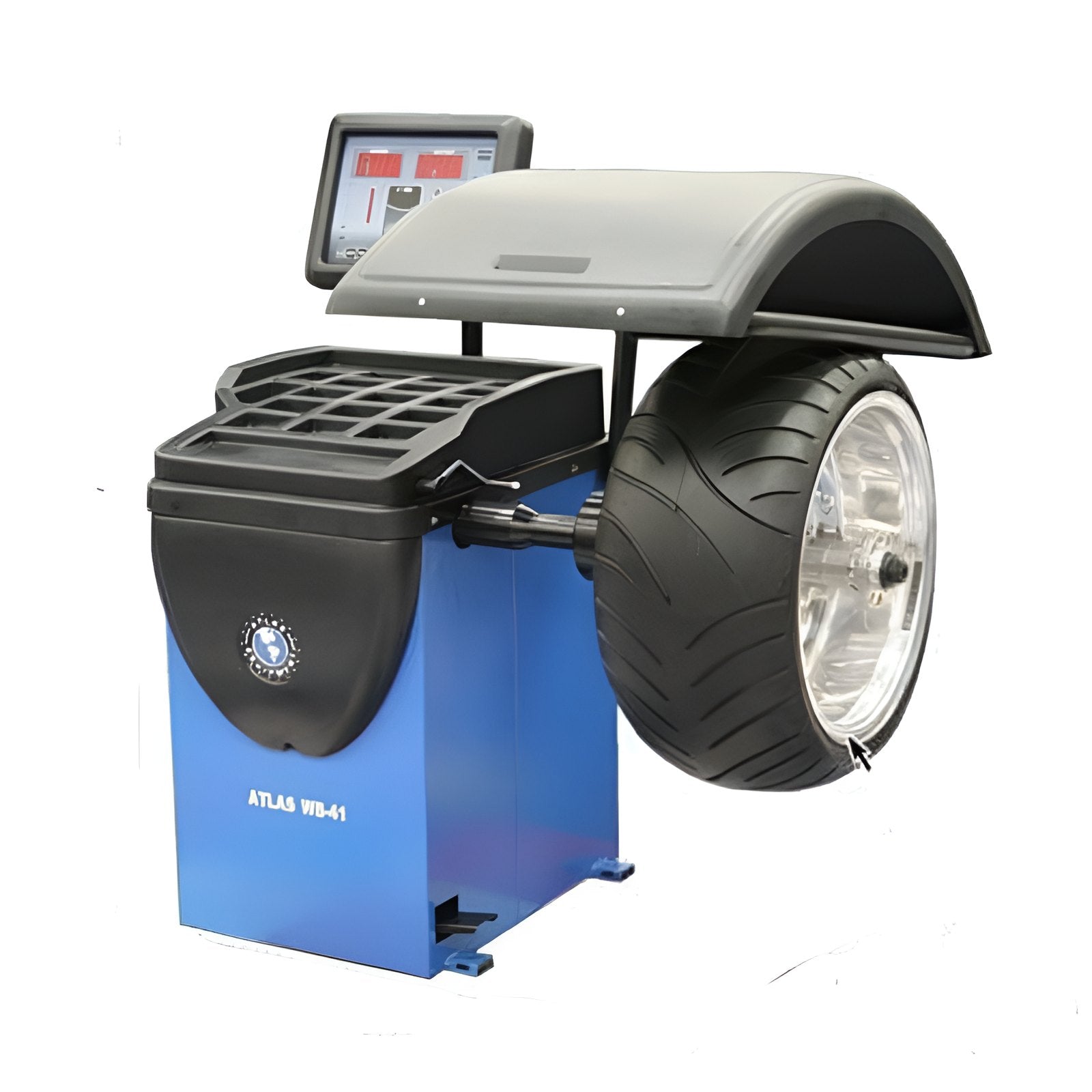

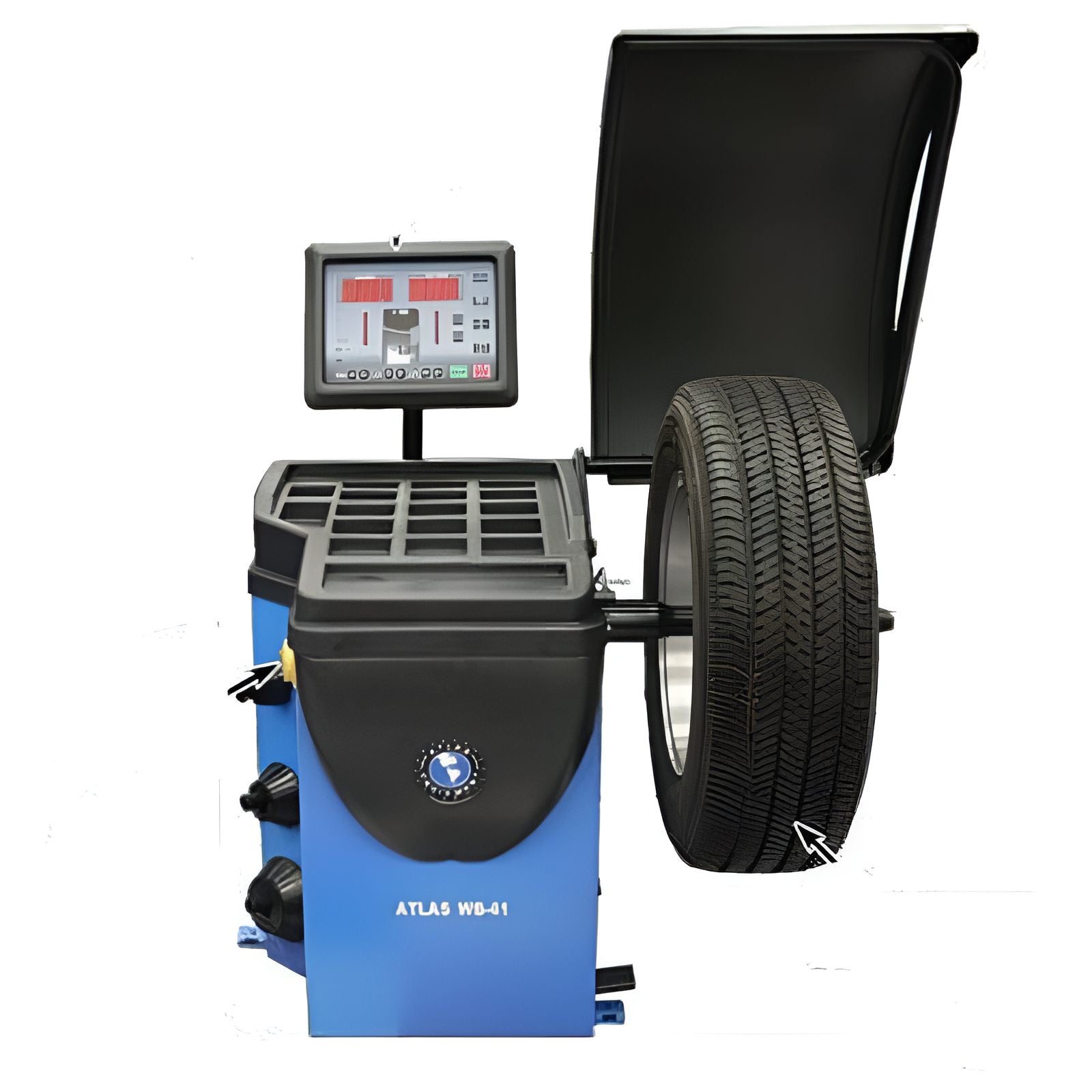

Atlas WB41 Computerized Wheel Balancer

WB41 Wheel Balancer by Atlas

The Atlas WB41 stands as the elder sibling to our beloved Atlas® WB11, offering enhanced features for an even smoother wheel-balancing experience. While it shares compatibility with the same wheel types as the WB11, the WB41 boasts an elevated display for improved readability and usability, alongside a generously sized wheel weight tray for added convenience.

Crafted as a blend of simplicity and sophistication, the Atlas® WB41 simplifies maintenance with its "plug and play" electrical components, facilitating easy repairs when the need arises. Moreover, its self-diagnostic capabilities empower operators to swiftly identify and address issues by displaying error codes, eliminating the wait for costly service technicians. With its user-friendly design and repair accessibility, the Atlas® WB41 emerges as the preferred choice for professional tire shops.

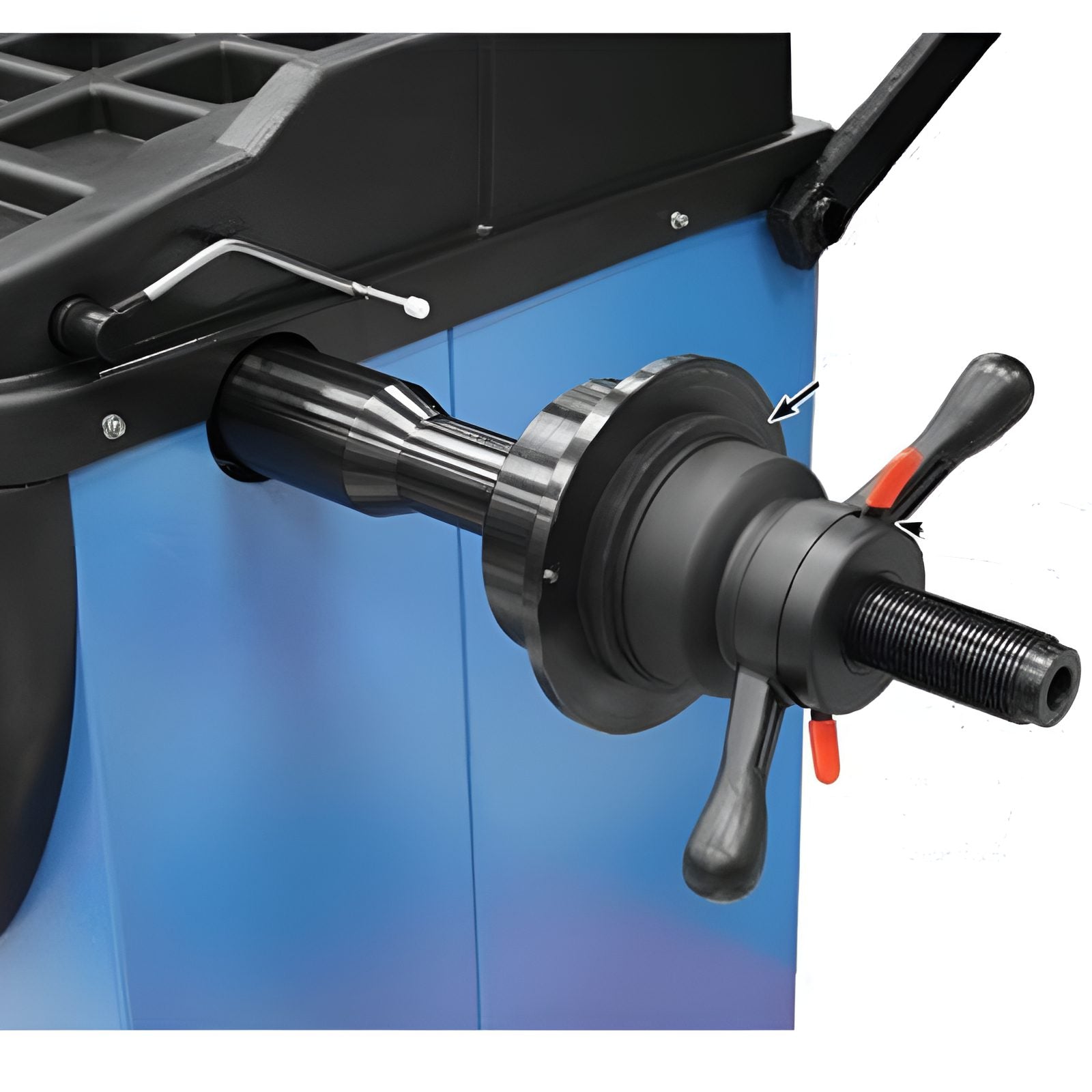

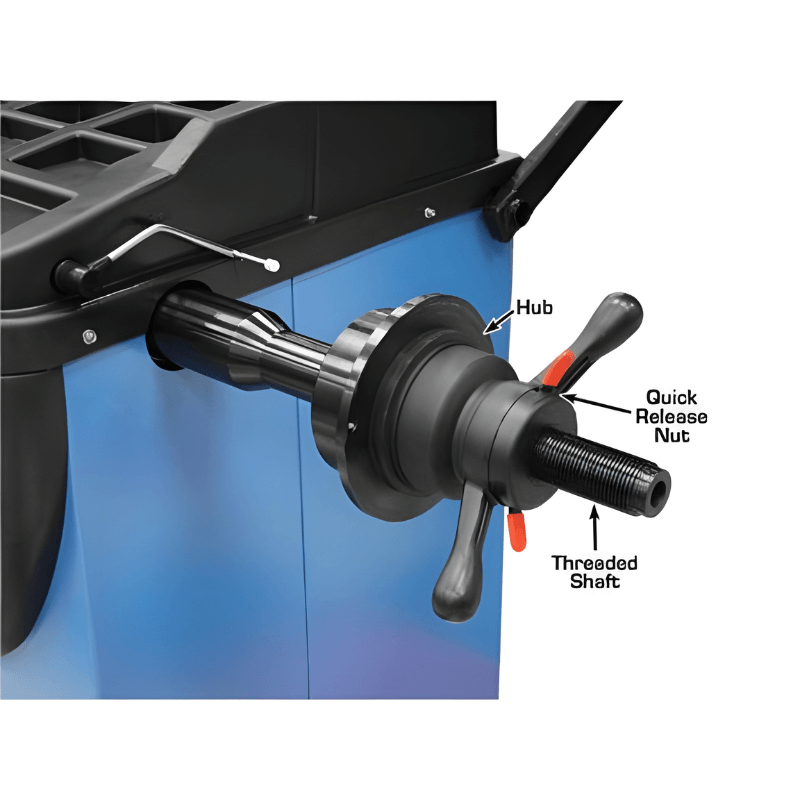

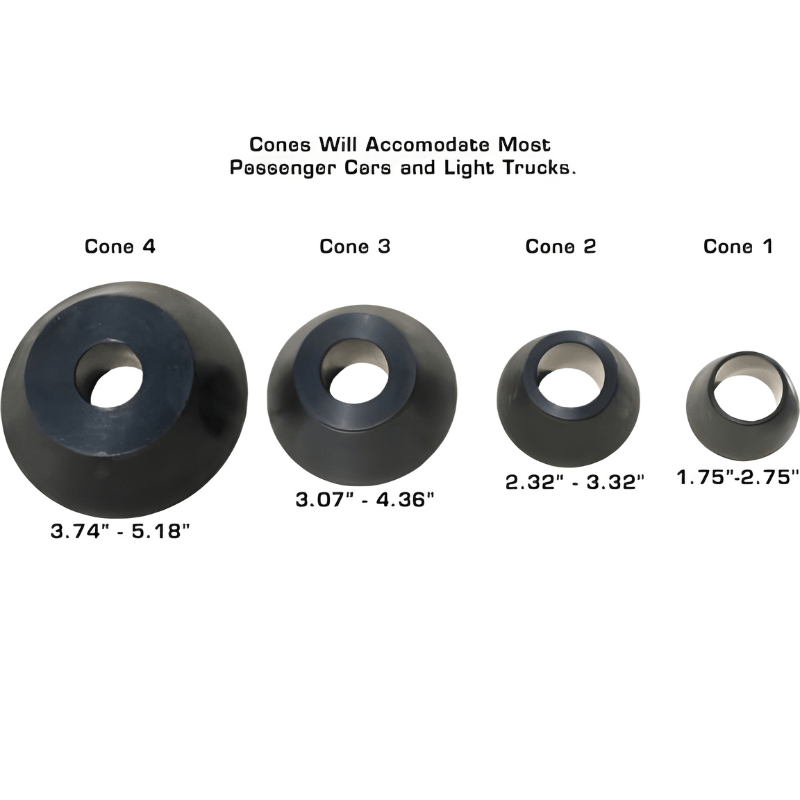

Versatility is another hallmark of the WB41, accommodating a broad spectrum of wheels up to 32" in diameter. Equipped with a quick-release nut for securing wheels and a set of four cones catering to center holes ranging from 1.75" to 5.18", it ensures compatibility with diverse wheel configurations.

Notably, the Atlas® WB41 excels in balancing wheels weighing up to 150 lbs, setting it apart from other balancers that merely support such weights. It's crucial to discern between a balancer's ability to handle a 150 lb wheel assembly and its capacity to accurately balance it, a distinction that underscores the WB41's precision and reliability.

Wheel Balancer WB41 Specification:

• Max Tire Diameter: 39" (3" 6')
• Rim Sizes (Cars And Light Trucks): 10"-32"
• Rim Width: 1 1/2"-20"

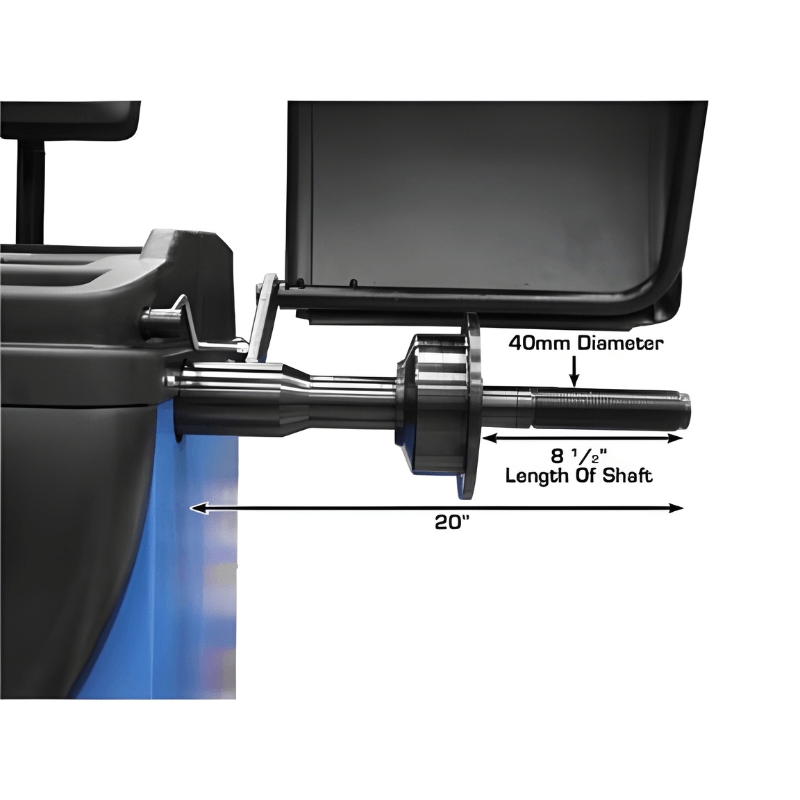

• Shaft Size: 40mm
• Max. Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurements: Standard Or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibration: Yes
• Motor: 1/4 HP
• Power Supply: 110v

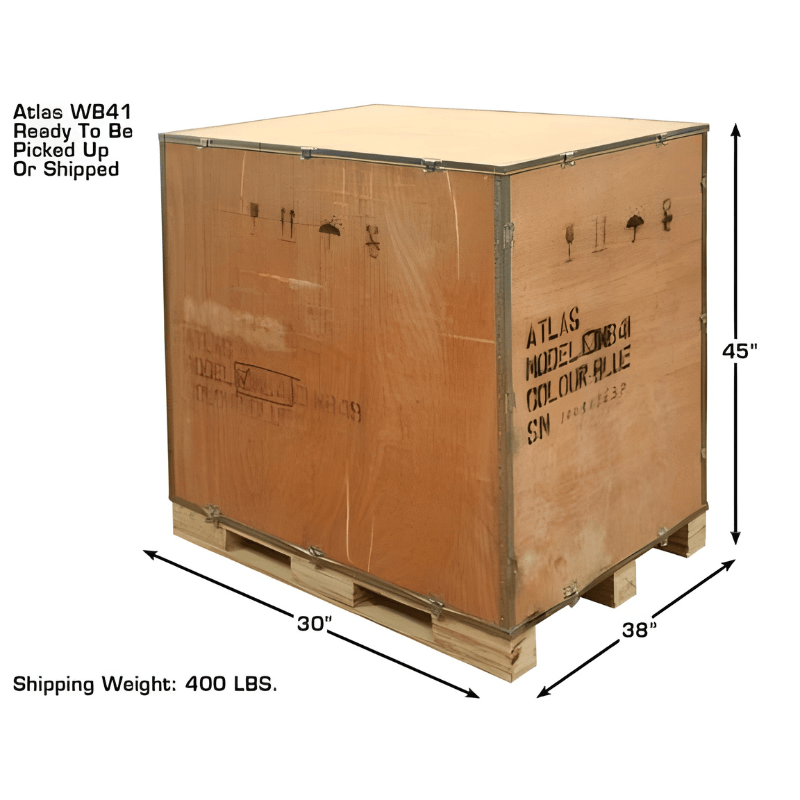

• Shipping Weight: 400 lbs.

WB41 Wheel Balancer Special Features:

• Computer Controlled Motorized Spin Balancer

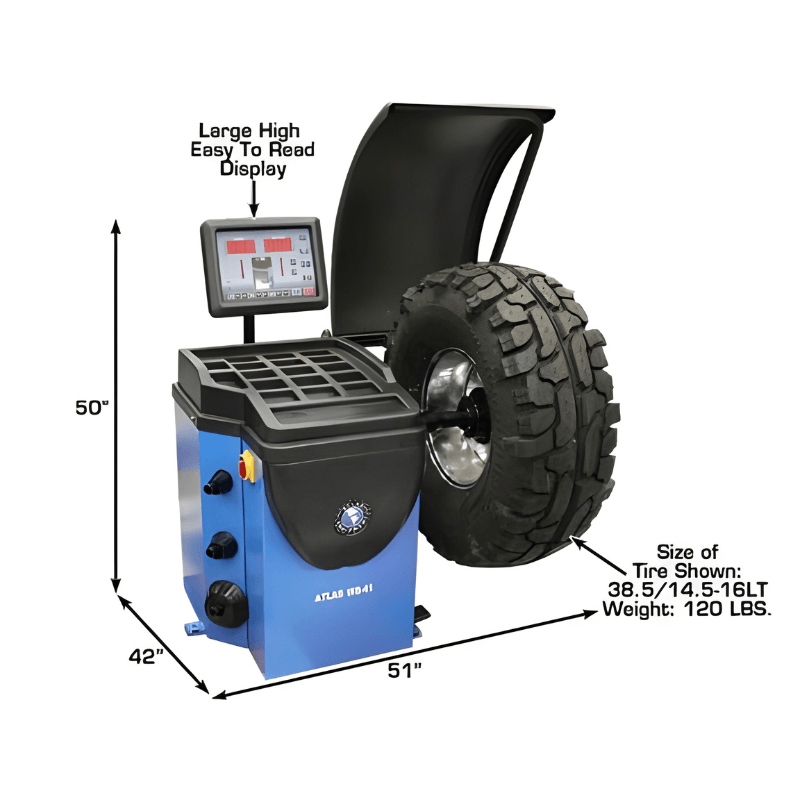

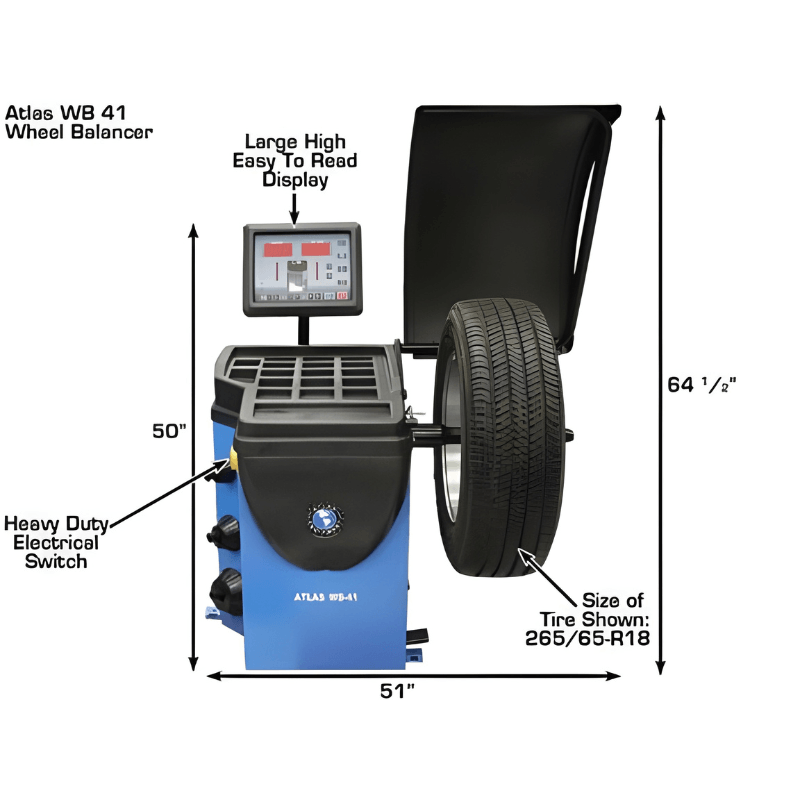

• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed
• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
• Replacement Parts & Wear Items Always in Stock
• 1 Year Parts Only Warranty

Atlas WB41 Documentation:

 Atlas WB41 Wheel Balancer Product Manual
