BendPak V-Max Elite 10120V-603 120 Gallon Air Compressor

SKU 5179114
by BendPak
  • Contact us for the BEST Price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Price Includes Free Shipping!
  • Discounted Warehouse Pickup Options!
$5,495.00

Delivery Options

Notify me when back in stock

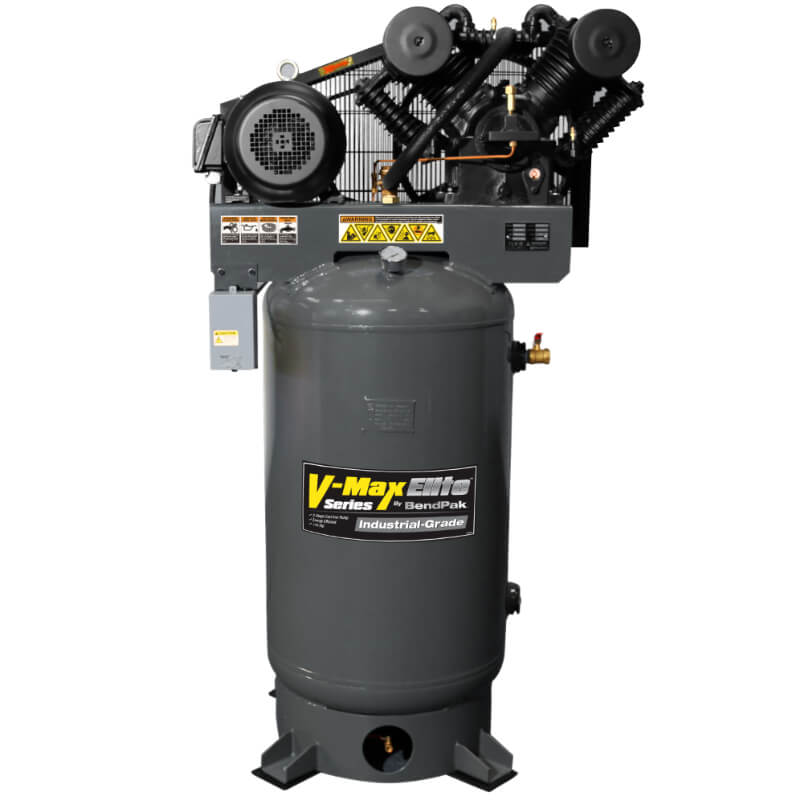

V-Max Elite 10120V-603 120 Gallon Air Compressor by BendPak

Experience unparalleled performance and reliability with the BendPak V-Max Elite™ 10120V-603, a powerhouse 3-phase air compressor designed to handle the most demanding applications in automotive, manufacturing, and industrial environments. Equipped with a massive 10 HP motor and a 120-gallon vertical tank, this air compressor delivers 26 CFM at 175 PSI, giving you all the air power you need—when you need it most.

At the core of the 10120V-603 is the heavy-duty V-Max Elite V-4 pump, built entirely from solid cast iron and engineered for maximum durability and heat dissipation. Featuring a low-RPM, splash-lubricated two-stage design, this compressor runs quieter, cooler, and longer. With integrated cooling systems like a built-in intercooler and air-cooled after-cooler, the V-Max minimizes moisture buildup and keeps your air cleaner and drier—ideal for precision equipment and pneumatic tools.

Designed with long-term efficiency and minimal maintenance in mind, the V-Max Elite offers features such as a magnetic starter for thermal overload protection, anti-vibration mounting pads, and a fully-enclosed belt guard for safer operation. With UL and ASME certifications and free shipping to the 48 contiguous states, this compressor offers unmatched value for any serious operation looking to invest in reliability, efficiency, and raw air power.

Air Compressor V-Max Elite Specification

  • Motor Power: 10 HP

  • Motor RPM: 1,750 RPM

  • Voltage: 208–230V AC

  • Phase: 3-Phase

  • Frequency: 60 Hz

  • Magnetic Starter: Included

  • Amp Draw: 18 Amps

  • Recommended Breaker: 50 Amp

  • Noise Level: 78 dB

  • Pump Style: Two-Stage / V-4

  • Pump RPM: 625 RPM

  • Pump Material: Solid Cast Iron

  • Duty Cycle: Continuous

  • Max PSI: 175 PSI

  • CFM: 26 CFM @ 175 PSI

  • Oil System: Full Pressure Lubrication

  • Oil Type: Oil Lubricated

  • Oil Sight Glass: Yes

  • Drive Type: Belt Drive

  • Tank Capacity: 120 Gallons (Vertical)

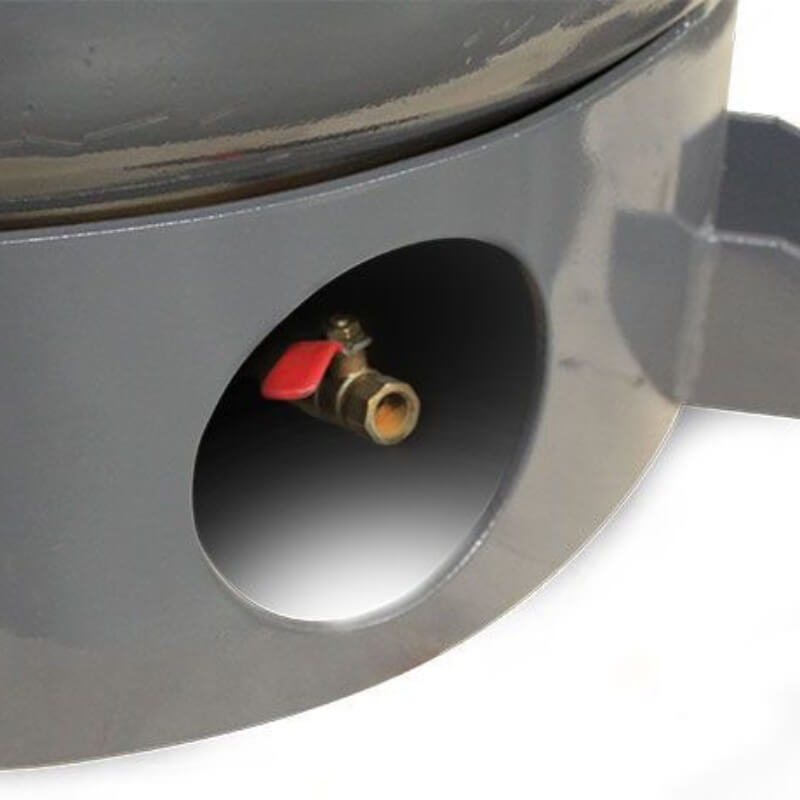

  • Tank Outlet: 3/4" Fitting

  • Electronic Drain Valve: Yes

  • Certifications: UL, ASME

  • Dimensions: 24" W x 72" D x 34" H

  • Shipping Dimensions: 45" x 40" x 78"

  • Shipping Weight: 880 lbs.

V-Max Elite 120-Gallon Air Compressor Special Features

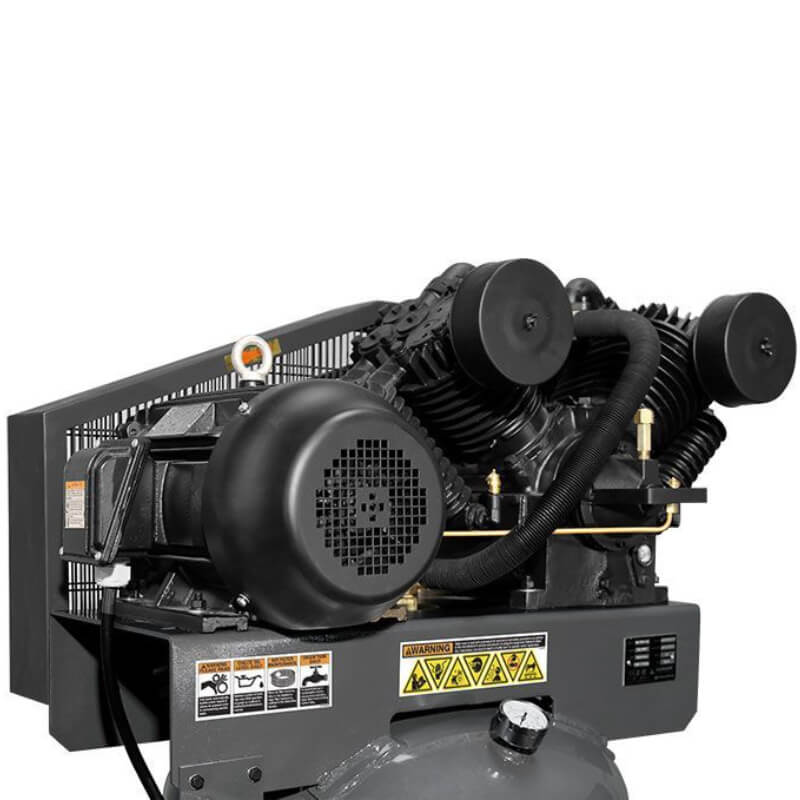

  • High-performance 10 HP energy-efficient motor

  • Ultra-quiet low-RPM V-4 cast-iron pump

  • Splash-lubricated two-stage design for long-lasting use

  • Intercooler and air-cooled after-cooler reduce condensation

  • Dual compression rings and oil control ring for efficient delivery

  • Tapered roller main bearings for crankshaft support

  • Balanced flywheel with fan blades for optimal cooling

  • Anti-vibration pads reduce noise and increase stability

  • Fully enclosed belt guard ensures safe operation

  • Automatic start/stop pressure switch with pressure unloader

  • Integrated magnetic starter protects from thermal overload

  • Corrosion-resistant tubing for long component life

  • Oversized replaceable air filters for cleaner operation

  • UL and ASME certified tank for peace of mind

  • Free shipping to the 48 contiguous states

BendPack V-Max Elite Documents

BendPack V-Max Elite Installation and Operations Manual   BendPack V-Max Elite Installation and Operations Manual
