BendPak V-Max VMP-7580V 80-Gallon 7.5HP Air Compressor

SKU 5179112
by BendPak
  • Contact us for the BEST Price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Price Includes Free Shipping!
  • Discounted Warehouse Pickup Options!
$4,095.00

Product Options

Phase Option

Delivery Options

Notify me when back in stock

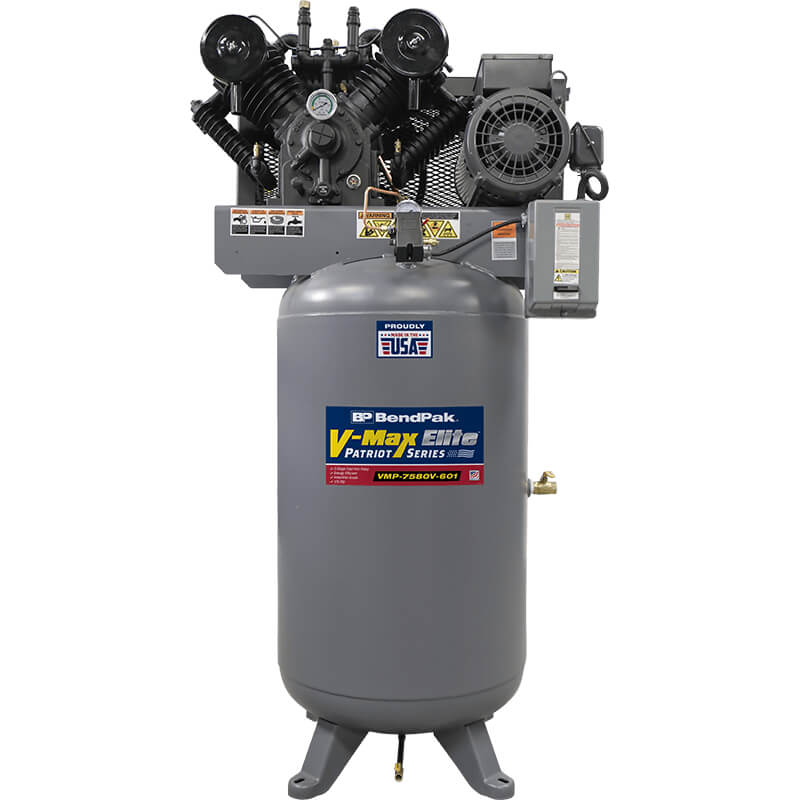

V-Max VMP-7580V 80-Gallon 7.5HP Air Compressor by BendPak

Take your shop’s air supply to the next level with the BendPak V-Max VMP-7580V, a heavy-duty air compressor built for demanding automotive, industrial, and manufacturing environments. Designed with a robust 7.5 HP motor and an 80-gallon vertical tank, this model delivers consistent, high-output compressed air with minimal energy use and maximum reliability. Whether you're using it for impact wrenches, paint guns, or air-driven machinery, the VMP-7580V ensures you’ll have the power you need, when you need it.

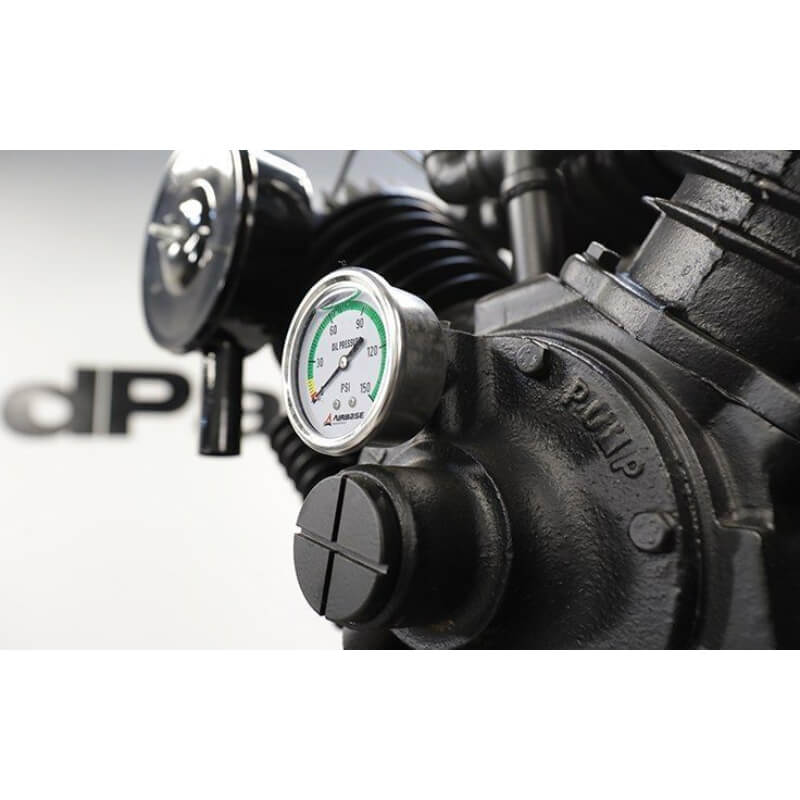

At the heart of this system is the V-Max Elite pump, featuring a rugged four-cylinder, two-stage design built from 100% cast iron. Its “V-4” cylinder configuration provides 360° cooling, enhanced heat dissipation, and whisper-quiet operation at lower RPMs. The pump is splash-lubricated and coupled with dual drive belts and tapered roller bearings for durability under continuous-use conditions. It's a workhorse compressor built to reduce maintenance and increase productivity in any shop environment.

Packed with premium features like an integrated magnetic starter, corrosion-resistant tubing, oversized replaceable air filters, and automatic pressure switch control, the VMP-7580V is engineered for long life and dependable performance. Certified by UL and ASME, this air compressor is assembled in the USA and optimized to meet the needs of professionals who rely on clean, dry, and powerful air for their tools and equipment.

Air Compressor V-Max VMP-7580V Specification

  • Horsepower: 7.5 HP

  • Motor RPM: 1,750 RPM

  • Voltage: 208–230V AC

  • Phase: 1-Phase

  • Frequency: 60 Hz

  • Magnetic Starter: Included

  • Amp Draw: 32 Amps

  • Recommended Breaker: 50 Amp

  • Noise Level: 78 dB

  • Pump Style: Two-Stage, 4-Cylinder V-4

  • Lubrication: Splash Lubricated

  • Tank Capacity: 80 Gallons (Vertical)

  • Certifications: ASME, UL

  • Shipping: Free to 48 Contiguous States

  • Assembled: In the USA

V-Max VMP-7580V 80-Gallon Air Compressor Special Features

  • Energy-efficient 7.5 HP motor for high-demand applications

  • Extra-quiet, low-RPM operation reduces noise and heat

  • Cast-iron V-Max Elite pump for unmatched durability

  • V-4 finned cylinder configuration ensures 360° cooling

  • Proven air-cooled design is efficient and eco-friendly

  • Dual drive belts extend belt and bearing life

  • Fully enclosed belt guard enhances safety

  • Two compression rings and one oil ring for excellent oil control

  • Large cooling fins and aftercooler improve air quality and reduce moisture

  • Balanced flywheel with forced-air fan blades improves cooling

  • Magnetic starter protects from thermal overload

  • Integrated pressure unloader valves minimize start-up heat

  • Automatic start/stop pressure switch for ease of use

  • Corrosion-resistant tubing extends compressor life

  • Oversize air filters are easy to replace

  • ASME-rated safety valve ensures operator protection

  • Maintenance-friendly disc valves with easy access

BendPack V-Max VMP-7580V Documents

BendPack V-Max VMP-7580V Installation and Operations Manual   BendPack V-Max VMP-7580V Installation and Operations Manual

BendPack Warranty   BendPack Warranty
