10AP-168 10,000lb 2 Post Lift - ALI Certified, Extra Tall by BendPak Side View

BendPak 10AP-168 10,000lb 2 Post Lift - ALI Certified, Extra Tall

SKU 5175305
by BendPak
  • ✓ Contact us now for our BEST Price!
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Price Includes Free Shipping!
  • ✓ Discounted Warehouse Pickup Options!
$6,295.00

Delivery Options

Notify me when back in stock

10AP-168 10,000lb 2 Post Lift - ALI Certified, Extra Tall by BendPak

The BendPak 10AP-168 sets the benchmark for two-post lifts, delivering unmatched precision, safety, and adaptability for automotive professionals. With a 10,000-lb. lifting capacity and a lift height of 72.25 inches, this cutting-edge lift effortlessly handles a broad spectrum of vehicles, from electric cars to oversized SUVs. Designed with advanced technology, the Bi-Metric arms allow for both symmetric and asymmetric configurations, while the Low-Pro swing arms provide seamless access to low-clearance vehicles.

Engineered for heavy-duty use, the 10AP-168 includes essential safety features like the Automatic Swing Arm Restraint System (ASARS) and an automatic safety lock system. Its triple-telescoping arm system and customizable stackable adapters ensure secure frame engagement and ultimate flexibility.

2 Post Lift 10AP-168 Specifications

    • Lifting Capacity: 10,000 lbs. (4,536 kg)
    • Rise (Maximum): 72.25" (1,834.7 mm)
    • Minimum Height with Pads: 4" (102 mm)
    • Overall Height: 168" (4,267 mm)
    • Width (Overall): 135" or 145" (3,429 mm or 3,683 mm)
    • Inside Columns: 108.25" or 118.25" (2,750 mm or 3,004 mm)
    • Drive-Thru Clearance: 92" or 102" (2,337 mm or 2,591 mm)
    • Front Arm Reach (Minimum): 22" (559 mm)
    • Rear Arm Reach (Maximum): 57" (1,448 mm)
    • Time to Full Rise: ~45 seconds
    • Motor Power: 220 VAC, 60 Hz, 1 Phase
    • Noise Level: <70 dB
    • Shipping Weight: 1,840 lbs.

    10AP-168 10,000lb 2 Post Lift Special Features

        • Durable powder coat finish
        • Expandable top beam accommodates wide or narrow drive-thru configurations

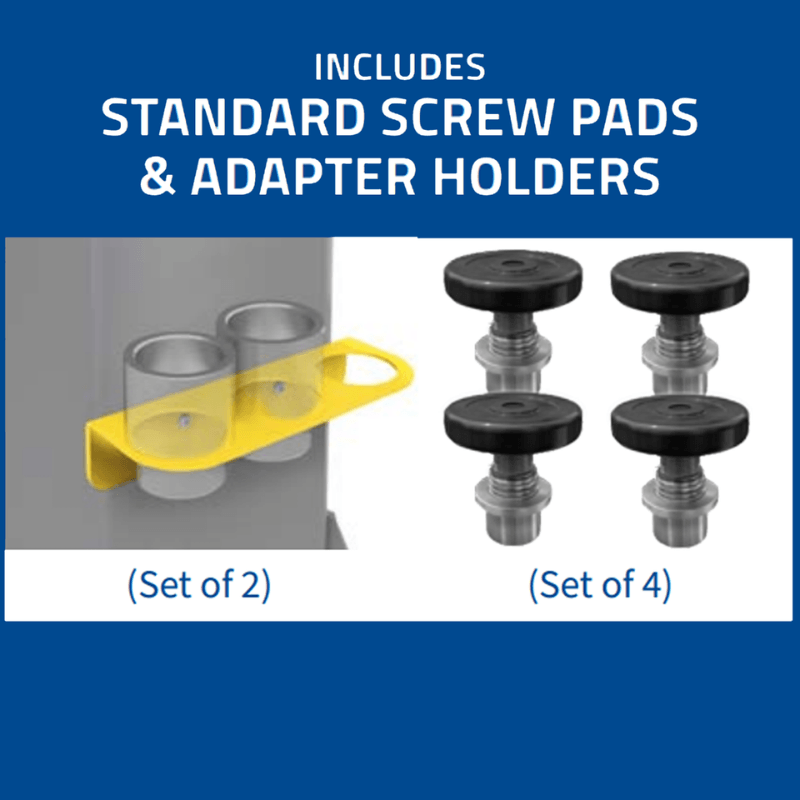

        • Double-telescoping screw pads offer increased versatility
        • Padded overhead safety shutoff bar
        • Exclusive Bi-Metric™ arm design for more versatile arm positioning
        • Single-point safety release
        • Drop-end arms provide a lower pad height
        • Dual hydraulic direct-drive cylinders
        • Oversized 53" & 59" tall carriages for superior strength and durability
        • Electric / hydraulic HVLP power system
        • Self-lubricating dura-glide UHMW polyethylene bearing system
        • Safety locks in each column spaced every 3"
        • Automatic arm restraints withstand over 2000-pounds of side force
        • 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
        • Oversized cable sheave diameter reduces cable fatigue

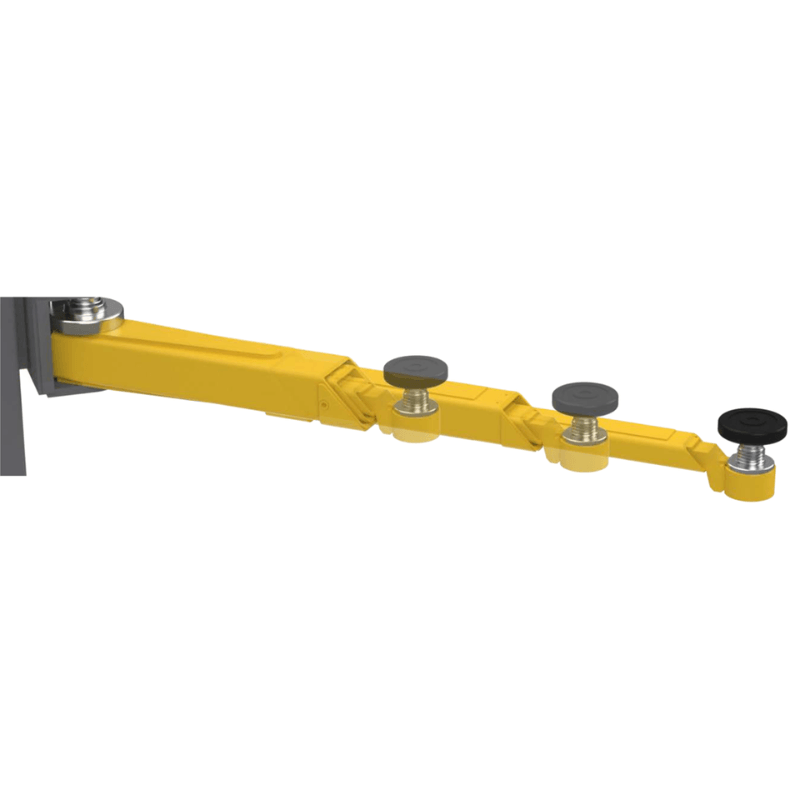

        • Four triple-telescoping arms
        • ALI certified

        BendPak 10AP-168 Documentation

          BendPak 10AP-168 Installation and Operations Manual
        BendPak 10AP-168 Product Brochure   BendPak 10AP-168 Product Brochure

        Warehouse Pickup Locations: $400 Pickup Discount Available - Contact us for more information!

        • Santa Paula, CA 93060
        • Theodore, AL 36582

         BendPak 10AP-168 10,000lb 2 Post Lift - ALI Certified, Extra Tall Diagram
        BendPak 10AP-168 10,000lb 2 Post Lift - ALI Certified, Extra Tall Diagram-1
