BendPak 10AP 168 2 Post Combo Package

SKU 5175644
by BendPak
$8,270.00
  • Contact us for the BEST Price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Price Includes Free Shipping!
  • Discounted Warehouse Pickup Options!

Delivery Options

Notify me when back in stock

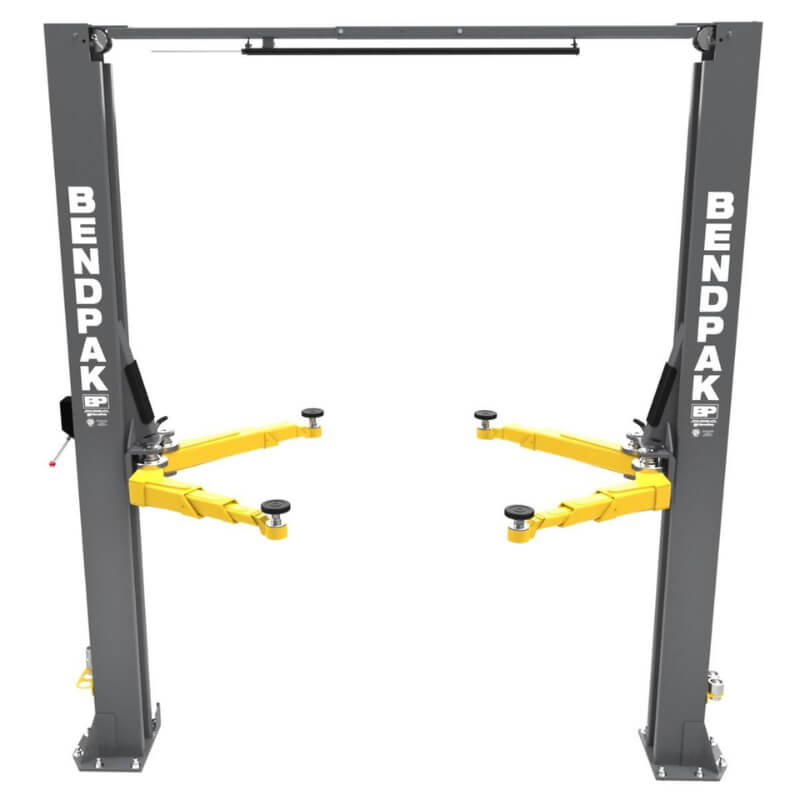

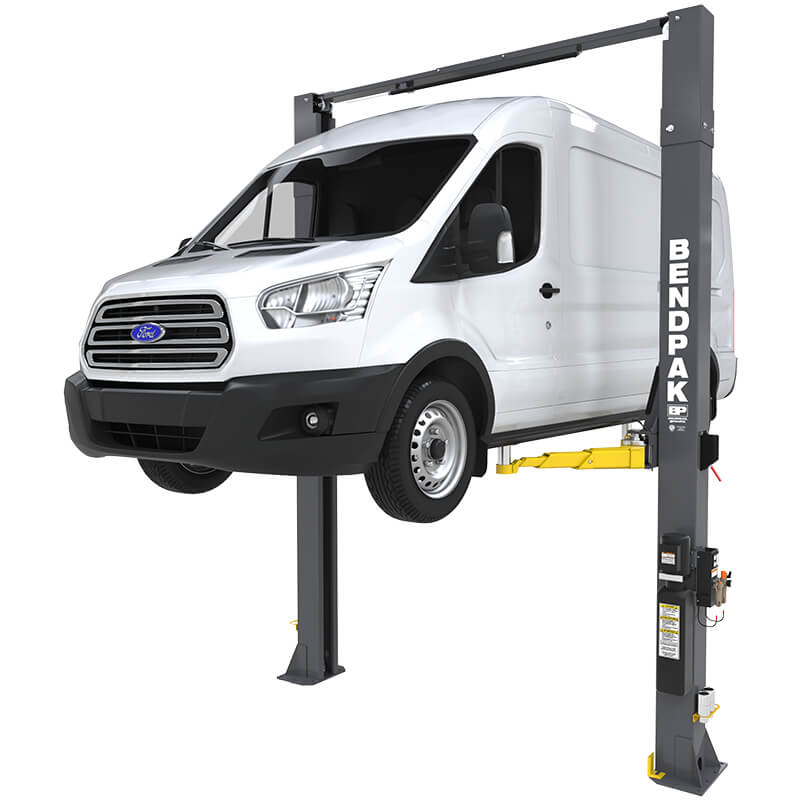

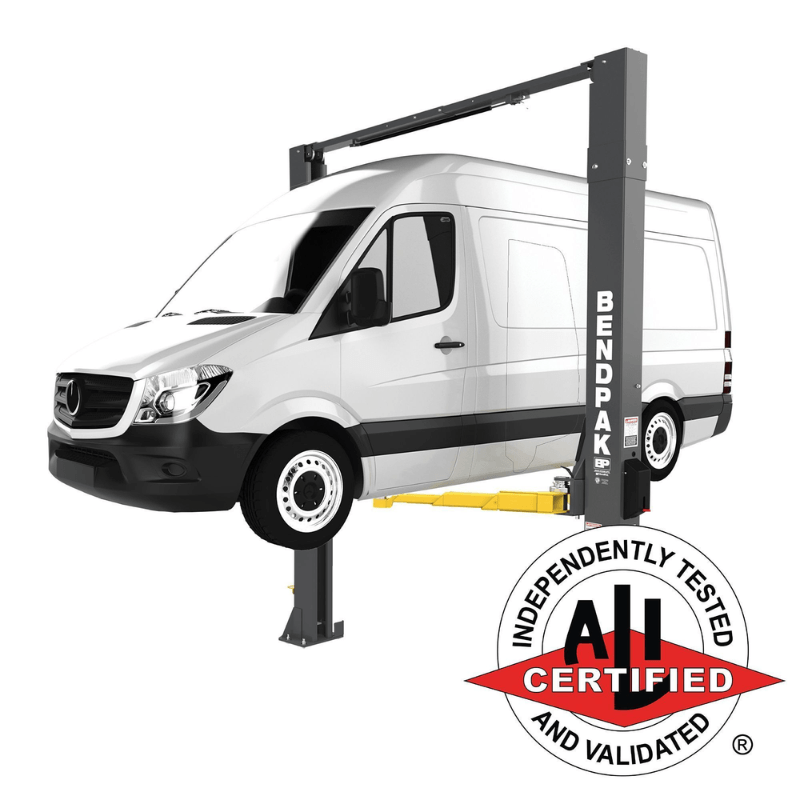

10AP 168 PRO 2 Post Combo Package by BendPak

The 10AP-168 PRO-Series is designed for professionals who demand top-tier performance and safety in their shops or garages. With a towering height of 168", this lift accommodates taller technicians and provides enhanced working space under the vehicle. BendPak's cutting-edge Bi-Metric™ swing arms allow symmetric or asymmetric configurations without the need to switch arms, and the triple-telescoping Low-Pro™ arms provide maximum reach and versatility—ideal for low-clearance vehicles. This model also includes a padded safety shutoff bar, single-point safety release, and dual hydraulic direct-drive cylinders, offering both superior lift strength and operator safety.

What truly sets the 10AP-168 apart is its advanced safety and utility integration. The automatic swing arm restraint system (ASARS) ensures the arms lock securely in place with over 2,000 lbs. of load-holding force, minimizing risk during lifts. The WSA-100 air-electric workstation provides built-in air and electric service, featuring filtered and lubricated air outlets and 20-amp GFI-protected outlets, enhancing overall shop productivity. Included adapter sets—medium, tall, and frame cradle pads—accommodate various vehicle frames, helping technicians handle SUVs, trucks, and more with confidence.

Engineered for durability and built for heavy use, the 10AP-168 comes with an expandable top beam for adjustable installation width, a robust powder-coated finish, and extra-large carriage assemblies for long-lasting performance. Safety locks spaced every 3" ensure secure positioning at multiple lift heights. The 220V motor delivers quiet power, making it an efficient and effective solution for any busy repair environment.

BendPak 10AP-168 PRO Specification

  • Lifting Capacity: 10,000 lbs.

  • Max Capacity (Front/Rear Axle): 5,000 lbs. each

  • Rise (Pad Only): 79.5"

  • Rise + 63 mm Adapter: 89"

  • Minimum Pad Height: 4"

  • Time to Full Rise: 45 seconds

  • Overall Height: 168"

  • Overall Width: 135" or 145"

  • Drive-Thru Clearance: 92" or 102"

  • Inside Column Width: 108.25" or 118.25"

  • Arm Reach (Front): 22" – 47.5"

  • Arm Reach (Rear): 29.5" – 57"

  • Screw Pad Adjustment: 2"

  • Max Load per Arm: 2,500 lbs.

  • Power: 220 VAC, 60 Hz, 1 Phase

  • Noise Level: <70 dB

10AP-168 PRO 2 Post Combo Package Special Features

10AP-168

  • Durable powder coat finish
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

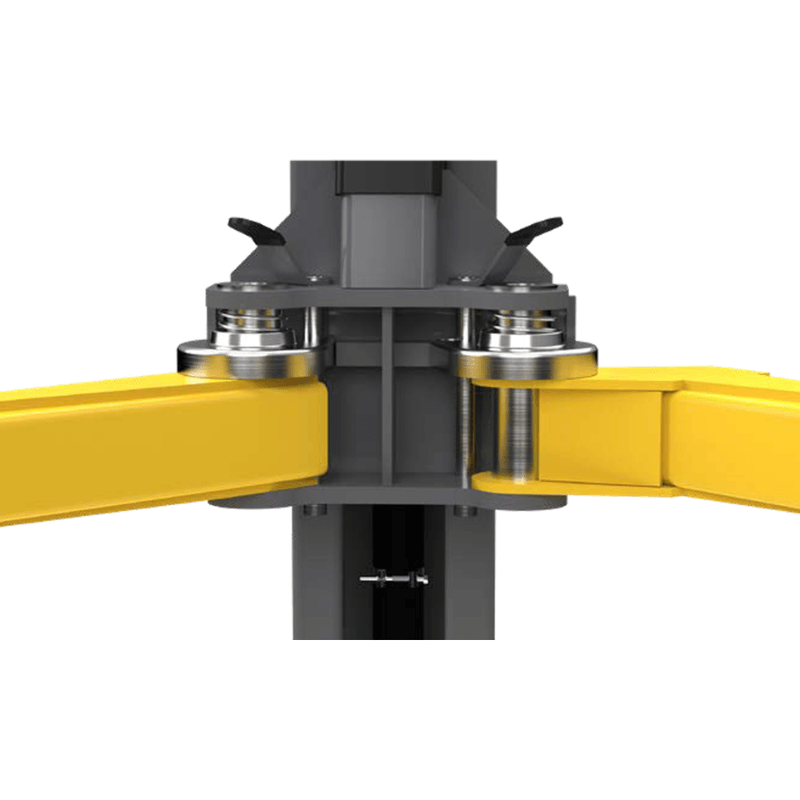

  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53" & 59" tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"

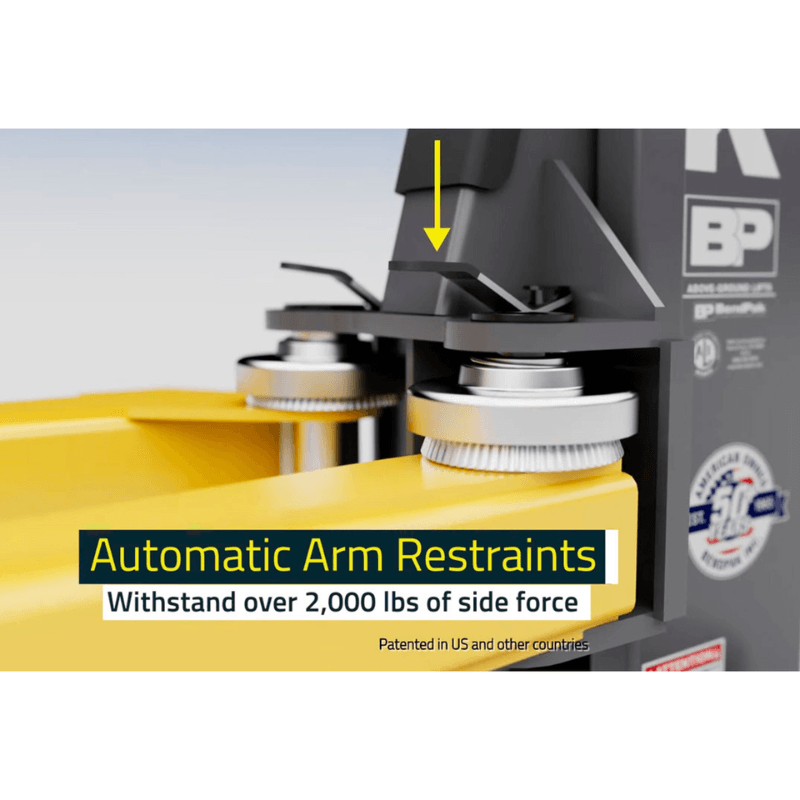

  • Automatic arm restraints withstand over 2000-pounds of side force
  • 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
  • Oversized cable sheave diameter reduces cable fatigue

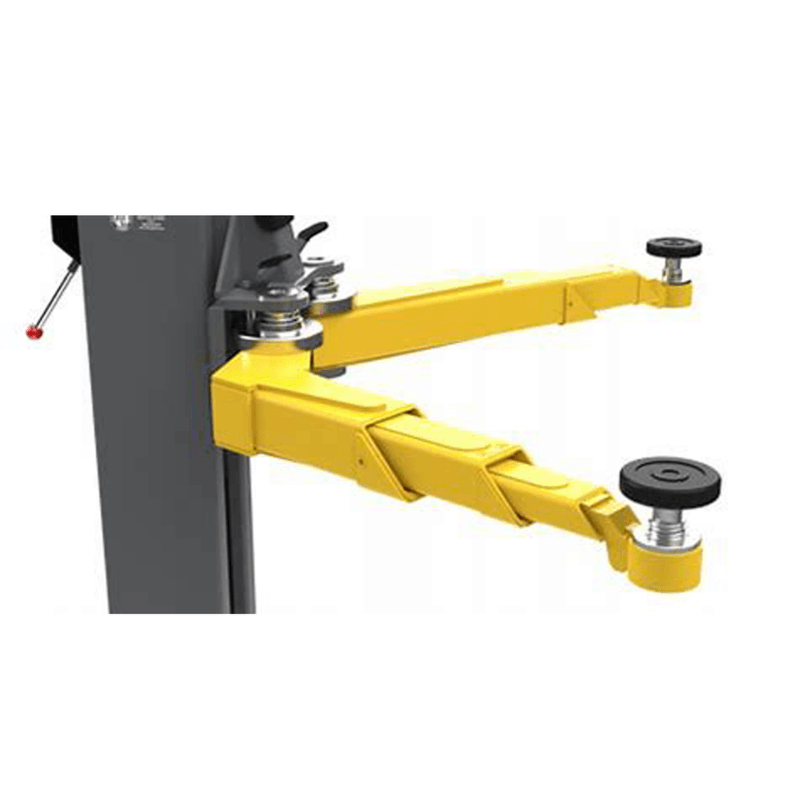

  • Four triple-telescoping arms
  • ALI certified

WSA-100

  • Easy to install
  • Adapts to any two-post lift and four-post lift
  • Electrical outlets equipped with 20 amp industrial GFI protection
  • Electrical outlets located above the air service to prevent moisture damage and tangling
  • Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
  • Air service filter element and lubricator filler port are easily accessible
  • Nickel-plated ball valve shutoff
  • Powder-coated finish for durability and long life
  • Four 110V GFI outlets
  • Oiler
  • Air supply
  • Pressure gauge
  • Storage hooks for hose and tools
  • Regulator / filter
  • Air inlet

Frame Cradle Pads

  • Set of 4
  • 60mm pin

Medium Adapter 60mm

  • Set of 4
  • 2.5”

Tall Adapter 60mm

  • Set of 4
  • 5”

10AP 168 Manual

BendPak 10AP-168 Installation and Operations Manual   BendPak 10AP-168 Installation and Operations Manual
BendPak 10AP-168 Sales Sheet   BendPak 10AP-168 Sales Sheet

Warehouse Pickup Location: $400 Pickup Discount Available - Contact Us for more Information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582

BendPak 10AP-168 PRO Diagram
