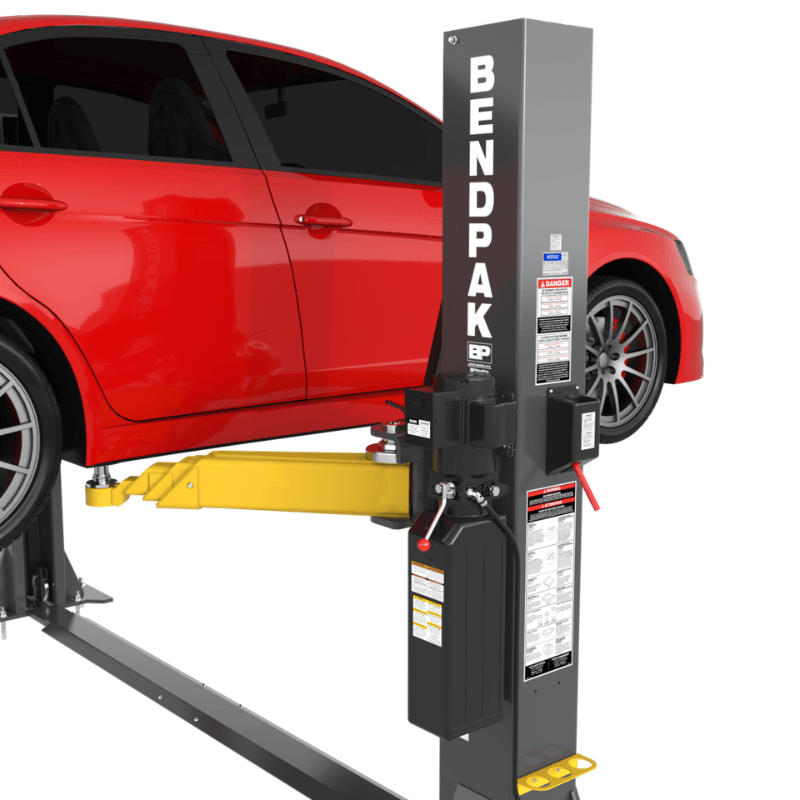

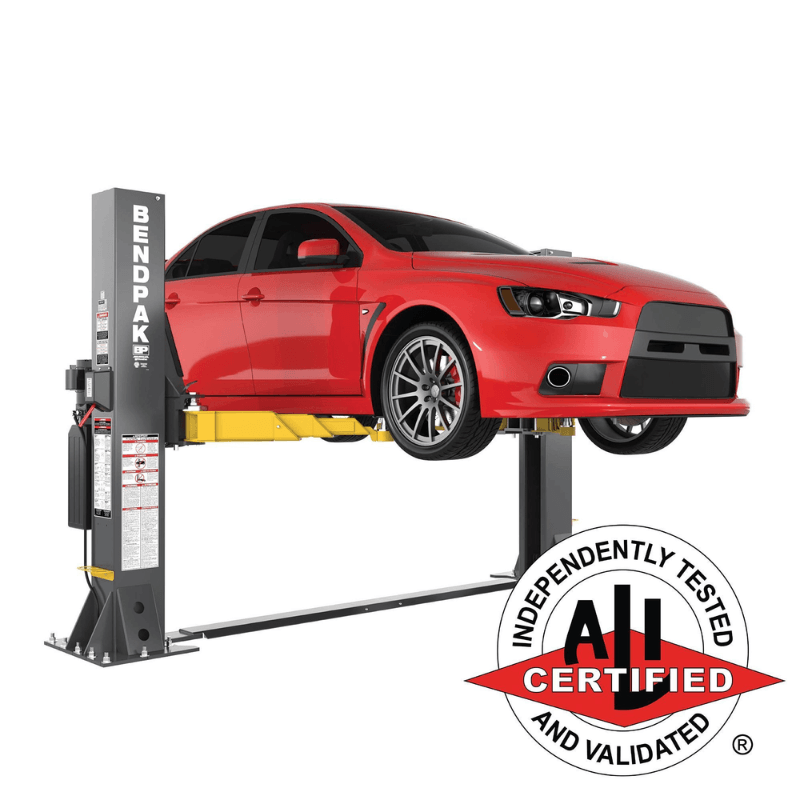

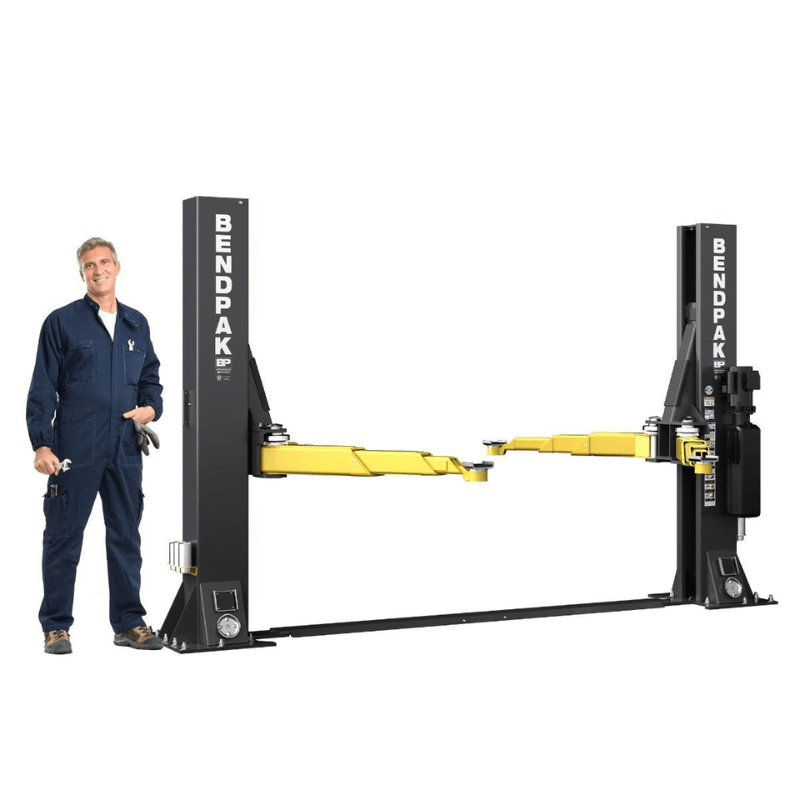

BendPak 10AP-SRT 10,000lb 2 Post Lift - Low Rise

10AP-SRT 10,000lb 2 Post Lift - Low Rise by BendPak

Many garages struggle to find a lift that offers both space efficiency and the ability to handle heavy-duty tasks. With limited room and vehicles of all sizes to service, it can feel like you're always compromising on either functionality or space. That's where the BendPak 10AP-SRT comes in, offering a robust 10,000-lb lifting capacity and a maximum lifting height of 46 inches to tackle any vehicle with ease.

With its compact design, featuring a post height of 93.5 inches and a drive-thru width of 91–101 inches, the 10AP-SRT is engineered for smaller spaces. This lift is ideal for low-clearance cars, thanks to its Low-Pro swing arms, and comes equipped with automatic arm restraints and safety locks every 3 inches for added security. From tire services to light repairs, this lift ensures that you never have to sacrifice power for space, delivering both in one reliable and durable package.

2 Post Lift 10AP-SRT Specification

• Lifting Capacity: 10,000 lbs. (4,536 kg)
• Max Capacity per Axle: 5,000 lbs. (2,268 kg)
• Width Overall: 136–146 in. (3,453–3,707 mm)
• Post Height: 93.5 in. (2,377 mm)
• Inside Posts Width: 108.25–118.25 in. (2,749–3,003 mm)
• Drive-Thru Width: 91–101 in. (2,311–2,565 mm)
• Max. Lifting Height: 46 in. (1,173 mm)
• Minimum Height w/ Pad: 4.5 in. (116 mm)
• Power Unit: 220 VAC, 60 Hz, 1 Phase
• Time to Full Rise: ≈45 seconds


10AP-SRT 10,000lb 2 Post Lift Special Features

• Power Side Post – The power side post holds the power unit, the safety lock release handle, and the lowering handle (which is on the power unit).
• Offside Post – The opposite Post.

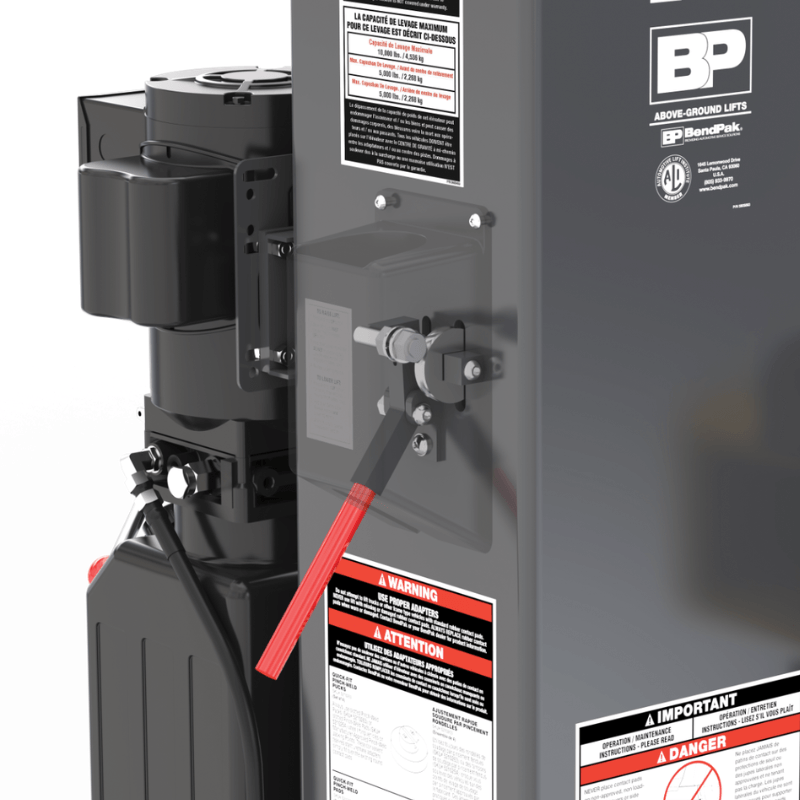

• Power Unit – Provides hydraulic fluid pressure to the lift and connects to an appropriate power source. Includes the Up button, the lowering handle, and the hydraulic fluid reservoir.
• Safety Lock Release Handle – Located on the power post above the power unit, it disengages the safety locks so you can lower the lift.
• Safety Covers – Cover the safety lock mechanism on the posts.
• Floor Plates – Cover the hydraulic hoses, equalizing cables, and safety cable routed between each post.
• Lift Heads – Sometimes called carriages. Lift heads move up and down in the posts. They connect to the lift arms, so when the lift heads rise, so do the lift arms.
• Lift Arms – Extendable steel arms that attach to the lift heads.
• Adapters – Pads that contact the lifting points on the underside of the vehicles you raise. Four cradle adapters are included with your lift and are well-suited for raising trucks and SUVs (body-on-frame style). Additional adapters are available separately and include height adapters, pinch weld pads and screw adapters.
• Height Adapter Trays – Attach to the bottom of the posts, used for holding the spare adapters when not in use.
• Safety Locks – Hold the lift heads up when engaged. Multiple safety lock heights let you select the best one for your needs. Once engaged on its safety locks, the lift heads stay up, even if the lift loses power. Only leave your lift fully lowered or engaged on safety locks.
• Durable powder coat finish
• Exclusive Bi-Metric™ arm design for more versatile arm positioning
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53” & 59” tall carriages for superior strength and durability
• Electric / hydraulic HVLP power system
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3”

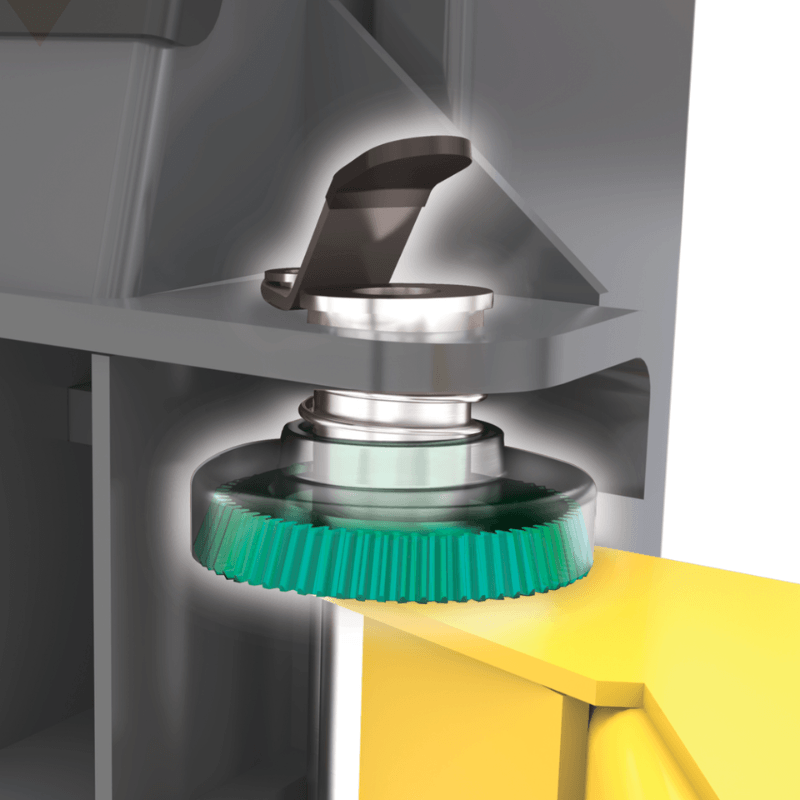

• Automatic arm restraints withstand over 2000-pounds of side force
• Heavy-duty ½” aircraft-quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• Four triple-telescoping arms
• ALI certified


BendPak 10AP-SRT Documentation

  BendPak 10AP-SRT Installation and Operations Manual

  BendPak 10AP-SRT Product Brochure
