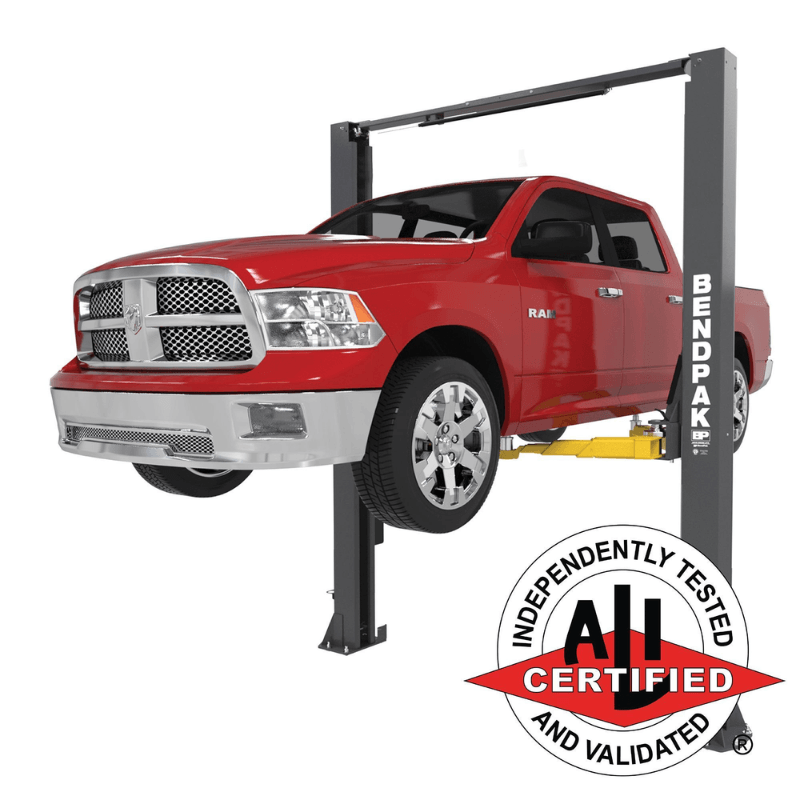

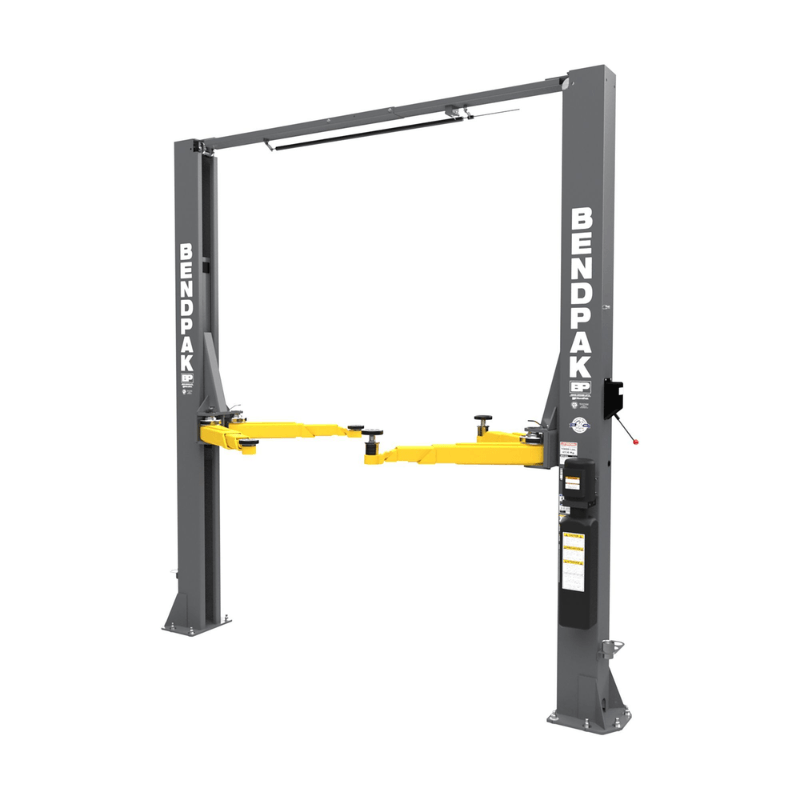

10APX 10,000lb 2 Post Lift - ALI Certified, Adjustable Width, Tall by BendPak Side View

BendPak 10APX 10,000lb 2 Post Lift - ALI Certified, Adjustable Width, Tall

SKU 5175306
by BendPak
  • ✓ Free Shipping
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited
$6,195.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

10APX 10,000lb 2 Post Lift by BendPak

Is your current lift struggling to keep up with the heavier loads of modern vehicles? Are you tired of lifts that lack the flexibility to handle everything from high-roof cargo vans to electric vehicles (EVs)? When your shop’s lifting equipment can’t keep up with the demands of bigger, bulkier, and more tech-heavy vehicles, productivity plummets. Vehicles that are too heavy or hard to lift mean longer service times, frustration, and potentially even damage to your equipment.

Enter the BendPak 10APX 10,000-lb. Two-Post Lift. Designed to handle everything from EVs to high-roof cargo vans, this beast comes with a 79.5-inch lifting height and a solid 10,000-lb. capacity. With features like Low-Pro arms, Bi-Metric swing arms, and an automatic swing arm restraint system, the 10APX combines precision and safety, giving you all the power you need without the stress. Say goodbye to lift limitations and hello to a smoother, more efficient repair shop. Ready to lift your shop’s capabilities? The 10APX is waiting.

2 Post Lift 10APX Specification

  • Lifting Capacity: 10,000 lbs. (4,536 kg)
  • Rise:
    • A. Rise: 69 in. (1,753 mm)
    • B. Rise + Pad: 72.25 in. (1,835 mm)
    • D. Min Height + Pad: 4 in. (102 mm)
  • Time to Full Rise: 45 seconds
  • Height Overall (E): 145 in. (3,683 mm)
  • Width Overall (F): 135 in. (3,429 mm) or 145 in. (3,683 mm)
  • Outside Columns (G): 127 in. (3,226 mm) or 137 in. (3,480 mm)
  • Inside Columns (H): 108.25 in. (2,750 mm)
  • Drive-Thru Clearance (I): 92 in. (2,337 mm) or 102 in. (2,591 mm)
  • Floor to Overhead Switch (J): 139.25 in. (3,537 mm)
  • Front Arm Reach (K):
    • Min: 24.5 in. (622 mm)
    • Max: 50 in. (1,270 mm)
  • Rear Arm Reach (L):
    • Min: 32 in. (812 mm)
    • Max: 59.25 in. (1,504 mm)
  • Max Load Per Arm: 2,500 lbs. (1,134 kg)
  • Noise: <70 dB
  • Shipping Dimensions: 150 in. x 24 in. x 28 in. (3,810 mm x 610 mm x 711 mm)
  • Weight: 1,729 lbs.

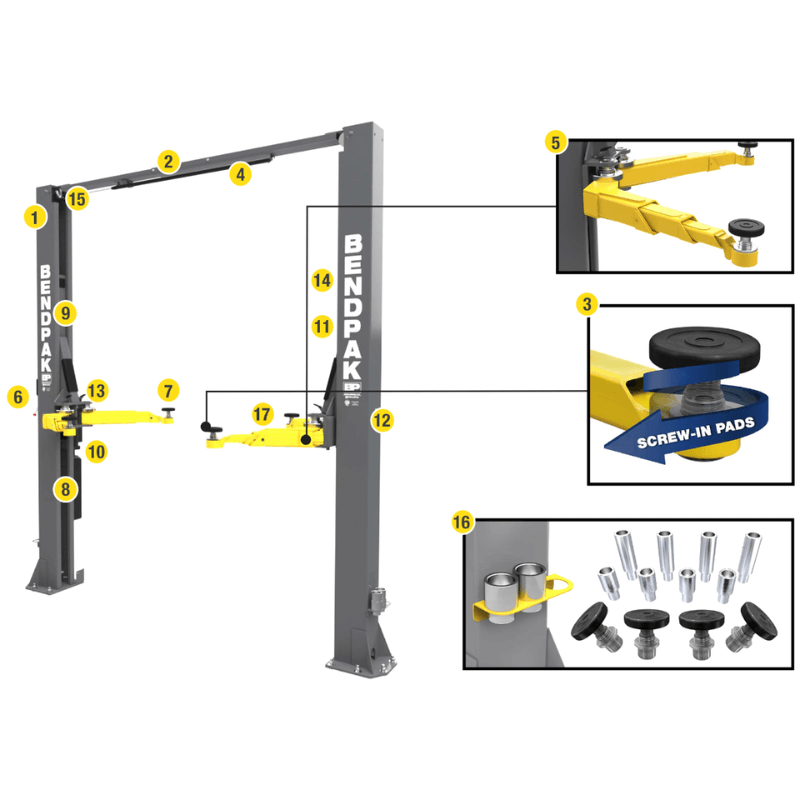

10APX 10000lbs 2 Post Lift Special Features

    • Durable powder coat finish
    • Expandable top beam accommodates wide or narrow drive-thru configurations

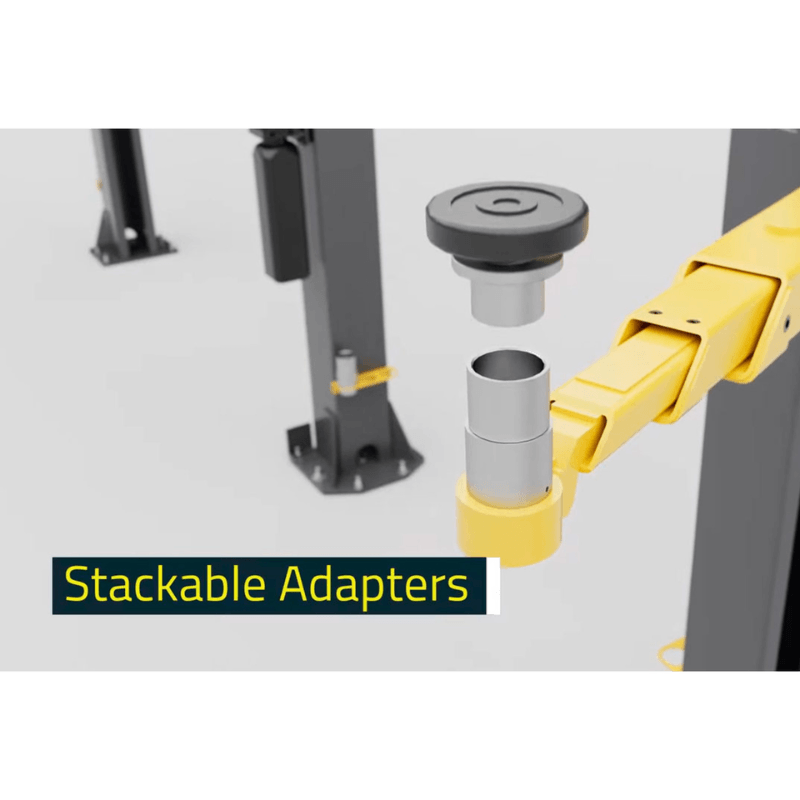

    • Double-telescoping screw pads offer increased versatility
    • Padded overhead safety shutoff bar

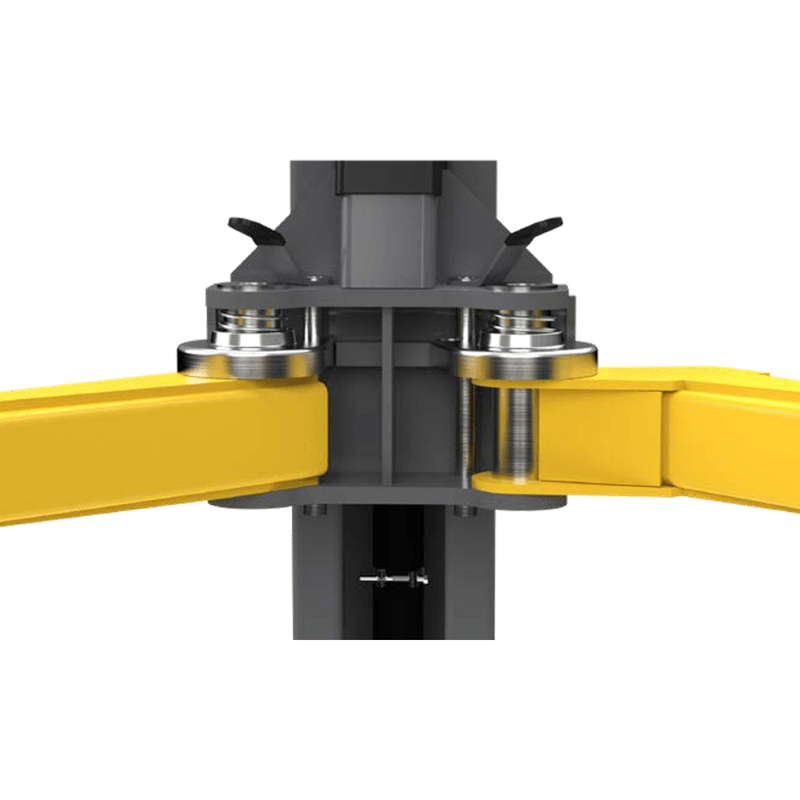

    • Exclusive Bi-Metric™ arm design for more versatile arm positioning
    • Single-point safety release
    • Drop-end arms provide a lower pad height
    • Dual hydraulic direct-drive cylinders
    • Oversized 53" & 59" tall carriages for superior strength and durability
    • Electric / hydraulic HVLP power system
    • Self-lubricating dura-glide UHMW polyethylene bearing system
    • Safety locks in each column spaced every 3"

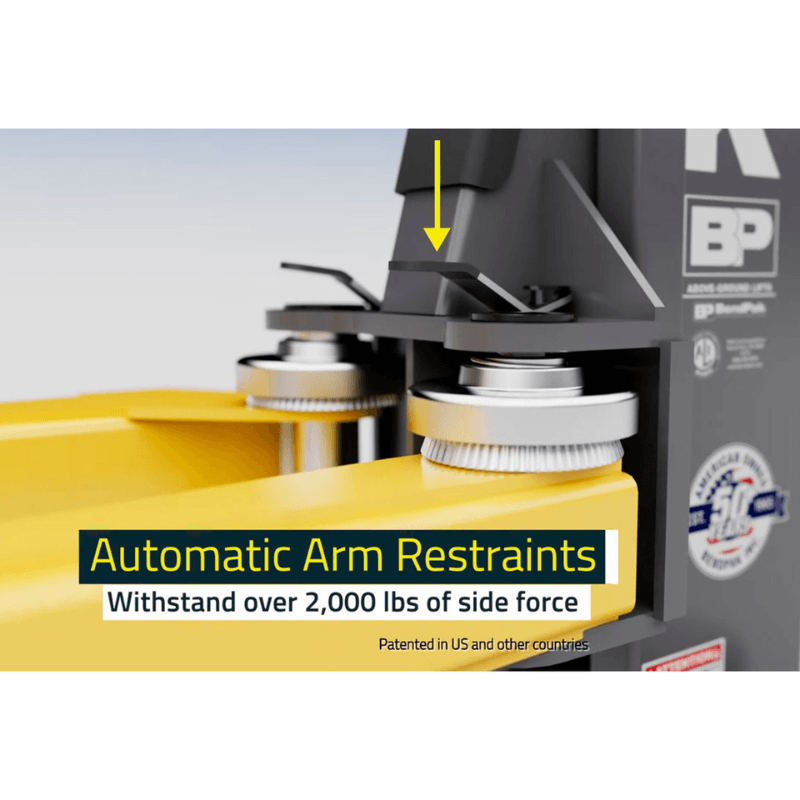

    • Automatic arm restraints withstand over 2000-pounds of side force
    • 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
    • Oversized cable sheave diameter reduces cable fatigue

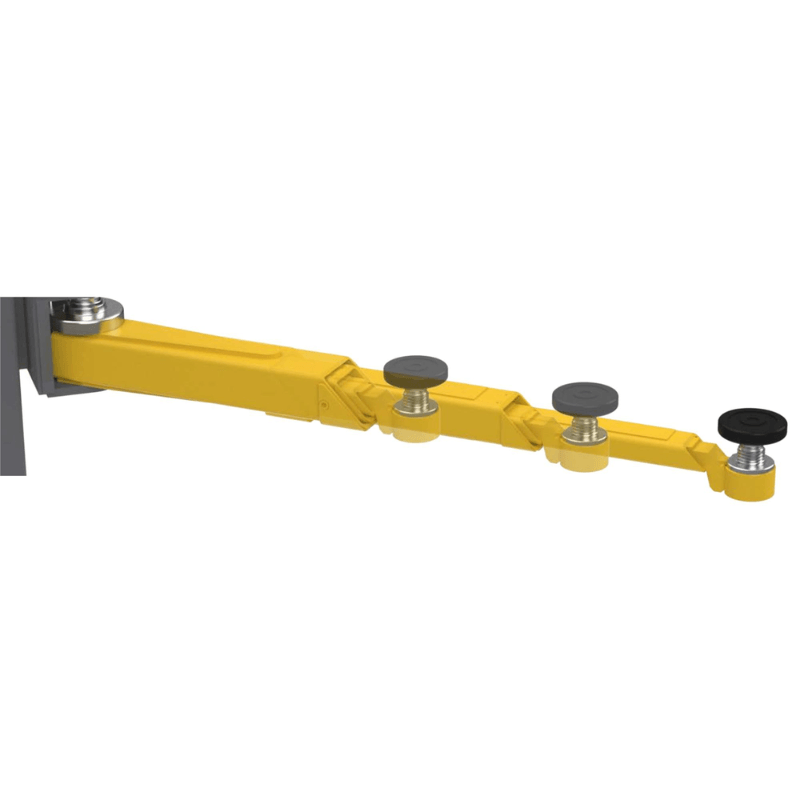

    • Four triple-telescoping arms
    • ALI certified

    BendPak 10APX Documentation

    BendPak 10APX Installation and Operations Manual   BendPak 10APX Installation and Operations Manual


    BendPak 10AP Product Brochure   BendPak 10APX Product Brochure
