BendPak Autostacker A6S 6,000lb Parking Lift

A6S 6,000-lb. Capacity Car Stacker by BendPak

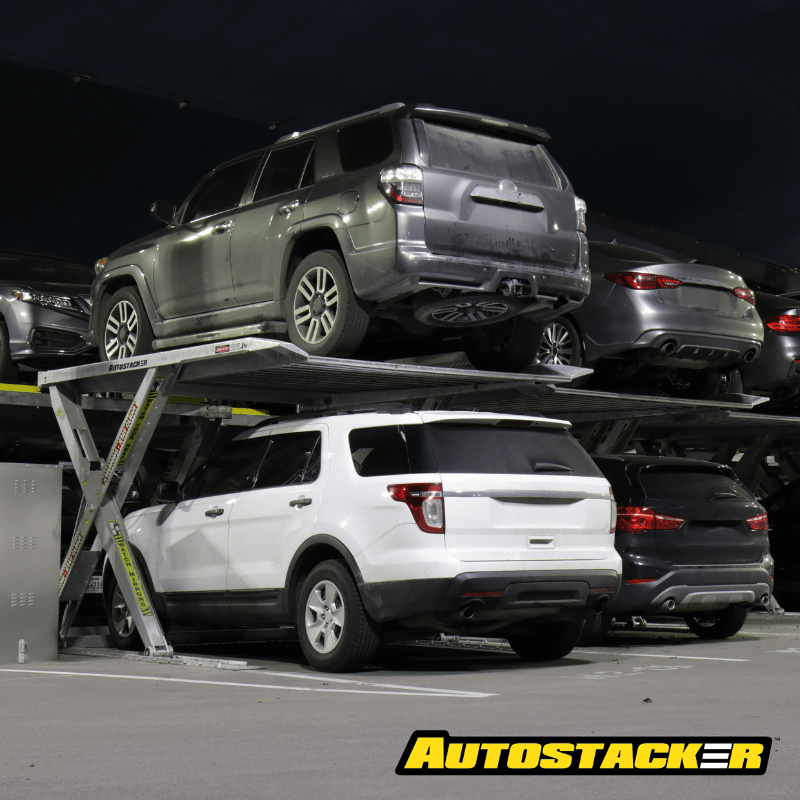

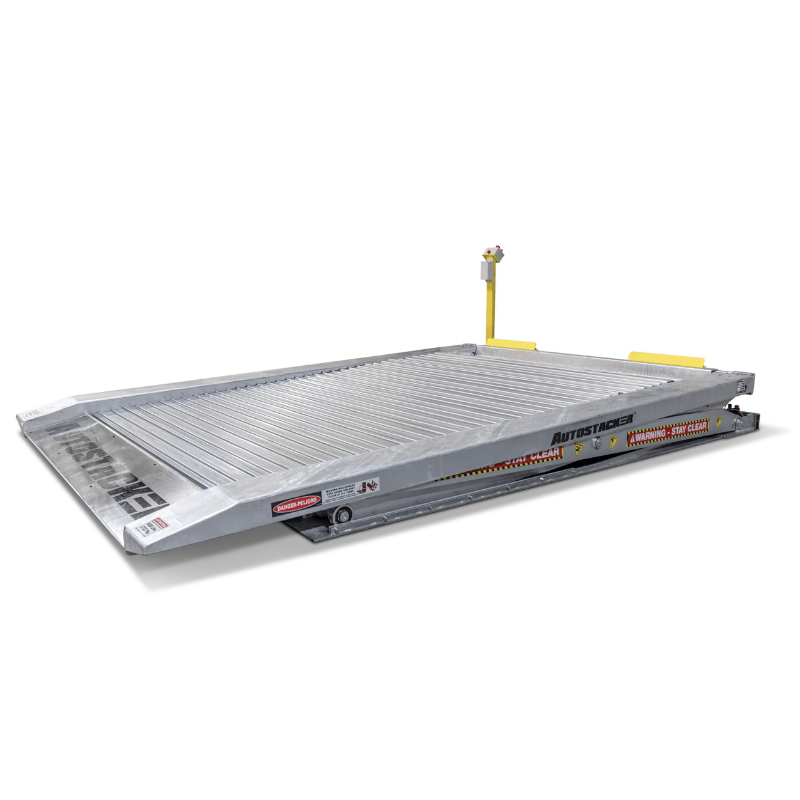

Tired of cramped parking spaces and the hassle of squeezing multiple cars into tight spots? The BendPak A6S 6,000-lb. Capacity Car Stacker Platform Parking Lift, also known as the Autostacker, is here to solve your parking problems. This compact, collapsible lift doubles your parking capacity while taking up minimal space. With a galvanized steel platform and 80 inches of overhead clearance, it handles a variety of vehicles, from low-profile sports cars to tall SUVs. The absence of side posts means you can park in even tighter areas without worrying about damaging your vehicle’s finish.

Worried about safety and durability? The Autostacker has got you covered with dual hydraulic cylinders that ensure smooth operation and even pressure distribution, reducing wear and tear. Equipped with five automatic safety locks, Door-sentry rubber protectors, and a detachable power unit console, this lift provides peace of mind for your parking needs. Whether you're looking to maximize space in your home garage or manage multiple vehicles in a commercial setting, the Autostacker delivers efficiency and safety while minimizing energy use. Get more out of your parking space and keep your cars safe with the BendPak A6S.

Platform Parking Lift A6S Specification

• Model Options
  • 220v: 208-240V, 50/60HZ, 1-Phase
  • 110v: 110V, 50/60HZ, 1-Phase
  • Galvanized: 208-240V, 50/60HZ, 1-Phase

• Style: Multi-Platform Parking Lift

• Capacity:

  • Lifting Capacity: 6,000 lbs. (2,722 kg)
  • Overall Width: 103” (2,620 mm)
  • Overall Length: 143” (3,632 mm)
  • Platform Length: 124” (3,150 mm)
  • Platform Width: 83.75” (2,128 mm)
  • Platform Height (Forward): 13” (330 mm)
  • Ramp Height (Entry): 2” (51 mm)
  • Maximum Underclearance: 80” (2,032 mm)
  • Under Clearance on 1st Lock (Lowest): 52.5" (1,331 mm)
  • Under Clearance on 2nd Lock: 60.75" (1,543 mm)
  • Under Clearance on 3rd Lock: 68.5" (1,736 mm)
  • Under Clearance on 4th Lock: 75" (1,909 mm)
  • Under Clearance on 5th Lock (Highest): 81.25" (2,064 mm)

• Motor: 208-240V, 50/60 Hz, 1 Phase

• Noise: 52 dB

• Shipping Weight: 2,558 lbs. (1,160 kg)

• Shipping Dimensions: 143'' x 28'' x 22'' (3,632 mm x 711 mm x 558.8 mm)

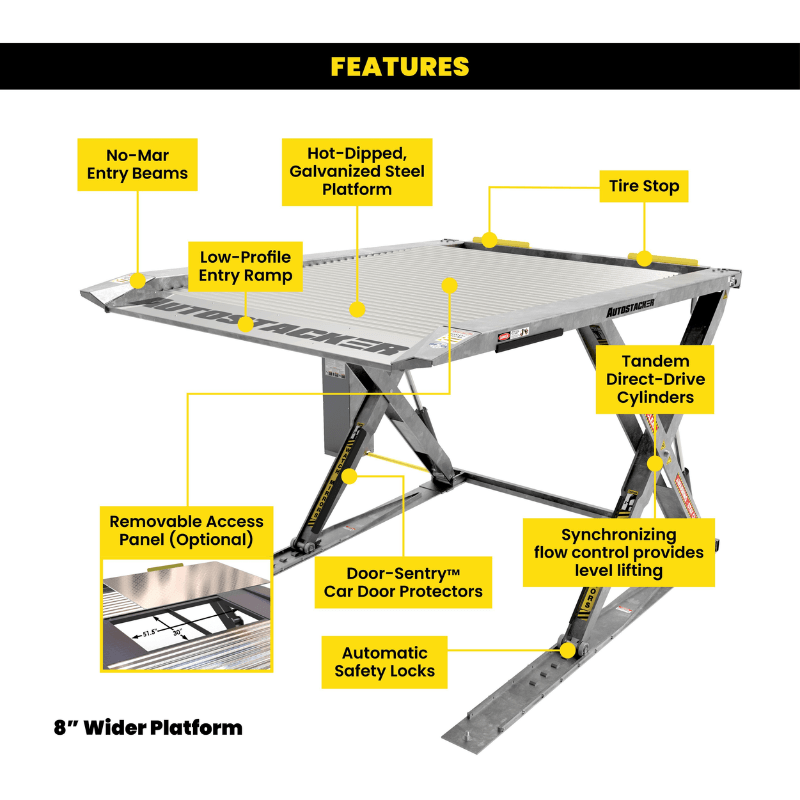

A6S 6,000-lb. Capacity Platform Parking Lift Special Features

• 6,000‐lb. lifting capacity
• Key‐switch disconnect fully disables operation for enhanced security
• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
• Accommodates cars, light trucks and SUVs
• Rugged, welded‐steel construction is strong and durable
• 100%  hot‐dipped, galvanized steel platform
• Attractive slate gray, baked‐on powder coat finish provides added toughness

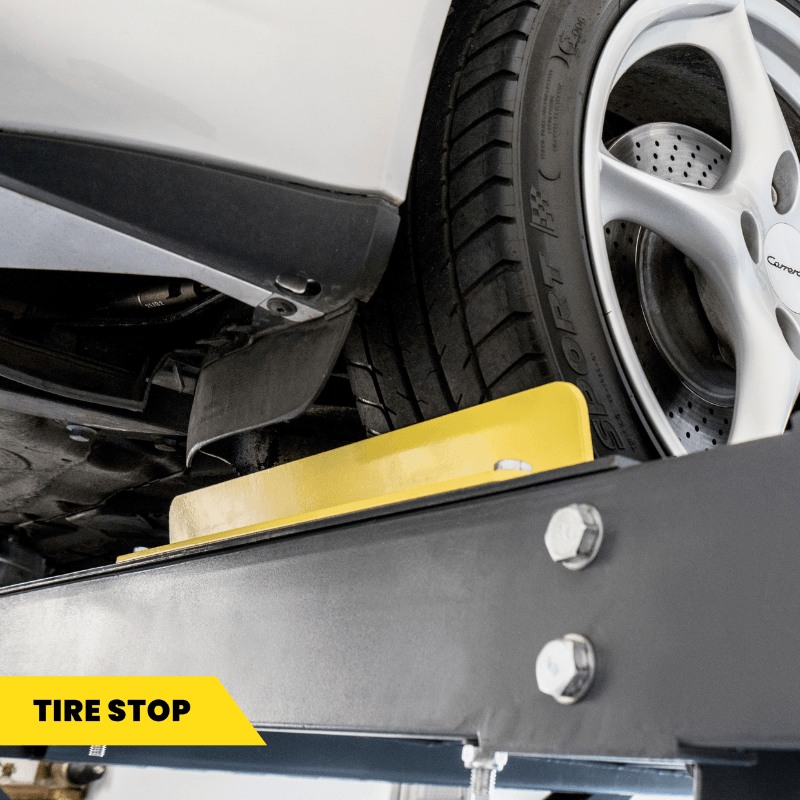

• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

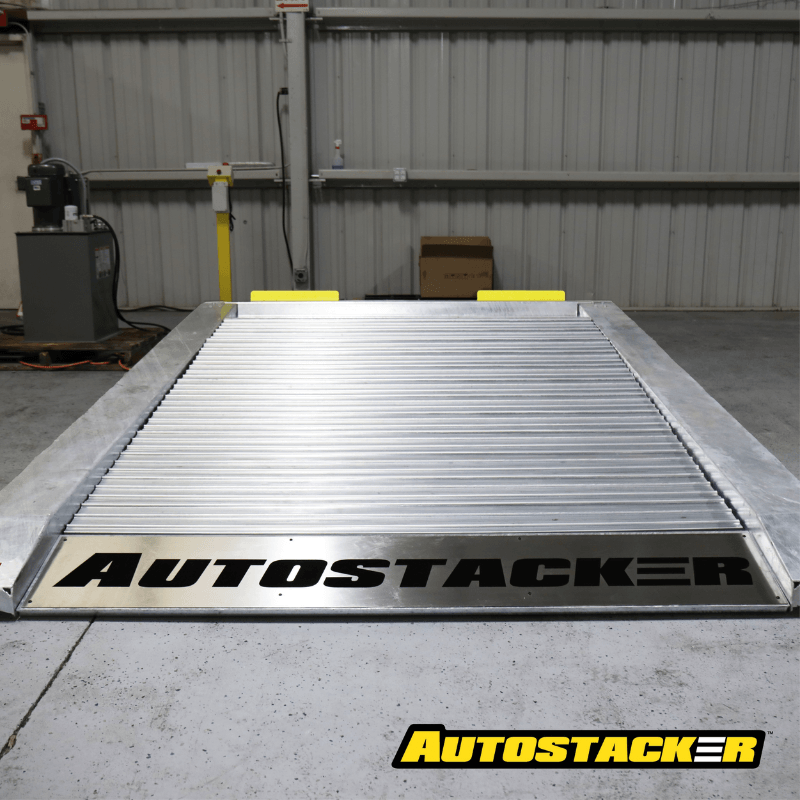

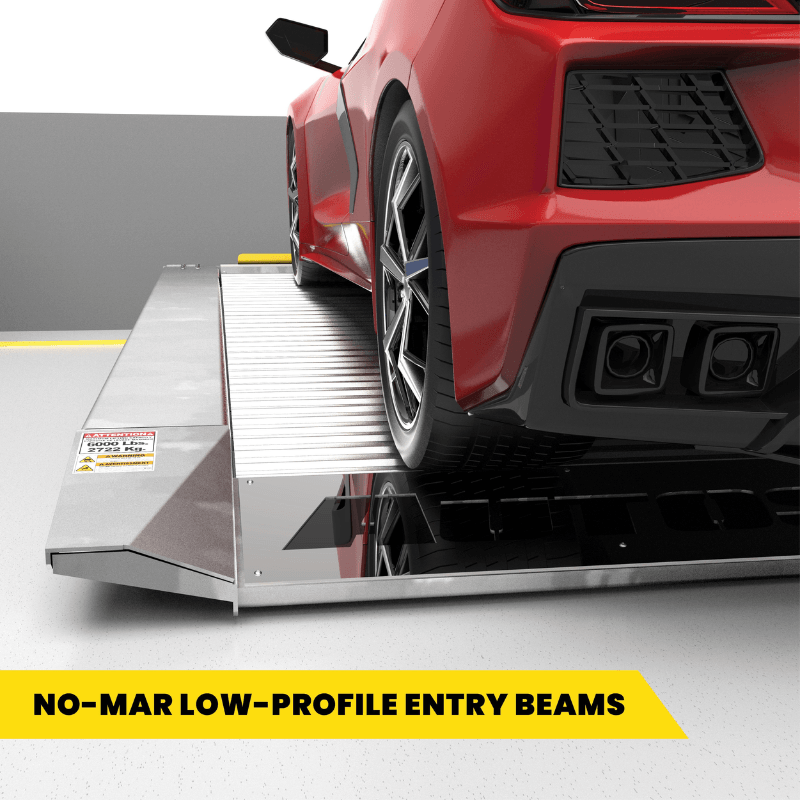

• Full‐width, gradual sloping platform reduces entry ramp height

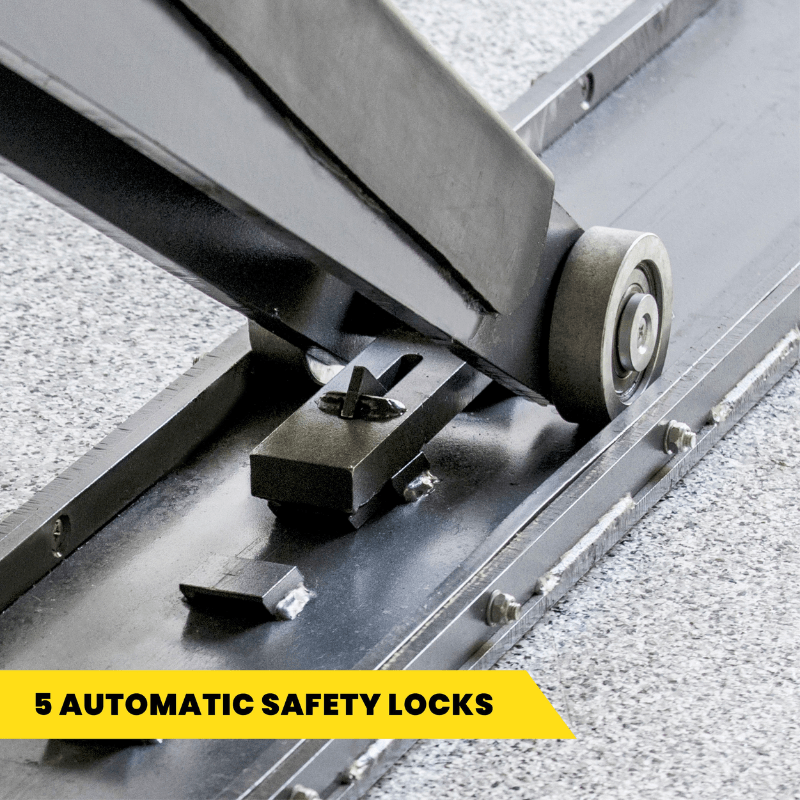

• Automatic safety locks engage at five different parking heights
• Simple push‐button controls

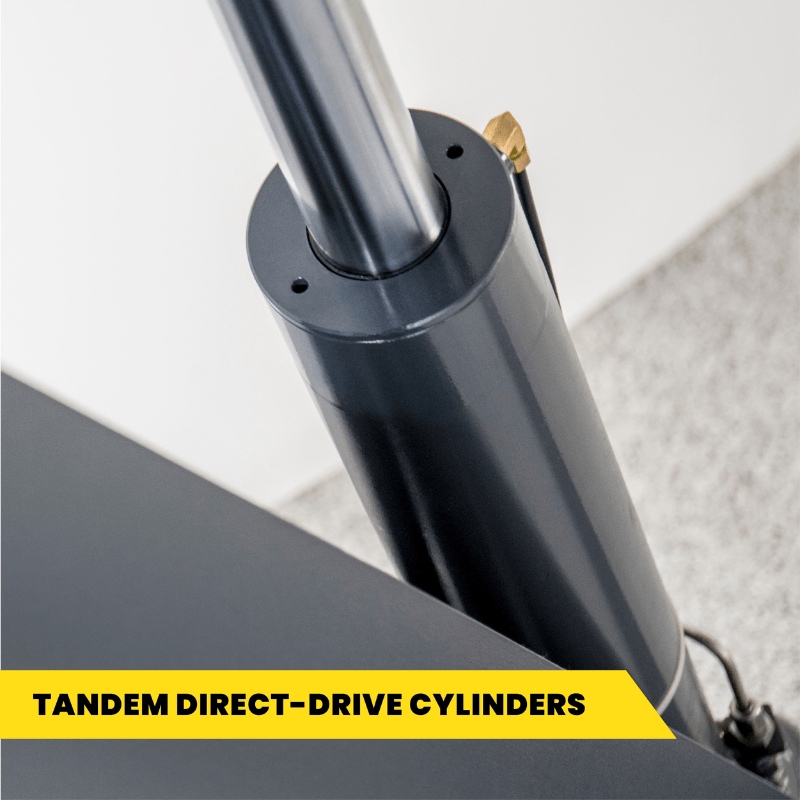

• Dual, direct‐drive hydraulic lifting cylinders
• Dependable hydraulic circuit that provides precise, equalized lifting
• Variable height parking accommodates a wide range of vehicle and ceiling heights

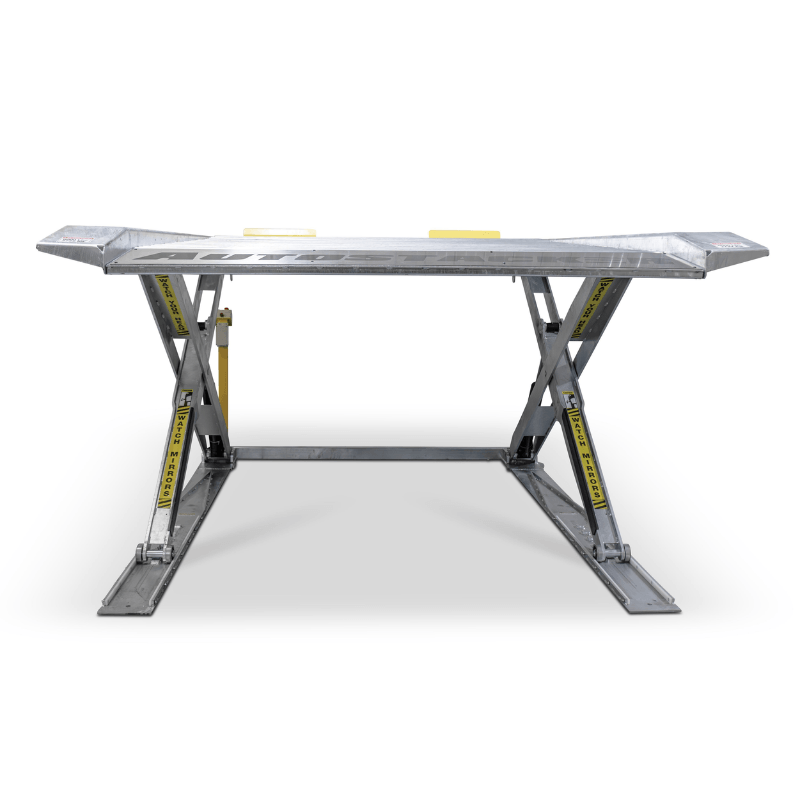

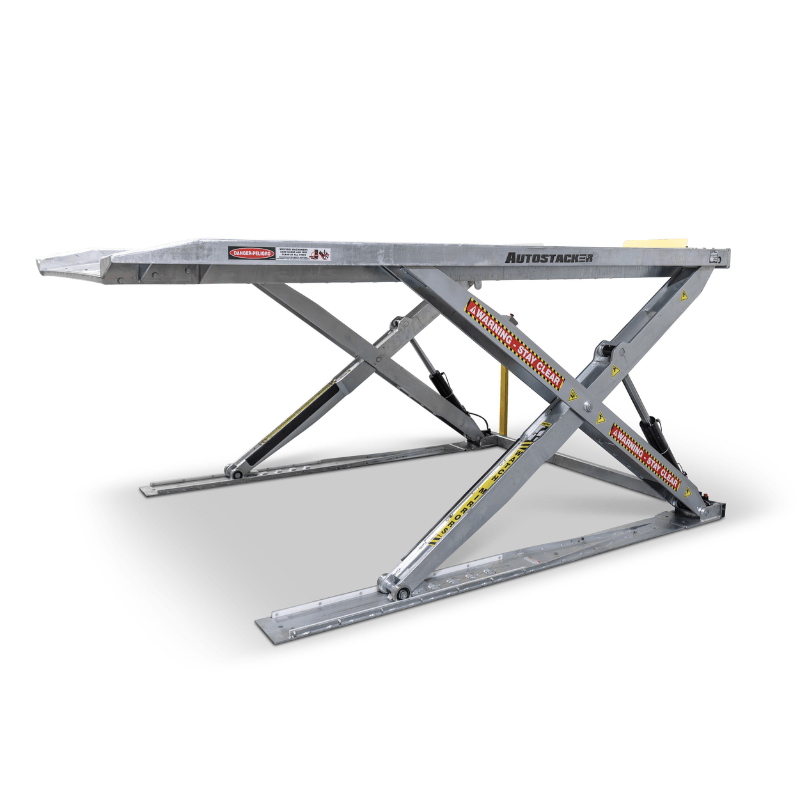

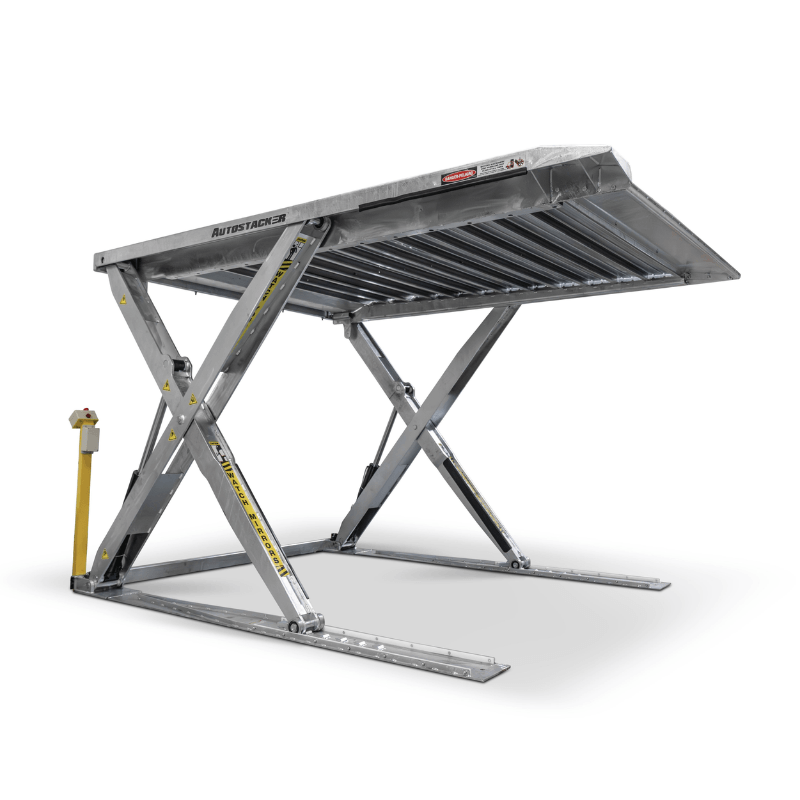

• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
• Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
• Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
• Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
• Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
• Patented asymmetric scissor arms provide greater underside door clearance
• Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings

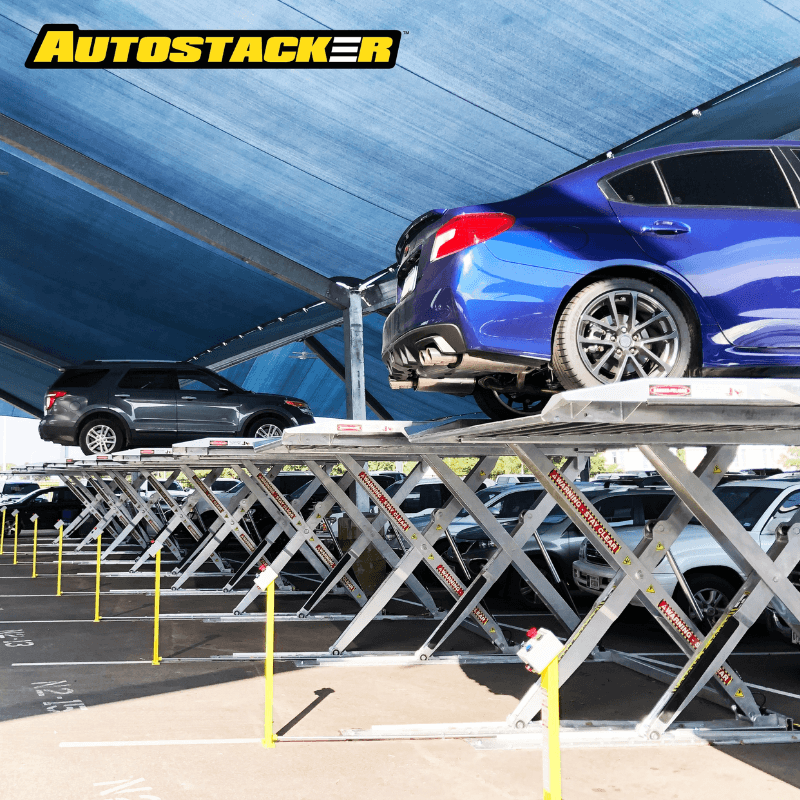

• Space‐saving design is perfect for commercial or residential applications
• Minimal footprint fits a typical parking space
• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
• UL Listed electrical components meet National Electrical Code (NEC) requirements


BendPak A6S Documentation

 BendPak A6S Installation and Operations Manual

  BendPak A6S Product Brochure
