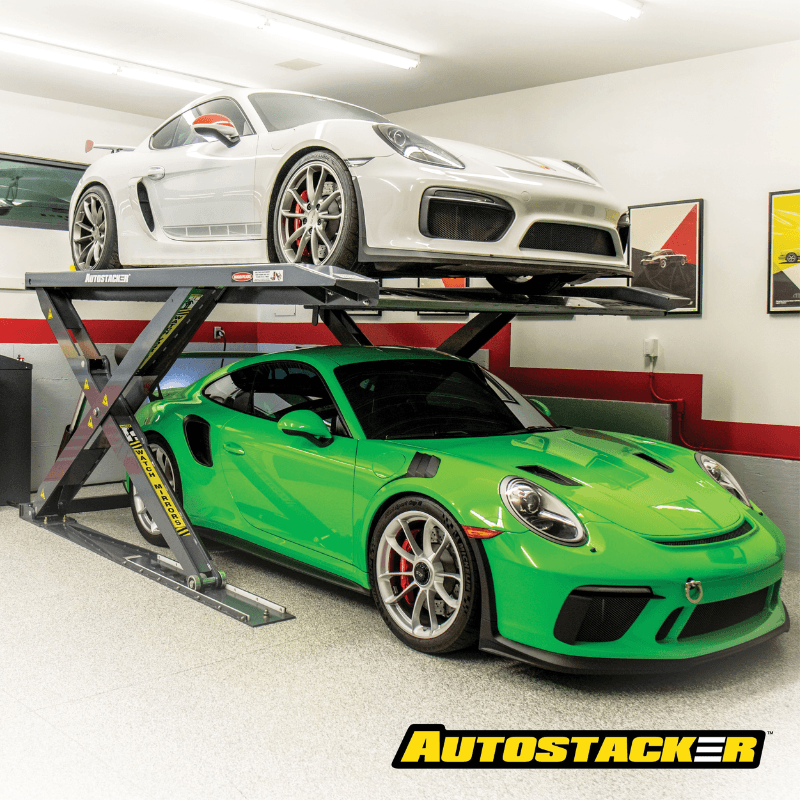

BendPak Autostacker A6W 6,000lb Vehicle Storage Lift - Extra Wide

Autostacker A6W 6,000lb Vehicle Storage Lift by BendPak

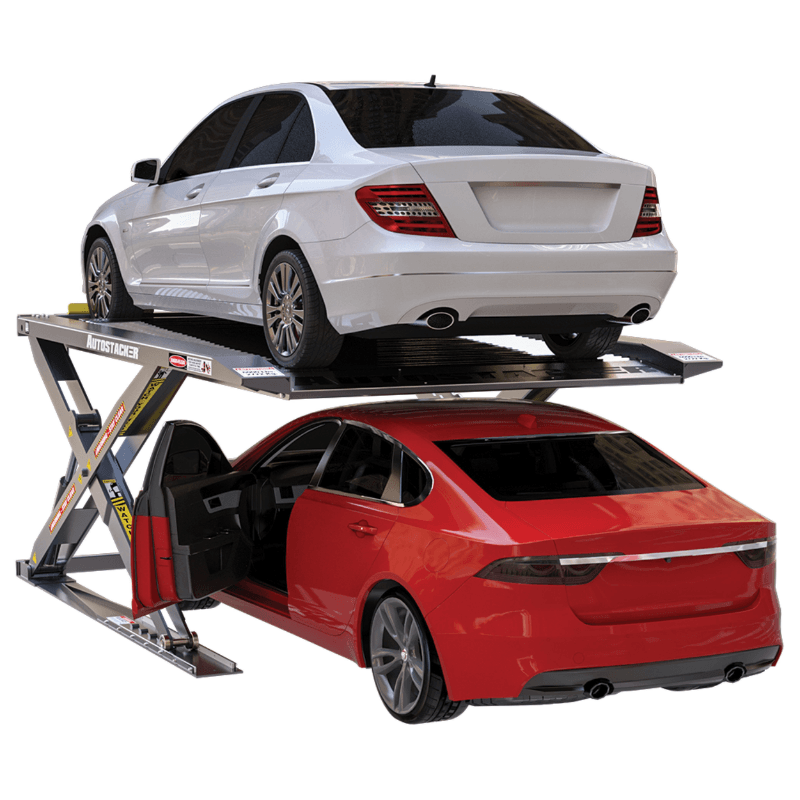

Fed up with squeezing into your garage and hoping your door doesn’t hit the wall (or your other car)? The BendPak Autostacker A6SW 6,000-lb. Parking Lift is here to rescue you. With an extra 8 inches of interior clearance, this lift makes parking your oversized SUV or truck a breeze. Say goodbye to the frustration of not having enough space to get in and out of your vehicle. You’ll have room to breathe, and your doors will thank you.

Not only does the A6SW give you that extra space, but it also does it with style. This lift is built to last with a galvanized steel platform, powder-coated finish, and patented asymmetric scissor arms. But don’t worry, it’s not all about looks – it’s packed with features like Door-Sentry rubber protectors to prevent any unexpected scratches. Thanks to its cable-free design and high-quality components, this lift is low-maintenance and high-performance. It’s perfect for both home garages and commercial setups where efficiency meets sophistication.

Platform Vehicle Storage Lift A6W Specification

• Style: Multi-Platform Parking Lift
• Capacity:
  • Lifting Capacity: 6,000 lbs. (2,722 kg)
  • Overall Width: 111” (2,815 mm)
  • Overall Length: 143” (3,630 mm)
  • Platform Length: 124” (3,150 mm)
  • Platform Width: 91.75” (2,331 mm)
  • Platform Height (Forward): 13” (330 mm)
  • Ramp Height (Entry): 2” (51 mm)
  • Maximum Underclearance: 80” (2,032 mm)
  • Under Clearance on 1st Lock (Lowest): 52.5" (1,331 mm)
  • Under Clearance on 2nd Lock: 60.75" (1,543 mm)
  • Under Clearance on 3rd Lock: 68.5" (1,736 mm)
  • Under Clearance on 4th Lock: 75" (1,909 mm)
  • Under Clearance on 5th Lock (Highest): 81.25" (2,064 mm)
• Motor:
  • 208-240V, 50/60 Hz, 1-Phase
• Noise: 52 dB
• Shipping Weight: 3,350 lbs. (1,530 kg)
• Shipping Dimensions: 144'' x 28'' x 30'' (3,657 mm x 711 mm x 762 mm)
• Model Options:
  • All Units: Standard Console with PU
  • 220V: 208-240V, 50/60 Hz, 1-Phase
  • 110V: 110V, 50/60 Hz, 1-Phase
  • Galvanized: 208-240V, 50/60 Hz, 1-Phase

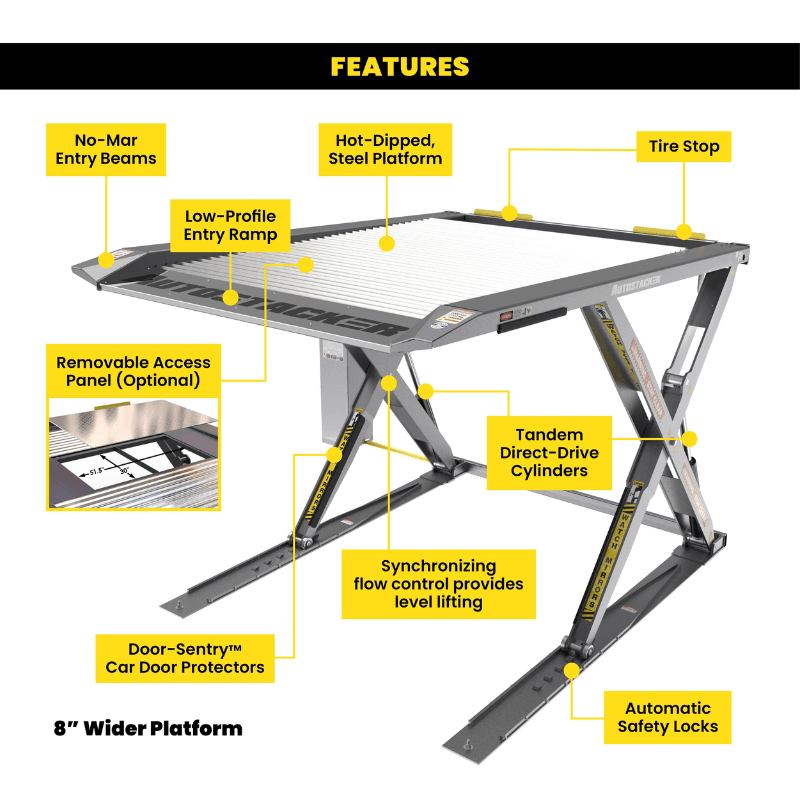

A6W 6,000-lb. Capacity Platform Vehicle Storage Lift Special Features

• 6,000‐lb. lifting capacity
• Extra-wide construction for increased door clearance
• Key‐switch disconnect fully disables operation for enhanced security
• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
• Accommodates cars, light trucks and SUVs
• Rugged, welded‐steel construction is strong and durable
• 100% hot‐dipped, galvanized steel platform
• Attractive slate gray, baked‐on powder coat finish provides added toughness

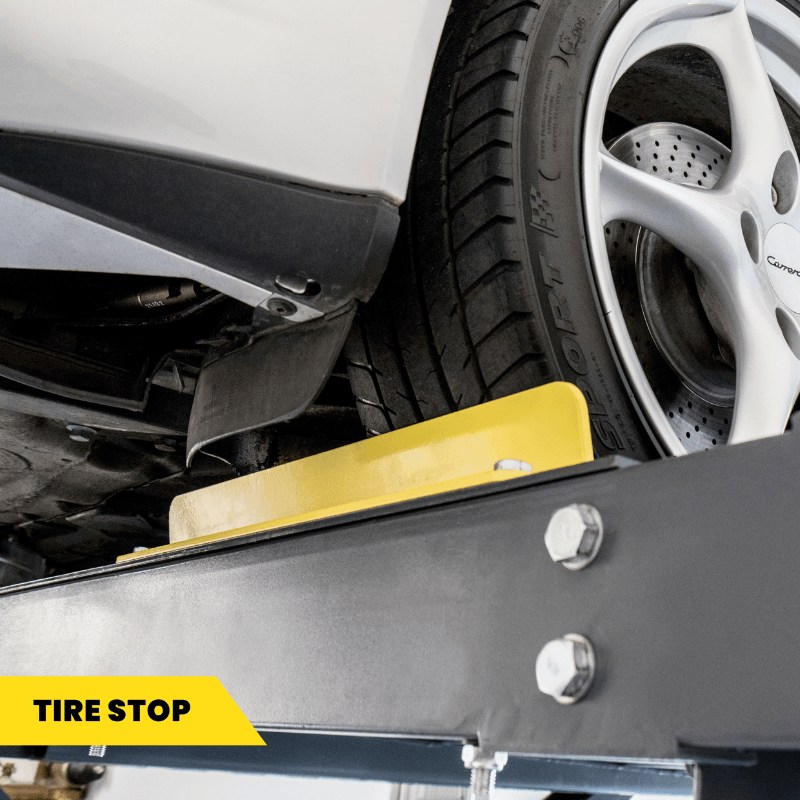

• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

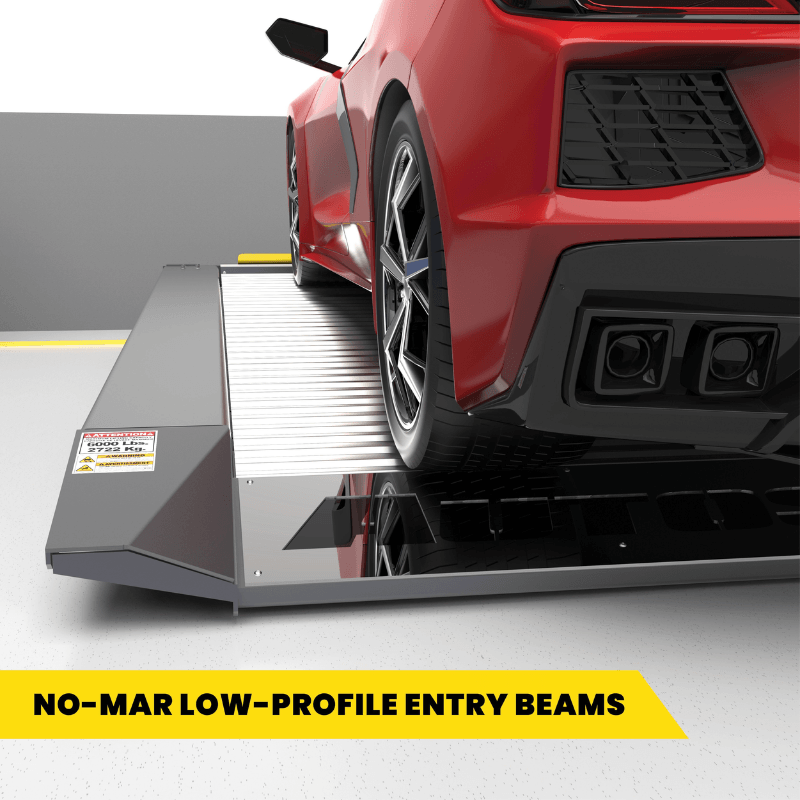

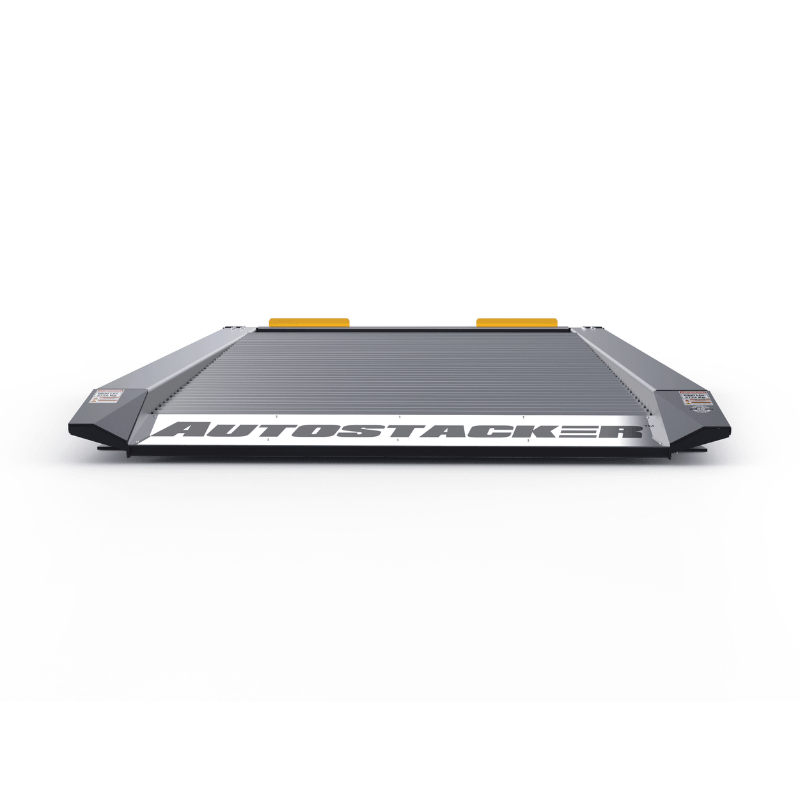

• Extra-wide, gradual sloping platform reduces entry ramp height

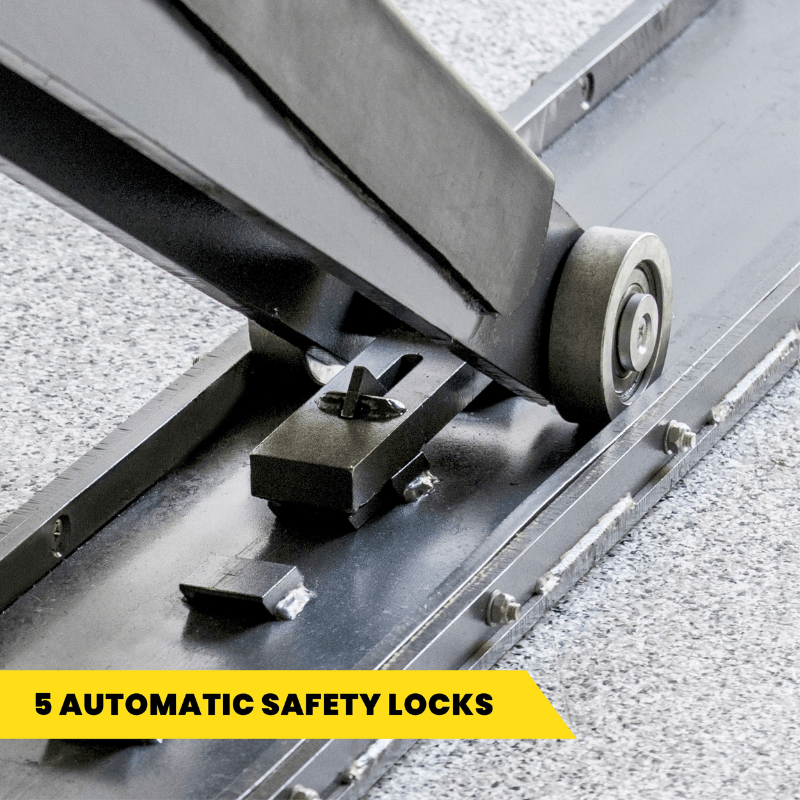

• Automatic safety locks engage at five different parking heights
• Simple push‐button controls

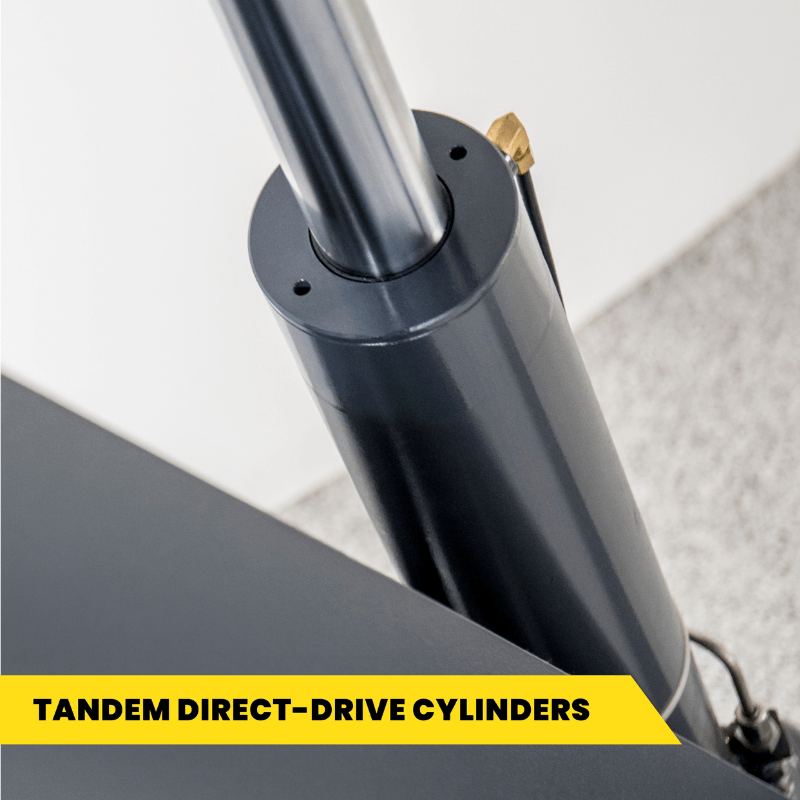

• Dual, direct‐drive hydraulic lifting cylinders
• Dependable hydraulic circuit that provides precise, equalized lifting
• Variable height parking accommodates a wide range of vehicle and ceiling heights
• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
• Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
• Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
• Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
• Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
• Patented asymmetric scissor arms provide greater underside door clearance
• Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
• Space‐saving design is perfect for commercial or residential applications
• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
• UL Listed electrical components meet National Electrical Code (NEC) requirements


BendPak A6W Documentation

 BendPak A6W Installation and Operations Manual

  BendPak A6W Product Brochure
