BendPak GP-10C 10,000lbs Capacity 2 Post Lift

GP-10C 10,000lbs Capacity 2 Post Lift by BendPak

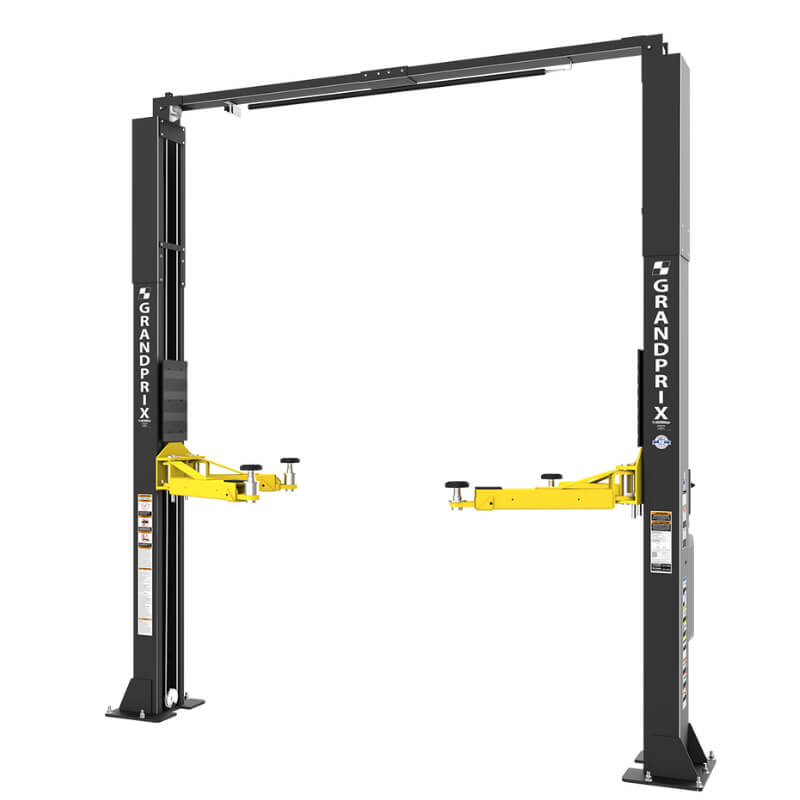

The GrandPrix GP-10C by BendPak is a robust 10,000-pound capacity two-post car lift engineered for both professional automotive shops and home garages. Its design accommodates a wide range of vehicles, from compact cars to full-size trucks, offering versatility for various lifting needs. The lift's symmetric and asymmetric lifting capabilities allow flexible arm positioning, ensuring optimal access to different vehicle types. Constructed with heavy-duty steel and featuring an electric-hydraulic power system, the GP-10C delivers reliable performance and longevity.

One of the standout features of the GP-10C is its clearfloor design, which eliminates the obstructive floor beam typically found in traditional two-post lifts. This design provides unrestricted movement beneath the vehicle, facilitating the use of tool carts, transmission jacks, and oil drains without hindrance. Additionally, the lift is equipped with triple-telescoping arms and a stackable adapter set, making vehicle positioning straightforward and efficient. Oversized base plates enhance stability, ensuring safety during lifting operations.

Grand Prix 10C Specification

• Lifting Capacity: 10,000 lbs. (4,536 kg)

• Max. Capacity / Front Axle: 5,000 lbs. (2,268 kg)

• Max. Capacity / Rear Axle: 5,000 lbs. (2,268 kg)

• Height Overall (A): 148" (3,759 mm)

• Width Overall at Baseplate (B): 137.5" (3,492 mm)

• Width Outside of Columns (C): 128.5" (3,264 mm)

• Floor to Overhead Switch Bar (D): 142.5" (3,619 mm)

• Width Inside Columns (E): 114.5" (2,908 mm)

• Front Arm Reach – Min (F): 22.5" (571 mm)

• Front Arm Reach – Max (F): 43.25" (1,099 mm)

• Rear Arm Reach – Min (G): 33.5" (845 mm)

• Rear Arm Reach – Max (G): 53.25" (1,353 mm)

• Minimum Pad Height (H): 3.9" (100 mm)

• Rise Height (I): 70" (1,778 mm)

• Max. Lift Height with 63mm Adapter (J): 76.5" – 78.5" (1,943 – 1,994 mm)

• Drive-Thru Clearance (K): 103" (2,618 mm)

• Screw Pad Adjustment: 2" (51 mm)

• Motor: 220 VAC / 60Hz / 1 Ph

• Time to Full Rise: 65 seconds

• Max. Load Per Arm: 2,500 lbs. (1,134 kg)

• Shipping Weight: 1,545 lbs. (703 kg)

GP-10C 10,000lbs Capacity 2 Post Lift Special Features

• 10,000-lb. lifting capacity for wide vehicle compatibility

• Symmetric and asymmetric arm design for versatile lifting

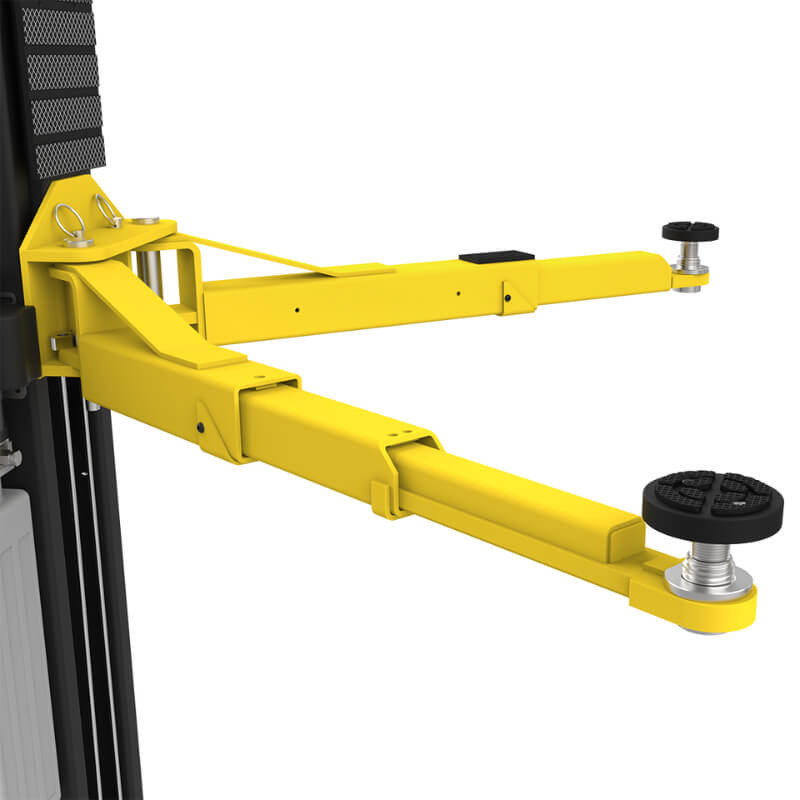

• Triple-telescoping front arms & dual-stage extended rear arms

• Heavy-duty high-strength leaf chain for dependable lifting power

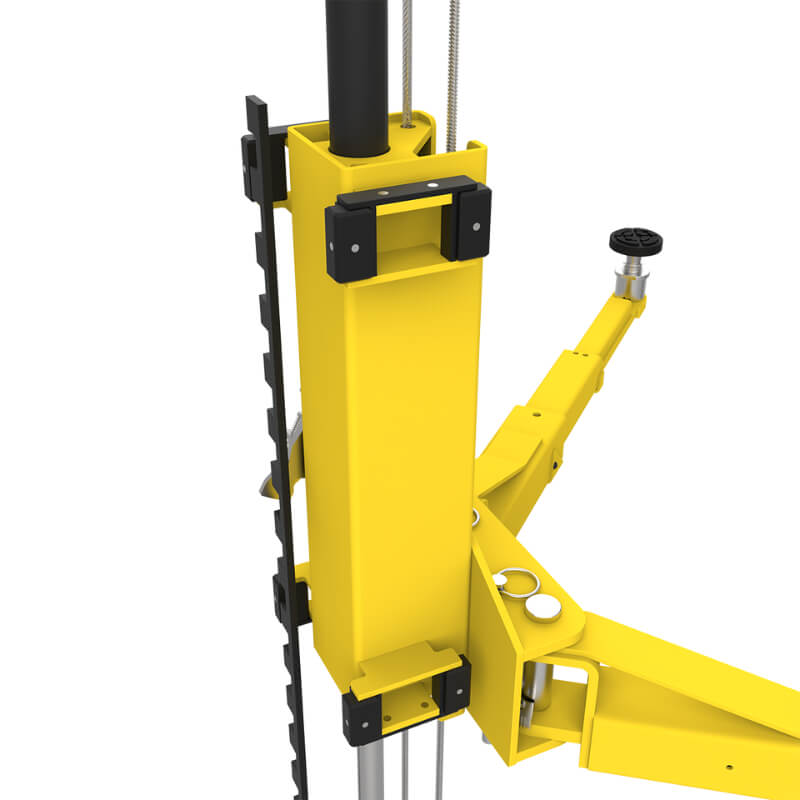

• Reinforced 6" x 6" tubular steel carriage for superior durability

• Smooth and efficient electric-hydraulic power system

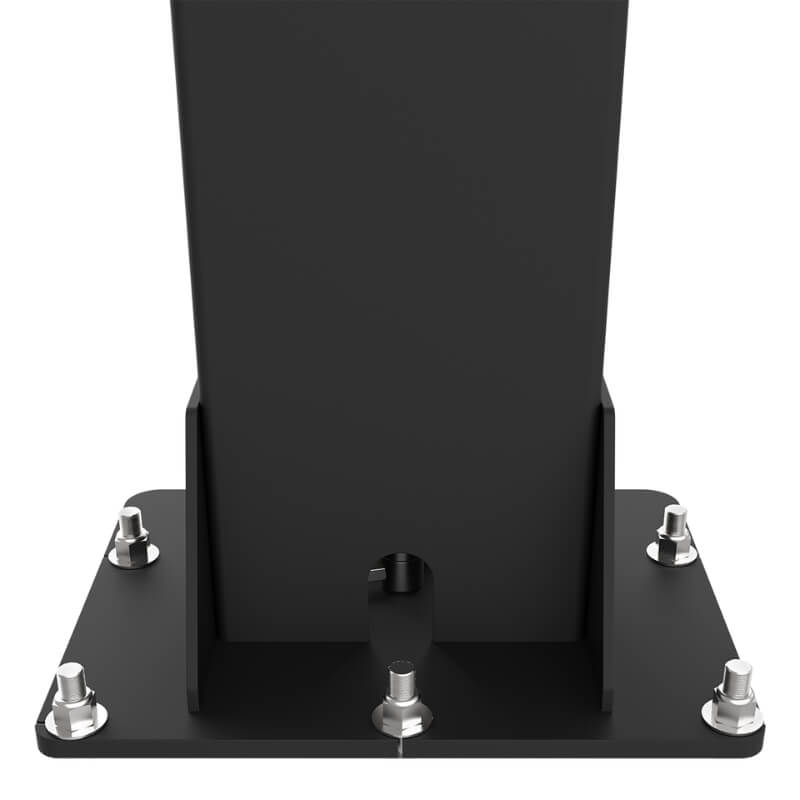

• Oversized 20.5" x 15.5" base plates for excellent floor stability

• Self-lubricating UHMW polyethylene guide blocks for reduced maintenance

• Safety locks in each column spaced every 3 inches

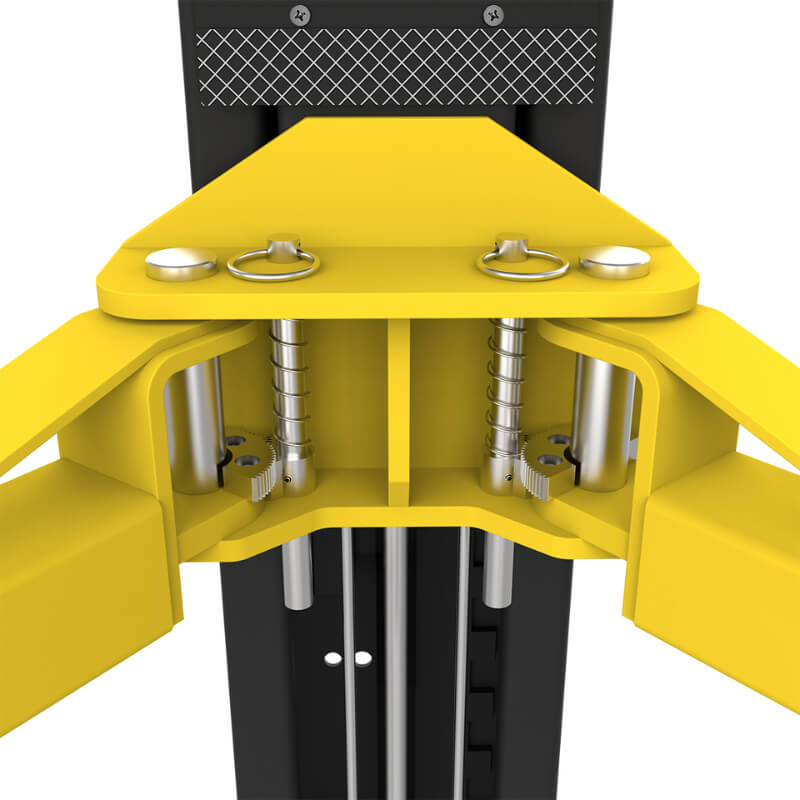

• Automatic arm restraints for added safety

• 1/2" aircraft-grade equalizer cables for balanced lifting

• Large-diameter cable sheaves to extend cable lifespan

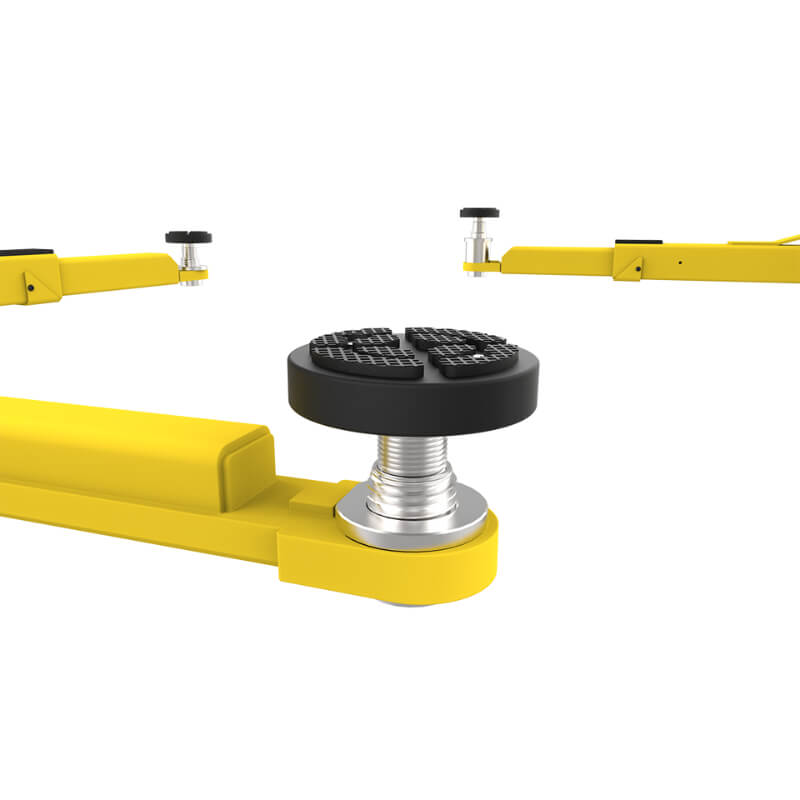

• Double-telescoping screw pads with tear-resistant polyurethane coating

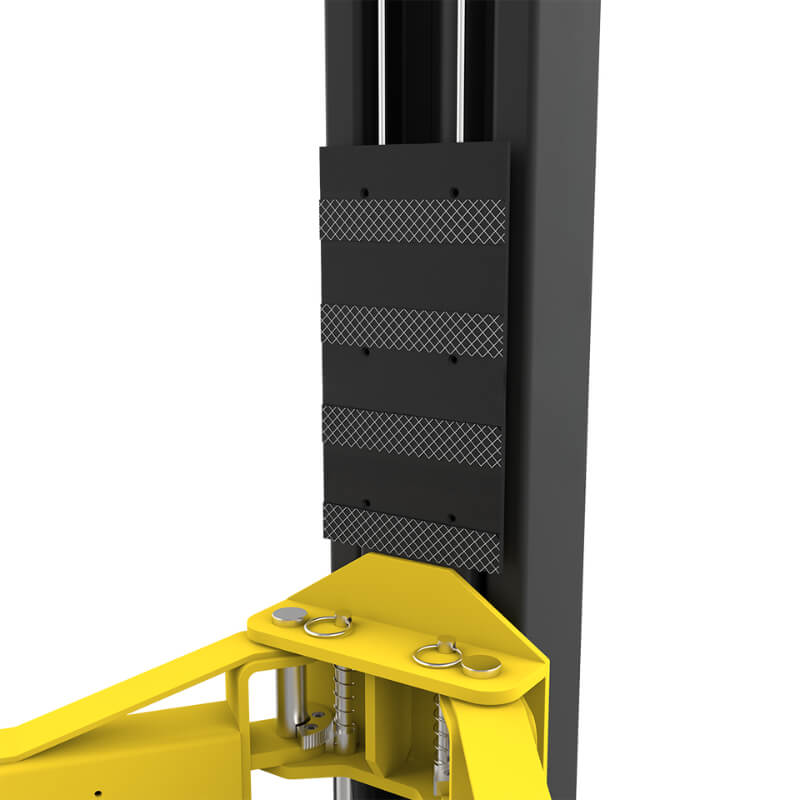

• Rubber carriage guards to minimize vehicle door dings

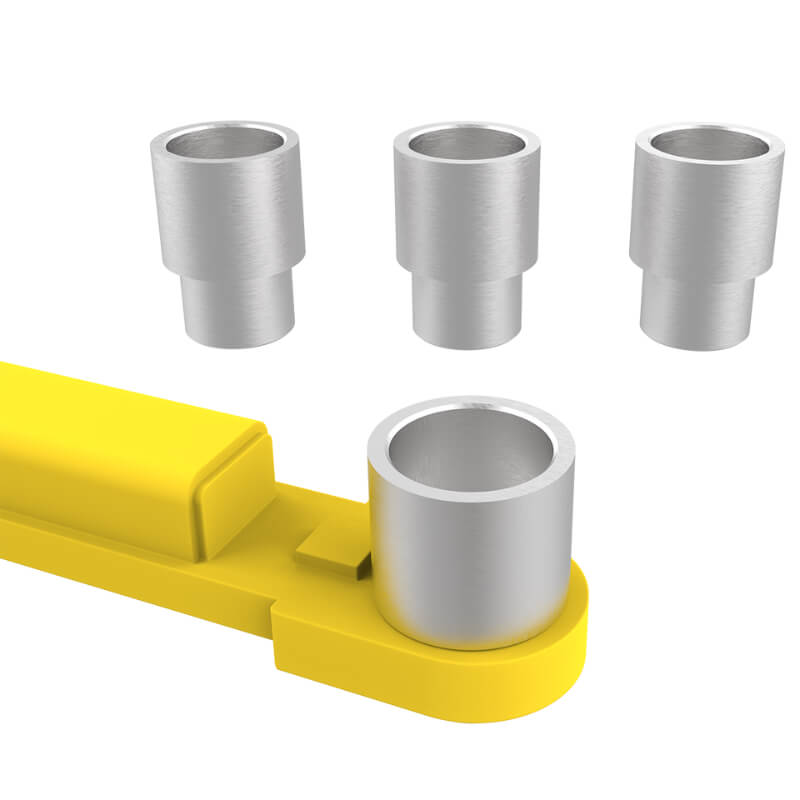

• 4-piece 63mm stackable adapter set included for lift height customization

• 10-piece concrete wedge anchors included for secure installation

• Warranty

  • 36-month limited structural warranty coverage
