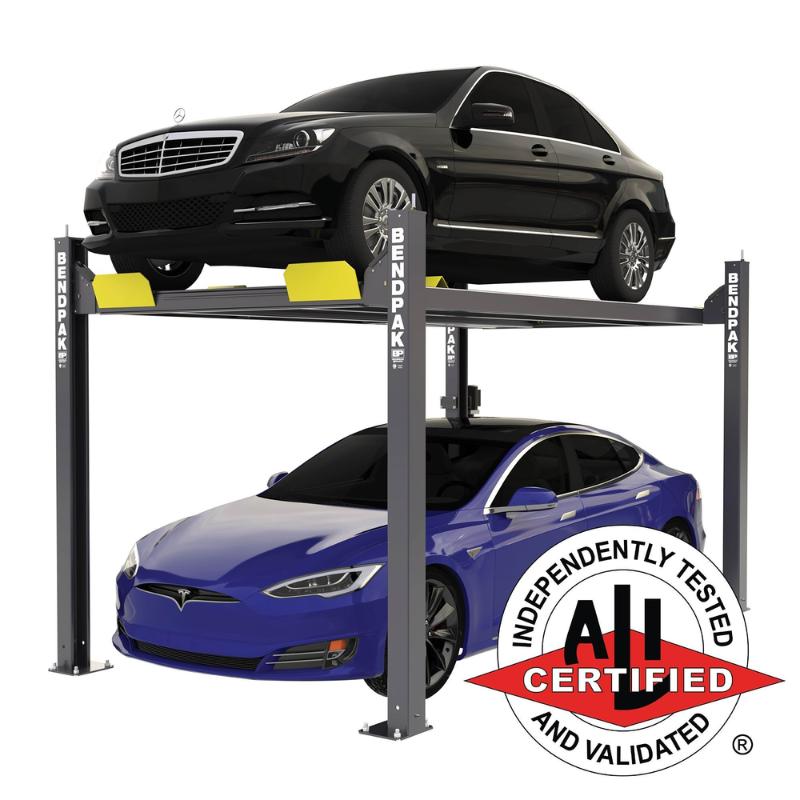

HD-7P 7,000lb 4 Post Lift - Narrow Extended Height by BendPak Side View

BendPak HD-7P 7,000lb 4 Post Lift - Narrow, Extended Height

SKU 5175510
by BendPak
  • ✓ Free Shipping
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited
$5,395.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

HD-7P 7,000lb 4 Post Lift by BendPak

Your garage deserves more than a cramped layout and slow tools, and the BendPak HD-7P 4-Post Lift is here to change the game. This compact yet mighty lift offers a 7,000-lb. capacity, perfect for everything from sleek sports cars to heftier vehicles. Struggle no more with loading thanks to its longer approach ramps and protective minimum height of just 5 inches. With an electric-hydraulic power system and aircraft-grade cables, every lift is smooth, fast, and reliable.

Still worried about safety? The multi-level automatic locks, secondary slack-cable features, and 17 locking positions ensure secure and flexible lifting every time. Maximize your space with a sleek 100.25-inch overall width, while the 85.75-inch max lifting height lets you tackle parking and maintenance with ease. Built for convenience and style, this lift’s clean design and optional rolling jack (Model RJ-45) make it the perfect addition to your garage or workshop. Why settle for less when your vehicles deserve the best?

4 Post Lift HD-7P Specifications

Capacity

  • Lifting Capacity: 7,000 lbs. (3,175 kg)
  • Max Capacity (Front Axle): 3,500 lbs. (1,588 kg)
  • Max Capacity (Rear Axle): 3,500 lbs. (1,588 kg)

Rise

  • Min. Runway Height: 5" (127 mm)
  • Max. Rise: 82" (2,083 mm)
  • Max. Lifting Height: 85.75" (2,178 mm)
  • Time to Full Rise: 35 seconds

Outside Dimensions

  • Overall Width: 100.25" (2,546 mm)
  • Outside Length: 174" (4,420 mm)
  • Overall Length: 200.5" (5,093 mm)
  • Height of Columns: 100" (2,540 mm)

Inside Dimensions

  • Width Between Columns: 90.25" (2,292 mm)
  • Drive-Thru Clearance: 76.5" (1,943 mm)

Runways

  • Runway Width: 19" (483 mm)
  • Length of Runways: 158.25" (4,020 mm)
  • Width Between Runways: 34.5" (876 mm)
  • Runway Centerline: 56.5" (1,435 mm)
  • Outside Edge of Runways: 75.5" (1,918 mm)

Minimum Wheelbase

  • Rated Capacity: 115" (2,921 mm)
  • 75% Capacity: 100" (2,540 mm)
  • 50% Capacity: 85" (2,159 mm)
  • 25% Capacity: 70" (1,778 mm)

Locking

  • Locking Positions: 17
  • Lock Spacing: Every 4" (102 mm)

Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise Level: 45 dB

Shipping

  • Weight: 1,756 lbs. (796 kg)
  • Dimensions: 167" x 22" x 28" (4,242 mm x 558 mm x 711 mm)
  • Warranty
    5 Year - Lift Structure
    2 year - Hydraulic Unit & Power Unit
    1 Year - Electrical and Operating Components
    *Reasonable labor costs covered for first 12 months

HD-7P 7,000lb 4 Post Lift Special Features

  • 7,000-lb. maximum lifting capacity
  • High lift with short runways
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column

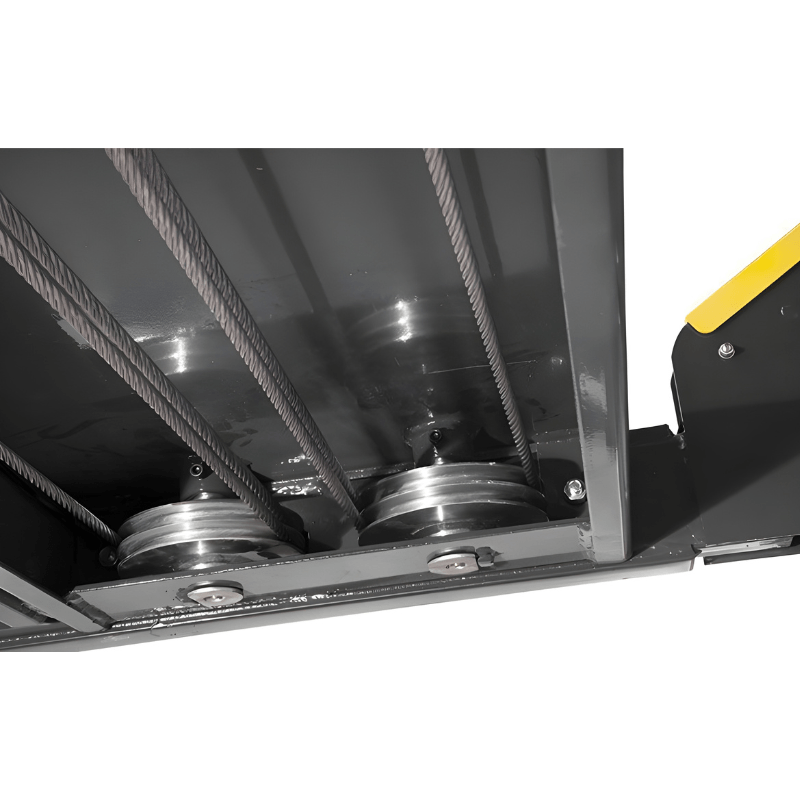

  • Oversized self-lubricating cable rollers
  • High-speed lifting

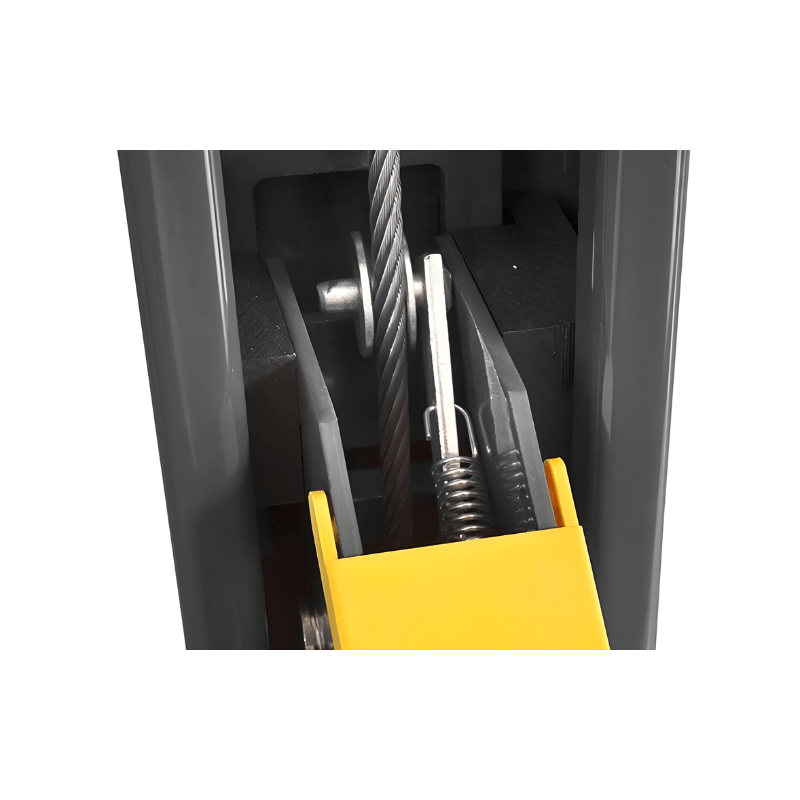

  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Optional Item(Sold Separately)
    • Optional 4,500-lb. capacity rolling jack available (Model RJ-45)

BendPak HD-7W Documentation

BendPak HD-7P Installation and Operations Manual  BendPak HD-7P Installation and Operations Manual

BendPak HD-7P Product Brochure   BendPak HD-7P Product Brochure

Warehouse Pickup Locations: $400 Pickup Discount Available - Contact us for more information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582

BendPak HD-7P Diagram

BendPak HD-7W Diagram
