BendPak HD-973PX Tri-Level Vehicle Storage Lift Extra Long

HD-973PX Tri-Level Vehicle Storage Lift Extra Long by BendPak

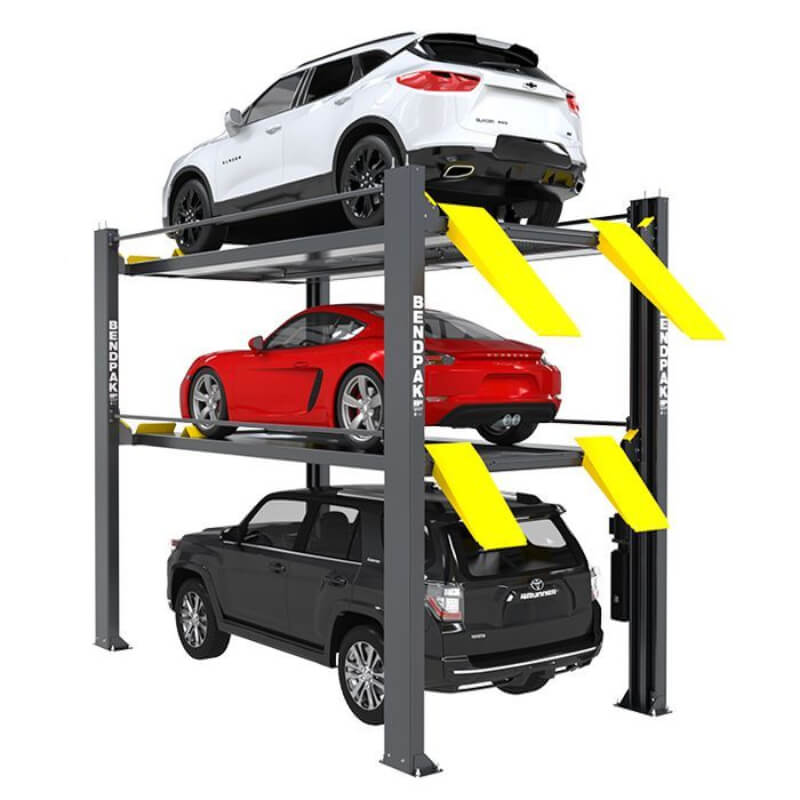

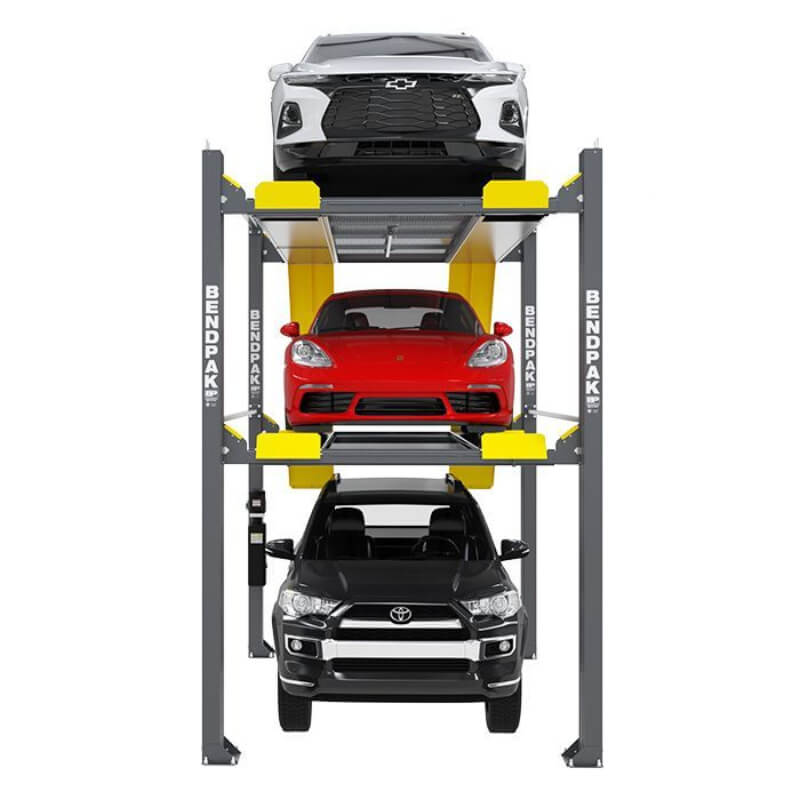

Elevate your parking game with the HD-973PX by BendPak — a tri-level parking lift designed to triple your vehicle storage without expanding your footprint. With a massive 9,000 lb. capacity on the lower deck and 7,000 lb. capacity on the upper deck, this rugged four-post lift is ideal for stacking sedans, SUVs, and even full-size trucks. Its extended platform length and taller column height make it perfect for accommodating longer and boxier vehicles while maintaining a space-efficient design for shops or residential garages.

Unlike traditional triple-stackers, the HD-973PX features independently operated lifting platforms. This allows you to raise or lower each level without affecting the others, giving you total flexibility to access specific vehicles without unnecessary repositioning. Built for maximum safety and performance, the system includes multi-position safety locks every 4 inches, anti-fall devices, and hydraulic flow restrictors for a controlled descent in the unlikely event of hose failure.

Built with BendPak’s trademark heavy-duty steel construction and finished in a durable powder coat, the HD-973PX is suitable for indoor or outdoor installations. Its smart, space-saving engineering cuts down on material cost while delivering unmatched lifting power and reliability. Whether you're a car enthusiast with multiple vehicles or a business in need of vertical parking solutions, this lift offers strength, versatility, and peace of mind — all in one high-performance package.

Storage Lift HD-973PX Specification

Style & Configuration

• Multi-level parking lift

• Independent top and bottom platforms

Top Platform Specs

• Lifting Capacity: 7,000 lbs. (3,175 kg)

  • Max Front Axle: 3,500 lbs. (1,588 kg)

  • Max Rear Axle: 3,500 lbs. (1,588 kg)

• Overall Width: 110.5" (2,807 mm)

• Overall Length: 252.25" (6,409 mm)

• Height of Columns: 169.75" (4,312 mm)

• Drive-thru Clearance: 86.5" (2,197 mm)

• Maximum Rise: 151.5" (3,849 mm)

• Maximum Lifting Height: 156" (3,988 mm)

• Distance Between Columns: 100" (2,546 mm)

• Runway Width: 19" (482 mm)

• Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

• Runway Length: 208.5" (5,296 mm)

• Minimum Wheelbase:

  • @ Rated Capacity: 140" (3,556 mm)

  • @ 75% Capacity: 120" (3,084 mm)

  • @ 50% Capacity: 100" (2,540 mm)

  • @ 25% Capacity: 80" (2,032 mm)

• Locking Positions: 34

• Locking Spacing: Every 4" (102 mm)

• Lifting Time to Max Rise: 90 seconds

• Motor: 220 VAC / 60 Hz / 1 Ph

Bottom Platform Specs

• Lifting Capacity: 9,000 lbs. (4,082 kg)

  • Max Front Axle: 4,500 lbs. (2,041 kg)

  • Max Rear Axle: 4,500 lbs. (2,041 kg)

• Overall Width: 110.5" (2,807 mm)

• Overall Length: 252.25" (6,409 mm)

• Height of Columns: 169.75" (4,312 mm)

• Drive-thru Clearance: 86.5" (2,197 mm)

• Maximum Rise: 82" (2,083 mm)

• Maximum Lifting Height: 84.5" (2,210 mm)

• Distance Between Columns: 100" (2,546 mm)

• Runway Width: 19" (482 mm)

• Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

• Runway Length: 208.5" (5,296 mm)

• Minimum Wheelbase:

  • @ Rated Capacity: 135" (3,429 mm)

  • @ 75% Capacity: 115" (2,921 mm)

  • @ 50% Capacity: 95" (2,413 mm)

  • @ 25% Capacity: 75" (1,905 mm)

• Locking Positions: 16

• Locking Spacing: Every 4" (102 mm)

• Lifting Time to Max Rise: 50 seconds

• Motor: 220 VAC / 60 Hz / 1 Ph

Shipping

• Shipping Weight: 5,932 lbs. (2,691 kg)

BendPak HD-973PX Storage Lift Special Features

• Extended length, high rise
• Perfect for parking, storage and service
• 7,000 lb. capacity upper deck
• 9,000 lb. capacity lower deck
• Superstructure features durable powder coat finish
• Perfect for cars, trucks, and SUVs
• Platforms feature full-length aluminum decking
• Rugged welded-steel construction
• Powerful hydraulic cylinders
• Heavy-duty 3/8” lifting cable
• Heavy-duty steel construction
• Wide base-plate for maximum stability
• Heavy-duty steel construction
• Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
• Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
• Reliable electric-hydraulic power system
• Multi-position safety locks in each column
• Automatic safety locks combined with redundant anti-fall devices
• Adjustable lock ladders
• Independent backup slack-cable safety latches
• Push-button pneumatic safety release.
• Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
• Simple controls
• Optional drive-thru ramps available
• Optional 4,500-lb. air-hydraulic rolling jacks available

• Warranty
  • Two Years (24‐Months) Warranty on the lift structure
  • One Year (12‐Months) Warranty on the hydraulic cylinder(s) and power unit

  • One Year (12‐Months) Warranty on operating components

  • One Year (12‐Months) Warranty on electrical components (excluding power unit)

  • One Year (12‐Months) Labor Warranty on site or at factory

HD-973PX Manual

  BendPak HD-973P Installation and Operations Manual

  BendPak HD-973PX Sales Sheet
