HD-9A 9,000lb Alignment Lift - Extended Length by BendPak Side View

BendPak HD-9A 9,000lb Alignment Lift - Extended Length

SKU HD-9AE
by BendPak
  • ✓ Free Shipping
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • ✓ Ships in 3-5 Business Days
  • ✓ Better Business Bureau (BBB) Accredited
$8,695.00
Address Type (Required Field)
Delivery Options (Required Field)
*We will find nearest location

Notify me when back in stock

HD-9A 9,000lb Alignment Lift by BendPak

Tired of lifts that limit your efficiency and precision? Dealing with alignment frustrations, wasted time, and tools that don’t meet your shop’s needs can hurt your productivity and reputation. Misaligned results and slow, inefficient equipment can mean unhappy customers and lost business opportunities.

The BendPak HD-9A is the solution you’ve been waiting for. Designed to lift up to 9,000 lbs., it features an impressive lifting height of 76.9", a fast 60-second rise time, and multiple locking positions for optimal versatility. Advanced alignment features, extended-length runways, and compatibility with modern alignment systems make this lift a game-changer. Built for durability with aircraft-quality cables and a corrosion-resistant finish, it’s reliable, professional, and easy to use. Upgrade to the HD-9A today and take your shop to the next level!

Alignment Lift HD-9A Specification

  • Lifting Capacity:

    • Maximum: 9,000 lbs. (4,082 kg)
    • Front Axle: 4,500 lbs. (2,041 kg)
    • Rear Axle: 4,500 lbs. (2,041 kg)

  • Rise Specifications:

    • Minimum Runway Height: 7" (178 mm)
    • Maximum Rise: 70" (1,778 mm)
    • Maximum Lifting Height: 76.9" (1,953 mm)
    • Time to Full Rise: 60 seconds

  • Outside Dimensions:

    • Overall Width: 127" (3,226 mm)
    • Outside Length: 198" (5,029 mm)
    • Overall Length: 224.25" (5,696 mm)
    • Height of Columns: 88" (2,235 mm)

  • Inside Dimensions:

    • Width Between Columns: 117" (2,972 mm)
    • Drive-Thru Clearance: 103.5" (2,629 mm)

  • Runway Specifications:

    • Runway Width: 19" (483 mm)
    • Runway Length: 181.75" (4,616 mm)
    • Width Between Runways: 37" (940 mm)

  • Alignment Capability:

    • Minimum 4-Wheel Alignment: 71" (1,803 mm)
    • Maximum 4-Wheel Alignment: 145" (3,683 mm)
    • Maximum 2-Wheel Alignment: 160" (4,064 mm)

  • Minimum Wheelbase:

    • Rated Capacity: 135" (3,429 mm)
    • 75% Capacity: 115" (2,921 mm)
    • 50% Capacity: 95" (2,413 mm)
    • 25% Capacity: 80" (2,032 mm)

  • Locking System:

    • Locking Positions: 14
    • Lock Spacing: 4

  • Power Unit:

    • Motor: 220 VAC / 60 Hz / 1 Ph
    • Noise Level: 45 dB

  • Shipping Details:

    • Weight: 2,276 lbs. (1,032 kg)
    • Dimensions: 190'' x 22'' x 30'' (4,826 mm x 558 mm x 762 mm)

HD-9A 9,000lb Alignment Lift Special Features

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493

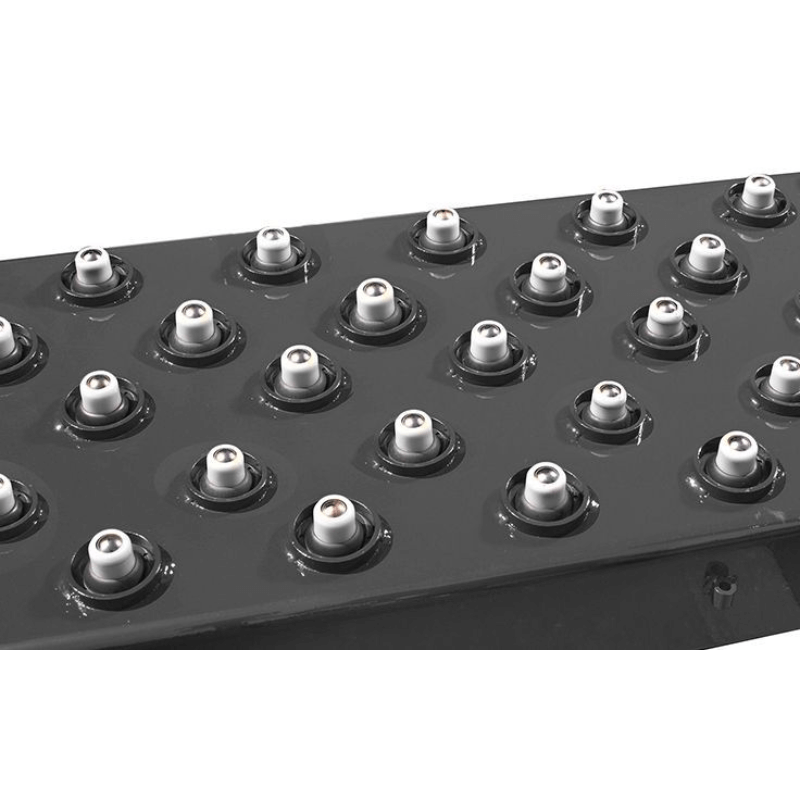

  • Multi-caster slip plates
  • Dual radius plate positions

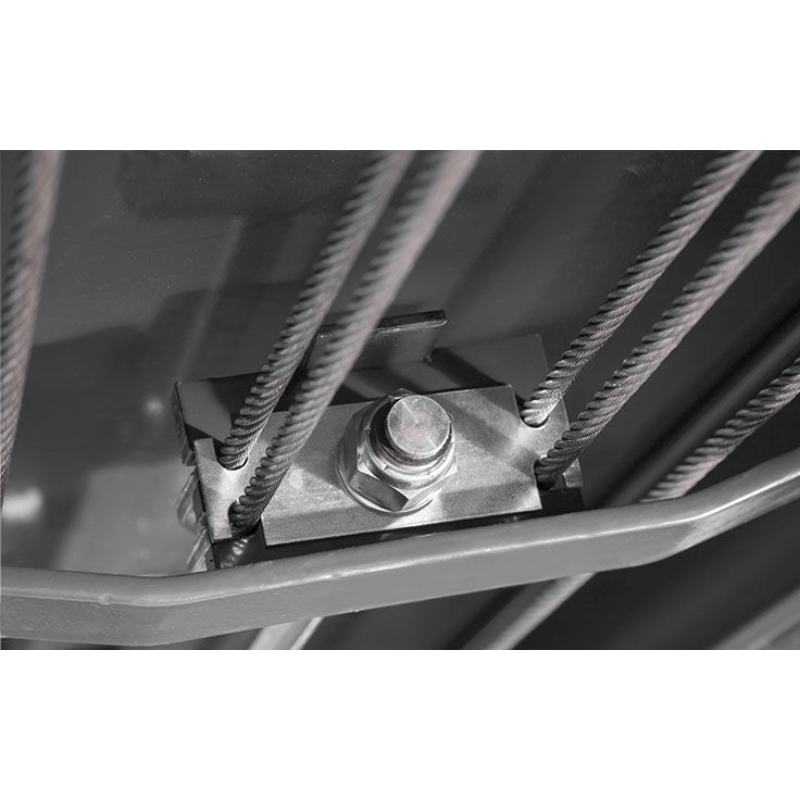

  • Heavy-duty stainless steel lifting cables
  • Dual-hub cable sheaves
  • Grease nipples on every sheave and sheave axle
  • Single hydraulic cylinder
  • Integrated hydraulic flow restrictor
  • Durable powder-coat finish
  • Spring-loaded safety locks
  • Simple push-button lock release
  • Aircraft-quality stainless steel and aluminum pneumatic cylinders
  • Secondary lock system
  • Fully enclosed cables, airlines, safety latches and sheaves
  • Multiple adjustable height locking positions
  • Maintenance-free power system
  • Easy-to-reach operator controls
  • Runways feature a durable matte finish

BendPak HDS14LSX Documentation

BendPak HD-9A Installation and Operations Manual  BendPak HD-9A Installation and Operations Manual
BendPak HD-9A Product Brochure  BendPak HD-9A Product Brochure
