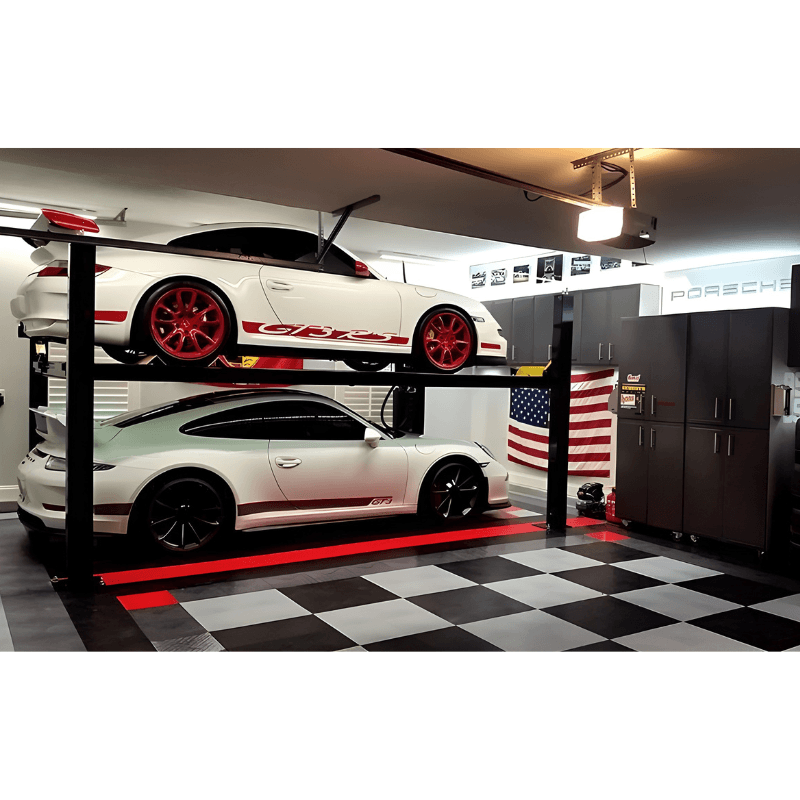

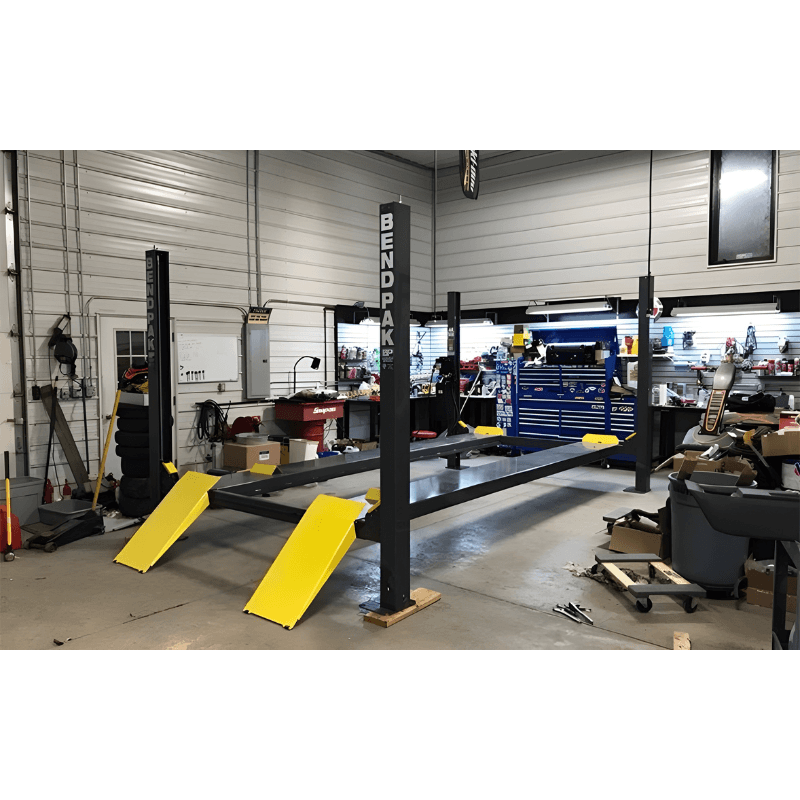

HD-9ST 9,000lb 4 Post Lift - Narrow Width by BendPak Side View

BendPak HD-9ST 9,000lb 4 Post Lift - Narrow Width

SKU 5175860
by BendPak
  • ✓ Contact us for the BEST Price!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • ✓ Price Includes Free Shipping!
  • ✓ Discounted Warehouse Pickup Options!
$6,295.00

Delivery Options

Notify me when back in stock

HD-9ST 9,000lb 4 Post Lift by BendPak

Making the most of limited garage space can feel like an uphill battle, especially when your tools and vehicles need room to breathe. Cramped conditions often mean compromising on performance or safety, and that's the last thing any professional or hobbyist wants.

Enter the BendPak HD-9ST 9,000-lb. 4-Post Lift—engineered specifically for compact spaces. Its slim, freestanding design fits smaller garages without sacrificing lifting power or safety. With ALI certification, an electric-hydraulic power system, and adjustable lock positions, this lift tackles up to 9,000 lbs. with ease. Optional accessories like drip trays, rolling jacks, and longer ramps make it the perfect partner for maximizing space and productivity in your garage.

4 Post Lift HD-9ST Specification

Lifting Capacity: 9,000 lbs. (4,082 kg).

  • Max Capacity / Front Axle: 4,500 lbs. (2,041 kg).
  • Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg).

Rise

  • Minimum Runway Height: 4.5" (114 mm).

  • Maximum Rise: 70" (1,778 mm).

  • Maximum Lifting Height: 74.5" (1,892 mm).

  • Time to Full Rise: 50 seconds.

Outside Dimensions

  • Overall Width: 100.25" (2,546 mm).

  • Overall Length: 200" (5,080 mm).

  • Outside Length: 174" (4,420 mm).

  • Height of Columns: 88" (2,235 mm).

Inside Dimensions

  • Width Between Columns: 89.75" (2,280 mm).

  • Drive-Thru Clearance: 76.5" (1,943 mm).

Runways

  • Runway Width: 19" (483 mm).

  • Length of Runways: 164" (4,166 mm).

  • Width Between Runways: 37.5" (952 mm).

  • Runway Centerline: 56.5" (1,435 mm).

  • Outside Edge of Runways: 75.5" (1,918 mm).

Minimum Wheelbase

  • Rated Capacity: 115" (2,921 mm).

  • 75% Capacity: 100" (2,540 mm).

  • 50% Capacity: 85" (2,159 mm).

  • 25% Capacity: 70" (1,778 mm).

Locking

  • Locking Positions: 12.

  • Lock Spacing: Every 4" (102 mm).

Power Unit

  • Motor: 220 VAC / 60 Hz / 1Ph.

  • Noise Level: 45 dB.

Shipping

  • Weight: 1,592 lbs. (722 kg).

  • Dimensions: 167" x 22" x 28" (4,241 mm x 558 mm x 711 mm).

HD-9ST 9,000lb 4 Post Lift Special Features

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Two different ramp lengths to choose from
  • Narrow width for space efficiency
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway

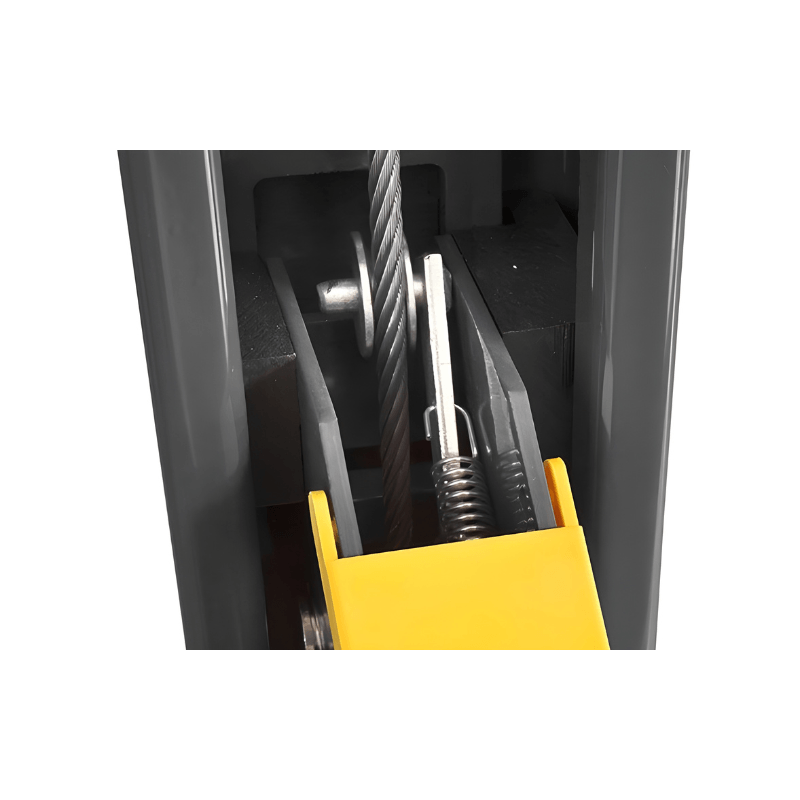

  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column

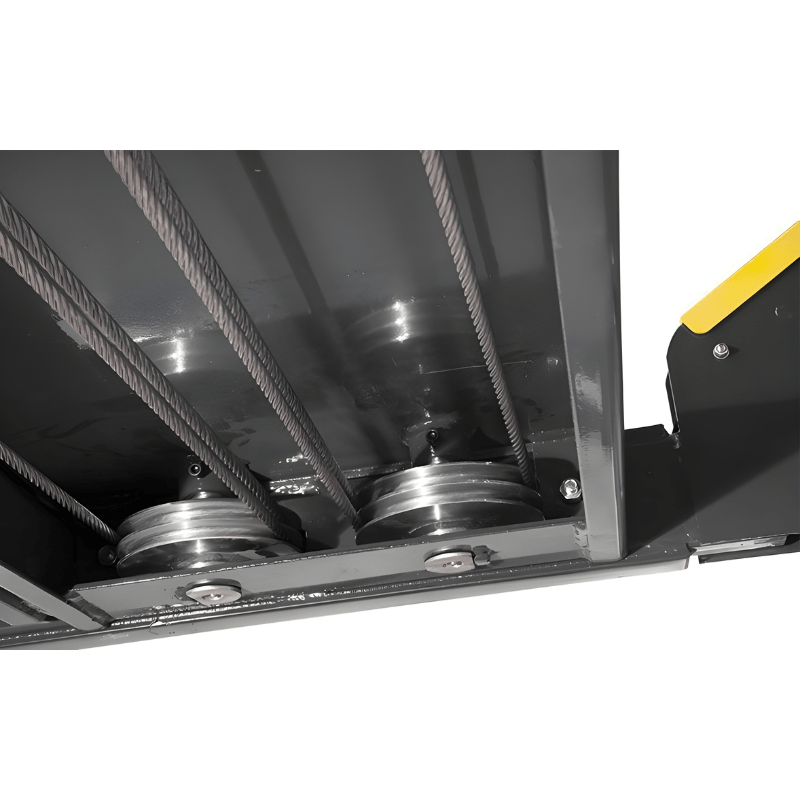

  • Oversized self-lubricating cable rollers

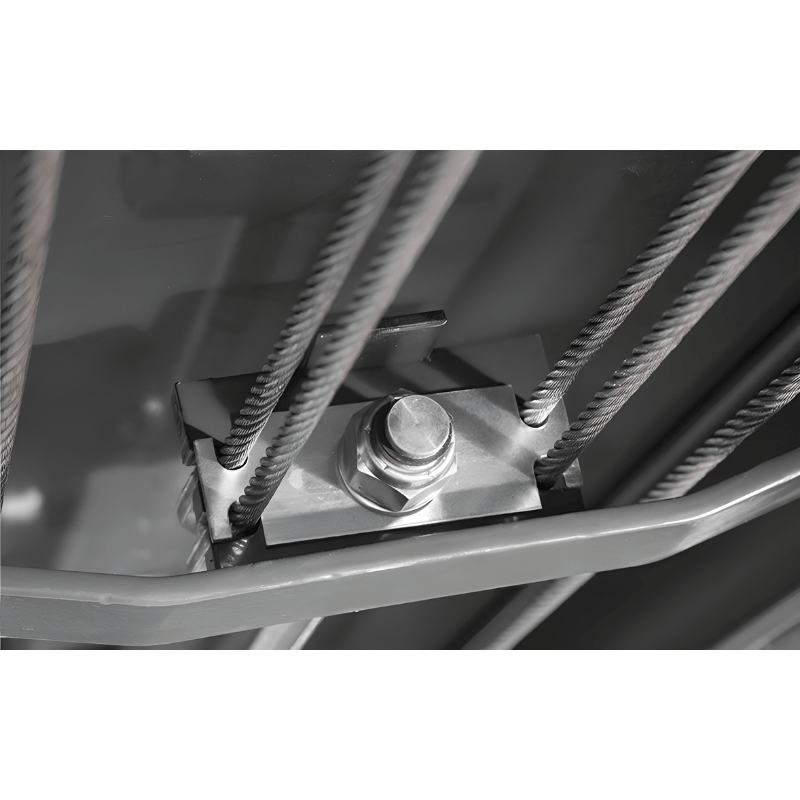

  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature a durable matte finish
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • ETL Approved
  • Warranty
    • 5 Year - Lift Structure
    • 2 year - Hydraulic Unit & Power Unit
    • 1 Year - Electrical and Operating Components
    • Reasonable labor costs covered for first 12 months

BendPak HD-9ST Documentation

BendPak HD-9ST Installation and Operations Manual   BendPak HD-9ST Installation and Operations Manual
BendPak HD-9ST Product Brochure   BendPak HD-9ST Product Brochure

BendPak HD-9ST 9,000lb 4 Post Lift Optional Item(Sold Separately)

Warehouse Pickup Locations: $400 Pickup Discount Available - Contact us for more information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582
BendPak HD-9ST 9,000lb 4 Post Lift - Narrow Width Diagram

A - Min. Runway Height: 4.5" (114 mm)
B - Max. Rise: 70" (1,778 mm)
C - Max. Lifting Height: 74.5" (1,892 mm)
D - Overall Width: 100.25" (2,546 mm)
E - Outside Length: 174" (4,420 mm)
F - Overall Length: 200" (5,080 mm)
G - Height of Columns: 88" (2,235 mm)
H - Width Between Columns: 89.75" (2,280 mm)
I - Drive-Thru Clearance: 76.5" (1,943 mm)
J - Runway Width: 19" (483 mm)
K - Length of Runways: 164" (4,166 mm)
L - Width Between Runways: 37.5" (952 mm)
M - Runway Centerline: 56.5" (1,435 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm)
