BendPak HD-9STX 9,000lb 4 Post Lift - Narrow Extended Height; ALI Certified

HD-9STX 9,000lb 4 Post Lift by BendPak

Small garages and limited floor space shouldn’t stop you from achieving professional-grade lifting power. Unfortunately, many lifts demand more room than you can spare, leaving you juggling vehicles or settling for less. Enter the BendPak HD-9STX, a high-rise, narrow-width four-post lift designed to solve your space constraints while offering robust performance. With a 9,000-lb. capacity and 82-inch rise, it handles SUVs, trucks, and standard vehicles effortlessly, transforming compact garages into efficient service hubs.

Crafted with convenience and safety in mind, the HD-9STX boasts adjustable lock ladders, independent backup slack-cable safety latches, and fully enclosed lifting cables. Its removable approach ramps and narrow design maximize usability, ensuring you can work comfortably even in tight quarters. Whether you’re a DIY enthusiast or a professional mechanic, this lift turns limited space into limitless potential.

BendPak 9STX Specification

• Total Lifting Capacity: 9,000 lbs

• Min. Runway Height: 5"

• Max. Rise: 82"

• Max. Lifting Height: 86.5"

• Time to Full Rise: 50 seconds

• Overall Width: 100.25"

• Outside Length: 198"

• Overall Length: 224"

• Height of Columns: 100"

• Width Between Columns: 89.75"

• Drive-Thru Clearance: 76.5"

• Runway Width: 19"

• Runway Length: 188"

• Width Between Runways: 37.5"

• Runway Centerline: 56.5"

• Outside Edge of Runways: 75.5"

• Minimum Wheelbase – Rated Capacity: 135"

• Minimum Wheelbase – 75% Capacity: 115"

• Minimum Wheelbase – 50% Capacity: 95"

• Minimum Wheelbase – 25% Capacity: 80"

• Locking Positions: 15

• Lock Spacing: Every 4"

• Noise Level: 45 dB

• Shipping Dimensions: 190" x 22" x 41"

• Motor: 220 VAC / 60 Hz / 1 Ph

HD 9STX 9,000lb 4 Post Lift Special Features

• 9,000-lb. maximum lifting capacity

• CE Approved and Certified (meets or exceeds EN-1493 standards)

• Freestanding design

• Narrow-width configuration

• High-rise lifting height

• Ideal for parking, storage, and service

• Runways accommodate narrow and standard vehicles

• Runways include rail-kit for optional accessories

• Electric / hydraulic power system

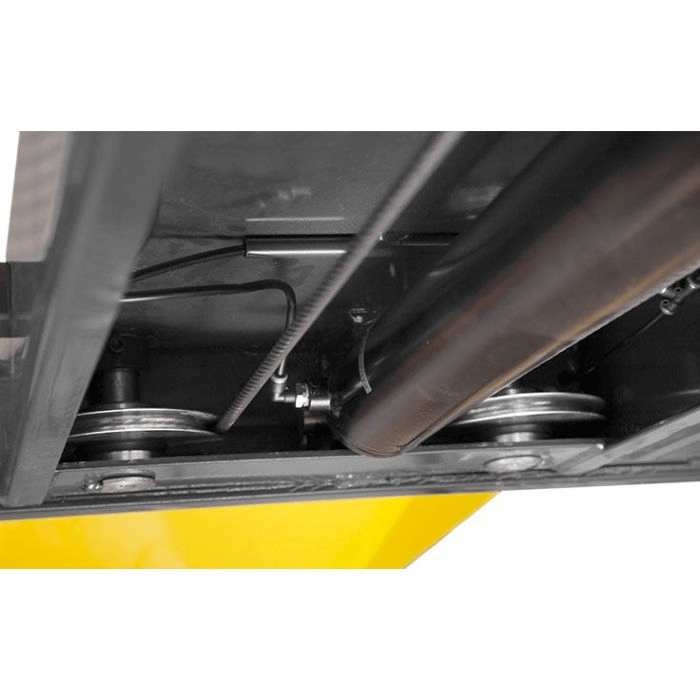

• Single hydraulic cylinder mounted underneath runway

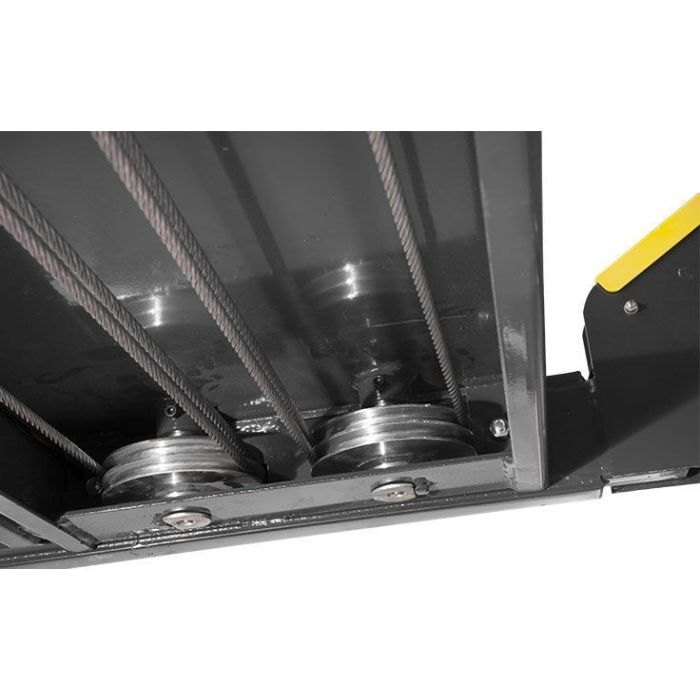

• Fully enclosed lifting cables, safety locks, and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Heavy-duty 3/8" aircraft cable

• Rugged 1.25" roller axles

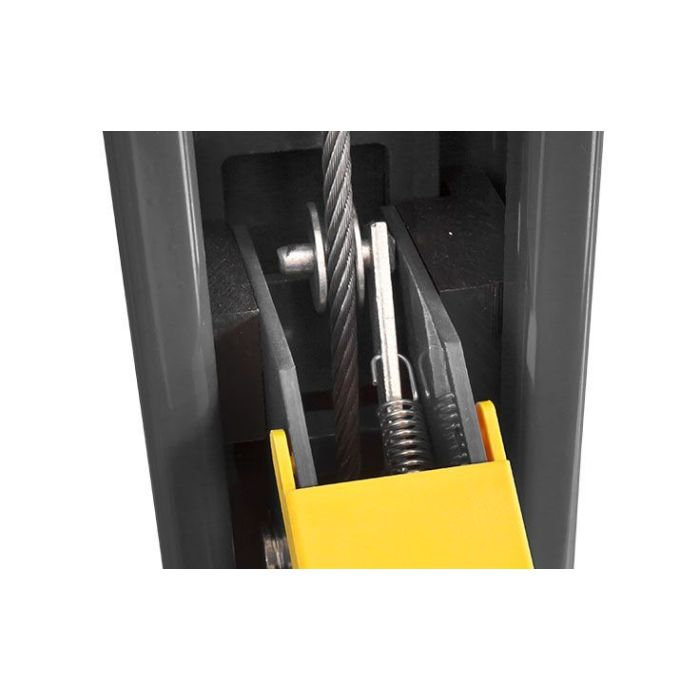

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature a durable matte finish

• Push-button pneumatic safety release

• Independent backup slack-cable safety latches

• Customizable power unit location

• Removable approach ramps for added drive-under clearance

• Longer approach ramps for low-ground clearance vehicles

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air/hydraulic rolling jacks available (Model RJ-45)

• ALI Certified

• Warranty
  • 5 Year - Lift Structure
  • 2 year - Hydraulic Unit & Power Unit
  • 1 Year - Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months

BendPak HD-9STX Manual

  BendPak HD-9STX Installation and Operations Manual

   BendPak HD-9STX Product Brochure
